Nutek ATNB Users Manual
Model APS-510E
5 Button Remote Security System
with Dual Stage Shock Sensor

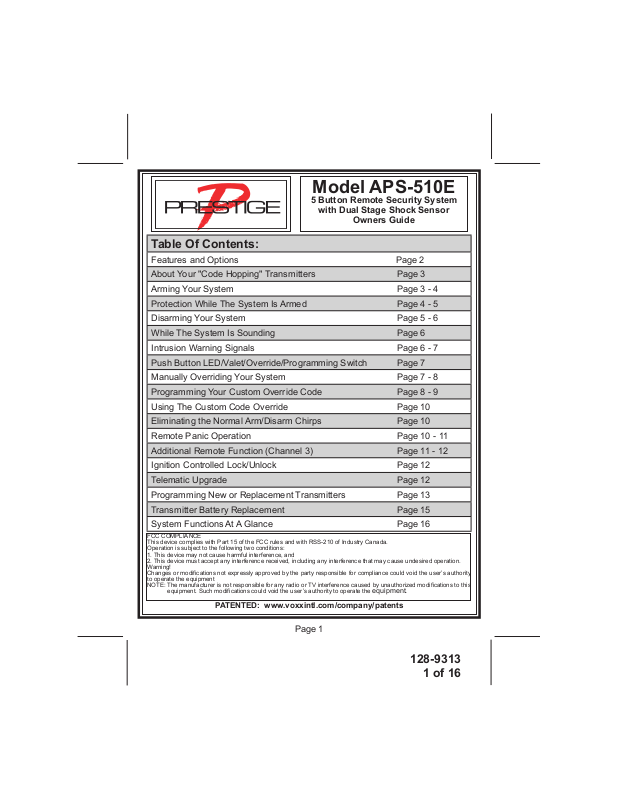

Table Of Contents:
Features and Options Page 2
About Your "Code Hopping" Transmitters Page 3
Arming Your System Page 3 - 4
Protection While The System Is Armed Page 4 - 5
Disarming Your System Page 5 - 6
While The System Is Sounding Page 6
Intrusion Warning Signals Page 6 - 7
Push Button LED/Valet/Override/Programming Switch Page 7
Manually Overriding Your System Page 7 - 8
Programming Your Custom Override Code Page 8 - 9
Using The Custom Code Override Page 10
Eliminating the Normal Arm/Disarm Chirps Page 10
Remote Panic Operation Page 10 - 11
Additional Remote Function (Channel 3) Page 11 - 12
Ignition Controlled Lock/Unlock Page 12
Telematic Upgrade Page 12
Programming New or Replacement Transmitters Page 13
Transmitter Battery Replacement Page 15
System Functions At A Glance Page 16
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that may cause undesired operation.
Warning!
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this
equipment. Such modications could void the user’s authority to operate the equipment.
PATENTED: www.voxxintl.com/company/patents
Owners Guide
Page 1
128-9313
1 of 16
IMPORTANT! In order to provide the highest possible level of security to your vehicle, this
system is equipped with selectable manual override circuitry. It is possible that you will need
to manually override your security system if the transmitter becomes lost, or inoperative due
to battery failure.
Reading the sections on "MANUALLY OVERRIDING YOUR SYSTEM" is necessary to fully
understand the procedure required to enable your vehicle in such situations.
In addition, the chart on the last page of this manual has a section for the particular features
and options installed in your vehicle as well as the override method selected.
Valet Switch manual override is pre-selected from the factory, however, the system can
be congured for "Custom Code" operation. Conrm the override mode selected on the last
page of this manual, and familiarize yourself with the selection on it's operation.
FEATURES :
2 Five Button Programmable RF Transmitters
Five Channel Receiver
Code Hopping Technology
Selectable Manual Override Mode
Remote Panic in all modes
Protected Valet
User Programmable Manual Override Code
7 Function LED (Light Emitting Diode) - Arm / Disarm / Zone 1, 2, 3 / Valet / Arming
Intrusion Alert with Memory
Audible Arm / Disarm / Defective Zone / Tamper Conrmation
Instant Siren Activation
Starter Disable
Additional Engine Immobilizer Output (optional relay required)
True Last Door Arming (hardwire only)
Defective Zone By-Pass
Hardwire or Voltage Sense Selectable
Active or Passive Arming Selectable
Programmable Auto Lock On / Off
Programmable Auto Unlock On / Off
Programmable Door Lock Pulse Duration .5 Second / 3.5 Seconds/ .5 Sec L/ Dbl. U/L
Programmable Active or Passive Door Locks
User Programmable Permanent Chirp Delete
On Command RF Chirp Delete from Transmitter
6 Tone Multi Tone Siren
RF Inhibit with ignition on
Parking Light Flasher
Plug In Dual Stage Shock Sensor
OPTIONS:
Remote Trunk Release ( must have electronic trunk release )
Remote Keyless Entry ( must have power door locks )
Multiple Vehicle Capable
Remote Starter
Remote Power Window Roll Up
Two Step Unlock Congurable
Headlight Illumination During Arming, Disarming, Or Both
Interior Illumination Upon Disarm
(capable of accepting 4 transmitters)
1 2
PRESTIGE
Page 2
128-9313
2 of 16
YOUR " CODE HOPPING" TRANSMITTERS
The transmitters included with your new security system use the most advanced and
secure form of radio frequency transmission available on any current automotive
security system.
Some of today’s sophisticated auto thieves use a device known as a code grabber,
which will receive and store the signal from your keychain transmitter, and retransmit
at a later time to disarm your system.
Your anti code hopping transmitters will change their signal every time the button
is pressed, so when a thief grabs then retransmits your signal, the alarm system
will not respond.
If your transmitter button is pressed more than fty times while it is out of range of
the vehicle ( children playing with your keys ), the transmitter will not operate when
you return to the vehicle and will need to be realigned to the receiver.
To do this, simply press the lock button two times within a one second time period.
The system will now respond to that transmitter each time a button is pressed.
NOTE: Your system has the option of using a siren, the vehicle horn, or both for
ARMING THE SYSTEM - ACTIVE
1. Turn off the engine, exit the vehicle and close all doors, hood lid and trunk lid.
the sounding device. Where the siren is referenced below, the horn or
both may in fact chirp, or beep.
2. Press and release the Lock button on the keychain transmitter.
Dash mounted LED begins to ash slowly.
Parking Lights ash one time.
Siren sounds one chirp.
If the siren/horn sounds 3 chirps, then you have left a door, trunk, or hood
lid ajar. Simply close the opened entry point to provide full protection. If the
siren "chirped" three times, sometime after arming, the exclusive delayed
dome light learn circuit has been programmed and the system detected a
open entry point after the learned delay expired. Again, closing the hood,
trunk, or doors will correct the problem and you do not need to disarm
the system to make the correction. If the siren/horn did not sound when
arming, then the chirps have been turned off and you should refer to the
section titled "ELIMINATING THE ARM/DISARM CHIRPS" in this manual.
Doors Lock - Optional
Headlight Illumination - Optional
Page 3
128-9313
3 of 16
SILENT ARMING - ACTIVE
1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk lid.
2. Press and hold the Lock button on the keychain transmitter for 2 seconds.
Dash mounted LED begins to ash slowly.
Parking Lights ash one time.
Siren will not sound.
If the siren "chirped" three times, sometime after arming, the exclusive
delayed dome light learn circuit has been programmed and the system
detected a open entry point after the learned delay expired. Closing the
hood, trunk, or doors will correct the problem and you do not need to disarm
the system to make the correction.
Doors Lock - Optional
Headlight Illumination - Optional
ARMING THE SYSTEM - PASSIVE ( AUTOMATIC )
1. Turn off the engine, exit the vehicle, and close and lock all doors, hood lid and
trunk lid.
Dash mounted LED begins to ash rapidly, indicating 30 second passive
arming has begun.
2. Opening any protected entry point during the 30 second passive arming cycle will
immediately suspend automatic arming and the 30 second passive arming cycle
will restart when all doors are closed.
At the end of the passive arming cycle the;
Dash mounted LED begins to ash slowly.
Parking Lights ash one time.
Siren sounds one chirp
If the siren did not sound when arming, then the chirps have been
turned off, and you should refer to the section titled
"ELIMINATING THE ARM / DISARM CHIRPS" in this manual.
Doors Lock - Optional
Door locking during passive arming is a selectable feature.
The alarm can be programmed to allow the doors to lock only when
arming using the keychain transmitter and they will not automatically
lock during passive arming.
PROTECTION WHILE THE SYSTEM IS ARMED
Opening any protected door, hood, or trunk lid will cause the alarm
to immediately sound. The alarm will continue to sound for 30 seconds,
then stop and continue to monitor all protected entry points. If the thief
Page 4
128-9313
4 of 16
left a door opened, the alarm will sound for six 30 second cycles, remain
armed and ignore that triggered zone.
Whenever the system is armed, the dash mounted LED indicator will
slowly ash. This serves as a visual deterrent to the potential thief. The
LED is a very low current bulb and will not cause the vehicle’s battery
to drain, even when left unattended for extended periods.
Whenever the system is triggered, the vehicle’s parking lights will ash for
the full 30 second alarm cycle, attracting visual attention to the vehicle.
Optional - Whenever the system is armed, the vehicle’s starting circuit
will be bypassed. If the thief should choose to ignore the siren, the
vehicle can not be started.
Any mild impact to the vehicle’s glass will cause the alarm to sound a
short series of warning tones.
Any strong impact to the vehicle’s glass will cause the alarm to trigger
for the full 30 second alarm cycle.
DISARMING THE SYSTEM
1. As you approach the vehicle, press and release the Unlock button on the keychain
transmitter.
Dash mounted LED turns off.
Parking Lights ash two times.
Siren sounds two chirps.
Doors Unlock - Optional
Note: If the optional 2 step door unlock circuit is installed, when the unlock
If passive arming was selected during the installation, then the LED will
start ashing rapidly, indicating that the system is rearming automatically. Open any door to suspend the automatic arming.
If the parking lights ashed three times, then the alarm was triggered in
your absence. Before turning the key on, examine the LED to identify
which zone was triggered.
If the siren sounds 4 chirps, then the alarm was triggered in your ab-
sence. Before turning the key on, examine the LED and refer to the
INTRUSION WARNING SIGNALS section of this manual to identify
which zone was triggered.
If the siren did not sound when disarming, then the chirps have been
turned off, and you should refer to the section titled “ELIMINATING
THE ARM / DISARM CHIRPS“ in this manual.
transmitter button is activated, the drivers door only will unlock, pressing
the unlock button a second time will cause all doors to unlock. If your
transmitter has a separate lock unlock buttons, pressing the unlock
button anytime after the rst unlock command will cause all the vehicle
doors to unlock.
Page 5
128-9313
5 of 16
