Nutek ATID User Manual
Model 095BPr
Transmitter Programming Guide

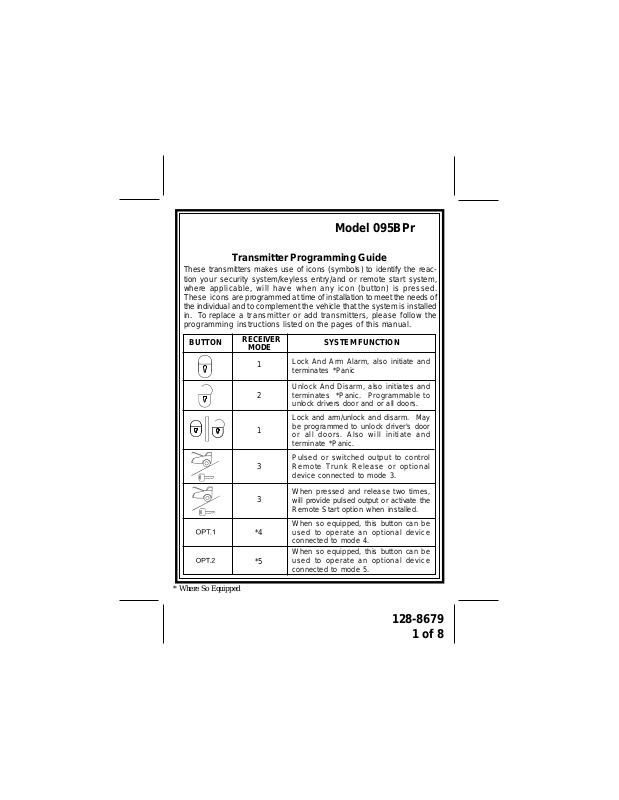

These transmitters makes use of icons (symbols) to identify the reaction your security system/keyless entry/and or remote start system,
where applicable, will have when any icon (button) is pressed.
These icons are programmed at time of installation to meet the needs of
the individual and to complement the vehicle that the system is installed
in. To replace a transmitter or add transmitters, please follow the
programming instructions listed on the pages of this manual.

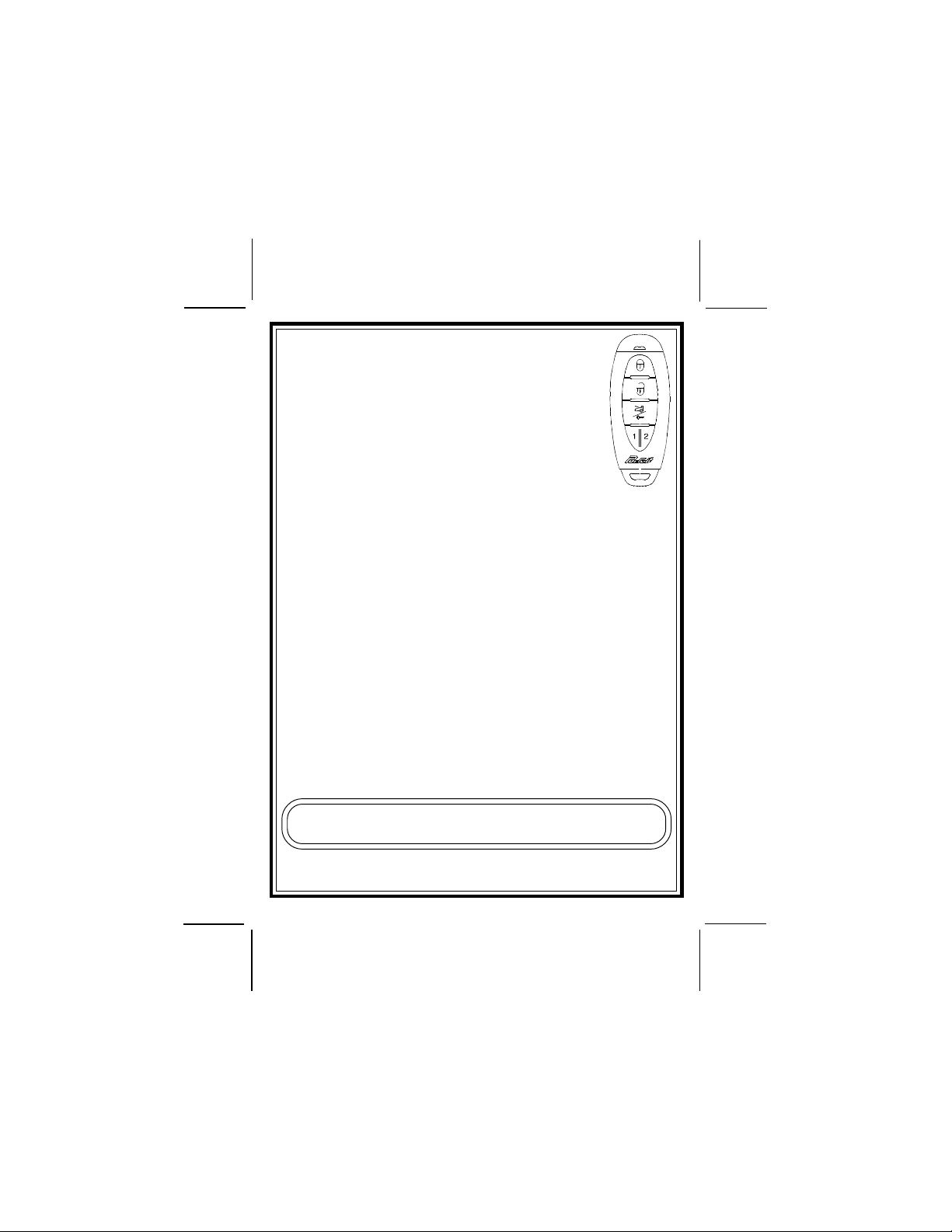

BUTTON
RECEIVER
MODE
1
2
1
3
3
*4
*5
Lock And Arm Alarm, also initiate and
terminates *Panic
Unlock And Disarm, also initiates and
terminates *Panic. Programmable to
unlock drivers door and or all doors.
Lock and arm/unlock and disarm. May
be programmed to unlock driver's door
or all doors. Also will initiate and
terminate *Panic.
Pulsed or switched output to control
Remote Trunk Release or optional
device connected to mode 3.
When pressed and release two times,
will provide pulsed output or activate the
Remote Start option when installed.
When so equipped, this button can be
used to operate an optional device
connected to mode 4.
When so equipped, this button can be
used to operate an optional device
connected to mode 5.
SYSTEM FUNCTION
* Where So Equipped
1
128-8679
1 of 8
Some of the more popular options available for the unused Option
Buttons of your transmitter are:
AS 9076 Remote car starter
AS 9153 Remote window roll up
AS 9256 Remote trunk release relay
Although the most common use of the transmitter buttons are shown
on the front page of this guide, any button or button combination can be
programmed into any receiver mode. Additionally, if all 4 buttons are
used and you require access to a 5th mode, you would program a
combination of buttons to control the 5th function. i.e... you have
programmed lock for arm, unlock for disarm, trunk for trunk release,
and OPT1 for garage door operation, and you've added a window up
module that you want independent control of, you would program unlock and trunk buttons pressed simultaneously into the receiver to control this function independently. Also, if you do not program a transmitter button into mode 2 which is the separate unlock/disarm mode,
then whatever button is programmed into mode 1 will serve
as both lock/arm & unlock/disarm.
PROGRAMMING TRANSMITTERS:
NOTE: It is important to remember that during the programming mode,
each individual step must be completed within 15 seconds of
the previous step. If the 15 second time limit expires between
steps, the unit will automatically exit the program mode. This
is indicated by a long chirp from the siren.
Non alarm models will flash the parking lights only to confirm the
transmitter code has been learned and stored.
NOTE: Because the system may be capable of sounding a siren, the
vehicle horn, or both, where the siren chirp is referenced be-
low, the siren may chirp, the horn may beep, or both devices
may sound.
NOTE: Some systems are capable of single button programming, if your
alarm module is capable of this feature, simply complete step 4
of these programming instructions for each transmitter you wish
to control your system and exit the program mode by switching
off the ignition key.
TO PROGRAM ADDITIONAL TRANSMITTERS:
1) Enter the vehicle, and turn the ignition switch to the on position.
2) Press and release the valet push button switch three times.
NOTE: Some systems may use a combination push-button LED
switch. In these systems the push-button and the dash-
mounted LED are one and the same.
3) The dash mounted LED will flash 1x, and the siren will chirp 1x,
indicating that the system is ready to accept programming of mode
#1 which is arm/lock, disarm/unlock/unlock 2, and panic functions.
2
128-8679
2 of 8
4) Press and hold the lock or lock/unlock symbol button of the transmit-
ter you wish to program for 4 seconds or until a long chirp is heard
from the siren.
"Repeat step 4 for each transmitter you wish to program".
NOTE: If your transmitter button has the Lock/Unlock icon on one
button, press and release the valet push button switch 2 times
then move on to step #8.
5) Press and release the valet push button switch one time to advance
to mode 2. The siren will chirp 2 times and the dash-mounted LED
will Flash 2 times, indicating that the unit is ready to accept programming for mode # 2 which is only used for separate lock and
unlock button transmitters and is the disarm/unlock/unlock 2 and
panic.
6) Press and hold the unlock symbol button of the transmitter you wish
to program for 4 seconds or until a long chirp is heard from the
siren.
"Repeat step 6 for each transmitter you wish to program".
7) Press and release the valet push button switch one time to advance to mode 3. The siren will chirp 3 times and the dashmounted LED will Flash 3 times, indicating that the unit is ready
to accept programming for mode # 3 which is the trunk release/alternate output mode of the system.
8) Press and hold the trunk/key symbol button of the transmitter you
wish to program for 4 seconds or until a long chirp is heard from the
siren.
"Repeat step 8 for each transmitter you wish to program".
9) Press and release the valet push button switch one time to advance
to mode 4 if so equipped. The siren will chirp 4 times and the
dash mounted LED will Flash 4 times, indicating that the unit is ready
to accept programming for mode # 4, optional device (where
equipped)
10) Press and hold the Option button of the transmitter you wish to
program for 4 seconds or until a long chirp is heard from the
siren.
"Repeat step 10 for each transmitter you wish to program".
11) Press and release the valet push button switch one time to advance to mode 5 if so equipped. The siren will chirp 5 times and
the dash mounted LED will Flash 5 times, indicating that the unit is
ready to accept programming for mode # 5 optional device
(where equipped).
12) Press and hold the second Option button of the transmitter you
wish to program for 4 seconds or until a long chirp is heard from
the siren.
"Repeat step 12 for each transmitter you wish to program".
13) Within 10 seconds, press and release the valet program
switch one time.
(Siren emits 6 short chirps indicating mode 6 has been entered)
3
128-8679
3 of 8
