Nutek ATEA Users Manual
Model5WTXB
These transmitters make use of icons (symbols) to identify the reaction
your security system/keyless entry/and or remote start system, where
applicable, will have when any icon (button) is pressed. These
iconsare programmed at time of installation to meet the needs of the
individual and to complement the vehicle that the system is installed in.
To replace a transmitter or add transmitters, please follow the
programming instructions listed on the pages of this manual.
* Where So Equipped

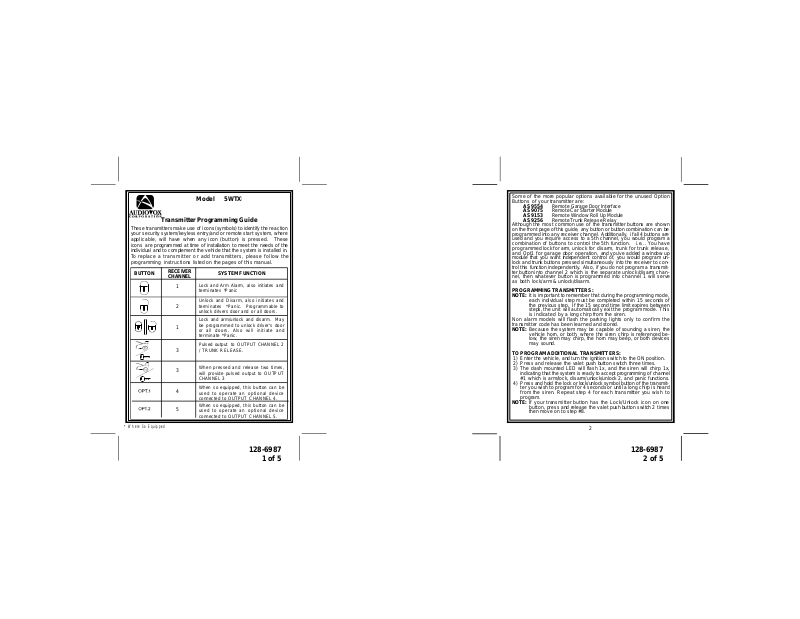

Transmitter Programming Guide
BUTTON
RECEIVER
CHANNEL
1
2
1
3
3
4
5
SYSTEM FUNCTION
Lock and Arm Alarm, also initiates and
terminates *Panic
Unlock and Disarm, also initiates and
terminates *Panic. Programmable to
unlock drivers door and or all doors.
Lock and arm/unlock and disarm. May
be programmed to unlock driver's door
or all doors. Also will initiate and
terminate *Panic.
Pulsed output to OUTPUT CHANNEL 2
/ TRUNK RELEASE.
When pressed and release two times,
will provide pulsed output to OUTPUT
CHANNEL 3
When so equipped, this button can be
used to operate an optional device
connected to OUTPUT CHANNEL 4.
When so equipped, this button can be
used to operate an optional device
connected to OUTPUT CHANNEL 5.
Some of the more popular options available for the unused Option
Buttons of your transmitter are:
AS 9554 Remote Garage Door Interface
AS 9075 Remote Car Starter Module
AS 9153 Remote Window Roll Up Module
AS 9256 Remote Trunk Release Relay
Although the most common use of the transmitter buttons are shown
on the front page of this guide, any button or button combination can be
programmed into any receiver channel. Additionally, if all 4 buttons are
used and you require access to a 5th channel, you would program a
combination of buttons to control the 5th function. i.e... You have
programmed lock for arm, unlock for disarm, trunk for trunk release,
and Opt1 for garage door operation, and you've added a window up
module that you want independentcontrol of, you would program unlock and trunk buttons pressed simultaneously into the receiver to control this function independently. Also, if you do not program a transmitter button into channel 2 which is the separate unlock/disarm channel, then whatever button is programmed into channel 1 will serve
as both lock/arm & unlock/disarm.
PROGRAMMING TRANSMITTERS:
NOTE: It is important to remember that during the programming mode,
each individual step must be completed within 15 seconds of
the previous step. If the 15 second time limit expires between
steps,the unit will automatically exit the program mode. This
is indicated by a long chirp from the siren.
Non alarm models will flash the parking lights only to confirm the
transmitter code has been learned and stored.
NOTE: Because the system may be capable of sounding a siren, the
vehicle horn, or both, where the siren chirp is referenced be-
low, the siren may chirp, the horn may beep, or both devices
may sound.
TO PROGRAM ADDITIONAL TRANSMITTERS:
1)Enter the vehicle, and turn the ignition switch to the ON position.
2)Press and release the valet push button switch three times.
3)The dash mounted LED will flash 1x, and the siren will chirp 1x,
indicating that the system is ready to accept programming of channel
#1 which is arm/lock, disarm/unlock/unlock 2, and panic functions.
4)Press and hold the lock or lock/unlock symbol button of the transmitter you wish to program for 4 seconds or until a long chirp is heard
from the siren. Repeat step 4 for each transmitter you wish to
program.
NOTE: If your transmitter button has the Lock/Unlock icon on one
button, press and release the valet push button switch 2 times
then move on to step #8.
2
128-6987
1 of 5
128-6987
2 of 5
5)Press and release the valet push button switch one time to advance
to channel 2. The siren will chirp 2 times and the dash mounted LED
will flash 2 times, indicating that the unit is ready to accept programming for channel # 2 which is only used for separate lock and
unlock button transmitters, and is the disarm/unlock/unlock 2 and
panic.
6)Press and hold the unlock symbol button of the transmitter you wish
to program for 4 seconds or until a long chirp is heard from the
siren.Repeat step 6 for each transmitter you wish to program.
7)Press and release the valet push button switch one time to advance to channel 3. The siren will chirp 3 times and the dash
mounted LED will flash 3 times, indicating that the unit is ready
to accept programming for channel # 3 which is the trunk release/alternate output channel of the system.
8)Press and hold the trunk/key symbol button of the transmitter you
wish to program for 4 seconds or until a long chirp is heard from the
siren.Repeat step 8 for each transmitter you wish to program.
9)Press and release the valet push button switch one time to advance
to channel 4 if so equipped. The siren will chirp 4 times and the
dashmounted LED will flash 4 times, indicating that the unit is ready
to accept programming for channel # 4, optional device (where
equipped)
10)Press and hold the Option button of the transmitter you wish to
program for 4 seconds or until a long chirp is heard from the siren.
Repeat step 10 for each transmitter you wish to program.
11)Press and release the valet push button switch one time to ad-
vance to channel 5 if so equipped. The siren will chirp 5 times and
the dash mounted LED will flash 5 times, indicating that the unit is
ready to accept programming for channel # 5 optional device (where
equipped)
12)Press and hold the second Option button of the transmitter you
wish to program for 4 seconds or until a long chirp is heard from the
siren. Repeat step 12 for each transmitter you wish to program.
ERASING TRANSMITTERS IF THEY HAVE BEEN LOST OR STOLEN:
NOTE: Before you begin to erase the lost or stolen transmitter(s),
have all transmitters available that you wish to remain programmed. These will be used during the program process
to identify transmitters that will continue to be used.
Enter the transmitter program mode:
1.Turn the ignition switch to the ON! position.
2.Within 10 seconds, press and release the valet/program switch
threetimes. (Siren emits 1 short chirp indicating channel 1 has
been entered)
3
3.Within 10 Seconds, press and hold the ARM or ARM/DISARM
button of the first transmitter you wish to remain stored into the
control unit until a single chirp is heard from the siren.
(Repeat this for each transmitter you wish to remain stored in the control
unit).
The receiver stores up to four transmitters. To be certain all transmitter
slots in the receiver are occupied with transmitters you wish to continue to use, and all others are erased, you will have to fill all four
receiver slots. If in step 3 you identified one transmitter, you will have
to fill the additional 3 slots. If in step 3 you identified two transmitters,
you will have to fill the additional two slots, etc...
4.Press and hold any unused button or combination of buttons until a
long chirp is heard from the siren. Release and press the button or
button combination again and again until all remaining slots are full.
NOTE: The button or combination of buttons entered will also control
the arm or arm/disarm function until additional transmitters are
added. All unwanted transmitters are now deleted.
REPRIORITIZING A TRANSMITTER S PROGRAMMING:
To reprogram a receiver channel with a different transmitter button
once a code has been stored, there will be two options:
1. Enter the transmitter program mode of the receiver channel to be
reprogrammed. Using any unused button or combination of buttons, push out the stored code by pressing the unused button until
a long chirp is heard, then repeat 3 additional times. After this, you
can add any desired unused transmitter button. This action erases
only the button stored of the transmitter you are programming. All
other codes will remain stored.
2. Enter the transmitter program mode. Using any transmitter button
press and hold until a long chirp is heard. If a single chirp or multiple
chirps, (up to 7 chirps), are heard, the unit is indicating that the
transmitter has already been programmed elsewhere in the receiver. Release the transmitter button and within 5 seconds press
and hold until a long chirp is heard. This action forces the unit to
erase all stored codes of that transmitter.
The unit then exits the program mode the siren emits the program mode
exit chirp pattern. All transmitter buttons for that transmitter must now
be reprogrammed. Any other transmitter stored in the unit"s memory still
remain operational. If the button is released and not pressed again
within the 5 second period, no change in programming has been made
to the receiver channel. The programmer can move onto a different
channel or erase the transmitter codes as described in 1 above.
OPERATING THE FLASHLIGHT OF 5WTX-B
If the transmitter packaged with your system included the
5WTX-B, (Flashlight Transmitter) By pressing the button located on the
buttom of the transmitter will cause the light on the end of the unit to turn
4
128-6987
3 of 5
128-6987
4 of 5
