Nussbaum 2.35 TSK Operating Instruction And Documentation

Download

Page 1

2.35 TSK

Automotive-lift date: 01/2010 Manual date: 01.01.10

Operating instruction and Documentation

Serial number:..........................................

Händleradresse/Telefon

Made in German

Otto Nußbaum GmbH & Co.KG//Korker Straße 24//D-77694 Kehl-Bodersweier

E-mail: [email protected]//http://www.nussbaum-lifts.de

Tel: +49(0)7853/8990 Fax: +49 (0) 78 53 / 87 87

Page 2

Operating Instruction and Documentation

2.35 TSK

Content

Foreword ................................................................................................................. 3

Record of installation............................................................................................... 5

Record of handing over ........................................................................................... 6

1.Introduction.............................................................................................................. 7

1.1 Installation and check of the automotive lift....................................................... 7

1.2 Information of Warning ...................................................................................... 7

2.Master document of the automotive lift.................................................................... 8

2.1 Lift –manufacturer.............................................................................................. 8

2.2 Application......................................................................................................... 8

2.3 Changes at the construction.............................................................................. 8

2.4 Displacement of the automotive-lift .................................................................... 8

2.5 Declaration of conformity................................................................................... 9

3.Technical Information............................................................................................ 10

3.1 Technical ratings ............................................................................................. 10

3.2 Safety device................................................................................................... 10

3.3 Data sheet....................................................................................................... 11

3.4 Foundation diagram drawing........................................................................... 12

3.5 Hydraulic diagram drawing.............................................................................. 13

3.6 Electrical diagram drawing............................................................................... 14

4. Safety regulations................................................................................................. 18

5. Operating instructions........................................................................................... 18

5.1 Lifting the vehicle with the automotive lift......................................................... 18

5.2 Lowering the vehicle........................................................................................ 19

6.Troubleshooting..................................................................................................... 19

6.1 Driving on an obstacle..................................................................................... 20

6.2 Emergency lowering........................................................................................ 20

6.2.1 Version: internal hydraulic unit................................................................... 20

7.Inspection and Maintenance.................................................................................. 21

7.1 Maintenance plan of the lift.............................................................................. 21

7.2 How often must the lift be cleaned?................................................................. 22

8.Security check....................................................................................................... 23

9.Installation and Initiation........................................................................................ 24

9.1 Regulations for the installation......................................................................... 24

9.2 Installation ....................................................................................................... 24

9.3 Initiation........................................................................................................... 25

9.4 First security check before installation............................................................. 26

9.5 Regular security check and maintenance........................................................ 27

9.7 Extraordinary security check and maintenance............................................... 33

9.8 Required Screws for Nußbaum-Top-Lifts ........................................................ 34

- 2 -

Page 3

Operating Instruction and Documentation

2.35 TSK

Foreword

Nussbaum-Lifts are a result of long-standing experiences. The high quality and the superior concept guarantee them reliability, a long lift time and the economic business. To avoid unnecessary damages and dangers, read the operating instruction attentive and observe the contents. Another or the described purpose going out use is not valid when not as agreed. This is valid particularly for climb and go.

Company Nußbaum is not liable for damages arising from this. The user carries the risk a lonely.

For the use belonged:

- to observe all the notice in the operating instruction and

- the following of the inspection and maintenance work and the prescribed tests.

- The instruction for use have to be observed by all persons working with the lift.

- Especially the chapter “Safety/accident Prevention“ has to be observed.

- In addition to the safety remarks of the instructions for use the regulations and instructions being valid at the place of operation have to be considered.

Obligations of the operator:

The operator is obliged to allow only those persons complying to the following requirement to work at the unit

- being well acquainted with the basic regulations concerning labour safety and accident

prevention and being trained to operate the unit.

- having read and understood the chapter concerning safety and warning instructions and

confirmed that by their signature.

Dangers when operating with the lift:

The Nußbaum-Lifts are designed and built according to technical standard and the approved regulations for technical security. Yet, danger for body and life of the operator may turn up when using the lift inexpertly.

The lift must only be operated :

- for its appropriate use

- in unobjectionable condition concerning technical security.

- 3 -

Page 4

Operating Instruction and Documentation

2.35 TSK

Organising requirements

- The instructions for use are constantly to be kept at the place of operation being at hand at any time.

- In addition to the instructions for use rules pertaining to other regulations i.e. accident prevention and environmental rules are to be observed and directed.

- Safety- and danger alert operation of personal is occasionally and by observing the instructions for use to be controlled.

- As far as required and ordered by regulations personal protective equipment is to be used

- All safety- and danger-hints at the lift are to be observed!

- Spare parts must comply with technical requirements laid down by the manufacturer. This is only warranted with original parts. Consider time intervals given or fixed in instructions for use for repeated tests/inspections.

Maintenance works, remedy of faults and disposal

- Fixed Adjusting-, maintenance- and inspection works and time intervals including Details for exchange of parts/part components as mentioned in the instructions for use are to be adhered. These works must only be carried out by expert personal.

- After maintenance- and repair works loose screw connections must always be firmly tightened!

Guarantee and liability

- Our „General conditions of selling and delivering“ are in force.

There will be no guarantee or liability for injuries of persons or things if these injuries are caused by one or by some of the following reasons.

- Inappropriate use of the lift

- Inappropriate installation, initiation, operation and maintenance of the lift.

- Use of the lift while one or several security devices do not work or do not work correctly or are not

installed correctly.

- Not to follow the regulations of the operating instruction concerning transport, storing, installation,

initiation, operation and maintenance of the lift.

- Changes of the construction of the lift without asking the producer.

- Changes of important adjustments of the lift (e.g. driving elements, power rating, motor speed, etc)

- Wrong or incorrect maintenance.

- Catastrophes, acts of God or external reasons.

- 4 -

Page 5

Operating Instruction and Documentation

2.35 TSK

Filling out and undersigned and copying this sheet and send the original to the lift manufacturer. The copy remains in the Manual.

Otto Nußbaum GmbH & Co.KG Korker Strasse 24 77694 Kehl-Bodersweier Germany

Record of installation

The automotive lift with the

Serial number:............................................ was installed on:...............................................

at the firm:................................................. at:.....................................................................

the safety was checked and the lift was started.

The installation was effected from the operating authority/competent (please delete as applicable).

The safety of the automotive lift was checked from the competent before the initial operation.

The operating authority attest the installation of the automotive lift, the competent attest the correct initial operation.

............................................ ..................................................... ............................................

date name of the operating authority signature of the operating authority

............................................ ..................................................... ............................................

date name of the competent person signature of the competent person

Your customer service:.............................................................................................................................

- 5 -

Automotive lift date: 01/2010 / Manual date: 01.01.2010

Page 6

Operating Instruction and Documentation

2.35 TSK

Record of handing over

The automotive lift with the

Serial number:............................................ was installed on:...............................................

at the firm:................................................. at:.....................................................................

the safety was checked and the lift was started. The persons below were introduced after the installation of the automotive lift. The introduction was carried out from an erector of the lift-manufacturer or from a franchised dealer (competent person).

............................................ ................................................... ........................................

date name signature

............................................ ................................................... ........................................

date name signature

............................................ ................................................... ........................................

date name signature

............................................ ................................................... ........................................

date name signature

............................................ ................................................... ........................................

date name signature

............................................ ................................................... ........................................

date name signature

............................................ ............................................. ............................................

date name of competent signature of the competent

Your customer service:.................................................................................................................................

- 6 -

Page 7

Operating Instruction and Documentation

2.35 TSK

1.Introduction

The document ”Operating Instructions and Documentation” contains important information about installation, operation and maintenance of the automotive lift. To furnish proof of installation of the automotive lift the form ”Record of Installation” must be signed and returned to the manufacturer. To furnish proof of the singular, felt this documentation contains forms. The forms should be used to document the checks. They should not be removed from this documentation. Every Changes to the construction and displacement of the automotive lift must be registered in the ”Master document” of the lift.

1.1 Installation and check of the automotive lift

Only specialist staff is allowed to do work concerning safety and to do the safety checks of the lift. They are called experts and competent person in this document. Experts are persons (for example self-employed engineers, experts) which have received

instruction and have experience to check and to test automotive lifts. They know the relevant labour and accidents prevention regulations.

Competent person are persons who have acquired adequate knowledge and experience with

automotive lifts. They took part in training from the lift-manufacturer (servicing technicians of the manufacturer or dealer, are competent)

1.2 Information of Warning

To show danger and to show important information the three symbols below are used. Pay attention to those passages, which are marked with these symbols

Danger! This sign indicates danger to life. Inexpert handling of the described operation may be dangerous to life.

Caution! This sign cautions against possible damage to the automotive lift or other material defects in case of inexpert handling .

Attention! This sign indicates for an important function or other important notes.

- 7 -

Page 8

Operating Instruction and Documentation

2.35 TSK

2.Master document of the automotive lift

2.1 Lift –manufacturer

Otto Nußbaum GmbH & Co. KG

Korker Straße 24

D-77694 Kehl-Bodersweier

2.2 Application

The automotive lift 2.35 TSK is a lifting mechanism for lifting motor vehicles with a laden weight of up to 3500 kg. The max. load distribution is 2:1 in or against drive-on direction. The automotive lift is only designed for servicing vehicles. It is not allowed to carry persons with the lift. It’s not allowed to install the standard-automotive lift in a hazardous location or washing bays.

2.3 Changes at the construction

Changes at the construction, expert checking, resumption of work (date, kind of change,

signature of the expert)

..............................................................................................................................................................

............................................................................................................…………………………………...

name, address of the expert

........................................................... ............................................................

place, date signature of the expert

2.4 Displacement of the automotive-lift

Displacement of the automotive-lift, expert checking, resumption of work (date, kind of

change, signature of the competent)

..............................................................................................................................................................

name, address of the competent

........................................................... ............................................................

place, date signature of the competent

- 8 -

Page 9

Operating Instruction and Documentation

2.35 TSK

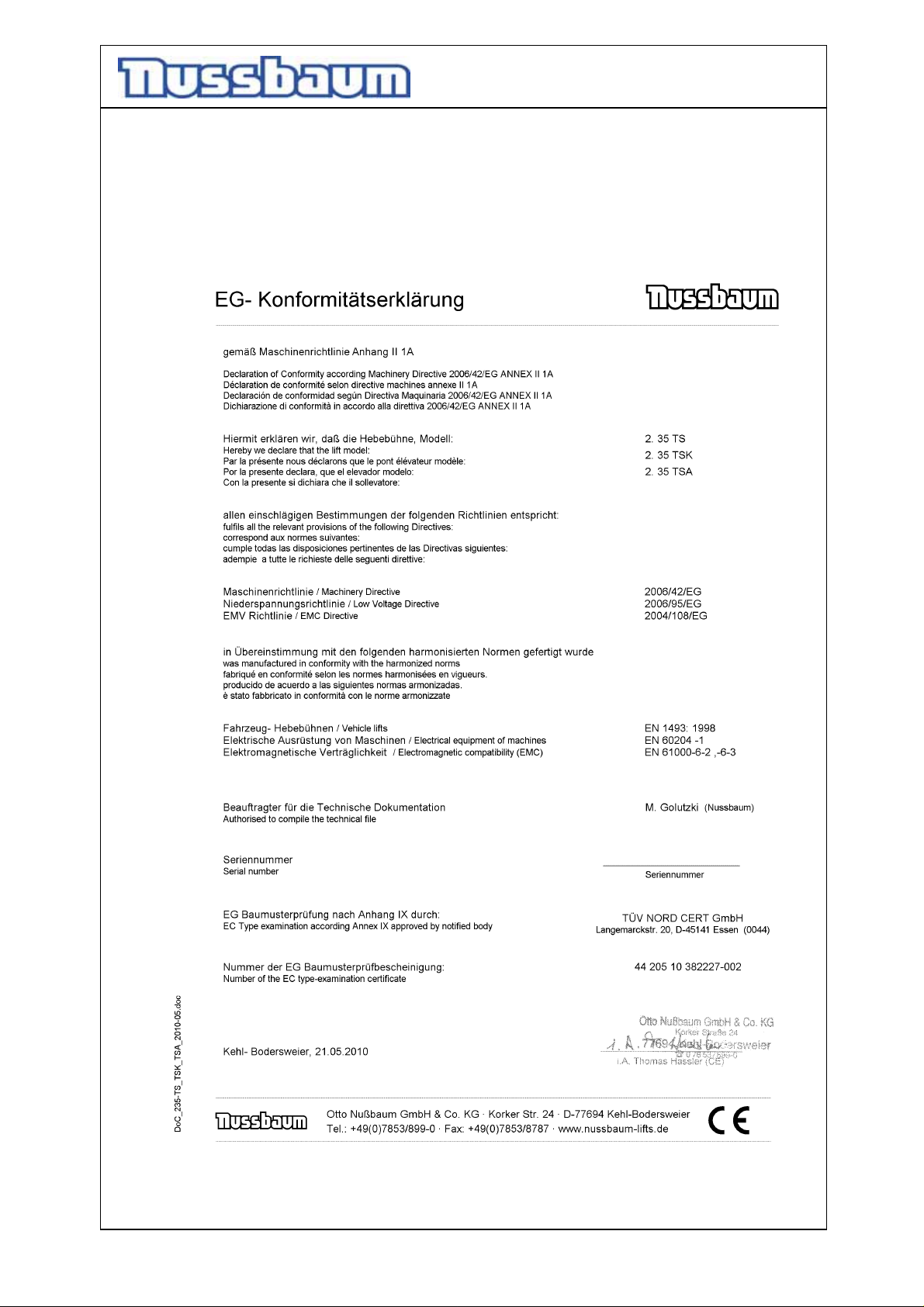

2.5 Declaration of conformity

- 9 -

Page 10

Operating Instruction and Documentation

2.35 TSK

3.Technical Information

3.1 Technical ratings

Capacity: 3500 kg

Load distribution: max. 2:1 in or against the drive on

direction

Lifting time: approx. 25 sec. with load

Lowering time: approx. 30 sec. with load Lifting height: max: 1920mm Line voltage: 400 V three phase current Power rating: 3 kW Motor speed: 2800 min-1

Pump capacity: 4,3 cm Hydraulic pressure: approx. 240 bar Pressure relief valve: approx. 260 bar Oil tank: approx. 16 Litre - viscosity 32 cst. Sound level L Connection by customer (Observe the current voltage

≤ 70 dB

of your Country)

3.2 Safety device

1. Safety ratchet (only versions with external hydraulic unit)

safety device against unintentional lowering

2. Pressure relief valve Protects the hydraulic system from exceedingly high pressures.

3. Hydraulically unlocking holding valve

safety device against unintentional lowering

4. Lockable main switch safety device against unauthorized operation

5. CE-Stop safety device against squeeze

6. Locking safety system at the lifting arms

safety device against unintentional horizontal moving of the arms

- 10 -

Page 11

Operating Instruction and Documentation

2.35 TSK

3.3 Data sheet

- 11 -

Page 12

Operating Instruction and Documentation

2.35 TSK

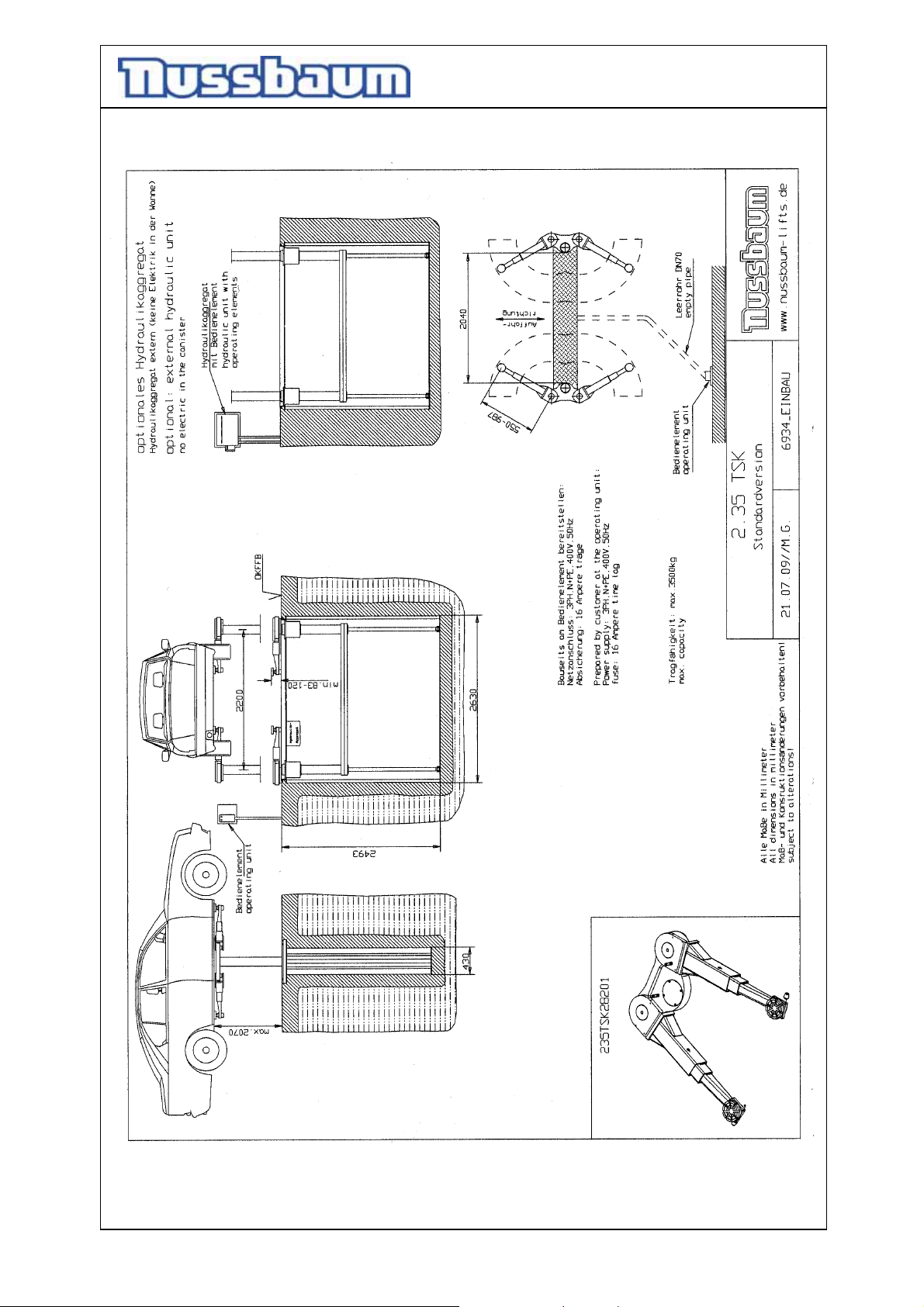

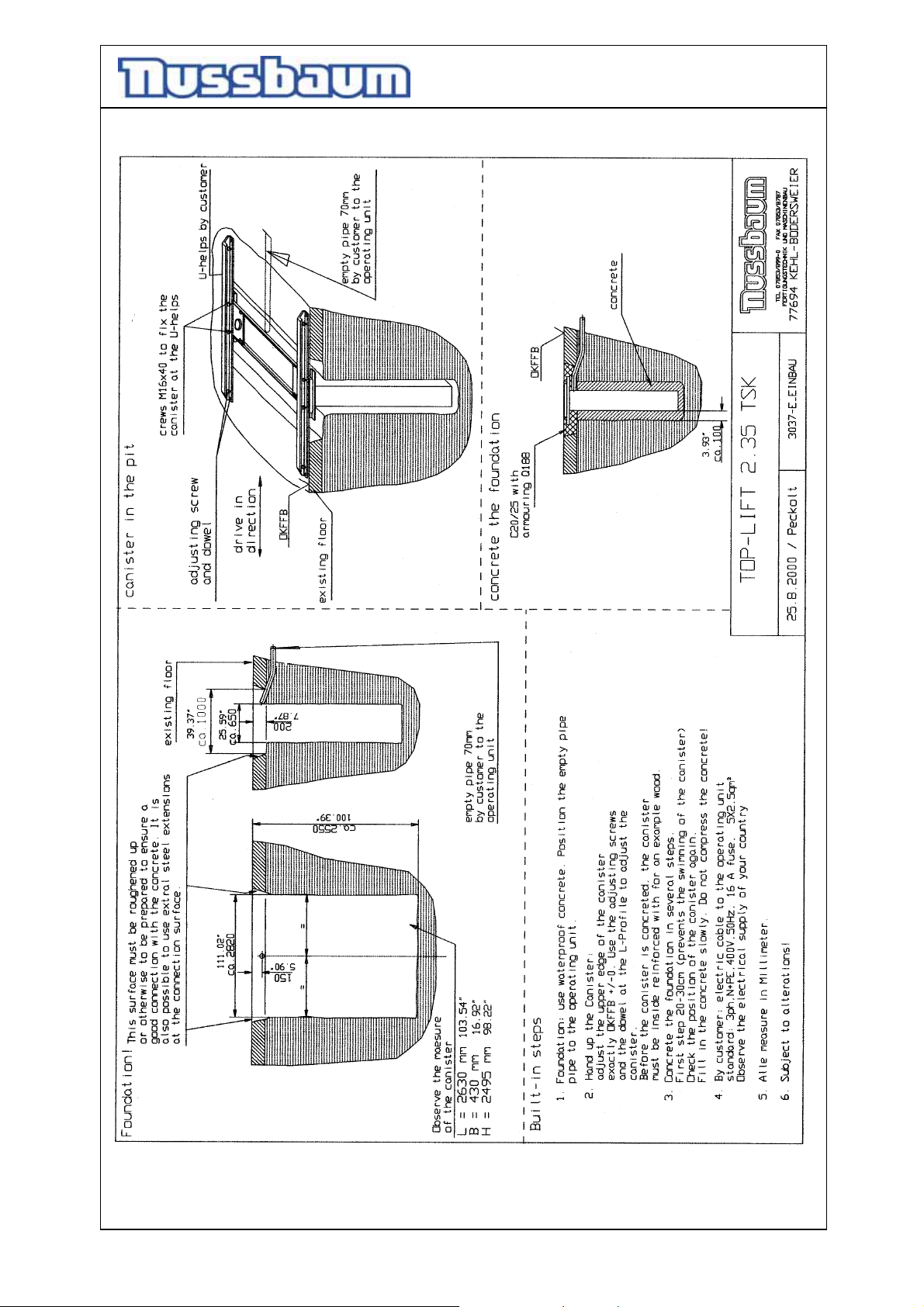

3.4 Foundation diagram drawing

- 12 -

Page 13

Operating Instruction and Documentation

2.35 TSK

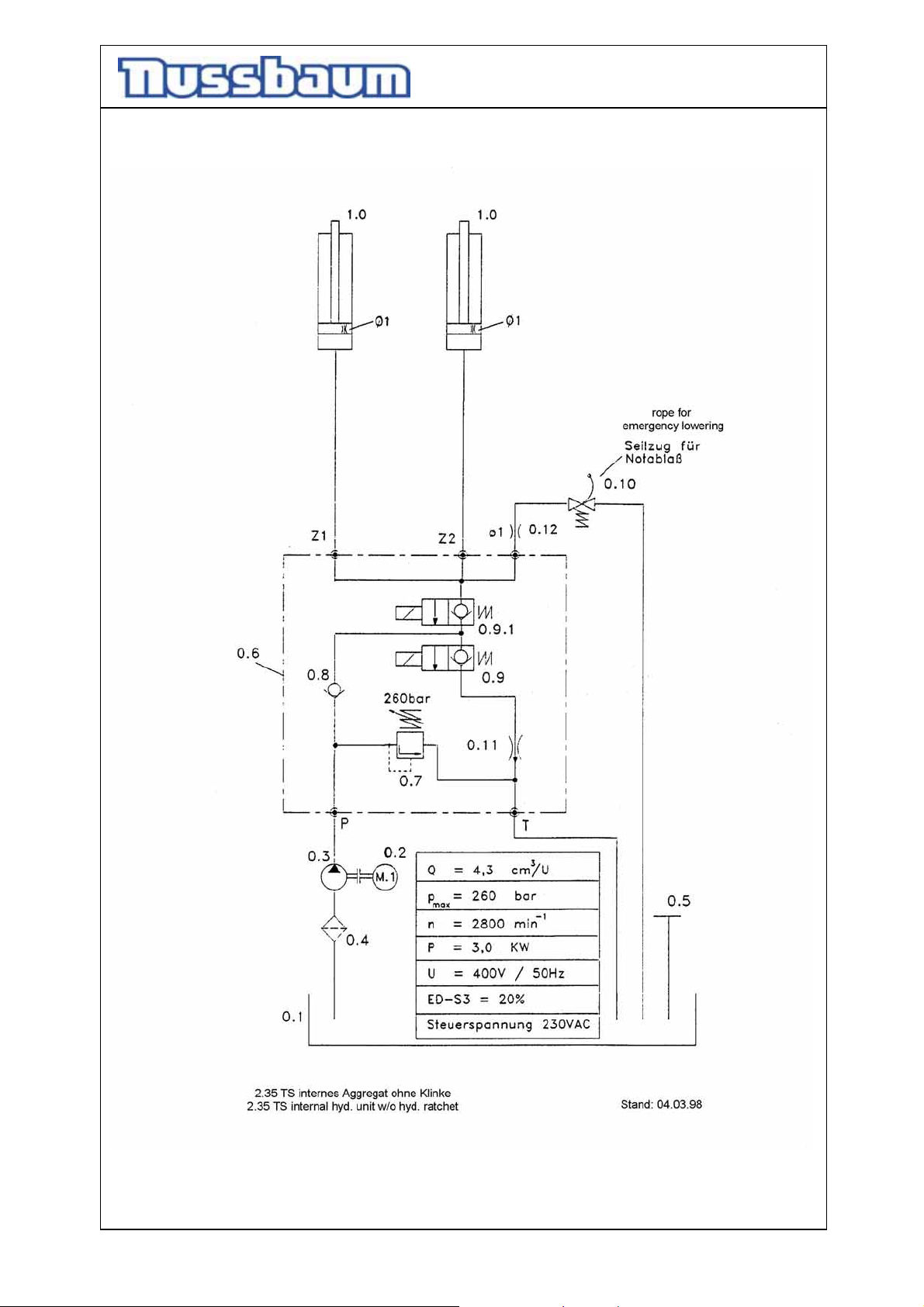

3.5 Hydraulic diagram drawing

- 13 -

Page 14

Operating Instruction and Documentation

2.35 TSK

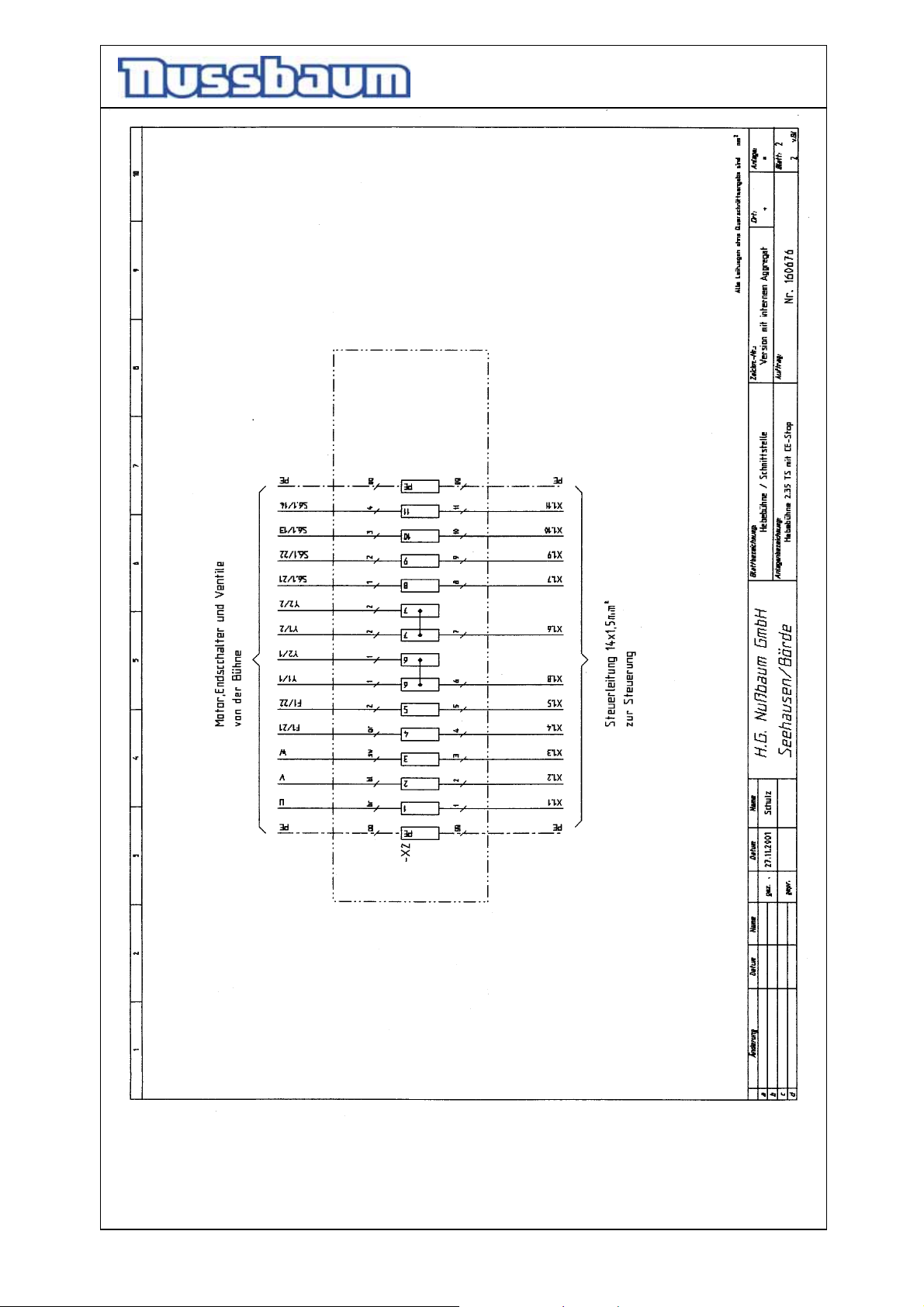

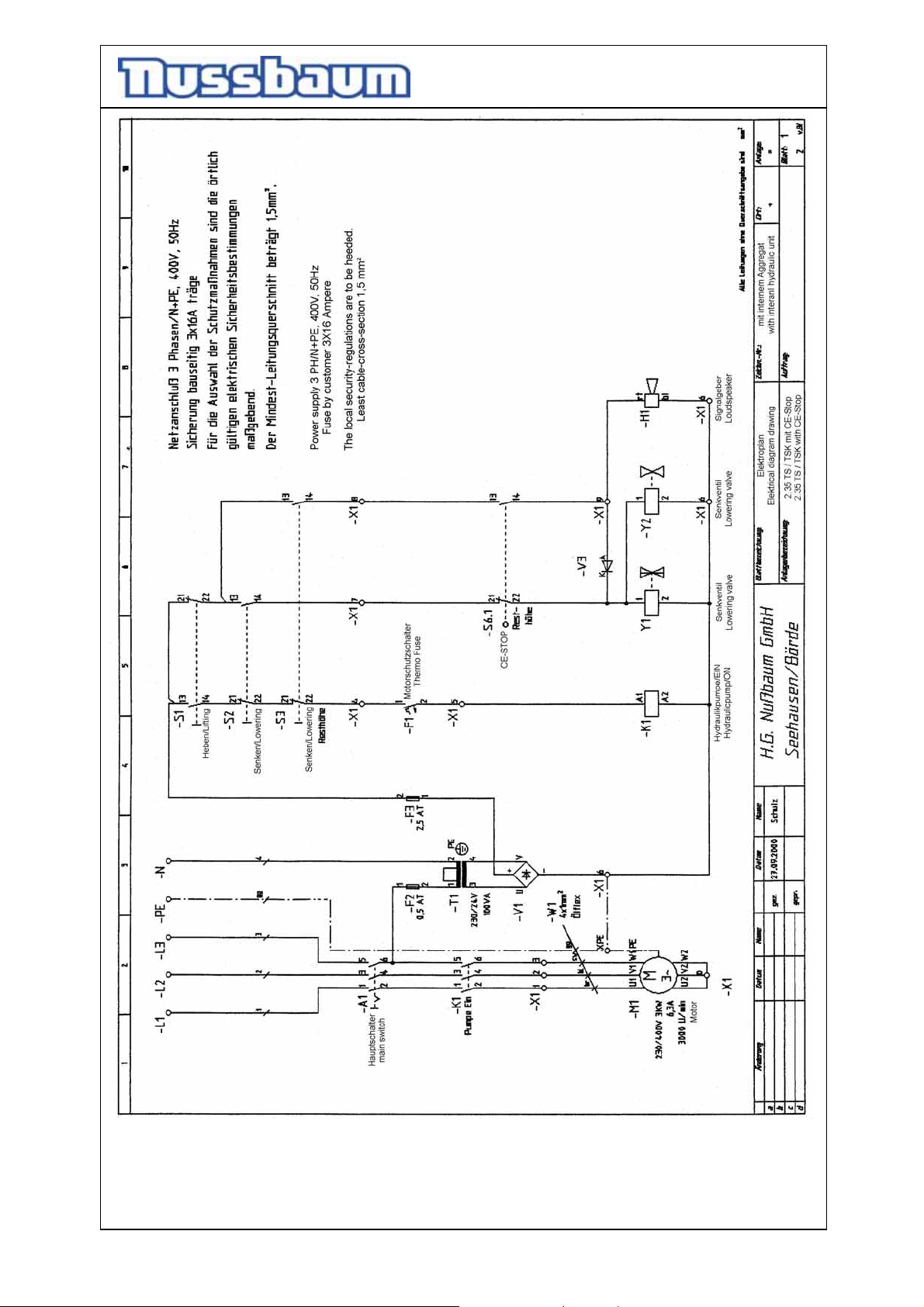

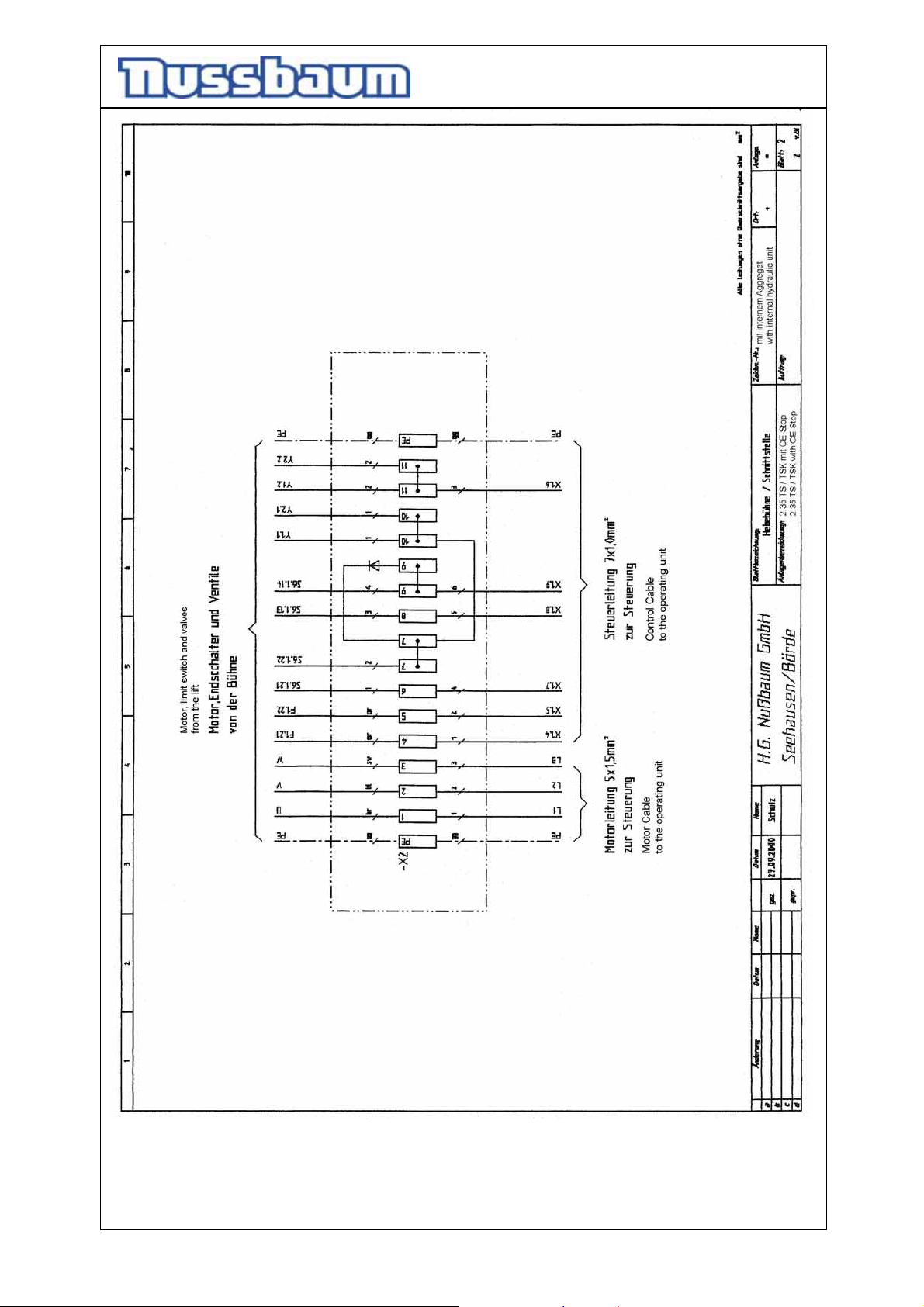

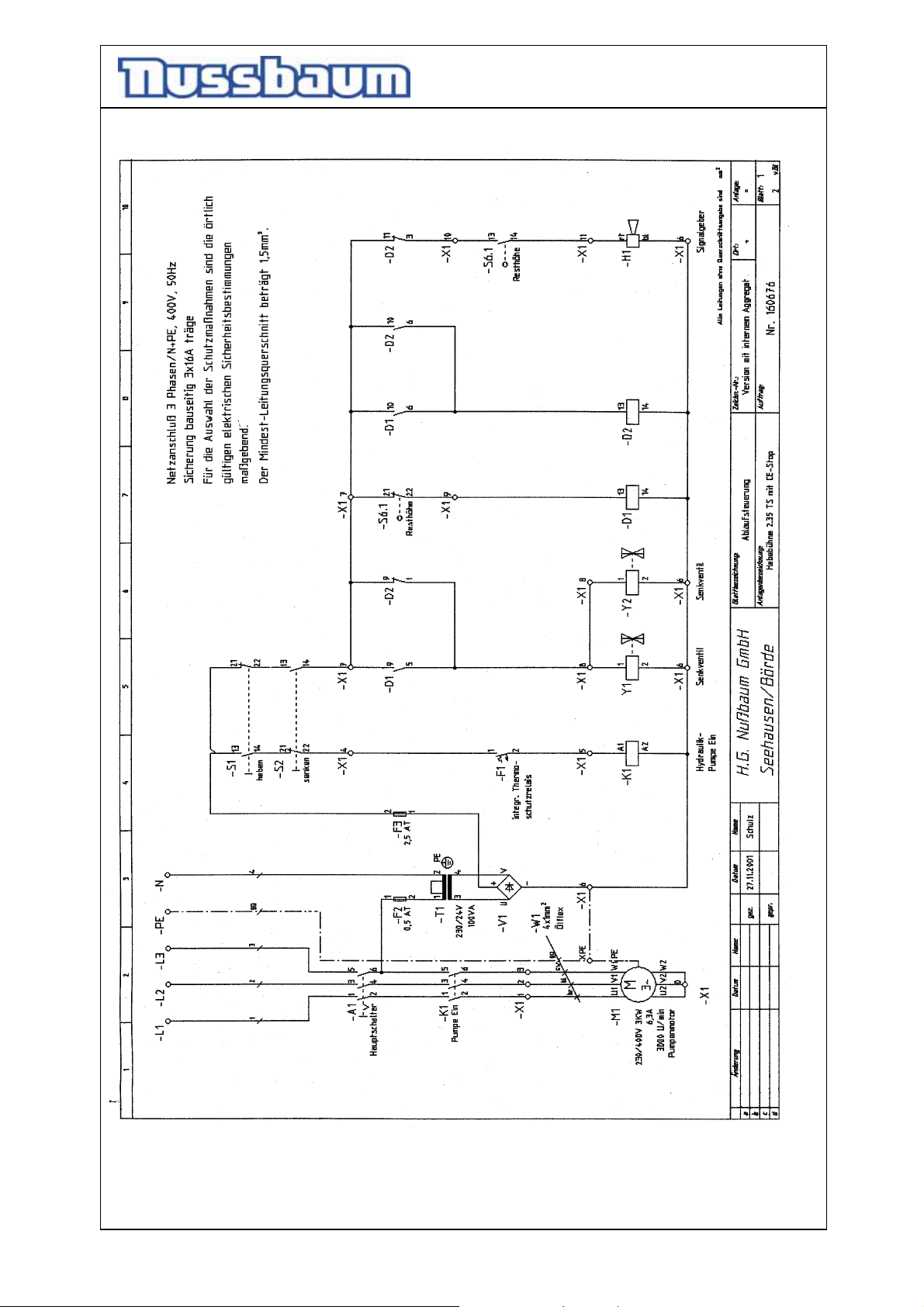

3.6 Electrical diagram drawing

- 14 -

Page 15

Operating Instruction and Documentation

2.35 TSK

- 15 -

Page 16

Operating Instruction and Documentation

2.35 TSK

- 16 -

Page 17

Operating Instruction and Documentation

2.35 TSK

- 17 -

Page 18

Operating Instruction and Documentation

2.35 TSK

4. Safety regulations

When using automotive lifts the German safety regulation BGG945: Examine of automotive-lifts; BGR500 Using automotive-lifts; (VBG14) must be observe adhered to.

Especially the following regulations are very important:

• Observe the detailed operating instruction.

• The laden weight of the lifted vehicle must not exceed 3500 kg for the automotive lift. The maximum load distribution is 2:1 in or against the drive-on direction.

• Observe the centre of gravity of the vehicle.

• The automotive lift must be in its lowest position, before the vehicle can be driving into the lift. Only then the vehicle can be lifted.

• Position the rubber pads at the pick-up points under the vehicle as described of the

vehicle manufacturer.

• While working with the lift the operating instructions must be followed.

• Only trained personnel over the age of 18 years old are to operate this lift.

• No one is to stand within the working area (danger area) during lifting and lowering.

• No one is to be raised or lowed either directly or on the vehicle by the automotive lift.

• No one is to climb onto the automotive lift or onto an already raised vehicle.

• The automotive column lift must be checked by an expert after changes in the construction have been made.

• The main switch must be switched off and locked before work on the vehicle can commence. This is a safety precaution to ensure that the lift does not move during work.

• The main switch must be switched off and locked before any maintenance or repair work on the automotive lift itself can be carried out.

• During lifting or lowering the operator must observe the vehicle to ensure that the vehicle and the lift are functioning correctly.

• Installation of the standard vehicle lift in hazardous or dangerous locations such as washing bays is dangerous and is not allowed.

• Check the centre of gravity of the vehicle if heavy parts (egg the motor) are removed.

• If heavy parts must be removed (motor) the centre of gravity will change. Secure the vehicle before removing parts to avoid the possibility of the vehicle becoming insecure.

• At vehicles with low sub-ground clearance or with optional equipment (sport equipment) or sport-vehicles, it is to be tested previously whether damages can appear.

5. Operating instructions

The safety regulations must be observed during working with the automotive lift. Read the safety regulations in chapter 4 carefully before working with the lift!

5.1 Lifting the vehicle with the automotive lift

• Drive vehicle in the lift, longitudinal axes on line of the lift.

• Block the vehicle against rolling, put into gear.

• Position the adjustable rubber pads under the vehicle which are described by the vehicle manufacturer.

Position the vehicle on the rubber pads, otherwise there’s a danger that the vehicle might fall down.

• Check the dangerous places of the lift and be sure that there are no objects or people in the immediate area of the lift or on the lift.

• Switch on the control system; main switch on position ”1” .

- 18 -

Page 19

Operating Instruction and Documentation

2.35 TSK

• Press the button „ Lifting“.

• Check the safety device of the lifting arms. They must lock if the arms leave the floor.

• If the wheels are free, stop the lifting procedure and check again the safety position of the vehicle.

• Lift the vehicle on the working height. Observe the complete process.

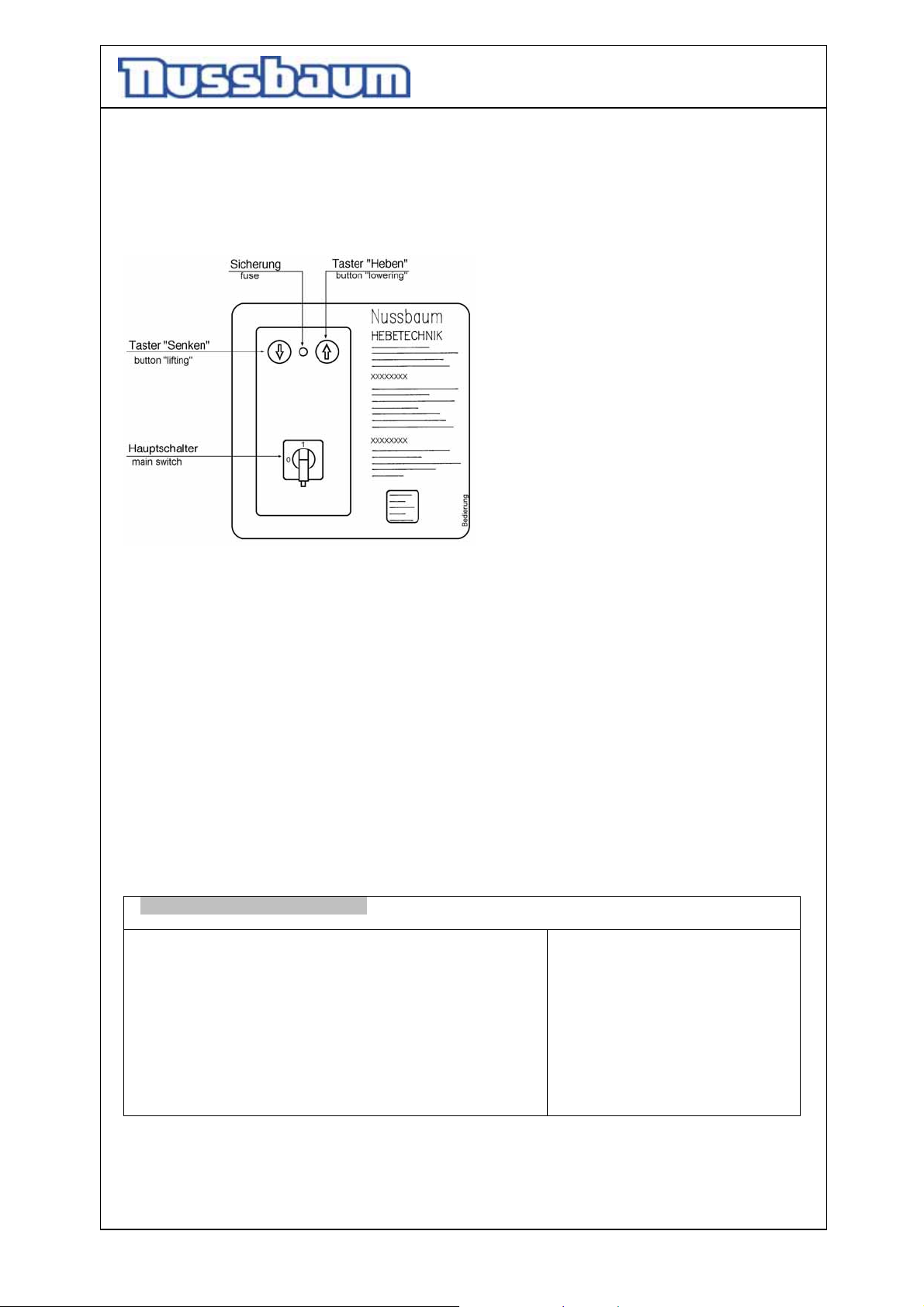

Pic 1: operating unit with internal hydraulic unit.

5.2 Lowering the vehicle

• Check the dangerous places of the lift and be sure that there are no objects or people in the immediate area of the lift or on the lift.

• Press the button „lowering“.

• Observe the complete process.

• If the lift is in the lowest position, turn the carrying arms to the outside.

• Drive the vehicle out of the lift.

6.Troubleshooting

If the lift does not work properly, the reason for this might be quite simple. Please check the lift for the potential reasons mentioned on the following pages. If the cause of trouble cannot be found, please call the technical service.

Problem: Motor does not start! Potential causes:

No power supply Main switch is not engaged The main switch is defective Fuse defective The feed line is cut Thermal switch in the motor is active Motor is defective

solution:

Check the power supply Check the main switch Check the main switch Check Fuse Check the complete cable Let motor cool down Call technical service

- 19 -

Page 20

Operating Instruction and Documentation

2.35 TSK

Problem: Motor starts, lift does not lift! Potential causes:

The vehicle is too heavy Level of the oil is too low

The emergency lowering screws are not closed

Hydraulic valve is defective Gear pump is defective

Problem: the lift does not lower! Potential causes:

An obstacle is restricting the lift from being lowered Hydraulic valve is defective Fuse is defective Button “lowering” is defective

6.1 Driving on an obstacle

• If the lift is running onto an obstacle during the lowering, the lift stops through the mechanical resisted. In this case, press the lever „lifting“ until the obstacle can be removed.

solution:

unload the vehicle check the oil level, fill with hydraulic oil as required Check the emergency lowering screw Call technical service Call technical service

solution:

(see chapter 6.1) Call technical service Check the fuse

Call technical service

6.2 Emergency lowering

In this case of power failure or defective valve, the hydraulic valve of the lift will not open any more. Therefore the lift can not be lowered. In this case there is the possibility to open the hydraulic valve manually and to lower the lift to it is lowest position, so the vehicle can be driven off.

A emergency lowering is an intervention into the control of the lift and can be done only by experienced expert. The emergency lowering must be carried in this order. Otherwise a malfunction can lead it to damages or lead to danger for body and lives.

Every kind of external leakage has to be removed. This is necessary in particular before an emergency lowering. The emergency lowering may only be done by persons which are trained in using the lift.

Reasons, that can make an emergency lowering necessary, are a defect of the electric system

or disturbances of the valves, etc.

In case of power-failure or defective Valves there is the possibility through suitable tools to

lower the lift in the lowest position, so that the vehicle can be driven off.

6.2.1 Version: internal hydraulic unit

- 20 -

Page 21

Operating Instruction and Documentation

2.35 TSK

Be careful: Unroll the sheathed cable for lowering with its whole length and go outside of the emergency area.

• Remove the cover of the canister.

• Position an obstacle (piece of wood max. 5mm) between the cover and the canister so the emergency cable can be moved easily.

• Unroll the rope of the ball valve the emergency lowering.

• The operator must stand outside of the dangerous area.

• It is only possible to pull the cable in one direction.

• Observe the reaction of the lift and the vehicle.

• In case of danger, let go of the cable.

• Lower the lift into the lowest position.

Do not work with the automotive lift, if the lift is not in a faultless condition.

7.Inspection and Maintenance

Before conducting maintenance work, preparations must be made to ensure that

during maintenance and repair work there is no risk to the safety of people working on

or around the lift and also that there is no risk of damage to equipment being used on or around the lift.

To guarantee the utmost availability and to ensure that the lift remains functional, maintenance work contracts are organised between our clients and their local retailers. A service must be performed at regular intervals of 3 months through the operator in accordance with following service manual. If the lift is in continuous operation or in a dirty environment, the maintenance rate must be increased. During daily operation the lift must be closely observed to ensure that it is functioning correctly.

In the case of malfunction or leakage the technical service must be informed.

7.1 Maintenance plan of the lift

• Before beginning any maintenance work isolate the power supply. Secure the main switch (lock it). Secure the danger area around the automotive lift and secure the lift against unintentional lowering.

• Clean the piston-rod using compressed air. Grease the piston rods with a high capacity lipid (approx. 5 g of S2 DIN51503 KE2G available from the Renolit Company. Clean and check the stripper of the guidance-piston.

• Grease the lubricate nipples with a multipurpose lipid. (example: Auto Top 2000 LTD. Agip)

• Clean and lubricate the moving parts of the lift (hinge bolts, sliding pieces, sliding surfaces) grease with a multipurpose lipid (example: Auto Top 2000 LTD. Agip).

• Check the hydraulic tubes for leakage.

• Remove all fluids in the canister. After it, seal the cover again.

• Check the oil level. Fill the tank with a clean, high quality oil (32 cst) (e.g.g. HLP 32 LTD. OEST Company)

• The hydraulic oil has to be changed at least once a year. To change the oil, lower the lift into its lowest position. Empty all tanks and refill with clean oil, see chapter 3.1 .

- 21 -

Page 22

Operating Instruction and Documentation

2.35 TSK

Use an ATF-Suffix hydraulic-oil (OEST Company ) if the ambient temperature is under 5

degrees centigrade. After filling, the hydraulic oil must be between the upper and lower markings of the oil level gauge.

Remove the old oil according to the appropriate regulations.

• Check all welded joints for cracks on the automotive-lift. If any cracks are found on the lift cease use immediately. Switch-off and secure the main switch (lock) and call the service partner.

• Ensure that the rubber plates of the lifting arms remain in good condition.

• Check the condition and the function of the locking system of the arms. In case of damages of the teeth and the locking system, necessarily exchange it.

• Check all surfaces and repair if necessary.

• Damage to external surfaces, must be immediately repaired. If theses repairs are not made immediately, permanent damage to the powder-coated surface may result. Repair and clean damaged areas with an abrasive paper (grain 120). After this is complete, use a suitable paint (observe the RAL Number).

• Check the zinc surface and repair it with a suitable tool. Use abrasive paper (grain 280). White rust can result from moisture laying in certain areas for long periods of time. Poor aerating can also result in rust formation. Rust may result from mechanical damage, wear, aggressive sediments (de-icing salt, liquids) or insufficient cleaning. Repair and clean these areas with abrasive paper (grain 280). After this is complete, use a suitable paint (observe the RAL Number).

• Check all the safety devices of the lift.

• Check the electric cable and channels for Damage.

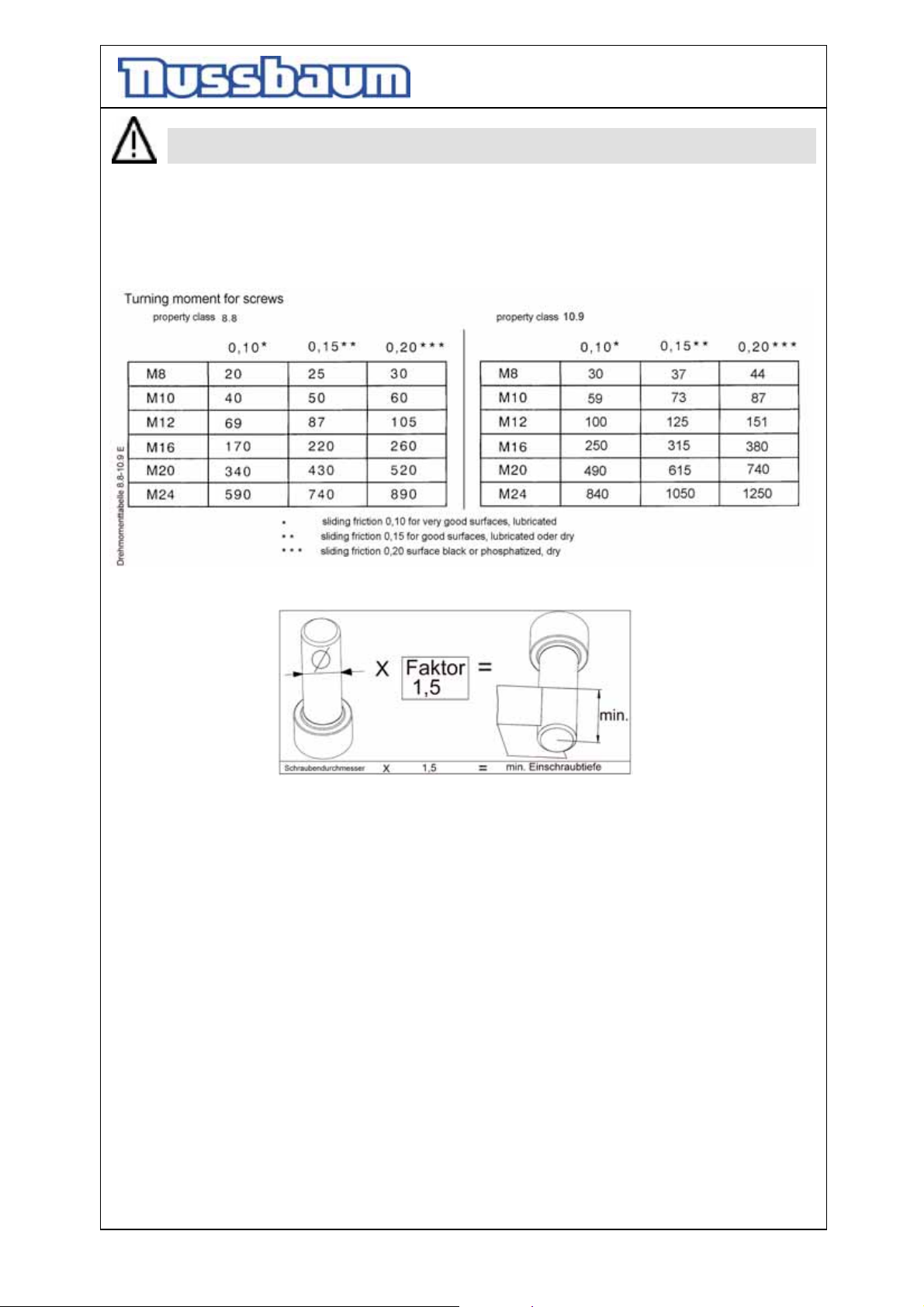

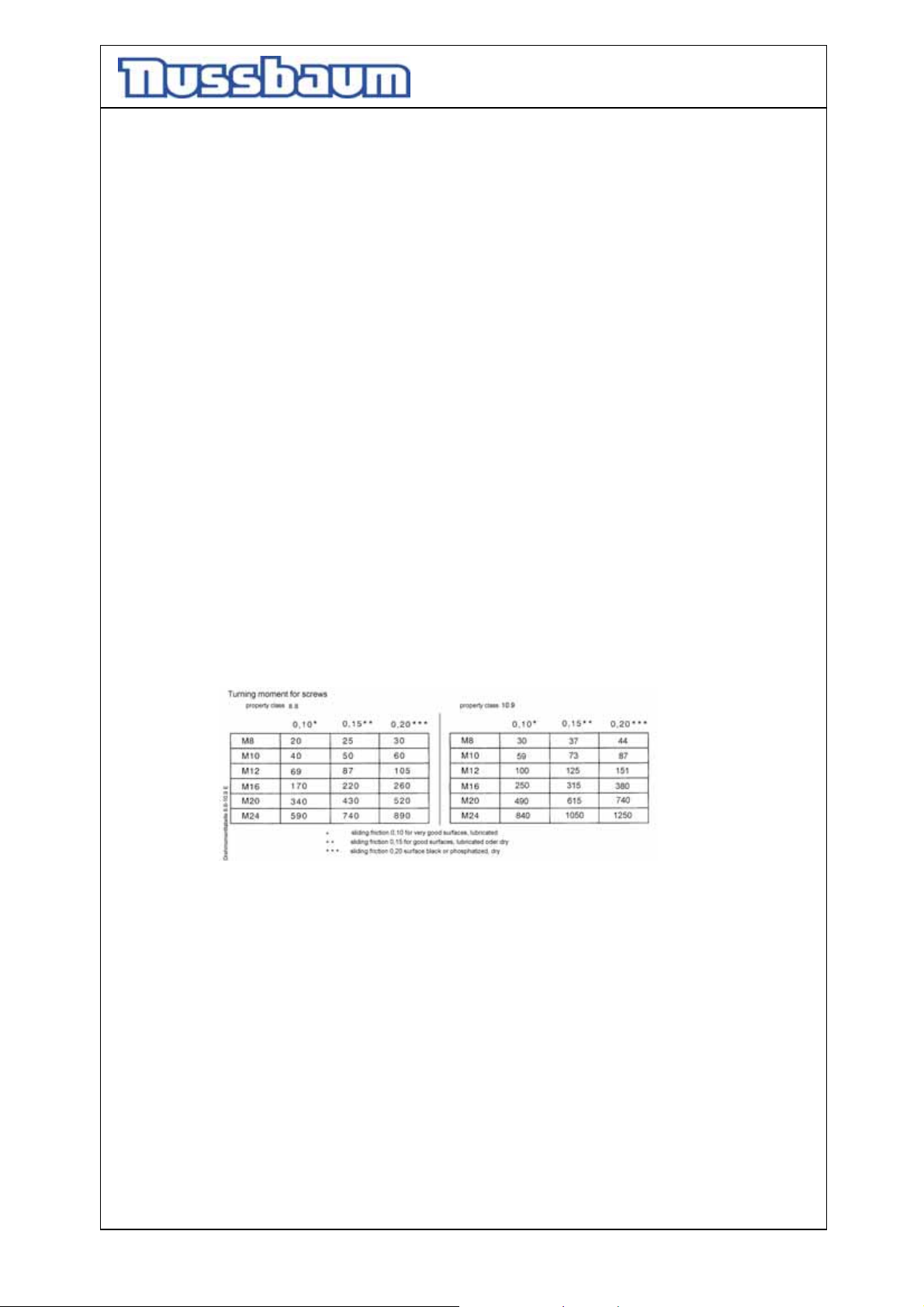

• Check that all screws and bolts are correctly torque (turning moments, see the list)

Pic 10:

7.2 How often must the lift be cleaned?

A regular and appropriate maintenance practice will aid the preservation of the lift.

No guarantees can be given when damage (egg rust or fading colour) is the direct result of poor maintenance and cleaning practice. Regular cleaning of all kinds of dirt is the best protection against wear and the formation of rust and will prolong the life of the lift

- Dirty deposits that can cause rust include:

• de-icing salt

• sand, pebble stone, natural soil

• all types of industrial dust

• water; also in connection with other environmental influences

• all types of aggressive deposits

• constant humidity caused by insufficient ventilation

- 22 -

Page 23

Operating Instruction and Documentation

2.35 TSK

Obviously this is dependent on the type of work being done with the lift, the degree of cleanliness of the workshop and location of the lift. The degree and amount of dirt is dependent on the season, on the weather conditions and the ventilation of the workshop. During poor conditions it may be necessary to clean the lift once week, but cleaning once a month will suffice.

Clean the lift and the floor with a non-aggressive and non-abrasive detergent. Use a gentle detergent to clean the parts. Use an standard washing-up liquid and lukewarm water.

- Do not use steam jet cleaners.

- Remove all dirt carefully with a sponge or if necessary with a brush.

- Ensure that no washing-up liquid is left on the lift after cleaning.

- Do not use aggressive means for cleaning the workshop floor and the automotive lift.

- A permanent contact with any kind of liquid is not allowed. Do not use high pressure devices for cleaning the lift.

8.Security check

The security check is necessary to guarantee the safety of the lifting during use. It has to be performed in the following cases:

1. Before the initial operation, after the first installation

Use the form “First security check before initiation”

2. In regular intervals after the initial operation, at least annually.

Use the form “Regular security check at least annually”

3. Every time the construction of that particular lift has been changed.

Use the form “Extraordinary security check”

The first and the regular security check must be performed by a competent person. It is recommended to service the lift at this occasion.

After the construction of the lift has been changed (changing the lifting height or capacity for example) and after serious maintenance works (welding on carrying parts) an extraordinary security check must be performed by an expert.

This manual contains form with a schedule for the security checks. Please us the adequate form for the security checks. The form should remain in this manual after they have been filled out. In the following there is a short description about special safety devices.

- 23 -

Page 24

Operating Instruction and Documentation

2.35 TSK

9.Installation and Initiation

9.1 Regulations for the installation

• The installation of the lift is performed by trained technicians of the manufacturer or its distribution partner. If the operator can provide trained mechanics, he can install the lift by himself. The installation has to be done according to this regulation.

• The standard lift must not be installed in hazardous locations or washing areas.

• An even installation place has to be provided. The foundations must be based in a frost resistance depth, both outside and indoors, where you must reckon with frost.

• An electrical supply 3ph, N+PE/400V, 50Hz has to be provided. The supply line must be protected with 16 Ampere time lag. The minimum diameter amounts to 2,5 mm². The connecting point is in the operating unit.

• All cable ducts have to be equipped with protective coverings to prevent accidents.

9.2 Installation

A. Installation of the Canister

1. Built in empty cassette according to foundation diagram.

2. Fit the Installation-help-beams, properly spaced 50 mm (2") to the canister sides. The bottom of the beam is the level for the top of the canister and the finished floor.

3. After having lowered the canister in to the pit, adjust the levelling screws to ensure that the canister is level with the floor and plumb in the pit. Make sure that the canister is not in contact with foreign metal parts in order to avoid electrolysis corrosion.

4. Anchor down the installation-help-beams. This is necessary to avoid the canister from shifting when the pit around the canister is filled in.

5. Remove the top cover of the canister and install squared beam against deformation when the pit is filled in.

6. Re-install the top-cover

7. Fill-in the pit around the canister with water-tight concrete or sand. Do not compact the concrete.

8. Once the concrete is dry, open top-cover and remove the squared beam.

9. To avoid electrolysis corrosion, make sure that there are no metal parts lying around inside the canister.

10 . Install the lifting-supports. Use the prescribed screws.

B. Installation of the Control Unit

(see hydraulic and electrical layout)

1 . Connect the Control unit to 3PH,N+PE,400V,50Hz in conformity with local requirements

and protected by a 16 Ampere time lag.

2. Run the two hydraulic hoses through the pipe duct in to the canister. Connect the hoses to the lifting cylinders Tee-piece and the locking cylinder.

- 24 -

Page 25

Operating Instruction and Documentation

2.35 TSK

3. Fill tank with a high quality oil. (Litre and cst. => see chapter 3.1)

C. Test-run 1 . Run the lift a few times (60 cm) up (2') and down without load. Bleed the hydraulic

cylinder. Run the lift a few times fully up and down.

Deaerate the Cylinder:

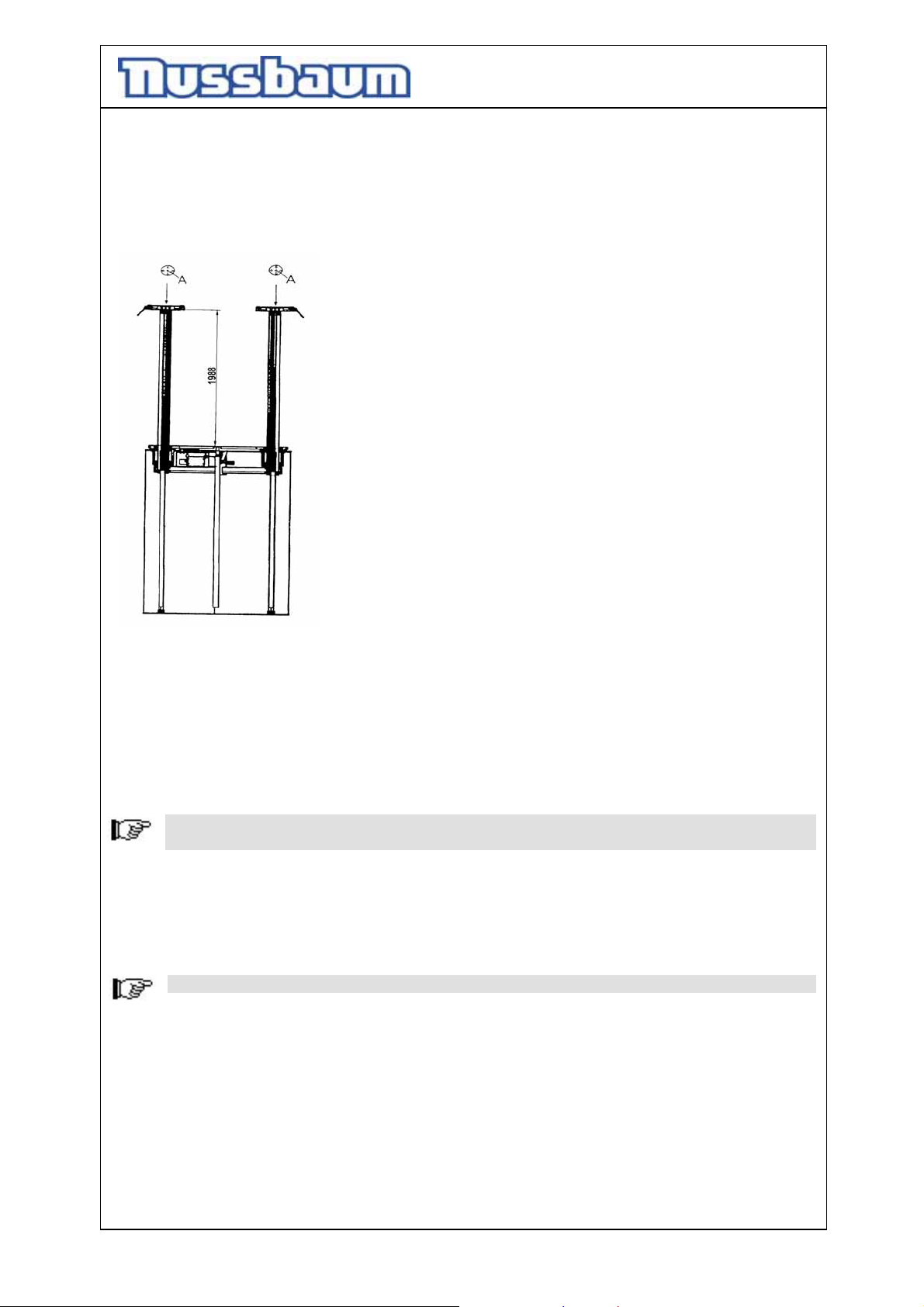

- raise the lift on the height of 1988mm The vent screw is located at the piston rod inside.

- Put a hexagon wrench into the piston rod (see position A)

- Open the hexagon socket screws only one rotation anticlockwise until air comes out of the cylinder.

- After it, close the screws.

2. Check all hydraulic connections against oil leakage.

3. Check the proper functioning of the locking mechanism and adjust if necessary.

4. Run the lift a few times with full load (up to 3500kg - 7750lbs) and check the proper functioning of the locking mechanism and the safety lowering stop.

5. Close the top-cover, install the factory supplied sealing and seal the whole with Silicon.

9.3 Initiation

Before the initiation a security check must be performed. therefore use form: First security check.

If the lift is installed by a competent person, he will perform this security check. If the operator installs the lift by himself, he has to instruct a competent person to perform the security check. The competent confirms the faultless function of the lift in the installation record and form for the security check and allows the lift to be used.

Please send the filled installation record to the manufacturer after installation.

- 25 -

Page 26

Operating Instruction and Documentation

2.35 TSK

9.4 First security check before installation

Filling out and leave in this manual Serial-number:______________________

all defect veri-

kind of check right missing fication remark

----------------------------------------------------------------------------------------------------------------------------------------

Type plate........................................................... F F F ..................................................

Short operating instruction................................. F F F ..................................................

Warning designation.......................................... F F F ..................................................

Designation lifting/lowering..........................….. F F F ..................................................

Detailed operating instruction........................... F F F ..................................................

Main switch lockable........................................ F F F ..................................................

Function/Condition hydraulic unit..................... F F F ..................................................

Condition/Function foot protection................... F F F ..................................................

Function button “Lifting/Lowering”..............….. F F F ..................................................

Condition of the welds.. …………................. F F F ..................................................

Condition automotive lift.................................. F F F ..................................................

Securing of bolts............................................... F

Construction (deformation, cracking) ................ F F F ..................................................

Function adjustable pick-up pads..................... F F F ..................................................

Function/Condition lifting arms.............................. F F F ..................................................

Function/Condition rubber plates......................... F F F ..................................................

Function/Condition locking system of the arms.... F F F ..................................................

Fixed seat of the screws.................................... F F F ..................................................

Condition operating unit................................... F F F ..................................................

Condition surface piston rod ......................….. F F F ..................................................

Condition coverings........................................... F F F ..................................................

Condition electrical wires ............................. F F F ..................................................

Level of hydraulic oil ................................... F F F ..................................................

Condition of the hydraulic system..................... F F F ..................................................

Condition hydraulic hoses................................. F F F ..................................................

Function test with vehicle.................................. F F F ..................................................

( mark here applicable, in case of verification mark in addition to the first mark!)

----------------------------------------------------------------------------------------------------------------------------------------

Security check carried out:....................................................................................................................

Carried out the company:......................................................................................................................

Name, address of the competent:.........................................................................................................

Result of the Check:

F F ..................................................

F Initiation not permitted, verification necessary F Initiation possible, repair failures

until.........................................................

F No failings, Initiation possible

........................................................ ...........................................................

signature of the expert signature of the operator

If failures must be repaired:

Failures repaired at: .......................... ...................................................

signature of the operator

(Use another form for verification!)

- 26 -

Page 27

Operating Instruction and Documentation

2.35 TSK

9.5 Regular security check and maintenance

Filling out and leave in this manual Serialnumber:______________________
