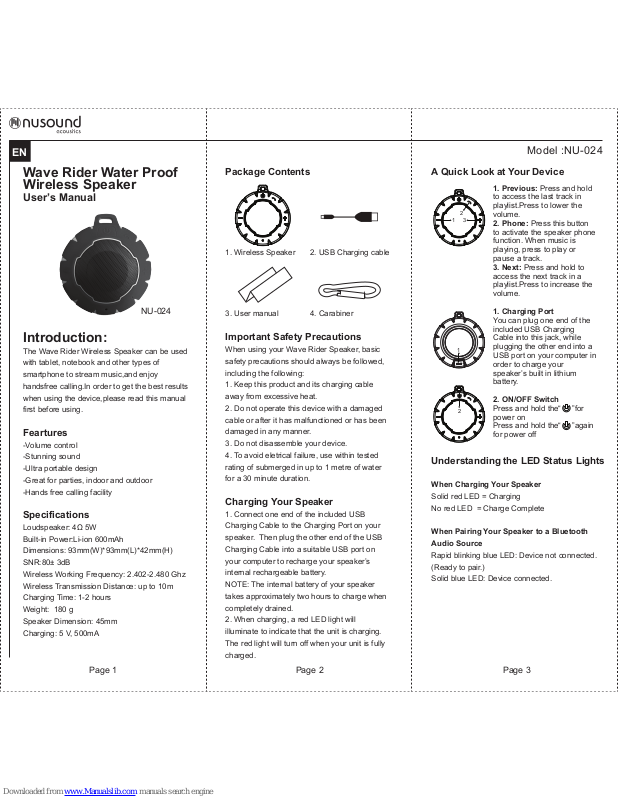

Wave Rider Water Proof
Wireless Speaker
User’s Manual
Introduction:
The Wave Rider Wireless Speaker can be used
with tablet, notebook and other types of
smartphone to stream music,and enjoy
handsfree calling.In order to get the best results
when using the device,please read this manual
first before using.
Feartures
-Volume control
-Stunning sound
-Ultra portable design
-Great for parties, indoor and outdoor
-Hands free calling facility
Specifications
Loudspeaker: 4Ω 5W
Built-in Power:Li-ion 600mAh
Dimensions: 93mm(W)*93mm(L)*42mm(H)
SNR:80± 3dB
Wireless Working Frequency: 2.402-2.480 Ghz
Wireless Transmission Distance: up to 10m
Charging Time: 1-2 hours
Weight: 180 g
Speaker Dimension: 45mm
Charging: 5 V, 500mA
Package Contents
Important Safety Precautions
When using your Wave Rider Speaker, basic
safety precautions should always be followed,
including the following:
1. Keep this product and its charging cable
away from excessive heat.
2. Do not operate this device with a damaged
cable or after it has malfunctioned or has been
damaged in any manner.
3. Do not disassemble your device.
4. To avoid eletrical failure, use within tested
rating of submerged in up to 1 metre of water
for a 30 minute duration.
Charging Your Speaker
1. Connect one end of the included USB
Charging Cable to the Charging Port on your
speaker. Then plug the other end of the USB
Charging Cable into a suitable USB port on
your computer to recharge your speaker’s
internal rechargeable battery.
NOTE: The internal battery of your speaker
takes approximately two hours to charge when
completely drained.
2. When charging, a red LED light will
illuminate to indicate that the unit is charging.
The red light will turn off when your unit is fully
charged.
A Quick Look at Your Device
Page 1 Page 2 Page 3
EN
Model :NU-024
NU-024
1. Wireless Speaker 2. USB Charging cable
3. User manual
4. Carabiner
1. Previous: Press and hold
to access the last track in
playlist.Press to lower the
volume.
2. Phone: Press this button
to activate the speaker phone
function. When music is
playing, press to play or
pause a track.
3. Next: Press and hold to
access the next track in a
playlist.Press to increase the
volume.
1. Charging Port
You can plug one end of the
included USB Charging
Cable into this jack, while
plugging the other end into a
USB port on your computer in
order to charge your
speaker’s built in lithium
battery.
2. ON/OFF Switch
Press and hold the“ ”for
power on
Press and hold the“ ”again
for power off
1
2
1 3
2
Understanding the LED Status Lights
When Charging Your Speaker
Solid red LED = Charging
No red LED = Charge Complete
When Pairing Your Speaker to a Bluetooth
Audio Source
Rapid blinking blue LED: Device not connected.
(Ready to pair.)
Solid blue LED: Device connected.
Pairing Bluetooth Devices to Your
Speaker
In order to pair your Bluetooth audio device to
your Wireless Speaker for the first time, follow
the steps below:
1). Make sure your Bluetooth audio source is
held within three meters of your speaker.
2). Press and hold the “ ” switch on your
speaker to power on
The LED light will blink blue to indicate that you
have entered pairing status.
3). Go to the Bluetooth Manager of your
Bluetooth audio source. Please refer to the
User’s Manual of your Bluetooth audio source
for more information.
4). Search Bluetooth devices and select
“NUSOUND (NU-024)”.
5). Once paired, the blue LED light will be solid
and you can use your speaker to listen to audio
from you Bluetooth sound source.
Using the Hands-Free Function
When an iPhone or other smartphone is
connected to your speaker follow the steps
below to take calls hands-free.
1. Press“ ”to pick up the call.
2. Press and hold“ ”for 2 sec to reject the call.
3. During a call: Press“ ”again to hang up the
call.
Page 4
Problem
The speaker doesn’t
connect to device
A tone is heard every
few seconds
Bluetooth connection
is poor
The speaker will not
power on
The speaker doesn’t
control
The speaker distorts
at high volume
Solution
Speaker needs to be
connected/re-paired to device
Speaker needs to be charged
Avoid operating the wireless
speaker in areas of strong
electromagnetic interference,such
as near indution cookers,large
power fans,motors etc.
Move the speaker closer to
Bluetooth device.Fully charge the
speaker and try again.
Speaker needs to be charged
Speaker needs to be in Bluetooth
mode for full control
The devices’ volume needs to be
lowered
www.nusoundacoustics.com
Page 5
EN
Troubleshooting
