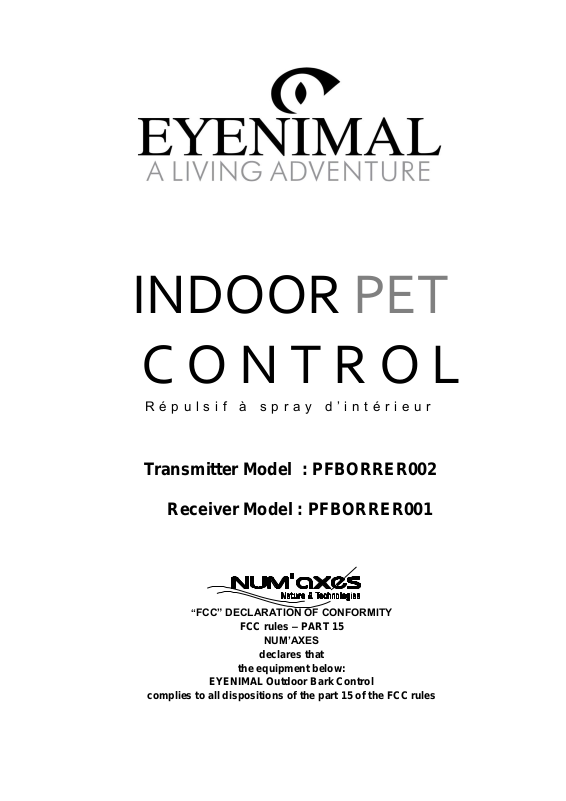

NUM AXES PFBORREP001 User Manual

INDOOR PET

C O N T R O L

R é p u l s i f à s p r a y d ’ i n t é r i e u r

Transmitter Model : PFBORRER002

Receiver Model : PFBORRER001

“FCC” DECLARATION OF CONFORMITY

FCC rules – PART 15

NUM’AXES

declares that

the equipment below:

EYENIMAL Outdoor Bark Control

complies to all dispositions of the part 15 of the FCC rules

This device complies with part 15 of the FCC. Operation is subject to the following

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received including interferences that may cause undesired

operation.

DECLARATION « CE » DE CONFORMITE
« EC » DECLARATION OF CONFORMITY

NUM’AXES

déclare que / declares that

le répulsif à spray / the spray repellent

EYENIMAL Indoor Pet Control

satisfait à toutes les dispositions de la Directive N° 2004/108/CE du Conseil Européen

complies to all disposition of the European Council Directive Below N° 2004/108/CE

EYENIMAL® est une marque déposée par la société Num’Axes S.A à Directoire et Conseil de

Surveillance – France
EYENIMAL® is a trademark of Num’Axes S.A company – France

NUM’AXES

745 rue de la Bergeresse
ZAC des Aulnaies
BP 30157 - 45161 Olivet Cedex
FRANCE
Tél. [phone]
Fax [phone]

TECHNICAL FEATURES

Power supply

4 LR14 1.5V type C alkaline batteries (not supplied)

Battery life

Up to 72 days

On/Off indicator

Green flashing every 8 second

Battery level indicator

Red flashing every 3 second

Working modes

mode 1: spray only
mode 2: beep tone only
mode 3: beep tone + spray

Detection range

from 30cm to 60cm

Dimensions

19cm x 12,5cm x 12,5cm

Weight (with batteries)

730g

Use temperature

Between – 20°C and + 45°C

User’s guide

Transmitter collar equipped with

a CR2032 Lithium battery

On/Off button

Aerosol spray

Beep tone

Battery cover and button of

mode selection

Light indicator

The packaging includes:

 a transmitter collar equipped with a CR2032 Lithium battery.
 a repulsive base.
 an odourless spray refill (150 sprays).
 a user’s guide.

Product details:

Technical features of the base:
