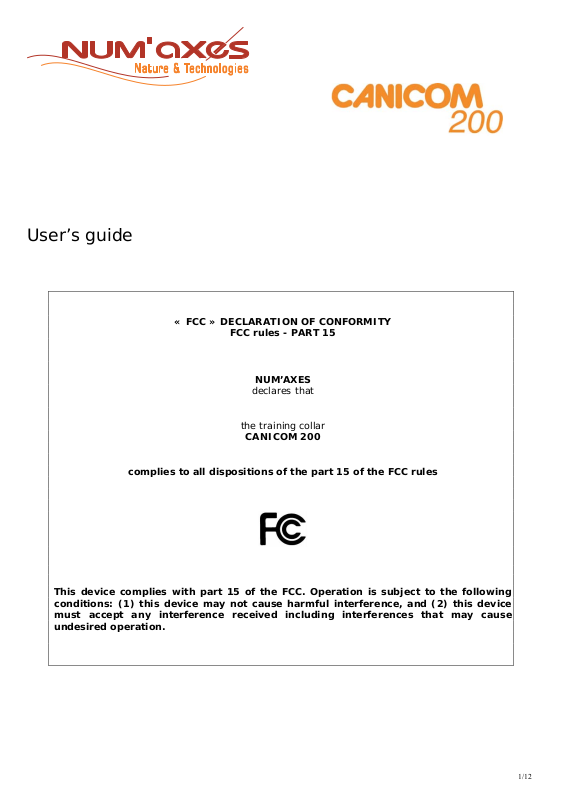

NUM AXES CDS20001 Users Manual

User’s guide

complies to all dispositions of the part 15 of the FCC rules

« FCC » DECLARATION OF CONFORMITY

FCC rules - PART 15

NUM’AXES

declares that

the training collar

CANICOM 200

This device complies with part 15 of the FCC. Operation is subject to the following
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received including interferences that may cause
undesired operation.

1/12

WARNING

Any person with individual device for cardiac assistance (pacemaker, defibrillator) must take
precautions when they use CANICOM 200.
This device emits some static magnetic fields (a magnet is located in the remote control).
(Frequency= 915 MHz, at = 0.75 mW).
The device complies with Part 15 of the FCC rules.
Any technical changes or modifications on the receiver collar or on the remote control not
expressly approved by the manufacturer shall void the user’s authority to operate the
equipment.

Thank you for choosing a NUM’AXES product.
Before using your CANICOM 200, please read the instructions in this guide carefully and keep it for future reference.

Before using CANICOM 200, we advise you to have your dog checked by your vet to ensure it is
fit to wear a collar.

Check your dog’s neck regularly, the repeated rubbing of the contact points against the
animal’s skin may cause irritation. If this happens, remove the collar until all signs of skin
irritation have disappeared.

Start with the lowest level of stimulation and define the level from which your dog reacts by
increasing gradually.

Do not hesitate to contact a professional trainer for any further advice.

CANICOM 200 – User’s guide – indice C
2/12

Index Page

▪ Contents of the product ...............................................................................................4

▪ Description of the product ............................................................................................ 4

▪ First use from new ......................................................................................................4

▪ How to use the remote control ...................................................................................... 6

▪ Checking/replacing battery of remote control ..................................................................7

▪ Checking/replacing battery of receiver collar ...................................................................7

▪ Changing the contact points .........................................................................................7

▪ How to check that your CANICOM 200 is functioning properly ............................................ 8

▪ Getting the best results ................................................................................................8

▪ Fitting the collar ..........................................................................................................8

▪ Starting out with the training collar ................................................................................8

▪ The difference between « continuous » and « flash » stimulation .......................................9

▪ Cautions for use ..........................................................................................................9

▪ Maintenance ...............................................................................................................9

▪ Troubleshooting .......................................................................................................... 9

▪ Technical specifications .............................................................................................. 10

▪ Receiver collar battery life .......................................................................................... 11

▪ Warranty ................................................................................................................. 11

▪ Warranty conditions .................................................................................................. 11

▪ Spare parts .............................................................................................................. 11

▪ Collection and recycling of your device at the end of its life ............................................. 12

CANICOM 200 – User’s guide – indice C
3/12

● Contents of the product

Inside the packaging you will find:

▪ 1 receiver collar CANICOM fitted with short contact points
▪ 1 lithium 3 Volts CR2 battery for the collar
▪ 1 remote control CANICOM 200 fitted with 1 lithium 3 Volts CR2430 battery
▪ 1 neon test lamp
▪ 1 pair of long contact points
▪ 1 carry strap
▪ 1 DVD
▪ This user’s guide

● Description of the product

Continuous stimulations

limited to 8 seconds

Flash stimulations

lower than 1 second

Adjustment of the level

of the stimulations

Indicator of radio

transmission

Battery level indicator

REMOTE CONTROL

Diagram 1

LCD SCREEN

Diagram 3

On/Off

switch

LCD screen

Red mark:

Area where

the On/Off

switch magnet

is located

RECEIVER COLLAR

Diagram 2

THT level indicator

from 1 to 9

2 contact points

(short or long)

On/Off indicator

+

indicator of

radio reception

+

battery level

indicator

● First use from new

Fitting the battery in the receiver collar



▪ Unscrew the 4 screws of the top of CANICOM using a screwdriver.
▪ Insert the battery (3V Lithium CR2)

battery housing (ref. Diagram4). The tab is under the battery.

▪ A beep sound (low pitch) is emitted, indicating the correct installation of the battery.

CANICOM 200 – User’s guide – indice C
4/12

paying attention to follow polarity indicated on the
