1 Alphanumeric LCD Display Expansion Module – User Guide
Introduction

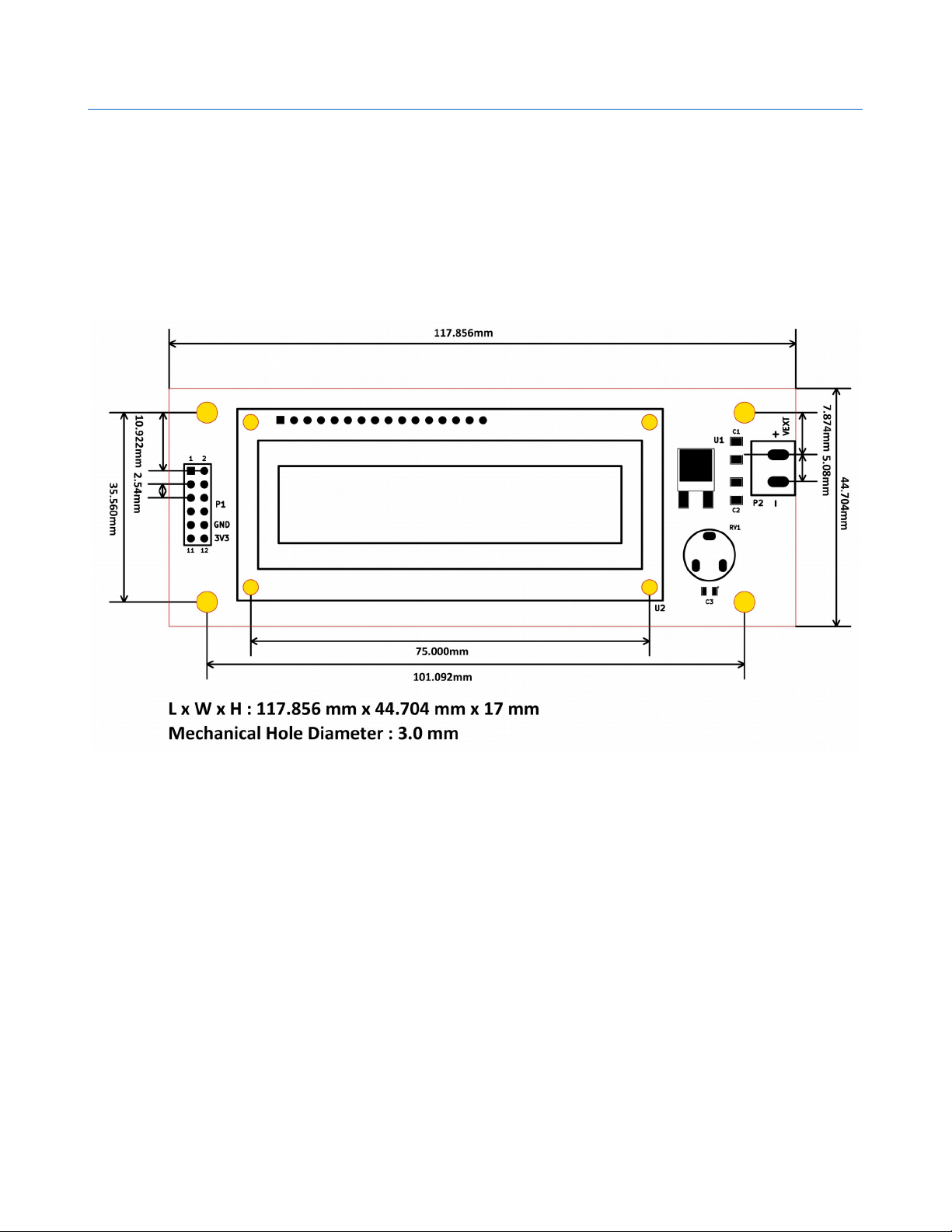

This expansion module features a 16x2 Alphanumeric LCD Module which can be added to your custom
project using a 2x6 pin connector. It is designed to be used with Numato Lab’s FPGA/Micro-controller
boards featuring 2x6 pin Expansion connectors. This module can be used with other boards as well by
using manual wiring.
2 Alphanumeric LCD Display Expansion Module – User Guide
How to use the module
The following section describes how to use this module.
Components/Tools required
Along with the module, you may need the items in the list below for easy and fast installation.
1. Any FPGA board featuring a 2 × 6 pin Expansion connector (Manual wiring needed for boards
that does not have 2x6 expansion connector)
2. DC Power supply

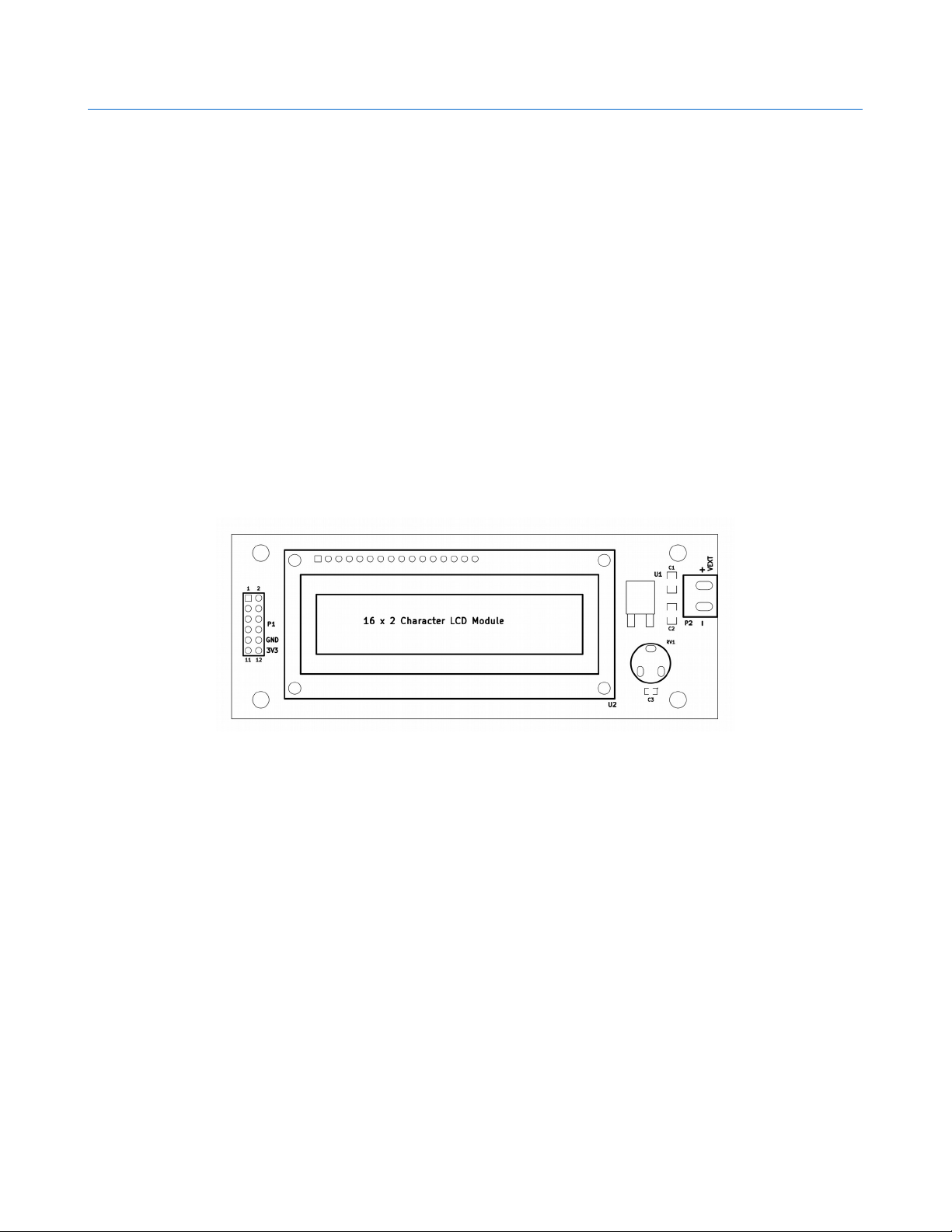

Connection Diagram

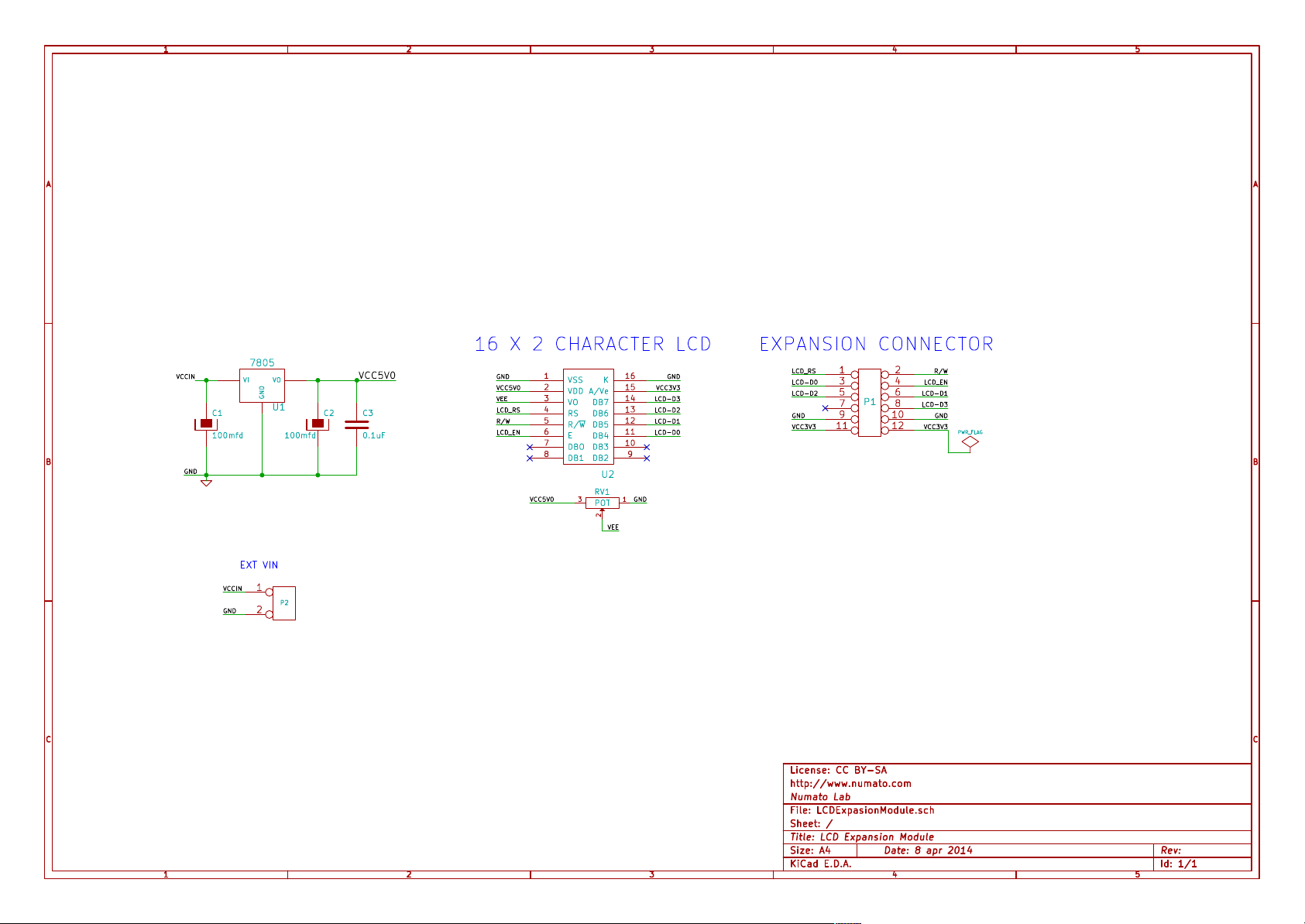

This diagram should be used as a reference only. For detailed information, see the schematics at the
end of this document. Details of individual connectors are as below.
To use this module, directly attach the 2x6 expansion connector to the FPGA/Micro-controller
development board where corresponding female header is available. If 2x6 female header is not
available, manually make the connections as per the connection details below. External power is
required for the operation of this module due to the higher current requirement of the back light.
Connect a power supply to the VEXT connector. Make sure to connect positive and negative terminals
appropriately. Use the trim-pot on the module to adjust the contrast of LCD.
