Numark Industries 950USB User Manual

PROFESSIONAL DJ MIXER

Quick Start Owner’s Manual

BOX CONTENTS

• MIXER

• USB CABLE

• POWER SUPPLY

Manual de inicio rápido para el usuario

(ESPAÑOL)

CONTENIDOS DE LA CAJA

• MEZCLADOR

• CABLE USB

• FUENTE DE ALIMENTACIÓN

Schnellbedienungsanleitung (DEUTSCH)

SCHACHTELINHALT

• MISCHPULT

• USB-KABEL

• STROMKABEL

Manuel d’utilisation du propriétaire

(FRANÇAIS)

CONTENU DE LA BOÎTE

• MIXER

• CABLE USB

• BLOC D’ALIMENTATION

Manuale rapido di utilizzazione (ITALIANO)

CONTENUTO DELLA CONFEZIONE

• MIXER

• CAVO USB

• CAVI DI ALIMENTAZIONE

MIXER QUICK SETUP GUIDE (ENGLISH)

1. Make sure all items listed on the f ront of this guide are included in the box.

2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT

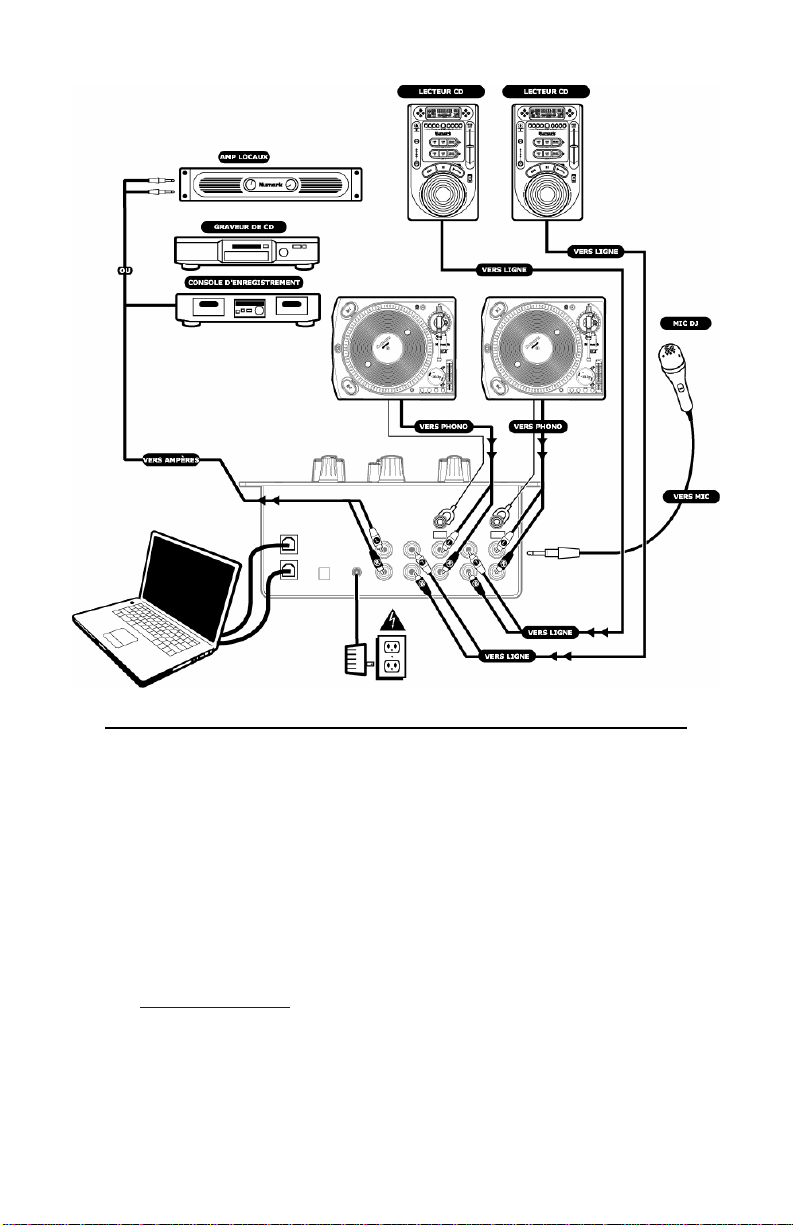

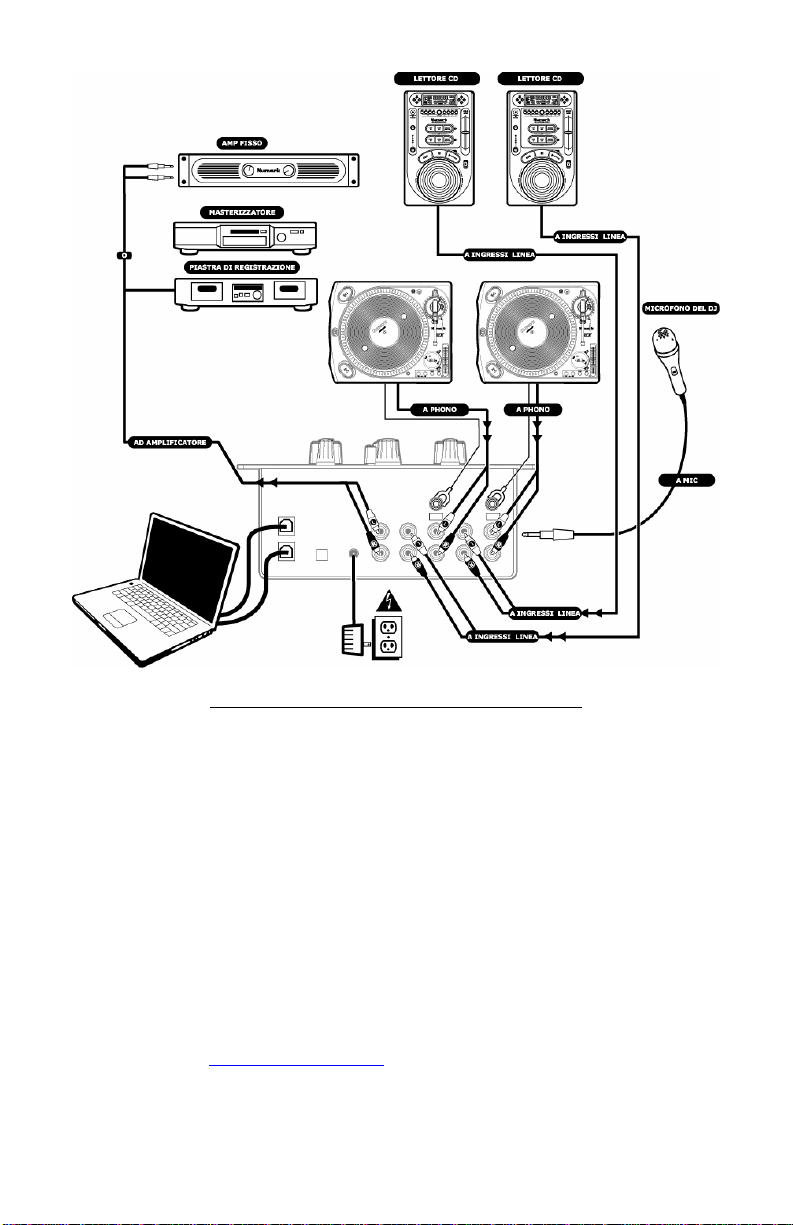

3. Study this setup diagram.

4. Place mixer in an appropriate position for operation.

5. Make sure all devices are turned off and all faders are at “zero”

6. Connect all stereo input sources as indicated in the diagram.

7. Connect the stereo outputs to the power amplifier(s), tape decks, and/or audio

sources.

8. Plug your mixer and other devices into AC power.

9. Switch everything on in the following order.

• audio input sources (i.e. turntables or CD players)

• your mixer

• last, any amplifiers

10. When turning off, always reverse this operation by,

• turning off amplifiers

• your mixer

• last, any input devices

11. Go to http://www.numark.com

for product registration.

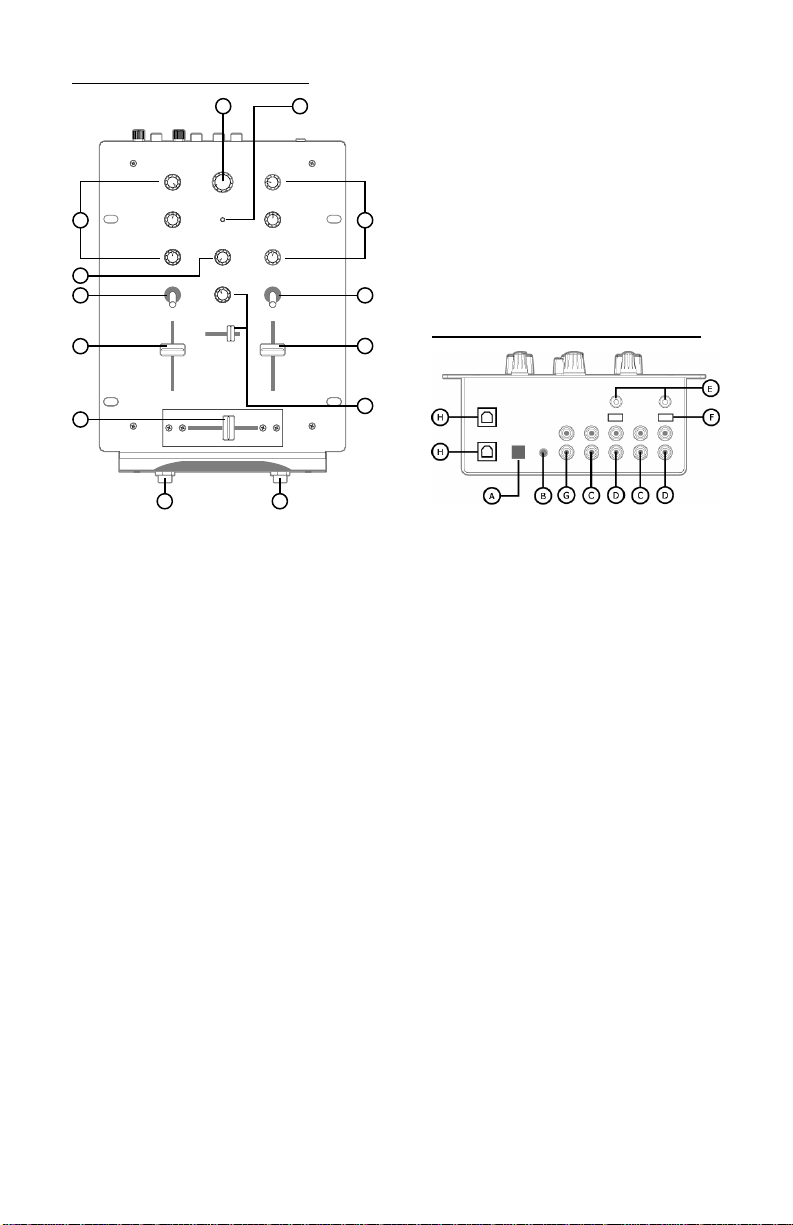

FRONT PANEL FEATURES

12. Microphone Input: Microphones with a ¼” connector can be connected to this input terminal.

13. Headphone Jack: Your headphones can be connected to this ¼” terminal. The volume should always be set at its lowest setting while connecting and disconnecting headphones to prevent damage to

headphones and/or your hearing.

REAR PANEL FEATURES

12 13

1. Power LED: Illuminates when the mixer is on.

2. Master Gain/Volume: This knob adjusts the volume of the master output.

3. Channel 1 Control Knobs:

Trim: This knob adjusts the pre-fader audio level. Treble: This knob adjusts the high-tone level. Bass: This knob adjusts the low-tone level.

4. Channel 2 Control Knobs:

Trim: This rotary control knob adjusts the pre-fader audio level. Treble: This rotary control knob adjusts the high-tone level. Bass: This rotary control knob adjusts the low-tone level.

5. Mic Gain: This rotary control adjusts the pre-mixer input level.

6. Channel 1 Input Selector: This toggle selects what input source is routed to the channel from the rear panel connected units.

7. Channel 2 Input Selector: This toggle selects what input source is routed to the channel from the rear panel connected units.

8. Channel 1 Fader: This slide fader is used to adjust the level sent to program mix.

9. Channel 2 Fader: This slide fader is used to adjust the level sent to program mix.

10. Replaceable Crossfader: This slide fader blends audio between the left (channel 1) and right (channel 2) channels.

Note: This fader is user replaceable if it should ever wear out. Simply remove the facepanel and then remove the screws holding it in position. Replace the fader with a quality authorized replacement from your local Numark retailer.

11. Cue Trim & Slider: The Cue Trim rotary control knob adjusts the volume level of the headphone output. Channels 1 and 2 can be previewed using the Cue Slider. Sliding this to the left plays the left “channel-1” and sliding to the right plays the right “channel2”.

Note: It is recommended that the mixer be turned off before connecting and disconnecting any sources to the inputs of the mixer.

A. Power Switch: Use this switch to turn on

the mixer after all input devices are already connected to prevent damage to your equipment. Turn the mixer on before you turn on amplifiers and turn of amplifiers before you turn off the mixer.

B. AC Power Input: Microphones with a ¼”

connector can be connected to this input terminal.

C. Line Inputs: CD players, Tape Decks,

Samplers or other line level input devices should be connected to these inputs.

D. Phono Inputs: This input is used for

connecting your turntables through the sensitive RIAA phono preamplifiers. Only turntables with phono level output should be attached.

E. GND: This screw connector should be used

to secure any turntables or other devices connected to the mixer that need to be grounded.

F. Phono/Line Selector: This switch selects

between the phono and line input on the rear panel.

G. Master Output (RCA): This output is for

connecting an external monitoring device such as a PA system, powered monitors or a home stereo. The level of the master stereo output signal is controlled by the master fader.

H. USB Jack: This sends and receives audio

data from your computer. The USB 1 jack sends audio to the mixer’s channel 1, while the USB 2 jack sends audio to channel 2. See the separate instructions for how to use your USB mixer with a computer.

GUÍA DE INICIO RÁPIDO PARA EL MEZCLADOR (ESPAÑOL)

1. Asegúrese de que todos los artículos incluidos al inicio de este manual están incluidos en la caja.

2. LEA EL FOLLETO DE INSTRUCCIONES DE SEGURIDAD ANTES DE UTILIZAR EL PRODUCTO.

3. Estudie este diagrama de instalación.

4. Coloque el mezclador en una posición adecuada para su funcionamiento.

5. Asegúrese de que todos los dispositivos están apagados y de que todos los faders están en la posición “cero”.

6. Conecte todas las fuentes de entrada al estéreo como se indica en el diagrama.

7. Conecte las salidas del estéreo a los amplificadores de alimentación, unidades de cinta magnética, y/o fuentes de audio.

8. Enchufe su mezclador y otros dispositivos a la potencia de corriente alterna.

9. Prenda todo en el siguiente orden:

10. Al apagar, realice siempre esta operación al contrario:

• apague los amplificadores

• su mezclador

• por último, cualquier dispositivo de entrada

11. Visite http://www.numark.com

• fuentes de entrada de audio (por ej. giradiscos o reproductores de CD)

• su mezclador

• por último, cualquier amplificador

para registrar el producto.
