VX100 All-in-one
Conference Microphone
User's manual
www.Nugenstech.com
Page 2
Connect to PCs:
Nugens VX-100 is a plug-n-play device. Take out the USB cable and directly connect to
Windows XP 7/8/10 and Mac OS X10.5 (Intel processor is required)
Find Nugens VX-100 in setting option or USB audio device option within Windows Device
Manager or IM tool.
Connect to Bluetooth Device:
Turn on Bluetooth on Nugens VX100 and select Nugens VX100 on receiving device.
①
②
③
④
⑤
⑥
⑦
⑧

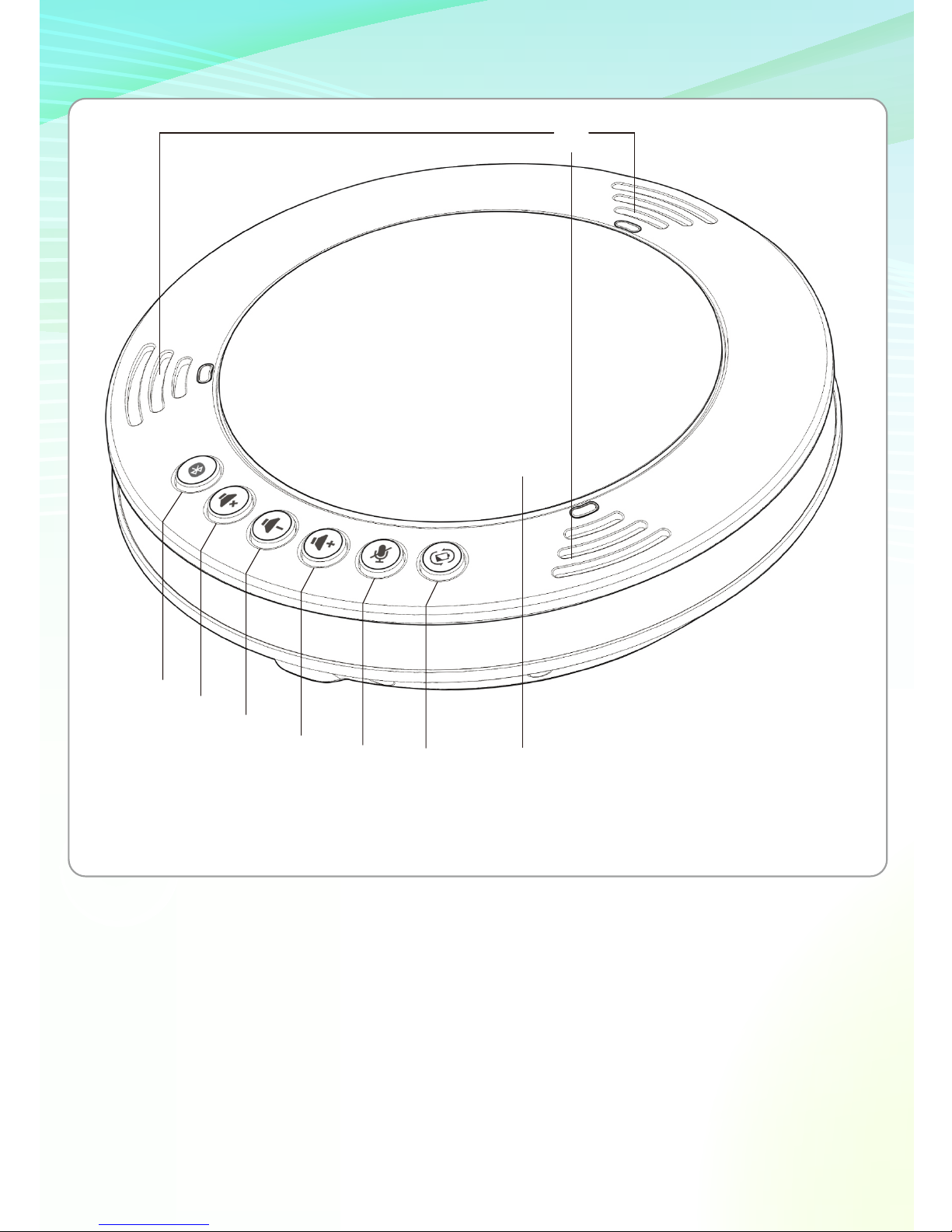

1. Bluetooth
2. Volume Mute
3. Volume Down
4. Volume Up
5. Microphone Mute
6. Microphone Switch
7. Speaker
8. Microphone
Page 3
Function of Keys:
Bluetooth Bottom Press and hold Bluetooth Connect to turn on and a blue indicator
cues a open status to pair with your device, once connected, blue indicator will keep
turned on. Press and hold button again to turn off Bluetooth.
Volume Down Speaker volume down.
Volume Up Speaker volume up.
Speaker Mute An indicator will show mute is turned on, press again to unmute.
Microphone Mute Press to mute on the horn, orange led light is on. Press again,
mute off.
Microphone Switch Choose to turn on one microphone, and turn off the other two;
Or turn on all 3 microphones. Indicator(LED) will be on when microphone is chosen.
Nugens VX100 inside carries lithium battery and can be charged while connecting to
PC/Mac, if you connect a external charging power to Nugens VX100, plase check you
use the power with ouput voltage LOWER than 5V.
Omnidirectional conference microphone now is developing into a new stage that can
provide speaker/lercturer/influencers a more versatile functionality and comfortable
environment. Mostly, they are upgraded with new DSP technology (to enhance superior
sound quality) and new duplexing system (allows stronger signals stability to flow in
both directions simultaneously). Bluetooth connect, echo/noise reduction, easy plug and
play, wider pick up range 3m² and x3 switchable omni-directional mics are all carried to
provide superior sound quality with all form of chat tool.
Function Schematic Diagram
PCs Group Meeting Speaker Omnidirectional Call
Battery and Charging Safety Precaution:
Page 4
Spec:
Interface
Max. Power
Power supply
Radio interference standard
Operating environment
Size
Weight
Computer environment
Accessories
Others
USB2.0 Full speed interface
About 2.5W
USB power supply(5V/500mA)
VCCI level B
Temperature: 0°c ~ 40°c working humidity: 20% ~ 85% (no frost)
140x32x140mm,243x45x170mm (before and after packaging)
280g/500g (before and after packaging)
Windows XP/7/8/10, Mac OS X 10.5 ( support only Intel processors)
USB cable (2.0m), Manual, Quality Certificate
firmware update(with USB to connect PCs)
Audio parameters:
Microphone
Speaker
Volume
Frequency Bandwidth
Signal processing
x3 omnidirectional microphones
1 (mono cycle)
Max 85dB (0.5m)
300∼20K Hz
Adaptive echo canceller, noise reduction, The 3 alternative mic can
be corresponding to the switching control

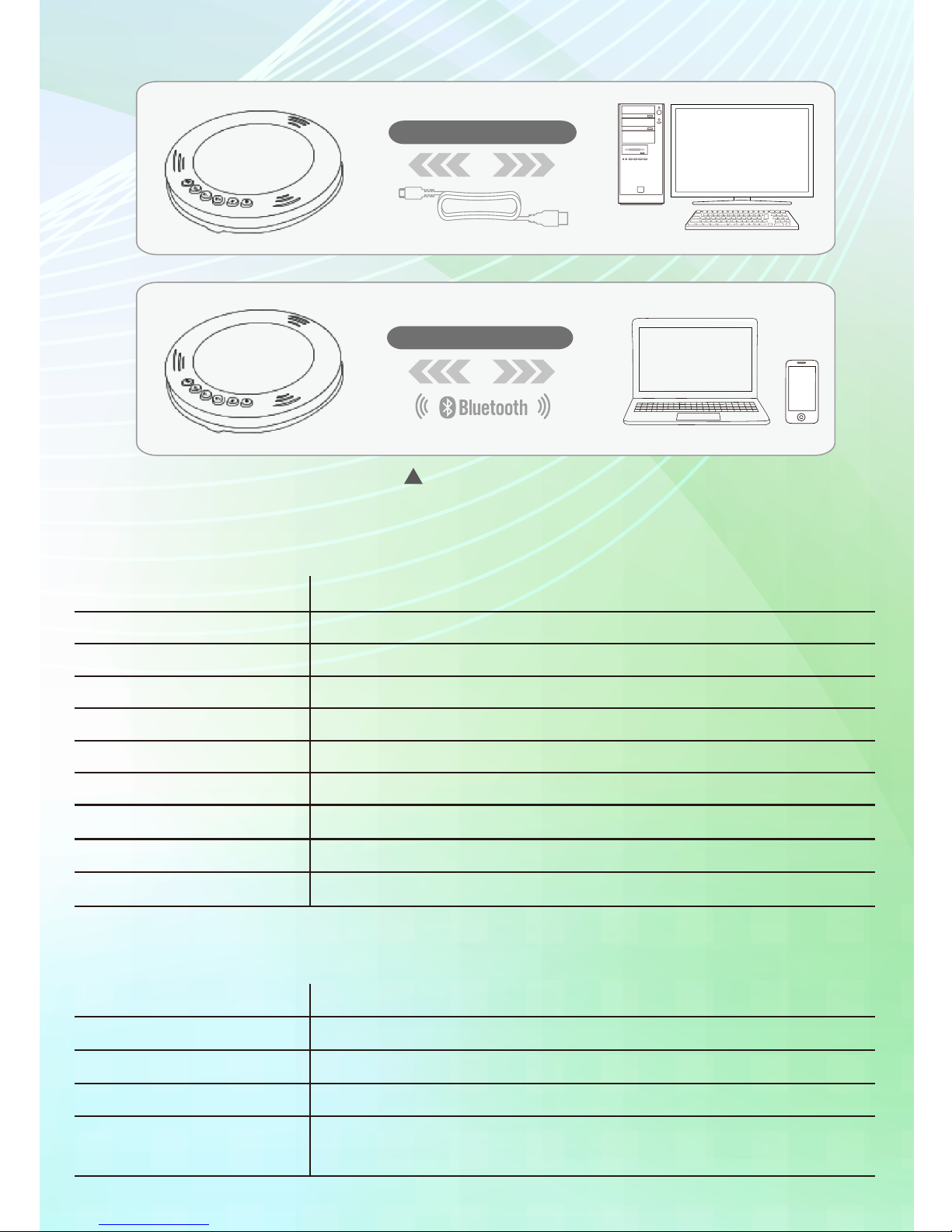

Connecting Diagram
Bluetooth Connecting to Device
USB Connecting to PCs
