NuEra 370 Installation Manual

Rev. Date 032615

Table of Contents

Caution & Safety ................................................................................................................................. 2

Fusing Chart ....................................................................................................................................... 4

Fan Placement....................................................................................................................................5

Fan Clearance & Placement .............................................................................................................. 6

Fan Dimensions .................................................................................................................................. 7

Fan Components & Tools ................................................................................................................... 8

Step 1 - Fan Mounting ................................................................................................................. 9

Rapid Mount Commercial .......................................................................................................... 10

1.1 Unistrut Span Mounting ....................................................................................................... 11

1.2 I-Beam Mounting .................................................................................................................. 12

1.3 Glulam/Wood Beam Mounting ............................................................................................. 14

Step 2 - Extension and Motor Unit Installation ........................................................................... 16

2.1 Extension and Motor Unit Installation .................................................................................17

Step 3 - Safety Cable and Electrical Installation ......................................................................... 18

3.1 Touchpad Remote Mounting................................................................................................. 19

3.2 Safety Cable & Electrical Installation ..................................................................................21

3.3 Emergency Disconnect Schematic ...................................................................................... 22

Step 4 - Airfoil Installation .......................................................................................................... 23

4.1 Airfoil Installation ..................................................................................................................24

Step 5 - Touchpad Remote Navigation and Operation ................................................................. 27

5.1 Touchpad Remote Navigation............................................................................................... 28

5.2 Touchpad Remote Operation ................................................................................................ 29

Maintenance Information ................................................................................................................... 30

Warranty and Technical Support ........................................................................................................ 31

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Caution & Safety

READ THE ENTIRE MANUAL BEFORE OPERATING THE FAN. Ensure that all safety practices and instructions are followed during the installation, operation and servicing of the fan. Failure to apply these safety practices could result in death or serious injury. If you do not understand the instructions please call our Technical Department for guidance (Technical Support contact information can be found on page 31).

The fan installation should follow the recommendations outlined in this manual. MacroAir is not responsible for any injury or damage to people or property as a result of the user and/or installer not complying with the recommendations outlined in this manual.

All fan controls and incoming power should only be installed by qualiﬁed technicians familiar with the requirements of the NEC and local codes. Refer to appropriate portions of this manual for other important requirements. Failure to follow these guidelines will void the manufacturer’s warranty.

NOTICE: All electrical controls are conﬁgured at the factory and are ready to use. No user adjustments are available. Follow the included wiring schematics and installation instructions when installing this device to ensure proper operation. Do not make any changes to any part of the fan without ﬁrst consulting MacroAir.

Installation is to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and local codes.

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH.

Read and understand this manual before installing or operating a fan unit. Installation, adjustment, repair, or maintenance must be performed by qualiﬁed personnel.

The user is responsible for compliance with all international and national electrical code requirements with respect to grounding of all equipment.

Many of the parts of this unit operate at line voltage. DO NOT TOUCH.

Install all covers before applying power or starting and stopping the unit.

DAMAGED EQUIPMENT

Do not operate or install any fans or fan accessories that appear to be damaged.

Failure to follow this instruction can result in death, serious injury, or equipment damage.

MAINTENANCE AND SERVICE:

If the fan does not operate properly using the procedures in this manual, BE CERTAIN TO REMOVE ALL POWER TO THE UNIT and contact our technical department for further assistance.

Keep all body parts clear of moving part at all times.

All electrical troubleshooting and repair must be done by a qualiﬁed technician and meet all applicable codes.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Caution & Safety

Key Safety System Components

MacroAir fans are engineered with key safety features to prevent pieces of the fan from falling in the unlikely event of a catastrophic failure. Used together, these systems and devices provide comprehensive protection of people, equipment and property. Follow the detailed instructions precisely when installing fans, including the following:

Install Safety cable on EVERY fan. The Safety cable, if installed per MacroAir speciﬁcations, will prevent the fan from falling in the unlikely event that the mounting system should fail. A MacroAir fan should never be run without a properly installed Safety cable, which is supplied with every fan along with all required hardware. You must install a Safety cable for the warranty to be in effect. Refer to page 21.

Mark the Floor to Alert Personnel

When mounting a fan in an area where materials may be elevated into its path, MacroAir recommends marking or painting the ﬂoor with a large crosshatched circle to alert personnel of the overhead location of fans.

Weight Considerations

We recommend that a building structure be capable of holding approximately twice the stated hanging weight of the fan. The maximum hanging weight for the Model 370 is 108 lbs including the weight of an additional extension. If there is some doubt of this, a professional structural engineer should perform a thorough evaluation of the building prior to purchasing the fans. MacroAir provides guidelines for mounting fans; however, it is the sole responsibility of the building owner and installer to ensure the safety of the mounting system, that the building structure is sound and that the installation complies with all federal, state, and local codes.

Torque

The maximum torque (twisting force) that must be handled by the mounting system, including the building structure. For a Model 370, the maximum potential torque is 20 ft-lbs.

Check Federal, State, and Local Codes

Check all relevant codes to make sure that all product certiﬁcations, product listings, and building regulations are met. Code compliance is the responsibility of the installer.

Windy Conditions

Fans should not be operated when wind is present. Fans should not be installed in applications where it is frequently windy.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Fusing Chart

IT IS STRONGLY RECOMMENDED THAT THE FANS ARE FUSED TO PROTECT THE ELECTRICAL COMPONENTS.

Max Amp Draw / Recommended Fuse

Voltage and Phase 6ft 8ft 10ft 12ft

110 VAC 1-Phase

1.5A / 5 5.9A / 10 3.8A / 5 2.0A / 5

120 VAC 1-Phase

1.4A / 5 5.4A / 10 3.5A / 5 1.8A / 5

208 VAC 1-Phase

0.8A / 5 3.1A / 5 2.0A / 5 1.0A / 5

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Fan Placement

Sprinkler Systems and Fan Placement

In any installation where ﬁre sprinklers are in place, fan should not interfere with their correct operation. Fans should be located no less than 3 feet below a sprinkler, and placed central to each sprinkler quadrant. Our AirBrain motor controller can be connected to a ﬁre suppression control system, which will emergency-stop fans in case of ﬁre. Prior to installing fans, review all codes applicable to sprinkler systems and fans to ensure code compliance (refer to NFPA 13). Please call our Technical Department for guidance (Technical Support contact information can be found on page 31). However, it is your sole responsibility to see that the installation is completed to code and that it is correct.

Other Information on Placement and Spacing

If possible, avoid mounting fans directly below lights or skylights to avoid any strobe effect caused by moving airfoils. Note, a large fan, 20 – 24 feet in diameter, performs best at 20 to 30 feet above the ﬂoor, but acceptable performance has been demonstrated as low as 10 feet and as high as 50 feet.

If the building has a mezzanine, fans should be mounted so a person can not reach a fan in any way from the upper level/deck. Make certain that fans are positioned so that the airfoil tips are at least 3 feet away from any area where a person may be able to extend outward to reach them.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Fan Clearance & Placement

WARNING: FANS ARE NOT MEANT TO BE OPERATED IN WINDY CONDITIONS.

The minimum distance of a fan to a wall or similar obstruction should be no less than twice the diameter of the fan. The minimum distance of a fan to a wall or similar obstruction should be no less than 1.5 times the diameter of the fan.

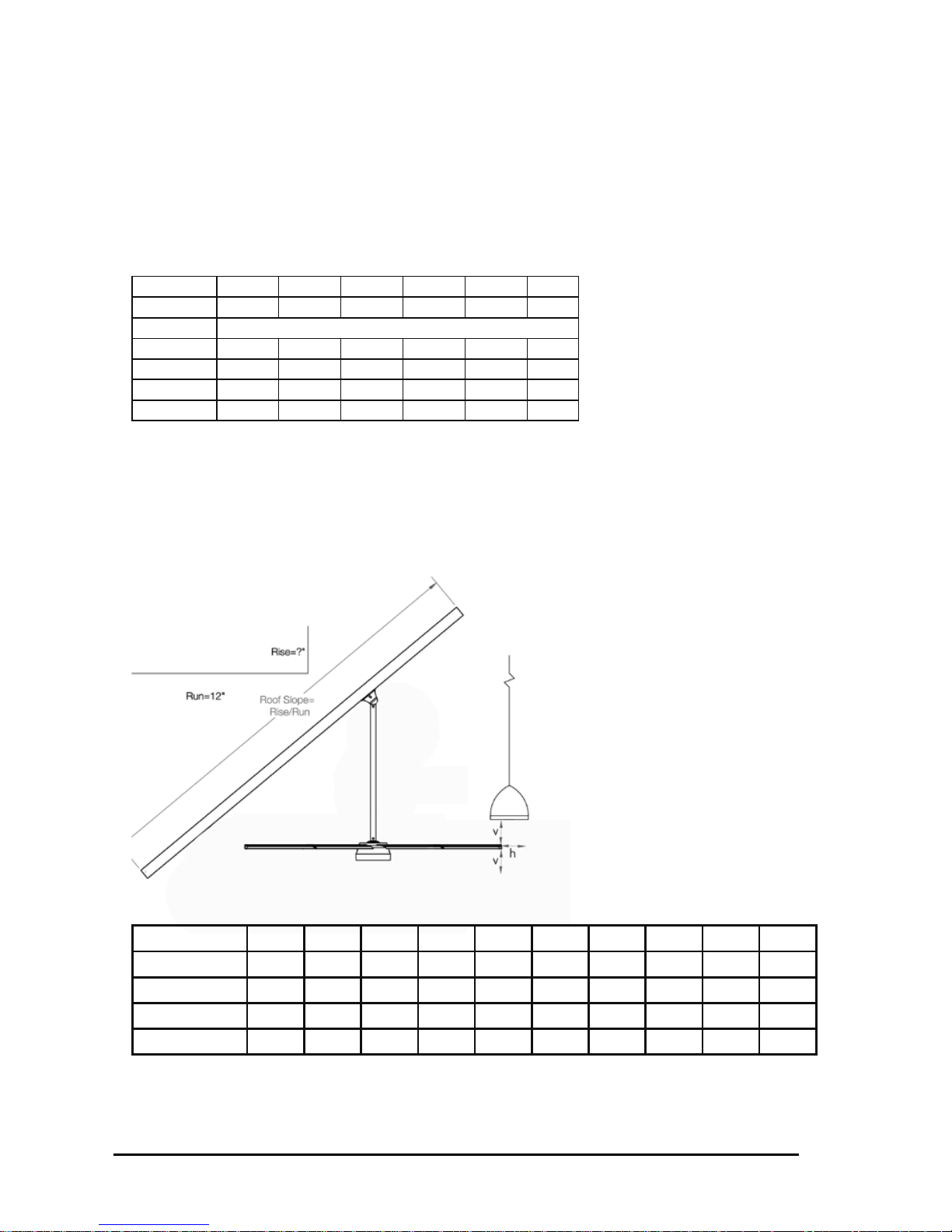

Maximum Angle for Mount (feet)

Slope (in)

0 2/12 4/12 6/12 8/12 10/12

Roof Angle

0 9.5

18.4

26.6

33.7

39.8

Diameter Recommended Total Drop (Mount to Blade) Length

6 feet 2 2 2 N/A* N/A* N/A*

8 feet 2 2 2 N/A* N/A* N/A*

10 feet 2 2 2 N/A* N/A* N/A*

12 feet 2 2 3 N/A* N/A* N/A*

*The Rapid Mount Commercial does not support this angle

The extension lengths above are minimum recommendations only, based solely on roof pitch and fan diameter. Other factors must be evaluated when determining extension requirements. In addition, MacroAir strongly recommends that the fan airfoils must be a minimum of 10 feet (3.05 meters) above the ﬂoor. Contact our technical department for assistance with fan placement and extension selection (technical support contact information can be found on page 31).

Minimum Clearance (Horizontal / Vertical inches):

Airfoil / Extension

1 2 3 4 5 6 7 8 9 10

6 feet 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3

8 feet 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 3 3 / 4

10 feet 3 / 3 3 / 3 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4

12 feet 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 4 3 / 5 3 / 5 3 / 5 3 / 5

The table above shows the clearance needed from the fan to obstructions such as lighting, conduit, etc.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

The Model 370 has a standard airfoil to mounting point clearance of 2 feet [0.61 m] with the Rapid Mount Industrial. Refer to the Fan Clearance & Placement chart on page 6 for allowable mounting options.

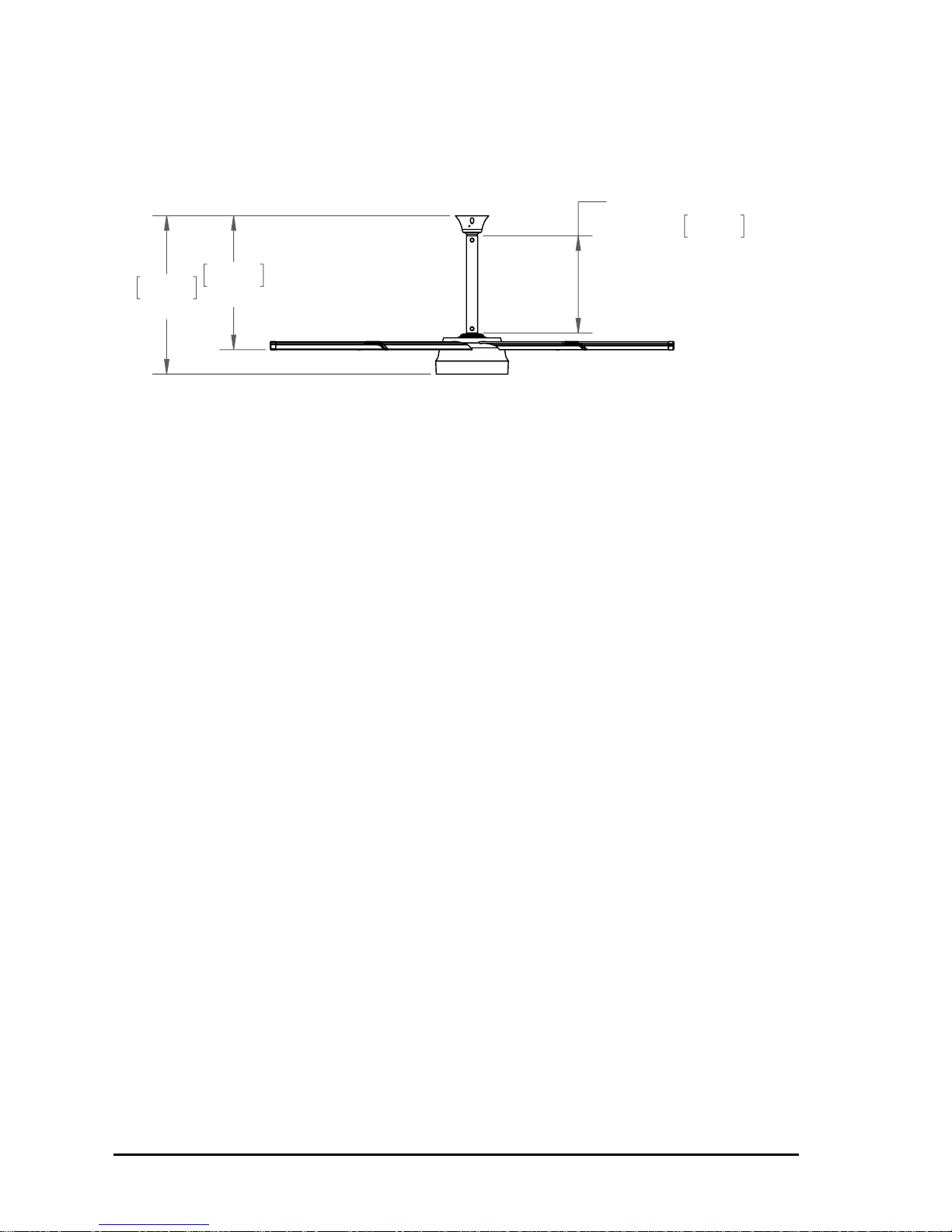

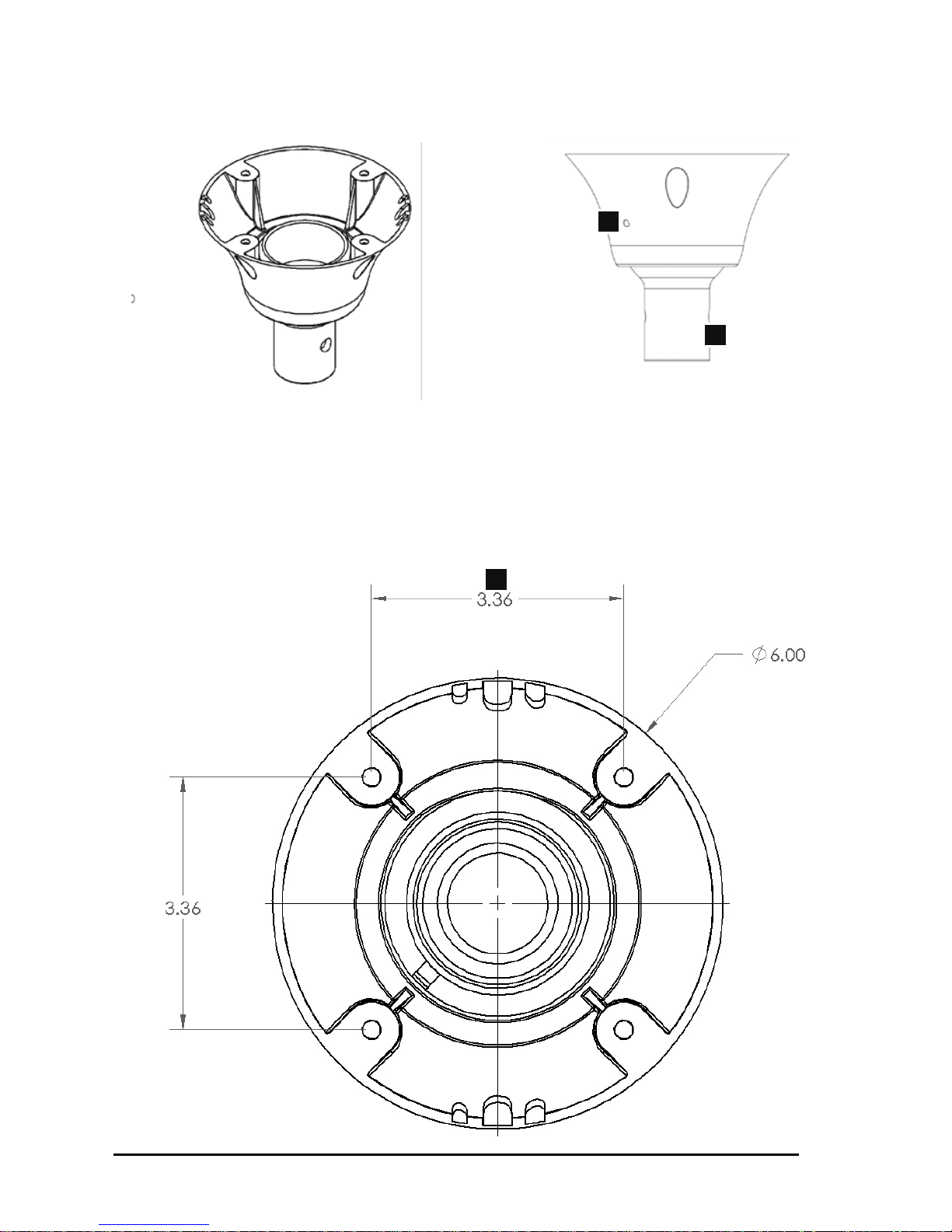

Fan Dimensions

ILLUSTRATION

SHOWN WITH

STANDARD EXTENSION

0.441

1'5.375"

0.609 2'0"

0.720 2'4"

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Fan Components and Tools

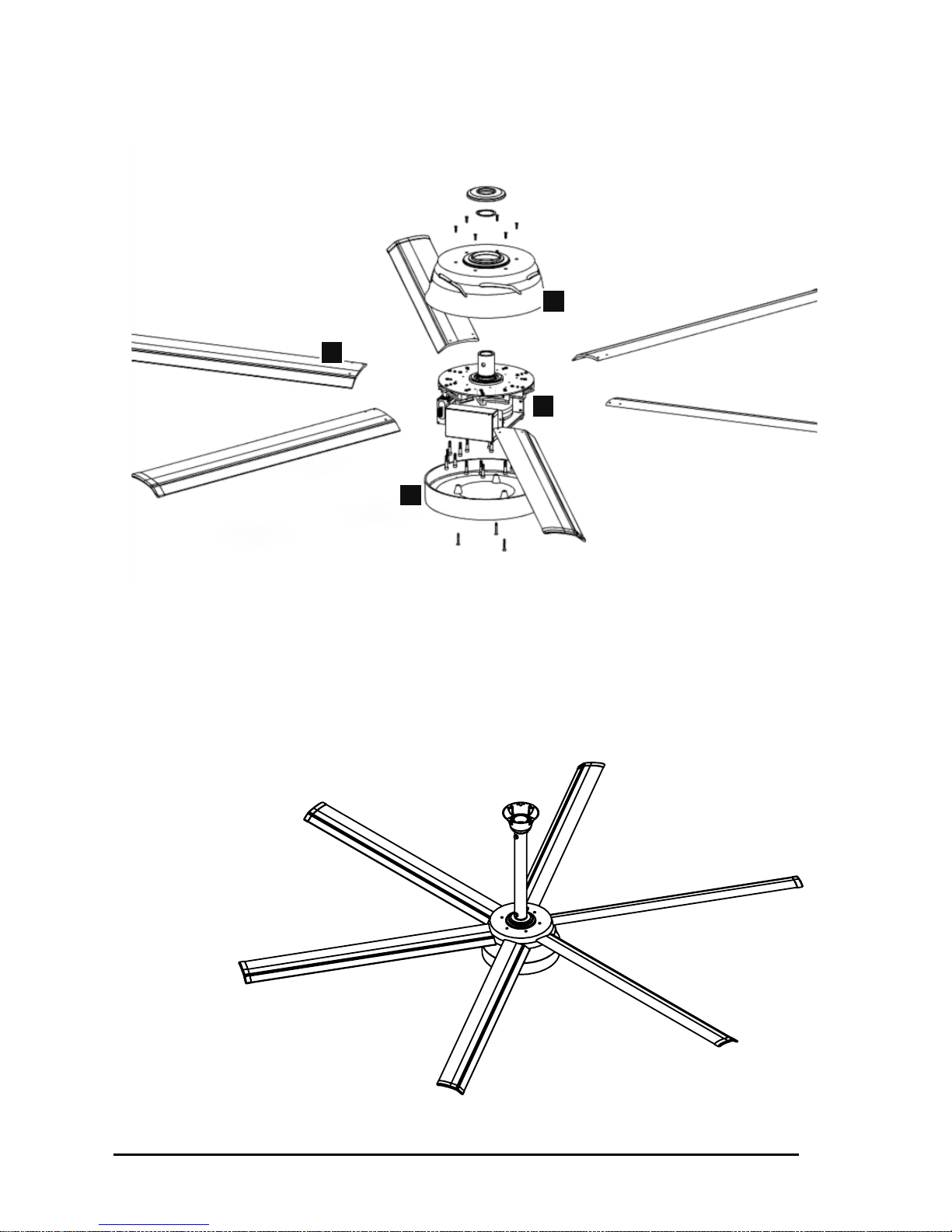

A - D-Drive Motor & Controller B - Bottom Cover C - XS Airfoil D - Top Cover

Tools Required for Provided Hardware:

5/32’’ Allen Wrench 1/8’’ Allen Wrench (Mount Set Screw) 3/32’’ Allen Wrench 5/16’’ Allen Wrench 9/16’’ Wrench Phillips Screwdriver 3/8’’ Socket 3/4’’ Wrench 3/4’’ Socket Ratchet and Torque Wrenches

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Step 1 - Fan Mounting

Choose the appropriate method for

mounting the fan(s) based upon your

speciﬁc application.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Rapid Mount Commercial

Components:

A - Locking Set Screws (2 locations on mount) B - Extension Attachment Point C - Break-outs for Power Wire, Remote Cable and Safety Cable

Note: For concrete installations (mounted directly to concrete), use provided 3/6” x 1-3/4” Climaseal Steel Hex-Washer-Head Concrete Anchors.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

1.1 Unistrut Span Mounting

Components:

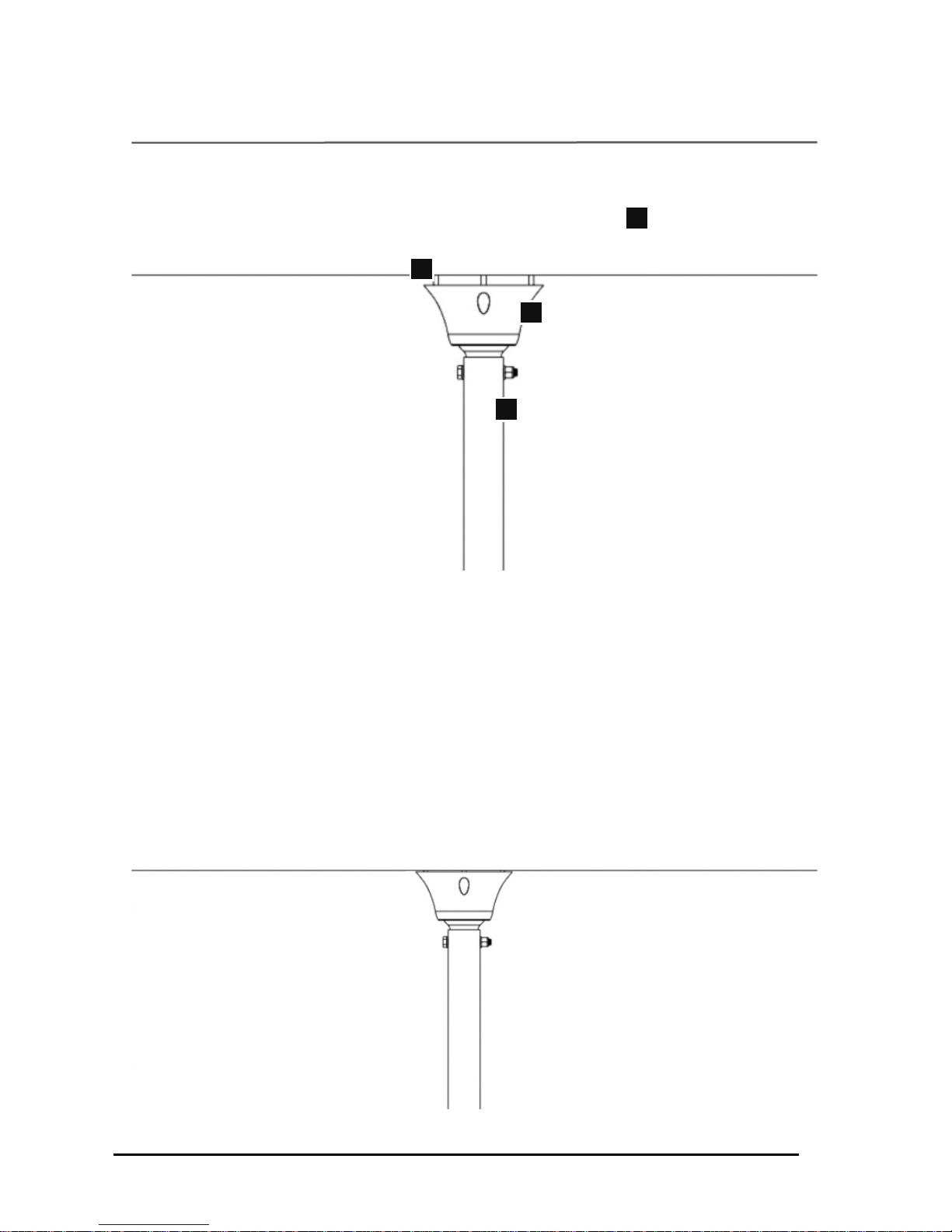

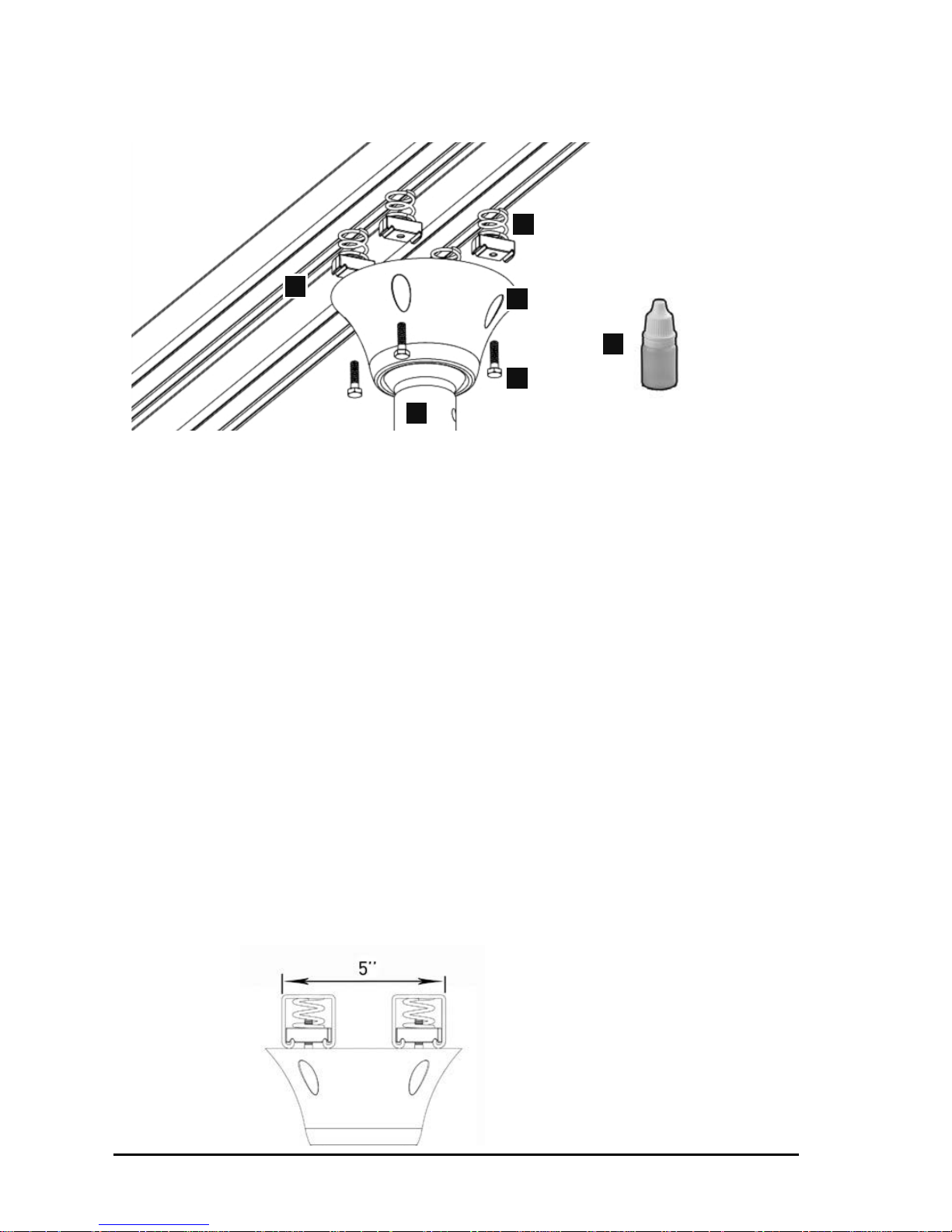

A - 1/4-20 x 1” Grade 5 Bolts (4) B - 1/4”-20 Unistrut Spring Nuts (P1006-1420) (4) C - Liquid Thread Lock D - Rapid Mount Commercial E - 1-5/8” Unistrut Unpierced Channels (P1000 or P1001B) (2) (not included) F - Extension Attachment Point

This method is used to span components of a building structure. The attachment point to the building structure can vary greatly and we recommend Unistrut be contacted so they may recommend the best method to attach the Unistrut to the building (www.unistrut.us). If the spanning distance is greater than 6 feet (P1000) or 10 feet (P1001B), please consult a Structural Engineer. Please refer to pg. 3 for a list of fan weights and torques.

1.1.1: Cut two lengths of 1-5/8” Unistrut to the appropriate length. Span the two pieces of 1-5/8” Unistrut open side facing down and space apart so there is 5” from outside edge to outside edge (see illustration for example).

1.1.2: Once the Unistrut is in place, apply liquid thread lock to the recommended bolts and use the remaining recommended hardware to attach the mount to the Unistrut. Torque the bolts to 6ft-lbs. Recommended torque is based on 1/4-20” hardware.

1.1.3: Tighten the locking set screws on the mount once the extension attachment point is level. Refer to page 9 for illustration.

Final Results:

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

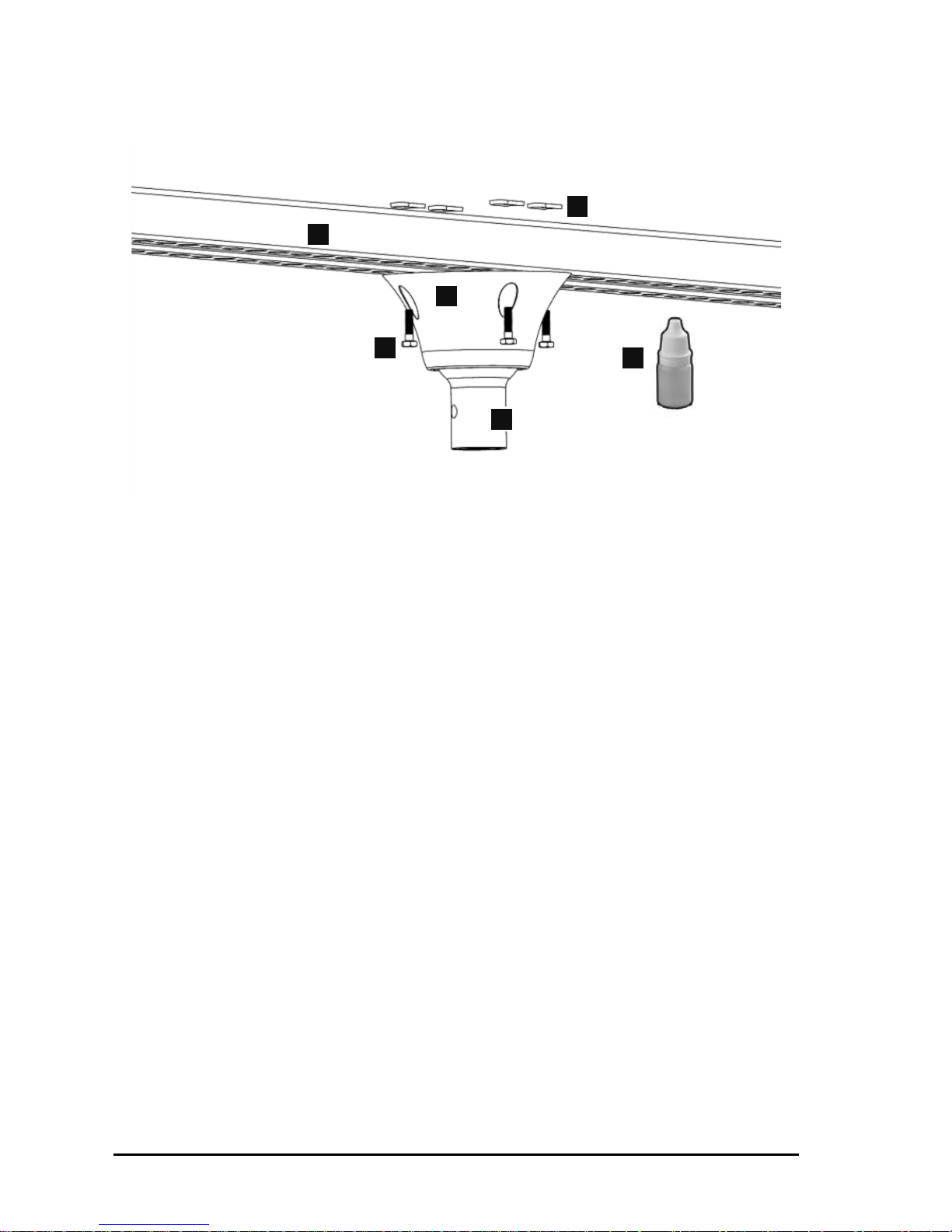

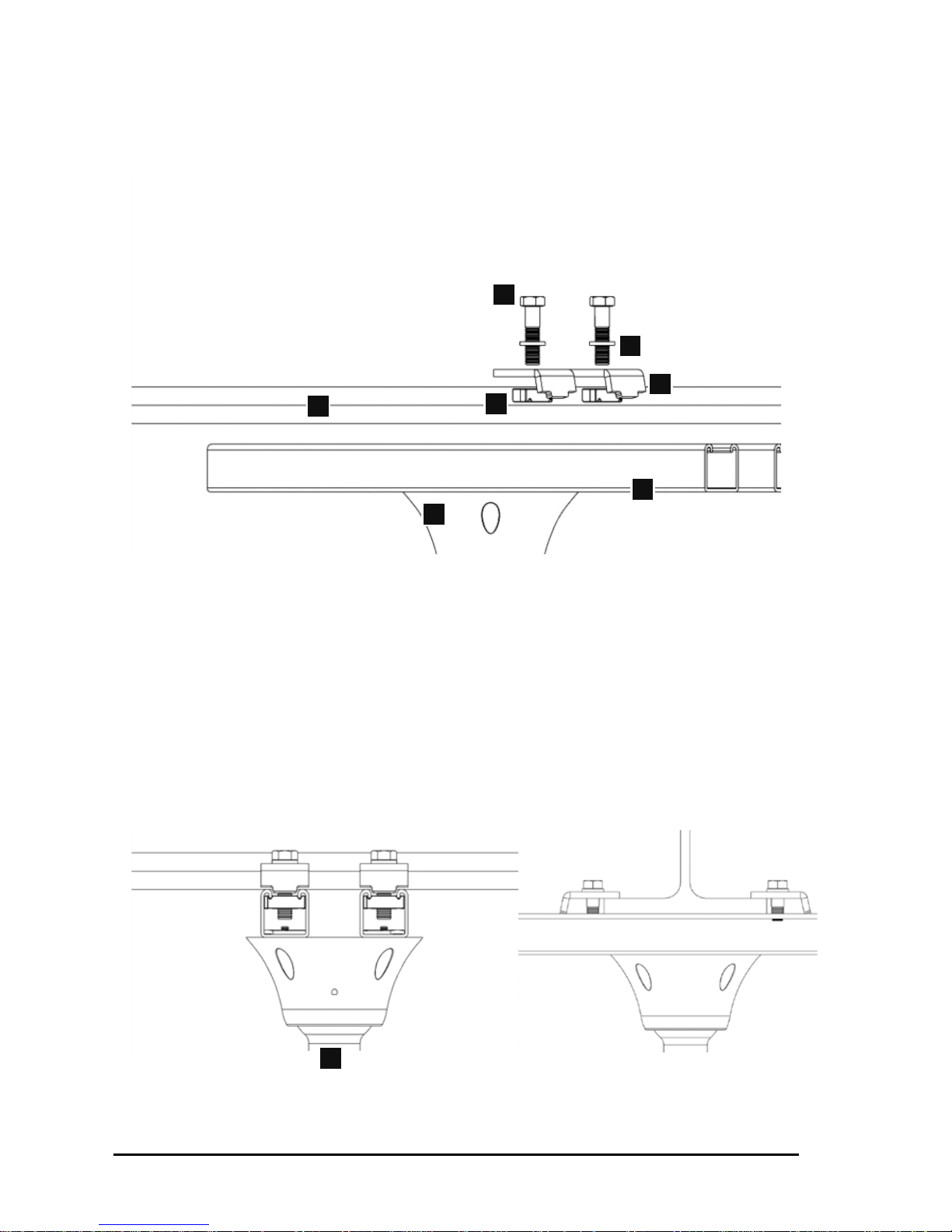

A - 1/4-20 x 1” Long Grade 5 Bolts (4) (not included) B - 1/4”-20 Unistrut Channel Nuts (P3016-1420) (4) (not included) C - Liquid Thread Lock (not included) D - Rapid Mount Commercial E - 1-5/8” Unistrut Pierced Channels (P1000T) (2) (not included) F - Extension Attachment Point

This method is used to install the Rapid Mount Commercial to an I-Beam. The attachment point to the building structure can vary greatly and we recommend Unistrut be contacted so they may recommend the best method to attach the Unistrut to the building (www.unistrut.us). Please refer to pg. 3 for a list of fan weights and torques.

1.2.1: Cut two lengths of 1-5/8” Unistrut approximately 4” wider than the I-Beam or Bar Joist you will attach the fan to.

1.2.2: Apply the liquid thread lock to each bolt and fasten both pieces of Unistrut (open side up) to the Rapid Mount Commercial as close to center as possible using the recommended hardware and torque the bolts to 6ft-lbs. Recommended torque is based on 1/4-20” hardware.

1.2 I-Beam Installation (1 of 2)

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

1.2 I-Beam Installation (2 of 2)

Components:

A - 1/2”-13 Grade 5 Bolts (4) (not included) B - 1/2” Spring Washer (4) (not included) C - Unistrut Beam Clamps (P1386) (4) (not included) D - Unistrut 1/2” Nuts (P3010) (4) (not included) E - 1-5/8” Unistrut Pierced Channels (P1000T) (2) (not included) F - Rapid Mount Commercial G - I-Beam H - Extension Attachment Point

1.2.3: Once the Unistrut is attached to the mount, you can use the recommended hardware to attach the assembly to your I-Beam or Bar Joists.

1.2.4: Ensure that there is adequate engagement between all clamps and the attachment point and torque the bolts to 70 ft-lbs. For more information on the Unistrut clamp system, please contact Unistrut. Recommended torque is based on 1/2-13” hardware.

1.2.5: Tighten the locking set screws on the mount once the extension attachment point is level. Refer to page 9 for illustration.

Final Results:

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

A - #10 2-1/2” External Hex Flange Hex-Head Structural-Connector Screw (4) B - Rapid Mount Commercial C - Glulam D - Extension Attachment Point

This method is recommended for Glulams or wood beams 6” or wider. For narrower attachment points please refer to the Unistrut mounting method to span across two or more beams to increase the structural integrity.

1.3.1: Place the mount against the bottom of the beam and position the holes so that they are the furthest from the edge as possible. Keep in mind there are breakouts for wire and safety cable around the upper edge of the Rapid Mount Commercial. Determine where you want to route the power, remote, and safety cable and orientate the mount appropriately. It is ideal to route the safety cable on the opposite side of the power wire.

1.3.2: Mark each hole location and use a 3/16” drill bit to drill a pilot hole for each lag. The pilot hole depth must be as deep or deeper than the length of the lag bolts. Once the pilot holes are drilled, remove the breakouts to be used for power, remote, and safety cable.

1.3 Glulam/Wood Beam Installation (1 of 2)

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

A - #10 2-1/2” External Hex Flange Hex-Head Structural-Connector Screw (4) B - Rapid Mount Commercial C - Glulam D - Extension Attachment Point

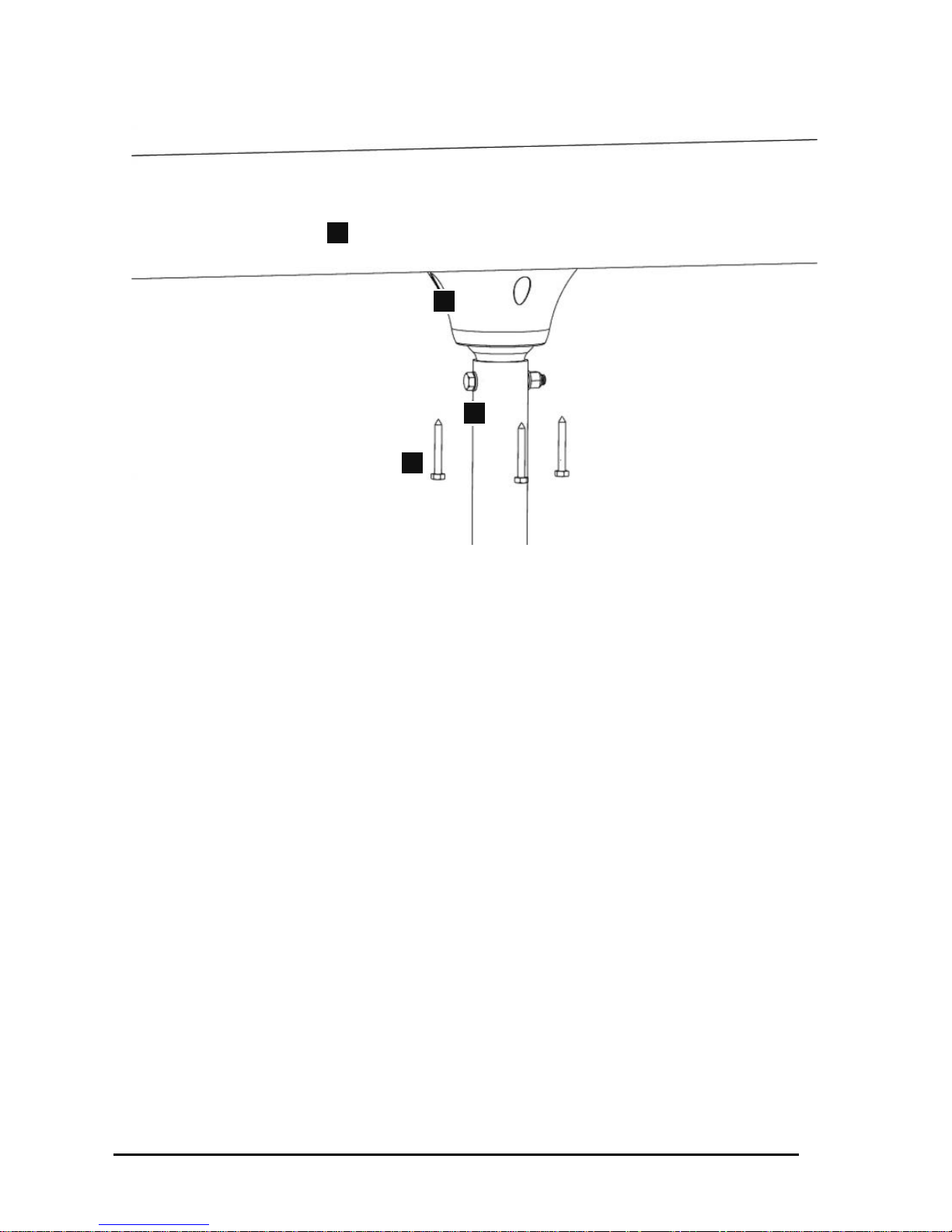

1.3.3: Place the mount against the bottom of the beam and drive the four lag bolts into the pilot holes but do not drive them all the way in as there needs to be roughly 1/2” of gap between the top of the mount and the bottom of the beam to run wire and cable.

1.3.4: Once the power wire, remote cable, and safety cable have been routed and are sitting in their appropriate breakouts the lags can be tightened (refer to lag manufacturer for torque specs). While tightening the lags it is recommended that you observe all wires and cables to ensure they are not getting damaged between the mount and beam.

1.3.5: Tighten the locking set screws on the mount once the extension attachment point is level. Refer to page 9 for illustration.

Final Results:

1.3 Glulam/Wood Beam Installation (2 of 2)

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Step 2 - Extension & Motor Unit

Installation

Attach the extension to the bottom of the

mount and the motor to the bottom of the

extension.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

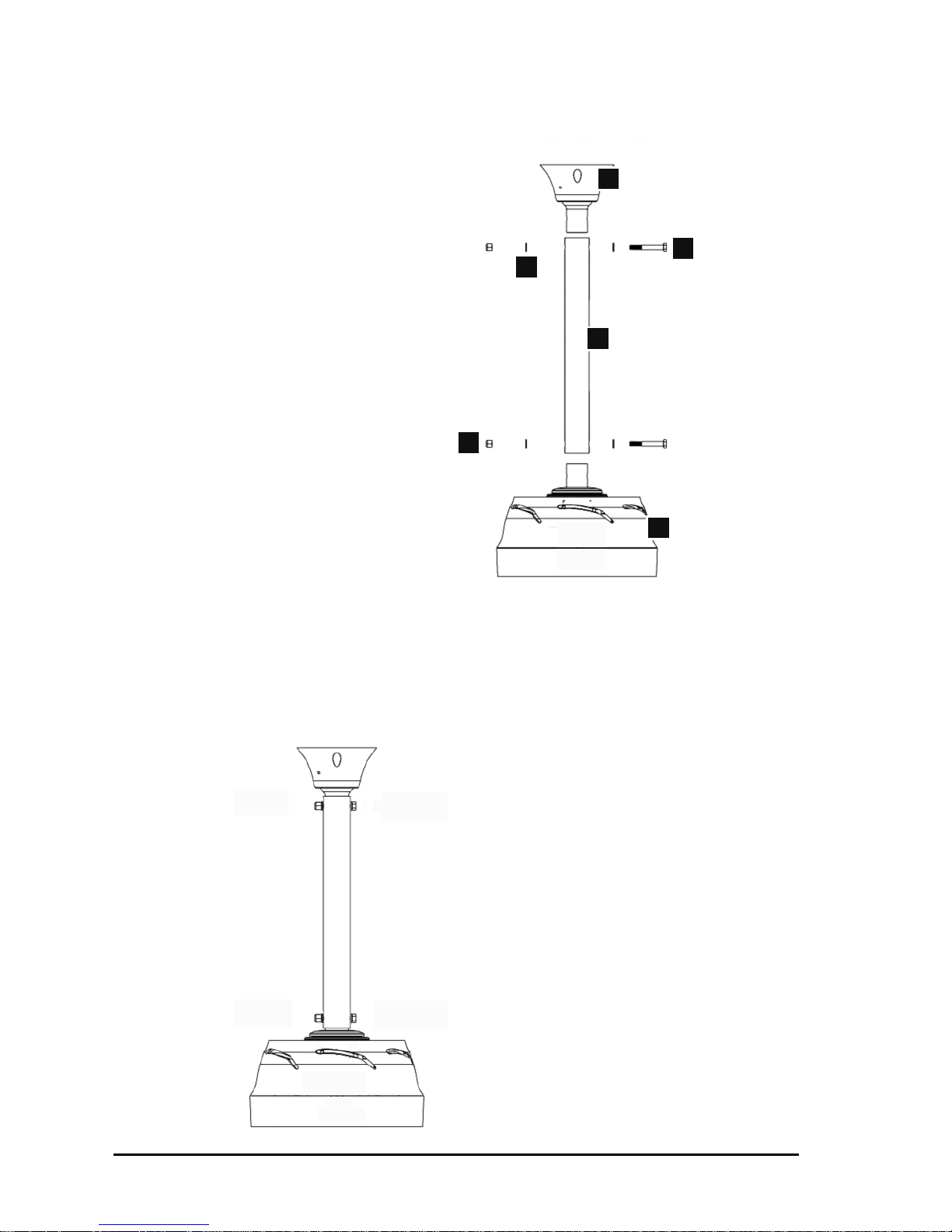

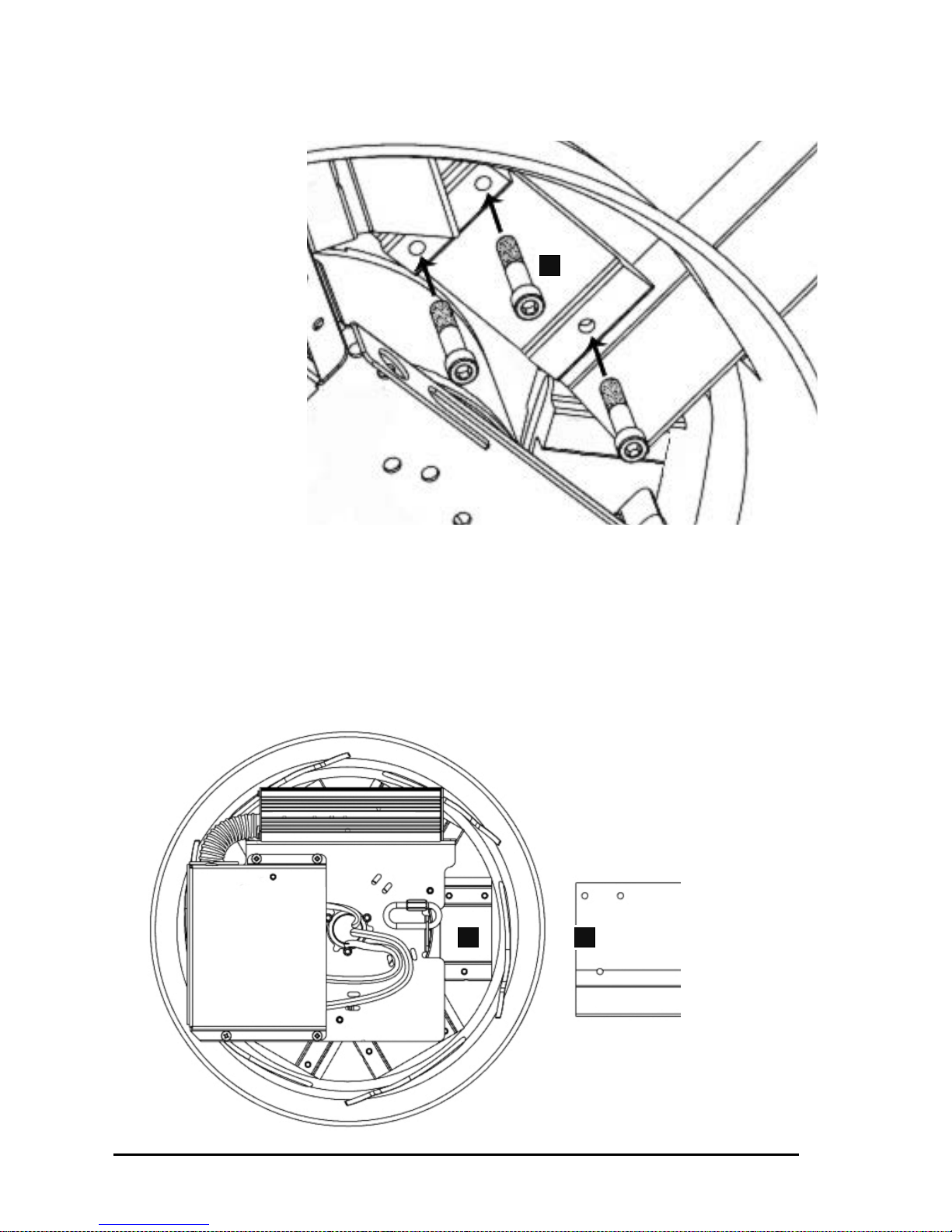

A - 3/8-16 x 3” Grade 5 (or higher) Bolts (2) B - 3/8” Flat Washer (4) C - 3/8”-16 Nylon Locking Nuts (2) D - Rapid Mount Commercial E - Extension F - Motor Unit

2.1.1: The image above illustrates the proper assembly of the motor unit, extension, and mount. The provided hardware can be installed and hand tightened until the fan is installed and the power wire, safety cable, and remote cable are installed. Once completed, torque the bolts to 30 ft-lbs.

DO NOT RUN THE FANS WITHOUT AIRFOILS. THE FAN IS NOT CONFIGURED TO OPERATE WITHOUT AIRFOILS ATTACHED.

Final Results:

2.1 Extension & Motor Unit Installation

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Step 3 - Safety Cable and

Electrical Installation

Install the Safety cable and insert the

wires into the appropriate terminals on the

controller.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

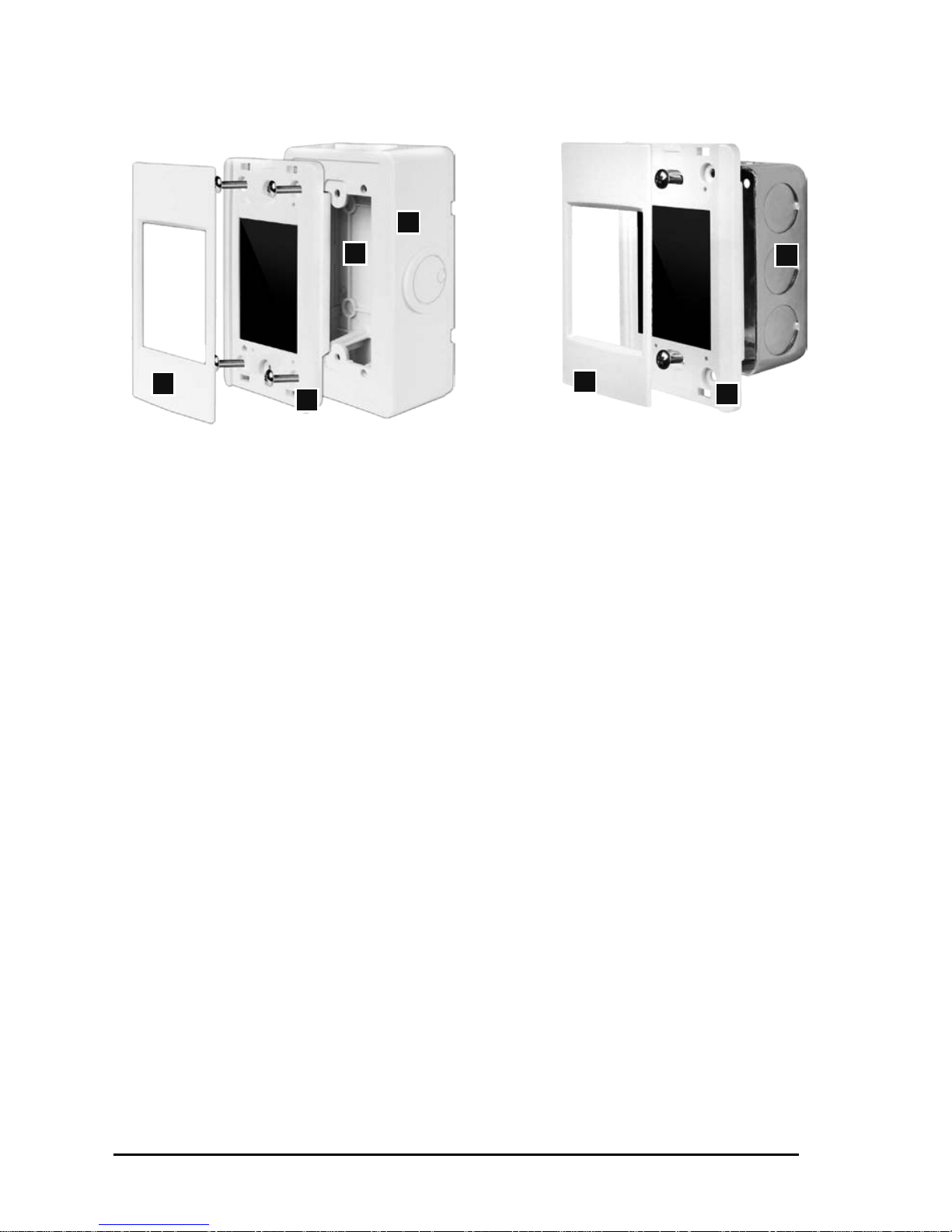

3.1 Touchpad Remote Mounting

3.1B Flush Mounting (Not Provided)

3.1.1B: Install the single gang

electrical box (not provided).

3.1.2B: Run the provided CAT5e cable from the fan into the single gang electrical box.

3.1.3B: Plug the remote cable into the pre-wired CAT5e cable from the screen using the provided RJ45 coupler.

3.1.4B: Secure the touch screen to the enclosure using the 2 provided screws.

3.1.5B: Lock the provided bezel into place via the plastic tabs.

3.1A Wall Mounting (Provided)

3.1.1A: Mount the base plate of the enclosure to the

wall using the 4 provided wall anchors and screws.

3.1.2A: Snap the front of the enclosure to the base plate.

3.1.3A: Plug in the pre-wired CAT5e cable from the screen into the RJ45 coupler inside the enclosure.

3.1.4A: Secure the touch screen to the enclosure using the 4 provided screws.

3.1.5A: Lock the provided bezel into place via the plastic tabs.

3.1.6A: Plug the provided CAT5e cable from the fan into the RJ45 on the outside of the enclosure.

Note: The Touchpad Remote will automatically turn off after 30 seconds of inactivity. To turn the screen back on, simply touch anywhere on the screen.

Note: 50 feet of CAT5e cable is provided standard. Up to 400 feet of cable can be ordered and 400 feet is the maximum distance allowed.

Refer to the next page for dimensions.

Components:

A - Base Plate B - Front of Enclosure C - Touch Screen D - Bezel E - Single Gang Electrical Box (not provided)

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

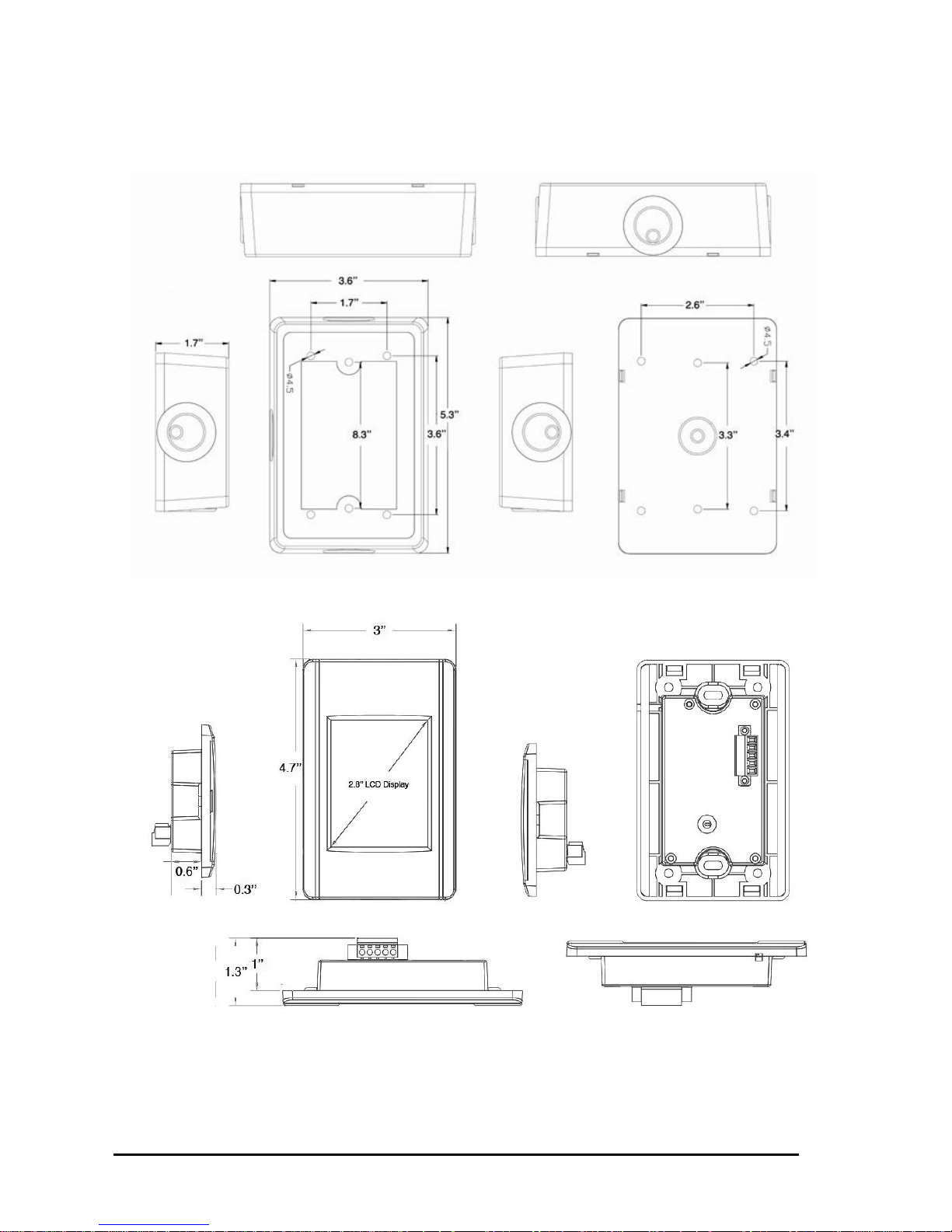

3.1 Touchpad Remote Drawings

Remote Enclosure

Remote LCD Display

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

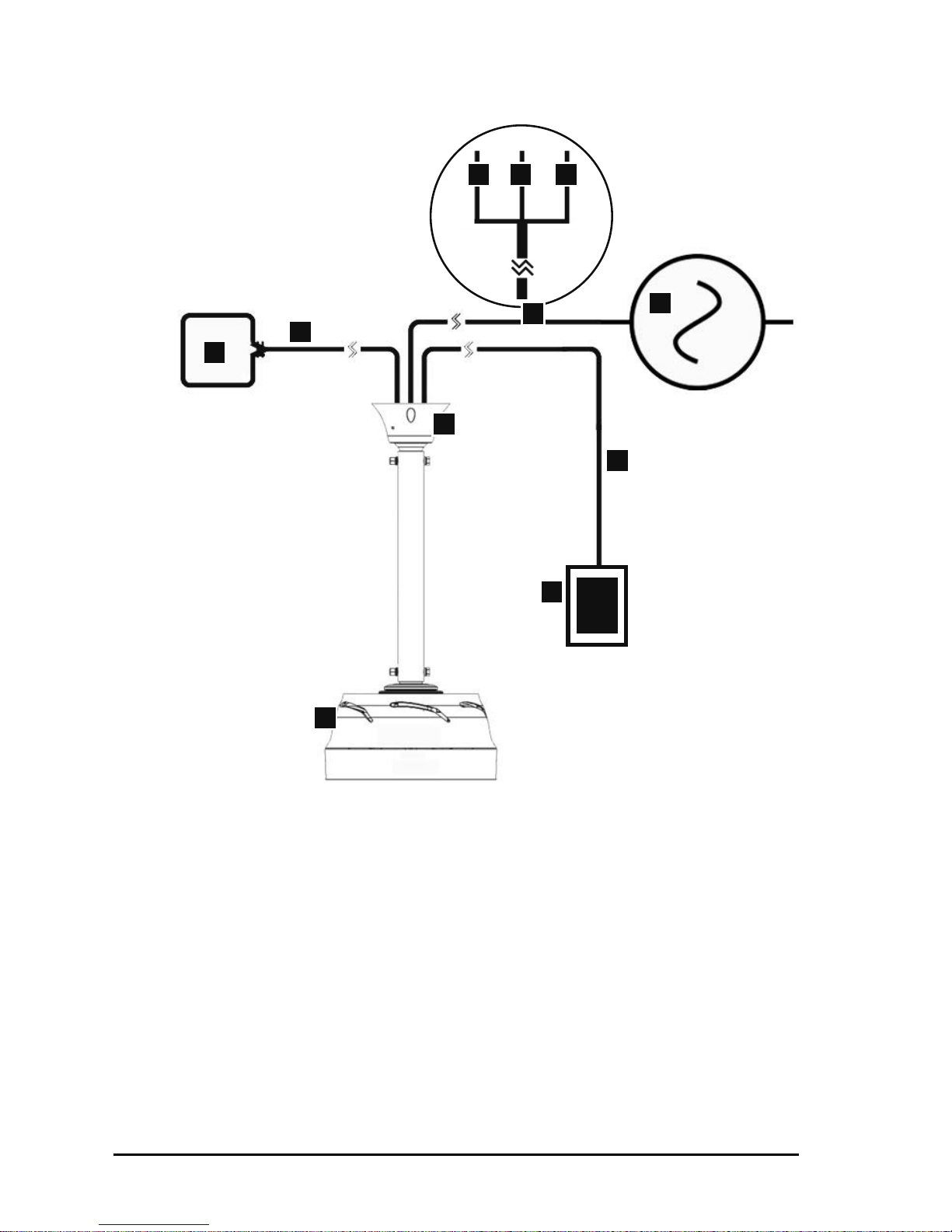

A - Safety Cable Attachment Point (Minimum load rating 400 lbs) B - AC Power Source C - Touchpad Remote D - Rapid Mount Commercial E - D-Drive Motor Unit F - Remote Cable (50 feet) G - Power Wires (20 feet) H - Safety Cable (20 feet) I - Ground (Green) J - Live (Black) K - Neutral (White)

3.2.1: Route the safety cable, remote cable and power wires through the extension and the mount.

3.2.2A: For Glulam or wood beam installation, drill a 5/16’’ hole through the beam above the

center line and route the safety cable in a loop and attach the cable to itself with the provided cable clamps. Make sure that there is little to no slack in the safety cable. Avoid sharp edges.

3.2.2B: For I-beam installation, beam clamps can be used with eye bolts. Attach the beam clamps on both sides of the beam and route the safety cable through the eye bolts. Attach the cable to itself using the provided cable clamps and make sure that there is no slack. Avoid sharp edges.

3.2.3: Run the remote cable to the remote location. The cable can be run in conduit or open if desired as the cable is low voltage and shielded. To attach to the touchpad remote, simply plug the end of the remote cable into the RJ45 jack on the touchpad remote.

3.2.4: Connect to power in compliance with local and state codes. This device may require a disconnect that is outside of the swept area of the blades to comply with OSHA (not provided).

Refer to the above illustration for the Final Results.

I J K

3.2 Safety Cable & Electrical Installation

Detail of Power Wires

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

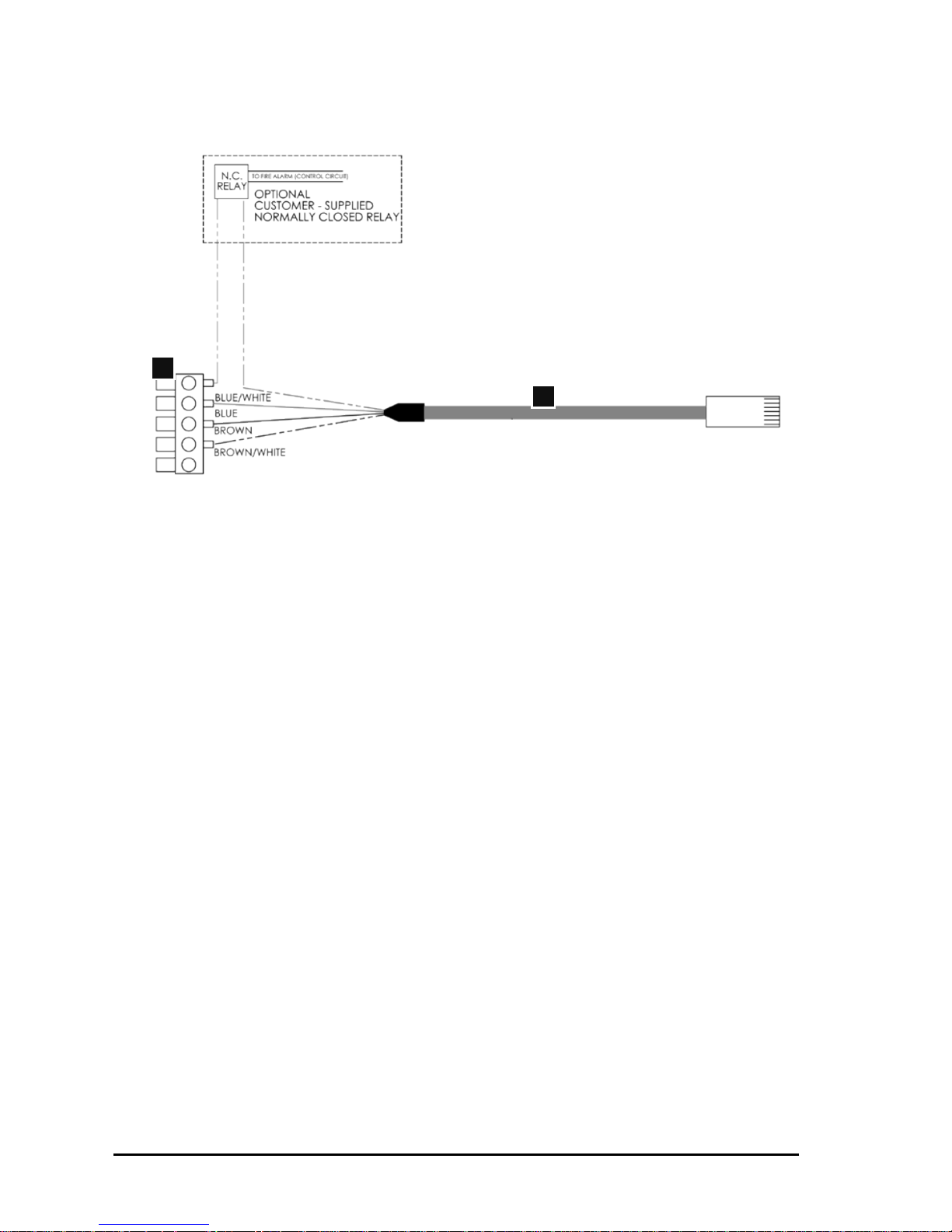

Components:

A - Remote Harness (found in single fan remote enclosure) B - Terminal Block Connector

3.3.1: Use the schematic above to connect the fan(s) to an emergency stop (i.e. ﬁre alarm system).

3.3 Emergency Disconnect Schematic

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Step 4 - Airfoil Installation

Remove the bottom cover, install the

airfoils to the airfoil clamps and re-attach

the bottom cover.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

A - 8-32 x 1-1/4’’ Bolts B - Bottom Cover C - Airfoil Clamps D - Remote Cable E - Power Wires

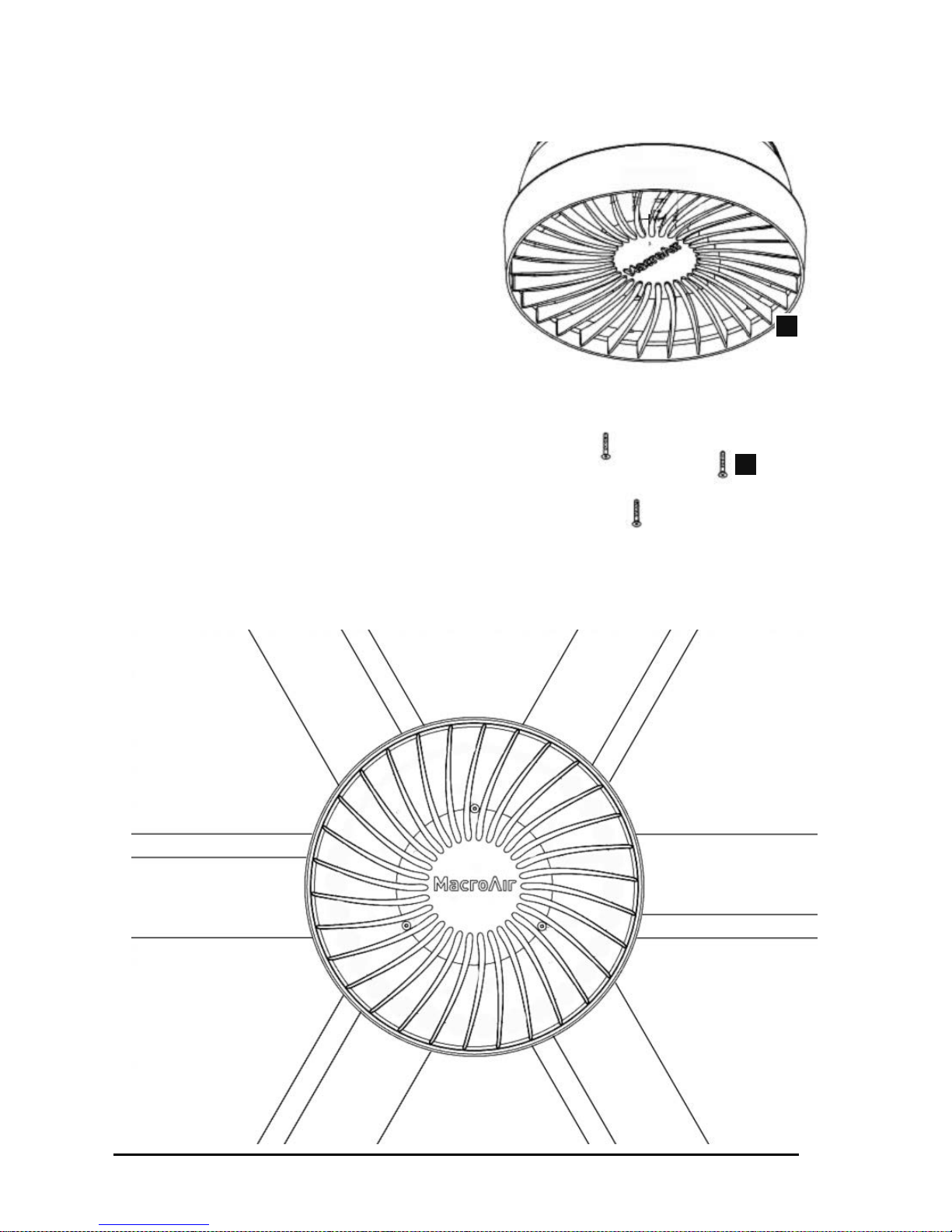

3.1.1: Remove the three allen bolts that secure the bottom cover and remove the bottom cover to expose the bottom of the airfoil clamps and the wiring.

4.1 Airfoil Installation (1 of 3)

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

A - 10-24 x 1-1/2’’ Bolts B - Airfoil C - Airfoil Clamps

4.1.2: Insert an airfoil into one of the airfoil clamps and line up the three bolt holes. Insert an airfoil bolt into the airfoil clamp and hand tighten until snug. Repeat the last step until all three airfoil bolts are installed snugly. If the bolts seem like they will not tighten chances are they are not seated in the airfoil clamp properly. Try moving the airfoil up and down and side to side with slight movements while applying upward pressure to the bolt. The bolt should seat further into the airfoil clamp. Once all bolts are seated and snug, torque them to 75 in-lbs.

4.1.3: Repeat step 4.1.2 for all 6 blades.

4.1 Airfoil Installation (2 of 3)

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Components:

A - 8-32 x 1-1/4’’ Bolts B - Bottom Cover

4.1.4: Re-install the bottom cover using the provided allen bolts and torque bolts snugly.

Final Results:

4.1 Airfoil Installation (3 of 3)

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Step 5 - Touchpad Remote

Navigation and Operation

Choose one of the two methods to mount

the touchpad remote and conﬁgure the fan

diameter for initial operation.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

5.1 Touchpad Remote Navigation

Buttons:

A - Forward / Reverse: Alternate between forward and reverse operation B - Power Button: Turn the screen off C - Speed Up / Speed Down: Increase or decrease the speed of the fan D - Speed Box: Real-time indication of fan speed E - Navigation: Navigate to the next screen F - Fan Diameter Selection: Hidden button to navigate back to the fan diameter selection screen

A B

C D

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

5.2 Touchpad Remote Operation

Screens:

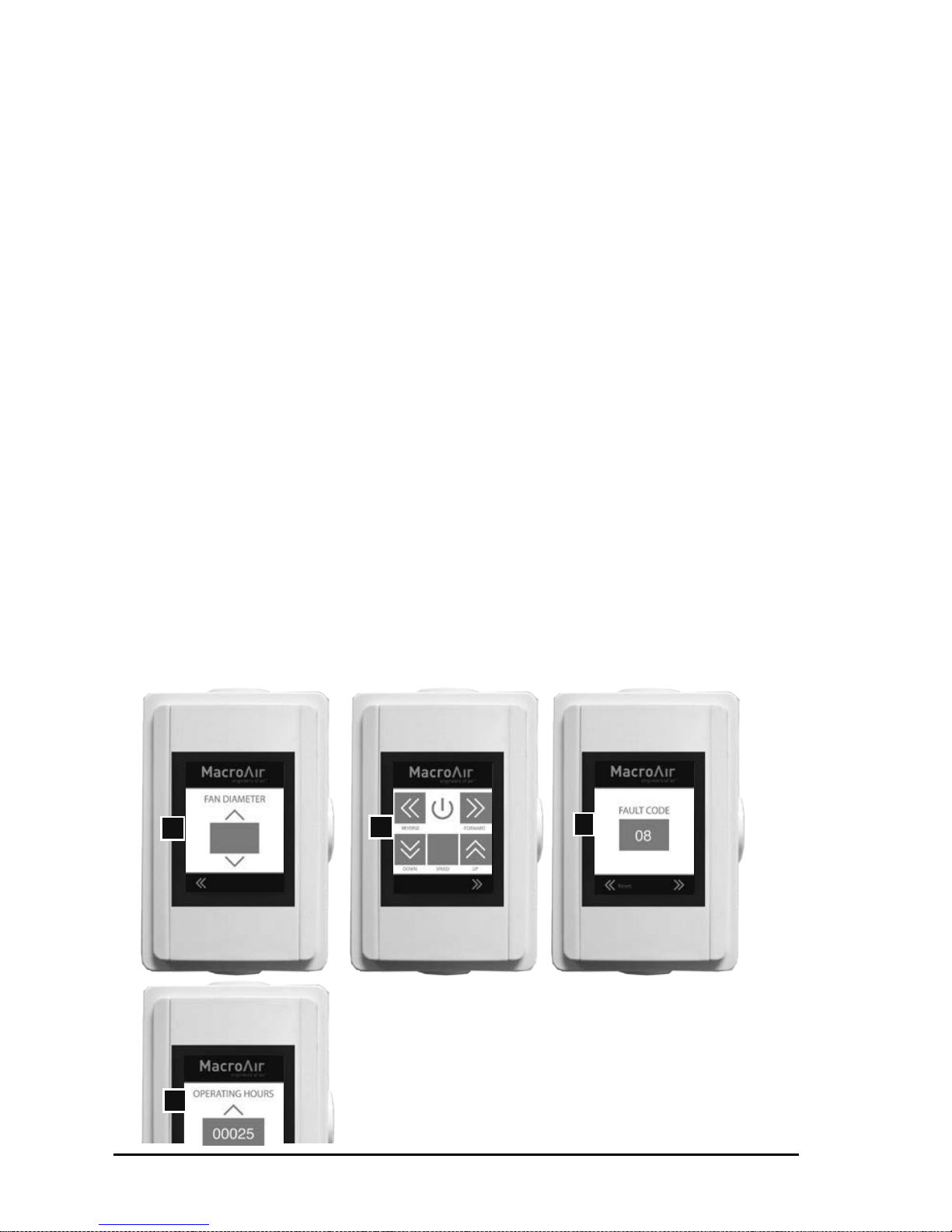

A - Fan Diameter Selection Screen B - Home Screen C - Fault Code Screen D - Operating Hours Screen

Instructions:

5.2.1: Upon initial power-up, the touchpad remote will default to the fan diameter selection

screen. Use the up and down arrows to select the proper fan diameter for the fan and use the left arrows in the footer to navigate to the home screen. The fan diameter selection screen will become hidden after you make the selection. Should the need arise to change the fan diameter any time after you have left the fan diameter selection screen, you must touch the upper right corner of the home screen (reference hidden button on page 26) to get back to the fan diameter selection screen.

5.2.2: Once on the home screen, test your fan by setting the speed to 100 in forward operation by increasing the speed and then clicking the forward button. Keep the fan’s speed at 100 for a few minutes to ensure proper functionality.

5.2.3: If the fan stops operating unexpectedly, navigate to the fault code screen and record any fault codes (if present). Click the reset button until the display reads ‘0’. Then, attempt to run the fan again. If the fan is still not operating, navigate to the fault code screen via the navigation arrows at the bottom of the screen and document the code(s) displayed and call technical support at 866-668-3247.

5.2.4: To view your fan’s operating hours, navigate from the home screen to the far right screen.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Maintenance Information

Guy Wire Check (if applicable): Checking a MacroAir fan’s Guy wires for tension and inspecting for frayed sections could mitigate a problem before it occurs. Fan owners should conﬁrm that the Guy wires are not wrapped around any sharp edges. MacroAir recommends attaching Guy wires to the building with eye bolts or eye lags. If they are not already installed with eye bolts or lags, we urge fan owners to install these in order to help keep the Guy wires from fraying. If Guy wires are installed with turnbuckles, jam nuts should periodically be checked to ensure tightness. If they are loose, the Guy wire cables may need to be re-tensioned.

Airfoil Cleaning: Depending on the type of commercial application the MacroAir fan is in, there can be quite a bit of dust or other particulates (including grease!) that cling to the fan’s airfoils. While this may not affect fan performance, we recommend fan owners keep airfoils clean by having a maintenance person or skilled trade professional – who has experience using a lift – wipe the fan airfoils with a rag or sponge using hot water or regular cleaning solutions. Please do not use chlorine or any chemicals containing chlorine.

Safety Cable Check: Each MacroAir fan comes with a safety cable. Depending on the fan model, the safety cable either wraps around the building structure and the fan frame, or comes out of the top of the fan and wraps around the building structure. The safety cable is an important part of the safety system and acts as a last resort should an earthquake, collision, or similar catastrophic event occur. As such, it’s vital for fan owners to ensure that it is intact and properly secured.

Reverse Operation: The beauty of MacroAir HVLS fans is that they are built to run in forward and reverse mode, however changing the direction of your fan can put initial stress on the fan if it has not been properly checked. It is a good idea to make sure the safety cables and all bolts and nuts are tight. Cleaning the fan before switching directions will prevent dust and other particles from falling off the fan airfoils that are now turning in the opposite direction.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

Warranty and Technical Support

To register the installed fans for the 50,000 hour warranty, go to macroairfans.com/register.

What does the 50,000 hour warranty cover?

This warranty covers any part or component of the AirVolution-D shipped by MacroAir that is found to contain a manufacturing defect. MacroAir will repair or replace such part, component, or the entire fan free of charge.

How Long Does the Coverage Last?

This warranty covers the entire AirVolution-D fan and all its component parts for 50,000 hours of running time.

Do I Need to Pay Shipping, Removal and Re-Installation Costs?

You do NOT need to pay shipping, removal and installation costs if your AirVolution-D needs to be repaired or replaced due to a manufacturing defect within three years of the original purchase, and you will be reimbursed for those costs, upon approval of such costs by MacroAir. After three years, this warranty is still in full effect for the remainder of the 50,000 hours, but it just does not cover your cost to ship the fan to MacroAir, or removal or re-installation of the fan.

What is NOT covered under this warranty?

This warranty will not cover repairs or replacements caused by installation, operation or storage of the fan that is outside the speciﬁcations and limitations contained in the AirVolution-D installation and operation instructions.

Technical Support

For installation assistance, application questions, technical sales support & any other inquiries, please contact our technical support team at (866) 668-3247.

www.nueraheat.com 1-800-347-9575

Rev. Date 032615

NuEra 370 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
