NuDAQ
PCI-9113A
32 Channels Isolated
Analog Input Card
User’s Guide
@Copyright 2000 ADLINK Technology Inc.
All Rights Reserved.
Manual Rev. 1.02: April 7, 2000
The information in this document is subject to change without prior
notice in order to improve reliability, design and function and does not
represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to
use the product or documentation, even if advised of the possibility of
such damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Trademarks
NuDAQ, NuIPC, NuDAM, NuPRO are registered trademarks of
ADLINK Technology Inc. Other product names mentioned herein are
used for identification purposes only and may be trademarks and/or
registered trademarks of their respective companies.
Getting service from ADLINK
♦ Customer Satisfaction is always the most important thing for ADLINK
Tech Inc. If you need any help or service, please contact us and get it.
ADLINK Technology Inc.
Web Site http://www.ADLINK.com.tw
Sales & Service service@ADLINK.com.tw
Technical NuDAQ nudaq@ADLINK.com.tw
Support NuDAM nudam@ADLINK.com.tw
NuIPC nuipc@ADLINK.com.tw
NuPRO nupro@ADLINK.com.tw
Software sw@ADLINK.com.tw
AMB amb@ADLINK.com.tw
TEL +886-2-82265877 FAX +886-2-82265717
Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan, R.O.C.
♦ Please inform or FAX us of your detailed information for a prompt,
satisfactory and constant service.
Detailed Company Information
Company/Organization
Contact Person
E -mail Address
Address
Country
TEL FAX
Web Site
Questions
Product Model
¨OS:
¨Computer Brand:
Environment to Use
¨M/B: ¨CPU:
¨Chipset: ¨Bios:
¨Video Card:
¨Network Interface Card:
¨Other:
Challenge Description
Suggestions for ADLINK
Contents • i
Contents
How to Use This Manual.........................................v
Chapter 1 Introduction.......................................... 1
1.1 Features.......................................................................... 2
1.2 Applications.................................................................... 2
1.3 Specifications................................................................. 3
1.4 Software Supporting .......................................................4
1.4.1 Programming Library..................................................................4
1.4.2 PCIS-LVIEW: LabVIEW® Driver...............................................4
1.4.3 PCIS-VEE: HP-VEE Driver.........................................................5
1.4.4 DAQBenchTM: ActiveX Controls...............................................5
1.4.5 DASYLabTM PRO ...........................................................................5
1.4.6 PCIS-DDE: DDE Server and InTouchTM.................................5
1.4.7 PCIS-ISG: ISaGRAFTM driver.....................................................5
1.4.8 PCIS-ICL: InControlTM Driver.....................................................5
1.4.9 PCIS-OPC: OPC Server..............................................................5
Chapter 2 Installation............................................ 7
2.1 What You Have ...............................................................7
2.2 Unpacking....................................................................... 7
2.3 Hardware Installation...................................................... 8
2.4 Device Installation for Windows Systems........................9

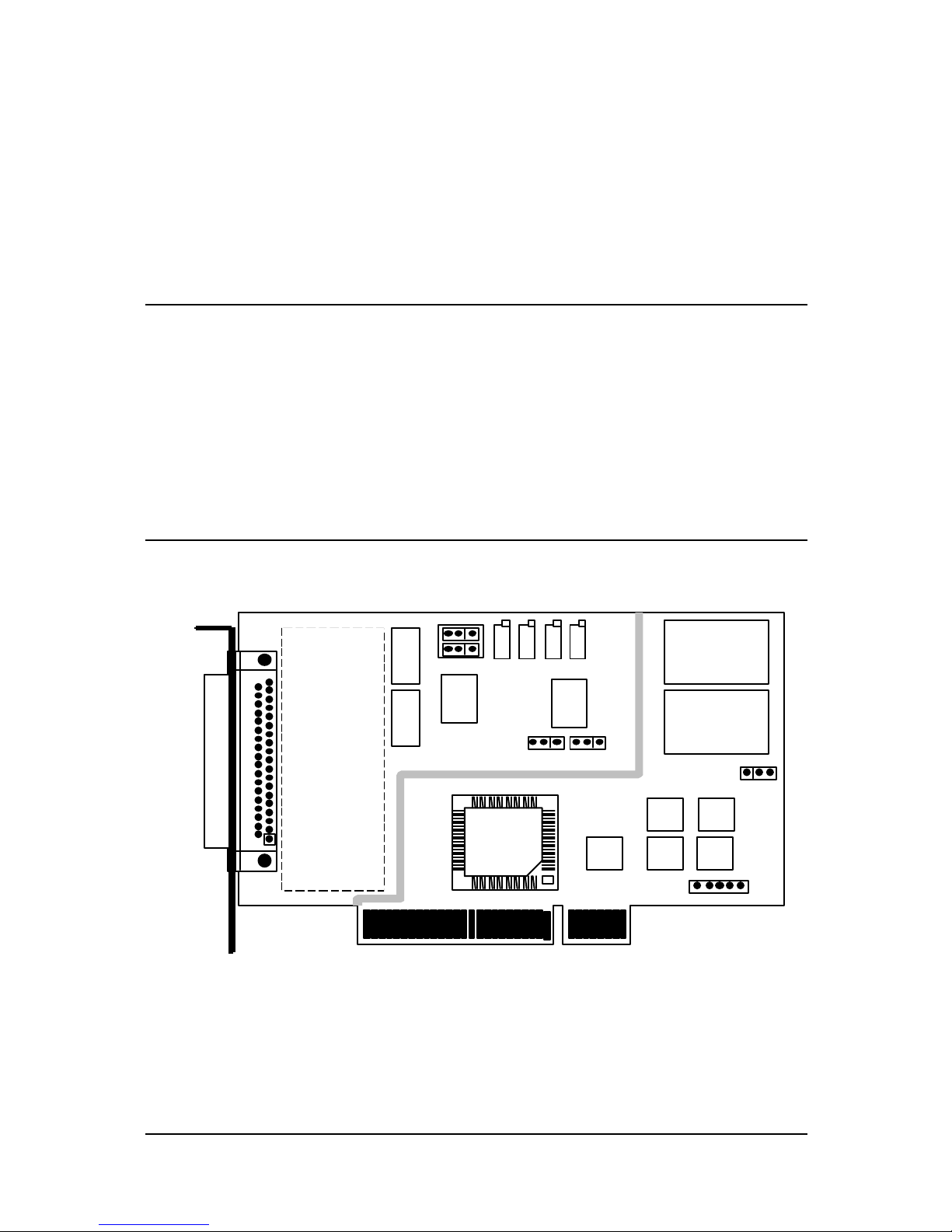

2.5 PCI-9113A's Layout ..........................................................9

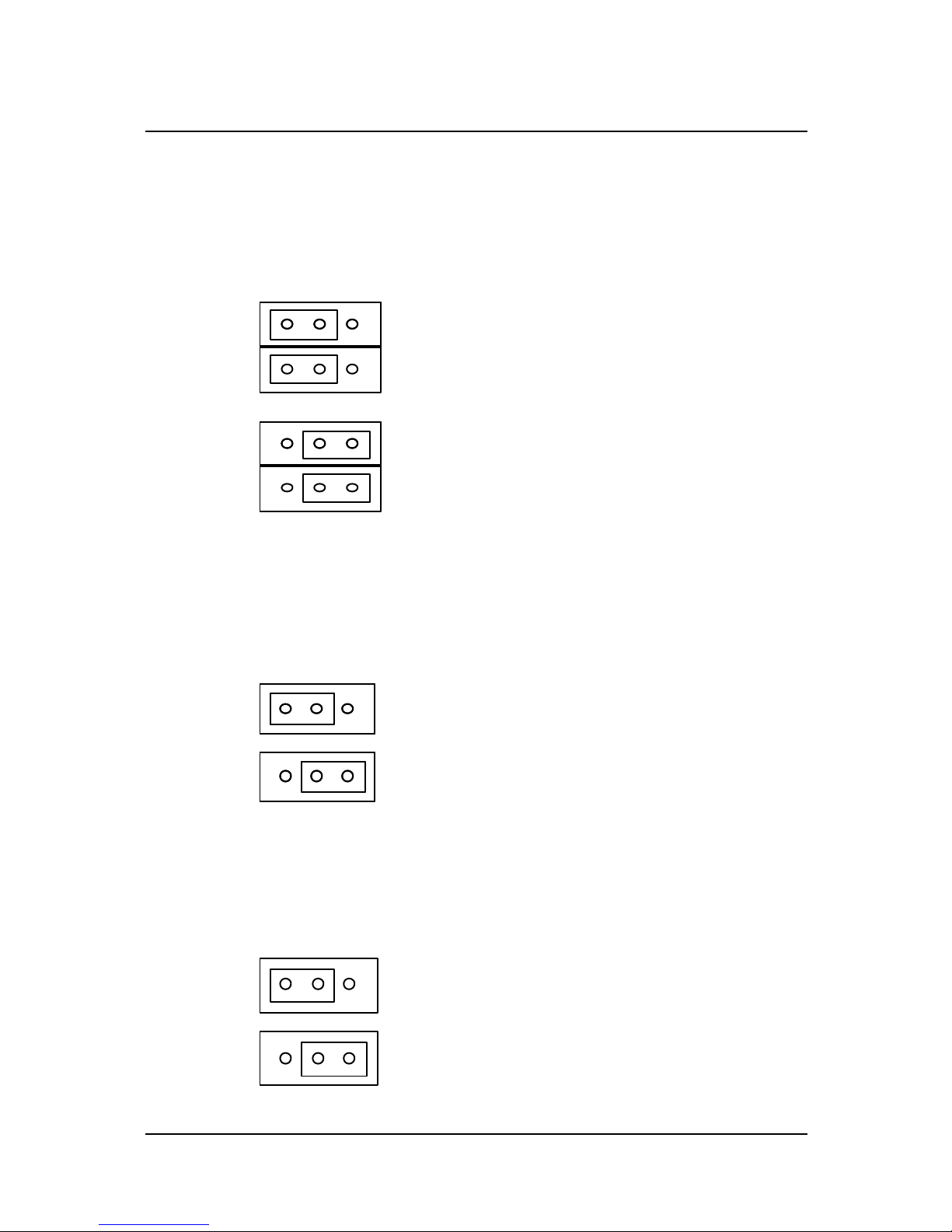

2.6 Jumper Settings............................................................10
2.6.1 Analog Signal Input Type Selection.......................................10
2.6.2 Polarity Selection Jumper........................................................10
2.6.3 Full Range Jumper.....................................................................10
2.6.4 Possible AD Input Range Configurations ............................11
2.6.5 Binary/2’s Complement Coding Selection Jumper............11
Chapter 3 Signal Connections............................13

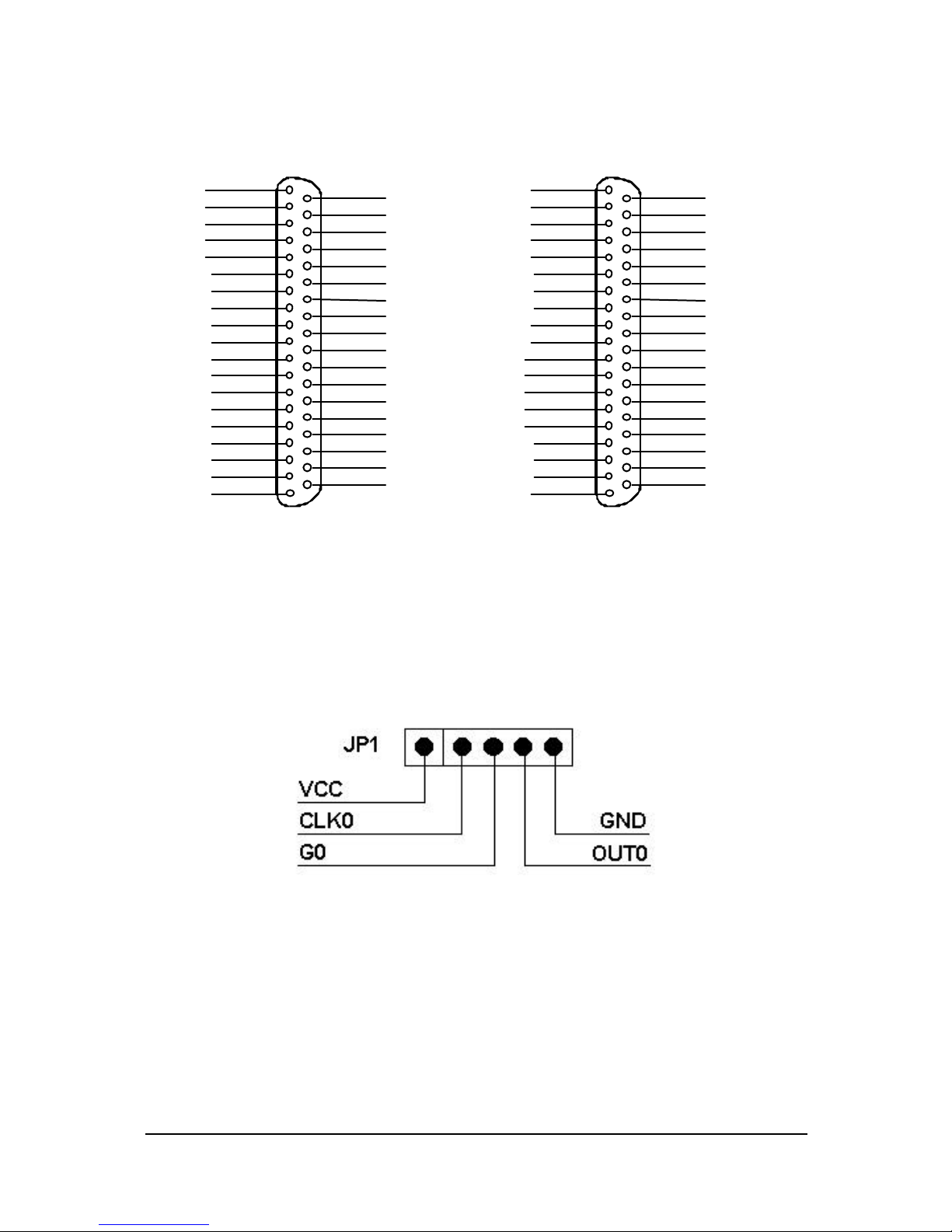

3.1 Connectors’ Pin Assignment .........................................13

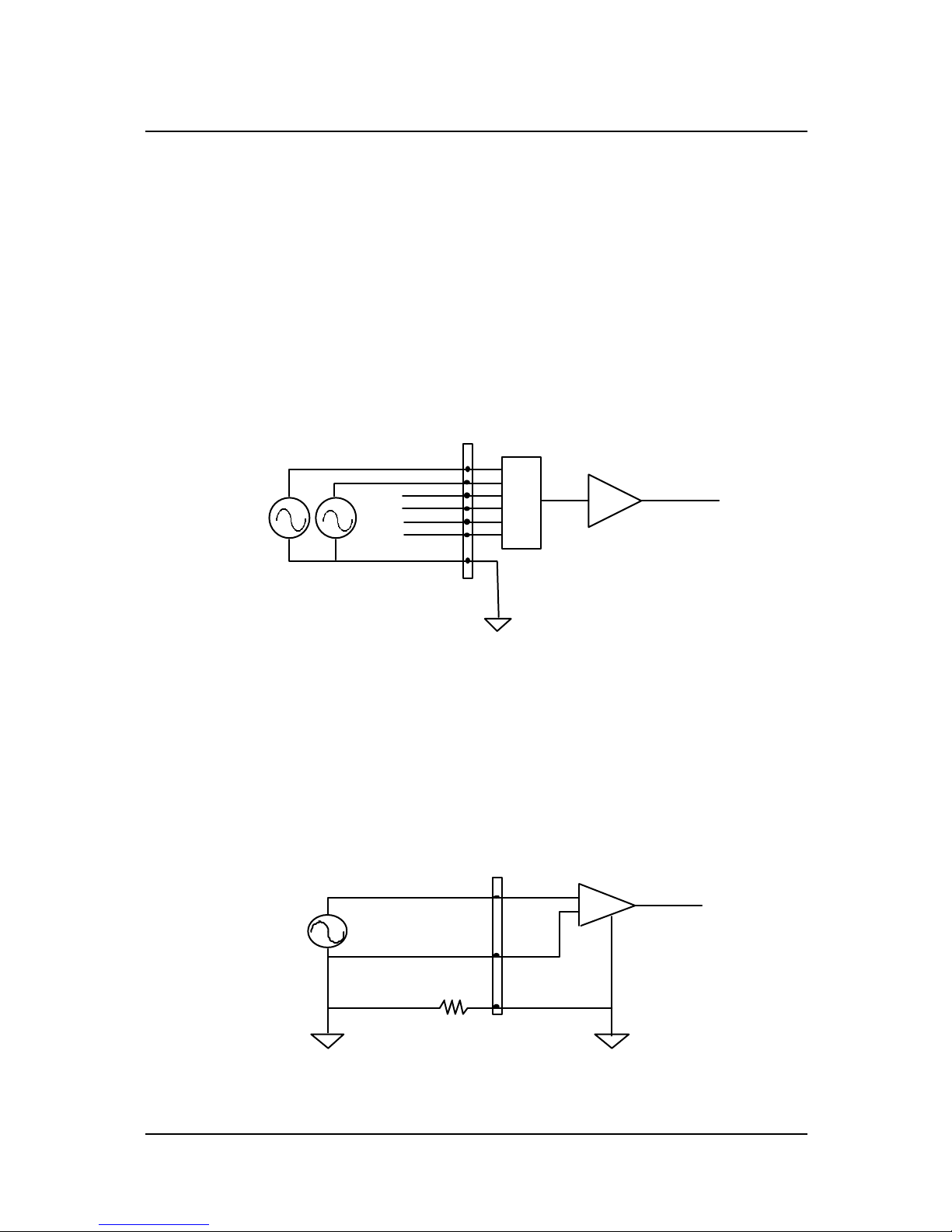

3.2 Analog Input Signal Connection...................................15
3.3 Daughter Board Connection..........................................16
ii • Contents
3.3.1 Connect with ACLD-9881........................................................16
3.3.2 Connect with ACLD-9137........................................................16
3.3.3 Connect with ACLD-9188........................................................16
Chapter 4 Registers Format ...............................17
4.1 PCI PnP Registers ......................................................... 17
4.2 I/O Address Map............................................................18
4.3 A/D Data Registers........................................................18
4.4 A/D Channel Control Register.......................................19
4.5 A/D Input Signal Range Control Register ...................... 19
4.6 A/D Status Readback Register.......................................20
4.7 A/D Trigger Mode Control Register...............................20
4.8 Software Trigger Register.............................................21
4.9 Interrupt Control and Readback Register......................21
4.10 Hardware Interrupt Clear Register ................................ 21
4.11 A/D Data and Channel Number Registers......................22
Chapter 5 Operation Theorem............................23
5.1 A/D Conversion .............................................................23
5.1.1 A/D Conversion Procedure.....................................................24
5.1.2 A/D Signal Source Control.......................................................24
5.1.3 A/D Trigger Source Control.....................................................27
5.1.4 A/D Data Transfer Modes........................................................27
5.1.5 A/D Data Format.........................................................................31
5.2 Interrupt Control............................................................32
5.2.1 System Architecture.................................................................32
5.2.2 IRQ Level Setting........................................................................33
5.2.3 Dual Interrupt System...............................................................33
5.2.4 Interrupt Source Control..........................................................33
5.3 Timer/Counter Operation..............................................35
5.3.1 Introduction..................................................................................35
5.3.2 Pacer Trigger Source................................................................35
Chapter 6 C/C++ Library ......................................37
6.1 Libraries Installation....................................................37
6.2 Programming Guide .....................................................38
6.2.1 Naming Convention...................................................................38
6.2.2 Data Types...................................................................................38
6.3 _9113_Initial..................................................................39
6.4 _9113_Software_Reset..................................................39
Contents • iii
6.5 _9113_AD_Read_Data....................................................40
6.6 _9113_AD_Read_Data_Repeat.......................................40
6.7 _9113_AD_Read_Data_MUX...........................................41
6.8 _9113_AD_Read_Data_Repeat_MUX..............................42
6.9 _9113_AD_Set_Channel.................................................43
6.10 _9113_AD_Set_Range....................................................45
6.11 _9113_AD_Get_Range ...................................................46
6.12 _9113_AD_Get_Status....................................................46
6.13 _9113_AD_Set_Mode .....................................................47
6.14 _9113_AD_Get_Mode.....................................................48
6.15 _9113_INT_Set_Reg.......................................................49
6.16 _9113_AD_Get_Reg.......................................................49
6.17 _9113_Reset_FIFO.........................................................50
6.18 _9113_AD_Soft_Trigger.................................................50
6.19 _9113_Set_8254.............................................................51
6.20 _9113_Get_8254.............................................................53
6.21 _9113_AD_Timer............................................................53
6.22 _9113_Counter_Start .....................................................54
6.23 _9113_Counter_Read.....................................................55
6.24 _9113_Counter_Stop......................................................55
6.25 _9113_INT_Source_Control............................................56
6.26 _9113_CLR_IRQ.............................................................57
6.27 _9113_Get_IRQ_Channel...............................................58
6.28 _9113_Get_IRQ_Status...................................................58
6.29 _9113_AD_FFHF_Polling................................................59
6.30 _9113_AD_FFHF_Polling_MUX.......................................60
6.31 _9113_AD_Aquire ..........................................................60
6.32 _9113_AD_Aquire_MUX .................................................61
6.33 _9113_AD_INT_Start ......................................................62
6.34 _9113_AD_FFHF_INT_Start ............................................64
6.35 _9113_AD_INT_Status....................................................65
6.36 _9113_AD_FFHF_INT_Status..........................................66
6.37 _9113_AD_FFHF_INT_Restart.........................................67
6.38 _9113_AD_INT_Stop.......................................................67
Chapter 7 Calibration & Utilities........................69
7.1 Calibration....................................................................69
7.1.1 VR Assignment..........................................................................70
7.1.2 A/D Adjustment..........................................................................70
iv • Contents
7.1.3 Software A/D Offset Calibration.............................................71
7.2 Utilities..........................................................................71
7.2.1 9113UTIL......................................................................................71
7.2.2 I_EEPROM ...................................................................................75
Product Warranty/Service....................................77
How to Use This Manual • v
How to Use This Manual
This manual is designed to help you to use the PCI -9113A. The manual
describes the versatile functions and the operation theorem of the
PCI-9113A. It is divided into six chapters:
• Chapter 1, "Introduction," gives an overview of the product features,
applications, and specifications.
• Chapter 2, "Installation," describes how to install the PCI-9113A.
The layout of PCI-9113A, including the positions of jumpers and
connectors, is shown
• Chapter 3, "Signal Connection," describes the connectors’ pin
assignment and connection between outside signals or devices
and PCI -9113A.
•
Chapter 4, "Registers’ Format," describes the details of registers’
format and structure of PCI -9113A, this information is important for
the programmers who want to control the hardware by low-level
programming.
•
Chapter 5, "Operation Theorem" describes how to operate
PCI-9113A. The A/D, timer/counter, and some programming
concepts are introduced.
•
Chapter 6, "C/C++ Software Library" describes high-level
programming interface in C/C++ language. It helps programmer to
control PCI -9113A in high level language.
•
Chapter 7, "Calibration & Utility," describes how to calibrate the
•
Chapter 8, "Software Utility," describes how to use the utility
programs included in the software CD.
Introduction • 1
1
Introduction
The PCI -9113A is an advanced data acquisition add-on card based on
32-bit PCI Bus architecture. High performance designs and the
state-of-the-art technology make this card ideal for data logging and
signal analysis applications in medical, process control, and etc.
The outstanding feature of PCI -9113A is that high-speed isolated photo
couplers are used between all signal lines of digital and analog
converter. It can protect your PC, and peripherals from damage due to the
high voltages on the analog inputs. The block diagram of PCI-9113A is
shown below.
Control Logic
PCI Bus
Controller
Boot
EPROM
1K
A/D FIFO
12 Bit
A/D Converter
Isolated DC/DC
Converter
+15
32-CH Single-ended or
16-CH Differential
Analog MUX
CH 0
CH 1
CH 2
.
.
.
Isolation
PGA
(Analog Input)
32-bit PCI Local Bus
2 • Introduction
1.1 Features
The PCI-9113A PCI Bus Data Acquisition Card provides the following
advanced features:
•
32-bit PCI -Bus, Plug and Play
•
32-CH single-ended or 16-CH differential 12-bit analog inputs
•
Isolation voltage: 2500Vrms
•
Programmable gain of 1, 10, 100
•
Sampling rate up to 100KHz
•
Trigger mode: software trigger, timer pacer
•
On-board A/D 1K WORDS FIFO memory
•
Auto-scanning channel selection
•
Input impedance: 10M Ω
•
Analog input voltage protection: 70 voltage (peak-to-peak)
•
Compact size: half -size PCB
•
Integral 3000VDC Isolation DC to DC converters for stable power
sources
•
DB-37 connector, pin assignment is fully compatible with
ACL-8113, and PCI -9113
1.2 Applications
•
Industrial process control
•
Transducer, thermocouple, RTD
•
Power monitor
•
Medical instrument
•
Biomedical measurement
•
Ground loop elimination
Introduction • 3
1.3 Specifications
♦ Analog Input (A/D)
•
Converter: B.B. ADS774 or equivalent, successive
approximation type
•
Resolution: 12-bit
•
Input channels: 32 single-ended or 16 differential input
•
Isolated photo coupler: PC410
Isolation voltage rated continuous: 2,500Vrms
Instantaneous common mode rejection: 500V/us typically
•
Analog Input Range: (Software controlled, and jumper selection)
Bipolar: ±10V, ±1V , ±0.1V or ±5V, ±0.5V, ±0.05V
Unipolar: 0~10V, 0~1V, 0~0.1V
•
Throughput: 100K samples/sec.
•
Over-voltage Protection: Continuous ±35V maximum
•
Accuracy: 0.015% of reading ±1 bit
•
Input Impedance: 10 M Ω
•
Trigger Mode: Software and Pacer
•
Data Transfer: Pooling, Interrupt, FIFO half-full interrupt
•
FIFO dEPTH: 1024 samples
♦
General Specifications
•
Connector: 37-pin D-type connector
•
Operating Temperature: 0° C ~ 55° C
•
Storage Temperature: -20° C ~ 80° C
•
Humidity: 5 ~ 95%, non-condensing
•
Power Consumption: +5 V @ 960mA (max.)
• Dimension: 173mm (L) x 102mm (H)
4 • Introduction
1.4 Software Supporting
ADLink provides versatile software drivers and packages for users’
different approach to built-up a system. We not only provide
programming library such as DLL for many Windows systems, but also
provide drivers for many software package such as LabVIEW®, HP VEETM,
DASYLabTM, InTouchTM, InControlTM, ISaGRAFTM, and so on.
All the software options are included in the ADLink CD. The non-free
software drivers are protected with serial licensed code. Without the
software serial number, you can still install them and run the demo
version for two hours for demonstration purpose. Please contact with
your dealer to purchase the formal license serial code.
1.4.1 Programming Library
For customers who are writing their own programs, we provide function
libraries for many different operating systems, including:
u DOS Library: Borland C/C++ and Microsoft C++, the functions
descriptions are included in this user’s guide.
u Windows 95 DLL: For VB, VC++, Delphi, BC5, the functions
descriptions are included in this user’s guide.
u PCIS-DASK: Include device drivers and DLL for Windows 98,
Windows NT and Windows 2000. DLL is binary compatible across
Windows 98, Windows NT and Windows 2000. That means all
applications developed with PCIS-DASK are compatible across
Windows 98, Windows NT and Windows 2000. The developing
environment can be VB, VC++, Delphi, BC5, or any Windows
programming language that allows calls to a DLL. The user’s
guide and function reference manual of PCIS-DASK are in the CD.
Please refer the PDF manual files under
\\Manual_PDF\Software\PCIS-DASK
The above software drivers are shipped with the board. Please refer to
the “Software Installation Guide” to install these drivers.
1.4.2 PCIS-LVIEW: LabVIEW® Driver
PCIS-LVIEW contains the VIs, which are used to interface with NI’s
LabVIEW® software package. The PCIS-LVIEW supports Windows
95/98/NT/2000. The LabVIEW® drivers are free shipped with the board.
You can install and use them without license. For deta il information
about PCIS-LVIEW, please refer to the user’s guide in the CD.
(\\Manual_PDF\Software\PCIS-LVIEW)
Introduction • 5
1.4.3 PCIS-VEE: HP -VEE Driver
The PCIS-VEE includes the user objects, which are used to interface with
HP VEE software package. PCIS-VEE supports Windows 95/98/NT. The
HP-VEE drivers are free shipped with the board. You can install and use
them without license. For detail information about PCIS-VEE, please
refer to the user’s guide in the CD.
(\\Manual_PDF\Software\PCIS-VEE)
1.4.4 DAQBenchTM: ActiveX Controls
We suggest the customers who are familiar with ActiveX controls and
VB/VC++ programming use the DAQBenchTM ActiveX Control
components library for developing applications. The DAQBenchTM is
designed under Windows NT/98. For more detailed information about
DAQBench, please refer to the user’s guide in the CD.
(\\Manual_PDF\Software\DAQBench\DAQBench Manual.PDF)
1.4.5 DASYLabTM PRO
DASYLab is an easy-to-use software package, which provides
easy-setup instrument functions such as FFT analysis. Please contact
us to get DASYLab PRO, which include DASYLab and ADLink hardware
drivers.
1.4.6 PCIS-DDE: DDE Server and InTouchTM
DDE stands for Dynamic Data Exchange specifications. The PCIS-DDE
includes the PCI cards’ DDE server. The PCIS-DDE server is included in
the ADLINK CD. It needs license. The DDE server can be used
conjunction with any DDE client under Windows NT.
1.4.7 PCIS-ISG: ISaGRAFTM driver
The ISaGRAF WorkBench is an IEC1131-3 SoftPLC control program
development environment. The PCIS-ISG includes ADLink products’
target drivers for ISaGRAF under Windows NT environment. The
PCIS-ISG is included in the ADLINK CD. It needs license.
1.4.8 PCIS-ICL: InControlTM Driver
PCIS-ICL is the InControl driver which support the Windows NT. The
PCIS-ICL is included in the ADLINK CD. It needs license.
1.4.9 PCIS-OPC: OPC Server
PCIS-OPC is an OPC Server, which can link with the OPC clients. There
are many software packages on the market can provide the OPC clients
6 • Introduction
now. The PCIS-OPC supports the Windows NT. It needs license.
Installation • 7
2
Installation
This chapter describes how to install the PCI -9113A. The contents in the
package and unpacking information are described.
2.1 What You Have
In addition to this User's Manual, the package includes the following
items:
•
PCI-9113A Data Acquisition Card
•
ADLINK CD
•
Software Installation Guide
If any of these items is missing or damaged, contact the dealer from
whom you purchased the product. Save the shipping materials and
carton in case you want to ship or store the product in the future.
2.2 Unpacking
Your PCI -9113A card contains sensitive electronic components that can
be easily damaged by static electricity.
The card should be done on a grounded anti -static mat. The operator
should be wearing an anti-static wristband, grounded at the same point
as the anti-static mat.
8 • Installation
Inspect the card module carton for obvious damage. Shipping and
handling may cause damage to your module. Be sure there are no
shipping and handing damages on the module before processing.
After opening the card module carton, extract the system module and
place it only on a grounded anti-static surface component side up.
Again inspect the module for damage. Press down on all the socketed
IC's to make sure that they are properly seated. Do this only with the
module place on a firm flat surface.
Note: DO NOT APPLY POWER TO THE CARD IF IT HAS BEEN
DAMAGED.
You are now ready to install your PCI -9113A.
2.3 Hardware Installation
Hardware configuration
The PCI cards (or CompactPCI cards) are equipped with plug and play
PCI controller, it can requests base addresses and interrupt according
to PCI standard. The system BIOS will install the system reso urce based
on the PCI cards’ configuration registers and system parameters (which
are set by system BIOS). Interrupt assignment and memory usage (I/O
port locations) of the PCI cards can be assigned by system BIOS only.
These system resource assignment is done on a board-by-board basis.
It is not suggested to assign the system resource by any other methods.
PCI slot selection
The PCI card can be inserted to any PCI slot without any configuration for
system resource.
Installation Procedures
1. Turn off your computer
2. Turn off all accessories (printer, modem, monitor, etc.)
connected to your computer.
3. Remove the cover from your computer.
4. Setup jumpers on the PCI or CompactPCI card.
5. Select a 32-bit PCI slot. PCI slot are short than ISA or EISA
Installation • 9
slots, and are usually white or ivory.
6. Before handling the PCI cards, discharge any static buildup
on your body by touching the metal case of the computer. Hold the
edge and do not touch the components.
7. Position the board into the PCI slot you selected.
8. Secure the card in place at the rear panel of the system.
2.4 Device Installation for Windows Systems
Once Windows 95/98/2000 has started, the Plug and Play function of
Windows system will find the new NuDAQ/NuIPC cards. If this is the first
time to install NuDAQ/NuIPC cards in your Windows system, you will be
informed to input the device information source. Please refer to the
“Software Installation Guide” for the steps of installing the device.
2.5 PCI-9113A's Layout
Figure 2.1 PCB Layout of the PCI-9113A
JP5 VR1
PCI
Controller
VR2 VR3
VR4
JP3 JP2
JP4
JP1
CN1
DC/DC
Converter
DC/DC
Converter
32- CH
R/C Filter
Isolation
PGA
ADC
FIFO
FIFO
MUX MUX
TMRCNTR
Boot
ROM
10 • Installation
2.6 Jumper Settings
2.6.1 Analog Signal Input Type Selection
JP5 is the selection jumper of analog signal input type. The following
diagram shows the two possible configurations.
JP5 Single-Ended Input (Default)
JP5 Differential Input
2.6.2 Polarity Selection Jumper
JP2 is the polarity selection jumper. The following diagram shows the
two configurations.
JP2 Uni-polar input (Default)
JP2 Bi-polar input
2.6.3 Full Range Jumper
JP3 set the full range of the analog input channels. The following
diagram shows the possible configurations.
JP3 20V Full Range (Default)
JP3 10V Full Range
Installation • 11
2.6.4 Possible AD Input Range Configurations
The JP2 and JP3 are used to setup the analog input signal range. There
are three possible combinations, 0~10V, -5V~+5V and –10V ~ +10V. See
the following table for reference.
JP3
2-3 1-2
JP2 1-2 +/-5V +/-10V
2-3 0~10V X
2.6.5 Binary/2’s Complement Coding Selection Jumper
JP4 set the coding method of the A/D converter. The following diagram
shows the possible configurations.
JP4 Binary Coding (Default)
JP4 2’s Complement Coding
Signal Connections • 13
3
Signal Connections
This chapter describes the connectors of PCI-9113A, and the signal
connection between the PCI-9113A and external devices, such as
daughter boards or other devices.
3.1 Connectors’ Pin Assignment
The PCI-9113A comes equipped with one 37-pin D-type connector CN1 and one 5-pin header -JP1. CN1 is used for analog signal input,
and JP1 is used for external signal connection of 8254 counters 0. The
pin assignments of CN1 and JP1 are illustrated in the Figure 3.1 and
Figure 3.2.
14 • Signal Connections
• CN 1: Analog Input Signals
AI4123456
7
8
9
10
111213
14
15
16
17
18
19
21
22
23
24
25
26
2728293020
31
32
33
34
353637
AI6
AI5
AI3
AI1
AI2
AI0
AI12
AI14
AI10
AI8
AI11
AI13
AI9
AI7
IGND
AI15
IGND
IGND
IGND
CN1 (For Single-Ended Input)
AI20
AI22
AI18
AI16
AI28
AI26
AI24
AI21
AI19
AI17
AI27
AI29
AI25
AI23
AI31
AI30
IGND
AI4H
1
23456
7
8
9
10
111213
14
15
16
17
18
19
21
22
23
24
25
26
2728293020
31
32
33
34
353637
AI6H
AI5H
AI3H
AI1H
AI2H
AI0H
AI12H
AI14H
AI10H
AI8H
AI11H
AI13H
AI9H
AI7H
IGND
AI15H
IGND
IGND
IGND
CN1(For Differential Input Mode)
AI4L
AI6L
AI2L
AI0L
AI12L
AI10L
AI8L
AI5L
AI3L
AI1L
AI11L
AI13L
AI9L
AI7L
AI15L
AI14L
IGND
Figure 3.1 Pin Assignment of CN1
Legend:
AIn : Analog Input Channel #n (for single-ended, n=0~31)
AixH : Analog Input Channel #x (for differential positive input, x=0~15)
AixL : Analog Input Channel #x (for differential negative input, x=0~15)
IGND : lsolated Signal Ground
• JP1: Timer Signals
Figure 3.2 Pin Assignment of JP1
Legend:
Vcc : +5V Power Supply
CLK0 : Clock Source for Counter 0
G0 : Gate Input for Counter 0
OUT0 : Counter/Timer Output for Counter 0
GND : Ground Plane
Signal Connections • 15
3.2 Analog Input Signal Connection
The PCI-9113A provides 32 single-ended or 16 different analog input
signals which can be converted to digital value by the A/D converter. To
avoid ground loops and get more accurate measurement of A/D
conversion, it is quite important to understand the signal source type.
The single-ended mode has only one input relative to ground and is
suitable for connecting with the floating signal source. The floating
source means it does not have any connection to real ground. Figure 3.3
shows the single-ended connection. Note that when more than two
floating sources are connected, the sources must be with common
ground.
AIn
IGND
n = 0, ...,31
Signal
Source
Opertional
Amplifier
To A/D
Input Multipexer
...
V1
V2
Figure 3.3: Signal sources and single-ended connection
The differential input (DI) mode means the voltage signal to be
measured is by a pair of signals, for example, AI3L and AI3H is a
differential pair. The AD circuits measure the voltage difference between
the differential pair. The common mode noise can be reduced under this
mode. Note that the differential signal pair should be still common
ground to the isolation ground plane. Figure 3.4 shows the differential
analog signal input connection.
AIxH
AIxL
x = 0, ..., 15
Ground
Signal
Source
To A/D
VG1
VG2
Vcm = VG1 - VG2
IGND
+
-
Figure 3.4: Grounded source and differential input
16 • Signal Connections
3.3 Daughter Board Connection
The PCI -9113A can be connected with several different daughter boards,
including ACLD-9881, ACLD-9137 and ACLD-9188. The functionality
and connections are specified as follows.
3.3.1 Connect with ACLD-9881
The ACLD-9881 has a 37-pin D-sub connector, which can connect with
PCI-9113A through 37-pin assemble cable. The ACLD-9881 provides
low pass filter for the 32 channels, it is very flexible for wiring.
3.3.2 Connect with ACLD-9137
The ACLD-9137 is a direct connector for the card, which is equipped with
37-pin D-sub connector. This board provides a simple way for
connection. It is very suitable for the simple applications that do not need
complex signal condition before the A/D conversion is performed.
3.3.3 Connect with ACLD-9188
ACLD-9188 is general-purpose terminal boards for the entire card,
which comes equipped with 37-pin D-sub connector.
Registers Format • 17
4
Registers Format
The detailed descriptions of the registers format are specified in this
chapter. This information is quite useful for the programmers who wish
to handle the card by low-level programming. However, we suggest
user have to understand more about the PCI interface then start any
low-level programming. In addition, the contents of this chapter can help
users understand how to use software driver to manipulate this card.
4.1 PCI PnP Registers
This PCI card functions as a 32-bit PCI target device to any master on the
PCI bus. There are three types of registers: PCI Configuration Registers
(PCR), Local Configuration Registers (LCR) and PCI -9113A registers.
The PCR, which is compliant to the PCI-bus specifications, is initialized
and controlled by the plug & play (PnP) PCI BIOS. User‘s can study the
PCI BIOS specification to understand the operation of the PCR. Please
contact with PCISIG to acquire the specifications of the PCI interface.
The PCI bus controller PCI-9050 is provided by PLX technology Inc.
(www.plxtech.com). For more detailed information of LCR, please visit
PLX technology’s web site to download relative information. It is not
necessary for users to understand the details of the LCR if you use the
software library. The PCI PnP BIOS assigns the base address of the
LCR. The assigned address is located at offset 14h of PCR.
The PCI-9113A registers are shown in the next section. The base
address, which is also assigned by the PCI PnP BIOS, is located at
offset 18h of PCR. Therefore, users can read the 18h of PCR to know the
18 • Registers Format
base address by using the BIOS function call. The registers in this
register bank are in 16 bits. The users can access these registers by 16
bits I/O instructions. There is one 32 bits register on PCI -9113A. The 32
bits register occupied base address #2. The base address is allocated
by PCI BIOS and is stored at offset 1Ch of PCR.
Please do not try to modify the base address and interrupt which
assigned by the PCI PnP BIOS, it may cause resource confliction in your
system.
4.2 I/O Address Map
The following table shows the registers map, including descriptions and
their offset addresses relative to the base address. Users can read the
PCR to get the two PCI-9113A base addresses by using the PCI BIOS
function call.
I/O Base Address #1 Write Read
Base + 00h AD MUX channel no. AD FIFO value
Base + 02h AD range control AD status read back
Base + 04h AD trigger mode AD trigger mode
Base + 06h Interrupt control Interrupt setting Read Back
Base + 08h Software AD trigger -Base + 0Ah Clear H/W IRQ -I/O Base Address #2 Write Read
Base 2 + 00h --
AD data and channel
number
Table 4.1 I/O Address
4.3 A/D Data Registers
The PCI -9113A A/D data is stored in the FIFO after conversion. The data
can be transferred to host memory by software only. The register is 12
bits and can be read by 16 bits I/O command.
Address: BASE + 0
Attribute: read only
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+0 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0
Registers Format • 19
BASE+1 x x x x AD11 AD10 AD9 AD8
AD11~AD0: Analog to digital data. AD11 is the Most Significant Bit
(MSB) of PCI-9113A. AD0 is the Least Significant Bit(LSB).
4.4 A/D Channel Control Register
The PCI -9113A provides 32 analog input channels. The channel control
register is used to set the A/D channel to be converted. The 5 LSBs of this
register control the channel number. Under non-auto scanning mode,
the register sets the channel number for conversion. Under
auto-scanning mode, the register set the ending channel number.
Address: BASE + 0
Attribute: write only
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+0 x x x CN4 CN3 CN2 CN1 CN0
BASE+1 x x x x x x x x
CNn: multiplexer channel number.
CN4 is MSB, and CN0 is LSB.
4.5 A/D Input Signal Range Control Register
The A/D range register is used to adjust the analog input ranges. This
register directly controls the PGA (programmable gain amplifier). When
a different gain value is set, the analog input range will be changed to its
corresponding value.
Address: BASE + 2
Attribute: write only
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+2 X X X X X X GC1 GC0
BASE+3 X X X X X X X X
GC0~GC1: A/D Range control setting
The relationship between gain setting and its corresponding A/D range
is listed in the table below.
Analog Input Range
G2 G1 GAIN
Bi-Polar Uni-Polar
0 0 1 ±10V ±5V 10 V
20 • Registers Format
0 1 10 ±1V ±500mV 1V
1 0 100 ±100mV ±50mV 100mV
4.6 A/D Status Readback Register
The A/D FIFO status can be read back from this register.
Address: BASE + 2
Attribute: read only
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+2 X X X X AD_BUSY FF_FF FF_HF FF_EF
BASE+3 X X X X X X X X
FF_EF: ‘0’ means FIFO is empty
FF_HF: ‘0’ means FIFO is half -full
FF_FF: ‘0’ means FIFO is full, A/D data may have been loss
AD_BUSY:‘0’ means AD is busy, the A/D data has not been latched in
FIFO yet. If AD_BUSY changes from ‘0’ to ‘1’, A/D data is written into FIFO.
4.7 A/D Trigger Mode Control Register
This register is used to control or read back the A/D trigger control setting
and the A/D range setting.
Address: BASE + 4
Attribute: write and read
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+4 X X X X G1 G0 TSSEL ASCAN
BASE+5 X X X X X X X X
G0~G1: A/D range setting, read back (only)
TSSEL: Timer Pacer / Software Trigger
1: Timer Pacer Trigger
0: Software Trigger
ASCAN: Auto Scan Control
1: Auto Scan ON
0: Auto Scan OFF
Registers Format • 21
4.8 Software Trigger Register
To generate a trigger pulse to the PCI -9113A for A/D conversion, you just
write any data to this register, then the A/D converter will be triggered.
Address: BASE + 8
Attribute: write only
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+8 X X X X X X X X
4.9 Interrupt Control and Readback Register
The PCI -9113A has a dual interrupt system, thus two interrupt sources
can be generated and be checked by the software. This register is used
to select the interrupt sources.
Address: BASE + 6
Attribute: write and read
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+12 X X X X X FFEN ISC1 ISC0
ISC0: IRQ0 signal select
0: IRQ on the ending of the AD conversion (EOC)
1: IRQ when FIFO is half full
ISC1: IRQ1 signal select (Timer Interrupt only)
FFEN: FIFO enable pin
0: FIFO Enable (Power On Default value)
1: FIFO Disable
(To reset FIFO, set FFEN sequence as 0 -> 1 -> 0)
4.10 Hardware Interrupt Clear Register
Because the PCI interrupt signal is level trigger, the interrupt clear
register must be written to clear the flag after processing the interrupt
22 • Registers Format
request event; otherwise, that another interrupt request is inserted will
cause the software to hang on processing the interrupt event.
Address: BASE + 0Ah
Attribute: write only
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE+0Ah X X X X X X X X
4.11 A/D Data and Channel Number Registers
The PCI-9113A A/D data and channel number is stored in the FIFO.
Reading this register by a 32-bit I/O instruction can read back the data
and channel number simultaneously.
Address: BASE 2 + 0
Attribute: read only
Data Format:
Bit 7 6 5 4 3 2 1 0
BASE2+0 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0
BASE2+1 x X x x AD11 AD10 AD9 AD8
BASE2+2 x X x CN4 CN3 CN2 CN1 CN0
BASE2+3 x X x x x x x x
AD11~AD0: Analog to digital data. AD11 is the Most Significant Bit
(MSB) of PCI-9113A. AD0 is the Least Significant Bit (LSB).
CN4~CN0 : Channel number
Operation Theorem • 23
5
Operation Theorem
The operation theorem of the functions on PCI -9113A card is described
in this chapter. The operation theorem can help you to understand how to
manipulate or to program the PCI -9113A.
5.1 A/D Conversion
Before programming the PCI -9113A to perform the A/D conversion, you
should understand the following issues:
•
A/D conversion procedure
•
A/D signal source control
•
A/D trigger source control
•
A/D data transfer mode
•
Interrupt System (refer to section 5.2)
•
A/D data format
Note: Because some of the A/D data transfer modes will use the
system interrupt resource, the users have to understand the
interrupt system (section 5.2) in the same time.
24 • Operation Theorem
5.1.1 A/D Conversion Procedure
For using the A/D converter, users must know about the property of the
signal to be measured at first. The users can decide which channels to
be used and connect the signals to the PCI -9113A. Refer to the chapter
3 ‘Signal Connection’. In addition, users should define and control the
A/D signal sources, including the A/D channel, A/D gain, and A/D signal
types. Please refer to section 5.1.2. For A/D signal source control.
After deciding the A/D signal source, the user must decide how to trigger
the A/D conversion and define/control the trigger source. The A/D
converter will start to convert the signal to a digital value when a trigger
signal is rising. Refer to the section 5.1.3 for the two trigger sources.
The A/D data should be transferred into PC's memory for further using or
processing. The data can be read by I/O instruction, which is handled
directly by software or transferred to memory via interrupt. Please refer to
section 5.1.4 to obtain ideas about the multi-configurations for A/D data
transfer.
To process A/D data, programmer should know about the A/D data
format. Refer to section 5.1.5 for details.
5.1.2 A/D Signal Source Control
To control the A/D signal source, the signal type, signal channel and
signal range should be considered.
Signal Type & Signal Conditioning
The A/D signal sources of PCI -9113A could be single ended (SE) only.

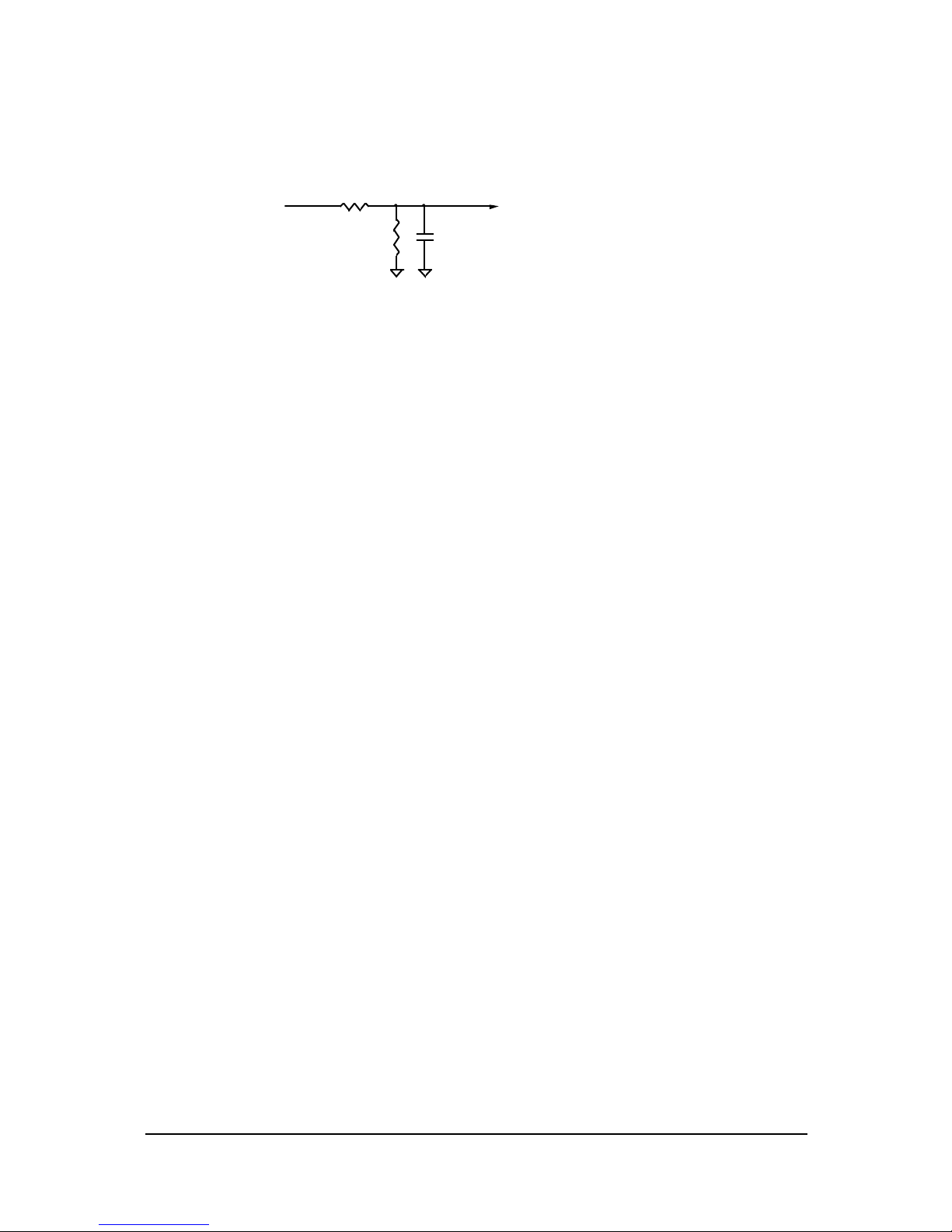

Three are 32 SE A/D channels on board. The R/C filters (attenuantors)
are on board for every channel. The RC circuits for each channel is
shown in the following diagram, where ‘n’ is the channel number. User
can install the R, C for special purpose such as attenuating the voltage to
increase the input voltage range.
Operation Theorem • 25
RAn
0. Ohm
To Multiplexer
Analog Input
Channel #n
RBn
OPEN
CAn
OPEN
The RC network can also be used as current sensor, which transfers the
current into voltage. To get the ground reference level, user can cut -off RA
and let RB = 0 Ohm, thus grounding the input signal. The users can use
the ground input to calibrate the offset voltage by software.
Signal Channel Control
There are two ways to control the channel number. The first one is the
software programming and the second one is the auto channel
scanning which is controlled by the ASCAN bit in AD trigger mode control
register. As ASCAN is cleared (0), the value of AD channel Control
register defines the channel to be selected.
As ASCAN is set 1, the value in AD channel control register defines the
ending channel number of auto -scanning operation. Under auto scan
mode, the channel is scanning from channel 0 to the ending channel.
Whenever a trigger signal is rising, the channel number to be selected
will increase automatically. For example, if the ending channel number
is 3, the auto channel scanning sequence is 0,1,2,3,0,1,2,3, …, until the
ASCAN bit is cleared.
Signal Range
The proper signal range is important for data acquisition. The input
signal may be saturated if the A/D gain is too large. Sometimes, the
resolution may be not enough if the si gnal is small. The maximum A/D
signal range of PCI-9113A is ±10 volts when the A/D gain value is 1.
The A/D gain control register controls the maximum signal input
range. The signal gain is programmable with 4 levels
(1,10,100,1000*). The signal range of the 32 channels will be
identical all the time even if the channel number is scanning. The
available signal polarity on PCI-9113A are bi-polar and uni-polar
configuration.
26 • Operation Theorem
Note: Gain value of 1000 is programmable, however, the accuracy is
not guaranteed.
Operation Theorem • 27
5.1.3 A/D Trigger Source Control
The A/D conversion is started by a trigger source, and then the A/D
converter will start to convert the signal to a digital value. In PCI-9113A,
two internal sources can be selected: the software trigger or the timer
pacer trigger. The A/D operation mode is controlled by A/D trigger mode
register. Total two trigger sources are provided in the PCI-9113A. The
different trigger conditions are specified as follows:
Software trigger (TSSEL=0)
The trigger source is software cont rollable in this mode. That is, the A/D
conversion is starting when any value is written into the software trigger
register. This trigger mode is suitable for low speed A/D conversion.
Under this mode, the timing of the A/D conversion is fully controlled by
software. However, it is difficult to control the fixed A/D conversion rate
unless another timer interrupt service routine is used to generate a fixed
rate trigger. Refer to interrupt control section (section 5.2) for fixed rate
timer interrupt operation.
Timer Pacer Trigger (TSSEL=1)
An on-board timer / counter chip 8254 is used to provide a trigger source
for A/D conversion at a fixed rate. Two counters of the 8254 chip are
cascaded together to generate trigger pulse with precise period. Please
refer to section 5.3 for 8254 architecture. This mode is ideal for high
speed A/D conversion. It can be combined with the FIFO half -full interrupt
or EOC interrupt to transfer data. It is also possible to use software FIFO
polling to transfer data. The A/D trigger, A/D data transfer and Interrupt
can be set independently. Most of the complex applications can thus be
covered.
It's recommended using this mode if your applications need a fixed and
precise A/D sampling rate.
5.1.4 A/D Data Transfer Modes
The A/D data are buffered in the FIFO memory. The FIFO size on
PCI-9113A is 1024 (1K) words. If the sampling rate is 10 KHz, the FIFO
can buffer 102.4 ms analog signal. After the FIFO is full, the lasting
coming data will be lost. The software must read out the FIFO data
before it becomes full.
28 • Operation Theorem
The data must be transferred to host memory after the date is ready and
before the FIFO is full. On the PCI -9113A, many data transfer modes can
be used. The different transfer modes are specified as follows:
Software Data Polling
The software data polling is the easiest way to transfer A/D data. This
mode can be used with software A/D trigger mode. After the A/D
conversion is triggered by software, the software should poll the FF_EF
bit of the A/D status register until it becomes low level.
If the FIFO is empty before the A/D start, the FF_EF bit will be low. After the
A/D conversion is completed, the A/D data is written to FIFO immediately,
thus the FF_EF becomes high. You can consider the FF_EF bit as a flag
to indicate the converted data ready status. That is, FF_EF is high means
the data is ready. Note that, while A/D is converted, the ADBUSY bit is low.
After A/D conversion, the ADBUSY becomes high to indicate not busy.
Please do NOT use this bit to poll the AD data.
It is possible to read A/D converted data without polling. The A/D
conversion time will not exceed 8.5µs on PCI -9113A card. Hence, after
software trigger, the software can wait for at least 8.5µs and then read
the A/D register without polling.
The data polling transfer is very suitable for the application that needs to
process AD data in real time. Especially, when combining with the timer
interrupt generation, the timer interrupt service routine can use the dat a
polling method to get multi-channel A/D data in real time and with the
fixed data sampling rate.
FIFO Half-Full Polling
The FIFO half-full polling mode is the most powerful AD data transfer
mode. The 1 K words FIFO can be stored up to 10.24 ms analog data
under 100 KHz sampling rate (10.024ms = 1024 / 100 KHz ).
Theoretically, the software can poll the FIFO every 10 ms without taking
care how to trigger A/D or transfer A/D data.
It’s recommend that users check your system to find out the user
software‘s priority in the special application. If the application software is
at the highest priority, polling the FIFO every 10 ms is suitable. However,
the user‘s program must check the FIFO is full or empty every time
Operation Theorem • 29
reading data.
To avoid this problem, the half-full polling method is used. If the A/D
trigger rate is 100KHz, the FIFO will be half -full (512 words) in 5.12 ms. If
the user‘s software checks the FIFO half full signal every 5 ms and the
FIFO is not half -full, the software does not read data. When the FIFO is
full, the AD FIFO is overrun. That means the sampling rate is higher than
users’ expect or the polling rate is too slow. It is also possible due to your
system occupy the CPU resource thus reducing the polling rate. When
the FIFO is half -full and not full, the software can read one “block” (512
words) A/D data without checking the FIFO status. This method is very
convenient to read A/D in size of a “block” and it is benefit to software
programming.
Usually, the timer trigger is used under this mode, therefore the
sampling rate is fixed. The method also utilizes the minimum CPU
resources because it is not necessary to be the highest priority. The
other benefit is this method will not use hardware interrupt resource.
Therefore, the interrupt is reserved for system clock or emergency
external interrupt request. The FIFO half -full polling method is the most
powerful A/D data transfer mode.
EOC Interrupt Transfer
The PCI -9113A provides traditional hardware end-of-conversion (EOC)
interrupt capability. Under this mode, an interrupt signal is generated
when the A/D conversion is ended and the data is ready to be read in the
FIFO. It is useful to combine the EOC interrupt transfer with the timer
pacer trigger mode. After A/D conversion is completed, the hardware
interrupt will be inserted and its corresponding ISR (Interrupt Service
Routine) will be invoked and executed. The ISR program can read the
converted data. This method is most suitable for data processing
applications under real-time and fixed sampling rate
FIFO Half-Full Interrupt Transfer
Sometimes, the applications do not need real-time processing, but the
foreground program is too busy to poll the FIFO data. The FIFO half-full
interrupt transfer mode is useful for the situation mentioned above. In
addition, as the external A/D trigger source is used, the sampling rate
may be not easy to predict, and then the method could be applied.
Because the CPU is only interrupted when the FIFO is half-full, thus
reserved the CPU load.
30 • Operation Theorem
Under this mode, an interrupt signal is generated when FIFO becomes
half-full. It means there are 512 words data in the FIFO already. The ISR
can read a block of data every interrupt occurring. This method is very
convenient to read A/D in size of a “block” (512 words) and it is benefit for
software programming.
Operation Theorem • 31
5.1.5 A/D Data Format
The range of A/D data read from the FIFO port is from 0 to 4095. As the
A/D gain is 1, the A/D signal range is roughly -10V ~ +10V or -5V~+5V
(bi-polar) and 0V~+10V (uni-polar). The relationship between the voltage
and the value is shown in the following table:
Voltage (Volts)
Bipolar Unipolar
A/D Data (Hex)
Direct Binary
Unsigned
Decimal Value
±10V ±5V 0~10V
FFF 4095 +9.9951 +4.9975 +9.9951
C00 3072 +5.0000 +2.5000 +7.5000
801 2049 +0.0049 +0.0025 +5.0049
800 2048 0.0000 0.0000 +5.0000
7FF 2047 -0.0049 -0.0025 +4.9951
400 1024 -5.0000 -2.5000 +2.5000
000 0 -10.0000 -5.0000 0.0000
Voltage (Volts)
Bipolar Unipolar
A/D Data (Hex)
2’s
Complement
Signed
Decimal Value
±10V ±5V 0~10V
7FF 2047 +9.9951 +4.9975 +9.9951
400 1024 +5.0000 +2.5000 +7.5000
001 0001 +0.0049 +0.0025 +5.0049
000 0000 0.0000 0.0000 +5.0000
FFF -0001 -0.0049 -0.0025 +4.9951
C00 -1024 -5.0000 -2.5000 +2.5000
800 -2048 -10.0000 -5.0000 0.0000
The formula between the A/D data and the analog value is
Direct Binary Coding:
Bipolar ±10V :
Voltage = ( AD_Data * 20 ) / ( 4096 * gain ) – (10 / gain)
Bipolar ±5V :
Voltage = ( AD_Data * 10 ) / ( 4096 * gain ) – (5 / gain)
Unipolar +10V :
Voltage = ( AD_Data * 10 ) / ( 4096 * gain )
32 • Operation Theorem
2’s Complement Coding:
Bipolar ±10V :
Voltage = ( AD_Data * 20 ) / ( 4096 * gain )
Bipolar ±5V :
Voltage = ( AD_Data * 10 ) / ( 4096 * gain )
Unipolar +10V:
Voltage = ( AD_Data * 10 ) / ( 4096 * gain ) + (5 / gain)
where the gain is 1,10,100.
Note: For 2’s complement coding, user should shift the MSB of
AD_data to be the sign bit of the corresponding signed variable,
and over the variable by the shift amount to get the correct value.
5.2 Interrupt Control
5.2.1 System Architecture
The PCI -9113A‘s interrupt system is a powerful and flexible system that
is suitable for A/D data acquisition and many applications. The system
is a Dual Interrupt System. The dual interrupt means the hardware can
generate two interrupt request signals in the same time and the
software can service these two request signals by ISR. Note that the dual
interrupt does not mean the card occupies two IRQ levels.
The two interrupt request signals (INT1 and INT2) come from digital
signals or the timer / counter output. An interrupt source multiplexer
(MUX) is used to select the IRQ sources. Fig 5.2.1 shows the interrupt
system.
PCI
Controller
INT #A
IRQ
Flip-Flo
ps
INT1
Clear IRQ
INT1
MUX
AD EOC
Timer Pacer
INT2
FIFO
Half-full
Operation Theorem • 33
Fig 5.2.1 Dual Interrupt System of PCI-9113A
5.2.2 IRQ Level Setting
There is only one IRQ level used by this card, although it is a dual
interrupt system. This card uses INT #A interrupt request signal to PCI
bus. The motherboard circuits will transfer INT #A to one of the AT bus
IRQ levels. The IRQ level is set by the PCI plug and play BIOS and saved
in the PCI controller. It is not necessary for users to set the IRQ level.
5.2.3 Dual Interrupt System
The PCI controller of PCI -9113A can receive two hardware IRQ sources.
However, a PCI controller can generate only one IRQ to PCI bus, the two
IRQ sources should be distinguished by ISR of the application software
if the two IRQ are all used.
The application software can use the “_9113A_Get_Irq_Status” function
to distinguish which interrupt is inserted. After servicing an IRQ signal,
users should check if another IRQ is also asserted and then clear
current IRQ to allow the next IRQ occurring.
The two IRQs are named as INT1 and INT2. INT1 comes from AD EOC or
the FIFO half -full flag. INT2 comes from timer‘s pacer output only. The
sources of INT1 and INT2 are selective by the Interrupt Control (ISC)
Register.
Because of dual interrupt system, for example, you can use FIFO half -full
and external interrupt at the same time if your software ISR can
distinguish these two events.
5.2.4 Interrupt Source Control
There are two bits to control the IRQ sources of INT1 and INT2. Refer to
section 4.9 for the details of the two bits. In addition, the PCI controller
itself can also control the use of the interrupt. For manipulating the
interrupt system more easily, ADLINK recommends you to use the
function _9113A_INT_Source_Control to control the IRQ source so that
you can disable one or two of the IRQ sources.
Note that even you disable all the two IRQ sources without changing the
34 • Operation Theorem
initial condition of the PCI controller, the PCI BIOS still assigns an IRQ
level to the PCI card and it will occupy the PC resource. It is not
suggested to re-design the initial condition of the PCI card by users‘ own
application software. If users want to disable the IRQ level, please use
the ADLINK’s software utility to change the power on interrupt setting.
Operation Theorem • 35
5.3 Timer/Counter Operation
The PCI-9113A has an interval timer/counter 8254 on board. Refer to
section 3.5 for the signal connection and the configuration of the
counters.
5.3.1 Introduction
One 8254 programmable timer/counter chip is installed in PCI-9113A.
There are three counters in one 8254 chip and 6 possible operation
modes for each counter. The block diagram of the timer/counter system
is shown in following diagram.
Counter #0
2 MHz Clock
Timer #1
Timer Pacer
Timer #2
8254 Chip
C
G
C
G
C
G
O
O
O
'H'
'H'
CLK0
G0
OUT0
Figure 5.3.1 Timer/Counter System of PCI-9113A.
5.3.2 Pacer Trigger Source
The timer #1 and timer #2 are cascaded together to generate the timer
pacer trigger of A/D conversion. The frequency of the pacer trigger is
software controllable. The maximum pacer signal rate is 2MHz/4=500K
which excess the maximum A/D conversion rate of the PCI-9113A
(100KHz). The minimum signal rate is 2MHz/65535/ 65535, which is a
very slow frequency that user may never use it. The output of the
programmable timer can be used as the pacer interrupt source or the
timer pacer trigger source of A/D conversion. In software library, the timer
#1 and #2 are always set as mode 2 (rate generator) or mode 3.
C/C++ Software Library • 37
6
C/C++ Library
This chapter describes the software library for operating this card. Only
the functions in DOS library and Windows 95 DLL are described. Please
refer to the PCIS-DASK function reference manual, which included in
ADLINK CD, for the descriptions of the Windows 98/NT/2000 DLL
functions.
The function prototypes and some useful constants are defined in the
header files LIB directory (DOS) and INCLUDE directory (Windows 95).
For Windows 95 DLL, the developing environment can be Visual Basic
4.0 or above, Visual C/C++ 4.0 or above, Borland C++ 5.0 or above,
Borland Delphi 2.x (32-bit) or above, or any Windows programming
language that allows calls to a DLL. It provides the C/C++, VB, and Delphi
include files.
6.1 Libraries Installation
Please refer to the “Software Installation Guide” for the detail
information about how to install the software libraries for DOS, or
Windows 95 DLL, or PCIS-DASK for Windows 98/NT/2000.
The device drivers and DLL functions of Windows 98/NT/2000 are
included in the PCIS-DASK. Please refer the PCIS-DASK user’s guide
and function reference, which included in the ADLINK CD, for detailed
programming information.
38 • C/C++ Software Library
6.2 Programming Guide
6.2.1 Naming Convention
The functions of the NuDAQ PCI cards or NuIPC CompactPCI cards’
software driver are using full-names to represent the functions' real
meaning. The naming convention rules are:
In DOS Environment:
_{hardware_model}_{action_name}. e.g. _6308_Initial().
All functions in PCI -6308 driver are with 6308 as {hardware_model}. But
they can be used by PCI -6308V, PCI-6308A.
In order to recognize the difference between DOS library and Windows
95 library, a capital "W" is put on the head of each function name of the
Windows 95 DLL driver. e.g.
W_6308_Initial()
.
6.2.2 Data Types
We defined some data type in Pci_6308.h (DOS) and Acl_pci.h
(Windows 95). These data types are used by NuDAQ Cards ’ library.
We suggest you to use these data types in your application programs.
The following table shows the data type names and their range.
Type Name Description Range
U8 8-bit ASCII character 0 to 255
I16 16-bit signed integer -32768 to 32767
U16 16-bit unsigned integer 0 to 65535
I32 32-bit signed integer -2147483648 to 2147483647
U32 32-bit single-precision
floating-point
0 to 4294967295
F32 32-bit single-precision
floating-point
3.402823E38 to 3.402823E38
F64 64-bit double-precision
floating-point
-1.797683134862315E308 to
1.797683134862315E309
Boolean Boolean logic value TRUE, FALSE
C/C++ Software Library • 39
6.3 _9113_Initial
@ Description
This function is used to initialize PCI-9113A card. Every PCI-9113A
card has to be initialized by this function before calling other
functions.
@ Syntax
C/C++ (DOS)
U16 _9113_Initial (U16 *existCards, PCI_INFO *info)
C/C++ (Windows 95)
U16 W_9113_Initial (U16 *existCards, PCI_INFO *info)
Visual Basic (Wi ndows 95)
W_9113_Initial (existCards As Integer, info As PCI_INFO) As Integer
@ Argument
existCards: numbers of existing PCI -9113A cards
info: relative information of the PCI -9113A cards
@ Return Code
ERR_NoError
ERR_BoardNoInit
ERR_PCIBiosNotExist
6.4 _9113_Software_Reset
@ Description
This function is used to reset the I/O port configuration. Note that this
function cannot re-start the PCI bus and all the hardware setting
won’t be changed neither.
@ Syntax
C/C++ (DOS)
void _9113_Software_Reset (U16 cardNo)
C/C++ (Windows 95)
void W_9113_Software_Reset (U16 cardNo)
40 • C/C++ Software Library
Visual Basic (Windows 95)
W_9113_Software_Reset (ByVal cardNo As Integer)
@ Argument
cardNo: The card number of initialized PCI -9113A card
@ Return Code
None
6.5 _9113_AD_Read_Data
@ Description
This function is used to read the A/D conversion data from A/D Data
register. The resolution of A/D conversion data is 12 bits.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Read_Data (U16 cardNo, U16 far *ADData)
C/C++ (Windows 95)
U16 W_9113_AD_Read_Data (U16 cardNo, U16 *ADData)
Visual Basic (Windows 95)
W_9113_AD_Read_Data (ByVal cardNo As Integer, ADData As Integer)
As Integer
@ Argument
cardNo: The card number of initialized PCI -9113A card.
ADData: A/D converted value. The resolution of AD data is 12-bit. The bit
0 of ADData is the LSB of A/D converted data and the bit 11 of
ADData is the MSB of A/D converted data. Please refer to section
5.1.5 for the relationship between the voltage and the digital
value.
@ Return Code
ERR_NoError
6.6 _9113_AD_Read_Data_Repeat
@ Description
C/C++ Software Library • 41
This function is used to read the A/D conversion data from the data
register n times continuously.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Read_Data_Repeat (U16 cardNo, I16 far *ADData, U16
n)
C/C++ (Windows 95)
U16 W_9113_AD_Read_Data_Repeat (U16 cardNo, I16 *ADData, U16
n)
Visual Basic (Windows 95)
W_9113_AD_Read_Data_Repeat (ByVal cardNo As Integer, ADData As
Integer, ByVal n As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized
ADData: A/D converted value. The resolution of A/D data is 12-bit. The
bit 0 of ADData is the LSB of A/D converted data and the bit 11 of
ADData is the MSB of A/D converted data. Please refer to section
5.1.5 for the relationship between the voltage and the value.
n: The number of times to read the A/D conversion data.
@ Return Code
ERR_NoError
6.7 _9113_AD_Read_Data_MUX
@ Description
This function is used to read data from A/D Data and Channel
Number Register. The A/D Data and Channel Number Register is a
32-bit register. Please refer to section 4.10 for the description of A/D
Data and Channel Number Register.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Read_Data_MUX (U16 cardNo, U32 far
*ADData )
C/C++ (Windows 95)
U16 W_9113_AD_Read_Data_MUX (U16 cardNo, U32 *ADData )
42 • C/C++ Software Library
Visual Basic (Windows 95)
W_9113_AD_Read_Data_MUX (ByVal cardNo As Integer, ADData As
Long) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ADData: A/D converted value. The resolution of A/D conversion data is 12
bits. The unsigned integer data format of ADData is as follows:
Every 32-bit unsigned integer data:
bit 0…11: A/D converted data
bit 16, 17, …, 20: converted channel no.
Please refer to section 5.1.5 for the relationship between
the voltage and the value.
@ Return Code
ERR_N oError
6.8 _9113_AD_Read_Data_Repeat_MUX
@ Description
This function is used to read data from A/D Data and Channel
Number Register n times continuously. The A/D Data and Channel
Number Register is a 32-bit register. Please refer to section 4.10 for
the description of A/D Data and Channel Number Register.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Read_Data_Repeat_MUX (U16 cardNo, U32 far
*ADData, U16 n)
C/C++ (Windows 95)
U16 W_9113_AD_Read_Data_Repeat_MUX (U16 cardNo, U32
*ADData, U16 n)
C/C++ (Windows 95)
W_9113_AD_Read_Data_Repeat_MUX (ByVal cardNo As Integer,
ADData As Long, ByVal n As Integer) As Integer
@ Argument
C/C++ Software Library • 43
cardNo: The card number of PCI -9113A card initialized
ADData: A/D converted value. The resolution of A/D conversion data is 12
bits. The unsigned integer data format of ADData is as follows:
Every 32-bit unsigned integer data:
bit 0…11: A/D converted data
bit 16, 17, …, 20: converted channel no.
Please refer to section 5.1.5 to learn the relationship between the
voltage and the value.
n: The timer of times to read the AD conversion data.
@ Return Code
ERR_NoError
6.9 _9113_AD_Set_Channel
@ Description
This function is used to set A/D channel by means of writing data to
the channel control register. There are 32 single-ended A/D
channels in PCI -9113A. Therefore the channel number could be set
between 0 to 31. Under non-auto scan mode, the ADChannelNo
stores the channel number setting. Under auto-scan mode, the
ADChannelNo records the channel number of ending channel.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Set_Channel (U16 cardNo, U16
ADChannelNo)
C/C++ (Windows 95)
U16 W_9113_AD_Set_Channel (U16 cardNo, U16
ADChannelNo)
Visual Basic (Windows 95)
W_9113_AD_Set_Channel (ByVal cardNo As Integer, ByVal
ADChannelNo As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
44 • C/C++ Software Library
ADChannelNo: The selected channel number or the ending channel
number to perform A/D conversion.
@ Return Code
ERR_NoError
C/C++ Software Library • 45
6.10 _9113_AD_Set_Range
@ Description
This function is used to set the A/D range by means of writing data to
the A/D range control register. The initial value of gain is '1' which is
the default setting by PCI -9113A hardware. The relationship between
gain and input voltage ranges is specified by the following tables:
Input Range (V) Gain Gain Code
±10 V X 1 AD_B_10_V
±1 V X 10 AD_B_1_V
±100m V X 100 AD_B_0_1_V
±5 V X 1 AD_B_5_V
±500m V X 10 AD_B_0_5_V
±50m V X 100 AD_B_0_05_V
0~10 V X 1 AD_U_10_V
0~1 V X 10 AD_U_1_V
0~100m V X 100 AD_U_0_1_V
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Set_Range (U16 cardNo, U16 ADRange)
C/C++ (Windows 95)
U16 W_9113_AD_Set_Range (U16 cardNo, U16 ADRange)
Visual Basic (Windows 95)
W_9113_AD_Set_Range (ByVal cardNo As Integer, ByVal ADRange As
Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ADRange: The programmable gain of A/D conversion, the possible
values are:
AD_B_10_V, AD_B_1_V, AD_B_0_1_V,
AD_B_5_V, AD_B_0_5_V, AD_B_0_05_V,
AD_U_10_V, AD_U_1_V, AD_U_0_1_V,
@ Return Code
46 • C/C++ Software Library
ERR_NoError
6.11 _9113_AD_Get_Range
@ Description
This function is used to get the A/D range from the A/D range control
register.
@ Syntax
C/C++ (DOS)
U16 _9113A_AD_Get_Range (U16 cardNo, U16 *ADRange)
C/C++ (Windows 95)
U16 W_9113A_AD_Get_Range (U16 cardNo, U16 *ADRange)
Visual Basic (Windows 95)
W_9113A_AD_Get_Range (ByVal cardNo As Integer, ADRange As
Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ADRange: The programmable gain of A/D conversion, the possible
values are: 1,10,and 100.
ADRange=0: Gain=1
ADRange=1: Gain=10
ADRange=2: Gain=100
@ Return Code
ERR_NoError
6.12 _9113_AD_Get_Status
@ Description
This function is used to get AD FIFO status from the A/D status
readback register.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Get_Status (U16 cardNo, U16 *ADStatus)
C/C++ Software Library • 47
C/C++ (Windows 95)
U16 W_9113_AD_Get_Status (U16 cardNo, U16 *ADStatus)
Visual Basic (Windows 95)
W_9113_AD_Get_Status (ByVal cardNo As Integer, ADStatus As Integer)
As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ADStatus: The status of AD FIFO. The AD FIFO status could be one of the
following:
ADSTS_FF_EF: FIFO is empty
ADSTS_FF_HF: FIFO is half -full
ADSTS_FF_FF: FIFO is full, A/D data may have been loss
ADSTS_BUSY: AD is busy, A/D data is written int o FIFO.
@ Return Code
ERR_NoError
6.13 _9113_AD_Set_Mode
@ Description
This function is used to set A/D trigger mode. Please refer to section
5.1.3 for the detailed description of A/D trigger modes.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Set_Mode (U16 cardNo, U16 ADMode)
C/C++ (Windows 95)
U16 W_9113_AD_Set_Mode (U16 cardNo, U16 ADMode)
Visual Basic (Windows 95)
W_9113_AD_Set_Mode (ByVal cardNo As Integer, ByVal ADMode As
Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ADMode: The value of A/D trigger mode.
The mode could be one or a combination of the following
modes:
48 • C/C++ Software Library
A_9113_AD_FIFO_ENABLE
A_9113_AD_FIFO_DISABLE
A_9113_AD_TimerTrig
A_9113_AD_SoftTrig
A_9113_AD_AutoScan
@ Return Code
ERR_NoError
6.14 _9113_AD_Get_Mode
@ Description
This function is used to get A/D mode from A/D trigger mode control
register. Please refer to section 5.1.3 for the detailed description of
A/D trigger modes.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Get_Mode (U16 cardNo, U16 *ADMode)
C/C++ (Windows 95)
U16 W_9113_AD_Get_Mode (U16 cardNo, U16 *ADMode)
Visual Basic (Windows 95)
W_9113_AD_Get_Mode (ByVal cardNo As Integer, ADMode As Integer)
As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ADMode: The value of A/D trigger mode
The returned value could be one or a combination of the
following modes:
A_9113_AD_FIFO_ENABLE
A_9113_AD_FIFO_DISABLE
A_9113_AD_TimerTrig
A_9113_AD_SoftTrig
A_9113_AD_AutoScan
@ Return Code
ERR_NoError
C/C++ Software Library • 49
6.15 _9113_INT_Set_Reg
@ Description
This function is used to select the interrupt sources by writing data to
interrupt control register. Please refer to section 4.8 to learn how to
set the interrupt control register.
@ Syntax
C/C++ (DOS)
U16 _9113_INT_Set_Reg (U16 cardNo, U16 INTC)
C/C++ (Windows 95)
U16 W_9113_INT_Set_Reg (U16 cardNo, U16 INTC)
Visual Basic (Windows 95)
W_9113_INT_Set_Reg (ByVal cardNo As Integer, ByVal INTC As Integer)
As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
INTC: The value written to the interrupt control register.
@ Return Code
ERR_NoError
6.16 _9113_AD_Get_Reg
@ Description
This function is used to get the A/D mode setting and interrupt control
setting by reading data from the Interrupt control read back register.
The settings returned are stored in INTC. Please refer to section 4.8
for the detailed definition of each bit of the returned data.
@ Syntax
C/C++ (DOS)
U16 _9113_INT_Get_Reg (U16 cardNo, U16 *INTC)
C/C++ (Windows 95)
U16 W_9113_INT_Get_Reg (U16 cardNo, U16 *INTC)
Visual Basic (Windows 95)
50 • C/C++ Software Library
W_9113_INT_Get_Reg (ByVal cardNo As Integer, INTC As Integer) As
Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
INTC: The value returned from the interrupt control register.
@ Return Code
ERR_N oError
6.17 _9113_Reset_FIFO
@ Description
The PCI -9113A A/D data are stored in the FIFO after conversion. This
function is used to reset A/D FIFO. This function should be called
before performing A/D conversion to clear the old data stored in the
FIFO.
@ Syntax
C/C++ (DOS)
U16 _9113_Reset_FIFO (U16 cardNo)
C/C++ (Windows 95)
U16 W_9113_Reset_FIFO (U16 cardNo)
Visual Basic (Windows 95)
W_9113_Reset_FIFO (ByVal cardNo As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
@ Return Code
ERR_NoError
6.18 _9113_AD_Soft_Trigger
@ Description
C/C++ Software Library • 51
This function is used to trigger the A/D conversion by software. When
this function is called, a trigger pulse will be generated and the
converted data will be stored from address Base +0.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Soft_Trigger (U16 cardNo)
C/C++ (Windows 95)
U16 W_9113_AD_Soft_Trigger (U16 cardNo)
Visual Basic (Windows 95)
W_9113_AD_Soft_Trigger (ByVal cardNo As Integer) As Integer
@ Argument
cardNo: The card number of PCI-9113A card initialized.
@ Return Code
ERR_NoError
6.19 _9113_Set_8254
@ Description
This function is used to write PCI -9113A 8254 Programmable Timer.
@ Syntax
C/C++ (DOS)
U16 _9113_Set_8254 (U16 cardNo, U16 ChannelNo, U8 count)
C/C++ (Windows 95)
U16 W_9113_Set_8254 (U16 cardNo, U16 ChannelNo, U8
count)
Visual Basic (Windows 95)
W_9113_Set_8254 (ByVal cardNo As Integer, ByVal ChannelNo
As Integer, ByVal count As Byte) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
Tmr_ch: Port of 8254 Timer, the value is within 0 to 2.
Count: The counter value.
52 • C/C++ Software Library
@ Return Code
ERR_NoError
C/C++ Software Library • 53
6.20 _9113_Get_8254
@ Description
This function is used to read PCI -9113A 8254 Programmable Timer.
The read value is stored in count.
@ Syntax
C/C++ (D OS)
U16 _9113_Get_8254 (U16 cardNo, U16 ChannelNo, U8
*count)
C/C++ (Windows 95)
U16 W_9113_Get_8254 (U16 cardNo, U16 ChannelNo, U8
*count)
Visual Basic (Windows 95)
W_9113_Get_8254 (ByVal cardNo As Integer, ByVal ChannelNo
As Integer, count As Byte) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
Tmr_ch: Port of 8254 Timer, the value is within 0 to 2.
count: The value read from 8254 programmable timer, only 8 LSBs are
effective
@ Return Code
ERR_NoError
6.21 _9113_AD_Timer
@ Description
This function is used to set the Timer #1 and Timer#2. Timer#1 and
Timer#2 are used as frequency dividers for generating constant A/D
sampling rate dedicatedly. It is possible to stop the pacer trigger by
setting any one of the dividers as 0. Since the A/D conversion rate is
limited due to the conversion time of the AD converter, the highest
sampling rate of the PCI -9113A can not be exceeded 100 KHz. Thus
the multiplication of the dividers must be larger than 20.
54 • C/C++ Software Library
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Timer (U16 cardNo, U16 c1, U16 c2)
C/C++ (Windows 95)
U16 W_9113_AD_Timer (U16 cardNo, U16 c1, U16 c2)
Visual Basic (Windows 95)
W_9113_AD_Timer (ByVal cardNo As Integer, ByVal c1 As Integer, ByVal
c2 As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
c1: frequency divider of timer #1
c2: frequency divider of timer #2
@ Return Code
ERR_NoError
6.22 _9113_Counter_Start
@ Description
The counter #0 of the PCI-9113A Timer/Counter chip can be freely
programmed by the users. This function is used to program the
counter #0. This counter can be used as frequency generator if
internal clock is used. It also can be used as event counter if external
clock is used. All the 8254 modes (six operating modes) are
available.
@ Syntax
C/C++ (DOS)
U16 _9113_Counter_Start (U16 cardNo, U16 mode, U16 c0)
C/C++ (Windows 95)
U16 W_9113_Counter_Start (U16 cardNo, U16 mode, U16 c0)
Visual Basic (Windows 95)
W_9113_Counter_Start (ByVal cardNo As Integer, ByVal mode As Integer,
ByVal c0 As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
C/C++ Software Library • 55
Mode: the 8254 timer mode, the possible values are:
TIMER_MODE0, TIMER_MODE1,
TIMER_MODE2, TIMER_MODE3,
TIMER_MODE4, TIMER_MODE5.
Please refer to Counter/Time r 8254's reference
manual for more detailed information of timer mode.
c0: counter value of counter#0
@ Return Code
ERR_NoError
6.23 _9113_Counter_Read
@ Description
This function is used to read the counter value of the Counter#0.
@ Syntax
C/C++ (DOS)
U16 _9113_Counter_Read (U16 cardNo, U16 *c0)
C/C++ (Windows 95)
U16 W_9113_Counter_Read (U16 cardNo, U16 *c0)
Visual Basic (Windows 95)
W_9113_Counter_Read (ByVal cardNo As Integer, c0 As Integer) As
Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
c0: count value of counter#0
@ Return Code
ERR_NoError
6.24 _9113_Counter_Stop
@ Description
56 • C/C++ Software Library
This function is used to stop the timer operation. The timer is set as
the “One-shot” mode with counter value ‘0’. That is, the clock output
signal will be set as high after executing this function.
@ Syntax
C/C++ (DOS)
U16 _9113_Counter_Stop (U16 cardNo, U16 *c0)
C/C++ (Windows 95)
U16 W_9113_Counter_Stop (U16 cardNo, U16 *c0)
Visual Basic (Windows 95)
U16 W_9113_Counter_Stop (ByVal cardNo As Integer, c0 As Integer) As
Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
c0: the current counter value of the Counter#0
@ Return Code
ERR_NoError
6.25 _9113_INT_Source_Control
@ Description
PCI-9113A has a dual-interrupt system, therefore, two interrupt
sources can be generated and be checked by the software. This
function is used to select and control PCI -9113A interrupt sources by
writing data to interrupt control register. Please refer to section 5.1.4
for detailed description of A/D data transfer modes.
@ Syntax
C/C++ (DOS)
void _9113_INT_Source_Control (U16 cardNo, U16 int1Ctrl, U16
int2Ctrl)
C/C++ (Windows 95)
void W_9113_INT_Source_Control (U16 cardNo, U16 int1Ctrl, U16
int2Ctrl)
Visual Basic (Windows 95)
W_9113_INT_Source_Control (ByVal cardNo As Integer, ByVal int1Ctrl
As Integer, ByVal int2Ctrl As Integer)
C/C++ Software Library • 57
@ Argument
cardNo: The card number of PCI -9113A card initialized.
int1Ctrl: The value to control INT1, the value can be set and the
corresponding definition is the following:
0: INT1 disable
1: INT1 AD end of conversion (EOC) interrupt
2: INT1 FIFO half full
int2Ctrl: The value to control INT2, the value can be set and the
corresponding definition is the following:
0: INT2 disable
1: INT2 pacer timer interrupt
2: INT2 external interrupt source
@ Return Code
None
6.26 _9113_CLR_IRQ
@ Description
This function is used to clear interrupt request that is requested by
PCI-9113A. If you use interrupt to transfer A/D converted data, you
should use this function to clear interrupt request status, otherwise
the new coming interrupt will not be generated.
@ Syntax
C/C++ (DOS)
void _9113_CLR_IRQ (U16 cardNo)
C/C++ (Windows 95)
void W_9113_CLR_IRQ (U16 cardNo)
Visual (Windows 95)
W_9113_CLR_IRQ (ByVal cardNo As Integer)
@ Argument
None
@ Return Code
None
58 • C/C++ Software Library
6.27 _9113_Get_IRQ_Channel
@ Description
This function is used to get the IRQ level of the PCI-9113A card
currently used.
@ Syntax
C/C++ (DOS)
void _9113_Get_IRQ_Channel (U16 cardNo, U16 *irq_no)
C/C++ (Windows 95)
void W_9113_Get_IRQ_Channel (U16 cardNo, U16 *irq_no)
Visual Basic (Windows 95)
W_9113_Get_IRQ_Channel (ByVal cardNo As Integer, irq_no As Integer)
@ Argument
cardNo: The card number of PCI -9113A card initialized.
Irq_no: The IRQ level used to transfer A/D data for this card.
@ Return Code
None
6.28 _9113_Get_IRQ_Status
@ Description
This function is used to get the status of the two IRQs (INT1 and INT2)
in PCI -9113A card.
@ Syntax
C/C++ (DOS)
void _9113_Get_IRQ_Status (U16 cardNo, U16 *ch1, U16 *ch2)
C/C++ (Windows 95)
void W_9113_Get_IRQ_Status (U16 cardNo, U16 *ch1, U16 *ch2)
Visual Basic (Windows 95)
W_9113_Get_IRQ_Status (ByVal cardNo As Integer, ch1 As Integer, ch2
As Integer)
C/C++ Software Library • 59
@ Argument
cardNo: the card number of PCI -9113A card initialized.
ch1: the IRQ status of INT1
ch2: the IRQ status of INT2
@ Return Code
None
6.29 _9113_AD_FFHF_Polling
@ Description
This function is used to perform the powerful AD data transfer by
applying half -full polling mode. This method checks the FIFO half full
signal every time calling this function. If the FIFO is not half-full, the
software does not read data. When the FIFO is full, the AD FIFO is
overrun. When the FIFO is half -full but not full, software reads the A/D
data, which is stored in FIFO, in size of one “block” (512 words). The
FIFO half -full polling method is the most powerful A/D data transfer
mode. Please refer to section 5.1.4 for the detailed description of
half-full polling mode.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_FFHF_Polling (U16 cardNo, U16 far *ad_buf)
C/C++ (Windows 95)
U16 W_9113_AD_FFHF_Polling (U16 cardNo, U16 *ad_buf)
Visual Basic (Windows 95)
W_9113_AD_FFHF_Polling (ByVal cardNo As Integer, ad_buf As Integer)
As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ad_buf: The buffer stores the A/D converted value. The size of ad_buf
can not be smaller than 512 words. The data format can be
referred to section 5.1.5 for the details.
@ Return Code
60 • C/C++ Software Library
ERR_NoError
ERR_FIFO_Half_NotReady
6.30 _9113_AD_FFHF_Polling_MUX
@ Description
This function is used to perform powerful AD data transfer by applying
half-full polling mode. This method checks the FIFO half full signal
every time calling this function. If the FIFO is not half -full, the software
does not read data. When the FIFO is full, the AD FIFO is overrun.
When the FIFO is half -full and not full, software reads the A/D data,
which is stored in FIFO, in size of one “block” (512 words). The
difference between this function and 9113_AD_FFHF_Polling is that
the former reads data from the 16-bit register and the latter reads
data from 32-bit data register. Please refer to section 5.1.4 for the
detailed description of half -full polling mode.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_FFHF_Polling_MUX (U16 cardNo, U32 far *ad_buf)
C/C++ (Windows 95)
U16 W_9113_AD_FFHF_Polling_MUX (U16 cardNo, U32 *ad_buf)
Visual Basic (Windows 95)
U16 W_9113_AD_FFHF_Polling_MUX (ByVal cardNo As Integer, ad_buf
As Long) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ad_buf: The 32bits A/D converted value. The data format can be referred
to section 5.1.5 for details.
@ Return Code
ERR_NoError
ERR_FIFO_Half_NotReady
6.31 _9113_AD_Aquire
C/C++ Software Library • 61
@ Description
This function is used to poll the A/D converted data for PCI -9113A by
software trigger. It reads the A/D data when the data is ready.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_Aquire (U16 cardNo, U16 far *ad_data)
C/C++ (Windows 95)
U16 W_9113_AD_Aquire (U16 cardNo, U16 *ad_data)
Visual Basic (Windows 95)
W_9113_AD_Aquire (ByVal cardNo As Integer, ad_data As Integer) As
Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
ad_data: The 16-bit A/D converted value. The bit 0 of ADData is the LSB
of A/D converted data and the bit 11 of ADData is the MSB of A/D
converted data. Please refer to section 5.1.5 for the relationship
between the voltage and the value.
@ Return Code
ERR_NoError
ERR_AD_AquireTimeOut
6.32 _9113_AD_Aquire_MUX
@ Description
This function is used to poll the A/D conversion data for PCI -9113A. It
reads the A/D data when the data is ready.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_FFHF_Polling_MUX (U16 cardNo, U16 far *ad_data)
C/C++ (Windows 95)
U16 W_9113_AD_FFHF_Polling_MUX (U16 cardNo, U16 *ad_data)
Visual Basic (Windows 95)
W_9113_AD_FFHF_Polling_MUX (ByVal cardNo As Integer, ad_data As
Integer) As Integer
@ Argument
62 • C/C++ Software Library
cardNo: The card number of PCI -9113A card initialized.
ad_data: The 32-bit A/D converted value. The resolution of A/D
conversion data is 12 bits. The unsigned integer data format of
ADData is as follows:
Every 32-bit unsigned integer data:
bit 0…11: A/D converted data
bit 16, 17, …, 20: converted channel no.
Please refer to section 5.1.5 for the relationship between the
voltage and the value.
@ Return Code
ERR_NoError
ERR_FIFO_Half_NotReady
6.33 _9113_AD_INT_Start
@ Description
This function is used to initial and startup the AD EOC
(end-of-conversion) interrupt. This function could perform A/D
conversion N times with interrupt data transfer by using pacer trigger.
It takes place in the background and will not stop until the N-th
conversion has been completed or your program execute
_9113_AD_INT_Stop() function to stop the process.
After executing this function, it is necessary to check the status of the
operation by using the function _9113_AD_INT_Status(). The
function can perform on single A/D channel (autoscan is disabled) or
multiple A/D channels (autoscan is enabled) with a fixed analog input
range.
Note: The interrupt mode provided in this function is internal timer
source, therefore you must specify c1 & c2 as calling this function.
In addition, this function in MS-DOS Borland C++ library supports
just one PCI-9113A card and provides only one ISR (interrupt
service routine) for processing the interrupt events. If multi-9113A
cards and multi-isr is necessary, users can modify this library for
your own purpose.
@ Syntax
C/C++ Software Library • 63
C/C++ (DOS)
U16 _9113_AD_INT_Start (U16 cardNo, U16 auto_scan, U16 ad_ch_no,
U16 ad_gain, U16 count, U32 *ad_buffer, U16 c1, U16 c2)
C/C++ (Windows 95)
U16 W_9113_AD_INT_Start (U16 cardNo, U16 auto_scan, U16
ad_ch_no, U16 ad_gain, U16 count, U32 *ad_buffer, U16 c1, U16 c2)
Visual Basic (Windows 95)
W_9113_AD_INT_Start (ByVal cardNo As Integer, ByVal auto_scan As
Integer, ByVal ad_ch_no As Integer, ByVal ad_gain As Integer, ByVal
count As Integer, ad_buffer As Long, ByVal c1 As Integer, ByVal c2 As
Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
auto_scan:0: autoscan is disabled.
1: autoscan is enabled.
ad_ch_no: A/D channel number.
If the auto_scan is set as enabled, the selection sequence of A/D
channel is: 0, 1, 2, 3, ..., [ad_ch_no], 0, 1, 2, 3, [ad_ch_no], ...
If the auto_scan is set as disabled, only the data input from
[ad_ch_no] is converted.
ad_gain: A/D analog input range, the possible values are:
AD_B_10_V, AD_B_1_V, AD_B_0_1_V,
AD_B_5_V, AD_B_0_5_V, AD_B_0_05_V, AD_U_10_V, AD_U_1_V,
AD_U_0_1_V
count: The number of A/D conversion
ad_buffer: The start address of the memory buffer to store the A/D
data. The buffer size must large than the number of A/D
conversion. The unsigned integer data format in ad_buffer is as
follows:
Every 32-bit unsigned integer data:
bit 0…11: A/D converted data
bit 16, 17, …, 20: converted channel no.
Please refer to section 5.1.5 for the relationship between the
voltage and the value.
c1: the frequency devider of Timer#1
c2: the frequency devider of Timer#2
@ Return Code
64 • C/C++ Software Library
ERR_InvalidADChannel
ERR_AD_InvalidGain
ERR_InvalidTimerValue
ERR_NoError
6.34 _9113_AD_FFHF_INT_Start
@ Description
This function is used to initial and start up the interrupt transfer by
using AD FIFO Half -Full Interrupt Transfer Mode. This function could
perform A/D conversion N times with interrupt data transfer by using
pacer trigger. It takes place in the background and will not stop until
the N-th conversion has been completed or your program execute
_9113_AD_INT_Stop() function to stop the process. After executing
this function, it is necessary to check the status of the operation by
using the function _9113_AD_FFHF_INT_Status(). The function can
perform on single A/D channel (autoscan is disabled) or multiple
A/D channels (autoscan is enabled) with fixed analog input range.
Note: The interrupt mode provided in this function is internal timer
source, therefore you must specify c1 & c2 as calling this function.
In addition, this function in MS-DOS Borland C++ library supports
just one PCI-9113A card and provides only one ISR (interrupt
service routine) for processing the interrupt events. If multi-9113A
cards and multi-isr is necessary, users can modify this library for
your own purpose.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_FFHF_INT_Start (U16 cardNo, U16 auto_scan, U16
ad_ch_no, U16 ad_gain, U16 blockNo, U32 *ad_buffer, U16 c1, U16 c2)
C/C++ (Windows 95)
U16 W_9113_AD_FFHF_INT_Start (U16 cardNo, U16 auto_scan, U16
ad_ch_no, U16 ad_gain, U16 blockNo, U32 *ad_buffer, U16 c1, U16 c2)
Visual Basic (Windows 95)
W_9113_AD_FFHF_INT_Start (ByVal cardNo As Integer, ByVal
auto_scan As Integer, ByVal ad_ch_no As Integer, ByVal ad_gain As
C/C++ Software Library • 65
Integer, ByVal blockNo As Integer, ad_buffer As Long, ByVal c1 As Integer,
ByVal c2 As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
auto_scan: 0: autoscan is disabled.
1: autoscan is enabled.
ad_ch_no: A/D channel number.
If the auto_scan is set as enable, the selection sequence of A/D
channel is: 0, 1, 2, 3, ..., [ad_ch_no], 0, 1, 2, 3, [ad_ch_no], ...
If the auto_scan is set as disable, only the data input from [ad_ch_no]
is converted.
ad_gain: A/D analog input range, the possible values are:
AD_B_10_V, AD_B_1_V, AD_B_0_1_V,
AD_B_5_V, AD_B_0_5_V, AD_B_0_05_V,
AD_U_10_V, AD_U_1_V, AD_U_0_1_V
blockNo: The number of blocks for performing A/D conversion,
one block of A/D conversion is 512 words.
ad_buffer: The start address of the memory buffer to store the AD
data. The buffer size must large than the number of AD
conversion. The unsigned integer data format in ad_buffer is as
follows:
Every 32-bit unsigned integer data:
bit 0…11: A/D converted data
bit 16, 17, …, 20: converted channel no.
Please refer to section 5.1.5 for the relationship between the
voltage and the value.
c1: the frequency devider of Timer#1
c2: the frequency devider of Timer#2
@ Return Code
ERR_InvalidADChannel
ERR_AD_InvalidGain
ERR_InvalidTimerValue
ERR_NoError
6.35 _9113_AD_INT_Status
@ Description
66 • C/C++ Software Library
This function is used to check the status of interrupt operation. The
_9113_AD_INT_Start() is executed on background, therefore you can
issue this function to check the status of interrupt operation.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_INT_Status (U16 cardNo, U16 *status, U16 *count)
C/C++ (Windows 95)
U16 W_9113_AD_INT_Status (U16 cardNo, U16 *status, U16 *count)
Visual Basic (Windows 95)
W_9113_AD_INT_Status (ByVal cardNo As Integer, status As Integer,
count As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
status: The status of the INT data transfer.
count: The A/D conversion count number performed currently.
@ Return Code
ERR_NoError
6.36 _9113_AD_FFHF_INT_Status
@ Description
This function is used to check the status of interrupt operation by
using AD FIFO Half Full Interrupt Transfer Mode. The
_9113_AD_FFHF_INT_Start() is executed on background, therefore
you can issue this function to check the status of interrupt operation.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_FFHF_INT_Status (U16 cardNo, U16 *status, U16
*blockNo)
C/C++ (Windows 95)
U16 W_9113_AD_FFHF_INT_Status (U16 cardNo, U16 *status, U16
*blockNo)
Visual Basic (Windows 95)
W_9113_AD_FFHF_INT_Status (ByVal cardNo As Integer, status As
Integer, blockNo As Integer) As Integer
@ Argument
C/C++ Software Library • 67
cardNo: The card number of PCI -9113A card initialized.
status: The status of the INT data transfer.
blockno: The A/D conversion block number performed currently.
@ Return Code
ERR_NoError
6.37 _9113_AD_FFHF_INT_Restart
@ Description
After calling _9113_AD_FFHF_INT_Start(), the A/D conversion and
transfer won’t stop until the N blocks of the A/D data is acquired,
calling this function can restart the FIFO half full interrupt transfer
without re-initial all the relative registers. However, if the interrupt
operation was stopped by calling _9113_AD_FFHF_INT_Stop(), the
program should use _9113_AD_FFHF_INT_Start() to restart the
interrupt transfer function.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_FFHF_INT_Restart (U16 cardNo)
C/C++ (Windows 95)
U16 W_9113_AD_FFHF_INT_Restart (U16 cardNo)
Visual Basic (Windows 95)
W_9113_AD_FFHF_INT_Restart (ByVal cardNo As Integer) As Integer
@ Argument
cardNo: The card number of PCI -9113A card initialized.
@ Return Code
ERR_NoError
6.38 _9113_AD_INT_Stop
@ Description
This function is used to stop the interrupt data transfer function. After
executing this function, the internal A/D trigger is disabled and the A/D
68 • C/C++ Software Library
timer is stopped. This function returns the number of data has been
transferred, no matter whether the A/D interrupt data transfer is
stopped by this function.
@ Syntax
C/C++ (DOS)
U16 _9113_AD_INT_Stop (U16 cardNo, U16 *count)
C/C++ (Windows 95)
U16 W_9113_AD_I NT_Stop (U16 cardNo, U16 *count)
Visual Basic (Windows 95)
W_9113_AD_INT_Stop (ByVal cardNo As Integer, count As Integer) As
Integer
@ Argument
CardNo: The card number of PCI -9113A card initialized.
count: The number of A/D data which has been transferred.
@ Return Code
ERR_AD_INTNotSet
ERR_NoError
Calibration and Utilities • 69
7
Calibration & Utilities
In data acquisition process, how to calibrate your measurement devices
to maintain its accuracy is very important. Users can calibrate the analog
input channels under the users' operating environment for optimizing the
accuracy. This chapter will guide you to calibrate your PCI-9113A to an
accuracy condition.
7.1 Calibration
Before calibrating your PCI-9113A card, you should prepare some
equipments for the calibration:
•
Calibration program: Once the program is executed, it will guide you
to do the calibration. This program 9113UTIL.EXE is located in the
directory C: \ADLINK\9113\DOS\UTIL (Default).
•
A 5 1/2 digit multimeter (6 1/2 is recommended)
•
A voltage calibrator or a very stable and noise free DC voltage
generator.
70 • Calibration and Utilities
7.1.1 VR Assignment
There are four variable resistors (VR) on the PCI -9113A board to allow
you making accurate adjustment on A/D channels. The function of each
VR is specified as Table 7.1.
VR1 A/D uni-polar offset adjustment
VR2 A/D full scale adjustment
VR3 A/D bi-polar offset adjustment
VR4 PGA offset adjustment
Table 7.1 Function of VRs
7.1.2 A/D Adjustment
7.1.2.1 PGA offset calibration
1. Set JP5 as single-ended input
2. Short the A/D channel 0 (pin 1 of CN1) to ground (GND: pin 9 of CN1).
3. Use multi-meter to measure the voltage between TP1 and TP2.
4. Adjust VR4 until the multi-meter value approach to zero.
7.1.2.2 Uni-polar input
1. Set JP5 as single-ended input
2. Set JP2 as uni-polar A/D input.
3. Set JP3 to 10V full range.
4. Set JP4 to direct binary coding.
5. Short the A/D channel 0 (pin 1 of CN1) to ground (GND: pin 9 of CN1).
6. Set the analog gain = 1 and channel number #0 by software.
7. Adjust VR1 to obtain reading between 0~1.
8. Applied a +10V reference input signal to A/D channel 0, and trim the
VR2 to obtain reading between 4094~4095.
7.1.2.3 Bi-polar input
1. Set JP5 as single-ended input
2. Set JP2 as bi-polar A/D input.
3. Set JP3 to 20V full range.
4. Set JP4 to direct binary coding.
Calibration and Utilities • 71
5. Set the analog gain = 1 and channel number #0 by software.
6. Short the A/D channel 0 (pin 1 of CN1) to ground (GND).
7. Adjust VR3 to obtain reading between 2047~2048.
8. Applied a +10V reference input signal to A/D channel 0 (pin 1 of CN1),
and trim the VR2 to obtain reading between 4094~4095.
7.1.3 Software A/D Offset Calibration
For more accuracy calibrate the input offset signal, using software to
calibrate the offset of the analog input signal is a good approach. Another
benefit is this method can calibrate offset online and thus eliminate any
temperature drift. For example, user can short the resistor RB1 to
ground. Measuring the digital value of channel #0 can obtain the offset
voltage of the AD channels. If the digital offset value is Voff, user can
modify any AD data by subtracting Voff from the AD data to obtain the
offset calibrated value. Note that the Voff may be different for each gain
level,. Users should calibrate the offset value for every gain value.
7.2 Utilities
This software CD provides two utility programs. They are 9113Autil.exe
which provides three functions, System Configuration, Calibration, and
Functional Testing, and I_eeprom which is used to enable or disable
interrupt of PCI -9113A board. The utility programs are described in the
following sections.
7.2.1 9113UTIL
There are three functions provided by 9113UTIL. They are System
Configuration, Calibration, and Functional Testing. This utility software is
designed as menu-driven based windowing style. Not only the text
messages are shown for operating guidance, but also has the graphic to
indicate you how to set right hardware configuration.
72 • Calibration and Utilities
7.2.1.1 Running 9113UTIL.exe
After finishing the DOS installation, you can execute the utility by typing as
follows:
C> cd \ADLINK\DOS\9113\Util
C> 9113AUTIL
The following diagram will be displayed on you screen. The message at
the bottom of each window guides you how to select item, go to the next
step and change the default settings.
****** PCI -9113A Utility Rev. 1.0 ******
Copyright © 2000-2004, ADLINK Technology Inc. All rights reserved.
<F1>: Configuration.
<F2>: Calibration.
<F3>: Function testing.
<Esc>: Quit.
>>> Select function key F1 ~ F3, or press <Esc> to quit. <<<
7.2.1.2 System Configuration
This function guides you to configure the PCI-9113A card, and set the
right hardware configuration. The configuration window shows the
setting items that you have to set before using the PCI-9113A card.
The following diagram will be displayed on the screen as you choose the
Configuration function from main menu.
Calibration and Utilities • 73
****** Calibration of PCI9113A ******
<1> Card Type PCI9113A
<2> AD Polarity setting Bipolar
<3> AD Input Range Gain=1 Bipolar(-10V~10V)
>>> <Up/Down>: Select Item, <PgUp/PgDn>: Change Setting <<<
7.2.1.3 Calibration
This function guides you to calibrate the PCI-9113A. The calibration
program serves as a useful test of the PCI-9113A's A/D functions and
can aid in troubleshooting if problems arise.
Note: For an environment with frequently large changes of temperature
and vibration, a 3 months re-calibration interval is recommended.
For laboratory conditions, 6 months to 1 year is acceptable
When you choose the calibration function from the main menu list, a
calibration items menu is displayed on the screen. After you select one of
the calibration items from the calibration items menu, a calibration
window shows. The upper window shows the detailed procedures
which have to be followed when you proceed the calibration. The
instructions will guide you to calibrate each item step by step. The bottom
window shows the layout of PCI -9113A. In addition, the proper Variable
Resister (VR) will blink to indicate the related VR which needs to be
adjusted for the current calibration step.
74 • Calibration and Utilities
****** PCI -9113A Calibration ******
<1> A/D Bipolar (Gain = 1, -10V ~ 10V) adjusting
<2> A/D Unipolar (Gain = 1, 0V ~ 10V) adjusting
<Esc> Quit
Select 1 to 2 or <Esc> to quit calibration.
7.2.1.4 Functional Testing
This function is used to test the functions of PCI-9113A. It includes A/D
polling testing, A/D Interrupt Testing, and A/D FIFO Half-Full Interrupt
testing.
When you choose one of the testing functions from the functions menu,
a diagram is displayed on the screen. The figures below are the function
testing menu window and A/D with polling Testing window.
****** PCI -9113A Function Testing ******
<1>: A/D with Polling Test
<2>: A/D with Interrupt Test
<3>: A/D with FIFO Half -Full Interrupt
<Esc>: Quit
Select 1 to 3 or <Esc> to quit function testing
Calibration and Utilities • 75
7.2.2 I_EEPROM
This file is used to enable or disable the interrupt of PCI-9113A board.
This software is a text-driven program. Because the default interrupt on
PCI-9113A board is “on”, users who don’t want to use interrupt function
can use this utility to turn off the interrupt of their PCI -9113A board.
7.2.2.1 Running I_eeprom.exe
After finishing the DOS installation, you can execute the utility by typing as
follows:
C> cd \ADLINK\DOS\9113\UTIL
C> I_eeprom
At first, this program prompts you to input the card type— 9113. After
specifying the card type, this program shows the instructions to guide
you to enable or disable the interrupt of your PCI -9113A board.
