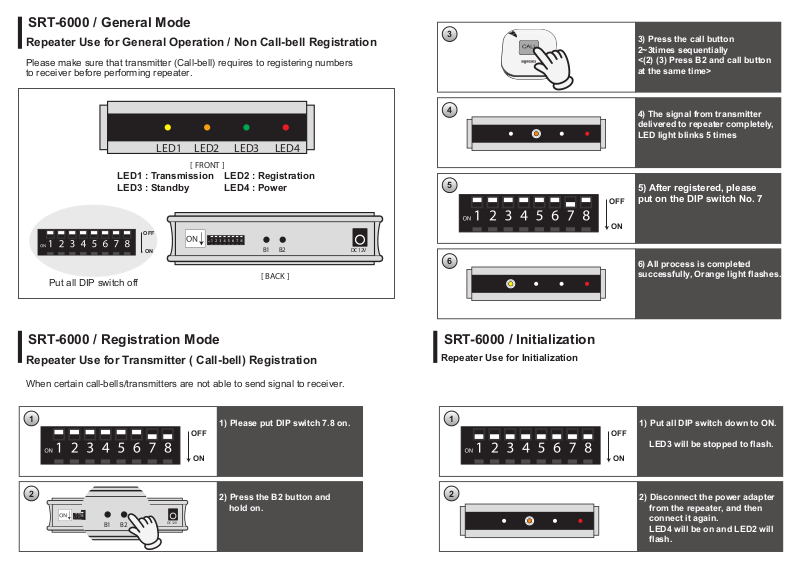

NTTWORKS SRT 6000 User Manual

SRT-6000 / General Mode

B1

B2

DC12V

Repeater Use for General Operation / Non Call-bell Registration

Please make sure that transmitter (Call-bell) requires to registering numbers
to receiver before performing repeater.

3

3) Press the call button
2~3times sequentially
<(2) (3) Press B2 and call button
at the same time>

LED1 LED2 LED3

LED4

[ FRONT ]

LED1 : Transmission LED2 : Registration
LED3 : Standby LED4 : Power

OFF

B1

ON

Put all DIP switch off

B2

[ BACK ]

SRT-6000 / Registration Mode

Repeater Use for Transmitter ( Call-bell) Registration

When certain call-bells/transmitters are not able to send signal to receiver.

DC12V

4

5

6

SRT-6000 / Initialization

Repeater Use for Initialization

4) The signal from transmitter
delivered to repeater completely,
LED light blinks 5 times

Call-bell registered.

5) After registered, please
put on the DIP switch No. 7

OFF

ON

6) All process is completed
successfully, Orange light flashes.

1

1) Please put DIP switch 7.8 on.

OFF

1

1) Put all DIP switch down to ON.

OFF

LED3 will be stopped to flash.

ON

2

2) Press the B2 button and

2

hold on.

B1

B2

DC12V

ON

2) Disconnect the power adapter
from the repeater, and then
connect it again.
LED4 will be on and LED2 will
flash.

3

B1

B2

DC12V

3) Press the B2 and B1 each once.

FCC Compliance Information

B1

B2

4

DC12V

order.

4) LED4 will be on and LED2 will
flash.

All LED will be on and off in

This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.

FCC Compliance Information :

5

OFF

5) Disconnect the power adapter
from the repeater and put all
DIP switch up to OFF.

ON

Call-bell registered.

This device complies with Part 15 of FCC Rules. Operation is subject to the following
twoconditions:
(1) the device may not cause interference, and
(2) the device must accept anyinterference, including interference that may cause undesired
operation of this device.

6

- Stand by mode-

6) Connect the power adapter
again.

It will turn to stand by mode.

FCC Rule Part 15.21:

The user manual for an intentional or unintentional radiator shall caution the user that changes
or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
