N-Tron 405FX-SC, 405FXE-ST-YY, 405FXE-SC-YY, 405FX-ST User Manual

1
400 Series
Installation
Guide
(Revised 2010-11-15)
2
Industrial Ethernet Switch Installation Guide
405TX 405FX-SC 405FX-ST 405FXE-SC-YY 405FXE-ST-YY
Where: YY = -15, -40, or -80
(Revised 2010-11-15)
3
Copyright, © N-TRON Corp., 2008 820 S. University Blvd., Suite 4E Mobile, AL 36609 USA
All rights reserved. Reproduction, adaptation, or translation without prior written permission from N-TRON Corp. is prohibited, except as allowed under copyright laws.
Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks of their respective owners.
The information contained in this document is subject to change without notice. N-TRON Corp. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be liable for any incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits arising out of errors or omissions in this manual or the information contained herein.
Warning
Do not perform any services on the unit unless qualified to do so. Do not substitute unauthorized parts or make unauthorized modifications to the unit.
Do not operate the unit with the top cover removed, as this could create a shock or fire hazard.
Do not block the air vents on the sides or the top of the unit.
Do not operate the equipment in the presence of flammable gasses or fumes. Operating electrical equipment in such an environment constitutes a definite safety hazard.
(Revised 2010-11-15)
4
Safety Warnings
ELECTRICAL SAFETY
WARNING: Do not disconnect while circuit is live, unless area is known to be non-hazardous.
WARNING: Disconnect the power cable before removing the enclosure top.
WARNING: Do not operate the unit with the top cover removed.
WARNING: Properly ground the unit before connecting anything else to the unit. Units not properly
grounded may result in a safety risk and could be hazardous and may void the warranty. See the grounding technique section of this user manual for proper ways to ground the unit.
WARNING: Do not work on equipment or cables during periods of lightning activity.
WARNING: Do not perform any services on the unit unless qualified to do so.
WARNING: Do not block the air vents.
WARNING: Observe proper DC Voltage polarity when installing power input cables. Reversing
voltage polarity can cause permanent damage to the unit and void the warranty.
Power must be supplied by an isolating source, and a 0.5 A max rated UL recognized fuse must be installed immediately before the unit
LASER SAFETY (405FXE Only)
CAUTION: CLASS 1 LASER PRODUCT. Do not stare into the laser!)
(Revised 2010-11-15)
5
405FX, 405FXE, & 405TX Industrial Ethernet Switches
The 405TX and 405FX Unmanaged Industrial Ethernet Switches support high speed layer 2 switching between ports.
The 405TX is an affordable 5 port unmanaged switch that is capable of auto negotiating 10/100 Mb and half/full duplex communications. The N-TRON 405TX is housed in a ruggedized steel enclosure, and provides 5 Category 5 compliant 10/100-BaseT connections for high performance network design, and hub/repeater upgrades.
The 405FX is a 5 port unmanaged switch that has 4 ports identical to the 405TX, plus an additional multimode fiber optic up-link port, capable of 2 Kilometers of 100 Mb communications without the use of repeaters.
The 405FXE is a 5 port unmanaged switch that is similar to the 405FX, but with extended range. The N­TRON 405FXE utilizes a singlemode fiber transceiver that is capable of 15 Kilometers of 100 Mb communications.

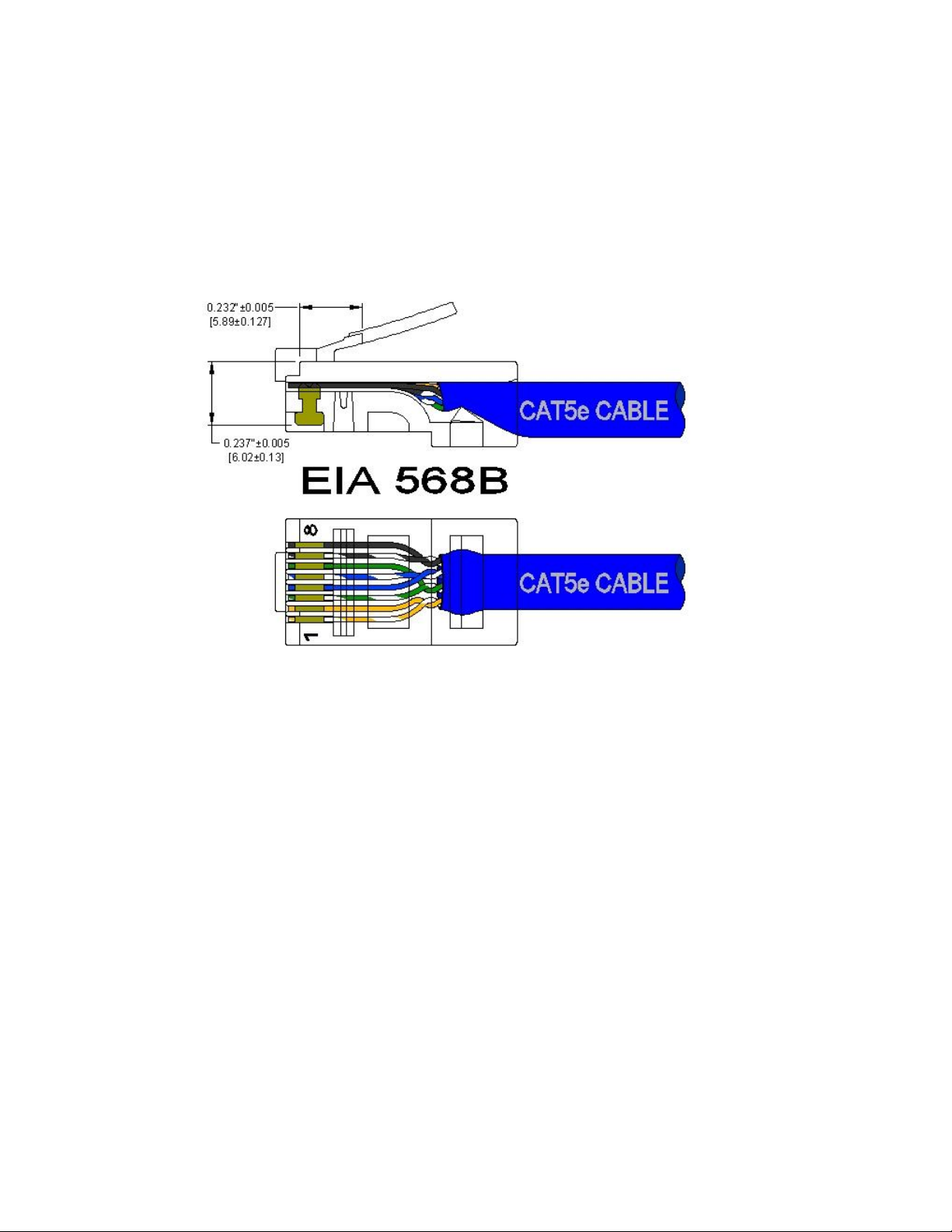

Both the 405FX and 405FXE utilize the IEEE compliant SC or ST duplex connector for fiber optic communications. The 4 10/100Base-TX ports utilize the RJ45 shielded connector.
All N-TRON switches come housed in a steel ruggedized Din-Rail enclosure, designed to withstand the most demanding industrial applications, and have been fully tested and certified at industrial environmental extremes. All 405 Units operate on 10-30VDC @ 0.2A.
Key Features
Full IEEE 802.3 & 100BASE-FX Compliance Extended Environmental Specifications Support for Full/Half Duplex Operation LED Link/Activity Status Indication Auto Sensing Speed and Flow Control Up to 1.0 Gb/s Maximum Throughput Industry Standard DIN-Rail Enclosure
(Revised 2010-11-15)
