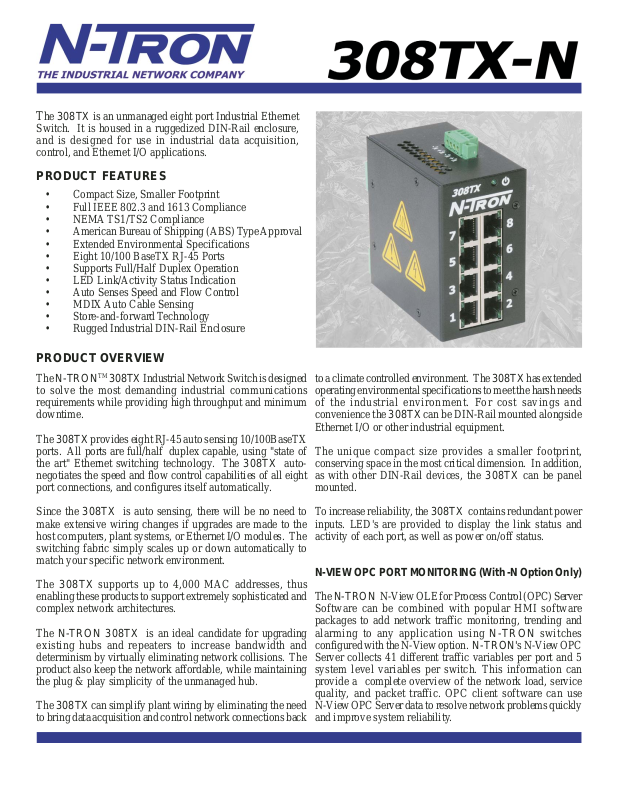

N-Tron 308TX-N User Manual

The 308TX is an unmanaged eight port Industrial Ethernet

Switch. It is housed in a ruggedized DIN-Rail enclosure,
and is designed for use in industrial data acquisition,
control, and Ethernet I/O applications.

PRODUCT FEATURES

• Compact Size, Smaller Footprint

• Full IEEE 802.3 and 1613 Compliance

• NEMA TS1/TS2 Compliance

• American Bureau of Shipping (ABS) T ype Approval

• Extended Environmental Specifications

• Eight 10/100 BaseTX RJ-45 Ports

• Supports Full/Half Duplex Operation

• LED Link/Activity Status Indication

• Auto Senses Speed and Flow Control

• MDIX Auto Cable Sensing

• Store-and-forward Technology

• Rugged Industrial DIN-Rail Enclosure

PRODUCT OVERVIEW

The N-TRON
to solve the most demanding industrial communications
requirements while providing high throughput and minimum
downtime.

The 308TX provides eight RJ-45 auto sensing 10/100BaseTX
ports. All ports are full/half duplex capable, using "state of
the art" Ethernet switching technology. The 308TX auto­negotiates the speed and flow control capabilities of all eight
port connections, and configures itself automatically.

TM

308TX Industrial Network Switch is designed

to a climate controlled environment. The 308TX has extended
operating environmental specifications to meet the harsh needs
of the industrial environment. For cost savings and
convenience the 308TX can be DIN-Rail mounted alongside
Ethernet I/O or other industrial equipment.

The unique compact size provides a smaller footprint,
conserving space in the most critical dimension. In addition,
as with other DIN-Rail devices, the 308TX can be panel
mounted.

Since the 308TX is auto sensing, there will be no need to
make extensive wiring changes if upgrades are made to the
host computers, plant systems, or Ethernet I/O modules. The
switching fabric simply scales up or down automatically to
match your specific network environment.

The 308TX supports up to 4,000 MAC addresses, thus
enabling these products to support extremely sophisticated and
complex network architectures.

The N-TRON 308TX is an ideal candidate for upgrading
existing hubs and repeaters to increase bandwidth and
determinism by virtually eliminating network collisions. The
product also keep the network affordable, while maintaining
the plug & play simplicity of the unmanaged hub.

The 308TX can simplify plant wiring by eliminating the need
to bring data acquisition and control network connections back

T o increase reliability , the 308TX contains redundant power
inputs. LED's are provided to display the link status and
activity of each port, as well as power on/off status.

N-VIEW OPC PORT MONITORING (With -N Option Only)

The N-TRON N-View OLE for Process Control (OPC) Server
Software can be combined with popular HMI software
packages to add network traffic monitoring, trending and
alarming to any application using N-TRON switches
configured with the N-V iew option. N-TRON's N-View OPC
Server collects 41 different traffic variables per port and 5
system level variables per switch. This information can
provide a complete overview of the network load, service
quality, and packet traffic. OPC client software can use
N-View OPC Server data to resolve network problems quickly
and improve system reliability.

BENEFITS SPECIFICATIONS

Industrial Network Switch

• Compact Size, Smaller Footprint

• High Reliability/Availability

• Extended Environmental Specifications

• Ruggedized DIN-Rail Enclosure

• High Performance

• High MTBF >2M Hours (measured)

Ease of Use

• Plug & Play Operation

• Eight Auto Sensing 10/100BaseTX
RJ-45 Ports

• Auto Sensing Duplex, Speed, and
Cable Type

• Unmanaged Operation

• Compact DIN-Rail Package

Increased Performance

• Full Wire Speed Capable

• Full Duplex Capable

• Eliminates Network Collisions

• Increases Network Determinism

• N-View Switch Viewing Option

Physical

Height: 3.46" (8.80 cm)
Width: 2.01" (5.10 cm)
Depth: 3.38" (8.59 cm)
Weight: 0.75 lbs (0.34 kg)

Electrical

Input Voltage: 10-30 VDC
Input Current: 250 mA@24V
Inrush:

9.0Amps/0.5ms@24V

Environmental

Operating Temperature: -20oC to 70oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 10% to 95%

(Non Condensing)

Operating Altitude: 0 to 10,000 ft.

Shock and Vibration (bulkhead mounting)

Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

Connectors

Contact Information

N-TRON Corp.
820 S. University Blvd.,
Suite 4E
Mobile, AL 36609 USA
TEL: [phone]

FAX: [phone]
Website: www.n-tron.com

Email: [e-mail]

N-TRON Europe GmbH
Alte Steinhauserstr 19
6330 Cham / Zg
Switzerland
TEL: [phone]

FAX: [phone]

Ordering Information

308TX Eight 10/100BaseTX Ports
308TX-N with N-View Firmware Option

® 2008 N-TRON, Corp. N-TRON and the N-TRON logo are trademarks of N-TRON, Corp. Product names mentioned herein are for identification purposes only

and may be trademarks and/or registered trademarks of their respective company. Specifications subject to change without notice. Printed in USA.

10/100BaseTX: Eight (8) RJ-45 TX Ports

Recommended Wiring Clearance

Front: 4" (10.16 cm)
Top: 1" (2.54 cm)

Regulatory Approvals

FCC Part 15 Class A
UL Listed 1604 (US and Canada)
CLASS I, DIV 2, GROUPS A,B,C,D,T4A,
CE: EN61000-6-2,4, EN55011, EN61000-4-2,3,4,5,6,
GOST-R Certified, RoHS Compliant

REV 080617
