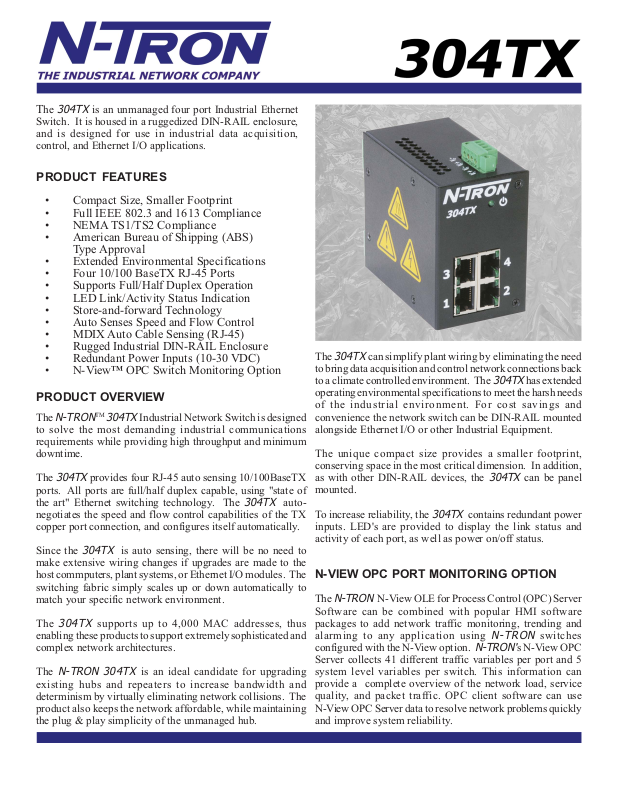

Page 1
The
304TX
Switch. It is housed in a ruggedized DIN-RAIL enclosure,
and is designed for use in industrial data acquisition,
control, and Ethernet I/O applications.
is an unmanaged four port Industrial Ethernet
PRODUCT FEATURES
• Compact Size, Smaller Footprint
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS)
Type Approval
• Extended Environmental Specifications
• Four 10/100 BaseTX RJ-45 Ports
• Supports Full/Half Duplex Operation
• LED Link/Activity Status Indication
• Store-and-forward Technology
• Auto Senses Speed and Flow Control
• MDIX Auto Cable Sensing (RJ-45)
• Rugged Industrial DIN-RAIL Enclosure
• Redundant Power Inputs (10-30 VDC)
• N-View™ OPC Switch Monitoring Option
PRODUCT OVERVIEW
N-TRON
The
to solve the most demanding industrial communications
requirements while providing high throughput and minimum
downtime.
The
304TX
ports. All ports are full/half duplex capable, using "state of
the art" Ethernet switching technology. The
negotiates the speed and flow control capabilities of the TX
copper port connection, and configures itself automatically.
Since the
make extensive wiring changes if upgrades are made to the
host commputers, plant systems, or Ethernet I/O modules. The
switching fabric simply scales up or down automatically to
match your specific network environment.
The
304TX
enabling these products to support extremely sophisticated and
complex network architectures.
The
N-TRON 304TX
existing hubs and repeaters to increase bandwidth and
determinism by virtually eliminating network collisions. The
product also keeps the network affordable, while maintaining
the plug & play simplicity of the unmanaged hub.
TM
304TX
provides four RJ-45 auto sensing 10/100BaseTX
304TX
supports up to 4,000 MAC addresses, thus
Industrial Network Switch is designed
304TX
is auto sensing, there will be no need to
is an ideal candidate for upgrading
auto-
The
304TX
to bring data acquisition and control network connections back
to a climate controlled environment. The
operating environmental specifications to meet the harsh needs
of the industrial environment. For cost savings and
convenience the network switch can be DIN-RAIL mounted
alongside Ethernet I/O or other Industrial Equipment.
The unique compact size provides a smaller footprint,
conserving space in the most critical dimension. In addition,
as with other DIN-RAIL devices, the
mounted.
To increase reliability, the
inputs. LED's are provided to display the link status and
activity of each port, as well as power on/off status.
can simplify plant wiring by eliminating the need
304TX
304TX
304TX
contains redundant power
has extended
can be panel
N-VIEW OPC PORT MONITORING OPTION
The
N-TRON
Software can be combined with popular HMI software
packages to add network traffic monitoring, trending and
alarming to any application using
configured with the N-View option.
Server collects 41 different traffic variables per port and 5
system level variables per switch. This information can
provide a complete overview of the network load, service
quality, and packet traffic. OPC client software can use
N-View OPC Server data to resolve network problems quickly
and improve system reliability.
N-View OLE for Process Control (OPC) Server
N-TRON
N-TRON
switches
's N-View OPC
Page 2
BENEFITS SPECIFICATIONS
Industrial Network Switch
• Compact Size, Smaller Footprint
• High Reliability/Availability
• Extended Environmental Specifications
• Ruggedized DIN-RAIL Enclosure
• High Performance
• High MTBF >2M Hours (measured)
Ease of Use
• Plug & Play Operation
• 4 Auto Sensing 10/100BaseTX RJ-45 Ports
• Auto Sensing Duplex, Speed, and
Cable Type
• Unmanaged Operation
• Compact DIN-RAIL Package
Increased Performance
• Full Wire Speed Capable
• Full Duplex Capable
• Eliminates Network Collisions
• Increases Network Determinism
• N-View Switch Viewing Option
Physical
Height: 3.1" (7.874 cm)
Width: 2.0" (5.08 cm)
Depth: 3.4" (8.636 cm)
Weight: 0.75 lbs (0.3 kg)
Electrical
Input Voltage: 10-30 VDC
Input Current: 250 mA@24V
Inrush: 8.0Amp/0.6ms@24V
Environmental
Operating Temperature: -20oC to 70oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Shock and Vibration (bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial
Network Media
10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
Contact Information
N-TRON
820 S. University Blvd., Suite 4E
Mobile, AL 36609
TEL: (251) 342-2164
FAX: (251) 342-6353
Website: www.n-tron.com
Email: [email protected]
Corp.
Ordering Information
304TX Four 10/100BaseTX Ports
304TX-N with N-View Firmware Option
® 2007 N-TRON, Corp. N-TRON and the N-TRON logo are trademarks of N-TRON, Corp. Product names mentioned herein are for identification purposes only
and may be trademarks and/or registered trademarks of their respective company. Specifications subject to change without notice. Printed in USA.
Connectors
10/100BaseTX: Four (4) RJ-45 TX Pors
Recommended Wiring Clearance
Front: 4" (10.16 cm)
Top: 1" (2.54 cm)
Regulatory Approvals
FCC Part 15 Class A
UL 1604 (US and Canada)
CLASS I, DIV 2, GROUPS A,B,C,D,T4A
CE: EN61000-6-2,4, EN55011, EN61000-4-2,3,4,5,6
REV 070205
