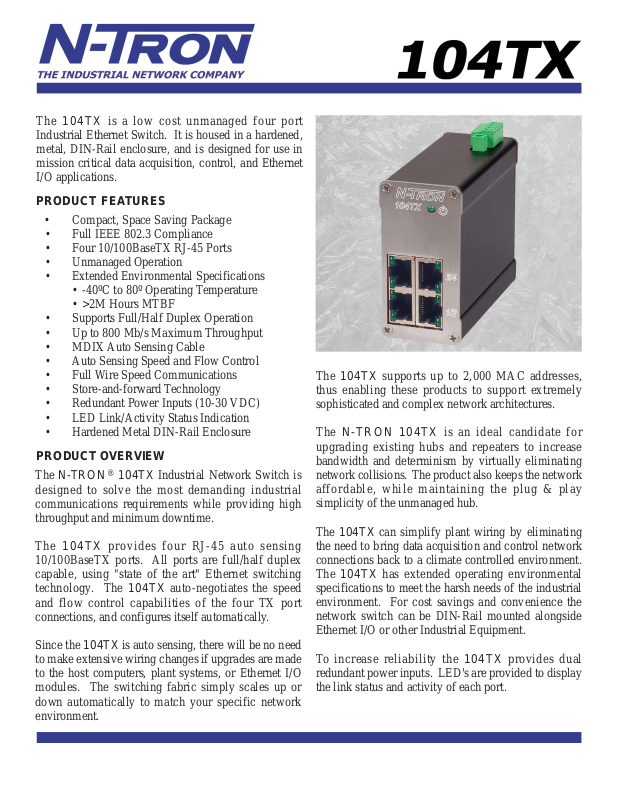

Page 1
The 104TX is a low cost unmanaged four port
Industrial Ethernet Switch. It is housed in a hardened,
metal, DIN-Rail enclosure, and is designed for use in
mission critical data acquisition, control, and Ethernet
I/O applications.
PRODUCT FEATURES
• Compact, Space Saving Package
• Full IEEE 802.3 Compliance
• Four 10/100BaseTX RJ-45 Ports
• Unmanaged Operation
• Extended Environmental Specifications
• -40ºC to 80º Operating Temperature
• >2M Hours MTBF
• Supports Full/Half Duplex Operation
• Up to 800 Mb/s Maximum Throughput
• MDIX Auto Sensing Cable
• Auto Sensing Speed and Flow Control
• Full Wire Speed Communications
• Store-and-forward Technology
• Redundant Power Inputs (10-30 VDC)
• LED Link/Activity Status Indication
• Hardened Metal DIN-Rail Enclosure
PRODUCT OVERVIEW
The N-TRON
®
104TX Industrial Network Switch is
designed to solve the most demanding industrial
communications requirements while providing high
throughput and minimum downtime.
The 104TX provides four RJ-45 auto sensing
10/100BaseTX ports. All ports are full/half duplex
capable, using "state of the art" Ethernet switching
technology. The 104TX auto-negotiates the speed
and flow control capabilities of the four TX port
connections, and configures itself automatically.
Since the 104TX is auto sensing, there will be no need
to make extensive wiring changes if upgrades are made
to the host computers, plant systems, or Ethernet I/O
modules. The switching fabric simply scales up or
down automatically to match your specific network
environment.
The 104TX supports up to 2,000 MAC addresses,
thus enabling these products to support extremely
sophisticated and complex network architectures.
The N-TRON 104TX is an ideal candidate for
upgrading existing hubs and repeaters to increase
bandwidth and determinism by virtually eliminating
network collisions. The product also keeps the network
affordable, while maintaining the plug & play
simplicity of the unmanaged hub.
The 104TX can simplify plant wiring by eliminating
the need to bring data acquisition and control network
connections back to a climate controlled environment.
The 104TX has extended operating environmental
specifications to meet the harsh needs of the industrial
environment. For cost savings and convenience the
network switch can be DIN-Rail mounted alongside
Ethernet I/O or other Industrial Equipment.
To increase reliability the 104TX provides dual
redundant power inputs. LED's are provided to display
the link status and activity of each port.
Page 2
BENEFITS SPECIFICATIONS
Industrial Network Switch
• Compact Size / Smaller Footprint
• Extended Environmental Specifications
• Hardened Metal DIN-Rail Enclosure
• High Performance
• High MTBF >2M Hours
• ESD Protection Diodes on RJ-45 Ports
• Surge Protection Diodes on Power Inputs
Ease of Use
• Plug & Play Operation
• Auto Sensing 10/100BaseTX
• Auto Negotiation Full/Half Duplex
• MDIX Auto Cable Sensing
• Unmanaged Operation
Increased Performance
• Full Wire Speed Capable
• Full Duplex Capable
• Eliminates Network Collisions
• Increases Network Determinism
Physical
Height: 2.88" (7.31cm)
Width: 1.50" (3.81 cm)
Depth: 3.55" (9.02 cm)
Including DIN-Rail Mount: 4.25" (10.8 cm)
Weight: 0.54 lbs. (0.25 kg)
DIN-Rail: 35mm
Electrical
Input Voltage: 10-30 VDC
Steady Input Current: 215mA@24V
Inrush: 7.8Amp/0.7ms@24V
Environmental
Operating Temperature: -40oC to 80oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Reliablity
MTBF: >2 Million Hours
Network Media
10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
Contact Information
N-TRON Corp.
820 S. University Blvd.,
Suite 4E
Mobile, AL 36609 USA
TEL: (251) 342-2164
FAX: (251) 342-6353
Website: www.n-tron.com
Email: [email protected]
N-TRON Europe GmbH
Alte Steinhauserstr 19
6330 Cham / Zg
Switzerland
TEL: +41 41 7406636
FAX: +41 41 7406637
Ordering Information
104TX Four 10/100BaseTX Ports
NTPS-24-1.3 DIN-Rail Power Supply
® 2008 N-TRON, Corp. N-TRON and the N-TRON logo are trademarks of N-TRON, Corp. Product names mentioned herein are for identification purposes only
and may be trademarks and/or registered trademarks of their respective company. Specifications subject to change without notice. Printed in USA.
10/100BaseTX: Four (4) RJ-45 TX
Copper Port
Recommended Wiring Clearance
Front: 2" (5.08 cm)
Top: 1" (2.54 cm)
Regulatory Approvals
FCC Title 47 Part 15 Class A,
CE: EN61000-6-2,4, EN55011, EN61000-4-2,3,4,5,6
UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000
Class I, Div . 2 Groups A,B,C,D,T4A, GOST-R Certified,
RoHS Compliant, Submitted for type approval from ABS
for Shipboard Applications
Designed to comply with:
IEEE 1613 for Electric Utility Substations,
and NEMA TS1/TS2 for Traffic Control Equipment
REV 080617
Connectors
