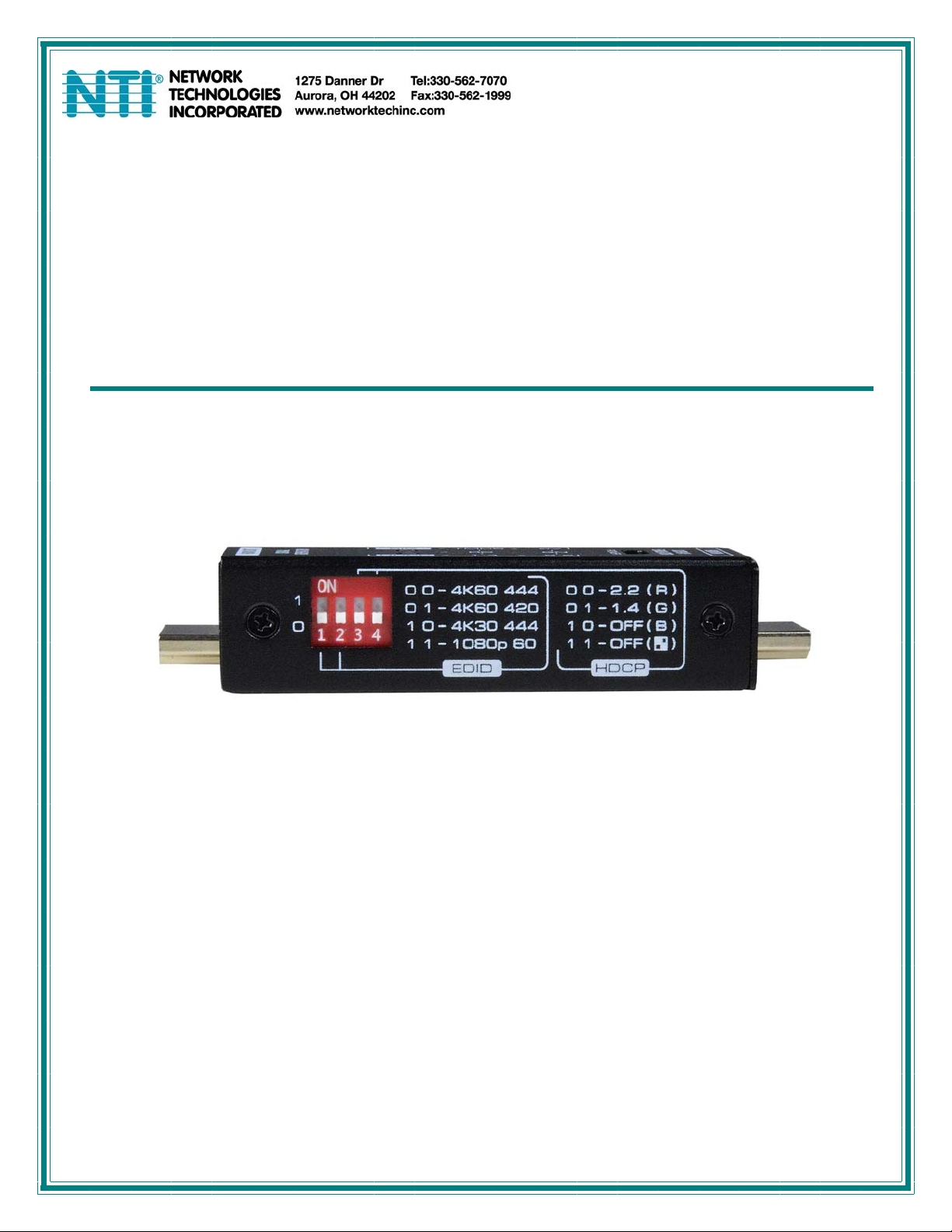

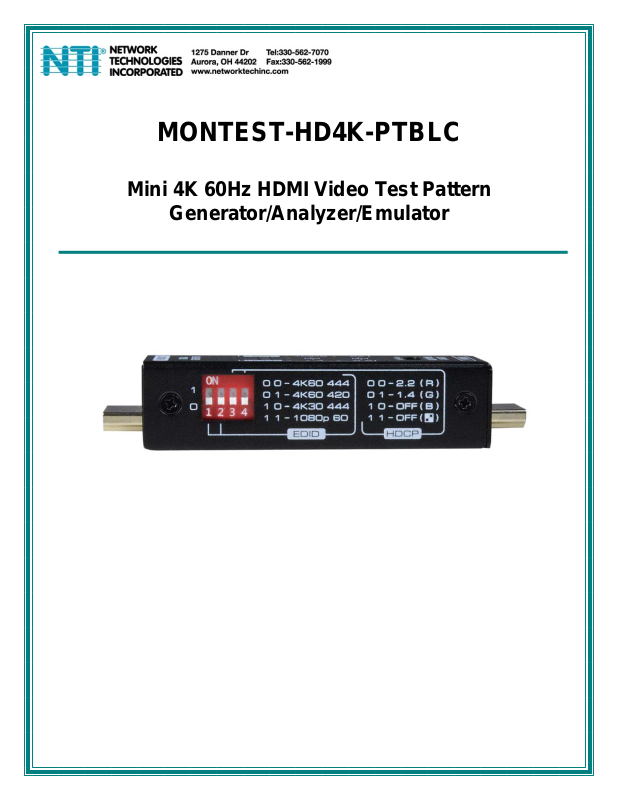

Page 1
MONTEST-HD4K-PTBLC
Mini 4K 60Hz HDMI Video Test Pattern
Generator/Analyzer/Emulator
Page 2
TRADEMARK
The NTI logo is a registered trademark of Network Technologies Inc in the U.S. and other countries. All other brand nam es
and trademarks or registered trademarks are the property of their respective owners.
COPYRIGHT
Copyright © 2023 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves
the right to make changes in the product design without reservation and without notification to its users.
Page 3
Introduction
The MONTEST-HD4K-PTBLC Mini 4K Ultra-HD Video Test Pattern Generator/Analyzer/Emulator generates video test
patterns for evaluating and testing HDMI displays and components up to 4Kx2K @60Hz (4:4:4). HDMI signal status
(TMDS/5V) and HDCP analysis are supported, along with EDID emulation.
Features
Two modes of operation – HDMI signal generator or display emulator (signal analyzer)
o Generates four test patterns and features four built-in resolutions.
Resolutions supported: 3840x2160 @60Hz 4:4:4; 3840x2160 @60Hz 4:2:0 ; 3840x2160 @30Hz
4:4:4; 1920x1080p @60Hz
o Emulation mode provides EDID to the HDMI source device from the emulator's internal memory.
Supports headless operation – no monitor attached to source.
Use to analyze the HDCP version and signal status (TMDS, 5V) of the video input.
Supports resolutions up to 4Kx2K (4096×2160 and 3840x2160) @60Hz 4:4:4.
HDCP v1.4 and v2.2 analysis.
4-pin DIP switch for setting video resolution and HDCP version.
LED indicators provide TMDS/5V signal and HDCP status information.
Portable, compact design.
Ideal for many applications, including: installer/integrator diagnostic test tool; HDMI source and sink testing; third-
party equipment setup; HDCP compliance verification; production testing; R&D design and testing; and remote
desktop access to a headless computer.
Materials Included:
•
1x MONTEST-HD4K-PTBLC Mini 4k Ultra-HD Test Pattern Generator
•
1x USB Power Cable
•
1x Brown Cloth Bag
•
1x URL slip with path to this manual
Materials NOT supplied but available:
HDMI-FF -- HDMI Gender Changer, Female-to-Female
HD4K-5-MF -- 4K 18Gbps HDMI Extension Cable
Cables can be purchased from Network Technologies Inc by calling (800) 742-8324 (800-RGB-TECH) in the US an d
Canada or (330) 562-7070 (worldwide).
Page 4

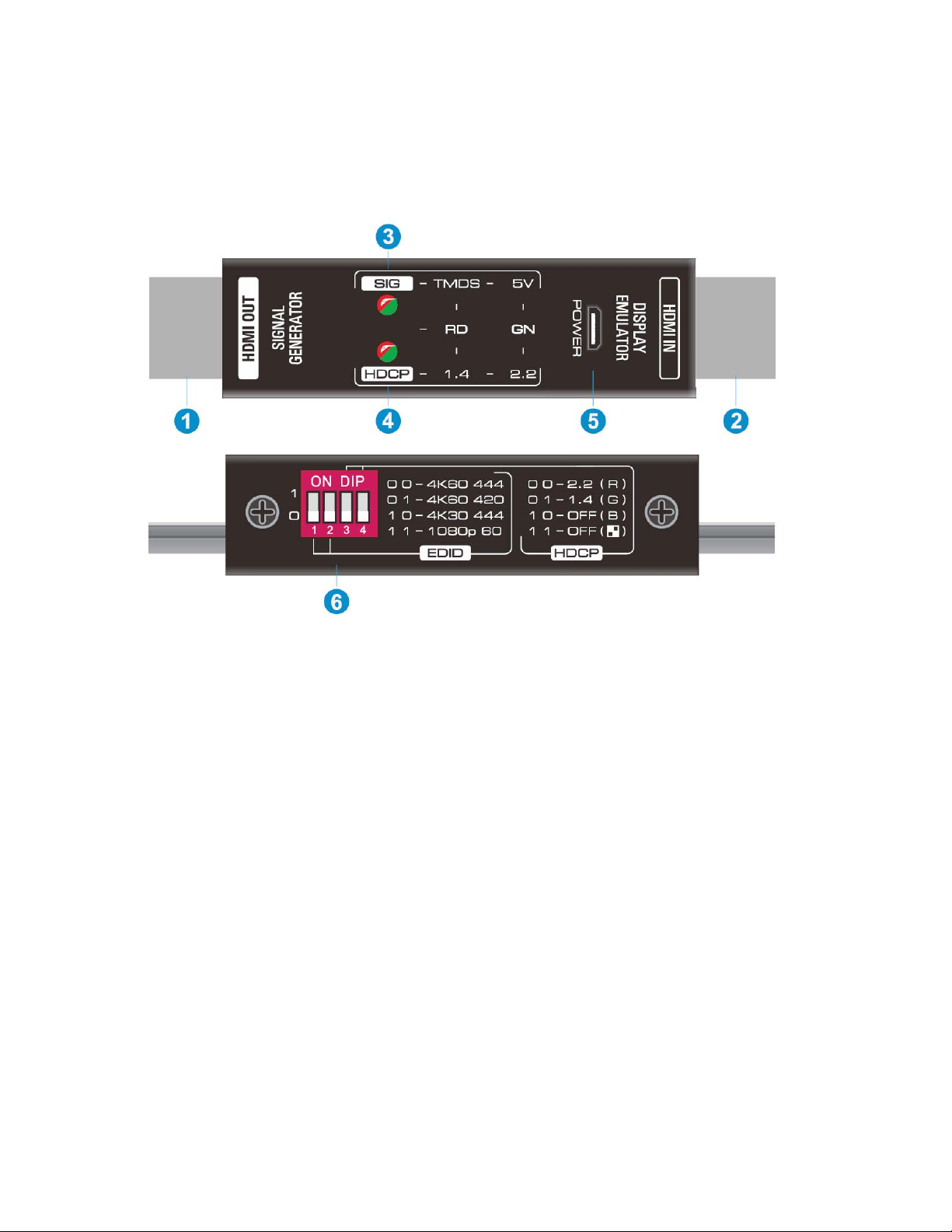

Features
1. HDMI OUT: Connects to HDMI display device. The MONTEST is used as a HDMI signal generator to output HDMI
signal.
2. HDMI IN: Connects to HDMI source device. The MONTEST is used as a display emulator to detect the HDCP content
and signal status (5V, TMDS) of HDMI source.
3. SIG LED:
When the MONTEST is used as a display emulator, the LED turns green when only 5V signal is detected, or turns red when
5V and TMDS signals are detected simultaneously, or OFF when there is no HDMI signal input.
4. HDCP LED:
pin DIP switch. The LED turns green when HDCP2.2 is selected, red when HDCP1.4 is selected, and OFF when there is
no HDCP.
When the MONTEST is used as a display emulator, the LED turns green when the HDCP content of the HDMI sources is
HDCP2.2 compliant, or red when it is HDCP1.4 compliant, or OFF when not HDCP compliant.
5. POWER: Micro USB port for power cord connection. T he MONTEST must be powered ON
generator. When the MONTEST is used as a display emulator, it
connection is not required. If the
6. DIP SWITCH: When the MONTEST is used as a HDMI signal generator, switches 1 & 2 are used
selection, and switches 3 & 4 are used for HDCP content selection.
When the MONTEST is used as an HDMI signal generator the LED turns red when there is HDMI signal output.
When the MONTEST is used as an HDMI signal generator, the HDCP content can be selected using the 4-
when it is used as a signal
can be powered by HDMI source, so the power cord
HDMI source does not have enough power, both the SIG LED and HDCP LED will blink.
for built-in EDID (video)
Page 5

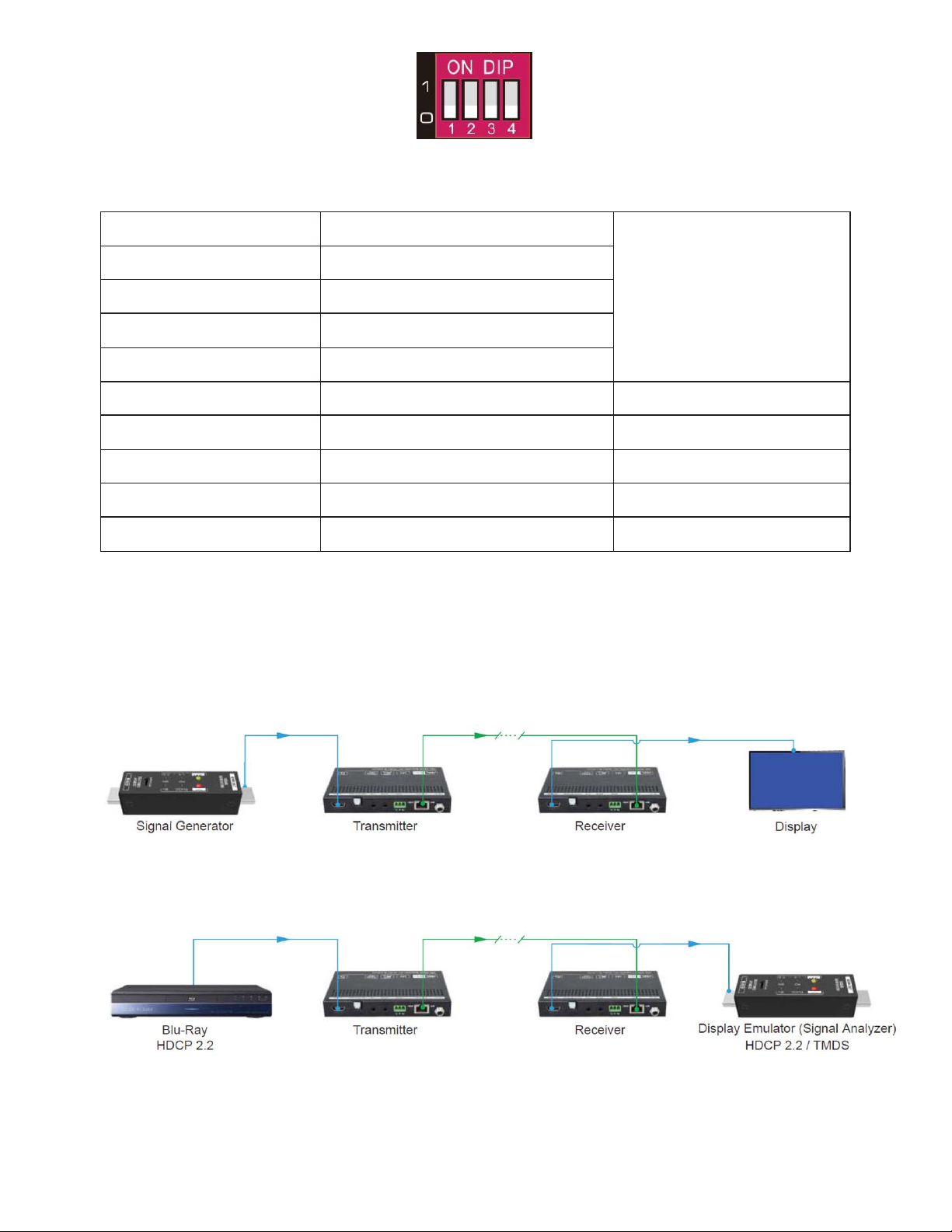

There are four DIP switches (1~4). The switch represents "0" when in the lower position, and it represents "1" while the
switch in the upper position.
Swwitch Status (1 & 2)
EDDID
00 4K@60Hz 4:4:4, 2CH PCM
01
4K@60Hz 4:2:0, 2CH PCM
10
4K@30Hz 4:4:4, 2CH PCM
11
1080p@60Hz/3D, 2CH PCM
Swwitch Status (3 & 4)
00 HDCP 2.2 Red Screen
01
10
HDCP OFF Blue Screen
11
HDCP OFF White/Black Checkered
Application Examples
HDDCP
HDCP 1.4
Test PPattern
Green Screen
Page 6
Specifications
Video/Audio
Male HDMI connectors for input and output.
HDMI 2.0 (up to 4K@60Hz 4:4:4) compliant.
HDCP 1.4 and 2.2 compliant.
Resolutions supported:
o
Signal generator mode: 3840x2160 @60Hz 4:4:4; 3840x2160 @60Hz 4:2:0; 3840x2160 @30Hz 4:4:4; 1920x1080p
@60Hz
o
Emulation mode: 4Kx2K resolutions up to 4096×2160 and 3840x2160 @60Hz 4:4:4, HDTV resolutions to 1080p
@60Hz, and up to 1920x1200 @60Hz (WUXGA).
Video bandwidth: 600MHz (18 Gbps)
Supports embedded digital audio.
Power
Signal generator mode: USB powered using micro USB port (5V/1A).
o
3.4-ft USB Type A to USB Micro-B male-to-male cable included.
Display emulation mode: Powered by HDMI source.
Environmental
Operating temperature: 23 to 131°F (-5 to 55°C).
Storage temperature: -13 to 158°F (-25 to 70°C).
Operating and storage relative humidity: 10 to 90% non-condensing RH.
Dimensions
WxDxH (in): 2.95x0.87x0.75 (75x22x19 mm)
Regulatory Approvals
CE, FCC, RoHS
Warranty
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com
for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
NTI MAN434 REV 5/30/23
