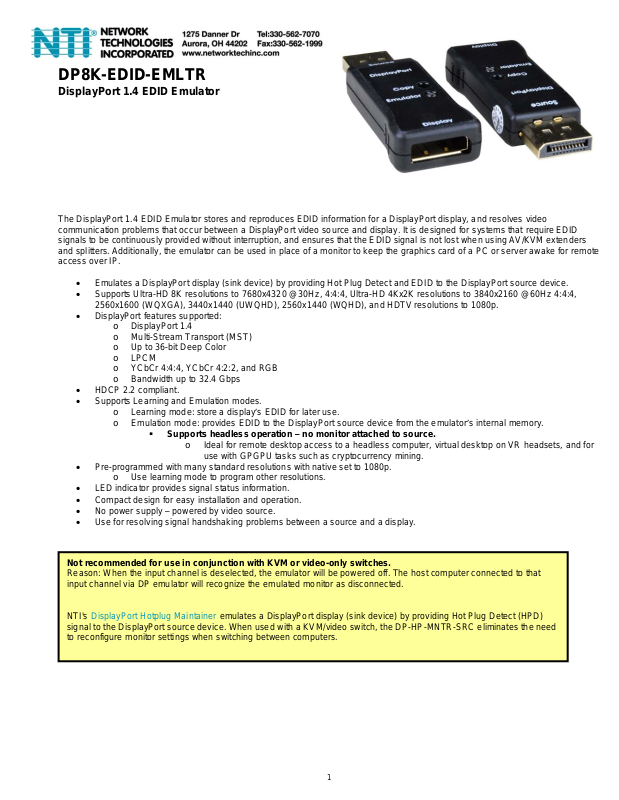

DP8K-EDID-EMLTR
DisplayPort 1.4 EDID Emulator
The DisplayPort 1.4 EDID Emulator stores and reproduces EDID information for a DisplayPort display, and resolves video
communication problems that occur between a DisplayPort video source and display. It is designed for systems that require EDID
signals to be continuously provided without interruption, and ensures that the EDID signal is not lost when using AV/KVM extenders
and splitters. Additionally, the emulator can be used in place of a monitor to keep the graphics card of a PC or server awake for remote
access over IP.
Emulates a DisplayPort display (sink device) by providing Hot Plug Detect and EDID to the DisplayPort source device.
Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz, 4:4:4, Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz 4:4:4,
2560x1600 (WQXGA), 3440x1440 (UWQHD), 2560x1440 (WQHD), and HDTV resolutions to 1080p.
DisplayPort features supported:
o DisplayPort 1.4
o Multi-Stream Transport (MST)
o Up to 36-bit Deep Color
o LPCM
o YCbCr 4:4:4, YCbCr 4:2:2, and RGB
o Bandwidth up to 32.4 Gbps
HDCP 2.2 compliant.
Supports Learning and Emulation modes.
o Learning mode: store a display’s EDID for later use.
o Emulation mode: provides EDID to the DisplayPort source device from the emulator’s internal memory.
Supports headless operation – no monitor attached to source.
o Ideal for remote desktop access to a headless computer, virtual desktop on VR headsets, and for
use with GPGPU tasks such as cryptocurrency mining.
Pre-programmed with many standard resolutions with native set to 1080p.
o Use learning mode to program other resolutions.
LED indicator provides signal status information.
Compact design for easy installation and operation.
No power supply – powered by video source.
Use for resolving signal handshaking problems between a source and a d isplay.
Not recommended for use in conjunction with KVM or video-only switches.
Reason: When the input channel is deselected, the emulator will be powered off. The host computer connected to that
input channel via DP emulator will recognize the emulated monitor as disconnected.
NTI's DisplayPort Hotplug Maintainer emul
signal to the DisplayP
to reconfigure monitor settings when switching between computers.
ort source device. When used with a KVM/video switch, the DP-HP-MNTR-SRC eliminates the need
ates a DisplayPort display (sink device) by providing Hot Plug Detect (HPD)
1
Page 2
Features
Learning Mode
1. Connect a DisplayPort cable between the emulator (at "Display") and the display devic e and power ON the display device.
2. Plug the Dis
source (if not already ON).
playPort male (
"Source") connector of the DP8K-EDID-EMLTR emulator into the video source. Power ON the video
2
Page 3
3. Press "Copy" button on the DP8K-EIDI-EMLTR. The Blue EDID LED will illuminate solid when the EDID has been learned.
Note: While teaching the emulator, the monitor may or may not display video. As long as the video shows up after step 3, the
teaching step is successful.
Note: If the emulator needs to be reset back to its default EDID resolution of 1920x1080p, with the DP8K-EDID-EMLTR plugged into a
source and with no monitor connected, press "Copy". .
The EDID table copied during the Learning Mode will be available to provide the desired resolution to your monitor(s). Note: Make
sure your monitor is capable of displaying the selected resolution.
Connect to Your Application
Once the emulator has learned the EDID table and is in Emulation Mode, the emulator can be placed in its ultimate configuration,
following these steps, in order.
1. Unpl
ug the emulator from th
2. Unpl
ug the cable from the "Displ
e video source.
ay" port going to the monitor.
3
Page 4
3. Make your connections from the DisplayPort cable to the display, splitter or extender and power the splitter or extender and
associated display(s) ON.
4. Plug the DisplayPort cable back into the "Display" port on the emulator.
5. Plug the emulator back into
the video source.
4
Page 5
Specifications
Video Format
Max. Resolution
Default Resolution
Color Depth
Support pass-through
Support headless (no monitor
actually attached)
HDCP Support
Audio Format
Power Supply
Operating Temperature
Storage Temperature
Operating and Storage
Relative Humidity
Dimension WxDxH
Compliance
DP 1.4
7680x4320@30Hz
1920x1080p@60Hz
RGB/YCC 4:4:4 / YCC 4:2:2: 10-bit
Up to 36-bit deep color
No
Yes
HDCP 2.2
LPCM
By video source
32 to 122°F (0 to 50°C)
-4 to 158°F (-20 to 70°C)
5 to 85% non-condensing RH
0.99 x 2.50 x 0.47 in (25x64x12 mm)
CE, FCC, RoHS, TAA
EDID mode resolutions
Resolution Resolution
640 x 480p @60Hz 1920 x 1080p @60Hz *
720 x 480p @60Hz 2560 x 1440p @60Hz
800 x 600p @60Hz 2560 x 1600p @60Hz
1024 x 768p @60Hz 3440 x 1440p @60Hz
1280 x 720p @60Hz 3440 x 1440p @75Hz
1280 x 800p @60Hz 3440 x 1440p @100Hz
1280 x 960p @60Hz 3840 x 2160p @30Hz
1280 x 1024p @60Hz 3840 x 2160p @60Hz
1440 x 900p @60Hz
1680 x 1050p @60Hz
*1920 x 1080p @60Hz is the native resolution in EDID mode
7680 x 4320 @ 30Hz
Audio EDID
LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
5
