WIRELESS
INSPECTION CAMERAS
™
WIC-1
With Removable
WIC-100
DELUXE EDITION
Includes 3.5” color LCD monitor,
9mm camera head and records to
removable 2GB SD card.
™
Color LCD Monitor!
Applications:
• HVAC Inspection
• Automotive Inspection
• Cable Routing
• Electrical
• General Contracting
• Home Theater Installation
• Plumbing Inspection
• Much more!
WIRELESS
3.5
INSPECTION CAMERAS
The ECG Wireless Inspection Cameras allow for easy visual
inspections in hard-to-reach areas, even in total darkness
with super bright LEDs! Lightweight, handheld design helps
you easily find, diagnose, and solve problems.
WIC-1™: INSPECTION CAMERA
• 2.4” removable color LCD monitor
• Waterproof camera and shaft (IP67)
• Video out for recording
• Includes mirror, hook,
and magnet tips
• Includes magnetic
monitor base
• One year warranty
• FCC compliant
One Year
Warranty
WIC-1™ SPECIFICATIONS
CAMERA
Imaging Sensor:
Total Pixels:
Horizontal View Angle:
Transmission Frequency:
Modulation Type:
Bandwidth:
Power Supply:
Weight (With Shaft):
Operating Temperature:
Operating Humidity:
Diameter (mm/inches)
CMOS
712 x 486
50°
2468 MHz
FM
18 MHz
4 x AA Batteries
1.17 lbs.
14°F ~ 122°F
15 ~ 85% RH
15.9 / 0.63
MONITOR
Screen Type:
Effective Pixels:
Video System:
Transmission Frequency:
Exterior Supply Voltage:
Consumption Current (Max.):
Video Output Level:
Dimensions (W x D x H) (inches):
Weight:
Operating Temperature:
Operating Humidity:
Power Supply:
2.36” LCD
480 x 240
NTSC
2468 MHz
8VDC
450 mA
0.9 - 1.3V P-P @ 75 ohm
3.94 x 2.76 x 1.18
0.31 lbs.
14°F ~ 122°F
15 ~ 85% RH
Rechargeable Lithium-ion Battery
Removable Color
LCD Monitor
ECG Wireless Inspection
Cameras stand apart from the
rest... literally… because they
feature a removable color LCD
monitor that displays crystal
clear video images for accurate
visual inspection. This unique
wireless feature allows you to
put the camera where you need
it... and the monitor where you
can see it... up to 30 ft. away
- affording you a whole new level
of convenience.
WIC-100 ™: DELUXE INSPECTION CAMERA
• 3.5” removable color LCD monitor
• Waterproof camera and shaft (IP67)
• Records to removable
2GB SD card (included)
• Includes mirror, hook,r
and magnet tips
• One year warranty
• FCC compliant
• Includes magnetic
monitor base
• Smaller 9mm
camera head
WIC-100 ™ SPECIFICATIONS
CAMERA
Imaging Sensor:
Total Pixels:
Horizontal View Angle:
Transmission Frequency:
Modulation Type:
Bandwidth:
Power Supply:
Weight (With Shaft):
Operating Temperature:
Operating Humidity:
Diameter (mm/inches)
CMOS
640 x 480
45°
2468 MHz
FM
18 MHz
4 x AA Batteries
1.17 lbs.
14°F ~ 122°F
15 ~ 85% RH
9/0.35
One Year
Warranty
MONITOR
Screen Type:
Effective Pixels:
Video System:
Transmission Frequency:
Exterior Supply Voltage:
Consumption Current (Max.):
Video Output Level:
Dimensions (W x D x H) (inches):
Weight:
Operating Temperature:
Operating Humidity:
Power Supply:
3.5
3.5” TFT-LCD
320 (RGB) x 240
PAL/NTSC
2468 MHz
5 VDC
500 mA
0.9 - 1.3V P-P @ 75 ohm
4 x 2.7 x 1
0.31 lbs.
14°F ~ 122°F
15 ~ 85% RH
Rechargeable Lithium-ion Battery
www.WirelessInspectionCamera.com

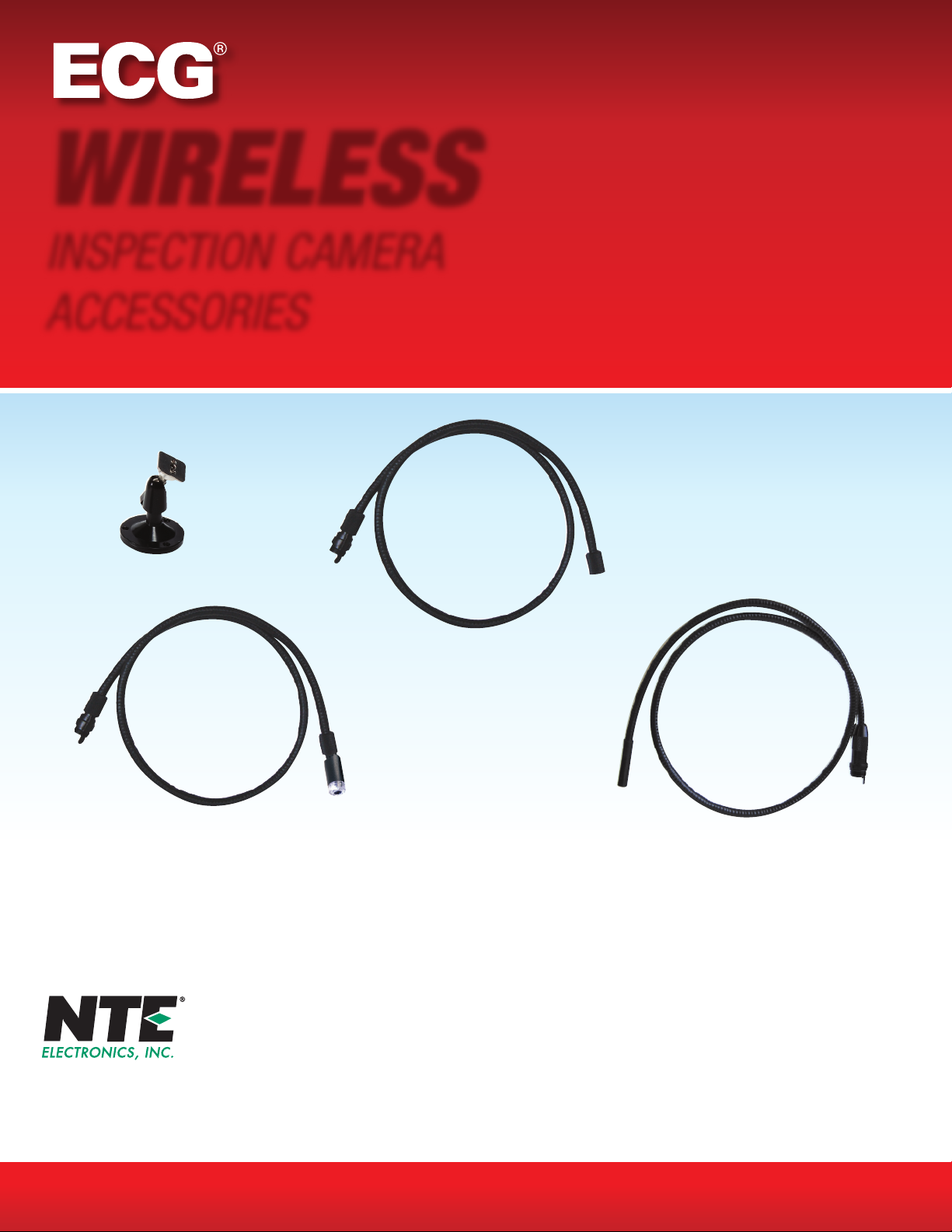

WIRELESS
INSPECTION CAMERA
ACCESSORIES
WIC-3
Magnetic Monitor
Mounting Base
WIC-7
15.9mm Camera/Shaft
(Waterproof)
3.28 Ft. Extension Shaft
WIC-4
(Add up to three!)
WIC-10
9mm Camera
with 7.5mm Shaft
(Waterproof)
