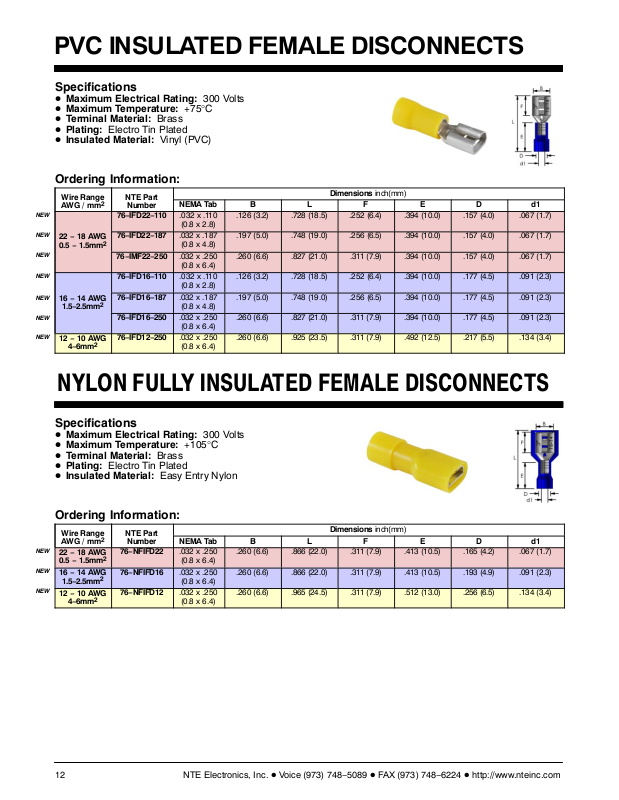

PVC INSULATED FEMALE DISCONNECTS
Specifications
D Maximum Electrical Rating: 300 Volts
D Maximum Temperature: +75°C
D Terminal Material: Brass
D Plating: Electro Tin Plated
D Insulated Material: Vinyl (PVC)
Ordering Information:
Dimensions inch(mm)
NEW
NEW
NEW
NEW
NEW
NEW
NEW
Wire Range
AWG / mm
22 − 18 AWG
0.5 − 1.5mm
16 − 14 AWG
1.5−2.5mm
12 − 10 AWG
4−6mm
2
NTE Part
2
Number
76−IFD22−110 .032 x .110
76−IFD22−187 .032 x .187
2
76−IMF22−250 .032 x .250
76−IFD16−110 .032 x .110
76−IFD16−187 .032 x .187
2
76−IFD16−250 .032 x .250
76−IFD12−250 .032 x .250
NEMA Tab B L F E D d1
.126 (3.2) .728 (18.5) .252 (6.4) .394 (10.0) .157 (4.0) .067 (1.7)
(0.8 x 2.8)
.197 (5.0) .748 (19.0) .256 (6.5) .394 (10.0) .157 (4.0) .067 (1.7)
(0.8 x 4.8)
.260 (6.6) .827 (21.0) .311 (7.9) .394 (10.0) .157 (4.0) .067 (1.7)
(0.8 x 6.4)
.126 (3.2) .728 (18.5) .252 (6.4) .394 (10.0) .177 (4.5) .091 (2.3)
(0.8 x 2.8)
.197 (5.0) .748 (19.0) .256 (6.5) .394 (10.0) .177 (4.5) .091 (2.3)
(0.8 x 4.8)
.260 (6.6) .827 (21.0) .311 (7.9) .394 (10.0) .177 (4.5) .091 (2.3)
(0.8 x 6.4)
.260 (6.6) .925 (23.5) .311 (7.9) .492 (12.5) .217 (5.5) .134 (3.4)
(0.8 x 6.4)
NYLON FULLY INSULATED FEMALE DISCONNECTS
Specifications
D Maximum Electrical Rating: 300 Volts
D Maximum Temperature: +105°C
D Terminal Material: Brass
D Plating: Electro Tin Plated
D Insulated Material: Easy Entry Nylon
Ordering Information:
Dimensions inch(mm)
NEW
NEW
NEW
Wire Range
AWG / mm
22 − 18 AWG
0.5 − 1.5mm
16 − 14 AWG
1.5−2.5mm
12 − 10 AWG
4−6mm
2
NTE Part
2
Number
76−NFIFD22 .032 x .250
2
76−NFIFD16 .032 x .250
2
76−NFIFD12 .032 x .250
NEMA Tab B L F E D d1
.260 (6.6) .866 (22.0) .311 (7.9) .413 (10.5) .165 (4.2) .067 (1.7)
(0.8 x 6.4)
.260 (6.6) .866 (22.0) .311 (7.9) .413 (10.5) .193 (4.9) .091 (2.3)
(0.8 x 6.4)
.260 (6.6) .965 (24.5) .311 (7.9) .512 (13.0) .256 (6.5) .134 (3.4)
(0.8 x 6.4)
12
NTE Electronics, Inc. D Voice (973) 748−5089 D FAX (973) 748−6224 D http://www.nteinc.com
