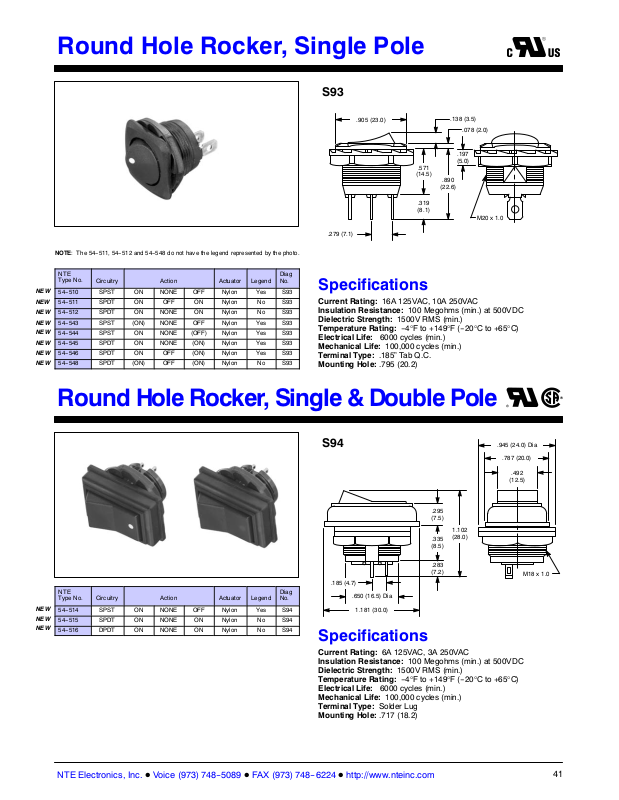

Round Hole Rocker, Single & Double Pole

NTE
Type No.

NEW

54-514 SPST ON NONE OFF Nylon Ye s S94

NEW

54-515 SPDT ON NONE ON Nylon No S94

NEW

54-516 DPDT ON NONE ON Nylon No S94

Circuitry Action Actuator Legend

Diag
No.

S94

.185 (4.7)

.650 (16.5) Dia

1.181 (30.0)

.295
(7.5)

.335
(8.5)

.283
(7.2)

1.102
(28.0)

.945 (24.0) Dia

.787 (20.0)

.492

(12.5)

Specifications

Current Rating: 6A 125VAC, 3A 250VAC
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: -4°F to +149°F (-20°C to +65°C)
Electrical Life: 6000 cycles (min.)
Mechanical Life: 100,000 cycles (min.)
Terminal Type: Solder Lug
Mounting Hole: .717 (18.2)

M18 x 1.0
