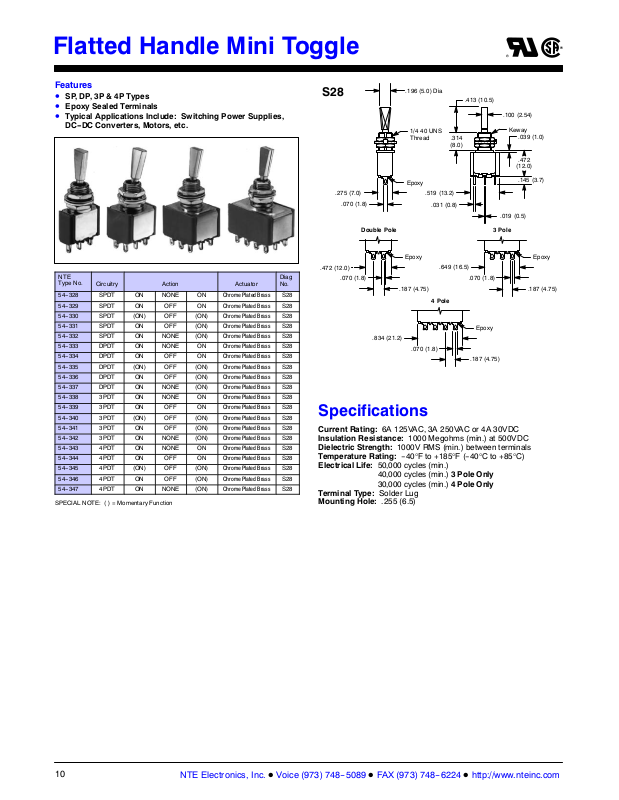

NTE Electronics S28 Catalog Page
Flatted Handle Mini Toggle
Features
• SP, DP, 3P & 4P Types
• Epoxy Sealed Terminals
• Typical Applications Include: Switching Power Supplies,
DC-DC Converters, Motors, etc.
NTE
Type No.
54-328 SPDT ON NONE ON Chrome Plated Brass S28
54-329 SPDT ON OFF ON Chrome Plated Brass S28
54-330 SPDT (ON) OFF (ON) Chrome Plated Brass S28
54-331 SPDT ON OFF (ON) Chrome Plated Brass S28
54-332 SPDT ON NONE (ON) Chrome Plated Brass S28
54-333 DPDT ON NONE ON Chrome Plated Brass S28
54-334 DPDT ON OFF ON Chrome Plated Brass S28
54-335 DPDT (ON) OFF (ON) Chrome Plated Brass S28
54-336 DPDT ON OFF (ON) Chrome Plated Brass S28
54-337 DPDT ON NONE (ON) Chrome Plated Brass S28
54-338 3PDT ON NONE ON Chrome Plated Brass S28
54-339 3PDT ON OFF ON Chrome Plated Brass S28
54-340 3PDT (ON) OFF (ON) Chrome Plated Brass S28
54-341 3PDT ON OFF (ON) Chrome Plated Brass S28
54-342 3PDT ON NONE (ON) Chrome Plated Brass S28
54-343 4PDT ON NONE ON Chrome Plated Brass S28
54-344 4PDT ON OFF ON Chrome Plated Brass S28
54-345 4PDT (ON) OFF (ON) Chrome Plated Brass S28
54-346 4PDT ON OFF (ON) Chrome Plated Brass S28
54-347 4PDT ON NONE (ON) Chrome Plated Brass S28
SPECIAL NOTE: ( ) = Momentary Function
Circuitry Action Actuator
Diag
No.
S28
.275 (7.0)
.070 (1.8)
Double Pole
.472 (12.0)
.070 (1.8)
.834 (21.2)
.196 (5.0) Dia
1/4 40 UNS
Thread
Epoxy
Epoxy
.187 (4.75)
.070 (1.8)
.519 (13.2)
.031 (0.8)
.649 (16.5)
4 Pole
.314
(8.0)
.413 (10.5)
.070 (1.8)
Epoxy
.187 (4.75)
.100 (2.54)
.019 (0.5)
3 Pole
Keway
.039 (1.0)
.472
(12.0)
.145 (3.7)
Specifications
Current Rating: 6A 125VAC, 3A 250VAC or 4A 30VDC
Insulation Resistance: 1000 Megohms (min.) at 500VDC
Dielectric Strength: 1000V RMS (min.) between terminals
Temperature Rating: -40°F to +185°F (-40°C to +85°C)
Electrical Life: 50,000 cycles (min.)
Electrical Life: 40,000 cycles (min.) 3 Pole Only
Electrical Life: 30,000 cycles (min.) 4 Pole Only
Terminal Type: Solder Lug
Mounting Hole: .255 (6.5)
Epoxy
.187 (4.75)
