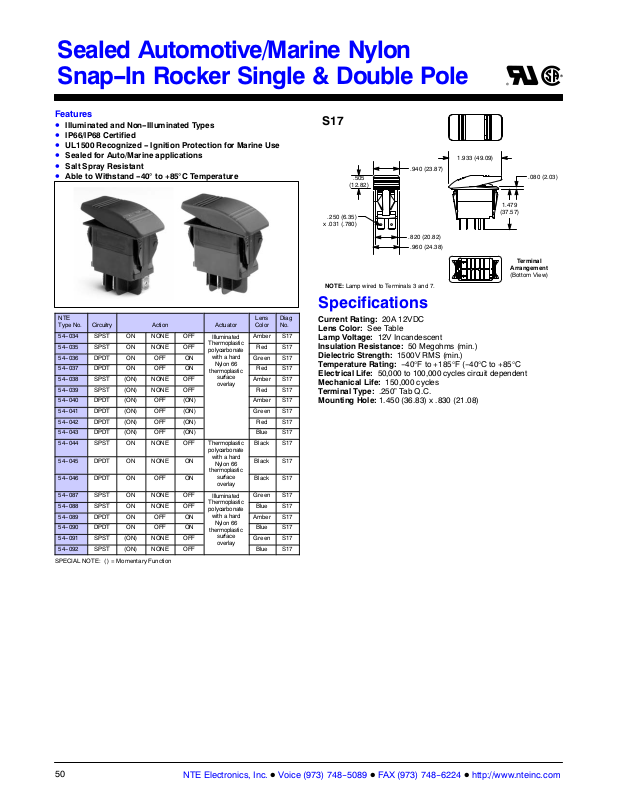

NTE Electronics S17 Catalog Page
Sealed Automotive/Marine Nylon
Snap-In Rocker Single & Double Pole
Features
• Illuminated and Non-Illuminated Types
• IP66/IP68 Certified
• UL1500 Recognized - Ignition Protection for Marine Use
• Sealed for Auto/Marine applications
• Salt Spray Resistant
• Able to Withstand -405 to +855C Temperature
NTE
Type No.
54-034 SPST ON NONE OFF
54-035 SPST ON NONE OFF Red S17
54-036 DPDT ON OFF ON Green S17
54-037 DPDT ON OFF ON Red S17
54-038 SPST (ON) NONE OFF Amber S17
54-039 SPST (ON) NONE OFF Red S17
54-040 DPDT (ON) OFF (ON) Amber S17
54-041 DPDT (ON) OFF (ON) Green S17
54-042 DPDT (ON) OFF (ON) Red S17
54-043 DPDT (ON) OFF (ON) Blue S17
54-044 SPST ON NONE OFF
54-045 DPDT ON NONE ON Black S17
54-046 DPDT ON OFF ON Black S17
54-087 SPST ON NONE OFF
54-088 SPST ON NONE OFF Blue S17
54-089 DPDT ON OFF ON Amber S17
54-090 DPDT ON OFF ON Blue S17
54-091 SPST (ON) NONE OFF Green S17
54-092 SPST (ON) NONE OFF Blue S17
SPECIAL NOTE: ( ) = Momentary Function
Circuitry Action Actuator
Illuminated
Thermoplastic
polycarbonate
with a hard
Nylon 66
thermoplastic
surface
overlay
Thermoplastic
polycarbonate
with a hard
Nylon 66
thermoplastic
surface
overlay
Illuminated
Thermoplastic
polycarbonate
with a hard
Nylon 66
thermoplastic
surface
overlay
Lens
Color
Amber S17
Black S17
Green S17
Diag
No.
S17
1.933 (49.09)
.505
(12.82)
.250 (6.35)
x .031 (.780)
NOTE: Lamp wired to Terminals 3 and 7.
.940 (23.87)
.820 (20.82)
.960 (24.38)
1.479
(37.57)
Terminal
Arrangement
(Bottom View)
Specifications
Current Rating: 20A 12VDC
Lens Color: See Table
Lamp Voltage: 12V Incandescent
Insulation Resistance: 50 Megohms (min.)
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: -40°F to +185°F (-40°C to +85°C
Electrical Life: 50,000 to 100,000 cycles circuit dependent
Mechanical Life: 150,000 cycles
Terminal Type: .250” Tab Q.C.
Mounting Hole: 1.450 (36.83) x .830 (21.08)
.080 (2.03)
50
NTE Electronics, Inc. D Voice (973) 748-5089 D FAX (973) 748-6224 D http://www.nteinc.com
