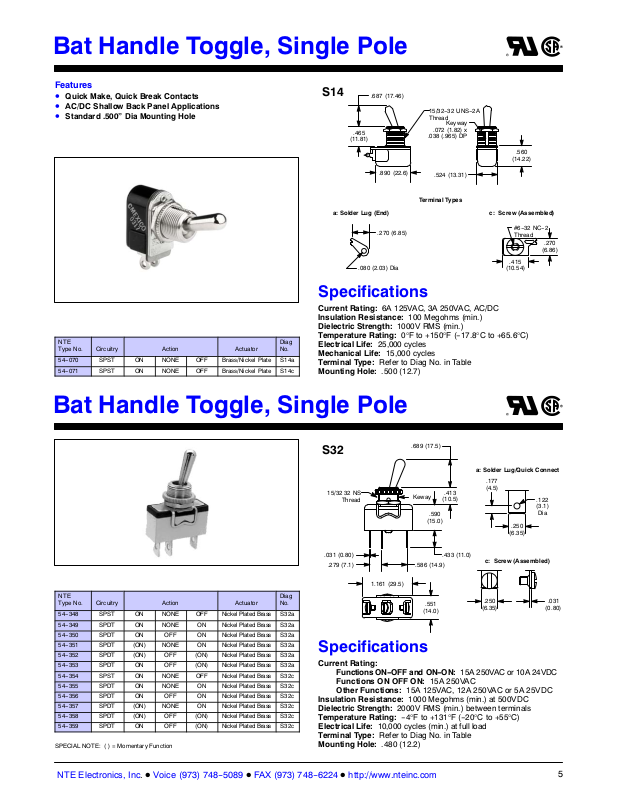

NTE Electronics S14 Catalog Page

Bat Handle Toggle, Single Pole

Features

• Quick Make, Quick Break Contacts

• AC/DC Shallow Back Panel Applications

• Standard .500” Dia Mounting Hole

NTE
Type No.

54-070 SPST ON NONE OFF Brass/Nickel Plate S14a

54-071 SPST ON NONE OFF Brass/Nickel Plate S14c

Circuitry Action Actuator

Diag
No.

S14

a: Solder Lug (End) c: Screw (Assembled)

.687 (17.46)

.465

(11.81)

.080 (2.03) Dia

.890 (22.6)

.270 (6.85)

15/32-32 UNS-2A
Thread

Keyway

.072 (1.82) x

.038 (.965) DP

.524 (13.31)

Terminal Types

.560

(14.22)

#6-32 NC-2
Thread

.415

(10.54)

Specifications

Current Rating: 6A 125VAC, 3A 250VAC, AC/DC
Insulation Resistance: 100 Megohms (min.)
Dielectric Strength: 1000V RMS (min.)
Temperature Rating: 0°F to +150°F (-17.8°C to +65.6°C)
Electrical Life: 25,000 cycles
Mechanical Life: 15,000 cycles
Terminal Type: Refer to Diag No. in Table
Mounting Hole: .500 (12.7)

.270

(6.86)
