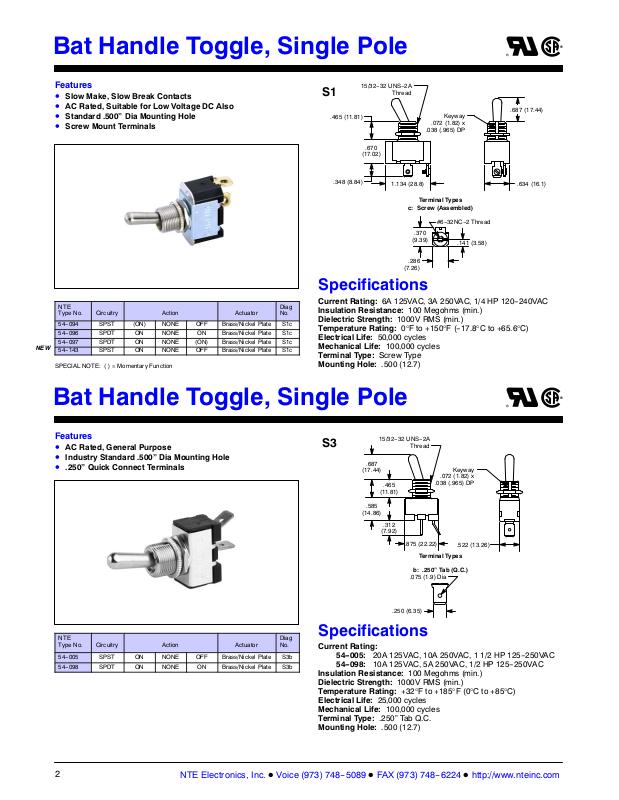

Bat Handle Toggle, Single Pole

Features

• Slow Make, Slow Break Contacts

• AC Rated, Suitable for Low Voltage DC Also

• Standard .500” Dia Mounting Hole

• Screw Mount Terminals

NTE
Type No.

54-094 SPST (ON) NONE OFF Brass/Nickel Plate S1c
54-096 SPDT ON NONE ON Brass/Nickel Plate S1c
54-097 SPDT ON NONE (ON) Brass/Nickel Plate S1c

NEW

54-143 SPST ON NONE OFF Brass/Nickel Plate S1c

SPECIAL NOTE: ( ) = Momentary Function

Circuitry Action Actuator

Diag
No.

S1

.465 (11.81)

.348 (8.84)

15/32-32 UNS-2A

(17.02)

.670

Thread

.072 (1.82) x

.038 (.965) DP

1.134 (28.8)

Terminal Types

c: Screw (Assembled)

.370

(9.39)

.286

(7.26)

Keyway

#6-32NC-2 Thread

.141 (3.58)

.687 (17.44)

.634 (16.1)

Specifications

Current Rating: 6A 125VAC, 3A 250VAC, 1/4 HP 120-240VAC
Insulation Resistance: 100 Megohms (min.)
Dielectric Strength: 1000V RMS (min.)
Temperature Rating: 0°F to +150°F (-17.8°C to +65.6°C)
Electrical Life: 50,000 cycles
Mechanical Life: 100,000 cycles
Terminal Type: Screw Type
Mounting Hole: .500 (12.7)
