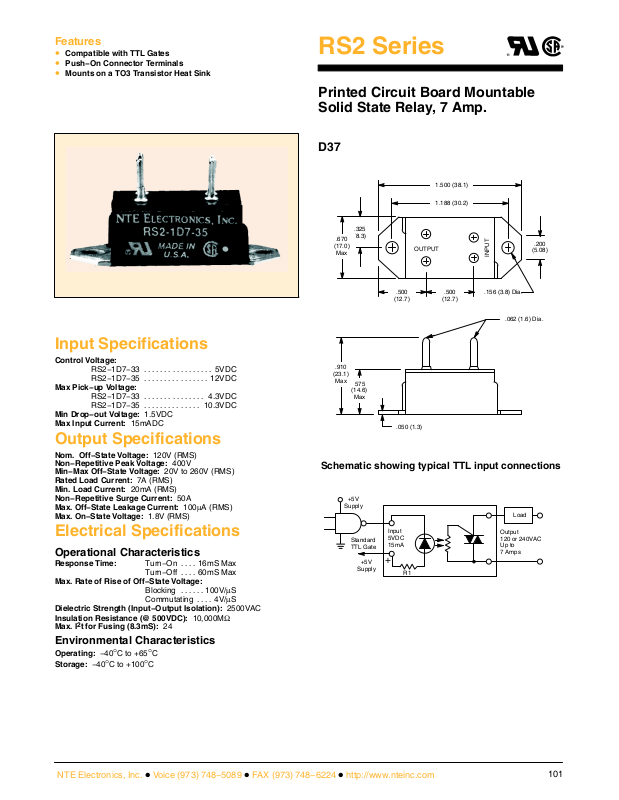

Features

• Compatible with TTL Gates

• Push−On Connector Terminals

• Mounts on a TO3 Transistor Heat Sink

RS2 Series

Printed Circuit Board Mountable
Solid State Relay, 7 Amp.

D37

1.500 (38.1)

1.188 (30.2)

.325
(8.3)

.670

(17.0)

Max

OUTPUT

INPUT

.200

(5.08)

Input Specifications

Control Voltage:

Max Pick−up Voltage:

Min Drop−out Voltage: 1.5VDC
Max Input Current: 15mADC

RS2−1D7−33 5VDC. . . . . . . . . . . . . . . . .

RS2−1D7−35 12VDC. . . . . . . . . . . . . . . .

RS2−1D7−33 4.3VDC. . . . . . . . . . . . . . .

RS2−1D7−35 10.3VDC. . . . . . . . . . . . . .

Output Specifications

Nom. Off−State Voltage: 120V (RMS)
Non−Repetitive Peak Voltage: 400V
Min−Max Off−State Voltage: 20V to 260V (RMS)

Rated Load Current: 7A (RMS)
Min. Load Current: 20mA (RMS)
Non−Repetitive Surge Current: 50A
Max. Off−State Leakage Current: 100µA (RMS)
Max. On−State Voltage: 1.8V (RMS)

Electrical Specifications

Operational Characteristics

Response Time: Turn−On 16mS Max. . . .

Max. Rate of Rise of Off−State Voltage:

Dielectric Strength (Input−Output Isolation): 2500VAC
Insulation Resistance (@ 500VDC): 10,000MΩ

2

t for Fusing (8.3mS): 24

Max. I

Environmental Characteristics

Operating: −40°C to +65°C
Storage: −40

°C to +100°C

Turn−Off 60mS Max. . . .

Blocking 100V/µS. . . . . .

Commutating 4V/µS. . . .

.500

(12.7)

.156 (3.8) Dia.

.062 (1.6) Dia.

.910

(23.1)

Max

.575

(14.6)

Max

.500

(12.7)

.050 (1.3)

Schematic showing typical TTL input connections

+5V

Supply

Standard
TTL Gate

+5V

Supply

Input
5VDC
15mA

+

R1

Load

Output
120 or 240VAC
Up to
7 Amps
