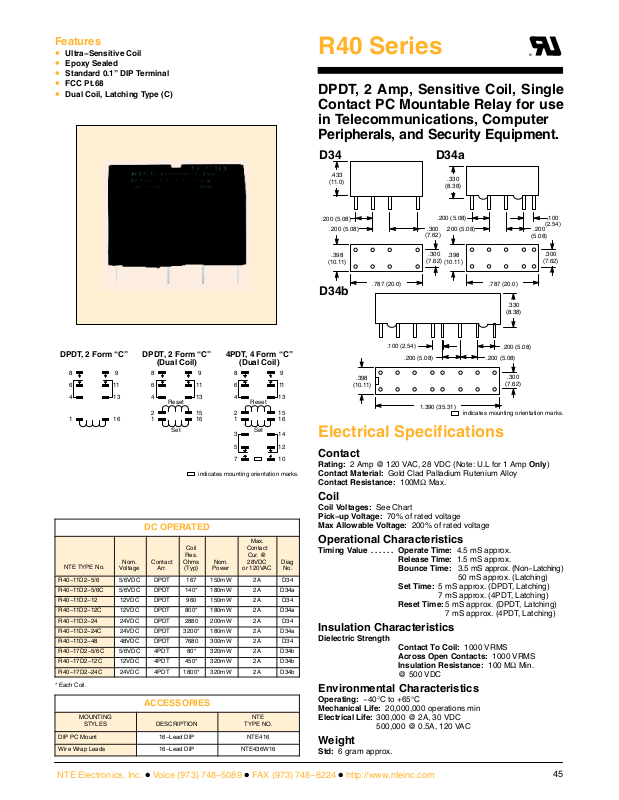

NTE Electronics R40 Series Catalog Page

Features

• Ultra−Sensitive Coil

• Epoxy Sealed

• Standard 0.1” DIP Terminal

• FCC Pt.68

• Dual Coil, Latching Type (C)

R40 Series

DPDT, 2 Amp, Sensitive Coil, Single
Contact PC Mountable Relay for use
in Telecommunications, Computer
Peripherals, and Security Equipment.

DPDT, 2 Form “C”

89

611

413

116

DPDT, 2 Form “C” 4PDT, 4 Form “C”

(Dual Coil) (Dual Coil)

89

611

413

Reset

215
116

Set

indicates mounting orientation marks.

89

611

413

Reset

215
116

Set

314

512

710

DC OPERATED

Coil

Nom.

NTE TYPE No.

R40−11D2−5/6 5/6VDC DPDT 167 150mW 2A D34

R40−11D2−5/6C 5/6VDC DPDT 140* 180mW 2A D34a

R40−11D2−12 12VDC DPDT 960 150mW 2A D34

R40−11D2−12C 12VDC DPDT 800* 180mW 2A D34a

R40−11D2−24 24VDC DPDT 2880 200mW 2A D34

R40−11D2−24C 24VDC DPDT 3200* 180mW 2A D34a

R40−11D2−48 48VDC DPDT 7680 300mW 2A D34

R40−17D2−5/6C 5/6VDC 4PDT 80* 320mW 2A D34b

R40−17D2−12C 12VDC 4PDT 450* 320mW 2A D34b

R40−17D2−24C 24VDC 4PDT 1800* 320mW 2A D34b

* Each Coil.

Voltage

Contact

Arr.

Res.

Ohms

(Typ)

Nom.

Power

Max.

Contact

Cur. @

28VDC

or 120VAC

ACCESSORIES

MOUNTING

STYLES

DIP PC Mount 16−Lead DIP NTE416

Wire Wrap Leads 16−Lead DIP NTE436W16

DESCRIPTION

NTE

TYPE NO.

Diag

No.

D34

.433

(11.0)

.200 (5.08)

.200 (5.08)

.398

(10.11)

.787 (20.0)

.300

(7.62)

.300

(7.62)

D34a

.330

(8.38)

.200 (5.08)

.200 (5.08)

.398

(10.11)

.787 (20.0)

.200

(5.08)

D34b

.330

(8.38)

.398

(10.11)

.100 (2.54)

.200 (5.08)

1.390 (35.31)
indicates mounting orientation marks.

.200 (5.08)

.200 (5.08)

(7.62)

.300

Electrical Specifications

Contact

Rating: 2 Amp @ 120 VAC, 28 VDC (Note: U.L for 1 Amp Only)
Contact Material: Gold Clad Palladium Rutenium Alloy
Contact Resistance: 100MΩ Max.

Coil

Coil Voltages: See Chart
Pick−up Voltage: 70% of rated voltage
Max Allowable Voltage: 200% of rated voltage

Operational Characteristics

Timing Value Operate Time: 4.5 mS approx.. . . . . .

Insulation Characteristics

Dielectric Strength

Environmental Characteristics

Operating: −40°C to +65°C
Mechanical Life: 20,000,000 operations min
Electrical Life: 300,000 @ 2A, 30 VDC

Weight

Std: 6 gram approx.

Release Time: 1.5 mS approx.
Bounce Time: 3.5 mS approx. (Non−Latching)

50 mS approx. (Latching)

Set Time: 5 mS approx. (DPDT, Latching)

7 mS approx. (4PDT, Latching)

Reset Time: 5 mS approx. (DPDT, Latching)

7 mS approx. (4PDT, Latching)

Contact To Coil: 1000 VRMS
Across Open Contacts: 1000 VRMS
Insulation Resistance: 100 MΩ Min.

@ 500 VDC

500,000 @ 0.5A, 120 VAC

.100

(2.54)

.300

(7.62)

NTE Electronics, Inc. D Voice (973) 748−5089 D FAX (973) 748−6224 D http://www.nteinc.com

45
