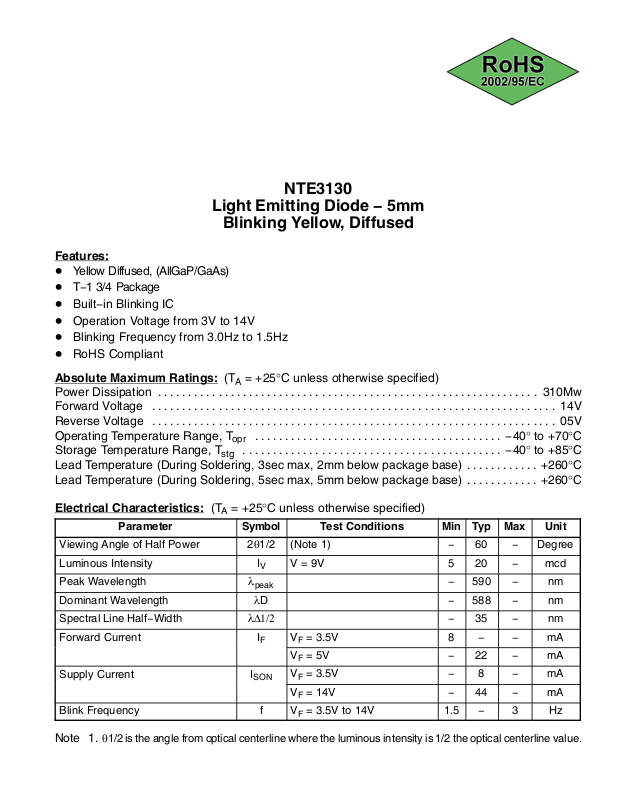

NTE Electronics NTE3130 Data Sheet

NTE3130

Light Emitting Diode − 5mm

Blinking Yellow, Diffused

Features:

D Yellow Diffused, (AllGaP/GaAs)
D T−1 3/4 Package
D Built−in Blinking IC
D Operation Voltage from 3V to 14V
D Blinking Frequency from 3.0Hz to 1.5Hz
D RoHS Compliant

Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)

Power Dissipation 310Mw. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Forward Voltage 14V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reverse Voltage 05V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating Temperature Range, T
Storage Temperature Range, T

opr

stg

Lead Temperature (During Soldering, 3sec max, 2mm below package base) +260°C. . . . . . . . . . . .

Lead Temperature (During Soldering, 5sec max, 5mm below package base) +260°C. . . . . . . . . . . .

−40° to +70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−40° to +85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Characteristics: (TA = +25°C unless otherwise specified)

Parameter Symbol Test Conditions Min Typ Max Unit

Viewing Angle of Half Power 2θ1/2 (Note 1) − 60 − Degree

Luminous Intensity I

Peak Wavelength λ

Dominant Wavelength λD − 588 − nm

Spectral Line Half−Width λΔ1/2 − 35 − nm

Forward Current I

Supply Current I

Blink Frequency f VF = 3.5V to 14V 1.5 − 3 Hz

Note 1.

θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

V

peak

F

SON

V = 9V 5 20 − mcd

− 590 − nm

VF = 3.5V 8 − − mA

VF = 5V − 22 − mA

VF = 3.5V − 8 − mA

VF = 14V − 44 − mA

.226 (5.74) Dia

.019 (0.48)

1.386

(35.2)

.484

(12.29)

.338

(8.58)

.196 (4.98) Dia

.300

(7.62)

.039 (0.99)

.188 (4.77)

Irradiant Area

.032 (0.81)

.019 (0.46)

.100 (2.54)
