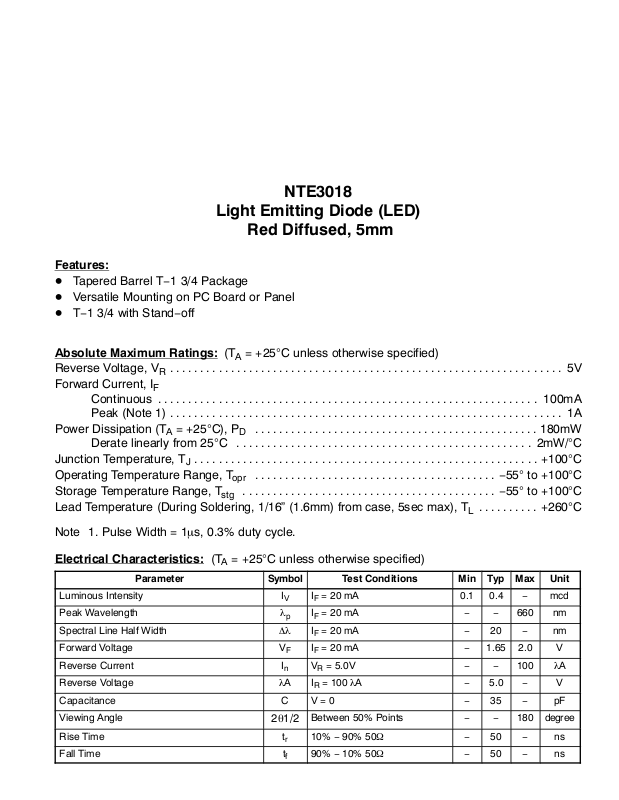

NTE Electronics NTE3018 Data Sheet

NTE3018

Light Emitting Diode (LED)

Red Diffused, 5mm

Features:

D Tapered Barrel T−1 3/4 Package
D Versatile Mounting on PC Board or Panel
D T−1 3/4 with Stand−off

Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Reverse Voltage, V

Forward Current, I

Continuous 100mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Peak (Note 1) 1A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Dissipation (TA = +25°C), P

Derate linearly from 25°C 2mW/°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Junction Temperature, T
Operating Temperature Range, T
Storage Temperature Range, T
Lead Temperature (During Soldering, 1/16” (1.6mm) from case, 5sec max), T

R

F

D

J

opr

stg

5V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

180mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+100°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−55° to +100°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−55° to +100°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

L

+260°C. . . . . . . . . .

Note 1. Pulse Width = 1µs, 0.3% duty cycle.

Electrical Characteristics: (TA = +25°C unless otherwise specified)

Parameter Symbol Test Conditions Min Typ Max Unit

Luminous Intensity I

Peak Wavelength λ

Spectral Line Half Width ∆λ IF = 20 mA − 20 − nm

Forward Voltage V

Reverse Current I

Reverse Voltage λA IR = 100 λA − 5.0 − V

Capacitance C V = 0 − 35 − pF

Viewing Angle

Rise Time t

Fall Time t

2θ1/2

IF = 20 mA 0.1 0.4 − mcd

V

IF = 20 mA − − 660 nm

p

IF = 20 mA − 1.65 2.0 V

F

VR = 5.0V − − 100 λA

n

Between 50% Points − − 180 degree

10% − 90% 50Ω − 50 − ns

r

90% − 10% 50Ω − 50 − ns

f

.220
(5.5)

.185 (4.69) Dia

.340

(8.63)

1.000

(25.4)

Min

Anode

Cathode
