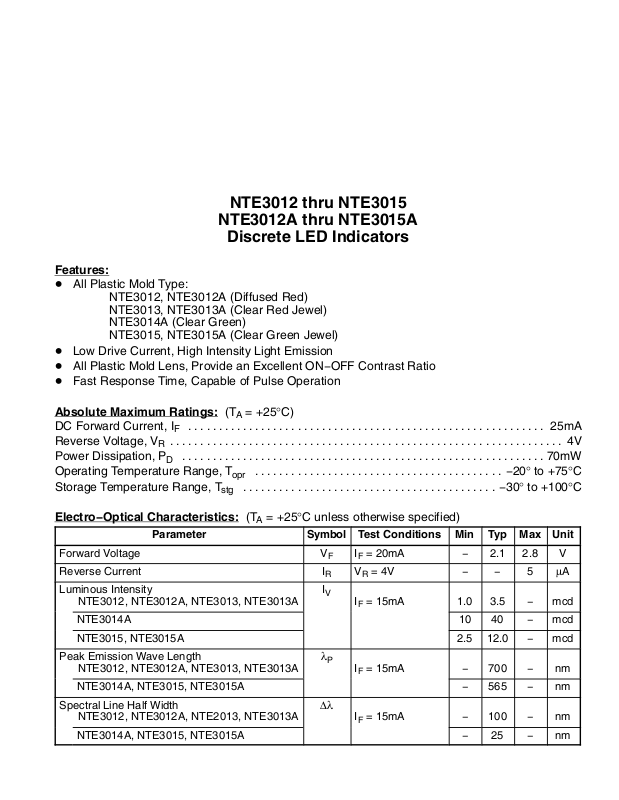

NTE3012 thru NTE3015
NTE3012A thru NTE3015A
Discrete LED Indicators
Features:
D All Plastic Mold Type:
NTE3012, NTE3012A (Diffused Red)
NTE3013, NTE3013A (Clear Red Jewel)
NTE3014A (Clear Green)
NTE3015, NTE3015A (Clear Green Jewel)
D Low Drive Current, High Intensity Light Emission
D All Plastic Mold Lens, Provide an Excellent ON−OFF Contrast Ratio
D Fast Response Time, Capable of Pulse Operation
Absolute Maximum Ratings:
DC Forward Current, I
Reverse Voltage, V
Power Dissipation, P
F
R
D
Operating Temperature Range, T
Storage Temperature Range, T
(TA = +25°C)
opr
stg
−20° to +75°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−30° to +100°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electro−Optical Characteristics: (TA = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Forward Voltage V
Reverse Current I
Luminous Intensity
NTE3012, NTE3012A, NTE3013, NTE3013A
NTE3014A 10 40 − mcd
NTE3015, NTE3015A 2.5 12.0 − mcd
Peak Emission Wave Length
NTE3012, NTE3012A, NTE3013, NTE3013A
NTE3014A, NTE3015, NTE3015A − 565 − nm
I
λ
IF = 20mA − 2.1 2.8 V
F
VR = 4V − − 5 μA
R
V
IF = 15mA 1.0 3.5 − mcd
P
IF = 15mA − 700 − nm
25mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
70mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spectral Line Half Width
NTE3012, NTE3012A, NTE2013, NTE3013A
NTE3014A, NTE3015, NTE3015A − 25 − nm
Δλ
IF = 15mA − 100 − nm
0.47 (1.19)
NTE3012, NTE3012A, NTE3014A
.248 (6.3) Max
.193 (4.9)
.240
(6.09)
Max
Anode
.027 (0.68)
NTE3013, NTE3013A, NTE3015, NTE3015A
Cathode
.512
(13.0) Min
.059 (1.5)
.248 (6.3) Max
.193 (4.9)
.047 (1.19)
Anode
.027 (0.68)
Cathode
.018 (0.45)
.059 (1.5)
.240
(6.09)
Max
.512
(13.0)
Min
