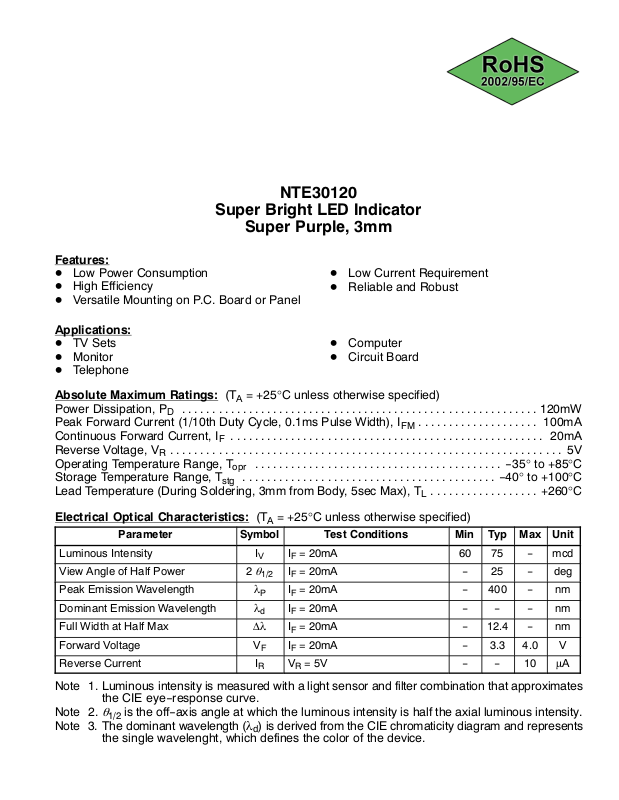

NTE Electronics NTE30120 Data Sheet

NTE30120
Super Bright LED Indicator
Super Purple, 3mm
Features:
D Low Power Consumption D High Efficiency D Versatile Mounting on P.C. Board or Panel
Applications:
D TV Sets D Monitor D Telephone
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Power Dissipation, P
D
Peak Forward Current (1/10th Duty Cycle, 0.1ms Pulse Width), I Continuous Forward Current, I Reverse Voltage, V
R
Operating Temperature Range, T Storage Temperature Range, T
F
opr
stg
Lead Temperature (During Soldering, 3mm from Body, 5sec Max), T
D Low Current Requirement D Reliable and Robust
D Computer D Circuit Board
FM
L
120mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100mA. . . . . . . . . . . . . . . . . . . .
20mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-35° to +85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-40° to +100°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+260°C. . . . . . . . . . . . . . . . . .
Electrical Optical Characteristics: (TA = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Luminous Intensity I
View Angle of Half Power 2 q
Peak Emission Wavelength λ
Dominant Emission Wavelength λ
Full Width at Half Max Δλ IF = 20mA - 12.4 - nm
Forward Voltage V
Reverse Current I
IF = 20mA 60 75 - mcd
V
1/2IF
P
d
F
R
= 20mA - 25 - deg
IF = 20mA - 400 - nm
IF = 20mA - - - nm
IF = 20mA - 3.3 4.0 V
VR = 5V - - 10 μA
Note 1. Luminous intensity is measured with a light sensor and filter combination that approximates
the CIE eye-response curve.
Note 2. q
is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
1/2
Note 3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents
the single wavelenght, which defines the color of the device.
.152
(3.85)
Dia
Flat Denotes Cathode
.116 (2.94) Dia
.208 (5.3)
.039 (1.0)
.019 (0.5)
.100 (2.54)
1.102
(28.0)
.078 (2.0) Min
