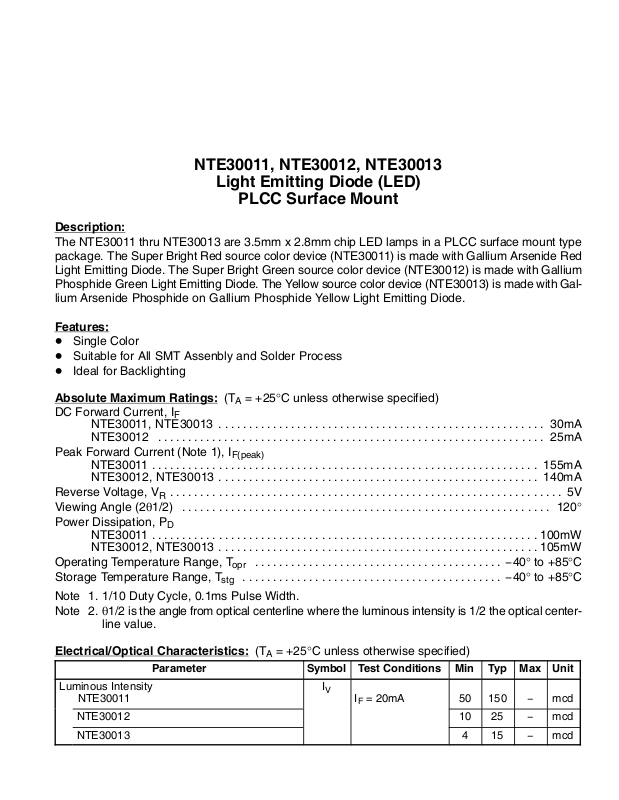

NTE30011, NTE30012, NTE30013
Light Emitting Diode (LED)
PLCC Surface Mount
Description:
The NTE30011 thru NTE30013 are 3.5mm x 2.8mm chip LED lamps in a PLCC surface mount type
package. The Super Bright Red source color device (NTE30011) is made with Gallium Arsenide Red
Light Emitting Diode. The Super Bright Green source color device (NTE30012) is made with Gallium
Phosphide Green Light Emitting Diode. The Yellow source color device (NTE30013) is made with Gallium Arsenide Phosphide on Gallium Phosphide Yellow Light Emitting Diode.
Features:
D Single Color
D Suitable for All SMT Assenbly and Solder Process
D Ideal for Backlighting
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
DC Forward Current, I
NTE30011, NTE30013 30mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NTE30012 25mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peak Forward Current (Note 1), I
NTE30011 155mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NTE30012, NTE30013 140mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reverse Voltage, V
Viewing Angle (2θ1/2) 120°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Dissipation, P
NTE30011 100mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NTE30012, NTE30013 105mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature Range, T
Storage Temperature Range, T
Note 1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Note 2. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical center-
line value.
F
F(peak)
R
D
opr
stg
−40° to +85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−40° to +85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical/Optical Characteristics: (TA = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Luminous Intensity
NTE30011
NTE30012 10 25 − mcd
NTE30013 4 15 − mcd
I
V
IF = 20mA 50 150 − mcd
Electrical/Optical Characteristics (Cont’d): (TA = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Forward Voltage
NTE30011
NTE30012 − 2.2 2.5 V
NTE30013 − 2.1 2.5 V
Reverse Current I
Peak Emission Wave Length
NTE30011
NTE30012 − 565 − nm
NTE30013 − 590 − nm
Dominate Wavelength
NTE30011
NTE30012 − 568 − nm
NTE30013 − 588 − nm
Spectral Line Half Width
NTE30011
NTE30012 − 30 − nm
NTE30013 − 35 − nm
Capacitance
NTE30011
V
λ
λ
Δλ
C
F
IF = 20mA − 1.85 2.5 V
VR = 5V − − 10 μA
R
P
IF = 20mA − 660 − nm
D
IF = 20mA − 640 − nm
IF = 20mA − 45 − nm
VF = 0V, f = 1MHz − 45 − pF
NTE30012 − 15 − pF
NTE30013 − 20 − pF
.138 (3.5)
.126 (3.2)
.087
(2.2)
.110
.094
(2.4)
Dia
(2.8)
Polarity Mark
.032
(0.8)
Anode
.075
(1.9)
.0059 (0.15)
.031 (0.8)
Cathode
