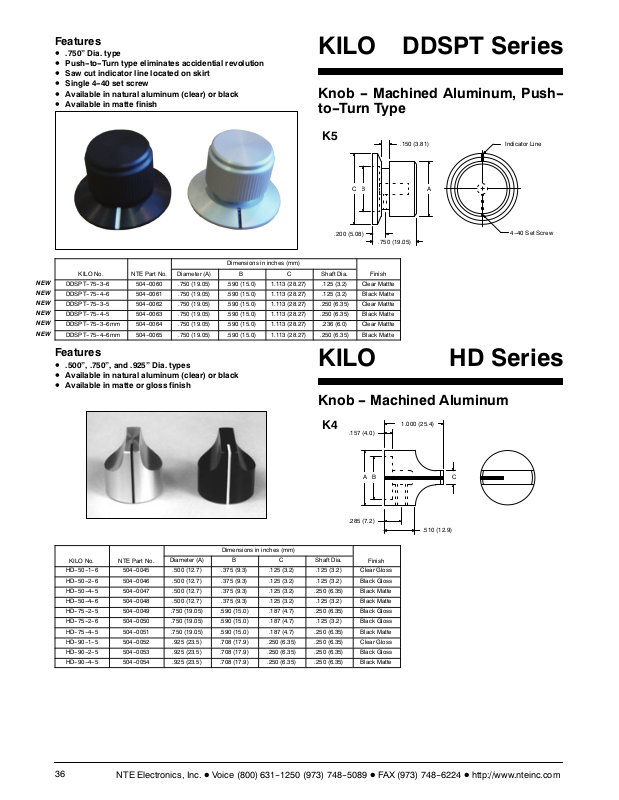

NTE Electronics DDSPT Series, HD Series Catalog Page

Features

• .750” Dia. type

• Push-to-Turn type eliminates accidential revolution

• Saw cut indicator line located on skirt

• Single 4-40 set screw

• Available in natural aluminum (clear) or black

• Available in matte finish

KILO DDSPT Series

Knob - Machined Aluminum, Push­to-Turn Type

K5

Dimensions in inches (mm)

NEW

NEW

NEW

NEW

NEW

NEW

KILO No. NTE Part No.

DDSPT-75-3-6 504-0060 .750 (19.05) .590 (15.0) 1.113 (28.27) .125 (3.2) Clear Mattte

DDSPT-75-4-6 504-0061 .750 (19.05) .590 (15.0) 1.113 (28.27) .125 (3.2) Black Matte

DDSPT-75-3-5 504-0062 .750 (19.05) .590 (15.0) 1.113 (28.27) .250 (6.35) Clear Mattte

DDSPT-75-4-5 504-0063 .750 (19.05) .590 (15.0) 1.113 (28.27) .250 (6.35) Black Matte

DDSPT-75-3-6mm 504-0064 .750 (19.05) .590 (15.0) 1.113 (28.27) .236 (6.0) Clear Mattte

DDSPT-75-4-6mm 504-0065 .750 (19.05) .590 (15.0) 1.113 (28.27) .250 (6.35) Black Matte

Diameter (A) B C Shaft Dia.

Features

• .500”, .750”, and .925” Dia. types

• Available in natural aluminum (clear) or black

• Available in matte or gloss finish

KILO HD Series

Knob - Machined Aluminum

K4

.200 (5.08)

.157 (4.0)

.750 (19.05)

Finish

.150 (3.81)

1.000 (25.4)

Indicator Line

ABC

4-40 Set Screw

BA

.285 (7.2)

Dimensions in inches (mm)

KILO No. NTE Part No.

HD-50-1-6 504-0045 .500 (12.7) .375 (9.3) .125 (3.2) .125 (3.2) Clear Gloss

HD-50-2-6 504-0046 .500 (12.7) .375 (9.3) .125 (3.2) .125 (3.2) Black Gloss

HD-50-4-5 504-0047 .500 (12.7) .375 (9.3) .125 (3.2) .250 (6.35) Black Matte

HD-50-4-6 504-0048 .500 (12.7) .375 (9.3) .125 (3.2) .125 (3.2) Black Matte

HD-75-2-5 504-0049 .750 (19.05) .590 (15.0) .187 (4.7) .250 (6.35) Black Gloss

HD-75-2-6 504-0050 .750 (19.05) .590 (15.0) .187 (4.7) .125 (3.2) Black Gloss

HD-75-4-5 504-0051 .750 (19.05) .590 (15.0) .187 (4.7) .250 (6.35) Black Matte

HD-90-1-5 504-0052 .925 (23.5) .708 (17.9) .250 (6.35) .250 (6.35) Clear Gloss

HD-90-2-5 504-0053 .925 (23.5) .708 (17.9) .250 (6.35) .250 (6.35) Black Gloss

HD-90-4-5 504-0054 .925 (23.5) .708 (17.9) .250 (6.35) .250 (6.35) Black Matte

Diameter (A) B C Shaft Dia.

Finish

C

.510 (12.9)

36
