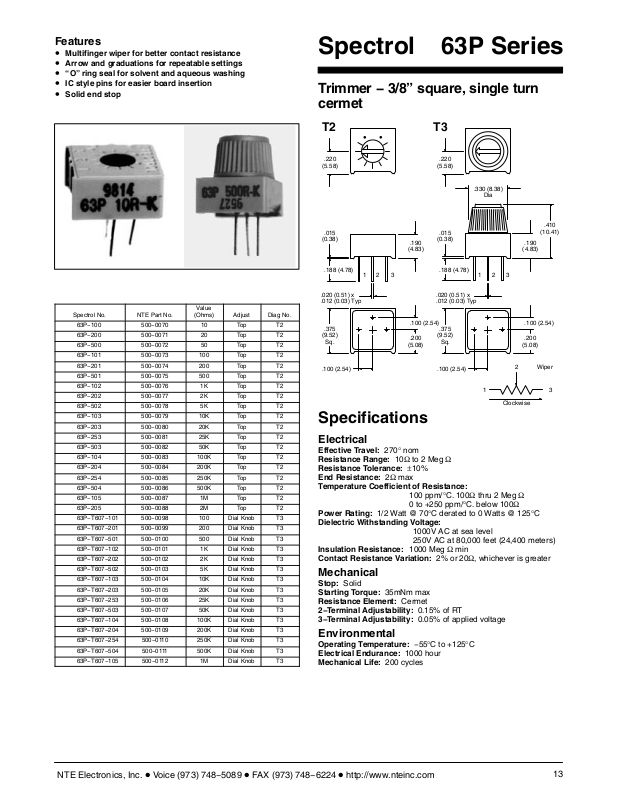

NTE Electronics 63P Series Catalog Page
Features
• Multifinger wiper for better contact resistance
• Arrow and graduations for repeatable settings
• “O” ring seal for solvent and aqueous washing
• IC style pins for easier board insertion
• Solid end stop
Spectrol 63P Series
Trimmer − 3/8” square, single turn
cermet
Spectrol No. NTE Part No.
63P−100 500−0070 10 Top T2
63P−200 500−0071 20 Top T2
63P−500 500−0072 50 Top T2
63P−101 500−0073 100 Top T2
63P−201 500−0074 200 Top T2
63P−501 500−0075 500 Top T2
63P−102 500−0076 1K Top T2
63P−202 500−0077 2K Top T2
63P−502 500−0078 5K Top T2
63P−103 500−0079 10K Top T2
63P−203 500−0080 20K Top T2
63P−253 500−0081 25K Top T2
63P−503 500−0082 50K Top T2
63P−104 500−0083 100K Top T2
63P−204 500−0084 200K Top T2
63P−254 500−0085 250K Top T2
63P−504 500−0086 500K Top T2
63P−105 500−0087 1M Top T2
63P−205 500−0088 2M Top T2
63P−T607−101 500−0098 100 Dial Knob T3
63P−T607−201 500−0099 200 Dial Knob T3
63P−T607−501 500−0100 500 Dial Knob T3
63P−T607−102 500−0101 1K Dial Knob T3
63P−T607−202 500−0102 2K Dial Knob T3
63P−T607−502 500−0103 5K Dial Knob T3
63P−T607−103 500−0104 10K Dial Knob T3
63P−T607−203 500−0105 20K Dial Knob T3
63P−T607−253 500−0106 25K Dial Knob T3
63P−T607−503 500−0107 50K Dial Knob T3
63P−T607−104 500−0108 100K Dial Knob T3
63P−T607−204 500−0109 200K Dial Knob T3
63P−T607−254 500−0110 250K Dial Knob T3
63P−T607−504 500−0111 500K Dial Knob T3
63P−T607−105 500−0112 1M Dial Knob T3
Value
(Ohms)
Adjust Diag No.
T2
.220
(5.58)
.015
(0.38)
123 123
.020 (0.51) x
.012 (0.03) Typ
.375
(9.52)
Sq.
.100 (2.54) .100 (2.54)
T3
.220
(5.58)
.330 (8.38)
Dia
2
.190
(4.83)
.200
(5.08)
(10.41)
Wiper
.015
(0.38)
.190
(4.83)
.188 (4.78).188 (4.78)
.020 (0.51) x
.012 (0.03) Typ
.100 (2.54) .100 (2.54)
.375
(9.52)
.200
(5.08)
Sq.
1
Clockwise
Specifications
Electrical
Effective Travel: 270° nom
Resistance Range: 10Ω to 2 Meg Ω
Resistance Tolerance: ±10%
End Resistance: 2Ω max
Temperature Coefficient of Resistance:
Power Rating: 1/2 Watt @ 70°C derated to 0 Watts @ 125°C
Dielectric Withstanding Voltage:
Insulation Resistance: 1000 Meg Ω min
Contact Resistance Variation: 2% or 20Ω, whichever is greater
Mechanical
Stop: Solid
Starting Torque: 35mNm max
Resistance Element: Cermet
2−Terminal Adjustability: 0.15% of RT
3−Terminal Adjustability: 0.05% of applied voltage
Environmental
Operating Temperature: −55°C to +125°C
Electrical Endurance: 1000 hour
Mechanical Life: 200 cycles
100 ppm/°C. 100Ω thru 2 Meg Ω
0 to +250 ppm/°C. below 100Ω
1000V AC at sea level
250V AC at 80,000 feet (24,400 meters)
.410
3
NTE Electronics, Inc. D Voice (973) 748−5089 D FAX (973) 748−6224 D http://www.nteinc.com
