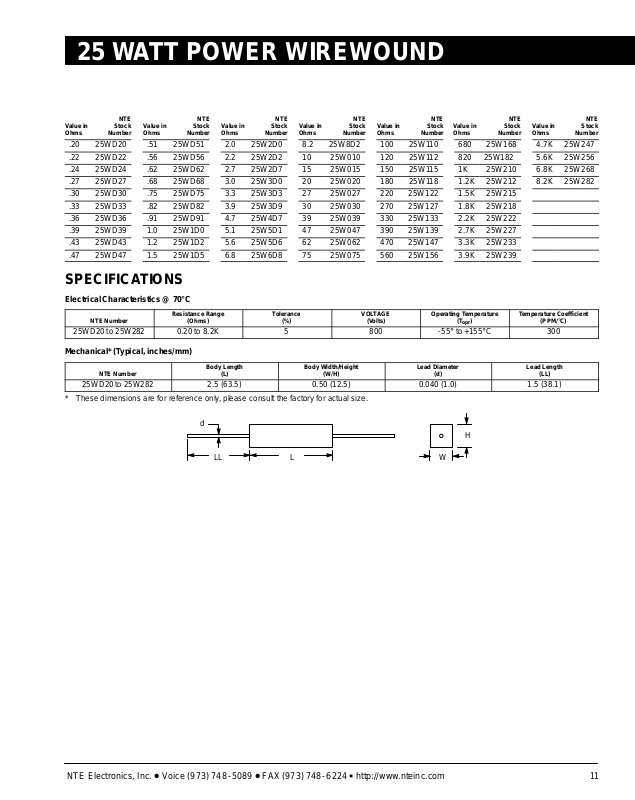

25 WATT POWER WIREWOUND

Value in Stock Value in Stock Value in Stock Value in Stock Value in Stock Value in Stock Value in Stock
Ohms Number Ohms Number Ohms Number Ohms Number Ohms Number Ohms Number Ohms Number

.20 25WD20
.22 25WD22
.24 25WD24
.27 25WD27
.30 25WD30
.33 25WD33
.36 25WD36
.39 25WD39
.43 25WD43
.47 25WD47

NTE NTE NTE NTE NTE NTE NTE

.51 25WD51
.56 25WD56
.62 25WD62
.68 25WD68
.75 25WD75
.82 25WD82
.91 25WD91

1.0 25W1D0

1.2 25W1D2

1.5 25W1D5

2.0 25W2D0

2.2 25W2D2

2.7 25W2D7

3.0 25W3D0

3.3 25W3D3

3.9 25W3D9

4.7 25W4D7

5.1 25W5D1

5.6 25W5D6

6.8 25W6D8

8.2 25W8D2
10 25W010
15 25W015
20 25W020
27 25W027
30 25W030
39 25W039
47 25W047
62 25W062
75 25W075

100 25W110
120 25W112
150 25W115
180 25W118
220 25W122
270 25W127
330 25W133
390 25W139
470 25W147
560 25W156

680 25W168
820 25W182
1K 25W210

1.2K 25W212

1.5K 25W215

1.8K 25W218

2.2K 25W222

2.7K 25W227

3.3K 25W233

3.9K 25W239

4.7K 25W247

5.6K 25W256

6.8K 25W268

8.2K 25W282

SPECIFICATIONS

Electrical Characteristics @ 70°C

NTE Number

Resistance Range

(Ohms)

25WD20 t o 25W282 0.20 to 8.2K 5 800 -55° to +155°C 300

Mechanical* (Typical, inches/mm)

NTE Number

Body Length

(L)

25WD20 t o 25W282 2.5 (63.5) 0.50 (12.5) 0.040 (1.0) 1.5 (38.1)

* These dimensions are for reference only, please consult the factory for actual size.

Tolerance

(%)

Body Width/Height

(W/H)

VOLTAGE

(Volts)

Operating Temperature

(T

Lead Diameter

(d)

opr

)

Temperature Coefficient

(PPM/°C)

Lead Length

(LL)

d

H

LLL

W
