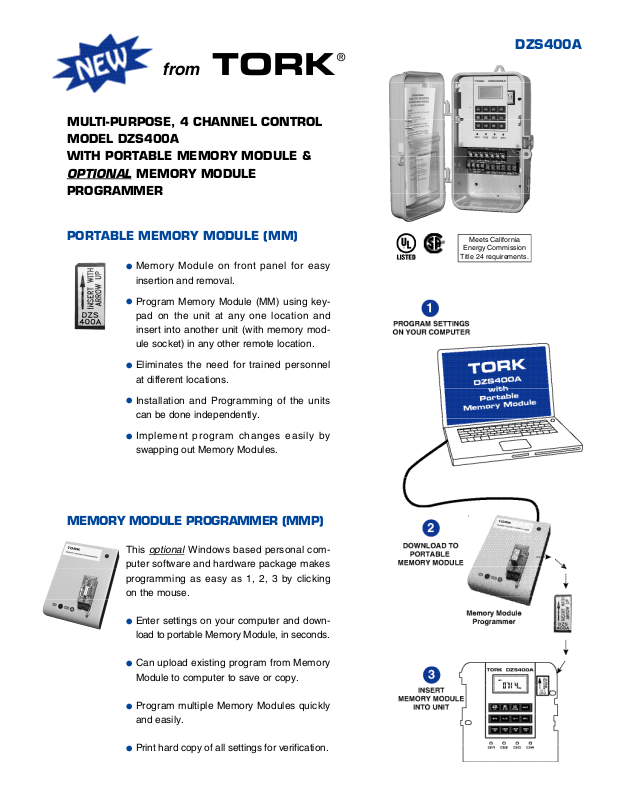

NSi Industries DZS400A User Manual
MULTI-PURPOSE, 4 CHANNEL CONTROL
MODEL DZS400A
WITH PORTABLE MEMORY MODULE &
OPTIONAL MEMORY MODULE
PROGRAMMER
PORTABLE MEMORY MODULE (MM)
•
Memory Module on front panel for easy
insertion and removal.
•
Program Memory Module (MM) using keypad on the unit at any one location and
insert into another unit (with memory module socket) in any other remote location.
•
Eliminates the need for trained personnel
at different locations.
•
Installation and Programming of the units
can be done independently.
•
Im plement program ch anges easi ly by
swapping out Memory Modules.
MEMORY MODULE PROGRAMMER (MMP)
This optional Windows based personal computer software and hardware package makes
programming as easy as 1, 2, 3 by clicking
on the mouse.
•
Enter settings on your computer and download to portable Memory Module, in seconds.
•
Can upload existing program from Memory
Module to computer to save or copy.
•
Program multiple Memory Modules quickly
and easily.
•
Print hard copy of all settings for verification.
Meets California
Energy Commission
Title 24 requirements.
DZS400A
from
TORK
®
TORK
1 Grove St., Mt. Vernon, NY 10550 • Tel: 914-664-3542 • Fax: 914-664-5052 • Internet: http://www.tork.com
MEMORY MODULE (MM) can be programmed at
any one location and inserted into another
DZS400A (with Memory Module socket) in any
other remote location.
OPTIONAL MEMORY MODULE PROGRAMMER – MMP
SPECIFICATIONS
Power Consumption: 6 VA Max.
Contact Ratings:
Type Voltage Rating
General
24-277 VAC, 30 VDC 10A
Purpose
Tungsten 120 VAC 360 watts
Pilot Duty 120-277 VAC 360 VA
Motor Load 120 VAC 1/4 HP
208-240 VAC 1/3 HP
Operating Temperature: -40° to +158°F (-40° to +70°C)
Enclosure:
Noryl®indoor/outdoor (NEMA 3R) is standard.
For metal indoor (add suffix Y to catalog #).
Other Mountings:
Metal indoor/outdoor (suffix O) - Model 9000A.
Flush with lock and key (suffix FLG) – Model 9011.
Bracket for panel mounting – consult factory.
SPECIFICATION WRITER’S GUIDE
1. Furnish and install where noted a 4 channel digital time switch with
portable memory module on front panel.
2. Memory module sha ll be capable of being programmed at any one
location and inserted into the new DZS400A (with memory module
socket) in any other remote location.
3. Opt io na l programme r shall be availa ble, Model MM P, capable of
accomplishing Windows based settings on a PC for easy duplication of
memory modules or individualized programs for multiple locations.
4. Controller shall program in AM/PM format.
5. Controller shall program in one minute resolution.
6. Display shall be of LCD type.
7. Controller shall be capable of 99 s et points; separate scheduling for
each day of the week.
8. Controller shall have 365 day holiday capabilities with 24 single dates
and 4 seasons of unlimited duration.
9. Different daily schedules shall be programmable within each season.
10. Controller shall have Daylight Saving or Standard time.
11. Controller shall have automatic Leap Year correction.
12. Schedules shall be retained for 40 years without pow er.
13. Controller shall have 30 day backup for real time using field replaceable
9V lithium battery.
14. Controller shall be capable of manual override ON or OFF to the next
scheduled event using 1 button for each channel.
15. Unit shall have NEMA Type 3 indoor/outdoor enclosure as standard.
16. Controller shall be capable of having 2 different pulse durations 1-99
seconds, user settable and assignable to each channel.
17. Controller shall be capable of having astronomic on one (or all) channels with 1-99 minutes, plus or minus offset from Sunrise or Sunset.
18. To order specify TORK Model DZS400A.
Clock Input - VAC Dry Contacts
Model 50/60 Hz (unpowered)
DZS400A 120 / (208 - 240) / 277* SPDT
ORDERING INFORMATION
Meets California
Energy Commission
Title 24 requirements.
PORTABLE MEMORY MODULE ON FRONT PANEL FOR EASY
INSERTION AND REMOVAL
* For 12VDC or 24VAC, consult factory.
For 208-240 V,
connect one o f
the line wires to
terminal N. Do
N O T bri ng any
neutral wire to
this terminal.
DZS400A
MULTI-PURPOSE, 4 CHANNEL WITH
PORTABLE MEMORY MODULE
365 Day Advance Single Holiday
and Seasonal Scheduling
Astronomic Option
WIRING DIAGRAMS
Windows based personal computer software & hardware
package makes programming the Memory Module as easy
as 1, 2, 3 by clicking on the mouse. The program can be
individualized or copied onto multiple memory modules for
use in different locations.
OPERATIONAL FEATURES
ON and OFF Set Points - 99 total per week
Astronomic -
1. Adjustable 10° - 60° Northern or Southern latitudes.
2. Each channel can be individually offset ±1-99 minutes
from both sunset and sunrise times.
Holidays - 1 to 24 individual dates
Seasons - 1 to 4 with different daily schedules which can
wrap around into the new year
Daylight Saving - Automatic adjustment (can be omitted)
Leap Year - Automatic compensation
Display - LCD
Manual Override - Until the next regularly scheduled ON or
OFF. Automatic operation then resumes.
Signal/Pulse Duration - 2 different settings per channel each 1-99 seconds.
Clock Format - AM/PM
Power Outage Backup - Permanent schedule retention for
upto 40 years. Snap-in lithium battery maintains real time.
