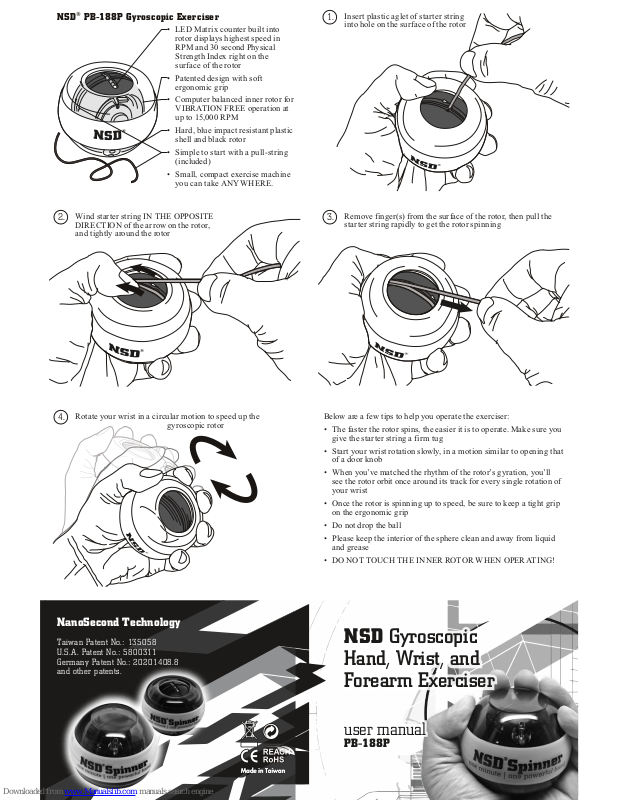

Page 1
Made in Taiwan
NSD® PB-188P Gyroscopic Exerciser
• LED Matrix counter built into
rotor displays highest speed in
RPM and 30 second Physical
Strength Index right on the
surface of the rotor
• Patented design with soft
ergonomic grip
• Computer balanced inner rotor for
VIBRATION FREE operation at
up to 15,000 RPM
• Hard, blue impact resistant plastic
shell and black rotor
• Simple to start with a pull-string
(included)
• Small, compact exercise machine
you can take ANYWHERE.
1.
Inser t plastic aglet of starter string
into hole on the surface of the rotor
2.
Wind starter string IN THE OPPOSITE
DIRECTION of the arrow on the rotor,
and tightly around the rotor
3.
Remove finger(s) from the surface of the rotor, then pull the
starter string rapidly to get the rotor spinning
4.
gyroscopic rotor
Rotate your wrist in a circular motion to speed up the
Below are a few tips to help you operate the exerciser:
• The faster the rotor spins, the easier it is to operate. Make sure you
give the starter string a firm tug
• Start your wrist rotation slowly, in a motion similar to opening that
of a door knob
• When you’ve matched the rhythm of the rotor’s gyration, you’ll
see the rotor orbit once around its track for ever y single rotation of
your wrist
• Once the rotor is spinning up t
o speed, be sure to keep a tight grip
on the ergonomic grip
• Do not drop the ball
• Please keep the interior of the sphere clean and away from liquid
and grease
• DO NOT TOUCH THE INNER ROTOR WHEN OPERATING!
NSD Gyroscopic
Hand, Wrist, and
Forearm Exerciser
user manual
PB-188P
NSD Gyroscopic
Hand, Wrist, and
Forearm Exerciser
user manual
PB-188P
NanoSecond Technology
Taiwan Patent No.: 135058
U.S.A. Patent No.: 5800311
Germany Pate nt No.: 20201408.8
and other patents.
Page 2
NSD® LED Matrix Display Counter
Highest RPM per Session
When the speed of the rotor exceed 6,000 R PM, the internal
speedometer will start recording the top speed of the session and
the red LEDs will go from a sweeping pattern to a flashing patter n.
The higher the RPM achieved, the more “rows” of LED will be lit.
Stop moving your wrist and let the rotor slow down naturally, and
your top speed, or highest RPM of current session, will display on
the rotor surface once the last row of red LEDs turn off.
The score
will display twice, one digit at a time on the rotor
surface, following an up “arrow.” Once speed of the rotor falls
below 2,500 RPM the score will reset for the session.
Physical Strength Index (30 seconds)
NSD Patents
If the rotor speed is kept between 2,500 RPM and 6,000 RPM for 18
seconds, the blue LED will light up to indicate the speedometer is
now in “Physical Strength Index” mode. The red LED will continue
in a sweeping pattern until the speed of the rotor exceed 6,000
RPM.
When the rotor exceeds 6,000 R
PM, the blue LED will change to a
flashing pattern and a 30 second countdown will start, as the red
LEDs glow solid. The faster the gyroscope is spinning, the more
rows of red LEDs will glow. At the end of the 30 second interval,
the blue LED will glow solid, and the numbers of revolutions
achieved in the 30 second interval will display on the rotor,
following the Physical Strength Index icon ( ) of a f lexing arm,
after the last row of red LED turns off.
NanoSecond Technology owns multiple patents in countries as
listed.
We will aggressively pursue and protect our intellectual property
rights.
Austral ia
No. 2004100675
No. 2008100053
No. 2007100698
No. 2005100371
No. 2006100976
No. 2007100698
France
No. 2873301
No. 2897271
No. 2909890
No. 2897270
No. 2912924
No. 2904230
Germany
Nr.20215476.9
Nr.20212121.6
Nr.202005017793.8
Nr.20311474.4
Nr.20320189.2
Nr.202006014737.3
Nr.20319784.4
Nr.202004017469.3
Nr.202007010179.1
Nr.20201408.8
Nr.202004016651.8
China
No. 02253289.7
No. 0228530
7.3
No. 200520027599.4
No. 3258043.6
No. 200320112335.X
No. 200520130995.X
No. 200320112334.5
No. 200320112356.1
No. 200620027443.0
No. 02233006.2
No. 200420029473.6
The PB-188P gyroscopic exerciser uses advanced microchip
technology in combination with an LED matrix and a built-in
counter to display infor mation about your workout, including a top
speed counter and a 30 second interval physical strength index.
The matrix display consists of a row of 7 LEDs controlled by an
internal chip powered by your exercise energy, and will light in a
precise sequence to display the result of your workout right on the
rotor surface.
LED Display Matrix
Highest R PM in session
30 second interval physical
strength index
Red LEDs
Sweeping LEDs indicate
speedometer is counting
Flashing rows of LEDs
indicate top speed achieved
Blue LED
Solid row of LED indicate
counter is in physical
strength index mode
Japan
No.3146882
No.3118250
No.3127440
No.3106852
No.3127943
Korea
No.373474
No.405233
No.433558
Netherlands
No.1027458
No.1030116
No.1033500
No.1026674
No.1033359
No.1033367
No.1030115
Russia
No.71795
South Africa
No.2007/ 06366
Taiwan
No. 135058
No. M 240246
No. M 289072
No. 143917
No. M 240250
No. M 294341
No. 192202
No. M 240251
No. M 308777
No. 210444
No. M 242242
No. M 350393
No. M 244112
No. M 259618
USA
No.7,033,304
No.7,101,315
No.7,318,790
No.7,086,990
No.7,452,307
No.7,381,115
No.
6,623,405
No.7,077,786
No.5,800,311
No.6,942,601
COPYRIGHT 2013 NANO-SECOND TECHNOLOGY CO., LTD
