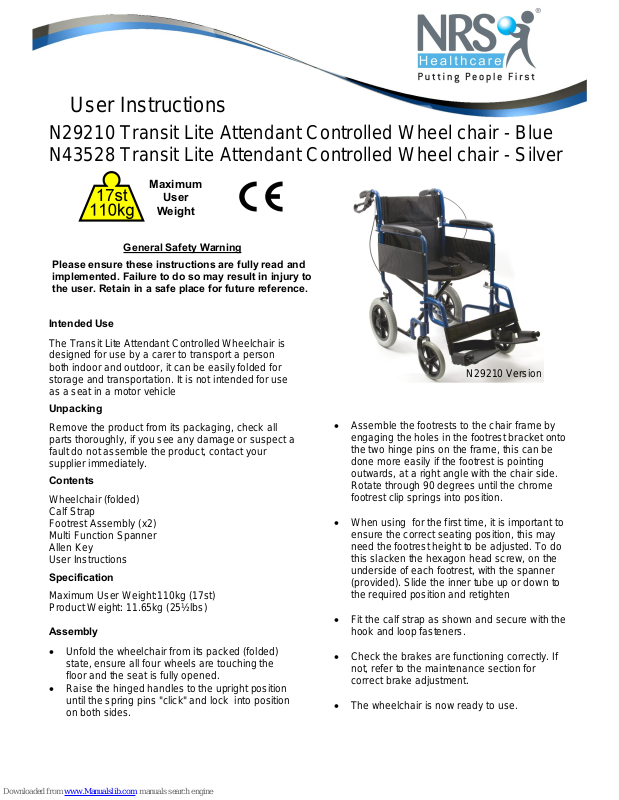

NRS N29210, N43528 User Instructions

Intend

ed Use

The Transit Lite Attendant Controlled Wheelchair is
designed for use by a carer to transport a person
both indoor and outdoor, it can be easily folded for
storage and transportation. It is not intended for use
as a seat in a motor vehicle

Unpacking

Remove the product from its packaging, check all
parts thoroughly, if you see any damage or suspect a
fault do not assemble the product, contact your
supplier immediately.

Contents

Wheelchair (folded)
Calf Strap
Footrest Assembly (x2)
Multi Function Spanner
Allen Key
User Instructions

Specification

Maximum User Weight:110kg (17st)
Product Weight: 11.65kg (25½lbs)

Assembly

· Unfold the wheelchair from its packed (folded)
state, ensure all four wheels are touching the
floor and the seat is fully opened.

· Raise the hinged handles to the upright position
until the spring pins "click" and lock into position
on both sides.

N29210 Transit Lite Attendant Controlled Wheel chair - Blue

N43528

Transit Lite Attendant Controlled Wh

eel chair

-

Silver

Maximum

User

Weight

User Instructions

·

Assemble the footrests to the chair frame by

engaging the holes in the footrest bracket onto
the two hinge pins on the frame, this can be
done more easily if the footrest is pointing
outwards, at a right angle with the chair side.
Rotate through 90 degrees until the chrome
footrest clip springs into position.

· When using for the first time, it is important to
ensure the correct seating position, this may
need the footrest height to be adjusted. To do
this slacken the hexagon head screw, on the
underside of each footrest, with the spanner
(provided). Slide the inner tube up or down to
the required position and retighten

· Fit the calf strap as shown and secure with the
hook and loop fasteners.

· Check the brakes are functioning correctly. If
not, refer to the maintenance section for
correct brake adjustment.

· The wheelchair is now ready to use.

General Safety Warning

Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury to
the user. Retain in a safe place for future reference.

N29210 Version

Safety Precautions

· This Wheel chair is designed for single
occupancy only, with a maximum user weight
of 110kg (17st) - do not use it to transport
more than one person

· Do not exceed the maximum user weight.

· This wheelchair is designed for both indoor

and outdoor use, however special care should
be taken in certain environmental conditions.

· Outdoor: Steep gradients should be avoided,
where possible

· If attempting gradients, or using a ramp it is
important to be sure of your own capabilities,
NRS recommend that you consult a
Healthcare Professional for advice before use.

· Always maintain a constant slow speed on
gradients.

· Do not reverse down a gradient.

· Avoid rugged/uneven terrain.

· Indoor: Be aware of local hazards, for

example, obstructions on the floor, narrow
doorways high thresholds etc.

· Do not use on escalators.

· Before transferring into or out of the

wheelchair ensure the brakes are in the
locked position.

· Do not stand on the footplates.

· When seated in the wheelchair ensure you are

comfortable and your centre of gravity is in the
centre of the seat.

Diag.3A
Slowing

Diag.3B
Parking
Brake

Folding the wheelchair

· Ensure footrests are facing forward and
footplates are in the upright position, then
simply pull up the two handles on either side
of the seat, see picture above, the wheelchair
can be carried using these handles.

· For transportation and storage it is
recommended that the footrests are removed
& the handles are folded down.

· Remove the Calf Strap by pulling apart the
hook and loop fasteners

· Footrest removal: pull the chrome footrest clip
towards the centre of the wheelchair and lift
the footrest off the locating pins.

· Handle folding: Pull the two plastic handle
clips backwards and fold the handles

Brake operation

· To apply the parking brakes, push down both
handles until they lock, see diagram 3B, The
brakes will click and remain in the locked
position until released.

· It is important that both brakes are in the
parking (locked) position when they are used.

· Lift up both handles to release the parking
brakes.

· When using the brakes to slow down, pull up
both of the loop handles. See diagram 3A

· If you apply the parking brake, or pull up the
brake to stop whilst moving, and the rear
wheels still move, stop use immediately. Do
not use again until the brakes have been
checked and correctly adjusted. Refer to the
maintenance section.

Stepper

Tube

Lap Strap

Footrest

Clip

Folding Handle

Brake

Loop

Hand Grip

Brake

Back Rest

Calf

Strap

Arm

Rest

Foot

Rest

Side

Panel

Handle

Clip

Safety Precautions

- continued:

· Take care when performing tasks which move
your centre of gravity. Never reach so far that
it requires you to shift in the seat or bend
forward over the front wheels. If you do need
to reach forward always ensure the front
wheels are facing outwards and are locked
before attempting any manoeuvre, this will
increase the wheels footprint.

· Users feet must always be on the footplates
when the wheelchair is moving.

· Take care when ascending or descending a
kerb. When mounting a kerb, approach
forward facing, the attendant should then use
the stepper tubes, located behind the rear
axles, to raise the front wheels onto the raised
kerb, then roll the rear wheels up the kerb
lifting as required.

· When descending a kerb the front wheels
should be lined up parallel with the front edge
of the kerb, then using the stepper tubes the
attendant raises the front wheels slightly to the
balancing point of the chair and then gently
lower the rear wheels over and down the kerb.

· Do not raise the front wheels by using the
handles only - Always use the stepper tubes.

· If you need to stop on an incline apply both
brakes gently, avoid sudden movements,
similarly when starting avoid sudden
movements as both of these situations could
cause instability because of the backward
angle of the chair.

· Apply brakes evenly as any movement
sideways could cause instability.

· Avoid changing direction on a slope as this will
increase the risk of the wheelchair tipping.

· Do not use as seat in a motorised vehicle

· If you are unsure about any of the safety

precautions highlighted we would recommend
seeking advice from a Healthcare
professional.

Cleaning Instructions

· Clean all parts regularly, wipe down with water
and mild cleanser using a soft, non abrasive
cloth.

· Dry with a soft, clean, non abrasive cloth.

·

Ensure there is no build up of dirt or debris

around the axle, brakes and wheels.

· Do not use cleaning agents containing phenol or
chlorine, as this may damage the product
surfaces.

· Lubricate with 3-in-l oil periodically or if wheels
begin to squeak.

Maintenance

· Note all tyres on this wheelchair are solid and do
not need inflating

· Regularly check for wear and tear and that all
screws and fixings are securely fastened.

· Worn upholstery must be replaced

· Check brakes are working satisfactorily, both for

slowing and by braking to a stop.

· Check the parking brakes by pushing the
handles down into the locked position and then
trying to push the wheelchair.

· If the brakes do not completely lock the wheels
the brakes need to be adjusted.

· For correct adjustment, the brake mechanism,
when not in use, should not touch the wheel, but
the gap should be no greater than 3mm

· To tighten the brake (reduce the gap between
brake and wheel) rotate the adjusting nut
clockwise See Diagram 4

· Caution: After making any adjustments to the
brakes, you must test them before the
wheelchair is used.

· If adjustment does not tighten the brakes, do not
use the wheelchair Contact your dealer or NRS
Customer services

Diagram 4

ADJUSTING

NUT

NRS Healthcare

Sherwood House, Cartwright Way,
Forest Business Park, Bardon Hill,
Coalville, Leicestershire,
LE67 1UB,
United Kingdom.
Tel. Head Office: 0330 100 0098
Tel. Customer Services: 0845 121 8111
Email: [e-mail]

www.nrshealthcare.co.uk

UI/N29210

/

N43528

/0615/Iss2

Warranty

The NRS Transit Lite Attendant Controlled Wheelchair is warranted to be free of defects in
materials and workmanship for one year from the date of purchase. If there is a defect
covered by this warranty, we will, at our option supply parts or replace the product.
This warranty does not cover product failure due to owner misuse, negligence or normal
wear and tear.
If you have any queries or require full warranty conditions, please contact NRS Healthcare
Customer Service; details below.

IMPORTANT

For information on how to obtain the User Instructions in other languages and formats for
use by people with visual, reading or cognitive impairments, please contact:
[e-mail] or telephone:[phone]
Additional copies of this user instruction are available on our website:
www.nrshealthcare.co.uk
