NRGence eco PDU PE, PE7216, PE7324, PE9216, PE8324 User Manual

...

Download

eco PDU PE Series

PE7216 / PE7324 / PE8121kJ / PE8216 / PE8324 / PE9216 /

PE9324 / PE7328 / PE9330

Power Distribution Unit

User Manual

www.aten.com

eco PDU PE Series User Manual

FCC Information

This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

NOTE: The KJ and J model series do not meet or qualify for FCC or CE certification, as they are produced for countries outside the FCC’s jurisdiction.

RoHS

This product is RoHS compliant.

SJ/T 11364-2006

The following contains information that relates to China.

eco PDU PE Series User Manual

 Set the maximum permissible breaker protection in the building circuitry to the

current rating specified on the rating plate. Observe all national regulations and safety codes as well as deviations for breakers.

 Only connect the PE Device to a grounded power outlet or a grounded system!  Make sure that the total current input of the connected systems does not exceed

the current rating specified on the rating plate of the PE Device.

 There is a risk of explosion if the battery is replaced with an incorrect type.

Dispose of used batteries according to the relevant instructions.

User Information

Online Registration

Be sure to register your product at our online support center:

International http://eservice.aten.com

Telephone Support

For telephone support, call this number:

International 886-2-8692-6959

China 86-10-5255-0110

Japan 81-3-5615-5811

Korea 82-2-467-6789

North America 1-888-999-ATEN ext 4988

United Kingdom 44-8-4481-58923

User Notice

All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the manufacturer's software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any defect in the software.

The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized modifications to this device. It is the responsibility of the user to correct such interference.

The manufacturer is not responsible for any damage incurred in the operation of this system if the correct operational voltage setting was not selected prior to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT BEFORE USE.

PE Device Safety Notice

iii

eco PDU PE Series User Manual

Manual Date: 2013-05-15

All other brand names and trademarks are the registered property of their respective owners.

Package Contents

The eco PDU PE Series package consists of:

1 PE7216 / PE7324 or PE8121kJ / PE8216 / PE8324 or PE9216 / PE9324 or PE7328 / PE9330 Power Distribution Unit

1 Power Cord (16-port and 21-port models only)

1 Mounting Kit

1CD-ROM

1 User Instructions

Check to make sure that all of the components are present and in good order. If anything is missing, or was damaged in shipping, contact your dealer.

Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the switch or to any other devices on the eco PDU installation.

* Features may have been added to the eco PDU since this manual was

published. Please visit our website to download the most up-to-date version.

eco PDU PE Series User Manual

Contents

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

SJ/T 11364-2006. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

PE Device Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii

Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Chapter 1.

Introduction

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Comparison Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Power Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Remote Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

eco Sensors Energy Management Software* . . . . . . . . . . . . . . . . . . .6

Proactive Overload Protection (POP) . . . . . . . . . . . . . . . . . . . . . . . . . .6

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Environment Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Door Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Cable Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

PE7216 / PE8216 / PE9216 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

PE8121kJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PE7324 / PE8324 / PE9324 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

PE7328 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

PE9330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Port and LED Panel (All models) . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Chapter 2.

Hardware Setup

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

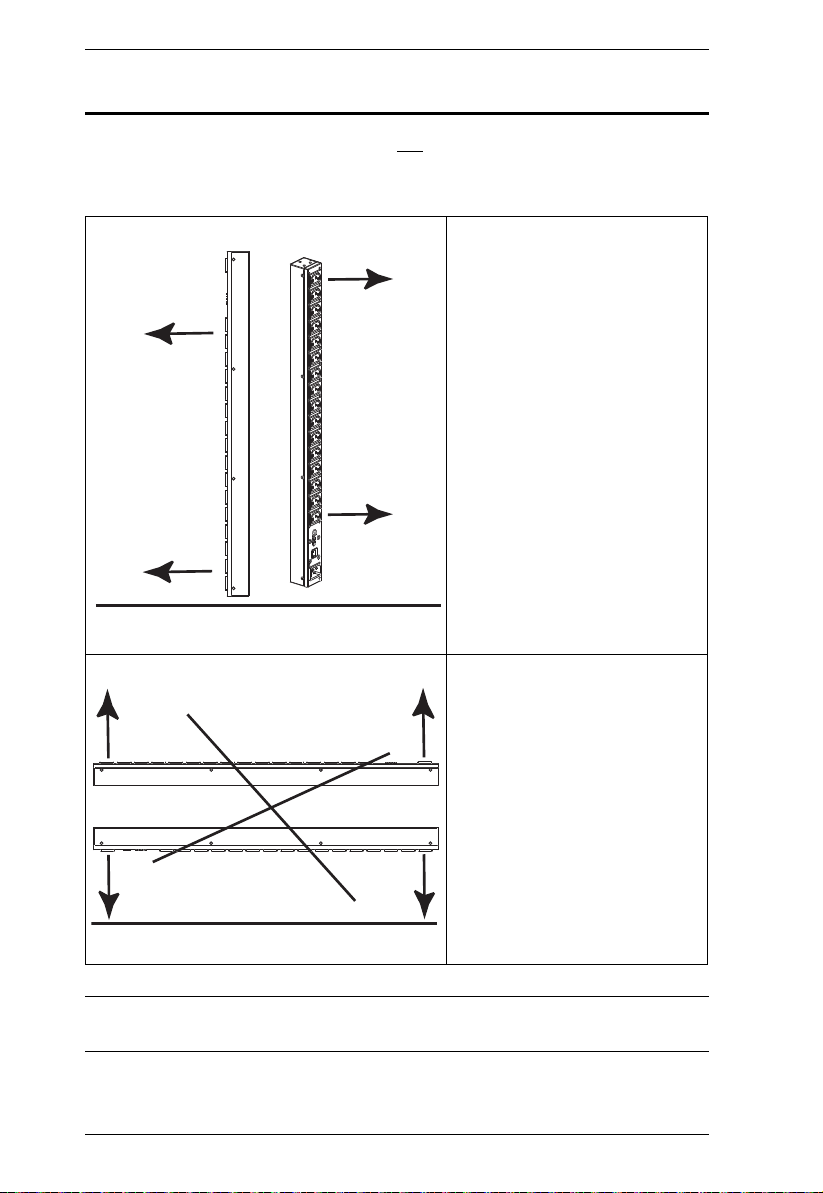

PDU Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Securing the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

eco PDU PE Series User Manual

Securing the Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chapter 3.

Basic Operation and First Time Setup

Operation Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

eco Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

First Time Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Changing the Administrator Login . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Moving On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Chapter 4.

Logging In

Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

The eco PDU Main Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Page Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Chapter 5.

Energy

Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Chapter 6.

User Management

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Administrator Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Chapter 7.

Log

Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

The System Log Event List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Chapter 8.

Setup

Device Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Device Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Date/Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Working Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Account Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

eco PDU PE Series User Manual

Authentication & Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Private Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Chapter 9.

PDU

PDU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Firmware File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Appendix

Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

The eco PDU’s Main Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Securing the Power Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

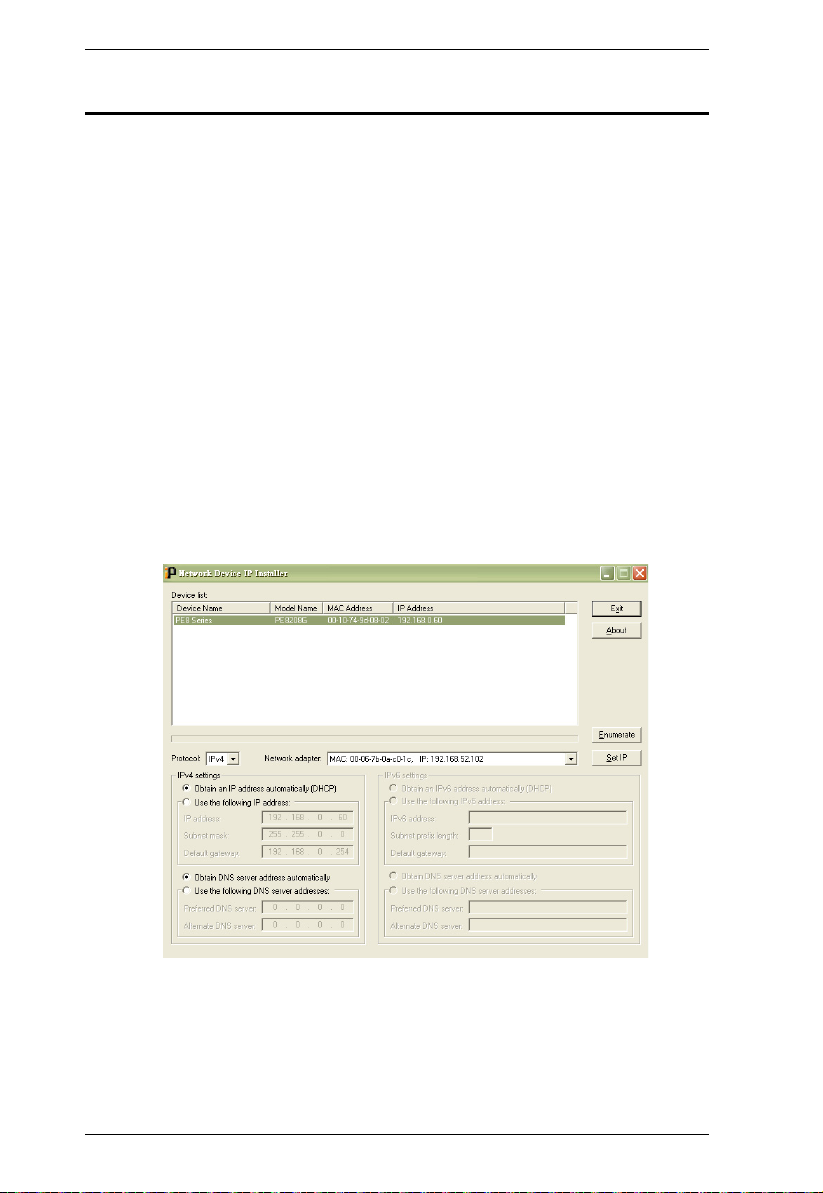

IP Address Determination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Basic Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

PE7216B / PE8216B / PE9216B . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

PE7216G / PE8216G / PE9216G . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

PE8121kJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

PE7324B/J / PE8324B/J / PE9324B/J . . . . . . . . . . . . . . . . . . . . . . . .77

PE7324G / PE8324G / PE9324G . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

PE7328B/J / PE7328G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

PE9330B/J / PE9330G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Administrator Login Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

vii

eco PDU PE Series User Manual

Conventions

This manual uses the following conventions:

Monospaced Indicates text that you should key in.

[ ] Indicates keys you should press. For example, [Enter] means

to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].

1. Numbered lists represent procedures with sequential steps.

♦ Bullet lists provide information, but do not involve sequential

steps.

→ Indicates selecting the option (on a menu or dialog box, for

example), that comes next. For example, Start means to open the Start menu, and then select Run.

Indicates critical information.

→ Run

viii

eco PDU PE Series User Manual

Product Information

For information about all NRGence products and how they can help you save money in the data center, visit NRGence on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers

 International – http://www.aten.com  North America – http://www.aten-usa.com

Chapter 1

Introduction

Overview

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE7216 / PE7324 / PE8121kJ / PE8216 / PE8324 / PE9216 / PE9324 / PE7328 / PE9330 eco PDUs are intelligent PDUs that contain 16, 21, 24, 28, or 30 AC outlets and are available in various IEC socket configurations. Models in the advanced PE9 range feature a dedicated 8/14-outlet bank for critical load devices, and both the PE8 and PE9 ranges feature NRGence’s proactive overload protection, which automatically powers off the last outlet that caused the current overload.

NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*. The basic characteristics of each model are shown in the table on page 3.

NRGence eco PDUs offer remote power control combined with real-time power measurement – allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection*.

The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.

Installation and operation is fast and easy: plugging cables into their appropriate ports and user-friendly browser-based configuration and management is all that is entailed. Since the eco PDU firmware is upgradeable over the Net, you can stay current with the latest functionality improvements simply by downloading updates from our website as they become available.

NRGence eco PDU supports any 3rd party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

Chapter 1. Introduction

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

Note: 1. Sensors are optional accessories. A sensor-enabled installation is

required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data. See Optional Accessories, page 8, for further information.

2. eco PDUs are primarily designed for access via Intranet; extra network security protection is suggested for Internet access usage.

3. Not all models support all features. See Comparison Chart, page 3, and Specifications, page 73, for full details.

eco PDU PE Series User Manual

Comparison Chart

Model Inlet / Cord Outlets

PE7216B NEMA 6-20P 16 14 x IEC 320 C13 +

PE8216B Yes 16/16

2 x IEC 320 C19

Metering

Level

PDU / 1 x Bank / Outlet

Outlet

Switching

PE9216B Yes 8/16

PE7216G IEC 60320 C20 No

PE8216G Yes 16/16

PE9216G Yes 8/16

PE8121kJ NEMA L6-15P 21 21 x IEC 320 C13 with

lock

PDU / 1 x Bank /

Yes 21/21

Outlet

PE7324B / J NEMA L6-30P 24 21 x IEC 320 C13 +

PE8324B / J Yes 24/24

3 x IEC 320 C19

PDU / 2 x Bank / Outlet

PE9324B / J Yes 16/24

PE7324G IEC 60309 32A No

PE8324G Yes 24/24

PE9324G Yes 16/24

PE7328B / J NEMA L6-30P 28 24 x IEC 60320 C13 +

PE7328G IEC 60309 32A

4 x IEC 60320 C19

PE9330B / J NEMA L6-30P 30 26 x IEC 60320 C13 +

PE9330G IEC 60309 32A

4 x IEC 60320 C19

PDU / 2 x Bank / Outlet

Yes 16/30

Note: For the complete specifications of individual models, including bank-

by-bank outlet details, please reference Specifications, page 73.

Chapter 1. Introduction

Features

Power Distribution

 Space saving 0U rack mount design with rear mounting  Various IEC outlet models  2 digit 7-segment front panel LED shows PDU/Phase / Bank / Outlet ID  3 digit 7-segment front panel LED shows Current / Voltage / Power

Dissipation, IP address, and readings from up to 4 environment sensors

 Safe shutdown support  Separate power for the unit's own power and its power outlets – the user

interface is still accessible even when an overload condition trips the devices' circuit breaker

 Dedicated 8/14-outlet bank for critical load devices (PE9 models only:

PE9216/PE9324 8 outlets; PE9330 14 outlets) – always powered on

 Proactive overload protection (POP) (PE8 / PE9 models only) –

automatically powers off the last outlet that caused the current overload (see Proactive Overload Protection (POP), page 6)

Remote Access

 Remote power control via TCP/IP and a built in 10/100 Ethernet port  Network Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP,

NTP, DNS, auto sense, Ping

 Remote users can monitor outlet status via web pages on their browsers  eco PDU Power Management software – eco Sensors  Supports SNMP Manager V3

Operation

 Local and Remote power outlet control (On, Off, Power Cycle) by

individual outlets (PE8 / PE9 models)

 Supports multiple power control methods – Wake on LAN, System after

AC Back, Kill the Power

 Power-on sequencing – set the power on sequence and delay time for each

outlet to allow equipment to be powered on in the correct order

 Easy setup and operation via a browser-based user interface  Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera,

Netscape)

eco PDU PE Series User Manual

 RTC support to keep the timer running during times of no power  Up to 8 user accounts and 1 administrator account

Management

 Power metering and monitoring at the PDU / Bank / Outlet level  LED indicators for current, voltage, power dissipation at the PDU / Bank /

Outlet levels

 Real-time aggregate current, voltage, and power and power dissipation

displayed in a browser-based UI for monitoring at the PDU, bank and outlet level (16-port and 21-port models offer 1 bank metering; 24-port, 28-port, and 30-port models offer 2 bank metering)

 Alert notification for selected events (On, Off, Recycle, Failure, exceeding

threshold settings, etc.), via blinking LEDs (locally), SMTP, SNMP trap notification

 Supports Management Information Base (MIB) files for SNMP  Environment monitoring – supports external temperature / humidity /

differential pressure sensors for rack environment monitoring

 Door Sensor support – allows the monitoring of rackmount enclosure door

access to notify users when a door has been opened.

 Current and voltage threshold setting  Naming support for outlets  User outlet access assignment on an outlet-by-outlet basis  Event logging and syslog support  Upgradeable firmware  Multilanguage support – English, Traditional Chinese, Simplified

Chinese, Japanese, German, Italian, Spanish, French, Russian, Korean, Portuguese

Security

 Two-level password security  Strong security features include strong password protection and advanced

encryption technologies – 128 bit SSL

 Remote authentication support: RADIUS

Chapter 1. Introduction

eco Sensors Energy Management Software*

 Automatic discovery of all PE devices within the same intranet  Remote real-time power measurement and monitoring  Real-time environment sensor monitoring  Plotting/monitoring of all PE devices  Exceed threshold alert through SMTP and System log  Power Analysis report

Note: eco Sensors is designed to work with NRGence PDUs, and is bundled

with all PE series packages.

Proactive Overload Protection (POP)

The PE8121kJ, PE8216, PE9216, PE8324, PE9324, and PE9330 models feature NRGence’s exclusive Proactive Overload Protection (POP) technology. Effective on all non-critical outlets, this added safety feature automatically powers off the last outlet that caused the current overload.

POP mode is engaged when the current exceeds the set threshold maximum value, powering off the outlet. The LED display shows POP and a beeper sounds. Press any button for two seconds to clear POP mode and power the outlet back on.

eco PDU PE Series User Manual

Requirements

 Browsers accessing the eco PDU unit must support SSL 128 bit

encryption.

 For cold booting of attached computers, the computer's BIOS must

support Wake on LAN or System after AC Back.

 For Safe Shutdown:

 The computer must be running Windows (Windows 2000 or higher) or

Linux.

 The Safe Shutdown program (available by download from our website

or on the software CD included), must be installed and running on the computer.

Chapter 1. Introduction

Optional Accessories

Environment Sensors

For complete energy management of an instrumented data center with the use of the eco PDU and eco Sensors software, you should install 4 sensors for each of the racks in your data center in order to generate a complete energy-efficient data chart. Higher sensor installation density is helpful to generate more accurate data. 8/16-port models have 4 sensor ports. Higher sensor installation density is helpful to generate more accurate data.

To get the most complete eco Sensors Dashboard data, the recommended 4sensor setup is show in the table, below:

Port Location Part Number Sensor

Sensor 1 Intake EA1140 or

Sensor 2 Intake

Sensor 3 Exhaust

Sensor 4 Exhaust

or Floor EA1340 Differential Pressure

EA1240

Temperature or Temperature / Humidity

Door Sensor

All models in the PE7xxx/PE8xxx/PE9xxx range feature a 4-pin dry contact port for door sensors that supports the monitoring of rackmount enclosure door access to notify users when a door has been opened.

See the table below for information about the two available door sensors. Please contact your ATEN dealer for purchasing information:

Port Part Number Sensor

Door Sensor EA1440 Photo Sensor

EA1441 Inductive Proximity Sensor

Sensor Management

Sensors can be managed via the eco PDU’s built-in graphical user interface (GUI) or with the NRGence eco Sensors software that can be downloaded from the ATEN website. The download link can be found on the software CD provided with the eco PDU package.

eco PDU PE Series User Manual

Cable Holders

Cable holders are optional accessories. For added safety, use ATEN Lok-UPlug cable holders to secure the cables from your attached devices in place on the eco PDU unit. Use only the ATEN Lok-U-Plug cable holders that have been specifically designed to work with the eco PDU. Using any other kind of cable securing device could be highly dangerous.

Part Number Description

2X-EA07 Lok-U-Plug Cable Holder (10 pcs)

2X-EA08 Lok-U-Plug Installation Tool (4 pcs)

Components

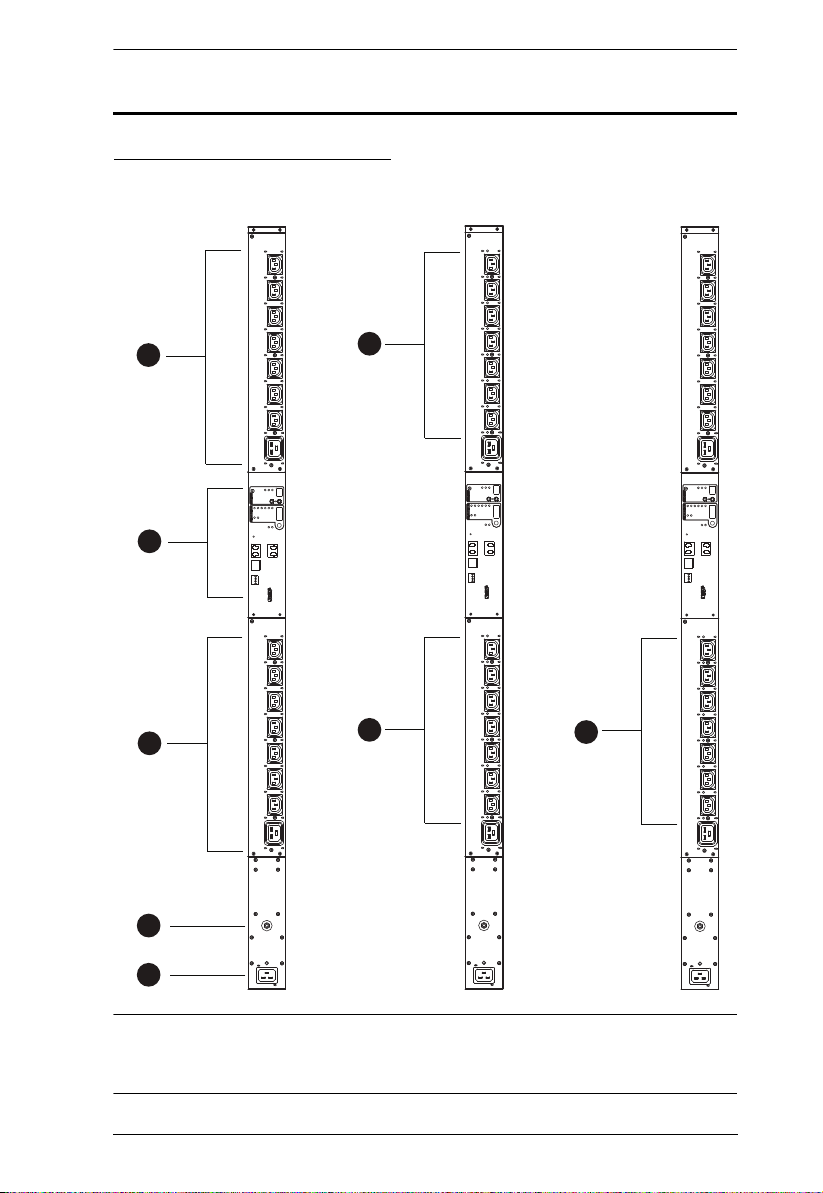

PE7216

PE8216

PE9216

PE7216 / PE8216 / PE9216

Chapter 1. Introduction

Note: The PE7216 / PE8216 / PE9216 unit components are identical except

for the outlet LEDs – the PE7216 has none; the PE8216 has 16; and the PE9216 has 8, as shown by number 9 above.

eco PDU PE Series User Manual

No. Item Description

1 Power Outlets* 16 in total (14 x IEC 320 C13 + 2 x IEC 320 C19)

Bank 1-1: Outlet 1–8: 7 C13; 1 x C19 Bank 1-2: Outlet 9–16: 7 x C13; 1 x C19

2 Port and LED Panel The Port and LED panel contains:

 Readout Section and LEDs  Environmental Sensor Ports  LAN Port  Door Sensor Port  Reset Switch

Full details of this section are provided on page 16.

3 Circuit Breaker

Pushbutton

4 Power Inlet The power cord that connects the unit to an AC

As a safety measure, if there is an overcurrent situation regarding the device’s power, the circuit breakers will trip. Press the button to recover normal operation.

power source plugs into this socket.

 B models connect to a NEMA 6-20P source  G models connect to an IEC 60320 C20 source

5 Outlet Status LEDs PE8216 (x 16) and PE9216 (x 8) only.

These LEDs indicate outlet status. Lights ORANGE for powered on. Off for powered off.

Note: Holes for ATEN Lok-U-Plug cable holders are located around the

outlets. See Securing the Cables, page 26, for further information.

PE8121kJ

Chapter 1. Introduction

eco PDU PE Series User Manual

No. Item Description

1 Power Outlets* 21 in total (21 x IEC 320 C13)

Bank 1-1: Outlet 1–7 Bank 1-2: Outlet 8–14 Bank 1-3: Outlet 15-21

2 Port and LED Panel The Port and LED panel contains:

 Readout Section and LEDs  Sensor Ports  LAN Port  Door Sensor Port  Reset Switch

Full details of this section are provided on page 16.

3 Circuit Breaker

Pushbutton

4 Power Inlet The power cord that connects the unit to an AC

5 Outlet Status LEDs These 21 LEDs indicate outlet status.

As a safety measure, if there is an over current situation regarding the device’s power, the circuit breakers will trip. Press the button to recover normal operation.

power (NEMA L6-15P) source plugs into this socket.

Lights ORANGE for powered on. Off for powered off.

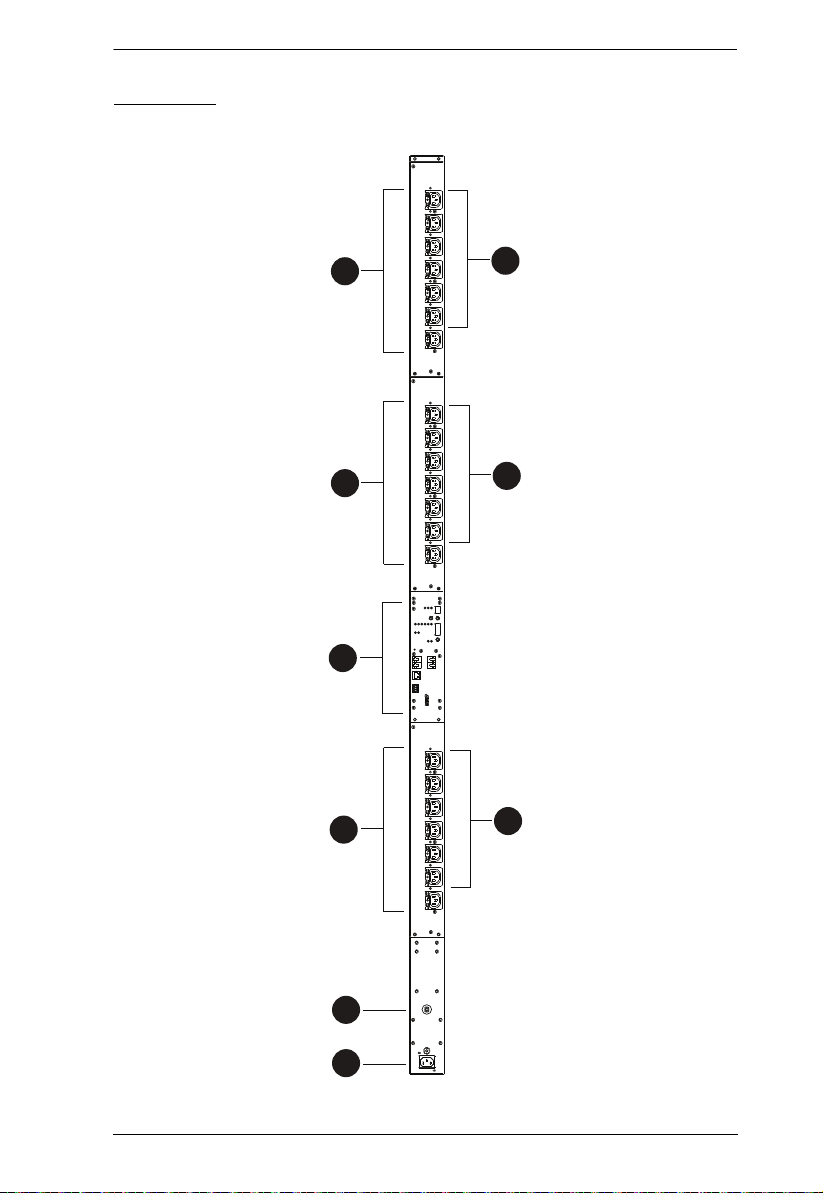

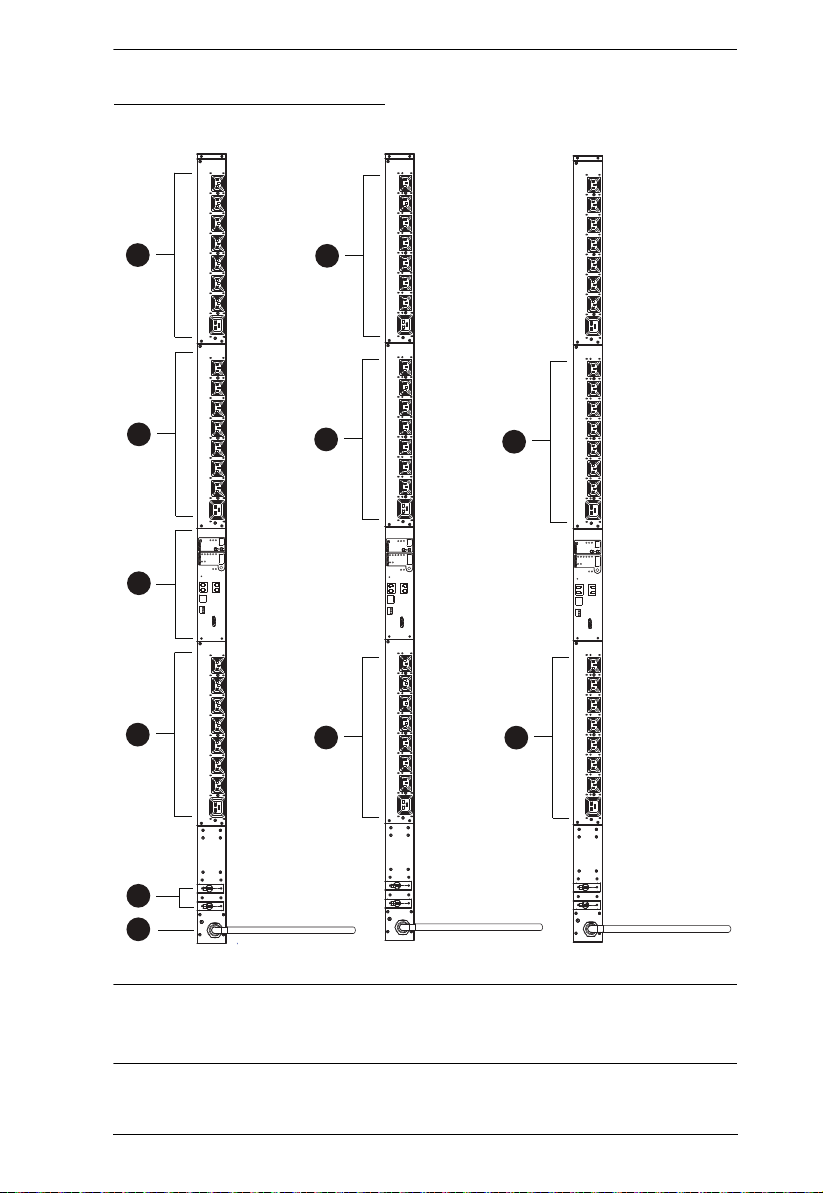

PE7324 / PE8324 / PE9324

Chapter 1. Introduction

PE7324

PE8324

PE9324

Note: The PE7324 / PE8324 / PE9324 unit components are identical except

for the outlet LEDs – the PE7324 has none; the PE8324 has 24; and the PE9324 has 16, as shown by number 5 above.

eco PDU PE Series User Manual

No. Item Description

1 Power Outlets* 24 in total (21 x IEC 320 C13 + 3 x IEC 320 C19)

Bank 1-1: Outlet 1–8: 7 C13; 1 x C19 Bank 1-2: Outlet 9–16: 7 x C13; 1 x C19 Bank 2: Outlet 17–24: 7 x C13; 1 x C19

2 Port and LED Panel The Port and LED panel contains:

 Readout Section and LEDs  Sensor Ports  LAN Port  Door Sensor Port  Reset Switch

Full details of this section are provided on page 16.

3 Circuit Breakers As a safety measure, if there is an overcurrent

4 Power Cord Plug the cord into an AC power source.

situation regarding the device’s power, the circuit breakers will trip. Press the button to recover normal operation.

 B models connect to a NEMA L6-30P source  G models connect to an IEC 60309 32A source

5 Outlet Status LEDs PE8324 (x 24) and PE9324 (x 16) only.

These LEDs indicate outlet status. Lights ORANGE for powered on. Off for powered off.

Note: Holes for ATEN Lok-U-Plug cable holders are located around the

outlets. See Securing the Cables, page 26, for further information.

Chapter 1. Introduction

PE7328

eco PDU PE Series User Manual

No. Item Description

1 Power Outlets* 28 in total (24 x IEC 320 C13 + 4 x IEC 320 C19)

Bank 1: Outlet 1–14: 12 C13; 2 x C19 Bank 2: Outlet 15–28: 12 x C13; 2 x C19

2 Port and LED Panel The Port and LED panel contains:

 Readout Section and LEDs  Environmental Sensor Ports  LAN Port  Door Sensor Port  Reset Switch

Full details of this section are provided on page 16.

3 Circuit Breaker

Pushbutton

4 Power Inlet The power cord that connects the unit to an AC

As a safety measure, if there is an overcurrent situation regarding the device’s power, the circuit breakers will trip. Press the button to recover normal operation.

power source plugs into this socket.

 B models connect to a NEMA L6-30P source  G models connect to an IEC 60309 32A source

5 Output Power Indicator This LED lights steady to indicate output power for

the related bank.

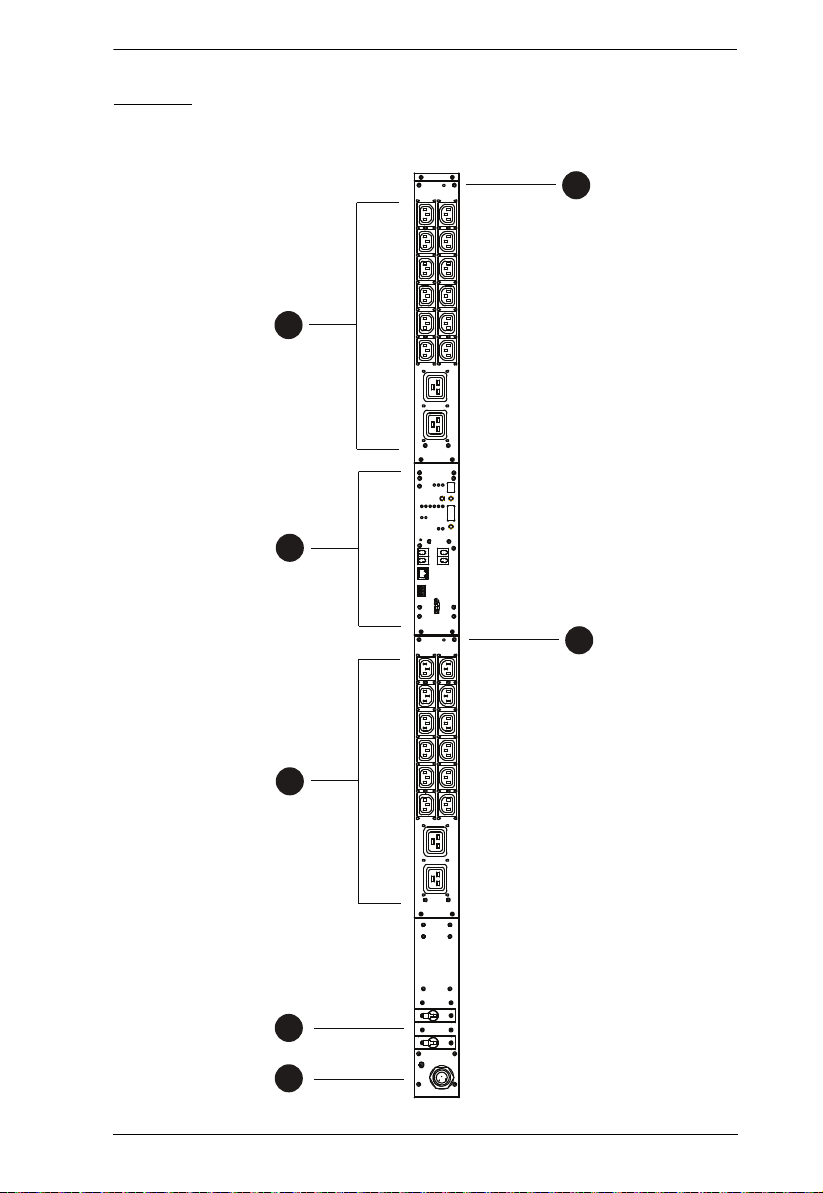

PE9330

Chapter 1. Introduction

PE9330

eco PDU PE Series User Manual

No. Item Description

1 Power Outlets* 30 in total (26 x IEC 320 C13 + 4x IEC 320 C19)

Bank 1-1: Outlet 1–14: 7 C13; 1 x C19 Bank 1-2: Outlet 15–22: 7 x C13; 1 x C19 Bank 2: Outlet 23–30: 7 x C13 + 1 x C19

2 Port and LED Panel The Port and LED panel contains:

 Readout Section and LEDs  Environmental Sensor Ports  LAN Port  Door Sensor Port  Reset Switch

Full details of this section are provided on page 16.

3 Circuit Breaker

Pushbutton

4 Power Inlet The power cord that connects the unit to an AC

As a safety measure, if there is an overcurrent situation regarding the device’s power, the circuit breakers will trip. Press the button to recover normal operation.

power source plugs into this socket.

 B models connect to a NEMA L6-30P source  G models connect to an IEC 60309 32A source

5 Output Power Indicator This LED lights steady to indicate output power for

6 Outlet Status LEDs PE9330 (x 16) only.

the related bank.

These LEDs indicate outlet status. Lights ORANGE for powered on. Off for powered off.

Port and LED Panel (All models)

1 2 4

6 7

No. Item Description

1ID Section

2 Readout

Section

3Status LEDs

 The ID of the selected PDU/Phase / Bank / Outlet appears in

the LED display window.

 When PDU/Phase LED is lit, the LED display window will

show P1.

 When BANK LED is lit, use the Up and Down buttons to move

forward or backward through the following sequence: 01→02 (Bank1→Bank2)

 When the Outlet LED is lit, use the Up and Down buttons to

move forward or backward through the outlets: 01→02→03→ ... 01 (Outlet1→Outlet2→Outlet3→ ... Outlet1)

 When PDU/Phase / Bank / Outlet is selected, readouts for

Current, Voltage, Power, and IP address appear in the display window.

 Press the button next to the LED display window to cycle the

selection between the items; the LEDs next to the items indicate which one the display relates to.

 When a sensor is selected, the display shows temperature /

humidity / differential pressure according to the sensor type

 Power: Lights when the unit is powered up and ready to

operate.

 Door sensor: Lights Red when the door is open. See Door

Sensor, page 8, for details.

Chapter 1. Introduction

eco PDU PE Series User Manual

No. Item Description

4 Sensor

Ports

5 Reset

Switch

External sensors plug into these four RJ-11 ports. See Environment Sensors, page 8, and Securing the Sensors, page 27, for further information.

This switch is recessed and must be pushed with a thin object, such as the end of a paper clip.

 Press and release to reboot the device.  Press and hold for more that three seconds to reset the eco

PDU to its factory default settings

6 LAN Port The cable that connects the unit to the Internet, LAN, or WAN

7 Door Sensor This 4-pin dry contact port is for a door sensor support – allows

plugs in here.

the monitoring of rack mount enclosure door access to notify users when a door has been opened. See Door Sensor, page 8, for details.

Chapter 2

1. Important safety information regarding the placement of this device is provided on page 67. Please review it before proceeding.

2. Make sure that power to all the devices you will be connecting have been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.

Hardware Setup

Before You Begin

Rack Mounting

The eco PDU can be mounted in a 0U configuration on the side of a rack. To rack mount the device, use the rack mounting brackets that came with your device. The brackets can be mounted either near the top and bottom of the back panel, or the top and bottom ends of the device, as shown in the diagram below:

eco PDU PE Series User Manual

Floor

PDU Placement

For safety reasons the eco PDU should not be installed with the power sockets facing directly up or down, and thus should only be installed with the power sockets facing out from a vertical position as shown below:

Right.

Wrong

Note: The eco PDU models shown in the diagrams are for rack mount

reference purposes only.

Chapter 2. Hardware Setup

Installation

To set up your installation, refer to the installation diagram on the next page (the numbers in the diagram correspond to the numbered steps), and do the following:

1. Ensure that the eco PDU unit is properly grounded.

Note: Do not omit this step. Proper grounding helps to prevent damage to

the unit from surges of static or electricity.

2. For each device you want to connect, use its power cable to connect from the device's AC socket to any available outlet on the eco PDU. Use ATEN Lok-U-Plug cable holders to secure them.

Note: See Securing the Cables, page 26, for details.

3. Plug the cable that connects the eco PDU to the LAN into the eco PDU's LAN port.

4. (Optional) If you are using environmental sensors in your eco PDU installation, connect up to four to the RJ-11 sensor ports on the unit’s front panel.

Note: Sensors are optional. Please see Optional Accessories, page 8, and

the installation diagrams later in this chapter for further information.

5. (Optional) If you are using a door sensor in your eco PDU installation, connect it to the 4-pin dry sensor port on the unit’s front panel.

Note: See Door Sensor, page 8, for further information.

6. Depending on your model, connect the eco PDU's built-in power cord to an AC power source, or use the power cord provided to connect the eco PDU’s power socket to an AC power source.

Once you have finished these installation steps, you can turn on the eco PDU and the connected devices.

eco PDU PE Series User Manual

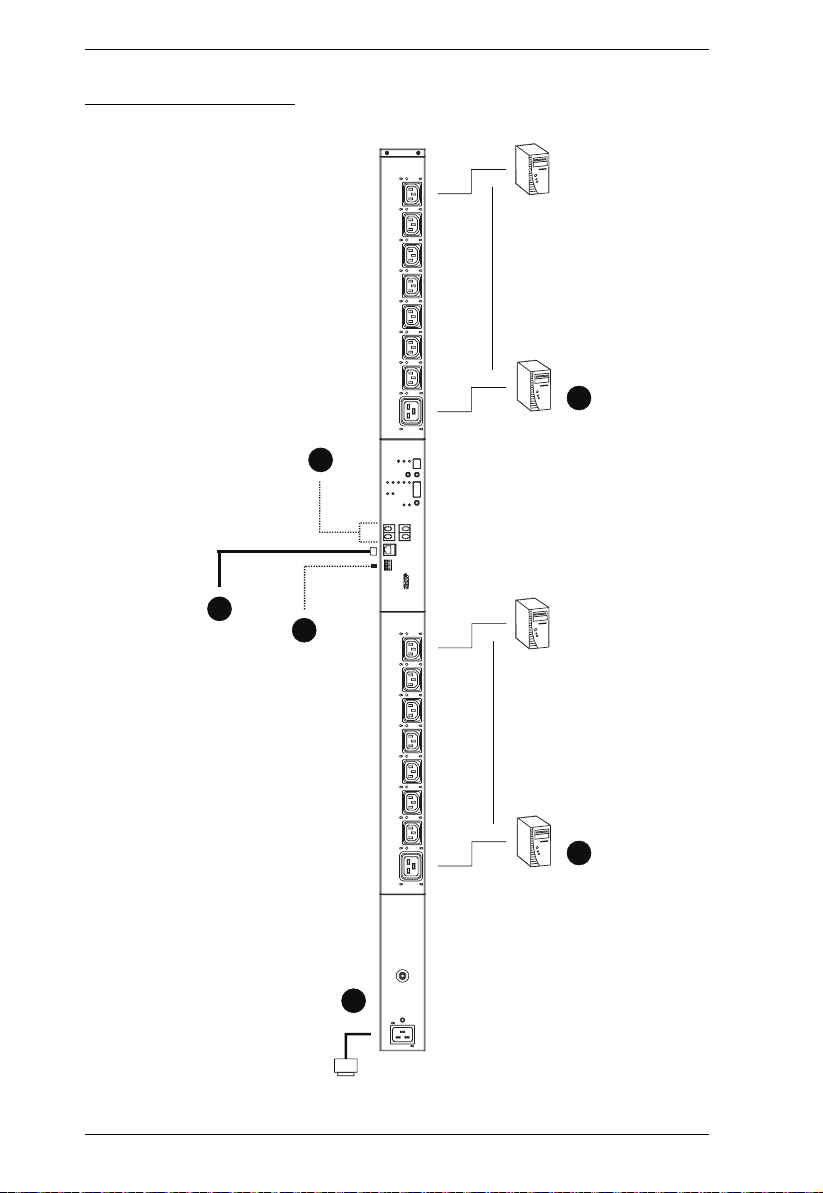

Installation Diagram

Chapter 2. Hardware Setup

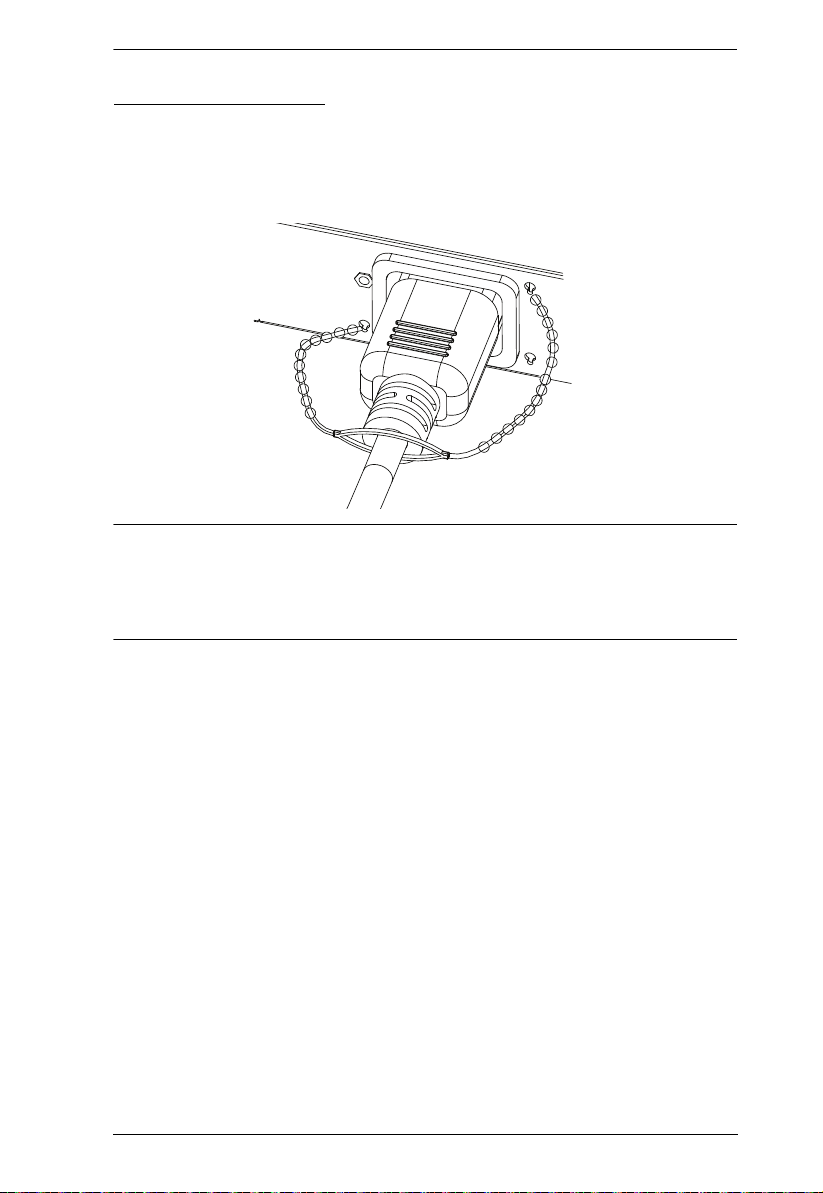

Securing the Cables

For added safety, use ATEN Lok-U-Plug cable holders to secure the cables from your attached devices in place on the eco PDU unit. Secure the cable holders using the specially designed holes around the individual power outlets, as shown below:

Note: 1. Cable holders are an optional accessory. See Cable Holders, page 9.

2. Use only the ATEN Lok-U-Plug cable holders that have been specifically designed to work with the eco PDU. Using any other kind of cable securing device could be highly dangerous.

eco PDU PE Series User Manual

Securing the Sensors

Connect the sensors to the eco PDU’s front panel sensor ports and secure them using sensor mounts, tie wraps, and adhesive cable tie holders. If you use a tie wrap to secure the sensor, tighten the tie wrap over the recessed channel on the sensor, as shown in the following diagram:

Note: 1. The sensors shown in the above diagram are for reference purposes

only. The sensors for the eco PDU may look slightly different.

2. Depending on the model and type of sensor, sensor mounts, tie wraps, and adhesive cable tie holders may or may not be provided in the package.

Chapter 3

Basic Operation and

First Time Setup

Operation Methods

NRGence eco PDU models provide three methods to access and manage your installation: Browser, eco Sensors (eco PDU Management Software), and SNMP.

Note: The following sections of this chapter contain information concerning

Browser operation. For eco Sensors operation, please reference the separate eco Sensors User Manual. The eco Sensors software and User Manual can be downloaded from the ATEN website.

Browser

NRGence eco PDUs can be accessed and controlled via any supported Internet browser from any platform. See First Time Setup, page 29, and the following sections in this chapter, for full details.

eco Sensors

All eco PDUs support eco Sensors (eco PDU Manager Software). NRGence eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. NRGence eco Sensors can be downloaded from the ATEN website, along with a separate eco Sensors User Manual.

SNMP

NRGence eco PDUs support any 3rd party V1, V2, V3 SNMP Manager Software. SNMP Management Information Database (MIB) files for the eco PDU device can be found on the software CD provided with the eco PDU package, or can be downloaded from the ATEN website.

eco PDU PE Series User Manual

First Time Setup

Once the eco PDU installation has been cabled up, the next task the Administrator needs to perform involve configuring the network parameters, changing the default Administrator login settings, and adding users.

The easiest way to accomplish this is to log in over the Net with a browser.

Note: 1. Since this is the first time you are logging in, use the default

Username: administrator; and the default Password: password. For security purposes we recommend changing them to something unique (see Changing the Administrator Login, page 31).

2. For remote methods of getting logged in to the network, see IP Address Determination, page 71.

After you successfully log in, the eco PDU Energy/Connections page appears:

Note: Operation details are discussed in the next chapter. For further setup

information, continue with this chapter

Chapter 3. Basic Operation and First Time Setup

Network Configuration

To set up the network, do the following:

1. Click the Setup tab.

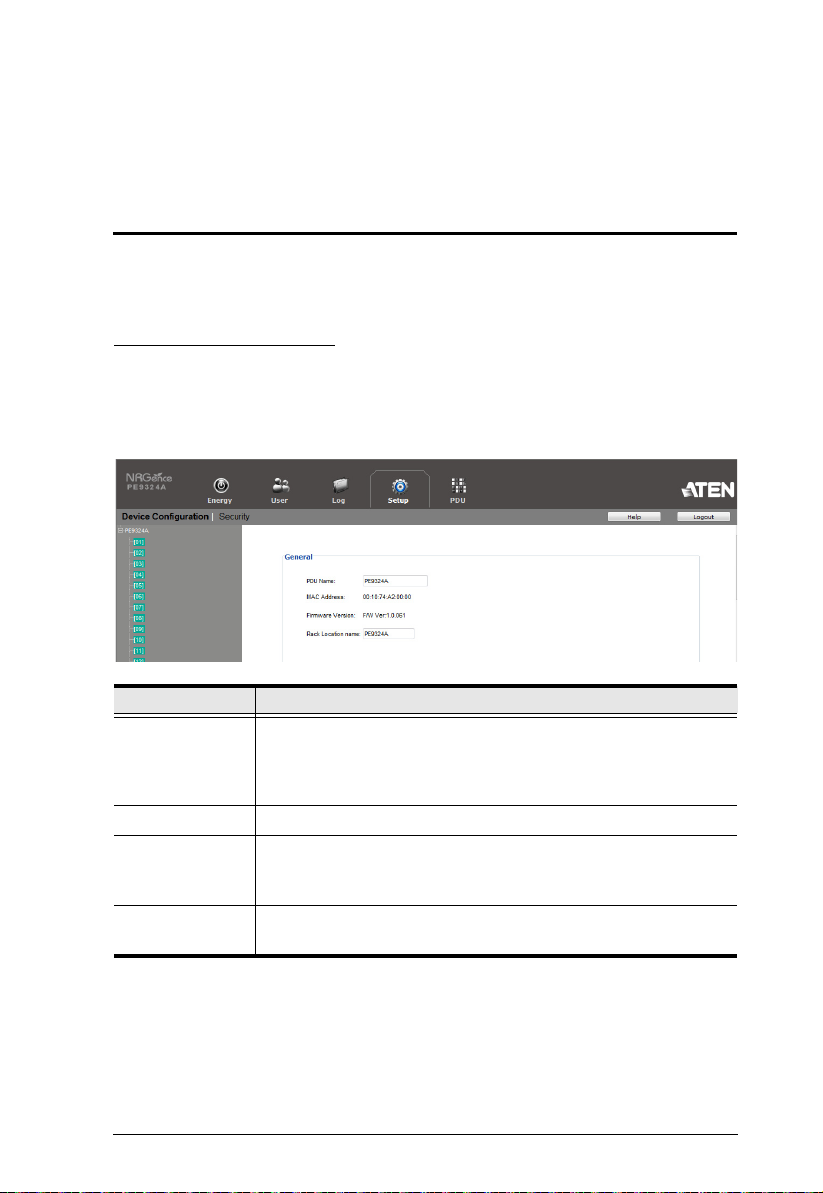

2. This opens on the Device Configuration page. A screen similar to the one below appears:

3. Fill in the fields according to the information provided under Device Configuration, page 46.

eco PDU PE Series User Manual

Changing the Administrator Login

To change the default Administrator username and password, do the following:

1. Click the User tab. Once users have been added to the system, the Accounts page displays a

detailed list of users – with more information about them – in the large central panel:

2. In the Administrator Information section at the top, reset the name and password fields to something unique, then click Save (at the bottom of the page.)

Note: If you forget the Administrator’s name or password, short the

mainboard jumper to restore the default Administrator account. See see Administrator Login Failure, page 81 in the Appendix for full details.

Moving On

After setting up the network and changing the default Administrator username and password, you can proceed to other administration activities – including adding users. This is covered in the next chapter.

Chapter 4

Logging In

The eco PDU can be accessed via a supported Internet browser from any platform.

Note: Browsers must support SSL 128 bit encryption.

To access the eco PDU do the following:

1. Open your browser and specify the IP address of the eco PDU you want to

access in the browser's URL location bar.

Note: You can get the IP address from the eco PDU administrator, or see

IP Address Determination, page 71, for information about setting it up yourself.

2. If a Security Alert dialog box appears, accept the certificate – it can be

trusted. The Login page appears:

3. Provide a valid Username and Password (set by the eco PDU

administrator).

4. Select your preferred Language from the drop-down menu.

5. Then Click Login to bring up the browser Main Page.

eco PDU PE Series User Manual

The eco PDU Main Page

After you have successfully logged in, the eco PDU Main Page comes up with the Energy Connections page displayed:

Note: The screen depicts an Administrator’s page. Depending on a user’s type

and permissions, and your PE model, not all of these elements appear.

Chapter 4. Logging In

Page Components

The web page screen components are described in the table, below:

No. Item Description

1 Tab Bar The tab bar contains the eco PDU’s main operation

2 Menu Bar The menu bar contains operational sub-categories

3 Sidebar The Sidebar provides a tree view listing of outlets

4 Help Connects to on-line help at the ATEN website for the

5 Logout Click this button to log out of your eco PDU session.

6 Interactive Display Panel This is your main work area. The screens that

categories. The items that appear in the tab bar are determined by the user’s type, and the authorization options that were selected when the user’s account was created.

that pertain to the item selected in the tab bar. The items that appear in the menu bar are determined by the user’s type, and the authorization options that were selected when the user’s account was created.

that relate to the various tab bar and menu bar selections.

device’s configuration and operation.

appear reflect your menu choices and Sidebar node selection.

The Energy page has two tabs: Connections and Configuration, as described in the chapters that follow.

Chapter 5

Energy

Connections

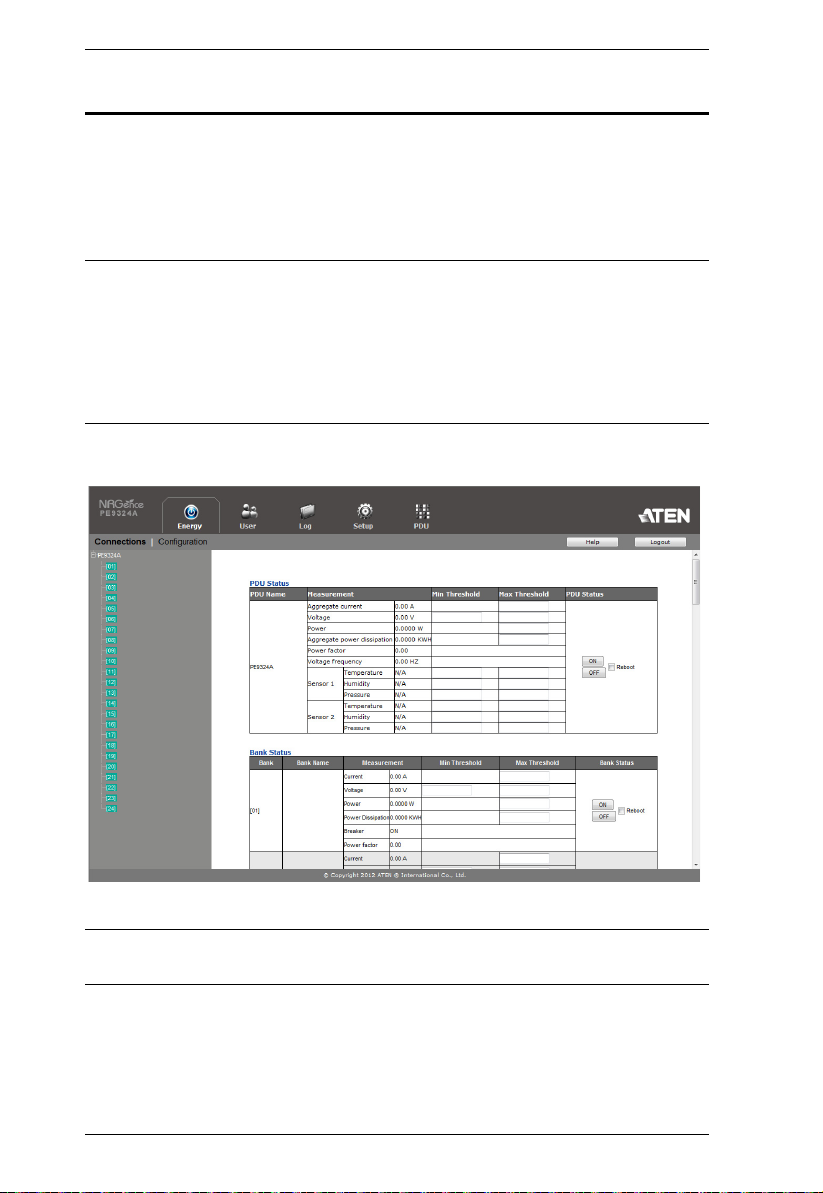

When you log in to the eco PDU, the interface opens with its default selection of the Energy tab; and the Connections menu. The contents of the PDU Status,

Bank Status, and Outlet Status sections are displayed in the main panel.

Note: Only enabled eco PDU models will display the Bank Status and/or

Outlet Status submenu section.

Chapter 5. Energy

PDU Status

All eco PDU models support PDU device level monitoring. The PDU Status section allows you to set up a power management configuration for the PDU device as a whole:

 PDU Threshold Settings

These fields are used to set the maximum, minimum, and fluctuation threshold settings for Aggregate Current, Voltage, Power, and Aggregate Power Dissipation. If a range falls below the minimum setting, or exceeds the maximum setting an alarm is triggered.

 Voltage Frequency is displayed here in Hz.

 On / Off / Reboot

You can manually turn the device On and Off from this page by clicking the radio buttons. To Reboot the device, enable the Reboot checkbox and click on Save (located at the bottom of the page).

 Door Sensor

This section allows you to select the type of door sensor that is being used in the installation. See Door Sensor, page 8, for further information.

 Sensor 1–4

If you have sensors installed in your installation, use these fields to set the maximum, minimum, and fluctuation threshold settings for Temperature, Humidity, and Pressure.

Note: Sensors are optional accessories. Check with your dealer for

information about NRGence eco Sensors software.

eco PDU PE Series User Manual

Bank Status

All eco PDU models support Bank level monitoring. The Bank Status section allows you to set up a power management configuration for the individual banks:

 Threshold Settings

These fields are used to set the maximum, minimum, and fluctuation threshold settings for Aggregate Current, Voltage, Power, and Power Dissipation. If a range falls below the minimum setting, or exceeds the maximum setting an alarm is triggered.

 Breaker status (ON / OFF) displays here.

Chapter 5. Energy

Outlet Status

If your eco PDU models supports outlet level power management, threshold settings and manual On/Off/Reboot switching can be performed on this page.

 Threshold Settings

 On / Off / Reboot

You can manually turn the outlet On and Off from this page by clicking the radio buttons. To Reboot the outlet, enable the Reboot checkbox and click on Save (located at the bottom of the page).

eco PDU PE Series User Manual

Configuration

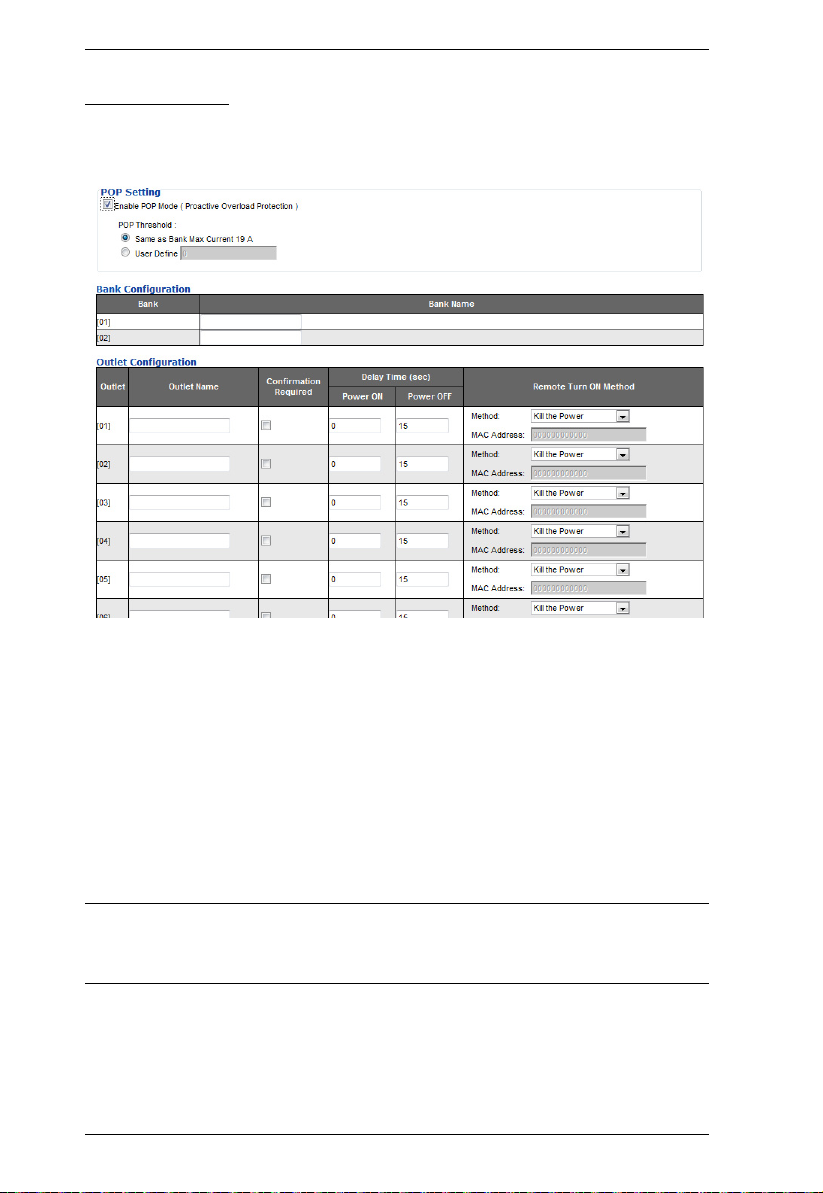

The Configuration page is used to configure the settings of the eco PDU at the bank and individual power outlet level:

POP Setting

This section allows you to configure the settings for NRGence’s exclusive Proactive Overload Protection (POP) technology. Effective on all non-critical outlets, this added safety feature automatically powers off the last outlet that caused the current overload.

 Enable POP Mode by clicking the radio button  Make your selection for the POP Threshold – options are Same as Bank

Maximum Current or User Defined – Enter a value in the field.

Note: This feature is available on the PE8121kJ, PE8216, PE9216, PE9324,

and PE9330 models only. See Proactive Overload Protection (POP), page 6, for more details.

Bank Configuration

Each bank can be given a distinctive name. The maximum number of characters is 15.

Chapter 5. Energy

Outlet Configuration

This page lets you set up the power management configuration for the selected outlet. The meanings of the field headings are given in the following table

Heading Meaning

Outlet Name Each outlet can be given a distinctive name. The maximum number of

Confirmation Required

Power ON Delay

Power OFF Delay

Remote Turn ON Method

characters is 15.

If this option is enabled (there is a check in the checkbox), a dialog box comes up asking you to confirm a power operation before it is performed. If it is disabled (there is no check in the checkbox), the operation is performed without confirmation.

Sets the amount of time the eco PDU waits after the Power Button is clicked (see Bank Status, page 37), before it powers on the outlet.

Note: The default delay time is 0 seconds; the maximum is 999 seconds. When a series of outlets are scheduled to be powered up, they turn on in sequence with a default delay of 10 milliseconds between each outlet.

Sets the amount of time the eco PDU waits after the Power Button is clicked (see Bank Status, page 37), before it turns off the power to the outlet.

For the System after AC Back option (see below), after the delay time expires, the eco PDU waits another fifteen seconds, then shuts the computer down.

The default delay time is 15 secs; the maximum delay time is 999 secs.

Use the drop-down menu to select one of the choices, below:

Wake on LAN: This is a Safe Shutdown and Restart option. If this is

selected, when an Outlet is turned Off, the eco PDU first sends a message to the computer telling it to prepare for a shutdown; it then waits for the amount time set in the Power Off Delay field to give the OS time to close down before the computer is powered down to standby mode.

Likewise, when the Outlet is turned On, the eco PDU waits for the amount time set in the Power On Delay field, then sends an Ethernet message to the computer connected to the Outlet telling the computer to turn itself On.

Note: For Safe Shutdown and Restart, the computer must be running Windows (98 or higher), or Linux, and the Safe Shutdown program (available by download from our website), must be installed and running on the computer.

System after AC Back: This is a Safe Shutdown and Restart option. If

this is selected, when an Outlet is turned Off, the eco PDU first sends a message to the computer telling it to prepare for a shutdown; it then waits for the amount time set in the Power Off Delay field to give the OS time to close down before the computer is powered down.

When the Outlet is turned On, the eco PDU waits for the amount time set in the Power On Delay field, then sends power to the server. When the server receives the power, it turns itself on.

Note: For Safe Shutdown and Reboot, the computer must be running Windows (98 or higher), or Linux, and the Safe Shutdown program (available by download from our website), must be installed and running on the computer.

(Continues on next page)

eco PDU PE Series User Manual

Heading Meaning

Remote Turn ON Method

MAC Address In order to use either of the Safe Shutdown and Restart methods the

Kill the Power: If this option is selected, the eco PFDU waits for the

amount time set in the Power Off Delay field, and then turns the Outlet's power Off. Turning the power off performs a cold (non-safe) shutdown.

MAC address of the computer connected to the outlet must be filled in here.

When you have finished making your configuration settings, click Save.

Chapter 6

User Management

Overview

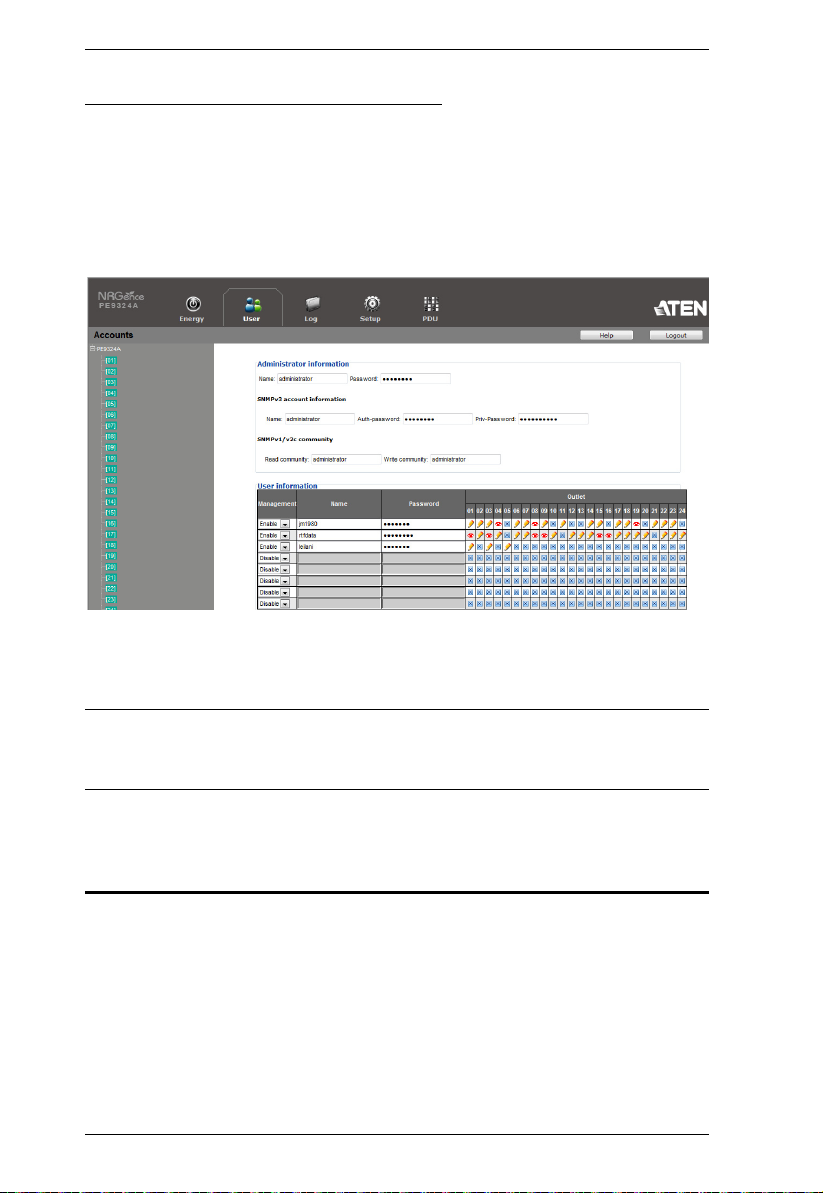

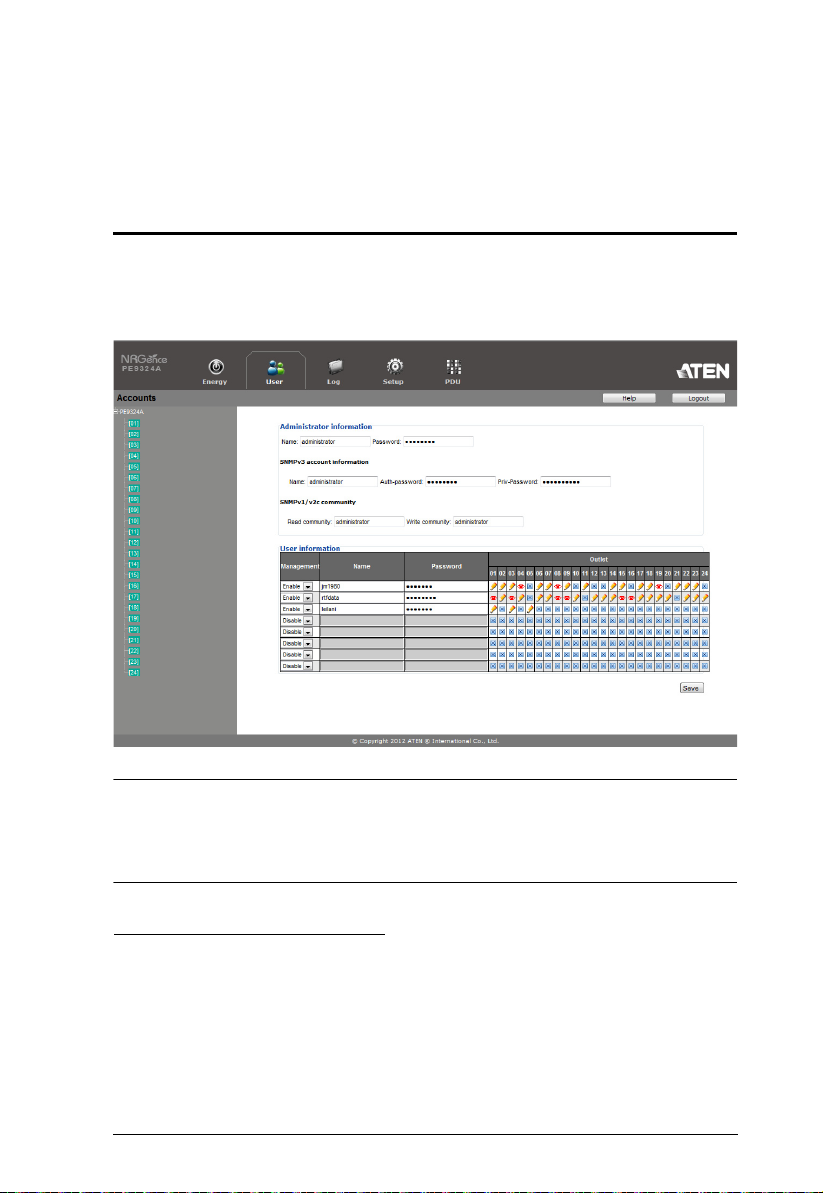

When you select the User tab the screen comes up with the Accounts menu, and the Administrator Information and User Information displayed in the main panel:

Note: There is a pre-installed administrator account. It can be used to set up

the device and to begin creating users and groups. The Username for this account is administrator; the password is password. For security purposes, we strongly recommend changing these to something unique.

Administrator Information

This section is used to set the Administrator name and password. Only Administrators can view this section. For details, see Changing the Administrator Login, page 31.

eco PDU PE Series User Manual

User Information

To add a user, do the following:

1. Select the user type in the Management drop-down menu.

2. Key in a name and password in the Name and Password fields.

3. Set the outlet-by-outlet permissions of the user in the Outlet field.

4. Set the Management field to Enable.

5. Click Save to save your settings.

Note: Values must be entered in both the Name and Password fields in

order to enable an account.

The various options are explained in more detail in the following table:

Field Description

Management The Management field allows you to Enable or Disable a

Name From 1 to 16 characters are allowed.

Password From 1 to 16 characters are allowed.

Outlet This field allows you to set the outlet-by-outlet permissions of

user’s account:

 Enable – stores the user account  Disable – disables the user account

the user. Click on the user/port icon to cycle through the three permissions options, as follows:

User has complete access to this outlet.

User has read-only access to this outlet.

User has no access to this outlet.

Save Click this button to save your operation or changes

Chapter 7

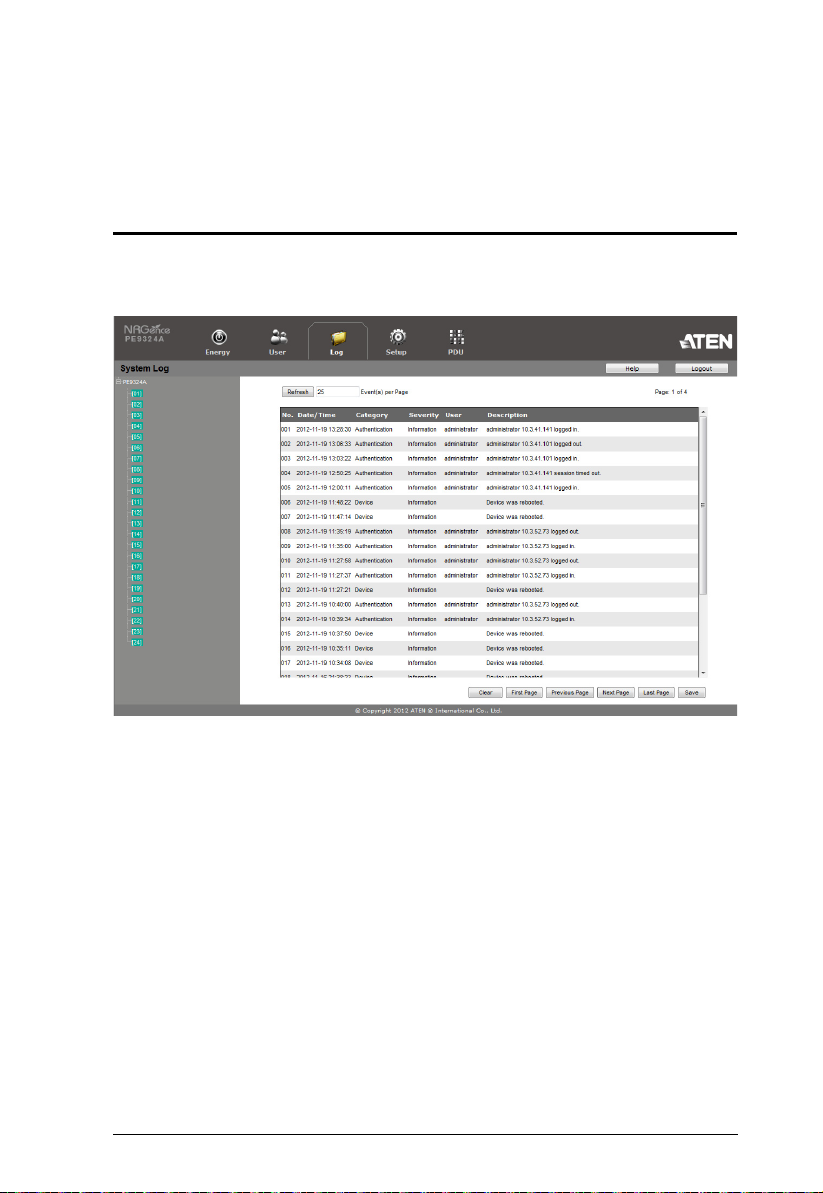

Log

The eco PDU keeps a record of transactions that take place on its installation, and stores up to 128 events at one time.

eco PDU PE Series User Manual

The System Log Event List

 Clicking on a device in the Sidebar displays its log events in the main

panel’s log event list.

 Clicking the Refresh button brings the log list up to date with the latest

events.

 The entry box to the right of the Refresh button lets you set the number of

events to display per page. Simply key in the number of your choice.

 The top right of the main panel shows the total number of pages in the log

file, and what page you are currently viewing.

 The buttons on the bottom row function as follows:

 Clear – click to erase the contents of the log event list  First Page – click to go to the first page of the log event list  Previous Page – click to move to the previous page of the log event

list

 Next Page – click to move to the next page of the log event list  Last Page – click to move to the last page of the log event list  Export Log – click to save the contents of the log event list to file.

Chapter 8

Setup

Device Management

The Setup page allows administrators and users with device management permission to configure and control overall eco PDU operations.

Device Configuration

This page presents information about the selected device, as described in the following sections:

General

Item Meaning

PDU Name This field lets you give the device a unique name. Simply delete

whatever is in the text box and key in the name of your choice. Click Save (located at the bottom of the page) to save the new name.

MAC Address This item displays the eco PDU’s MAC address.

Firmware Version This item displays the current firmware version number. You can

reference it to see if there are newer versions available on the ATEN website.

Rack Location Name

This field lets you give the rack location a unique name for easy reference.

eco PDU PE Series User Manual

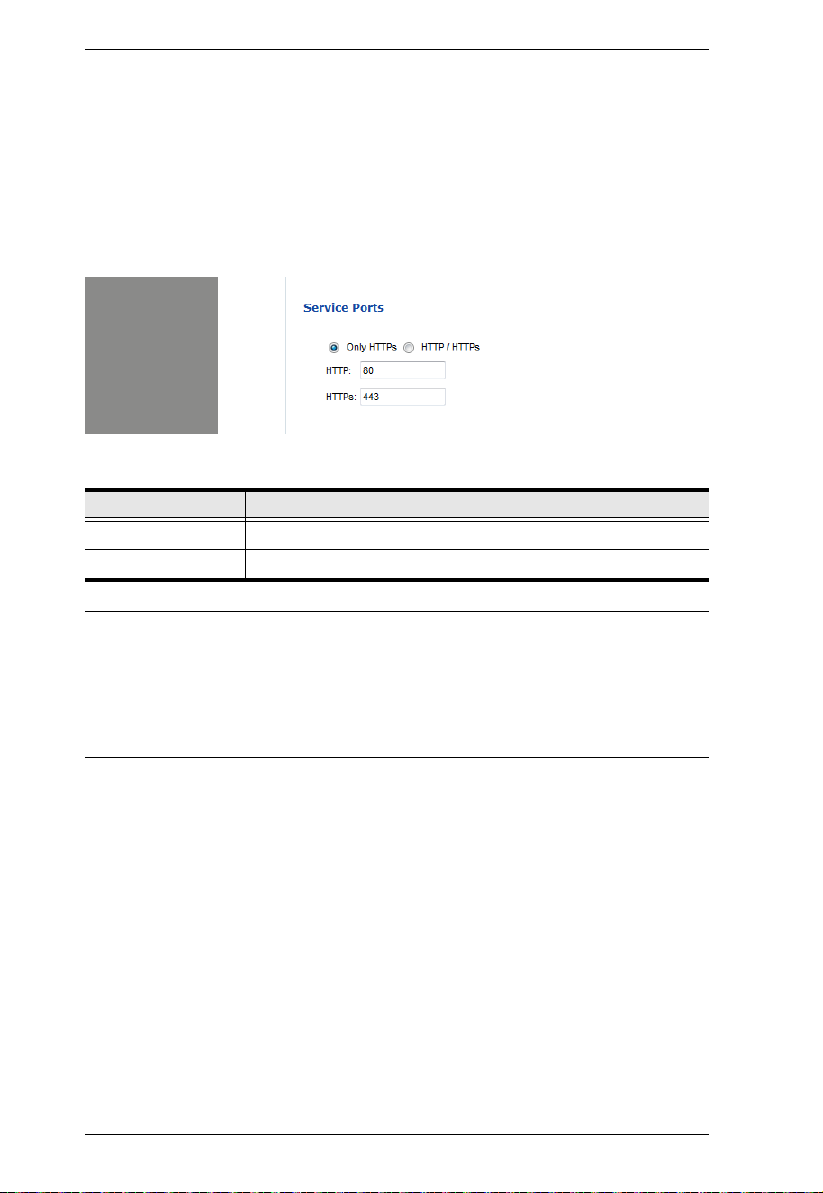

Service Ports

As a security measure, if a firewall is being used, the Administrator can specify the port numbers that the firewall will allow. If a port other than the default is used, users must specify the port number as part of the IP address when they log in. If an invalid port number (or no port number) is specified, the eco PDU will not be found.

Select whether to allow only secure browser logins, as show below:

An explanation of the fields is given in the table below:

Field Explanation

HTTP The port number for a browser login. The default is 80.

HTTPS The port number for a secure browser login. The default is 443.

Note: 1. Valid entries for all of the Service Ports are from 1–65535.

2. The service ports cannot have the same value. You must set a different value for each one.

3. If there is no firewall (on an Intranet, for example), it doesn’t matter what these numbers are set to, since they have no effect.

Chapter 8. Setup

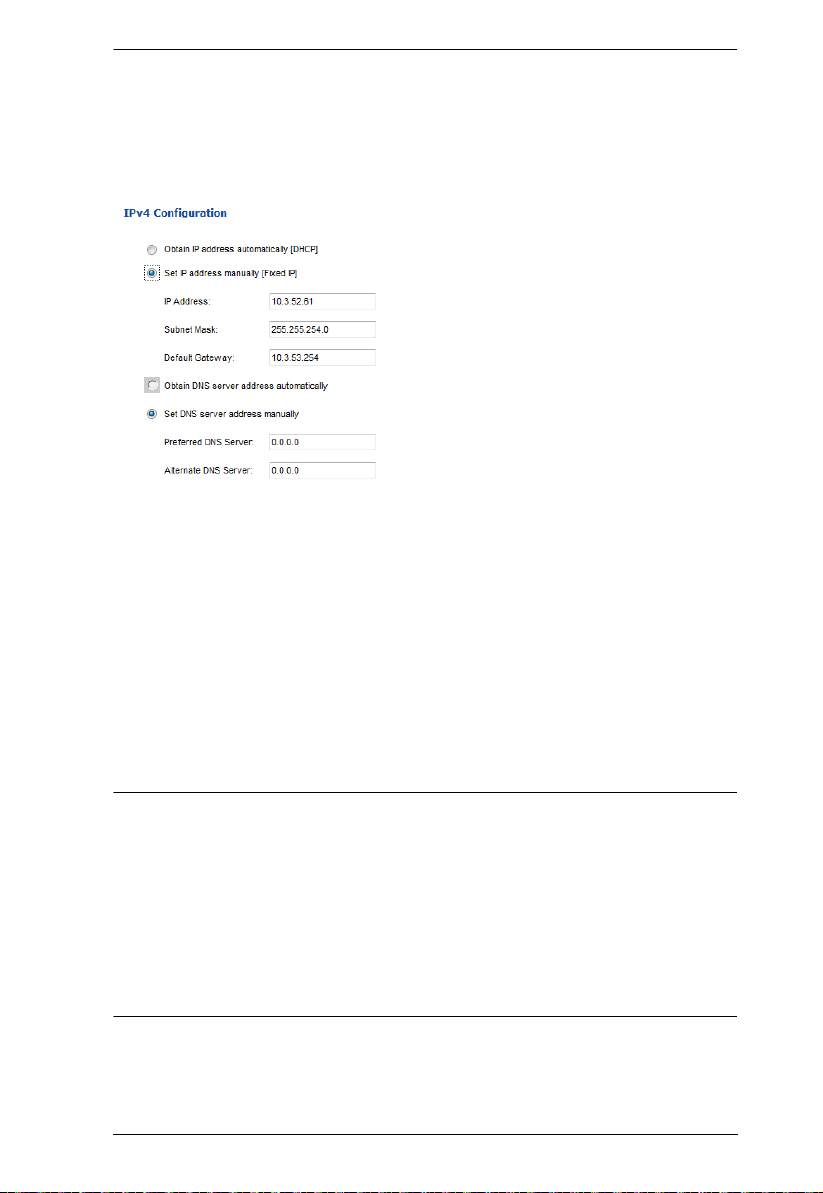

IPv4 Configuration

The PDU’s IPv4 IP and DNS addresses (the traditional method of specifying IP addresses) can either be assigned dynamically (DHCP), or a fixed IP address can be specified.

 For dynamic IP address assignment, select the Obtain IP address

automatically radio button. (This is the default setting.)

 To specify a fixed IP address, select the Set IP address manually radio

button and fill in the IP address with values appropriate for your network.

 For automatic DNS Server address assignment, select the Obtain DNS

Server address automatically radio button.

 To specify the DNS Server address manually, select the Set DNS server

address manually radio button, and fill in the addresses for the Preferred

and Alternate DNS servers with values appropriate for your network.

Note: 1. If you choose Obtain IP address automatically, when the device starts

up it waits to get its IP address from the DHCP server. If it hasn’t obtained the address after one minute, it automatically reverts to its factory default IP address (192.168.0.60.)

2. If the device is on a network that uses DHCP to assign network addresses, and you need to ascertain its IP address, see IP Address Determination, page 71, for information.

3. Specifying the Alternate DNS Server address is optional.

eco PDU PE Series User Manual

IPv6 Configuration

IPv6 is the new (128-bit) format for specifying IP addresses. The PDU’s IPv6 IP and DNS addresses can either be assigned dynamically (DHCP), or a fixed IP address can be specified.

 For dynamic IP address assignment, select the Obtain IP address

automatically radio button. (This is the default setting.)

 To specify a fixed IP address, select the Set IP address manually radio

button and fill in the IP address with values appropriate for your network.

 For automatic DNS Server address assignment, select the Obtain DNS

Server address automatically radio button.

 To specify the DNS Server address manually, select the Set DNS server

address manually radio button, and fill in the addresses for the Preferred

and Alternate DNS servers with values appropriate for your network.

Note: 1. If you choose Obtain IP address automatically, when the device starts

up it waits to get its IP address from the DHCP server. If it hasn’t obtained the address after one minute, it automatically reverts to its factory default IP address (192.168.0.60.)

2. If the device is on a network that uses DHCP to assign network addresses, and you need to ascertain its IP address, see IP Address Determination, page 71, for information.

3. Specifying the Alternate DNS Server address is optional.

Chapter 8. Setup

Event Notification

The Event Notification section is divided into three sections: SMTP Settings; SNMP Trap Receivers; and Syslog Server. Each section is described below.

Note: SMTP communications are supported on Port 25.

 SMTP Settings

To have the eco PDU device email reports from the SMTP server to you, do the following:

1. Enable the Enable report from the following SMTP server, and key in the IP address of your SMTP server.

2. If your server requires authentication, put a check in the My server requires authentication checkbox.

3. Key in the appropriate account information in the Account Name, Password, and From fields.

Note: Only one email address is allowed in the From fields, and it cannot

exceed 64 characters.)

4. Key in the email address (addresses) of where you want the event reports sent to in the To field.

Note: If you are sending the report to more than one email address,

separate the addresses with a semicolon or comma, depending on the specified mail server. The total cannot exceed 256 characters.

eco PDU PE Series User Manual

 SNMP Trap Receivers

Up to four SNMP management stations can be specified. If you want to use SNMP trap notifications, do the following:

1. Check Enable SNMP Trap.

2. Select which version of SNMP you want to use.

3. Key in the IP address(es) and the service port number(s) of the computer(s) to be notified of SNMP trap events. The valid port range is 1–65535. The default port number is 162.

Note: Make sure that the port number you specify here matches the port

number used by the SNMP receiver computer.

4. Key in the community value(s) if required for the SNMP version.

5. Key in the auth/privacy password(s) that correspond to each of the stations.

Chapter 8. Setup

 Syslog Server

To record all the events that take place on eco PDU devices and write them to the eco PDU Syslog server, do the following:

1. Check Enable Syslog Server.

2. Key in the IP address and the port number of the Syslog server. The valid

port range is 1-65535. The default port number is 514.

eco PDU PE Series User Manual

Date/Time

The Date/Time dialog page sets the eco PDU time parameters:

Set the parameters according to the information described below.

Time Zone

 To establish the time zone that the eco PDU is located in, drop down the

Tim e Zone list and choose the city that most closely corresponds to where it is at.

 If your country or region employs Daylight Saving Time (Summer Time),

check the corresponding checkbox.

Chapter 8. Setup

Manual Input

Use this section to specify the eco PDU’s date and time manually.

 Click the calendar icon and click the calendar entry for the date.  Key the time into the Time field, using the HH:MM:SS (hours, minutes,

seconds) format.

Note: This section is only enabled when auto adjustment (in the Network Time

section) is disabled (the checkbox is unchecked).

As an alternative to specifying the date and time by entering them into the date and time fields, you can click to put a check in the Sync with PC checkbox, in which case the eco PDU will take its date and time settings from the locally connected PC.

Network Time

To have the time automatically synchronized to a network time server, do the following:

1. Check the Enable auto adjustment checkbox.

2. Drop down the time server list to select your preferred time server

– or –

Check the Preferred custom server IP checkbox, and key in the IP address of the time server of your choice.

3. If you want to configure an alternate time server, check the Alternate time

server checkbox, and repeat step 2 for the alternate time server entries.

4. Key in your choice for the number of days between synchronization

procedures.

Finishing Up

When you have finished making your settings on this page, click Save.

After you have saved your changes, if you want to synchronize immediately, click Adjust Time Now.

eco PDU PE Series User Manual

Security

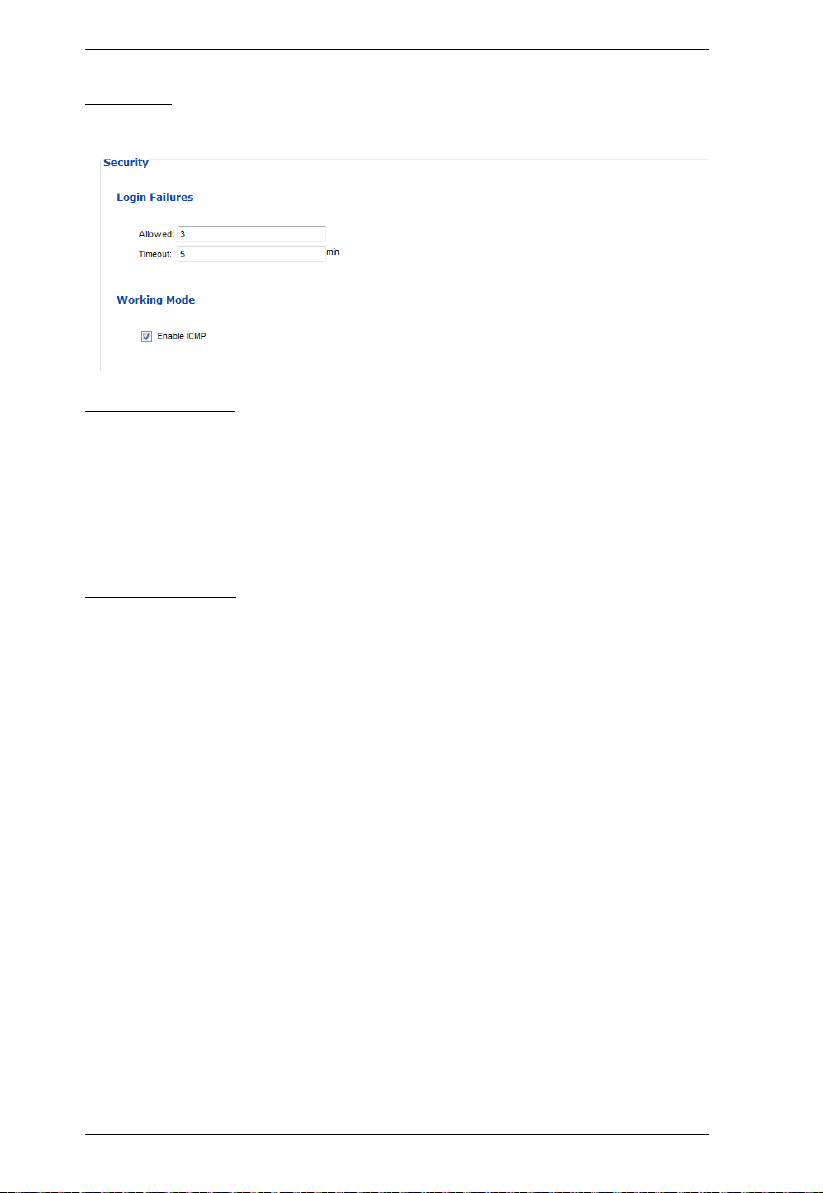

The Security page controls access to the eco PDU.

Login Failures

 Allowed sets the number of consecutive failed login attempts that are

permitted from a remote user.

 Timeout sets the amount of time a remote user must wait before

attempting to login again after exceeding the number of allowed failures.

Working Mode

 If ICMP is enabled, the eco PDU device can be pinged. If it is not

enabled, the device cannot be pinged. The default is Enabled.

Chapter 8. Setup

Account Policy

The Account Policy section governs policies in regard to usernames and passwords.

Check a policy and enter the required information in the appropriate fields.

Item Description

Minimum Username Length Sets the minimum number of characters required for

a username. Acceptable values are from 1–16.

Minimum Password Length Sets the minimum number of characters required for

a password. Acceptable values are from 1–16.

Password Must Contain At Least Checking any of these items requires users to include

at least one of the specified items in their password.

Note: This policy does not affect existing user accounts. Only new user accounts created after this policy has been enabled, and users required to change their passwords are affected.

Disable Duplicate Login Check this to prevent users from logging in with the

same account at the same time.

eco PDU PE Series User Manual

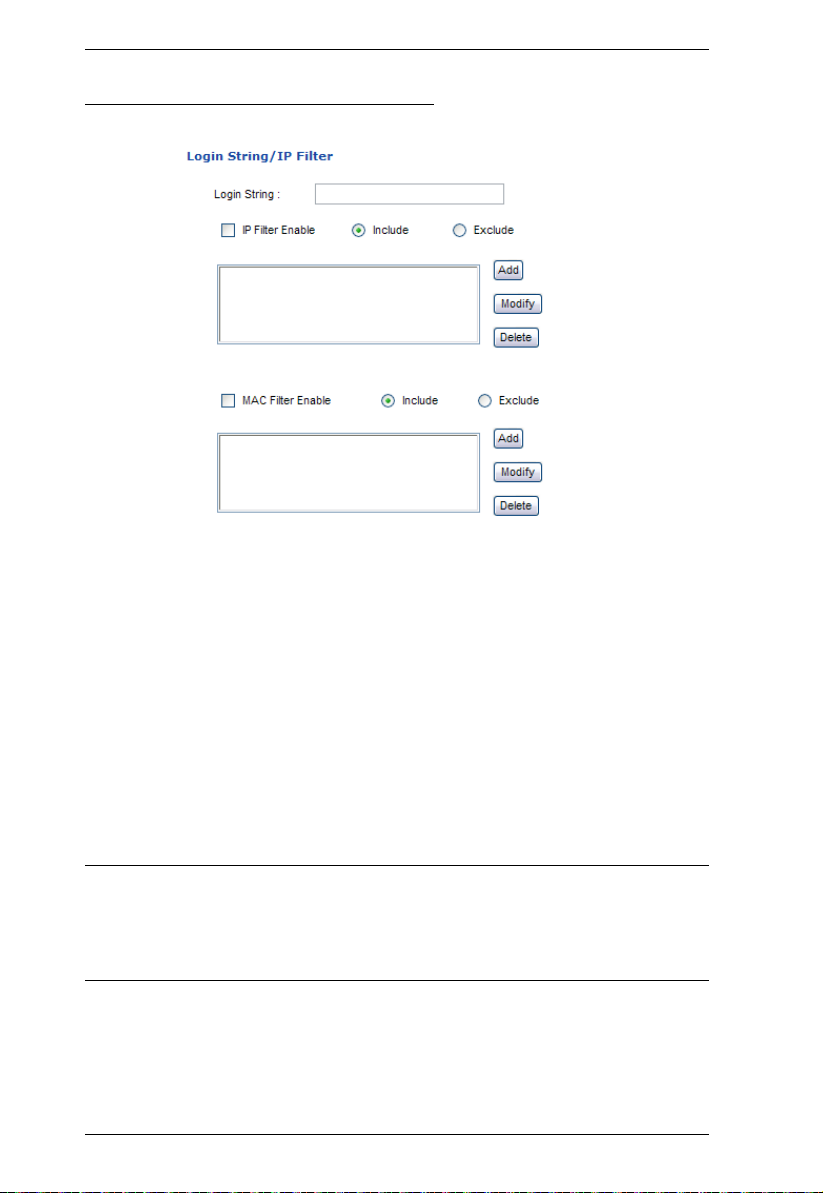

Login String / IP Filter / Mac Filter

 Login String

The Login String entry field is used to specify a login string (in addition to the IP address) that users must include when accessing the eco PDU device with a browser. For example:

192.168.0.126/abcdefg

 The following characters are allowed:

0–9 a–z A–Z ~ ! @ $ * ( ) _ ‘ ,

 The following characters are not allowed:

& ^ { } ‘ ’ < > | " % ” : / ? # \ [Space] + - = [ ] ;

Compound characters (É Ç ñ ... etc.)

Note: 1. There must be a forward slash between the IP address and the string.

2. If no login string is specified here, anyone will be able to access the eco PDU device login page using the IP address alone. This makes your installation less secure.

For security purposes, we recommend that you change this string occasionally.

Chapter 8. Setup

 IP Filter / MAC Filter

If any filters have been configured, they appear in the IP Filter and/or MAC Filter list boxes.

IP and MAC Filters control access to the eco PDU based on the IP and/or MAC addresses of the client computers attempting to connect. A maximum of 5 IP filters and 5 MAC filters are allowed.

To enable IP and/or MAC filtering, click to put a check mark in the IP Filter Enable and/or MAC Filter Enable checkbox.

 If the include button is checked, all the addresses within the filter range are

allowed access; all other addresses are denied access.

 If the exclude button is checked, all the addresses within the filter range

are denied access; all other addresses are allowed access.

Adding Filters

To add an IP filter, do the following:

1. Click Add. A dialog box similar to the one below appears:

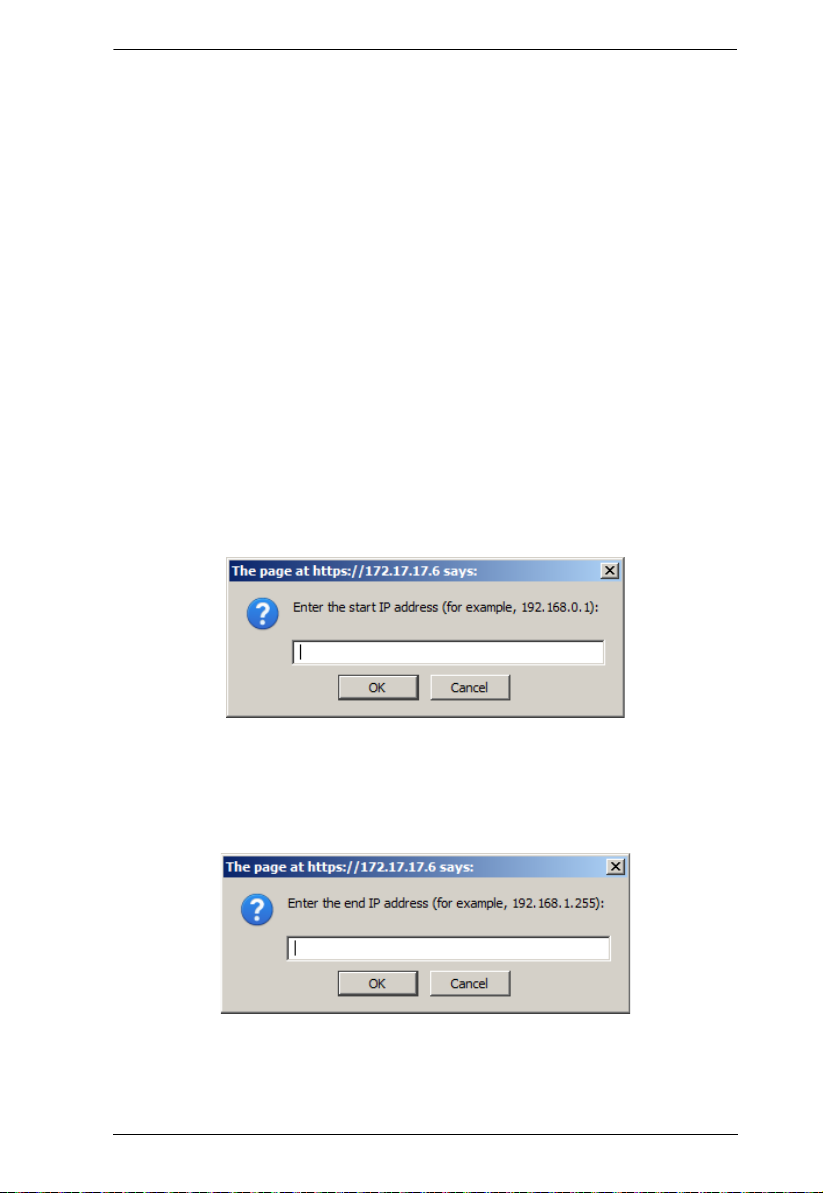

2. Specify the filter address in the dialog box (for example, 192.168.0.200), then click OK.

A second dialog box, similar to the one below, appears:

eco PDU PE Series User Manual

3. To filter a single IP address, key in the same address as the start IP. To filter a continuous range of addresses, key in the end number of the range (for example, 192.168.0.225).

4. After filling in the address, click OK.

Repeat these steps for any additional IP addresses you want to filter.

To add a MAC filter, do the following:

1. Click Add. A dialog box similar to the one below appears:

2. Specify the MAC address in the dialog box (for example, 001074670000), then click OK.

Repeat these steps for any additional MAC addresses you want to filter.

IP Filter / MAC Filter Conflict

If there is a conflict between an IP filter and a MAC filter – for example, where a computer’s IP address is allowed by the IP filter but its MAC address is excluded by the MAC filter – then that computer’s access is blocked.

In other words, if either filter blocks a computer, then the computer is blocked, no matter what the other filter is set to.

Modifying Filters

To modify a filter, select it in the IP Filter or MAC Filter list box and click Modify. The Modify dialog box is similar to the Add dialog box. When it comes up, simply delete the old address(es) and replace it with the new one(s).

Deleting Filters

To delete a filter, select it in the IP Filter or MAC Filter list box and click Delete.

Chapter 8. Setup

Authentication & Authorization

The Authentication & Authorization page is used to set up login authentication and authorization management from external sources.

eco PDU PE Series User Manual

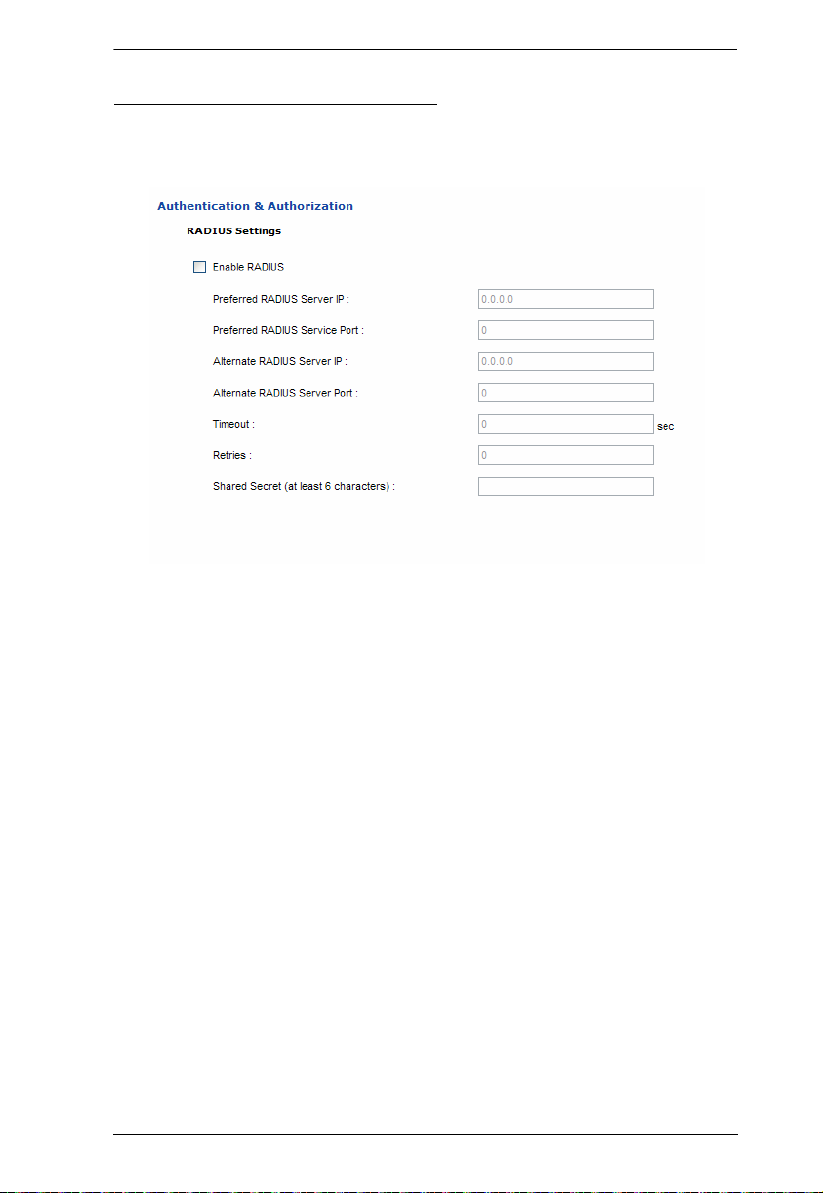

RADIUS Settings

To allow authentication and authorization for the eco PDU device through a RADIUS server, do the following:

1. Check Enable.

2. Fill in the IP addresses and service port numbers for the Preferred and Alternate RADIUS servers. The default port number for the Preferred server is 1812; the default port number for the Alternate server is 1645.

Note: Make sure that the port numbers you specify here match the port

numbers used by the RADIUS servers.

3. In the Timeout field, set the time in seconds that the eco PDU device waits for a RADIUS server reply before it times out.

4. In the Retries field, set the number of allowed retries for attempting to connect to the RADIUS server.

5. In the Shared Secret field, key in the character string that you want to use for authentication between the eco PDU device and the RADIUS Server.

6. On the RADIUS server, set the entry for each user as follows:

su/xxxx

Where xxxx represents the Username given to the user when the account was created on the eco PDU device. The user’s access rights are the ones assigned for the eco PDU device, as well. (See Device Management, page 46.)

Note: su/user supports view ports only; su/administrator supports all eco PDU

functions.

Chapter 8. Setup

Private Certificate

When logging in over a secure (SSL) connection, a signed certificate is used to verify that the user is logging in to the intended site. For enhanced security, the Private Certificate section allows you to use your own private encryption key and signed certificate, rather than the default ATEN certificate.

There are two methods for establishing your private certificate: generating a self-signed certificate; and importing a third-party certificate authority (CA) signed certificate.

Generating a Self-Signed Certificate

If you wish to create your own self-signed certificate, a free utility – openssl.exe – is available for download over the web.

Obtaining a CA Signed SSL Server Certificate

For the greatest security, we recommend using a third party certificate authority (CA) signed certificate. To obtain a third party signed certificate, go to a CA (Certificate Authority) website to apply for an SSL certificate. After the CA sends you the certificate and private encryption key, save them to a convenient location on your computer.

Importing the Private Certificate

To import the private certificate, do the following:

1. Click Browse to the right of Private Key; browse to where your private

encryption key file is located; and select it.

2. Click Browse to the right of Certificate; browse to where your certificate

file is located; and select it.

3. Click Upload to complete the procedure.

Note: 1. Clicking Restore Default returns the device to using the default

ATEN certificate.

2. Both the private encryption key and the signed certificate must be imported at the same time.

When you have finished making your settings on this page, click Save.

Chapter 9

PDU

The PDU function is used to upgrade the eco PDU’s firmware, and to backup and restore the device’s configuration settings.

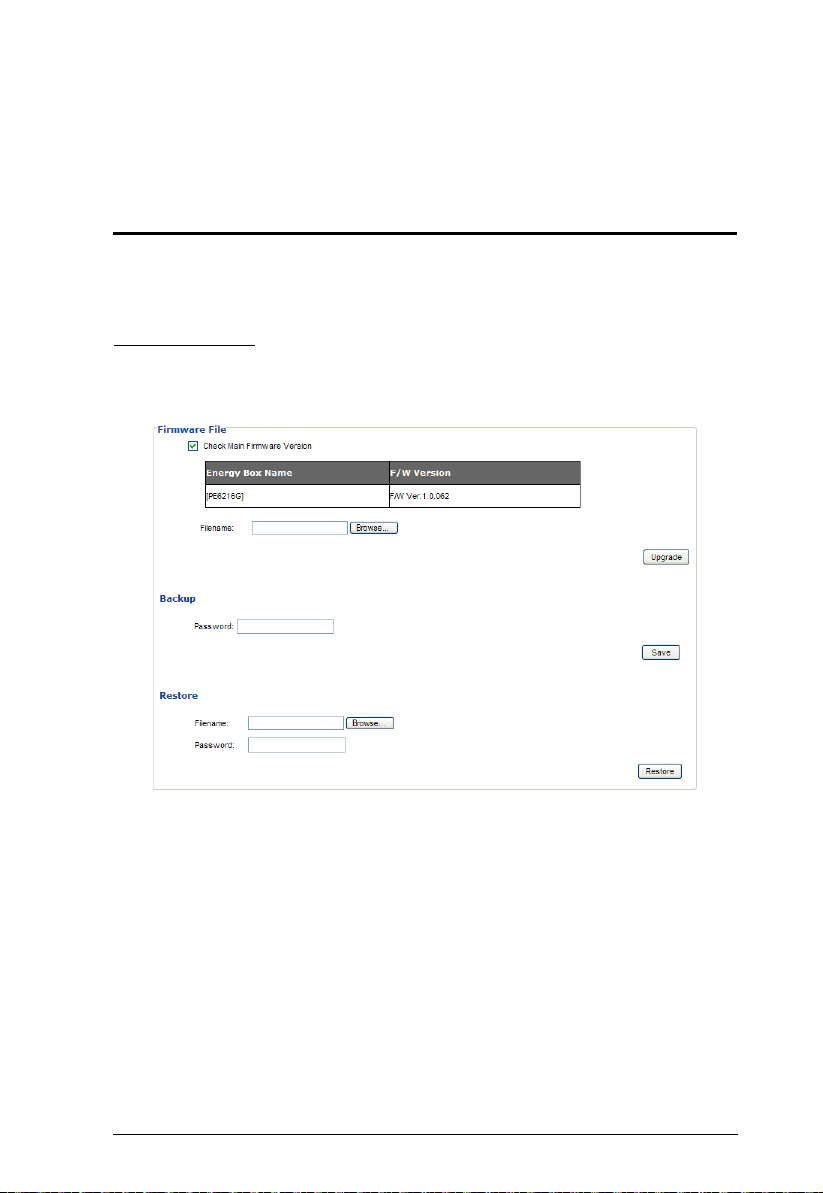

Firmware File

When you click the PDU tab, the display opens with the Upgrade Main Firmware menu page, which looks similar to the one below:

Chapter 9. PDU

A description of the items shown in this panel are given in the table, below:

Item Description

Check Main Firmware Version

Name Lists all of the eco PDU devices. Click to put a check in the

F/W Version Displays the eco PDU’s current firmware version.

Filename As new versions of the firmware become available, they are

Upgrade Click this button to upgrade the firmware of the selected devices.

If you enable Check Main Firmware Version, the eco PDU’s current firmware level is compared with that of the upgrade file. If the current version is equal to or higher than the upgrade version, a popup message appears, to inform you of the situation and stops the upgrade procedure.

checkbox of the device’s whose firmware you want to upgrade.

posted on our website and can be downloaded to a convenient location on your computer. Click the Browse button to select the downloaded upgrade file.

eco PDU PE Series User Manual

Upgrading the Firmware

To upgrade the firmware refer to the screenshot on the preceding page, and do the following:

1. Go to our website and download the new firmware file to a convenient location on your computer.

2. Click the Browse button; navigate to where the firmware file is located and select it.

3. Click Upgrade to start the upgrade procedure.  If you enabled Check Main Firmware Version the current firmware

level is compared with that of the upgrade file. If the current version is equal to or higher than the upgrade version, a popup message appears, to inform you of the situation and stops the upgrade procedure.

 If you didn't enable Check Main Firmware Version, the upgrade file is

installed without checking what its level is.

 Once the upgrade completes successfully, the switch resets itself.

4. Log in again, and check the firmware version to be sure it is the new one.

 Firmware Upgrade Recovery

Should the eco PDU’s firmware upgrade procedure fail, and the device becomes unusable, the following firmware upgrade recovery procedure will resolve the problem:

1. Power off the device.

2. Press and hold the Reset Switch in (see page 10).

3. While holding the Reset Switch in, power the switch back on.

This causes the switch to use the original factory installed main firmware version. Once the switch is operational, you can try upgrading the main firmware again.

Chapter 9. PDU

Backup

To backup the device’s settings do the following:

1. In the Password field, key in a password for the file.

Note: Entering a password is optional. If you do enter a password, make a

note of it, since you will need it to be able to restore the file.

2. Click Save.

3. When the browser asks what you want to do with the file, select Save to

disk; then save it in a convenient location.

Restore

To restore a previous backup, do the following:

1. Click Browse; navigate to the file and select it.

Note: If you renamed the file, you can leave the new name. There is no

need to return it to its original name.

2. In the Password field, key in the same password that you used to save the

file.

Note: If you did not set a password when you created the backup file, you

can omit this step.

3. Select as many of the options that are presented as you wish to restore.

4. Click Restore.

After the file is restored, a message appears to inform you that the procedure succeeded.

Appendix

Safety Instructions

General

 This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If

the device falls, serious damage will result.

 Do not use the device near water.  Do not place the device near, or over, radiators or heat registers.  The device cabinet is provided with slots and openings to allow for

adequate ventilation. To ensure reliable operation, and to protect against overheating, these openings must never be blocked or covered.

 The device should never be placed on a soft surface (bed, sofa, rug, etc.) as

this will block its ventilation openings. Likewise, the device should not be placed in a built in enclosure unless adequate ventilation has been provided.

 Never spill liquid of any kind on the device.  Unplug the device from the wall outlet before cleaning. Do not use liquid

or aerosol cleaners. Use a damp cloth for cleaning.

 The device should be operated from the type of power source indicated on

the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

 To prevent damage to your installation it is important that all devices are

properly grounded.

 The device is equipped with a 3-wire grounding type plug. This is a safety

feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not attempt to defeat the purpose of the grounding-type plug. Always follow your local/national wiring codes.

 The equipment should be installed near the wall socket outlet and the

disconnect device (appliance coupler) should be readily accessible.

 Do not allow anything to rest on the power cord or cables. Route the

power cord and cables so that they cannot be stepped on or tripped over.

Appendix

 To help protect your system from sudden, transient increases and

decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).

 Position system cables and power cables carefully; Be sure that nothing

rests on any cables.

 When connecting or disconnecting power to hot pluggable power supplies,

observe the following guidelines:  Install the power supply before connecting the power cable to the

power supply.

 Unplug the power cable before removing the power supply.  If the system has multiple sources of power, disconnect power from the

system by unplugging all power cables from the power supplies.

 Never push objects of any kind into or through cabinet slots. They may

touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock.

 Do not attempt to service the device yourself. Refer all servicing to

qualified service personnel.

 If the following conditions occur, unplug the device from the wall outlet

and bring it to qualified service personnel for repair.

 The power cord or plug has become damaged or frayed.  Liquid has been spilled into the device.  The device has been exposed to rain or water.  The device has been dropped, or the cabinet has been damaged.  The device exhibits a distinct change in performance, indicating a need

for service.

 The device does not operate normally when the operating instructions

are followed.

 Only adjust those controls that are covered in the operating instructions.

Improper adjustment of other controls may result in damage that will require extensive work by a qualified technician to repair.

 Do not connect the RJ-11 connector marked “Sensor” to a public

telecommunication network.

eco PDU PE Series User Manual

Rack Mounting

 Before working on the rack, make sure that the stabilizers are secured to

the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

 Always load the rack from the bottom up, and load the heaviest item in the

rack first.

 Make sure that the rack is level and stable before extending a device from

the rack.

 Use caution when pressing the device rail release latches and sliding a

device into or out of a rack; the slide rails can pinch your fingers.

 After a device is inserted into the rack, carefully extend the rail into a

locking position, and then slide the device into the rack.

 Do not overload the AC supply branch circuit that provides power to the

rack. The total rack load should not exceed 80 percent of the branch circuit rating.

 Make sure that all equipment used on the rack – including power strips and

other electrical connectors – is properly grounded.

 Ensure that proper airflow is provided to devices in the rack.  Ensure that the operating ambient temperature of the rack environment

does not exceed the maximum ambient temperature specified for the equipment by the manufacturer

 Do not step on or stand on any device when servicing other devices in a

rack.

The eco PDU’s Main Power Cord

Use the power cord supplied with this package. If it becomes necessary to replace the cord supplied with this package, be sure to use a cord of at least the same standard as the one provided.

Securing the Power Cables

To secure the cables in the eco PDU’s power outlets, use only the

ATEN Lock-Your-Plug cable holders that have been specifically designed to work with the eco PDU. Using any other kind of cable securing device could be highly dangerous. Please contact your ATEN dealer for information about ATEN Lock-Your-Plugs.

Appendix

Technical Support

International

 For online technical support – including troubleshooting, documentation,

and software updates: http://eservice.aten.com

 For telephone support, see Telephone Support, page iii

North America

Email Support support@aten-usa.com

Online Technical Support

Telephone Support 1-888-999-ATEN ext 4988

When you contact us, please have the following information ready beforehand:

 Product model number, serial number, and date of purchase.  Your computer configuration, including operating system, revision level,

expansion cards, and software.

 Any error messages displayed at the time the error occurred.  The sequence of operations that led up to the error.  Any other information you feel may be of help.

Troubleshooting Documentation Software Updates

http://www.aten-usa.com/support

eco PDU PE Series User Manual

IP Address Determination

If you are an administrator logging in for the first time, you need to access the eco PDU in order to give it an IP address that users can connect to. There are two methods to choose from. In each case, your client computer must be on the same network segment as the eco PDU. After you have connected and logged in you can give the device its fixed network address. (See Device Management, page 49.)

Method 1:

For computers running Windows, an IP address can be determined and/or assigned with the IP Installer utility. The utility can be obtained from the

Download area of our web site or from the software CD. Look under Driver/ SW, and the model of your device. After downloading the utility to your

computer, do the following:

1. Unzip the contents of IPInstaller.zip to a directory on your hard drive.

2. Go to the directory that you unzipped the IPInstaller program to and run

IPInstaller.exe. A dialog box similar to the one below appears:

(Continues on next page.)

Appendix

(Continued from previous page.)

3. Select the device in the Device List.

Note: 1. If the list is empty, or your device doesn't appear, click

Enumerate to refresh the Device List.

2. If there is more than one device in the list, use the MAC address to pick the one you want. The eco PDU's MAC address is located on its bottom panel.

4. Select either Obtain an IP address automatically (DHCP), or Specify an IP address. If you chose the latter, fill the IP Address, Subnet Mask, and Gateway fields with the information appropriate to your network.

5. Click Set IP.

6. After the IP address shows up in the Device List, click Exit to end the program.

Method 2:

1. Set your computer's IP address to 192.168.0.XXX

Where XXX represents any number or numbers except 60. (192.168.0.60) is the default address of the eco PDU.)

2. Specify the device’s default IP address (192.168.0.60) in your browser, and you will be able to connect.

3. Assign a fixed IP address for the device (see IPv4 Configuration, page 51), that is suitable for the network segment that it resides on.

4. After you log out, reset your computer's IP address to its original value.

5. Once you have logged in, go to Network Settings to set up the permanent IP environment (see IPv4 Configuration, page 51).

Method 3:

NRGence eco Sensors allows you to determine/assign an IP address in order to configure a PDU device and monitor power status of the equipment connected to it. NRGence eco Sensors can be obtained from the Download area of the ATEN web site.

eco PDU PE Series User Manual

Specifications

There are 17 models in the PE7xxx / PE8xxx / PE9xxx range. They are available in 16-, 21-, 24-, 28-, or 30-port versions, with different power inlet/ cord variations.

A basic comparison is show in the table, below. Full specifications for each of the models are provided on the following pages.

Basic Comparison

Model Inlet / Cord Outlets

PE7216B NEMA 6-20P 16 14 x IEC 320 C13 +

PE8216B Yes 16/16

PE9216B Yes 8/16

PE7216G IEC 60320 C20 No

PE8216G Yes 16/16

PE9216G Yes 8/16

PE8121kJ NEMA L6-15P 21 21 x IEC 320 C13 with

PE7324B / J NEMA L6-30P 24 21 x IEC 320 C13 +

PE8324B / J Yes 24/24

PE9324B / J Yes 16/24

PE7324G IEC 60309 32A No

PE8324G Yes 24/24

PE9324G Yes 16/24

PE7328B / J NEMA L6-30P 28 24 x IEC 320 C13 +

PE7328G IEC 60309 32A

PE9330B / J NEMA L6-30P 30 26 x IEC 320 C13 +

PE9330G IEC 60309 32A

2 x IEC 320 C19

lock

3 x IEC 320 C19

4 x IEC 320 C19

Metering

Level

PDU / 1 x Bank / Outlet

PDU / 2 x Bank / Outlet

Outlet

Switching

Yes 21/21

Yes 16/30

Note: The J models are identical to their B model counterparts but have power

cords designed for the Japanese market.

Appendix

PE7216B / PE8216B / PE9216B

Function PE7216B PE8216B PE9216B

Power Outlets Direct 16

Connectors Power Inlet 1 x NEMA 6-20P

Power

Outlets

Environment Sensors 4 x RJ-11 Female (Black)

Door Sensor 1 x 4-pin Dry Contact

LAN 1 x RJ-45 Female (Silver) + LEDs (Orange/Green)

LEDs Outlet Status NA 16 (Orange) 8 (Orange)

PDU / Bank / Outlet 2-digit 7-segment (Orange)

PDU / Bank / Outlet 3 (Green)

Current / Volt / P.D. / Sensor1–Sensor4 / FW Upgrade

Current / Volt / P.D. / IP / Sensor1–Sensor4

Door Open 1 (Red)

IP 1 (Green)

Power 1 (Blue)

Switches LED Display Select 1 x Pushbutton

PDU / Bank / Outlet

Select

Reset 1 x Semi-recessed Pushbutton

Power 1 x 16A Branch Breaker

Nominal Input Power 100–240V~; 50–60Hz; 16A (UL), 20A (Max.)

Power Capacity 4.16kW

Nominal

Output Power

Environment Operating Temperature

Physical

Properties

Per Port IEC 320 C19 100–240V~; 50–60Hz; 16A (UL), 20A (Max.)

Total 100–240V~; 50–60Hz; 16A (UL), 20A (Max.)

Storage Temperature

Humidity 0–80% RH Non-condensing

Housing Metal

Weight 3.80 kg

Dimensions (L x W x H) 132.48 x 6.60 x 4.40 cm

NEMA NA

IEC Total: 14 x IEC 320 C13 + 2 x IEC 320 C19

Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. Bank 1-2, Outlet 9–16: 7 x C13 + 1 x C19

3-digit 7-segment (Orange)

7 (Green)

2 x Pushbutton

IEC 320 C13 100–240V~; 50–60Hz; 12A (UL), 15A (Max.)

0–50

-20–60

eco PDU PE Series User Manual

PE7216G / PE8216G / PE9216G

Function PE7216G PE8216G PE9216G

Power Outlets Direct 16

Connectors Power Inlet 1 x IEC 320 C20

Power

Outlets

Environment Sensors 4 x RJ-11 Female (Black)

Door Sensor 1 x 4-pin Dry Contact

LAN 1 x RJ-45 Female (Silver) + LEDs (Orange/Green)

LEDs Outlet Status NA 16 (Orange) 8 (Orange)

PDU / Bank / Outlet 2-digit 7-segment (Orange)

PDU / Bank / Outlet 3 (Green)

Current / Volt / P.D. / Sensor1–Sensor4 / FW Upgrade

Current / Volt / P.D. / IP / Sensor1–Sensor4

Door Open 1 (Red)

IP 1 (Green)

Power 1 (Blue)

Switches LED Display Select 1 x Pushbutton

PDU / Bank / Outlet

Select

Reset 1 x Semi-recessed Pushbutton

Power 1 x Non-fuse Breaker

Nominal Input Power 100–240V~; 50–60Hz; 16A

Power Capacity 4.60kW

Nominal

Output Power

Environment Operating Temperature

Physical

Properties

Per Port IEC 320 C19 100–240V~; 50–60Hz; 15A (TUV), 16A (Max.)

Total 100–240V~; 50–60Hz; 15A (TUV), 16A (Max.)

Storage Temperature

Humidity 0–80% RH Non-condensing

Housing Metal

Weight 3.8 kg

Dimensions (L x W x H) 132.48 x 6.60 x 4.40 cm

NEMA NA

IEC Total: 14 x IEC 320 C13 + 2 x IEC 320 C19

Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. Bank 1-2, Outlet 9–16: 7 x C13 + 1 x C19

3-digit 7-segment (Orange)

7 (Green)

2 x Pushbutton

IEC 320 C13 100–240V~; 50–60Hz; 10A

0–40

-20–60

PE8121kJ

Function PE8121kJ

Power Outlets Direct 21

Connectors Power Inlet 1 x NEMA L6-15P

Power

Outlets

Environment Sensors 4 x RJ-11 Female (Black)

Door Sensor 1 x 4-pin Dry Contact

LAN 1 x RJ-45 Female (Silver) + LEDs (Orange/Green)

LEDs Outlet Status 21 (Orange)

PDU / Bank / Outlet 2-digit 7-segment (Orange)

PDU / Bank / Outlet 3 (Green)

Current / Volt / P.D. / Sensor1–Sensor4 / FW Upgrade

Current / Volt / P.D. / IP / Sensor1–Sensor4

Door Open 1 (Red)

IP 1 (Green)

Power 1 (Blue)

Switches LED Display Select 1 x Pushbutton

PDU / Bank / Outlet

Select

Reset 1 x Semi-recessed Pushbutton

Power 1 x 16A Pushbutton Breaker

Nominal Input Power 100–240V~; 50–60Hz; 15A (Max.)

Nominal Input/Output Voltage 200 VAC

Power Capacity 3kW

Nominal

Output Power

Environment Operating Temperature

Physical

Properties

Per Port IEC 320 C13 100–240V~; 50–60Hz; 14A (PSE), 15A (Max.)

Total 100–240V~; 50–60Hz; 14A (PSE), 15A (Max.)

Storage Temperature

Humidity 0–80% RH Non-condensing

Housing Metal

Weight 6.5 kg

Dimensions (L x W x H) 177.50 x 6.60 x 4.40 cm

IEC Total: 21 x IEC 320 C13 with lock

Bank 1-1, Outlet 1–7 Bank 1-2, Outlet 8–14 Bank 1-3, Outlet 15-21

3-digit 7-segment (Orange)

7 (Green)

2 x Pushbutton

0–50

-20–60

Appendix

eco PDU PE Series User Manual

PE7324B/J / PE8324B/J / PE9324B/J

Function PE7324B / J PE8324B / J PE9324B / J

Power Outlets Direct 24

Connectors Power Cord 1 x NEMA L6-30P

Power

Outlets

Environment Sensors 4 x RJ-11 Female (Black)

Door Sensor 1 x 4-pin Dry Contact

LAN 1 x RJ-45 Female (Silver) + LEDs (Orange/Green)

LEDs Outlet Status NA 24 (Orange) 16 (Orange)

PDU / Bank / Outlet 2-digit 7-segment (Orange)

PDU / Bank / Outlet 3 (Green)

Current / Volt / P.D. / Sensor1–Sensor4 / FW Upgrade

Current / Volt / P.D. / IP / Sensor1–Sensor4

Door Open 1 (Red)

IP 1 (Green)

Power 1 (Blue)

Switches LED Display Select 1 x Pushbutton

PDU / Bank / Outlet

Select

Reset 1 x Semi-recessed Pushbutton

Power 2 x Branch Breaker

Nominal Input Power 100–240V~; 50–60Hz; 24A (UL), 30A (Max.)

Nominal Input/Output Voltage 200–240 VAC

Power Capacity 6.24kW

Nominal

Output Power

Environment Operating Temperature

Physical

Properties

Per Port IEC 320 C19 100–240V~; 50–60Hz; 12A (UL), 15A (Max.)

Total 100–240V~; 50–60Hz; 24A (UL), 30A (Max.)

Storage Temperature

Humidity 0–80% RH Non-condensing

Housing Metal

Weight 6.5 kg

Dimensions (L x W x H) 177.50 x 6.60 x 4.40 cm

IEC Total: 21 x IEC 320 C13 + 3 x IEC 320 C19

IEC 320 C13 100–240V~; 50–60Hz; 12A (UL), 15A (Max.)

Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. Bank 1-2, Outlet 9–16: 7 x C13 + 1 x C19 Bank 2, Outlet 17–24: 7 x C13 + 1 x C19

3-digit 7-segment (Orange)

7 (Green)

2 x Pushbutton

0–50

-20–60

Appendix

PE7324G / PE8324G / PE9324G

Function PE7324G PE8324G PE9324G

Power Outlets Direct 24

Connectors Power Cord 1 x IEC 309 32A

Power

Outlets

Environment Sensors 4 x RJ-11 Female (Black)

Door Sensor 1 x 4-pin Dry Contact

LAN 1 x RJ-45 Female (Silver) + LEDs (Orange/Green)

LEDs Outlet Status NA 24 (Orange) 16 (Orange)

PDU / Bank / Outlet 2-digit 7-segment (Orange)

PDU / Bank / Outlet 3 (Green)

Current / Volt / P.D. / Sensor1–Sensor4 / FW Upgrade

Current / Volt / P.D. / IP / Sensor1–Sensor4

Door Open 1 (Red)

IP 1 (Green)

Power 1 (Blue)

Switches LED Display Select 1 x Pushbutton

PDU / Bank / Outlet

Select

Reset 1 x Semi-recessed Pushbutton

Power 2 x Non-fuse Breaker

Nominal Input Power 100–240V~; 50–60Hz; 32A

Nominal Input/Output Voltage 200–240 VAC

Power Capacity 7.36kW

Nominal

Output Power

Environment Operating Temperature

Physical

Properties

Per Port IEC 320 C19 100–240V~; 50–60Hz; 15A (TUV), 16A (Max.)

Total 100–240V~; 50–60Hz; 30A (TUV), 32A (Max.)

Storage Temperature

Humidity 0–80% RH Non-condensing

Housing Metal

Weight 6.5 kg

Dimensions (L x W x H) 177.50 x 6.60 x 4.40 cm

IEC Total: 21 x IEC 320 C13 + 3 x IEC 320 C19

Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. Bank 1-2, Outlet 9–16: 7 x C13 + 1 x C19 Bank 2, Outlet 17–24: 7 x C13 + 1 x C19

3-digit 7-segment (Orange)

7 (Green)

2 x Pushbutton

IEC 320 C13 100–240V~; 50–60Hz; 10A

0–40

-20–60

eco PDU PE Series User Manual

PE7328B/J / PE7328G

Function PE7328B / J PE7328G

Power Outlets Direct 28

Connectors Power Cord 1 x NEMA L6-30P 1 x IEC 60309 32A

Power

Outlets

Environment Sensors 4 x RJ-11 Female (Black)

Door Sensor 1 x 4-pin Dry Contact

LAN 1 x RJ-45 Female (Silver) + LEDs (Orange/Green)

LEDs Outlet Status NA

PDU / Bank / Outlet 2-digit 7-segment (Orange)

PDU / Bank / Outlet 3 (Green)

Current / Volt / P.D. / Sensor1–Sensor4 / FW Upgrade

Current / Volt / P.D. / IP / Sensor1–Sensor4

Door Open 1 (Red)

IP 1 (Green)

Power 1 (Blue)

Switches LED Display Select 1 x Pushbutton

PDU / Bank / Outlet Select 2 x Pushbutton

Reset 1 x Semi-recessed Pushbutton

Power 2 x Branch Breaker

Nominal Input Power 100–240V~; 50–60Hz;

Nominal Input/Output Voltage 100–240 VAC

Power Capacity 7.40kW

Nominal

Output Power

Environment Operating Temperature

Physical

Properties

Per Port IEC 320 C19 100–240V~; 50–60Hz;

Total 100–240V~; 50–60Hz;

Storage Temperature

Humidity 0–80% RH Non-condensing

Housing Metal

Weight 4.10 kg

Dimensions (L x W x H) 135.90 x 6.60 x 4.40 cm

IEC Total: 24 x IEC 320 C13 + 4 x IEC 320 C19

Bank 1, Outlet 1–14: 12 x C13 + 2 x C19. Bank 2, Outlet 15–28: 12 x C13 + 2 x C19

3-digit 7-segment (Orange)

7 (Green)

24A (UL), 30A (Max.)

12A (UL), 15A (Max.)

IEC 320 C13 100–240V~; 50–60Hz;

12A (UL), 15A (Max.)

24A (UL), 30A (Max.)

0–50

100–240V~; 50–60Hz; 30A (TUV), 32A (Max.)

100–240V~; 50–60Hz; 15A (TUV), 16A (Max.)

100–240V~; 50–60Hz;

100–240V~; 50–60Hz; 30A (TUV), 32A (Max.)

-20–60

10A

0–40

Appendix

PE9330B/J / PE9330G

Function PE9330B / J PE9330G

Power Outlets Direct 30

Connectors Power Cord 1 x NEMA L6-30P 1 x IEC 60309 32A

Power

Outlets

Environment Sensors 4 x RJ-11 Female (Black)

Door Sensor 1 x 4-pin Dry Contact

LAN 1 x RJ-45 Female (Silver) + LEDs (Orange/Green)

LEDs Outlet Status 16 (Orange)

PDU / Bank / Outlet 2-digit 7-segment (Orange)

PDU / Bank / Outlet 3 (Green)

Current / Volt / P.D. / Sensor1–Sensor4 / FW Upgrade

Current / Volt / P.D. / IP / Sensor1–Sensor4

Door Open 1 (Red)

IP 1 (Green)

Power 1 (Blue)

Switches LED Display Select 1 x Pushbutton

PDU / Bank / Outlet Select 2 x Pushbutton

Reset 1 x Semi-recessed Pushbutton

Power 2 x Branch Breaker

Nominal Input Power 100–240V~; 50–60Hz;

Nominal Input/Output Voltage 100–240 VAC

Power Capacity 7.40kW

Nominal

Output Power

Environment Operating Temperature

Physical

Properties

Per Port IEC 320 C19 100–240V~; 50–60Hz;

Total 100–240V~; 50–60Hz;

Storage Temperature

Humidity 0–80% RH Non-condensing

Housing Metal

Weight 6.40 kg

Dimensions (L x W x H) 177.50 x 6.60 x 4.40 cm

IEC Total: 26 x IEC 320 C13 + 4 x IEC 320 C19

Bank 1-1, Outlet 1–14: 12 x C13 + 2 x C19 Bank 1-2, Outlet 15–22: 7 x C13 + 1 x C19 Bank 2, Outlet 23–30: 7 x C13 + 1 x C19

3-digit 7-segment (Orange)

7 (Green)

24A (UL), 30A (Max.)

12A (UL), 15A (Max.)

IEC 320 C13 100–240V~; 50–60Hz;

12A (UL), 15A (Max.)

24A (UL), 30A (Max.)

0–50

100–240V~; 50–60Hz;

30A (TUV), 32A (Max.)

100–240V~; 50–60Hz;

15A (TUV), 16A (Max.)

100–240V~; 50–60Hz;

30A (TUV), 32A (Max.)

-20–60

10A

0–40

eco PDU PE Series User Manual

Administrator Login Failure

If you are unable to perform an Administrator login (because the Username and Password information has become corrupted, or you have forgotten it, for example), you can clear the login information with the following procedure:

1. Power off the eco PDU and remove its housing.

2. Short the jumper labeled J1 (PIN5 and PIN6).

3. Power on the eco PDU.

4. After the beep indicates successfully powered on, power off the switch.

5. Remove the jumper cap from J1.

6. Close the housing and start the eco PDU. After you start, you can use the default Username and Password to log in.

Appendix

Limited Warranty

ATEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ATEN's support department for repair or replacement of your unit. ATEN will not issue a refund. Return requests can not be processed without the original proof of purchase.

When returning the product, you must ship the product in its original packaging or packaging that gives an equal degree of protection. Include your proof of purchase in the packaging and the RMA number clearly marked on the outside of the package.

This warranty becomes invalid if the factory-supplied serial number has been removed or altered on the product.

This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence or modification of any part of the product. This warranty does not cover damage due to improper operation or maintenance, connection to improper equipment, or attempted repair by anyone other than ATEN. This warranty does not cover products sold AS IS or WITH FAULTS.

IN NO EVENT SHALL ATEN'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT. FURTHER, ATEN SHALL NOT BE RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. ATEN SHALL NOT IN ANY WAY BE RESPONSIBLE FOR, WITHOUT LIMITATION, LOSS OF DATA, LOSS OF PROFITS, DOWNTIME, GOODWILL, DAMAGE OR REPLACEMENT OF EQUIPMENT OR PROPERTY, AND ANY EXPENSES FROM RECOVERY, PROGRAMMING, AND REPRODUCTION OF ANY PROGRAM OR DATA.

ATEN makes no warranty or representation, expressed, implied, or statutory with respect to its products, contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose.

ATEN reserves the right to revise or update its product, software or documentation without obligation to notify any individual or entity of such revisions, or update.

For details about extended warranties, please contact one of our dedicated value added resellers

NRGence eco PDU PE, PE7216, PE7324, PE9216, PE8324 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Overview

Comparison Chart

Features

Power Distribution

Remote Access

Operation

Management

Security

eco Sensors Energy Management Software*

Proactive Overload Protection (POP)

Requirements

Optional Accessories

Environment Sensors

Door Sensor

Sensor Management

Cable Holders

Components

PE7216 / PE8216 / PE9216

PE8121kJ

PE7324 / PE8324 / PE9324

PE7328

PE9330

Port and LED Panel (All models)

Hardware Setup

Before You Begin

Rack Mounting

PDU Placement

Installation

Installation Diagram

Securing the Cables

Securing the Sensors

Operation Methods

Browser

eco Sensors

SNMP

First Time Setup

Network Configuration

Changing the Administrator Login

Moving On

Logging In

Logging In

The eco PDU Main Page

Page Components

Energy

Energy

Connections

PDU Status

Bank Status

Outlet Status

Configuration

POP Setting

Bank Configuration

Outlet Configuration

User Management

Overview

Administrator Information

User Information

The System Log Event List

Setup

Device Management

Device Configuration

General

Service Ports

IPv4 Configuration

IPv6 Configuration

Event Notification

Date/Time

Time Zone

Manual Input

Network Time

Finishing Up

Security

Login Failures

Working Mode

Account Policy
