OPERATING INSTRUCTIONS AND
SYSTEM DESCRIPTION FOR THE
BA-01X
INTRACELLULAR
BRIDGE MODE
AMPLIFIER
VERSION 1.9
npi 2014
npi electronic GmbH, Bauhofring 16, D-71732 Tamm, Germany
Phone +49 (0)7141-9730230; Fax: +49 (0)7141-9730240
support@npielectronic.com; http://www.npielectronic.com
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 2
Table of Contents
About this Manual ................................................................................................................... 3
1. Safety Regulations .............................................................................................................. 4
2. BA-01X Components ......................................................................................................... 5
3. BA-01X System .................................................................................................................. 5
3.1. System Description ...................................................................................................... 5
3.2. Description of the Front Panel ..................................................................................... 6

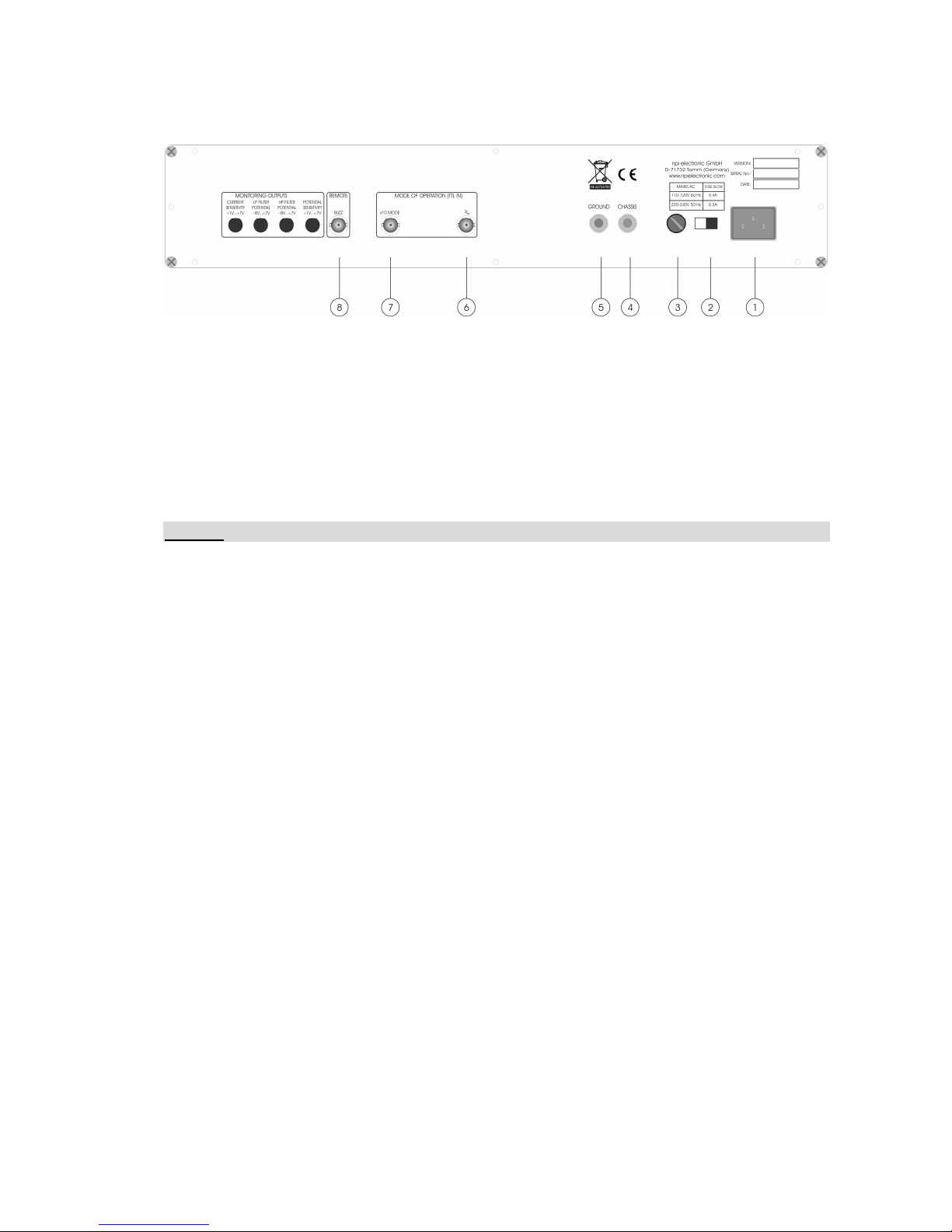

3.3. Description of the Rear Panel ...................................................................................... 15
4. Headstage ............................................................................................................................ 16
4.1. Headstage Elements ..................................................................................................... 16
5. Setting up the BA-01X ....................................................................................................... 17
6. Passive Cell Model ............................................................................................................. 18
6.1. Cell Model Description ............................................................................................... 18
6.2. Connections and Operation ......................................................................................... 19
7. Test and Tuning Procedures ............................................................................................... 21
7.1. Headstage Bias Current Adjustment ........................................................................... 21
7.2. Offset Compensation ................................................................................................... 22
7.3. Capacitance Compensation.......................................................................................... 22
7.4. Bridge Balance ............................................................................................................ 24
7.5. Electrode Selection ...................................................................................................... 24
8. Sample Experiments ........................................................................................................... 26
8.1. Sample Experiment using a Sharp Electrode .............................................................. 26
8.2. Sample Experiment using a Suction (Patch) Electrode ............................................... 29
9. Trouble Shooting ................................................................................................................ 31
10. Literature ..................................................................................................................... 32
11. Technical Data ............................................................................................................. 35
Index ........................................................................................................................................ 37
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 3
About this Manual
This manual should help to setup and use the BA-01X system correctly and to perform
reliable experiments.
If you are not familiar with the use of instruments for intracellular recording of electrical
signals please read the manual completely. The experienced user should read at least chapters,
1, 3, 3.3, 0 and 7.
Important: Please read chapter 1 carefully! It contains general information about the safety
regulations and how to handle highly sensitive electronic instruments.
Signs and conventions
In this manual all elements of the front panel are written in capital letters as they appear on
the front panel.
System components that are shipped in the standard configuration are marked with 3, optional
components with ê. In some chapters the user is guided step by step through a certain
procedure. These steps are marked with o.
Important information and special precautions are highlighted in gray.
Abbreviations
Cm: cell membrane capacitance
C
stray
: electrode stray capacitance
GND: ground
I
max
: maximal current
Rm: cell membrane resistance
REL: electrode resistance
τ
Cm
: time constant of the cell membrane
V
REL
: potential drop at REL
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 4
1. Safety Regulations
VERY IMPORTANT: Instruments and components supplied by npi electronic are NOT
intended for clinical use or medical purposes (e.g. for diagnosis or treatment of humans),
or for any other life-supporting system. npi electronic disclaims any warranties for such
purpose. Equipment supplied by npi electronic must be operated only by selected,
trained and adequately instructed personnel. For details please consult the GENERAL
TERMS OF DELIVERY AND CONDITIONS OF BUSINESS of npi electronic, D-71732
Tamm, Germany.
1) GENERAL: This system is designed for use in scientific laboratories and must be
operated only by trained staff. General safety regulations for operating electrical devices
should be followed.
2) AC MAINS CONNECTION: While working with npi systems, always adhere to the
appropriate safety measures for handling electronic devices. Before using any device
please read manuals and instructions carefully.
The device is to be operated only at 115/230 Volt 60/50 Hz AC. Please check for
appropriate line voltage before connecting any system to mains.
Always use a three-wire line cord and a mains power-plug with a protection contact
connected to ground (protective earth).
Before opening the cabinet, unplug the instrument.
Unplug the instrument when replacing the fuse or changing line voltage. Replace fuse
only with an appropriate specified type.
3) STATIC ELECTRICITY: Electronic equipment is sensitive to static discharges. Some
devices such as sensor inputs are equipped with very sensitive FET amplifiers, which can
be damaged by electrostatic charge and must therefore be handled with care. Electrostatic
discharge can be avoided by touching a grounded metal surface when changing or
adjusting sensors. Always turn power off when adding or removing modules,
connecting or disconnecting sensors, headstages or other components from the
instrument or 19” cabinet.
4) TEMPERATURE DRIFT / WARM-UP TIME: All analog electronic systems are
sensitive to temperature changes. Therefore, all electronic instruments containing analog
circuits should be used only in a warmed-up condition (i.e. after internal temperature has
reached steady-state values). In most cases a warm-up period of 20-30 minutes is
sufficient.
5) HANDLING: Please protect the device from moisture, heat, radiation and corrosive
chemicals.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 5
2. BA-01X Components
The following items are shipped with the BA-01X system:
3 BA-01X amplifier
3 Headstage
3 Ground connector for headstage (2.6 mm)
3 Power cord
3 User manual
Optional accessories:
ê
Electrode holder
ê
Suction (patch) electrode holder
ê
Electrode holder adapter for mounting to a micromanipulator
ê
Remote switch for penetration unit
ê
Active cell model
ê

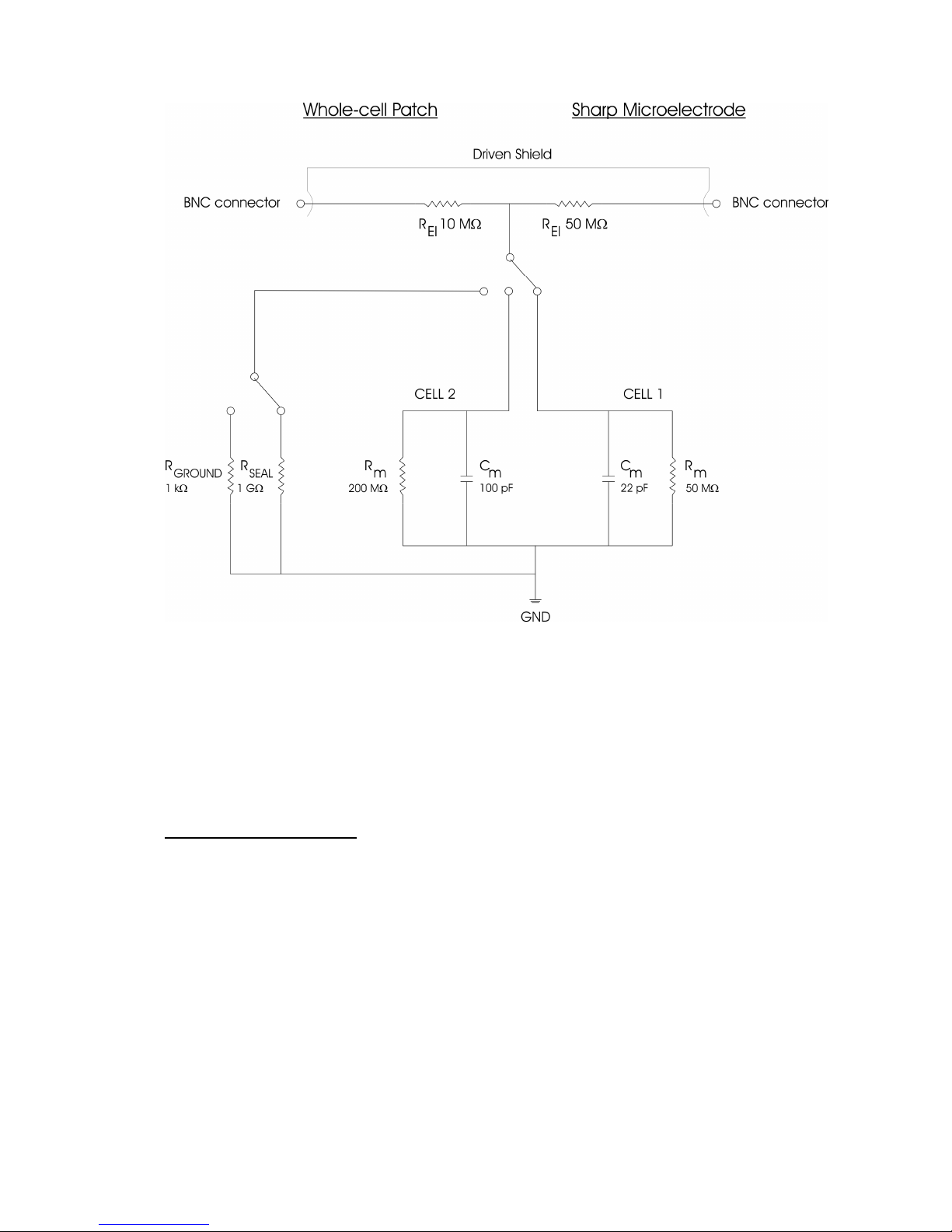

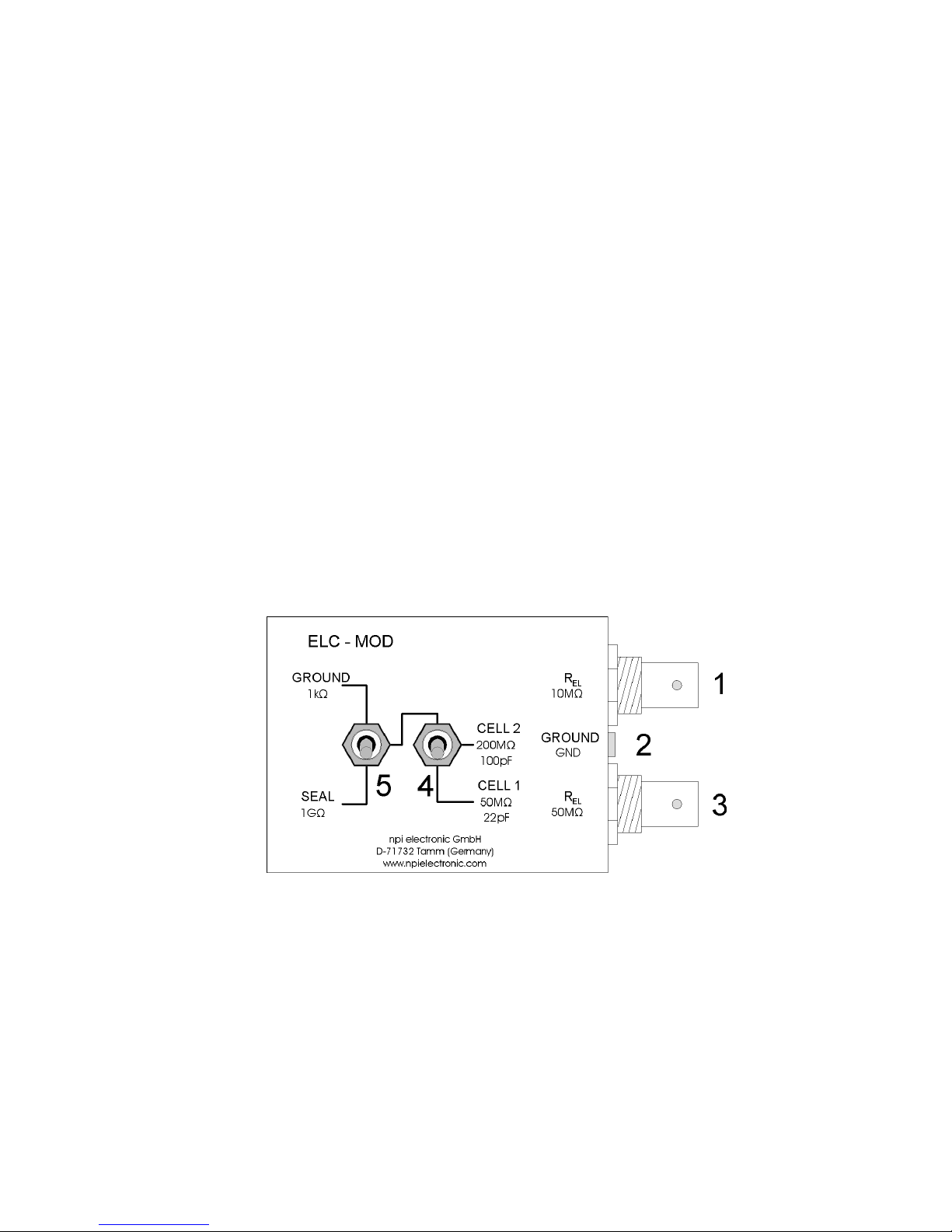

Passive cell model (see Figure 7)
ê
Low noise / low bias current headstage with a reduced current range (:10 headstage, i.e.
maximal current is 1.2 nA or 12 nA respectively)
ê
Headstage with differential input
3. BA-01X System
This manual is related to the standard configuration of the BA-01X system consisting a
standard headstage and standard calibrations of bridge balance, electrode resistance display
range etc.
Other configurations are available, e.g. if the BA-01X system is used only for whole cell
patch clamp recordings with suction electrodes the BA-01X system can be delivered with
adapted calibrations and a low noise / low bias current headstage (see Optional accessories in
chapter 2). For details contact npi.
3.1. System Description
The npi BA-01X intracellular recording systems are precise current clamp instruments with a
bridge circuit to compensate for the resistance of the recording intracellular electrode. For
current injection and potential recording a very high impedance voltage-to-current converter
with a special input capacitance compensation circuit is used. For methodical reviews see
Lalley et al. (1999), Richter et al. (1996), Ogden (1994) and Boulton et al. (1990).
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 6

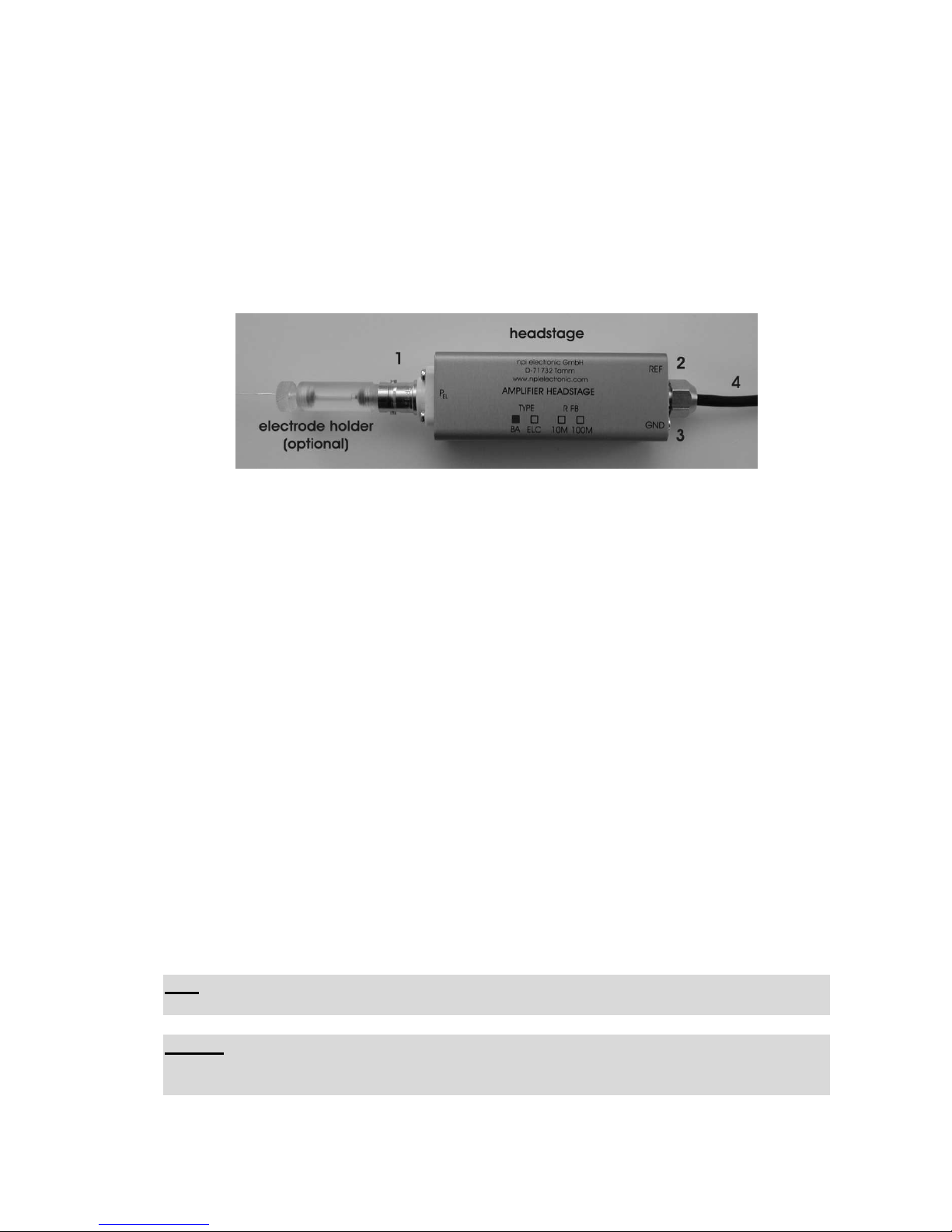

The system consists of standard desktop cabinet and a headstage which should be placed close

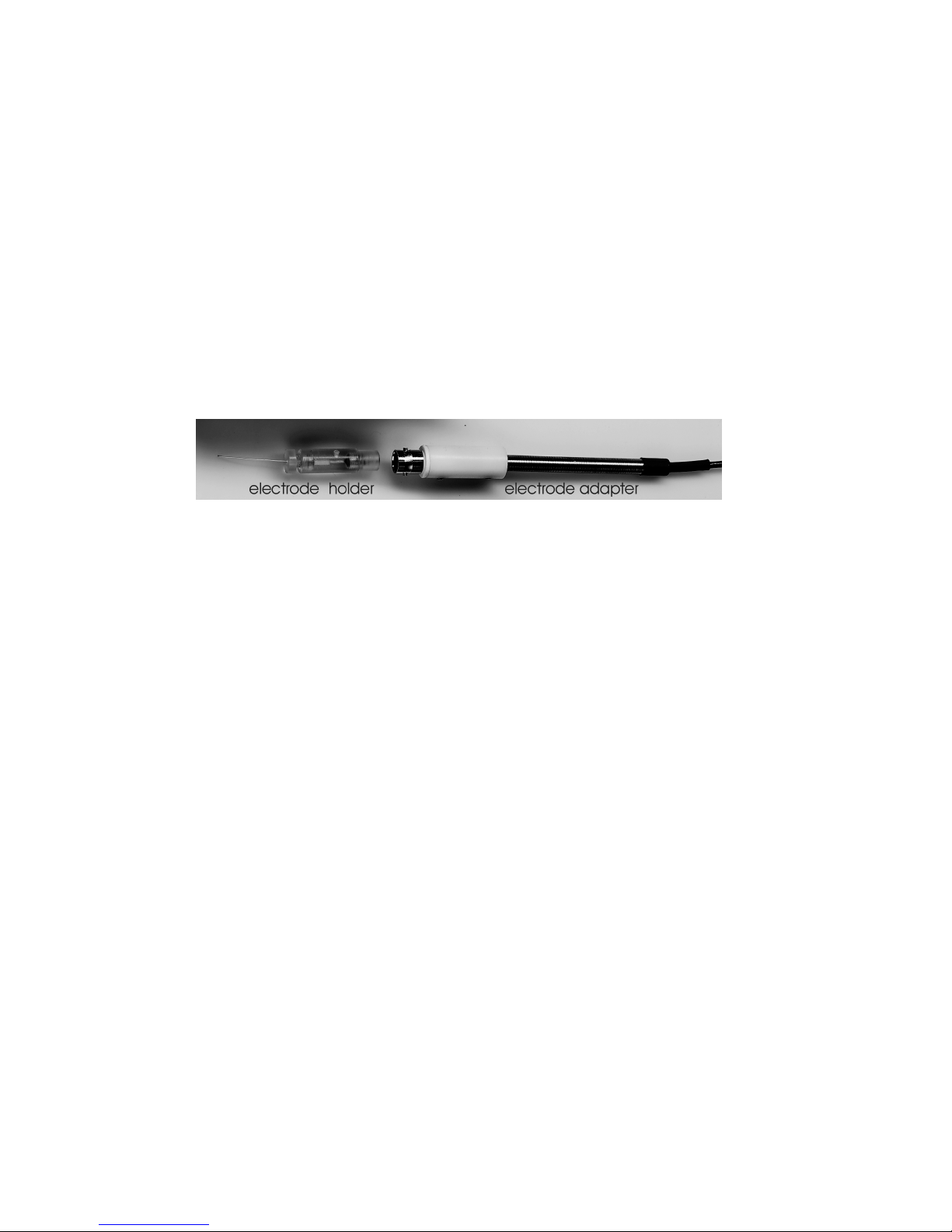

to the recording site. The recording electrode is connected to the headstage via an electrode
holder (see also Figure 6). In some setups there is no space for placing the headstage very
close to the recording site. In that case the electrode holder can be connected to the headstage
via an electrode adapter (see Optional accessories in chapter 2).
All electrode connectors use a driven shield approach (for details of this approach see Ogden
(1994)) to minimize the effect of the connecting cables. In addition, all headstages are
equipped with a ground connector providing system ground. The standard system is equipped
with a headstage capable of injecting a maximal current of approximately ±12 nA (±120 nA)
into a resistance of 100 MΩ (10 MΩ) dependent on the preset current range.
With this headstage the system can be used either with high resistance electrodes for
intracellular recordings or with low resistance suction electrodes for whole cell patch clamp
recordings.
To cover all the needs of electrophysiological research all systems have a large variety of
operation- and control elements such as cell penetration mode (BUZZ), ELECTRODE
CLEAR facility, ten-turn controls for BRIDGE BALANCE, CAPACITANCE
COMPENSATION, OFFSET and HOLDING CURRENT, an automated electrode resistance
test, digital displays for potential, current and electrode resistance, a GATE and linear
CURRENT STIMULUS INPUT.
An extended CURRENT RANGE x10 allows electroporation of single cells for non-invasive,
juxtacellular filling of cells with dyes or plasmids.
3.2. Description of the Front Panel
In the following description of the front panel elements each element has a number that is
related to that in Figure 1. The number is followed by the name (in uppercase letters) written
on the front panel and the type of the element (in lowercase letters). Then, a short description
of the element is given. Some elements are grouped in functional units (e.g. BUZZ unit) and
are described as units regardless of the order of numbers.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 7

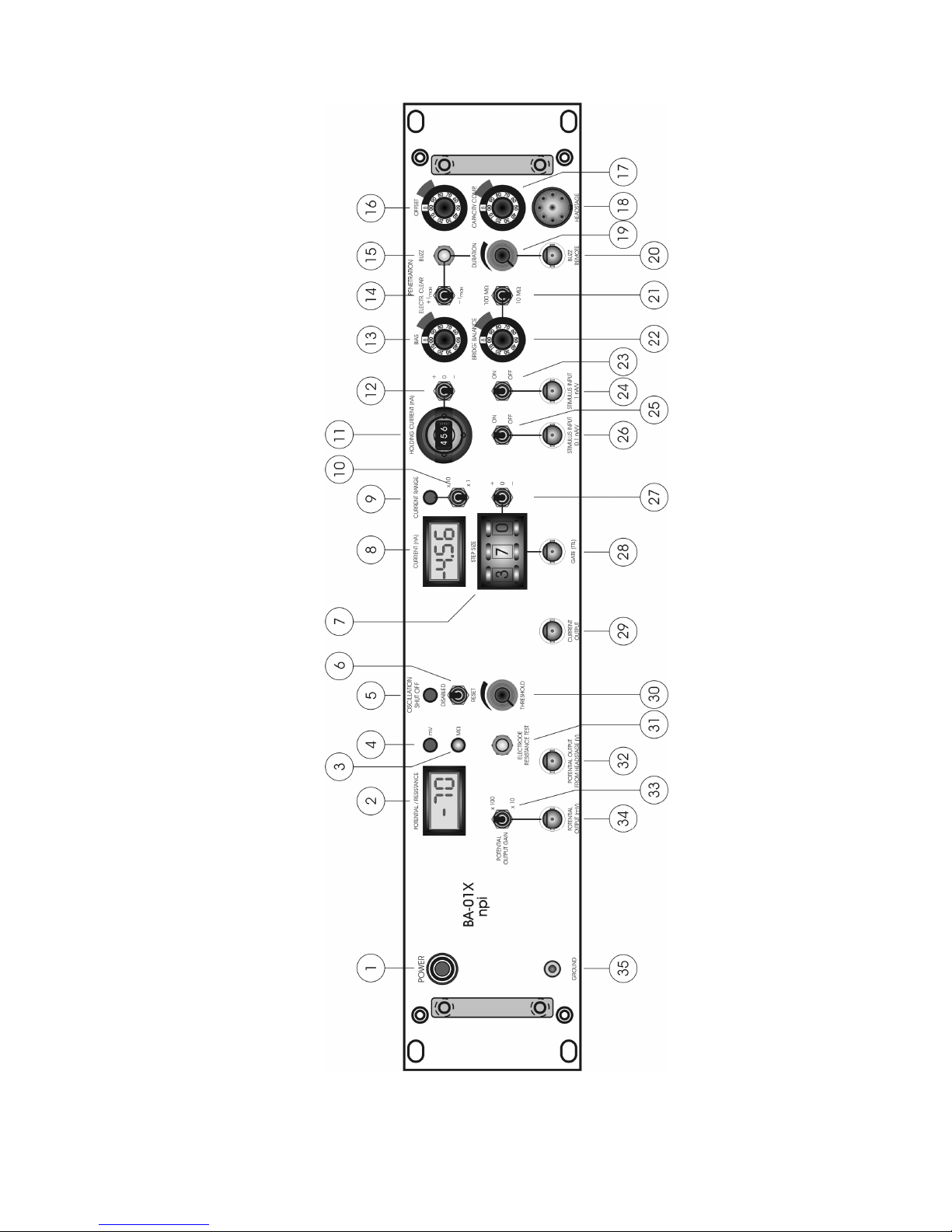

Figure 1: BA-01X front panel view (the numbers are related to those in the text below)
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 8

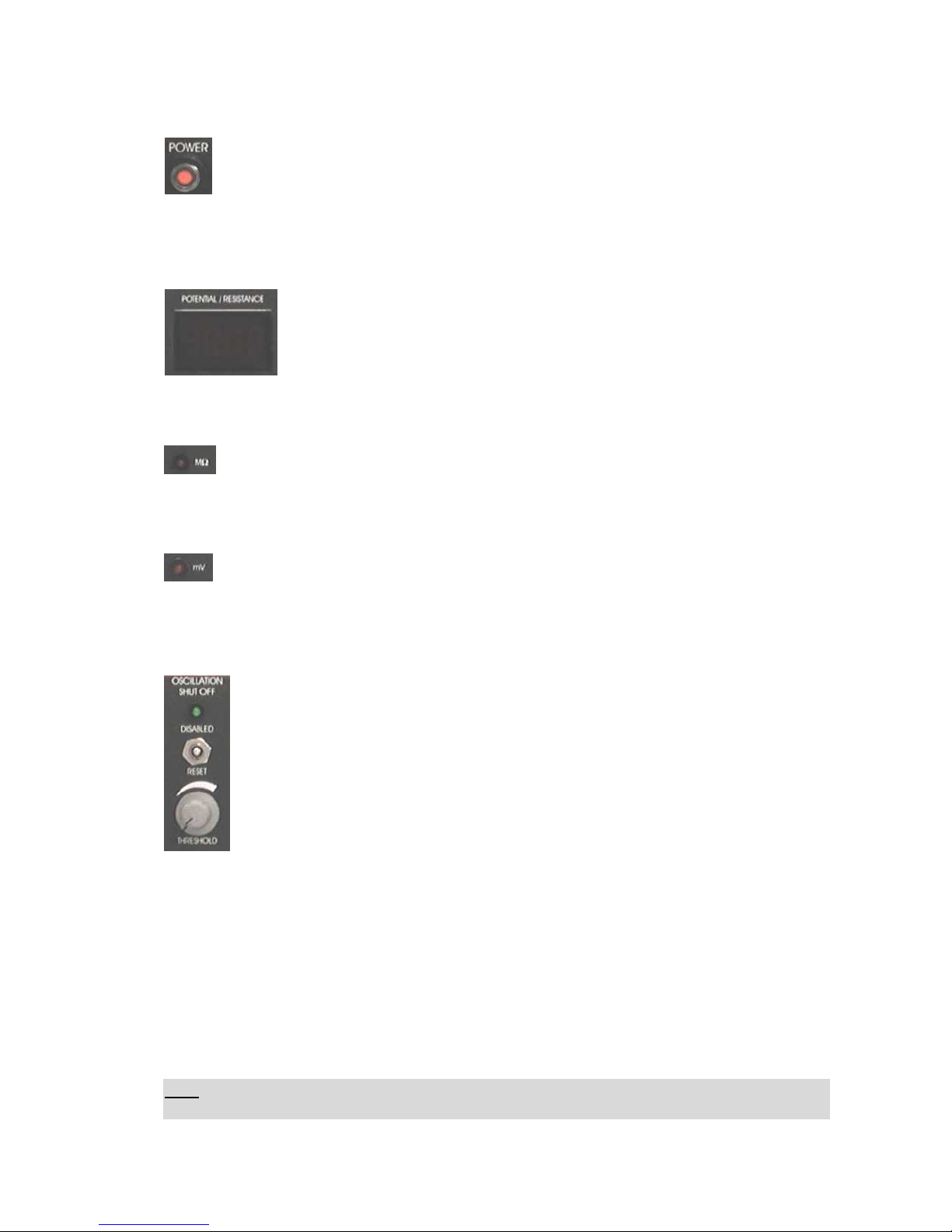

(1) POWER pressure switch
Switch to turn POWER on (switch pushed) or off (switch released).
(2) POTENTIAL / RESISTANCE display
Display for the recorded potential in mV (XXX mV) or the electrode
resistance in MΩ (XXX MΩ, i.e. 100 correspond to 100 MΩ), selected by
push button (31).
(3) MΩ LED
LED indicating that the unit of display (2) is MΩ.
(4) mV LED
LED indicating that the unit of display (2) is mV.
OSCILLATION SHUT-OFF unit
The OSCILLATION SHUT-OFF unit consists of (5) OSCILLATION SHUT-OFF
LED, (6) DISABLED/RESET switch and the (30) THRESHOLD potentiometer.
(5) OSCILLATION SHUT-OFF LED
Indicates whether the OSCILLATION SHUT-OFF circuit is active (LED: red) or
not (LED: green).
(6) DISABLED/RESET switch
Switch to DISABLE the OSCILLATION SHUT-OFF unit or RESET the circuit. RESET is
for resetting the circuit after previous activation. After resetting the OSCILLATION
SHUT-OFF unit is active again.
(30) THRESHOLD potentiometer
Control to set the activation THRESHOLD of the OSCILLATION SHUT-OFF circuit
(potentiometer, linear clockwise, range: 0-1200 mV).
Note: If the OSCILLATION SHUT-OFF unit is active, the output of the amplifier to the
headstage is disabled. Potential measurement works.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 9
Important: The capacity compensation for the electrode does NOT work if the oscillation
shut-off circuit is activated. This may lead to an incorrect reading of the electrode resistance
(see also 31) especially when electrodes with high resistances are used.

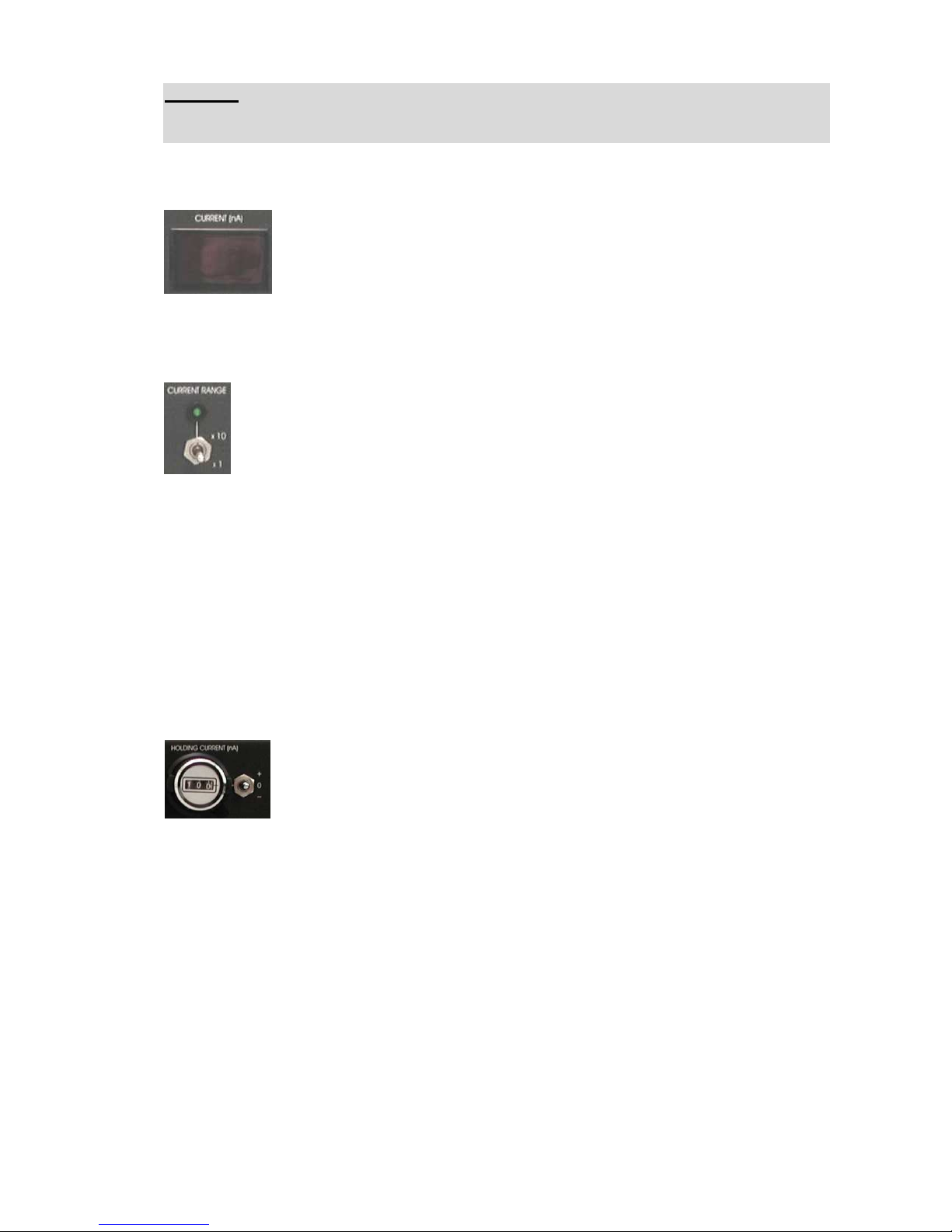

(8) CURRENT (nA) display
Display for the electrode current in nA. Scaling is dependent on the position
of the CURRENT RANGE switch (9)
x1: XX.XX nA, x10: XXX.X nA
CURRENT RANGE unit
The CURRENT RANGE unit consists of (9) CURRENT RANGE LED and
(10) CURRENT RANGE switch.
(9) CURRENT RANGE LED
LED indicating the actual current range of the amplifier.
LED ON: BA-01X is in x10 range
LED OFF: BA-01X is in x1 range
(10) CURRENT RANGE switch
Switch for setting the current range of the amplifier: x1: max. ±12 nA into 1 GΩ, x10:
max. ±120 nA into 100 MΩ
HOLDING CURRENT unit
The HOLDING CURRENT unit consists of (12) HOLDING CURRENT
(nA) potentiometer and (12) + / 0 / - switch (holding current switch).
(11) HOLDING CURRENT (nA) potentiometer
Control for generating a constant current (holding current), (ten turn potentiometer,
clockwise), calibrated in nA (I
max
= 10 nA in x1 current range or 100 nA in x10 current
range). The polarity of this holding current is set by toggle switch (12).
(12) + / 0 / - switch (holding current switch)
Switch to disable holding current generation or to set the polarity of the holding current
(+: current positive, 0: holding current disabled, -: current negative).
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 10
(13) BIAS (bias current) potentiometer
Potentiometer for cancellation of the output current (BIAS current) of the
(headstage) (ten-turn potentiometer, symmetrical, i.e. 0 pA = 5 on the dial),
range: current range x1 and x10: ±200 pA (see chapter 7.1).
PENETRATION unit
The PENETRATION unit consists of (14) ELECTR.CLEAR switch, (15)
BUZZ push button, (19) BUZZ DURATION potentiometer and (20) BUZZ
REMOTE connector.
(5) ELECTR.CLEAR switch
Momentary switch for activating the ELECTRODE CLEAR circuit that can
be used to clean the tip of the electrode by passing large amounts of positive
or negative currents. The circuit is operated by pushing the switch to +I
max
(maximum positive current) or -I
max
(maximum negative current). The
maximum current is dependent on the setting of the current range, see also
(10).
(15) BUZZ push button
Push button to activate the BUZZ circuit (duration set by (19)). To facilitate the
penetration of the cell membrane the BUZZ circuit is provided, which is based on
oscillations caused by overcompensating the capacitance compensation system. This yields
to very powerful high-frequency oscillations (see Figure 2).
(19) BUZZ DURATION potentiometer
Control to set the duration of the BUZZ (potentiometer, clockwise, range: ~1 ms to
~100 ms). The duration is also slightly dependent on the setting of CAPACITY COMP.
(17). It is effective in both modes (REMOTE and BUZZ), see also (20).
(20) BUZZ REMOTE connector
BNC connector for operating the BUZZ circuit remotely. The remote device is connected
via a grounded BNC cable. The duration of the BUZZ is dependent on the setting of the
BUZZ DURATION potentiometer (19).

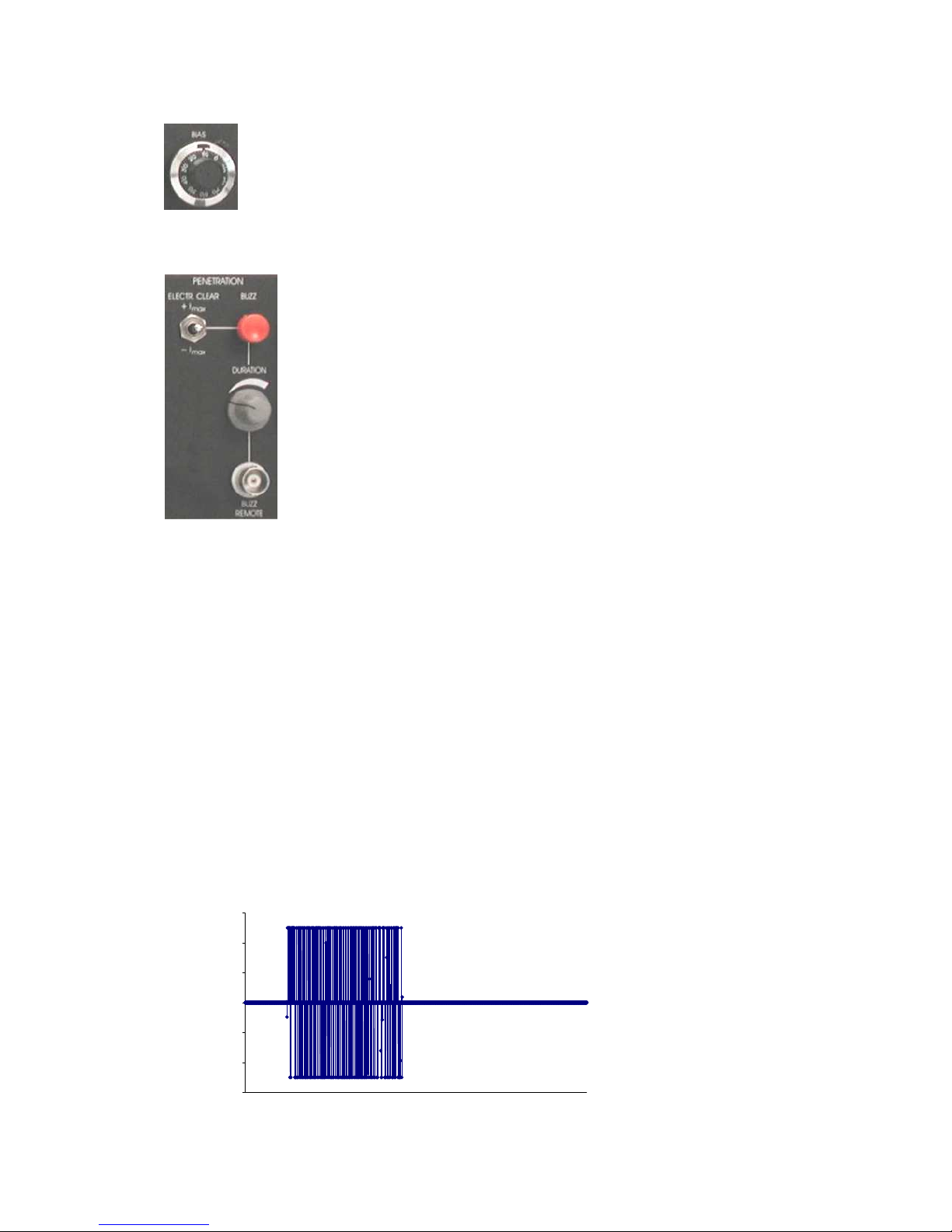

Figure 2: buzz function of the BA-01X
-12000
-8000
-4000
0
4000
8000
12000
time (ms)
potential (mV)
start
stop
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 11

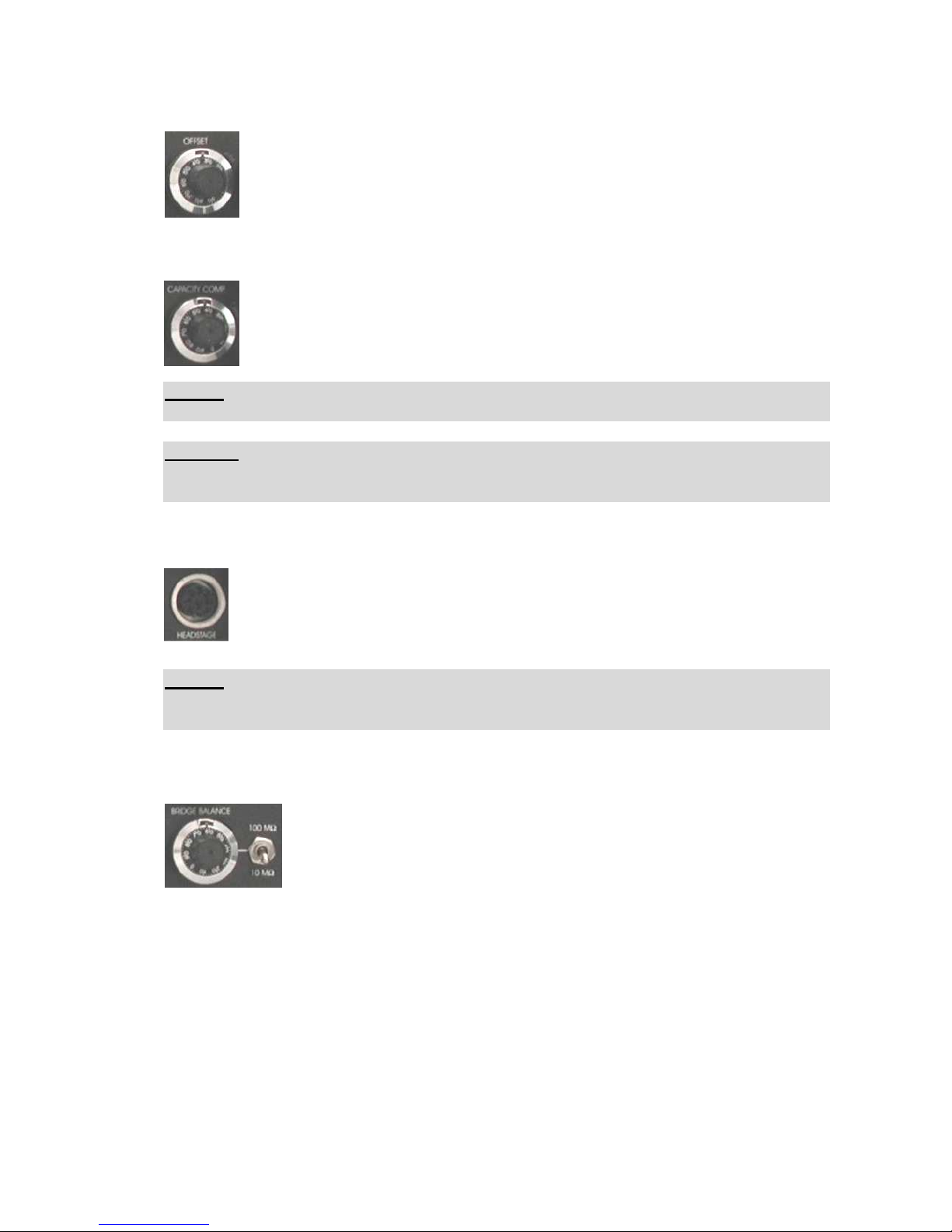

(16) OFFSET potentiometer
Control to set the output of the electrode preamplifier to zero (ten-turn
potentiometer, symmetrical, i.e. 0 mV = 5 on the dial), range: ±200 mV (see
chapter 7.2).
(17) CAPACITY COMP. potentiometer
Control for compensation of the input capacitance (ten turn potentiometer,
clockwise, range: 0-30 pF, see chapter 7.3).
Caution: This circuit is based on a positive feedback circuit. Overcompensation leads to
oscillations which may damage the cell.
Important: The capacity compensation for the electrode does NOT work if the oscillation
shut-off circuit is activated. This may lead to an incorrect reading of the electrode resistance
(see also 31) especially when electrodes with high resistances are used.
(18) HEADSTAGE connector
The HEADSTAGE is connected via a flexible cable and an 8-pole connector to the
mainframe (see also chapter 3.3).
Caution: Please always adhere to the appropriate safety regulations (see chapter 1). Please
turn power off when connecting or disconnecting the headstage from the HEADSTAGE
connector!
BRIDGE BALANCE unit
The BRIDGE BALANCE unit consists of (21) 100 MΩ / 10 MΩ range
switch and (22) BRIDGE BALANCE potentiometer.
(21) 100 MΩ / 10 MΩ range switch
Switch to set the range of the BRIDGE BALANCE potentiometer (100 MΩ position:
0 MΩ to 1000 MΩ, 10 MΩ position: 0 MΩ to 100 MΩ).
(22) BRIDGE BALANCE(MΩ) potentiometer
If current is passed through the recording electrode the potential deflection caused at the
electrode resistance is compensated with this control (ten turn potentiometer, clockwise,
calibrated in MΩ, range: set by switch (21), see also chapter 7.4).
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 12
CURRENT INPUT unit
The CURRENT INPUT unit consists of (23) (25) on / off switches, (24)
1 nA/V connector and (26) 0.1 nA/V connector.
(23) on / off switch
Switch to enable (on) or disable (off) CURRENT INPUT via 1 nA/V connector.
To avoid interferences always switch to off position if the INPUT is not used.
(24) CURRENT INPUT 1 nA/V connector
Analog input BNC connector for application of signals from an external stimulus source.
The voltage signal that is connected here is transformed to a proportional current at the
electrode with a sensitivity of 1 nA/V, i.e. an input voltage of 5 V is transformed to an
output current of 5 nA. The signal form remains unchanged. Two examples are given in
Figure 3. The amplitude of the output current signal (current stimulus) is determined by the
amplitude of the input voltage signal.
input voltage signal output current signal

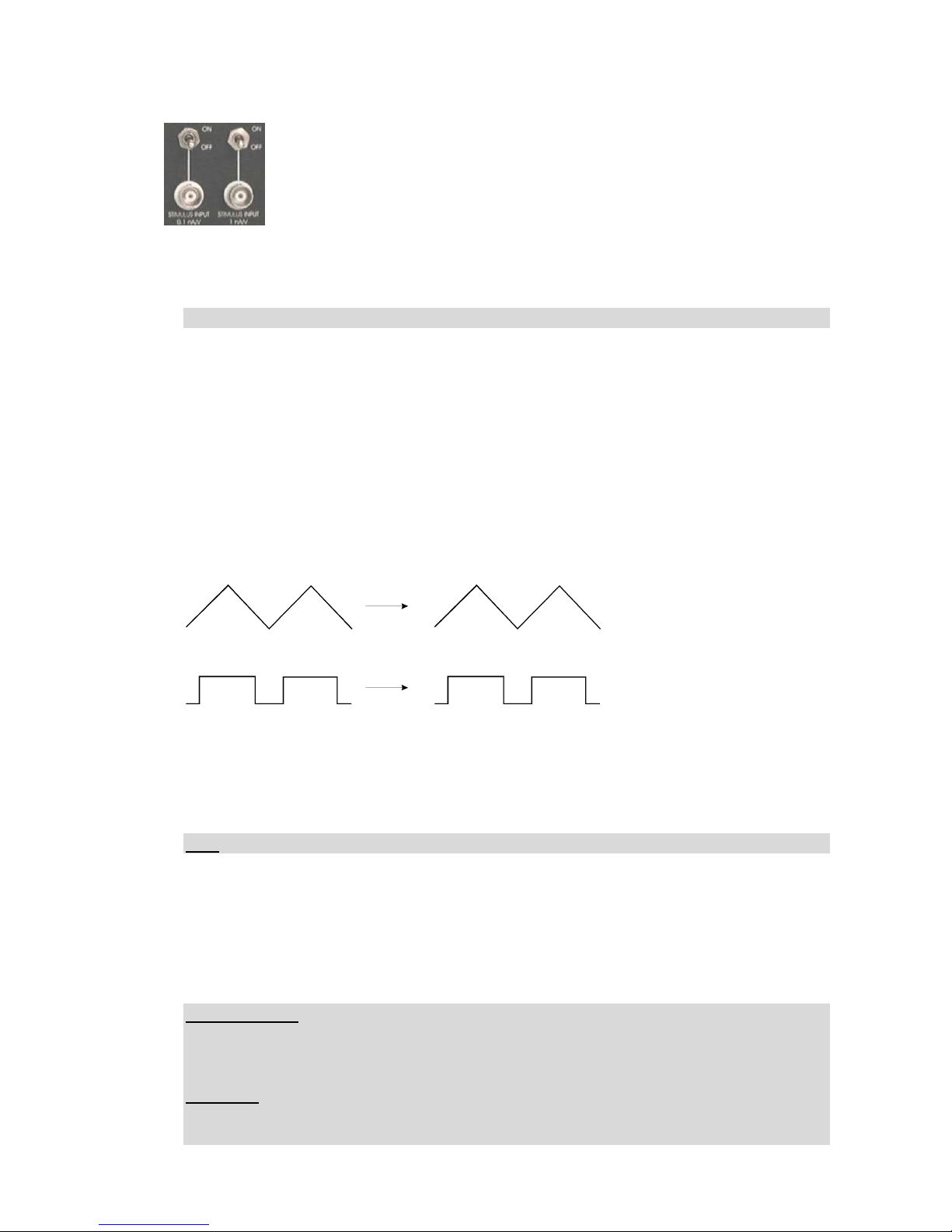

Figure 3: input-output relation using CURRENT INPUT
(25) on / off switch
Switch to enable (on) or disable (off) CURRENT INPUT via 0.1 nA/V connector.
Hint: To avoid interferences always switch to off position if the INPUT is not used.
(26) CURRENT INPUT 0.1 nA/V connector
Analog input BNC connector for application of signals from an external stimulus source.
The voltage signal that is connected here is transformed to a proportional current at the
electrode with a sensitivity of 0.1 nA/V, i.e. an input voltage of 5 V is transformed to an
output current of 0.5 nA. The signal form remains unchanged (see also (24 and Figure 3).
Very Important: If switch #10 is set to x10, all current input signals are multiplied by the
factor of 10, i.e. STIMULUS INPUT 1 nA/V is then 10 nA/V and 0.1 nA/V is 1 nA/V,
respectively!!
Important: The current injected through the electrode is always the sum of the input signal
at CURRENT INPUT (24 or 26), the holding current set by HOLDING CURRENT (11)
and switch (12), and the gated stimulus set by STEP SIZE (28) and switch (27).
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 13
gated stimulus unit
The gated stimulus unit consists of (7) STEP SIZE digital
potentiometer, (27) + / 0 / - switch (STEP SIZE switch) and (28) GATE
(TTL) connector.
(7) STEP SIZE digital potentiometer
Digital potentiometer to set the amplitude of the gated stimulus.
Range: dependent on the setting of the CURRENT RANGE switch (9).
x1: ±9.99 nA, resolution 10 pA; x10: ±99.9 nA, resolution 100 pA.
(27) + / 0 / - switch (STEP SIZE switch)
+ / 0 / - toggle switch to disable the gated stimulus set by STEP SIZE (7) and gated by
GATE (TTL) STEP SIZE (28) or to select the polarity of the gated stimulus (+: gated
stimulus positive, 0: gated stimulus disabled, -: gated stimulus negative).
(28) GATE (TTL) STEP SIZE connector
With this input a current step (gated stimulus) can be generated set by the digital
potentiometer STEP SIZE (7) and the polarity switch (27). This current step is gated by a
positive digital pulse (3-5 V) applied to the BNC connector. Two examples are given in
Figure 4. The duration of the current step is determined by the duration of the gating
signal. The amplitude of the current step is set by STEP SIZE (7).
input voltage signal (>3 V) output current signal

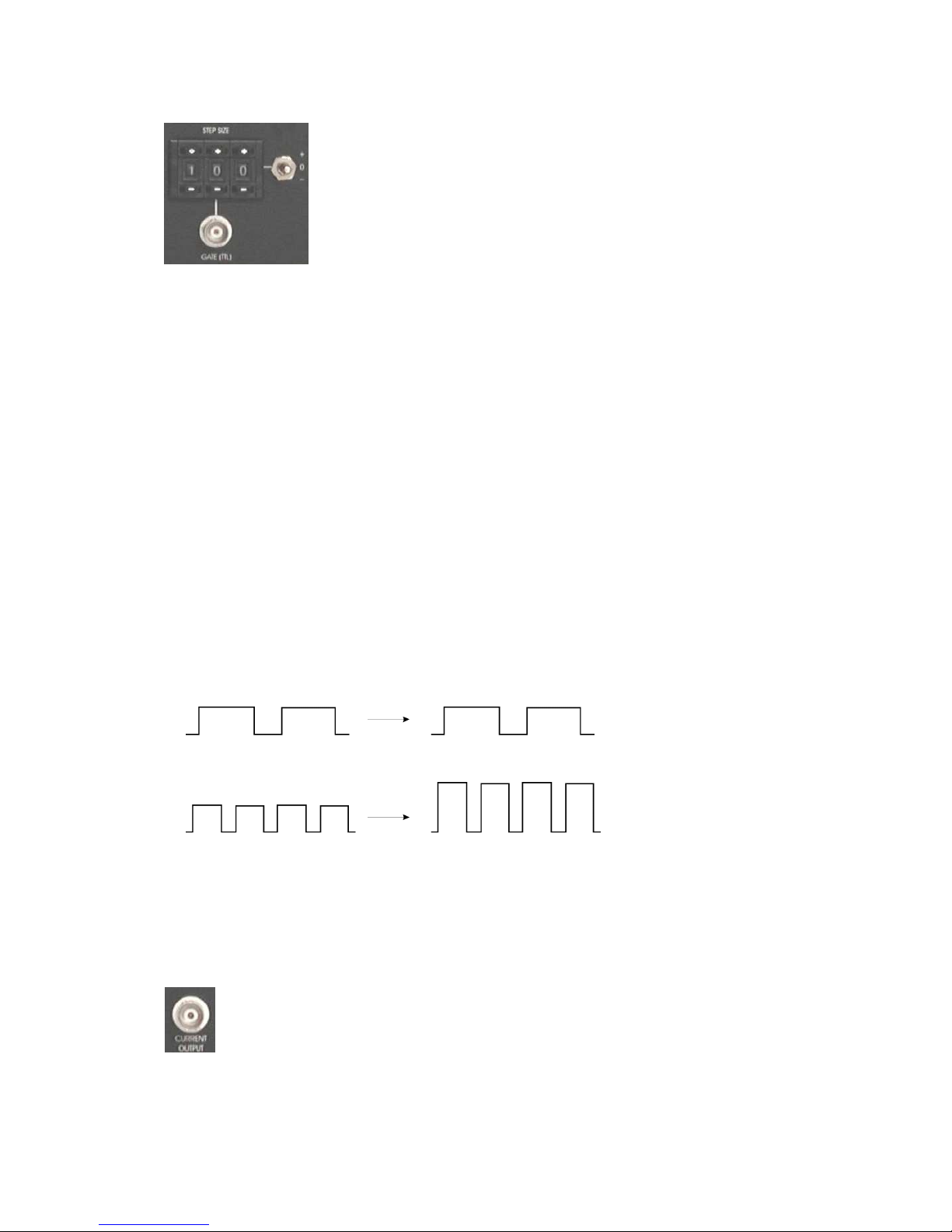

Figure 4: input-output relation using GATE (TTL) STEP SIZE
(29) CURRENT OUTPUT connector
BNC connector monitoring the stimulating current passed through the electrode.
(sensitivity: 0.1 V / nA, resistance: 50 Ω).
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 14

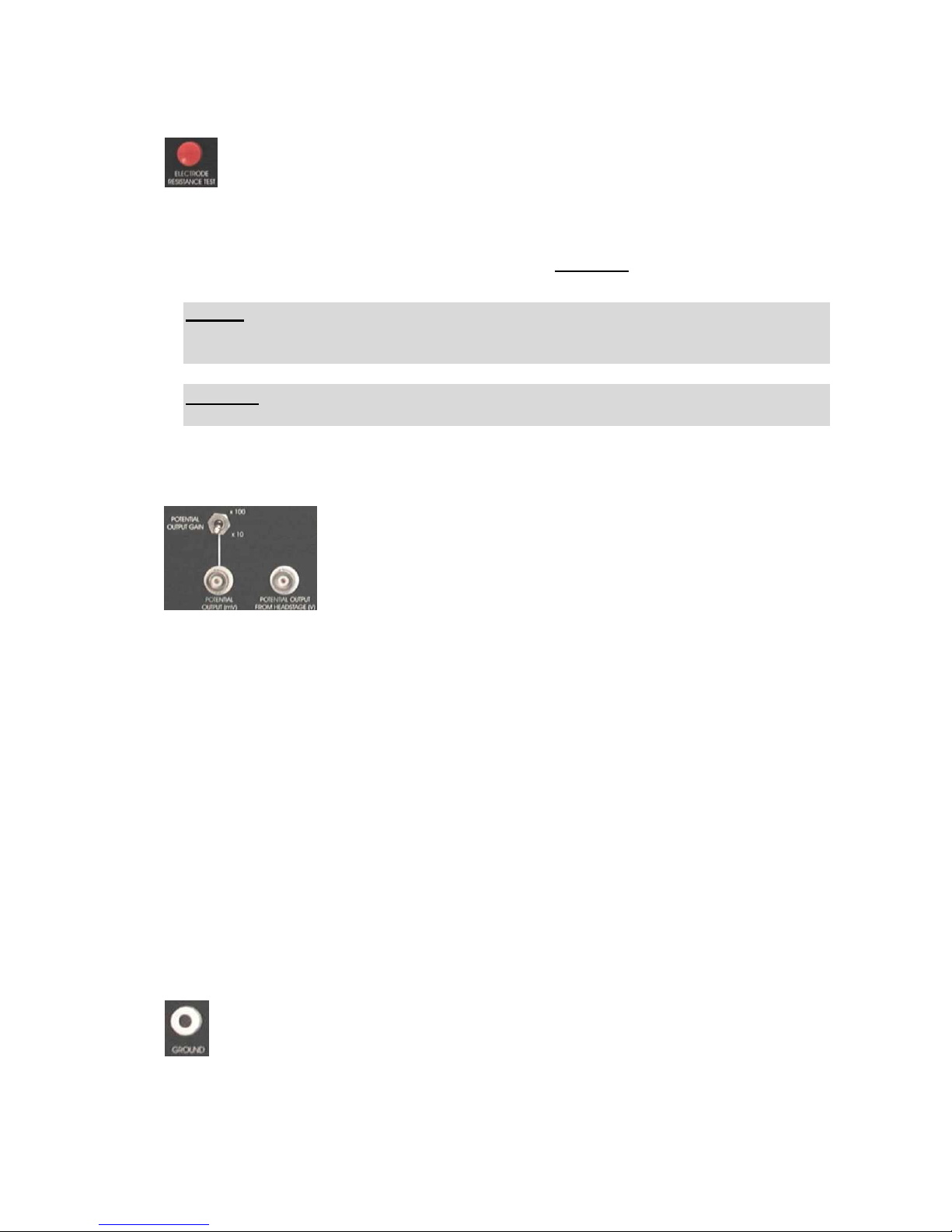

(31) ELECTRODE RESISTANCE TEST push button
Push button for testing the resistance of the electrode. When this button is pushed
DISPLAY (2) shows the electrode resistance in MΩ (see also (3)).
The selected mode is indicated by the MΩ LED (3). The resistance is measured
accurately regardless of the correct setting of other front panel elements such as
OFFSET, BRIDGE BALANCE etc. (see also Important note below).
Caution: When the ELECTRODE RESISTANCE push button is pressed, the BA-01X
automatically applies current pulses of ±1 nA to the electrode. Therefore, it should not be
used during recordings from cells since this current may stimulate or damage the cell.
Important: With high resistance electrodes (REL>20 MΩ) the displayed value is dependent
on the setting of the capacitance compensation.
POTENTIAL OUTPUT unit
The OUTPUT unit consists of (32) POTENTIAL OUTPUT FROM
HEADSTAGE connector, (33) POTENTIAL OUTPUT GAIN switch
and (34) POTENTIAL OUTPUT (mV) connector.
(32) POTENTIAL OUTPUT FROM HEADSTAGE connector
BNC connector monitoring the recorded membrane potential. This signal is scaled in V
and comes directly from the headstage, i.e. it is not amplified.
(33) POTENTIAL OUTPUT GAIN switch
Switch to set the gain of the POTENTIAL OUTPUT (mV) (34). The measured potential at
the electrode tip is multiplied by a factor of 10 (x10) or 100 (x100).
(34) POTENTIAL OUTPUT (mV) connector
BNC connector monitoring the recorded potential with a gain set by the POTENTIAL
OUTPUT GAIN switch (33).
(25) GROUND connector
Banana jack that is linked to the internal system ground which has no connection to
the 19" cabinet and the mains ground to avoid ground loops.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 15
3.3. Description of the Rear Panel
Figure 5: BA-01X rear panel view (the numbers are related to those in the text below)
(1) Mains connector
Plug for connecting the BA-01X to mains.
(2) Voltage SELECTOR
Rotary switch for selecting the mains voltage (110 V-120 V / 220 V-240 V).
Caution: Always switch to the appropriate voltage before connecting the BA-01X to power.
(3) FUSE holder
Holder for the line fuse. For changing the fuse rotate the holder counter clockwise using a
screw driver. The appropriate fuse type is listed above the holder.
(4) CHASSIS
This connector is linked to mains ground (green / yellow wire, protective earth).
(5) GROUND
This connector is linked to the internal system ground which has no connection to the 19"
cabinet (CHASSIS) and the mains ground to avoid ground loops.
MODES of OPERATION connectors
(6) REL connector
BNC connector for connecting a TTL signal that activates the electrode resistance test (see
also #31, Figure 1). TTL HI = REL on, TTL LOW = REL off.
(7) x10 MODE connector
BNC connector for connecting a TTL signal that activates the x10 current mode (see also #10,
Figure 1). TTL HI = x10 current mode, TTL LOW = x1 current mode.
REMOTE connector
(8) BUZZ connector
BNC connector for connecting a TTL signal that activates the BUZZ function (see also #20,
Figure 1). TTL HI = BUZZ on, TTL LOW = BUZZ off.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 16
4. Headstage
The BA-01X comes with the standard headstage (range: ±12 nA, voltage range x1 or
±120 nA, voltage range x10) for connecting glass electrodes with high resistances or suction
electrodes for whole cell patch clamp recordings with lower resistances via an electrode
holder (see Figure 6).
A low noise / low bias current headstage (range: ±1.2 nA, voltage range x1 or ±12 nA,
voltage range x10, see also Optional accessories in chapter 2) for very small currents is also
available. For details contact npi.
Figure 6: electrode holder (optional) and headstage of the BA-01X
4.1. Headstage Elements
1 BNC connector for the electrode holder (optional)
2 REF: connector for the reference electrode (differential headstage only
3 GND: Ground connector
4 headstage cable/holding bar
The electrode filled with electrolyte is inserted into an electrode holder (optional, see Figure
6) that fits into the BNC connector of the headstage or into an electrode holder adapter
(optional, see also Optional accessories in chapter 2). The electrical connection between the
electrolyte and the headstage is established using a carefully chlorinated silver wire.
Chlorinating of the silver wire is very important since contact of silver to the electrolyte leads
to electrochemical potentials causing varying offset potentials at the electrode, deterioration
of the voltage measurement etc. (for details see Kettenmann and Grantyn (1992)). For optimal
chlorinating of sliver wires an automated chlorinating apparatus (ACl-01) is available (please
contact npi for details).
Ground provides system ground and is linked to the bath via an agar-bridge or a Ag-AgCl
pellet. The headstage is attached to the amplifier with the headstage cable (see #4, Figure 6)
and a 8-pole connector. The headstage is mounted to a holding bar that fits to most
micromanipulators or optionally to a mounting plate or a dovetail adapter.
Note: The shield of the BNC connector is linked to the driven shield output and must not be
connected to ground.
Caution: Please always adhere to the appropriate safety precautions (see chapter 1). Please
turn power off when connecting or disconnecting the headstage from the HEADSTAGE
connector!
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 17
5. Setting up the BA-01X
The following steps should help you set up the BA-01X correctly. Always adhere to the
appropriate safety measures (see chapter 1).
After unpacking, the BA-01X is attached to the setup by assembling the electrical
connections. It is assumed that a cell model will be attached. The connection of the Ag-AgCl
pellet or the agar-bridge for grounding the bath is described in chapter 8.
À Electrical connections
o Turn POWER off.
o Plug the instrument into a grounded outlet.
o Connect the headstage to the HEADSTAGE connector (#18, Figure 1) at the BA-01X.
o Connect a cell model (see chapter 6). Connect a digital/analog timing unit or a
stimulation device to CURRENT INPUT or to GATE (TTL) STEP SIZE if you intend
to use the gated stimulus unit.
o Connect a store oscilloscope or a data recording device (i.e. a computer with data
acquisition system) to the POTENTIAL OUTPUT and to the CURRENT OUTPUT
triggered from the stimulation device. Set the desired gain at the potential range switch
(#11, Figure 1).
Before using the BA-01X always make the basic settings to avoid oscillations.
Á Basic settings
o Turn all controls to low values (less than 1) and the OFFSET in the range of 5 (zero
position, see chapter 3.2).
o Set the CURRENT RANGE switch (#10, Figure 1) to x1.
o Turn POWER switch on.
Now the BA-01X is ready for an initial check with the cell model.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 18
6. Passive Cell Model
The BA-01X can be ordered with a passive cell model as an optional accessory. An active cell
model is also available by request (for ref. see Draguhn et al. (1997)).
The passive cell model is designed for use with single electrode amplifiers (BA series, ELC
series) to check the function of the instrument in the following circumstances:
1. just after unpacking to see whether the instrument has been damaged during transport or
2. to train personnel using the instrument or
3. in case of trouble (see also chapter 9) to check which part of the setup does not work
correctly e.g. to find out whether the amplifier or headstage is damaged or something is
wrong with the electrodes or holders etc.
The passive cell model consists only of passive elements, i.e. resistors that simulate the
resistance of the cell membrane and the electrodes, and capacitances that simulate the
capacitance of the cell membrane. A switch allows simulation of two different cell types: a
cell with 50 MΩ and 22 pF (CELL 1, represents an astrocyte like cell) or a “small” cell with
200 MΩ membrane resistance and 100 pF membrane capacitance (CELL 1, represents an
neuron like cell), or. Electrode immersed into the bath or SEAL formation can be mimicked
as well. The headstage of the amplifier can be connected to one of two different types of
electrodes (see below).
6.1. Cell Model Description
Figure 7: passive cell model
1, 3: connectors for the headstage, 1: electrode resistance: 50 MΩ, 3: electrode resistance:
10 MΩ
2: GND ground connector, to be connected to GND jack of the headstage
4: CELL: switch for cell membrane representing a membrane of either 50 MΩ and 22 pF
(CELL 1) or 200 MΩ and 100 pF (CELL 2).
5: In GROUND (upper) position the electrodes are connected to ground via a 1 kΩ
resistor. In SEAL (lower) position are connected to a 1 GΩ resistor simulating the
formation of a GIGASEAL with a patch electrode.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 19
Figure 8: Schematic diagram of the passive cell model
6.2. Connections and Operation
It is assumed that all connections are built as described in chapter 5.
Checking the configuration
o Turn POWER switch of the amplifier off.
a) For simulation of an experiment using a suction electrode
o Connect the BNC jack labeled 10MΩ of the cell model to the BNC connector PEL of the
headstage.
b) For simulation of an experiment using a sharp electrode
o Connect the BNC jack labeled 50MΩ of the cell model to the BNC connector PEL at the
headstage. For headstages with SMB connector use the supplied SMB to BNC adapter.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 20
For a) and b)
o Connect GND of the cell model to GND of the headstage.
Important: When using the differential headstage (optional) the REF connector must not
be left open. It must be connected to ground.
Simulation of electrode in the bath
o Set switch #4, Figure 7 to the lower position.
o Set switch #5, Figure 7 to GROUND position. The 1 kΩ resistor simulates the resistance
of the bath solution. This can be used to train cancellation of offsets, using the bridge
balance and using the capacity compensation.
Simulation of SEAL formation
o Set switch #4, Figure 7 to the lower position.
o Set switch #5, Figure 7 to SEAL position. The 1 GΩ resistor simulates the SEAL
resistance when forming a GIGASEAL in patch clamp experiments.
Simulation of intracellular recording
Intracellular recordings can be mimicked with one of two cells with different properties. Use
the 50 MΩ electrode connector (#1, Figure 7) for an experiment with sharp electrodes or the
10 MΩ electrode connector (#3, Figure 7) for simulating an experiment with patch electrodes.
o Switch the CELL membrane switch (see #4, Figure 7) to the desired position (CELL 1 or
CELL 2).
o Turn all controls at the amplifier to low values (less than 1) and the OFFSET in the range
of 5 (zero position) and the OSCILLATION SHUTOFF in the DISABLED position.
o Turn POWER switch of the amplifier on.
Now you can adjust the amplifier (see below) and apply test pulses to the cell model. The
upper position the CELL membrane switch (CELL 1) simulates a cell with a resistance of
50 MΩ and a capacitance of 22 pF. In the lower position (CELL 2) a cell membrane with
200 MΩ and 100 pF is simulated.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 21
7. Test and Tuning Procedures
Important: The BA-01X should be used only in warmed-up condition, i.e. 20 to 30 minutes
after turning power on.
The following test and tuning procedures are necessary for optimal recordings. It is
recommended to first connect a cell model to the amplifier to perform some basic adjustments
and to get familiar with these procedures. It is assumed that all connections are built as
described in chapter 5.
Important: Except for Headstage bias current adjustment (see 7.1) all adjustments described
below should be carried out every time before starting an experiment or after changing the
electrode.
7.1. Headstage Bias Current Adjustment
Caution: It is important that this tuning procedure is performed ONLY after a warm-up
period of at least 30 minutes!
The BA-01X system is equipped with a voltage-to-current converter with a very high output
impedance which is connected to the recording electrode. The zero current of this unit is
tuned with the BIAS current control (#13, Figure 1, chapter 3.2).
The tuning procedure must be performed regularly (about once a month) since the bias current
changes over time. If very small currents are used (in the 10 pA range) the procedure must be
repeated in shorter intervals.
The tuning procedure is performed using high-value resistors and/or a cell model. It cannot be
performed with an electrode, since there are always unknown potentials involved (tip
potential, junction potentials).
o Disconnected all input signals (except the headstage). Put the holding current switch to
position 0 (+ / 0 / - switch, #12, Figure 1).
o Connect the MICROELECTRODE connector of the headstage to ground. If parasitic
oscillations occur use a 10 kΩ resistor for grounding. If you use a cell model set #3 in
Figure 7 to GROUND.
Note: Please use a wire to connect the input of the BNC connector on the headstage to
GND of the headstage. Do not use the shield of the BNC connector since it is connected to
driven shield.
o Tune the OFFSET to zero using the OFFSET control (#16, Figure 1, see also chapter 7.2).
o After tuning the OFFSET connect the cell model via the SUBCLICK connector (sharp
electrode). If you do not use a cell model, remove the wire and attach a resistor with a
value of about 5 to 10 MΩ across the same connection.
o The value displayed at the DISPLAY (#2, Figure 1) is related to the BIAS current of the
headstage according to Ohm's Law. Cancel this voltage by tuning the headstage BIAS
current potentiometer (#13, Figure 1).
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 22
o Accuracy: Now both DISPLAYs (potential / current) the should read 000. Due to the
limited resolution of the display, unbalanced offsets and thermal drifts an offset of ±001 to
±002 can occur on the display. This small deviation can be trimmed internally, but this
procedure is necessary only if very small currents in the pA range should be accurately
applied.
7.2. Offset Compensation
If an electrode is immersed into the bath solution an offset voltage will appear, even if no
current is passed. This offset potential is the sum of various effects at the tip of the electrode
filled with electrolyte (“tip potential”, junction potential etc.). This offset voltage must be
compensated, i.e. set to zero carefully with the OFFSET control (#16, Figure 1) before
recording from a cell. When adjusting the OFFSET make sure that no current flows through
the electrode. Thus, it is recommended to disconnect CURRENT INPUT and to disable
GATE (TTL) STEP SIZE and the HOLDING CURRENT unit (see chapter 3.2).
If a cell model is connected the OFFSET control should read a value around 5, otherwise it is
likely that the headstage or the amplifier is damaged.
7.3. Capacitance Compensation

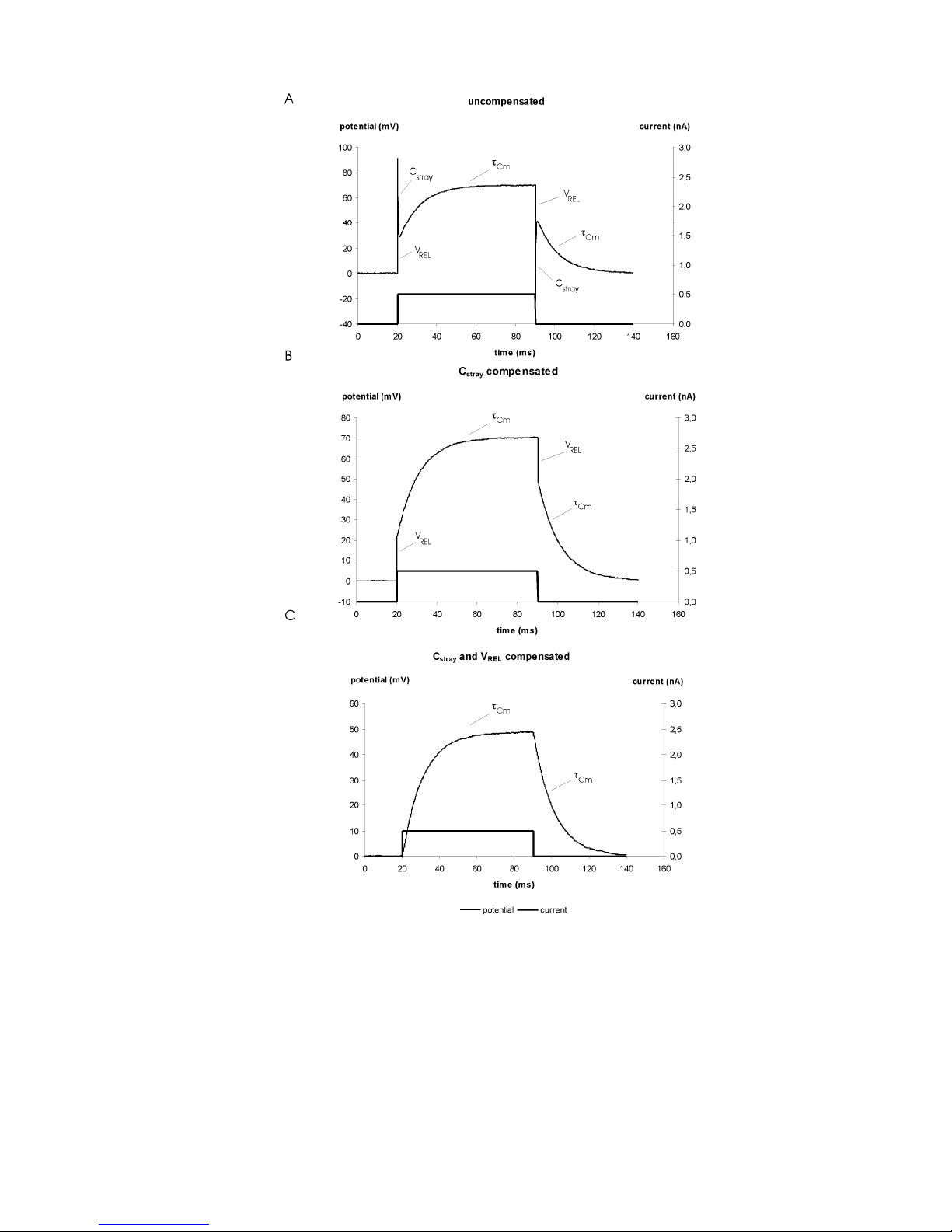

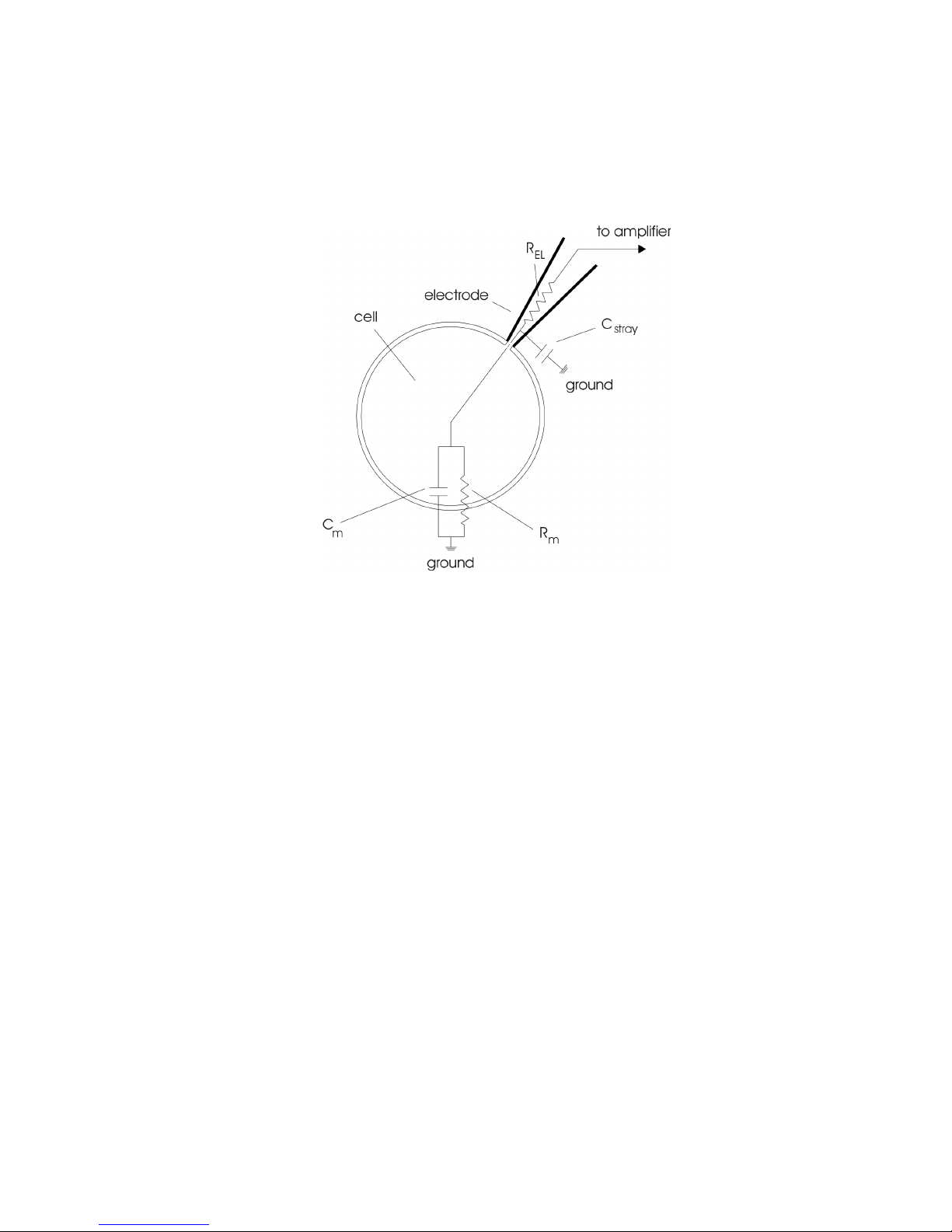

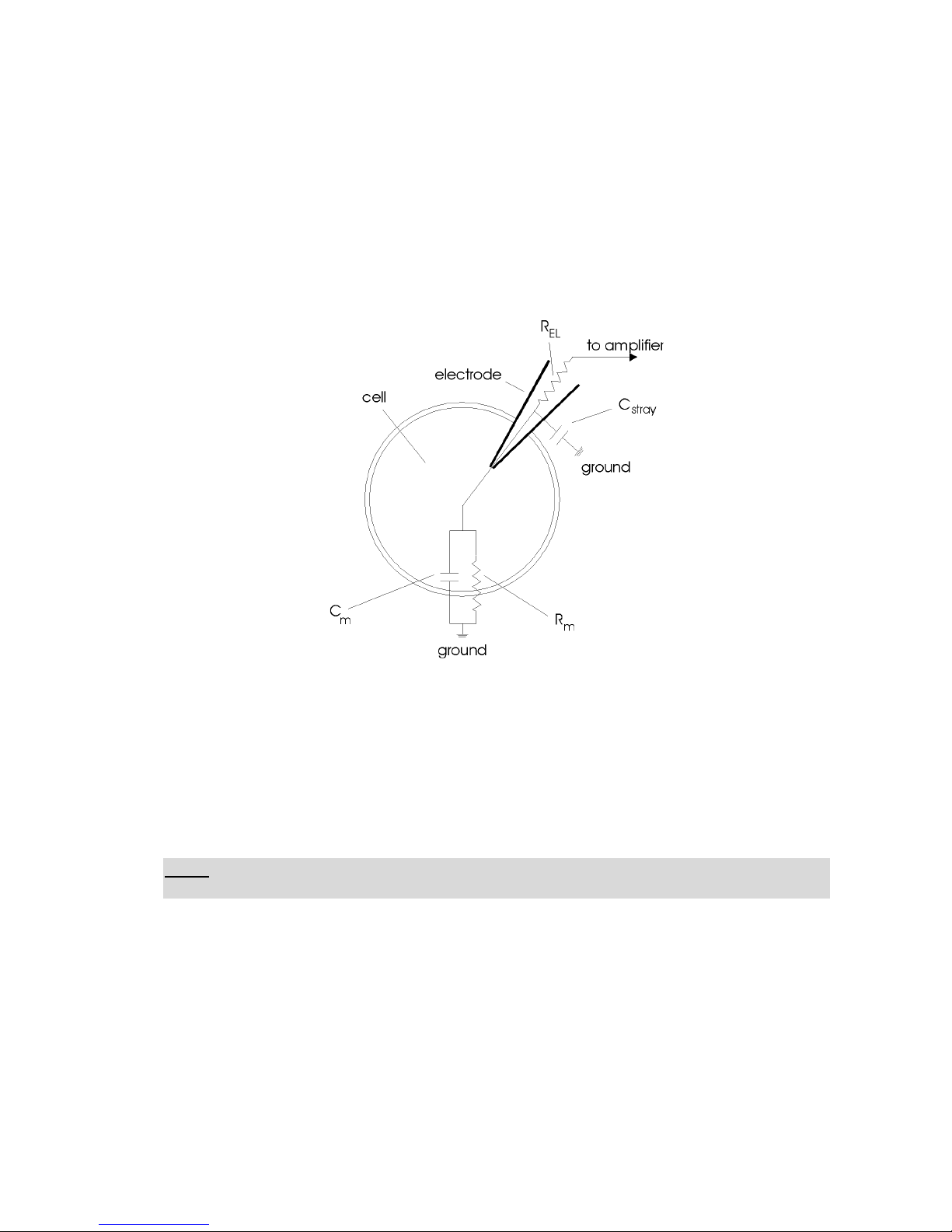

High resistances of electrodes and stray capacitances (C
stray
) form a low-pass filter which
deteriorates the shape of recorded intracellular signals (see also Figure 11). The frequency
response (bandwidth) of the amplifier is improved considerably by using the capacitance
compensation function. This function is based on positive feedback (“negative capacitance”)
circuit. The tuning of the capacitance compensation control is performed using pulses applied
to the CURRENT INPUT or pulses provided by the electrode resistance test circuit.
With the cell model connected or the electrode in the bath the CAPACITY COMP. control is
turned clockwise until there is no artifact on the POTENTIAL OUTPUT (see Figure 9).
o Make the basic settings at the amplifier (see chapter 0).
o Connect a cell model or immerse the electrode into the bath as deep as necessary during
the experiment.
o Tune the OFFSET to zero (see chapter 7.2)
o Push the ELECTRODE RESISTANCE TEST button (#31, Figure 1) or apply pulses to
the CURRENT STIMULUS INPUT and watch the POTENTIAL OUTPUT.
o Compensate the input capacitance as shown in Figure 9 using the CAPACITY COMP.
potentiometer (#17, Figure 1).
Figure 9 illustrates the capacitance compensation procedure using a 100 MΩ resistor that
represents the electrode. The pulses were generated using the automated electrode resistance
test circuit of the BA-01X. The upper diagram shows an undercompensated capacitance. In
the diagram in the middle the capacitance is slightly overcompensated and in the lower
diagram it is well compensated.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 23
Important: The capacity compensation for the electrode does NOT work if the oscillation
shut-off circuit is activated. This may lead to an incorrect reading of the electrode resistance
(see also 31) especially when electrodes with high resistances are used.

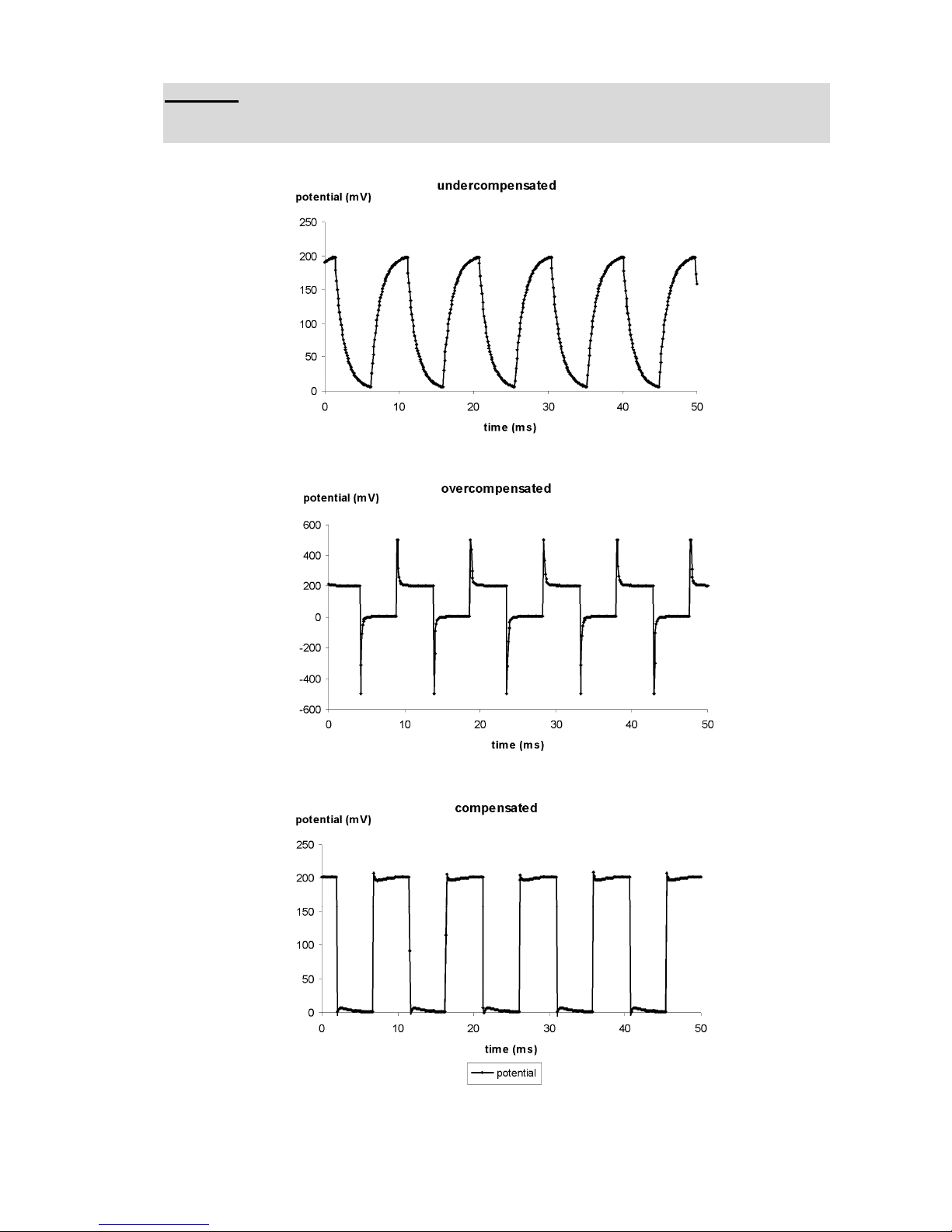

Figure 9: Tuning of the capacitance compensation using a 100 MΩ resistor
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 24
7.4. Bridge Balance
If current is passed through an electrode the occurring voltage deflection (potential drop at
R
EL
) affects the recording of membrane potential. Therefore, this deflection must be
compensated carefully by means of the BRIDGE BALANCE control. This control is
calibrated in MΩ and has two ranges selected by a RANGE switch (#21, Figure 1).
With the cell model connected or the electrode in the bath the BRIDGE BALANCE control is
turned on clockwise until there is no artifact on the POTENTIAL OUTPUT (see Figure 10).
o Make the basic settings at the amplifier (see chapter 0).
o Connect a cell model or immerse the electrode into the bath as deep as necessary during
the experiment.
o Tune the OFFSET to zero (see chapter 7.2) and compensate the input capacitance (see
chapter 7.3). This is very important since a badly compensated input capacitance prevents
setting the BRIDGE BALANCE to correct values.
o Determine the electrode resistance using the ELECTRODE RESISTANCE switch and set
the BRIDGE BALANCE RANGE switch (#21, Figure 1) accordingly.
o Apply current pulses to the electrode either using an external stimulator (via the
CURRENT INPUT connector (#24, #26, Figure 1) or by using the gated stimulus unit.
o Watch the POTENTIAL OUTPUT at the oscilloscope and adjust the BRIDGE
BALANCE as shown in Figure 10 using the BRIDGE BALANCE potentiometer (#22,
Figure 1). After adjustment you should see a straight voltage trace without artifacts caused
by the potential drop at REL.
Figure 10 illustrates the BRIDGE BALANCE procedure using a 100 MΩ resistor that
represents the electrode. The current stimuli were generated using the gated stimulus unit
gated by two TTL pulses. The amplitude was set to 0.5 nA. In the upper diagram the bridge is
slightly undercompensated and in the diagram in the middle it is slightly overcompensated.
The lower diagram shows a well balanced bridge (compensated).
Important: BRIDGE BALANCE and CAP. COMP must be tuned several times during an
experiment since most parameters change during a recording session. Figure 13 shows
artifacts caused by uncompensated stray capacitance and bridge during recording from a cell.
It also shows how to cancel these artifacts by tuning with CAP. COMP and BRIDGE
BALANCE.
OFFSET deviations can be detected by comparing the readout on the potential display before
and after an experiment (with the electrode in the tissue, but not in a cell).
7.5. Electrode Selection
Electrodes must be tested before use. This is done by applying positive and negative current
pulses and by compensating with the BRIDGE BALANCE control. Electrodes which show
significant changes in resistance (rectification) cannot be used for intracellular recordings. By
increasing the current amplitude the capability of the electrode to apply current can be
estimated. The test current must cover the full range of currents used in the experiment.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 25
Sometimes the performance of electrodes can be improved by breaking the tip or by using the
BUZZ or ELECTRODE CLEAR facilities of the amplifier.

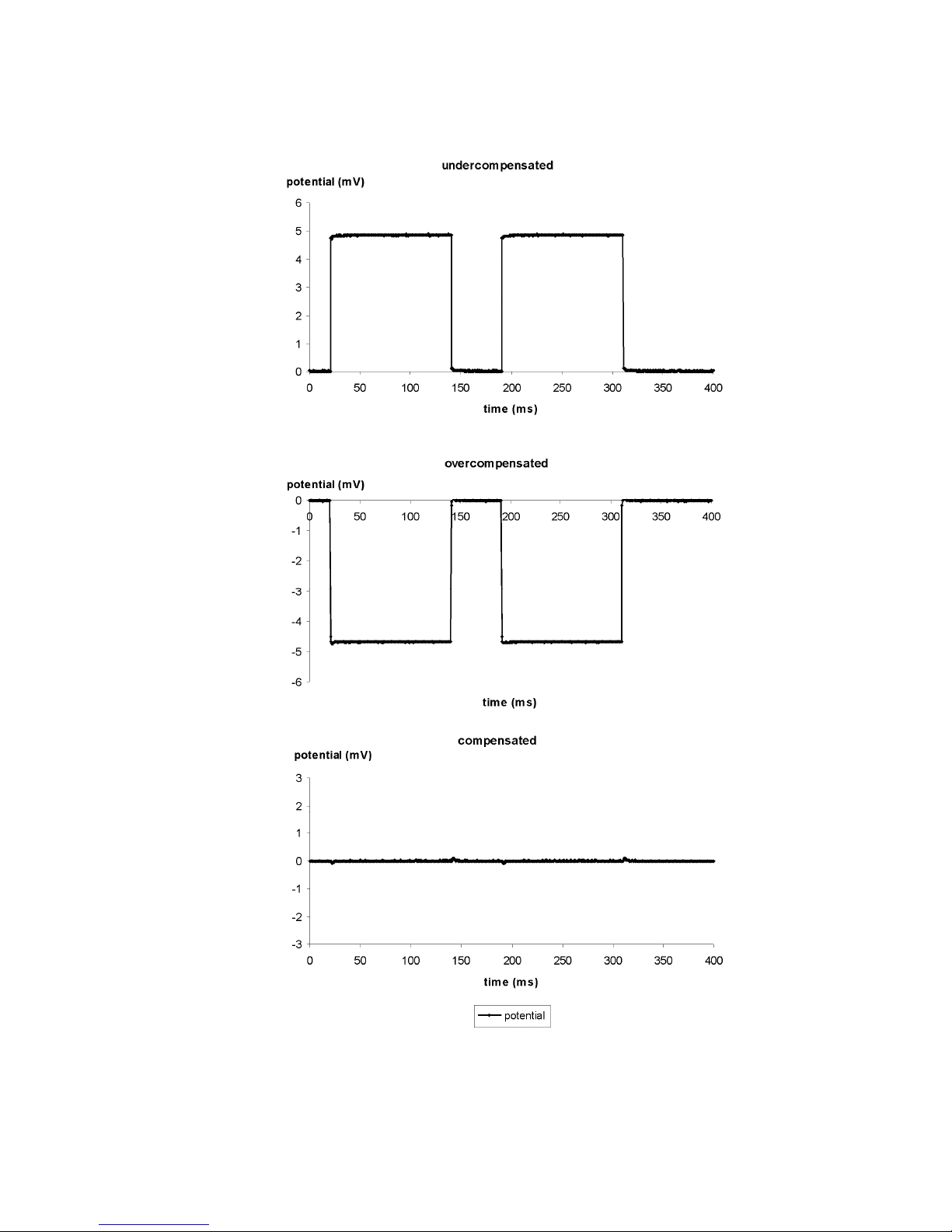

Figure 10: Tuning of the BRIDGE BALANCE using 100 MΩ resistor
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 26
8. Sample Experiments
In the following the basics of a simple experiment are described either using a sharp or a
suction electrode.
It is assumed that all connections are built as described in chapter 0. Before starting remove
the cell model.
8.1. Sample Experiment using a Sharp Electrode
Figure 11: Model circuit for intracellular recording using a sharp electrode
Cm: membrane capacitance, C
stray
: electrode stray capacitance, REL: electrode
resistance, Rm: membrane resistance
o Connect the electrode cable / holder to the BNC connector and the Ag-AgCl pellet or the
agar-bridge for grounding the bath with GND at the headstage.
o Make the basic settings (see chapter 0).
Again: It is of major importance that the BA-01X systems are used only in warmed-up
condition, i.e. 30 minutes after turning power on.
o Adjust BIAS CURRENT to zero if necessary (see chapter 7.1)
o Reconnect the STIMULUS INPUT and/or the GATE (TTL) STEP SIZE and put an
electrode into the electrode holder.
o Immerse the electrode into the bath (not in a cell) as deep as necessary during the
experiment. Test the capability of the electrode to carry current (see chapter 7.4),
compensate the potential offset (see chapter 7.2), measure the electrode resistance (see
#10, chapter 3.2) and compensate the input capacitance (see chapter 7.3 and Figure 9).
o Enable the OSCILLATION SHUT-OFF unit and set the THRESHOLD so that the
OSCILLATION SHUT-OFF unit activates if the system begins to oscillate. Test this by
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 27
overcompensating the electrode capacitance in several positions of the THRESHOLD
potentiometer.
o Now the system is preadjusted for measurements. Find a cell!
o Approach the desired cell. There are several indications that the electrode is very close to
the cell membrane:
- the electrode resistance increases (the bridge balance appears undercompensated)
- extracellular action potentials (APs) are recorded
- the acoustic monitor signal changes
o Set the BUZZ DURATION potentiometer to one fourth and apply a BUZZ to the
electrode.
o If you are lucky the tip of the electrode is now inside the cell.
o If necessary readjust the BRIDGE BALANCE as shown in Figure 12.
o You read the membrane potential and can apply current pulses to the cell. After
penetration the voltage responses of the cell to the test pulses should reflect the cell
membrane resistance and time constant.
o Start the experiment.

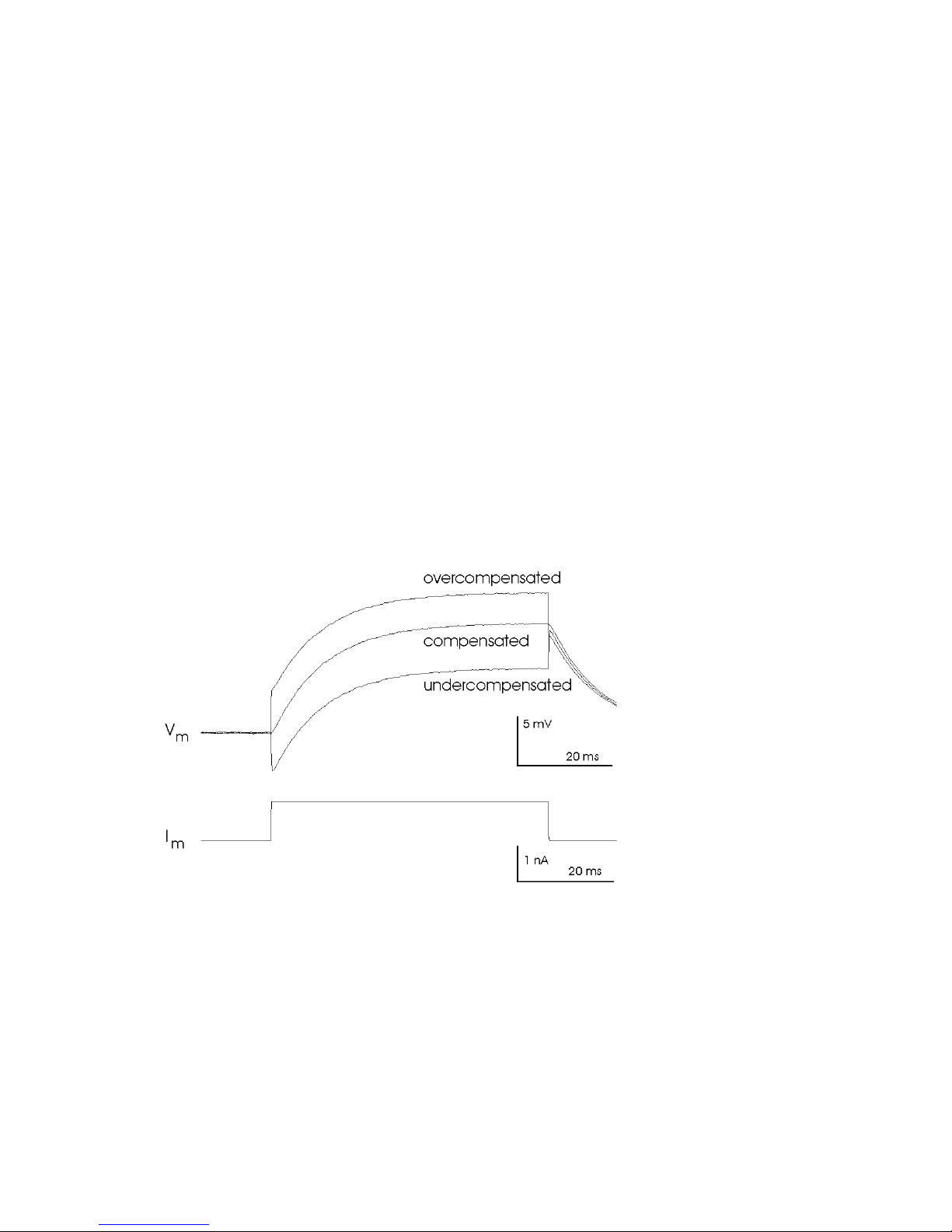

Figure 12: Adjustment of the bridge balance after penetrating a cell
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 28
Figure 13: Artifacts caused by the recording electrode. The measurements were done using a
cell model with 100 MΩ membrane resistance, 100 pF membrane capacitance and
100 MΩ electrode resistance.
A: C
stray
and V
REL
not compensated (bridge not balanced)
B: C
stray
: compensated and V
REL
not compensated
C: C
stray
and V
REL
compensated (bridge balanced)
Cm: membrane capacitance, C
stray
: electrode stray capacitance, REL: electrode
resistance, Rm: membrane resistance,
τ
Cm
: time constant of the cell membrane,
V
REL
: potential drop at REL (see also Figure 11)
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 29
8.2. Sample Experiment using a Suction (Patch) Electrode
If suction (patch) electrodes are used for whole cell recordings they are usually called
“pipettes”. Thus, in this subchapter “pipette” means “suction electrode”.
Figure 14: Model circuit for whole cell patch clamp recording using a suction electrode
Cm: membrane capacitance, C
stray
: electrode stray capacitance, REL: electrode
resistance, Rm: membrane resistance
o Prepare the setup and proceed as described in the previous subchapter (8.1) until you have
selected a cell. Before immersing the pipette into the bath apply slight positive pressure to
the pipette to prevent settling of particles at the tip.
o Apply test pulses to the pipette (about 10 pA). The resulting voltage signals at the pipette
are very small (50 µV with a 5 MΩ electrode).
o Approach the cell until the voltage signal changes (a, Figure 15). Often you can observe a
slight dent in the cell membrane.
o Release pressure from the pipette. Now forming of the seal is indicated by the voltage
deflections getting much larger.
o If the seal does not form apply gentle suction to the pipette until a gigaseal is established
(b, Figure 15).
o Apply stronger suction to the pipette or use the BUZZ unit to brake the cell membrane
under the pipette and establish the whole cell configuration. The whole cell configuration
is established if you see the voltage signal getting smaller again (c, Figure 15) and you
read the expected membrane potential.
o Read the membrane potential and if necessary, readjust the BRIDGE BALANCE as
shown in 7.4 and Figure 13.
o Start the experiment.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 30

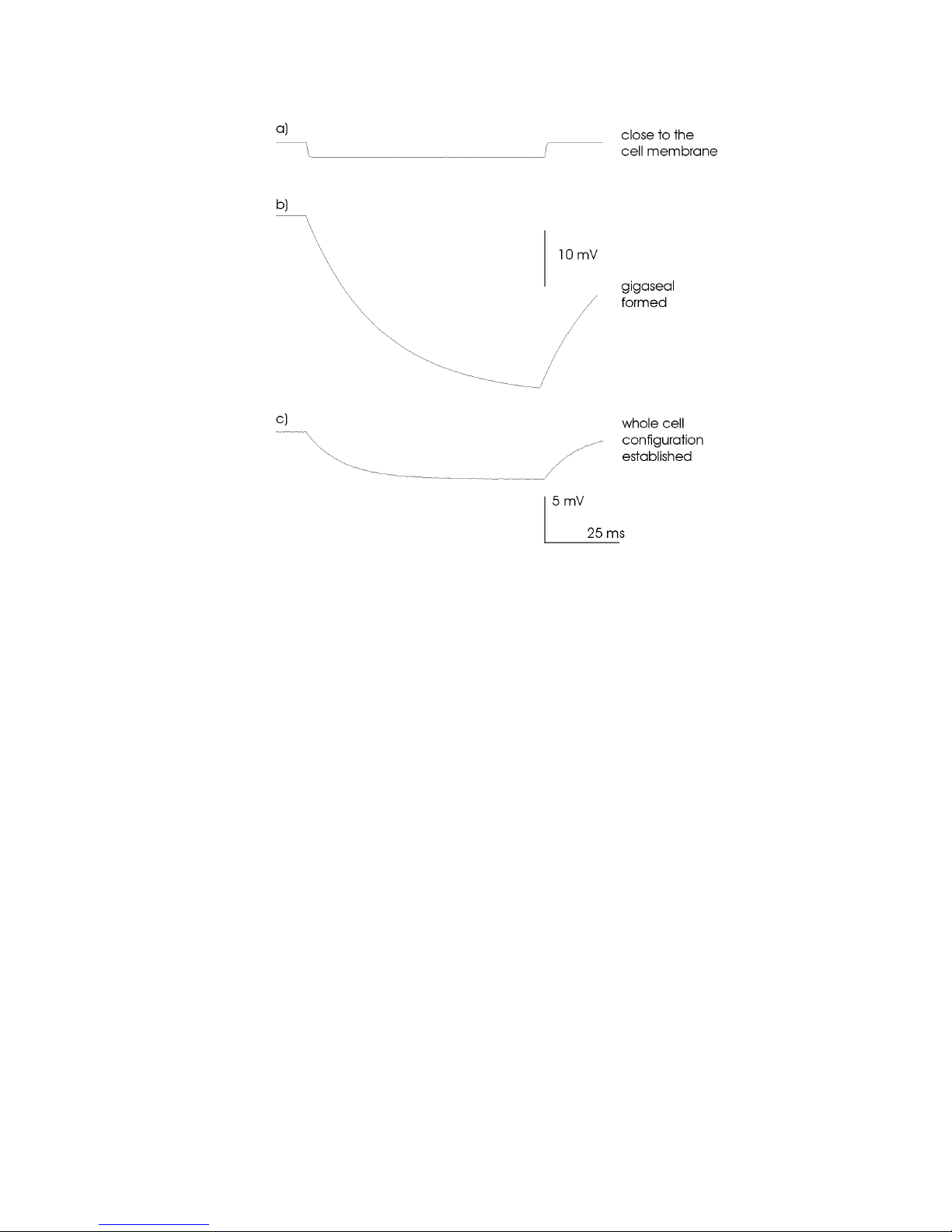

Figure 15: Approaching the cell, forming a gigaseal and establishing the whole cell
configuration
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 31
9. Trouble Shooting
In the following section some common problems, possible reasons and their solutions are
described.
Important: Please note that the suggestions for solving the problems are only hints and may
not work. In a complex setup it is impossible to analyze problems without knowing details. In
case of trouble always contact an experienced electrophysiologist in your laboratory if
possible and connect a cell model to see whether the problem occurring with electrodes and
“real” cells persists.
Problem 1:
After immersing the electrode into the bath there is an unusual high potential offset.
Possible reasons:
1. The Ag-AgCl coating of the silver wire in the electrode holder is damaged
2. The Ag-AgCl pellet or Ag-AgCl coating of the silver wire in the agar-bridge are damaged
3. There is an unwanted GND-bridge e.g. caused by a leaky bath
4. The headstage or the amplifier has an error
Solutions:
1. Chloride the silver wire again
2. Exchange the pellet or chloride the silver wire in the agar-bridge
3. Try to find the GND-bridge and disconnect it e.g. by sealing the bath
4. Contact npi
Problem 2:
Even if no stimulus is given a current flows through the electrode
Possible reason:
1. The BIAS current is not adjusted
Solution:
1. Adjust the BIAS current according the procedure described in chapter 7.1
Problem 3:
The system oscillates
Possible reason:
1. The capacitance of the electrode is overcompensated
Solution:
1. Turn the CAPACITY COMPENSATION potentiometer (#30, Figure 1) to the most left
position and compensate the input capacitance again
Problem 4:
With the cell model connected the REL display does not show the correct value (within a
tolerance of 2%).
Possible reasons:
1. The capacitance of the electrode is not compensated (using the 100 MΩ electrode)
2. The headstage has an error
Solution:
1. Turn the CAPACITY COMPENSATION potentiometer (#30, Figure 1) to the most left
position and compensate the input capacitance again
2. Contact npi
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 32
Problem 5:
The amplifier does not provide any current.
Possible reason:
1. The OSCILLATION SHUT OFF circuit is on (LED #30, Figure 1 is red)
Solution:
1. Turn the CAPACITY COMP. potentiometer (#17, Figure 1) to the most left position and
compensate the input capacitance again.
2. RESET the OSCILLATION SHUT OFF circuit using switch #32, Figure 1. LED #30,
Figure 1 must become green.
3. Compensate the input capacitance again
10. Literature
Bridge amplifier recording
o Behrend, O., Branoner, F., Zhivkov, Z., & Ziehm, U. (2006). Neural responses to water
surface waves in the midbrain of the aquatic predator Xenopus laevis laevis. Eur.J
Neurosci. 23, 729-744.
o Burrell, B. D. & Sahley, C. L. (2004). Multiple forms of long-term potentiation and long-
term depression converge on a single interneuron in the leech CNS. J Neurosci. 24, 4011-
4019.
o Burrell, B. D. & Sahley, C. L. (2005). Serotonin Mediates Learning-Induced Potentiation
Of Excitability. Journal of Neurophysiology 94, 4002-4010.
o Gollisch, T., Schutze, H., Benda, J., & Herz, A. V. (2002). Energy integration describes
sound-intensity coding in an insect auditory system. J Neurosci. 22, 10434-10448.
o Hutzler, M., Lambacher, A., Eversmann, B., Jenkner, M., Thewes, R., & Fromherz, P.
(2006). High-resolution multi-transistor array recording of electrical field potentials in
cultured brain slices. J Neurophysiol.
o Kettenmann, H. & Grantyn, R. (eds.) (1992) Practical Electrophysiological Methods,
Wiley-Liss, New York
o Lalley, P.M., A.K. Moschovakis and U. Windhorst (1999) Electrical Activity of
Individual Neurons in Situ: Extra- and Intracellular Recording, in: U. Windhorst and
H. Johansson (eds.) Modern Techniques in Neuroscience Research, Springer, Berlin,
New York
o Maier, N., Nimmrich, V., & Draguhn, A. (2003). Cellular and network mechanisms
underlying spontaneous sharp wave-ripple complexes in mouse hippocampal slices. J
Physiol 550, 873-887.
o Mayer-Waarden, K. (1975) Einführung in die biologische und medizinische Meßtechnik.
Schattauer-Verlag, Stuttgart.
o Möck, M., Butovas, S., & Schwarz, C. (2006). Functional unity of the ponto-cerebellum:
evidence that intrapontine communication is mediated by a reciprocal loop with the
cerebellar nuclei. J Neurophysiol. 95, 3414-3425.
o Neher, E. (1974) Elektrische Meßtechnik in der Physiologie. Springer-Verlag, Berlin.
o Nimmrich, V., Maier, N., Schmitz, D., & Draguhn, A. (2005). Induced sharp wave-ripple
complexes in the absence of synaptic inhibition in mouse hippocampal slices. Journal of
Physiology 563, 663-670.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 33
o Ogden DC (1994) Microelectrode Techniques. The Plymouth Workshop Handbook,
Second Edition, The Company of Biologists Limited, Cambridge
o Prinz, A. A. and P. Fromherz (2000). Electrical synapses by guided growth of cultured
neurons from the snail Lymnaea stagnalis, Biol. Cybern. 82, L1-L5
o Prinz, A. A. & Fromherz, P. (2003). Effect of neuritic cables on conductance estimates for
remote electrical synapses. J Neurophysiol. 89, 2215-2224.
o Purves, R.D. (1981) Microelectrode Methods for Intracellular Recording and Ionophoresis.
London: Academic Press
o Rokem, A., Watzl, S., Gollisch, T., Stemmler, M., Herz, A. V., & Samengo, I. (2006).
Spike-timing precision underlies the coding efficiency of auditory receptor neurons. J
Neurophysiol. 95, 2541-2552.
o Schaette, R., Gollisch, T., & Herz, A. V. M. (2005). Spike-Train Variability of Auditory
Neurons in vivo:Dynamic Responses Follow Predictions from Constant Stimuli. Journal of
Neurophysiology 93, 3270-3281.
o Schoen, I. & Fromherz, P. (2007). The Mechanism of Extracellular Stimulation of Nerve
Cells on an Electrolyte-Oxide-Semiconductor Capacitor. Biophys.J., 92, 1096-1111.
o Vogel, A., Hennig, R. M., & Ronacher, B. (2005). Increase of neuronal response
variability at higher processing levels as revealed by simultaneous recordings. Journal of
Neurophysiology, 93, 3548-3559.
o Zeck G. and P. Fromherz (2001) Noninvasive neuroelectronic interfacing with synaptically
connected snail neurons immobilized on a semiconductor chip, PNAS, Vol. 98, no.
18:10457–10462
Juxtasomal Filling, Loose-Patch Techniques (General)
o Auger, C., & Marty, A. (2000). Topical Review: Quantal currents at singlesite central
synapses. J Physiol. 526.1, 3-11.
o Barbour, B., & Isope, P. (2000). Combining loose cell-attached stimulation and recording.
J Neurosci.Methods. 103, 199–208.
o Bureau, I., Shepherd, G. M. G. & Svoboda, K. (2004). Precise Development of Functional
and Anatomical Columns in the Neocortex. Neuron, 42, 789-801.
o Joshi, S. & Hawken, M. J. (2006). Loose-patch-juxtacellular recording in vivo-A method
for functional characterization and labeling of neurons in macaque V1. J
Neurosci.Methods. 156, 37-49.
o Khaliq, Z. M., & Raman, I. M. (2005). Axonal Propagation of Simple and Complex Spikes
in Cerebellar Purkinje Neurons. J Neurosci. 25, 454-463.
o Klausberger, T., Marton, L. F., Baude, A., Roberts, J. D., Magill, P. J. & Somogyi, P.
(2004). Spike timing of dendrite-targeting bistratified cells during hippocampal network
oscillations in vivo. Nature Neuroscience 7, 41-47.
o Nunemaker, C. S., DeFazio, R. A., & Moenter, S. M. (2003). A targeted extracellular
approach for recording long-term firing patterns of excitable cells: a practical guide.
Biol.Proced.Online. 5, 53-62. www.biologicalprocedures.com
o Pinault, D. (1996). A novel single-cell staining procedure performed in vivo under electro-
physiological control: morpho-functional features of juxtacellularly labeled thalamic cells
and other central neurons with biocytin or Neurobiotin. J Neurosci.Methods. 65, 113-136.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 34
o Rathenberg, J., Nevian, T. & Witzemann, V. (2003). High-efficiency transfection of
individual neurons using modified electrophysiology techniques. J Neurosci.Methods. 126,
91-98.
o Roberts, W. M., & Almers, W. (1992). Patch Voltage Clamping with Low-Resistance
Seals: Loose Patch Clamp. In: Rudy, B. & Iversen, L. E. (eds.). Ion Channels. Methods in
Enzymology 207, Academic Press San Diego.
o Strickholm, A. (1961). Impedance of a Small Electrically Isolated Area of the Muscle Cell
Surface. J Gen.Physiol. 44, 1073-1088.
Tracer injection (juxtasomal filling) and extracellular recording
o Bruno, R. M. & Sakmann, B. (2006). Cortex is driven by weak but synchronously active
thalamocortical synapses. Science. 312, 1622-1627.
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 35
11. Technical Data
Headstage:
Input voltage range: ±1000 mV
Operating voltage: ±15 V
Enclosure: Size: 23 x 70 x 26 mm, grounded
Holding bar: Size: length 150 mm, ∅ 8 mm
Electrode connector: BNC with driven shield
Ground connector: 2.4 mm connector
REF connector (optional): SMB connector
Input resistance: >1013 Ω (internally adjustable)
Current range x1: ±12 nA into 1 GΩ
Current range x10: ±120 nA into 100 MΩ
Electrode parameter controls:
BIAS: range ±150 pA, current adjustable with trim potentiometer
OFFSET: range ±200 mV, ten-turn control
CAPACITY COMPENSATION: range 0 – 30 pF, ten-turn control
BUZZ:
overcompensation of capacitance compensation (BUZZ), duration ~2.5 – ~100 ms (slightly
dependent on the setting of capacitance compensation), timer controlled with linear control,
accessible with remote switch
Electrode clear circuit:
Application of max. DC currents (-I
max
or +I
max
)
Bridge balance:
Adjustable with ten-turn control and RANGE switch, 0-100 MΩ or 0-1000 MΩ
Electrode resistance test:
10 mV / MΩ obtained by application of rectangular current pulses ±1 nA
Bandwidth and speed response:
Full power bandwidth (REL = 0): >30 kHz, rise time (10% - 90%)
<10 µs (REL = 100 MΩ)
<5 µs (REL = 5 MΩ)
Outputs:
Resistance: 50 Ω
Current x1/x10: BNC connector, sensitivity 0.1 V / nA
Potential: BNC connector, sensitivity selectable by toggle switch
(x10, x100)
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 36
Displays:
Potential: XXXX mV (max. 1999 mV)
Electrode resistance: XXXX MΩ (max. 1999 MΩ)
Current x1: XX.XX nA
Current x10: XXX.X nA
Inputs:
Current stimulus input via BNC connectors, sensitivity dependent on preset CURRENT
RANGE
x1: 1 nA / V or 0.1 nA / V
x10: 10 nA / V or 1 nA / V
Step gate input via BNC connector, gated stimulus with digital control of current step size
resolution x1: 10 pA
resolution x10: 100 pA
polarity selectable with toggle switch
holding current range x1: ±10 nA
holding current range x10: ±100 nA
adjustable with ten-turn control
Dimensions:
19” rackmount cabinet
19” (483 mm), 10” (250 mm), 3.5” (88 mm)
Power requirements:
115/230 V AC, 60/50 Hz, fuse 0.4/0.2 A, slow, 25 W
BA-01X User Manual
_________________________________________________________________________________________________________________
___________________________________________________________________________
version 1.9 page 37
Index
abbreviations 3
accessories 5
basic settings 17
bias current 31
bias current adjustment 21
BIAS current potentiometer 10
bridge balance 24, 25, 27
BRIDGE BALANCE unit 11
BUZZ 10
CAPACITY COMPENSATION
potentiometer 11
cell model 18
connections and operation 19
description 18
components 5
CURRENT INPUT unit 12
CURRENT RANGE unit 9
electrical connections 17
electrode 22
artifacts 28
capacity compensation 22
offset compensation 22
selection 24
ELECTRODE RESISTANCE TEST 14
front panel view 7
gated stimulus unit 13
general description 5
GROUND connector 14
headstage 16
elements 16
HEADSTAGE connector 11
HOLDING CURRENT unit 9
literature 32
model circuit sharp electrode 26
model circuit suction (patch) electrode 29
OFFSET potentiometer 11
OSCILLATION SHUT-OFF unit 8
PENETRATION unit 10
POTENTIAL OUTPUT unit 14
rear panel 15
safety regulations 4
sample experiments 26
sharp electrode 26
suction (patch) electrode 29
sealing 30
sharp electrodes 26
suction (patch) electrodes 29
technical data 35
testing 21
trouble shooting 31
tuning 21
Loading...
