Page 1

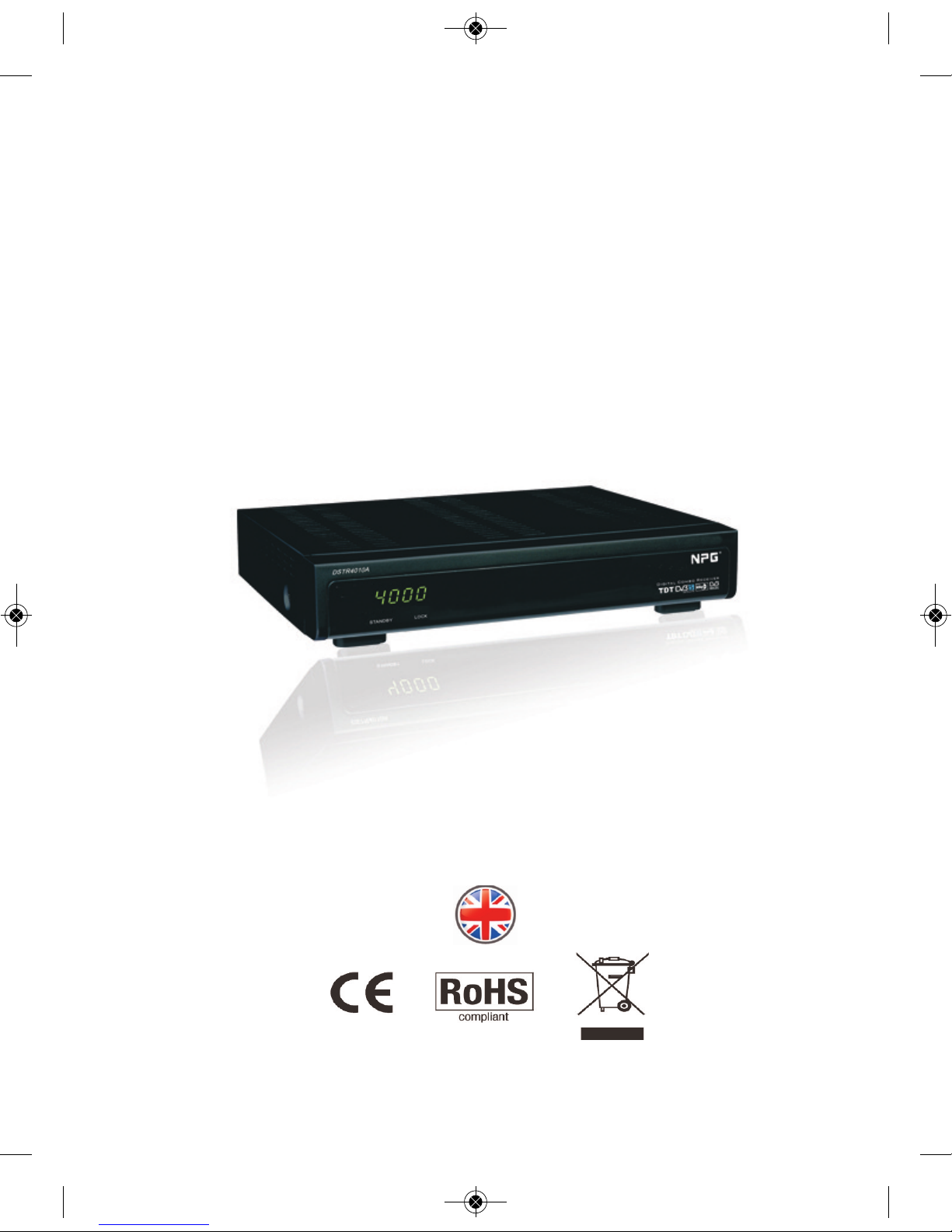

User´s Manual

DSTR 4010A

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:52 Página 1

Page 2

User´s Manual DSTR 4010A

Contenido

Installation 6

Main Features 2 For your Safety 3 Unpacking 4 General Operation 4

RCU 5

Menu Information 8

Main Menul 8

1.Channel List 9

1.1 TV Channel List 9

1.2 Radio Channel List 12

1.3 Delete All 12

2.Installation 12

2.1 Antenna Connection

2.2 Satellite List 12

2.3 Antenna Setup 14

2.4 Single Satellite Search 16

2.5 Multi Satellite Search 16

2.6 TP List 17

2.7 Terrestrial Automatic Scan 18

2.8 Terrestrial Manual Scan 18

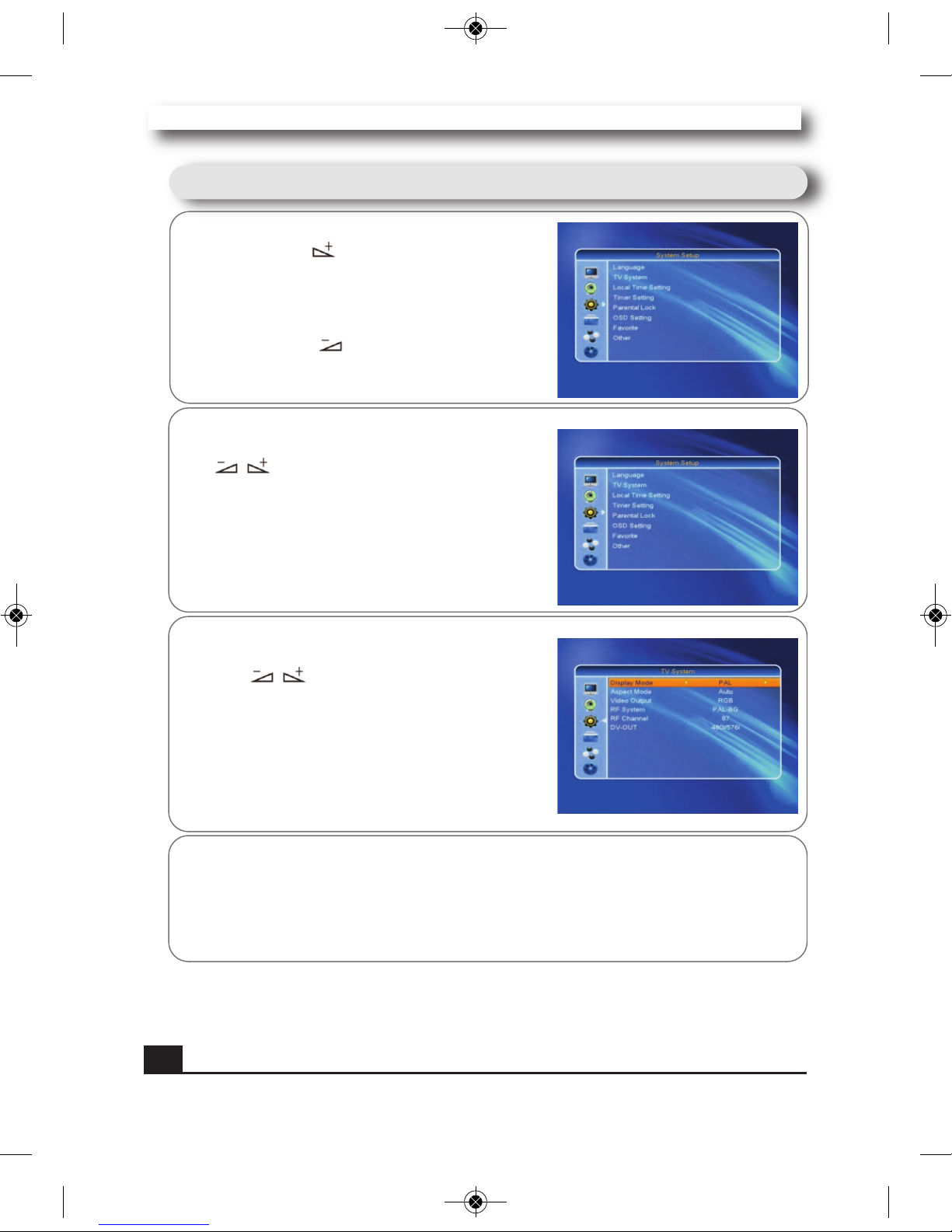

3.System Setup 19

3.1 Language 19

3.2 TV System 19

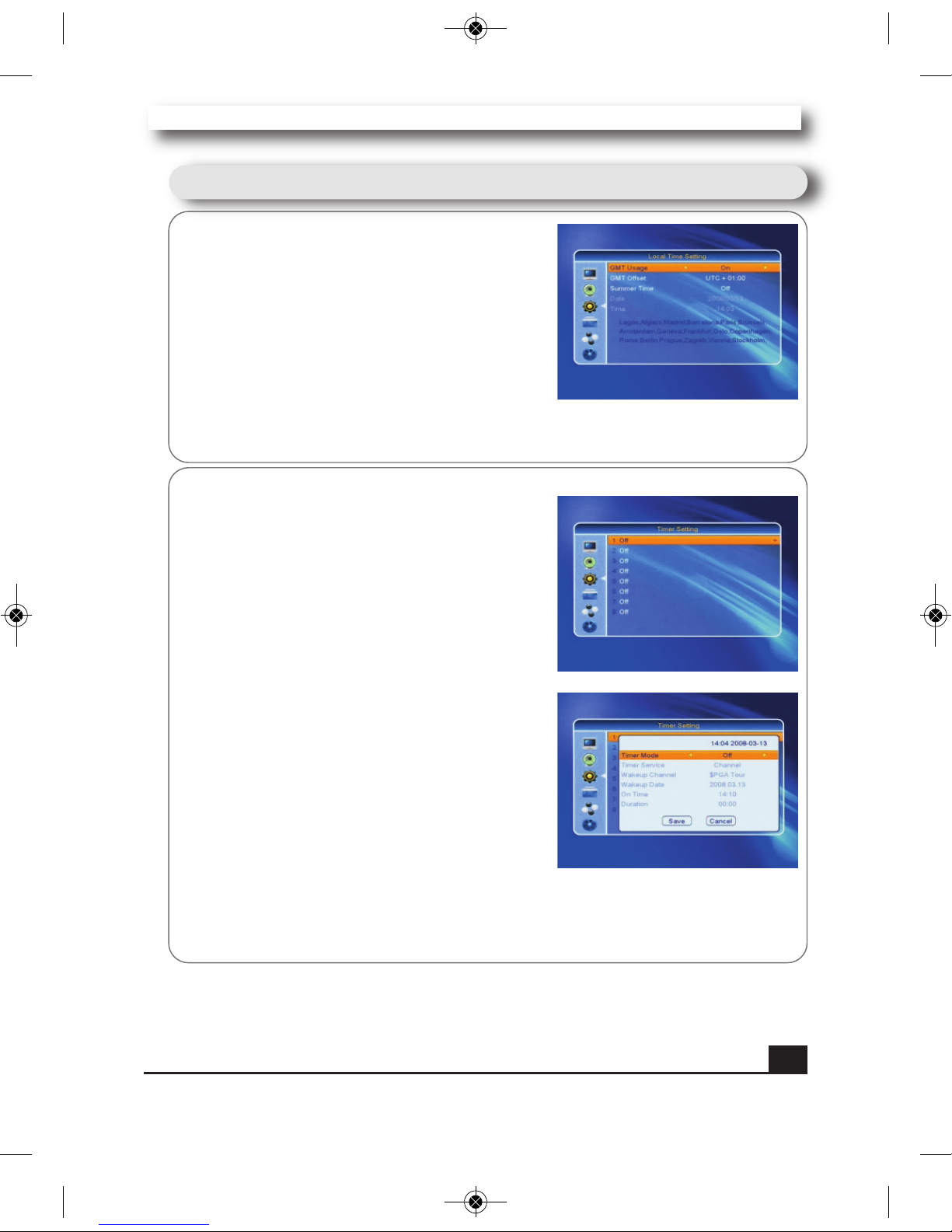

3.3 Local Time setting 19

3.4 Timer Setting 20

3.5 Parental Control 21

3.6 OSD Setting 21

3.7 Favorite 21

3.8 Other 22

4.Tools 22

4.1 Information 22

4.2 Factory Setting 22

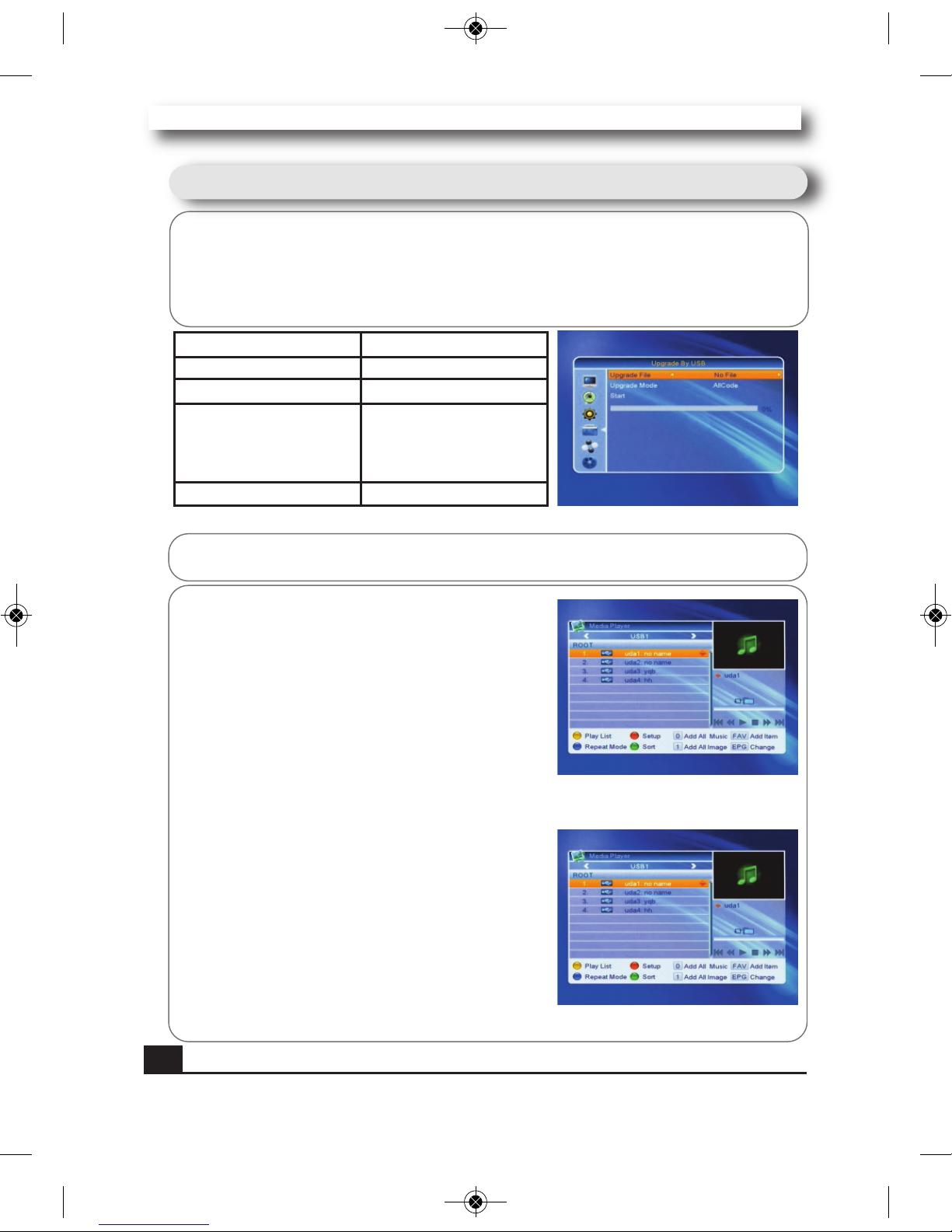

4.3 Upgrade by USB 23

4.4 USB 23

5.Game 24

6.REC 24

6.1 Record Managager 24

6.2 PVR Setting 25

6.3 HDD Information 25

7.Hot key 25-27

Trouble Shooting 29-30

General Information 2

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:52 Página 2

Page 3

User´s Manual DSTR 4010A

General Information

A Digital Satellite&Terrestrial Receiver is a convenient product that allows you to view a variety of programs provided through satellite or terrestrial antenna. This user's guide covers the installation of the receiver and the necessary steps to implement various features. This also explains special features available only in this receiver in detail, which will allow you to make full of these feature. Information confirmed in this document is subject to change. We reserves the right, without notice, to make change in product design or performances as progress in engineering or technology.

Main Features

MPEG-2 digital & fully DVB-S and DVB-T compliant

SCPC and MCPC receivable from C/Ku band satellite Automatic PAL/NTSC conversion 4000 channels TV and Radio programmable 32 different favorite groups selection On Screen Display with multi-language Fully support to 7 days Electronic Program Guide(EPG) Picture in Graphics(PIG) support 256 colors On Screen Display DiSEqC 1.0/1.1/1.2/1.3 fully support, 13/18V, 0/22K Various channel editing function(favorite, move, lock, rename and sort)Parental control for channels Easy to use Menu System Software upgrades through RS232 port , Receiver to receiver, and USB upgrade Automatic turn on/off by Timer setting(multiple options) Subtitle support DVB EN300743 and EBU Teletext support DVB ETS300472 by VBI and OSD Automatic save for last channel Channel list can be sorted by alphabetic A-Z Up to 3X3 pictures on screen, only 1 active Video zoom function with 1/2/4/6/8/12/16 ratio Supprot FAT16/FAT32/FAT12 Only list JPEG/BMP files Default 2 hours, user can setting the end time Based on size of HDD, 512M~8G size will reserve for time shifted recording Lock/Delete/Rename,Preview playback, Browse record files information Play/Pause/Stop/Step Fast Forward/Fast Backward 2/4/8/16/24, Slow Forward/Slow Backward 1/2, 1/4, 1/8,

Jump to user selected time point

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:52 Página 3

Page 4

User´s Manual DSTR 4010A

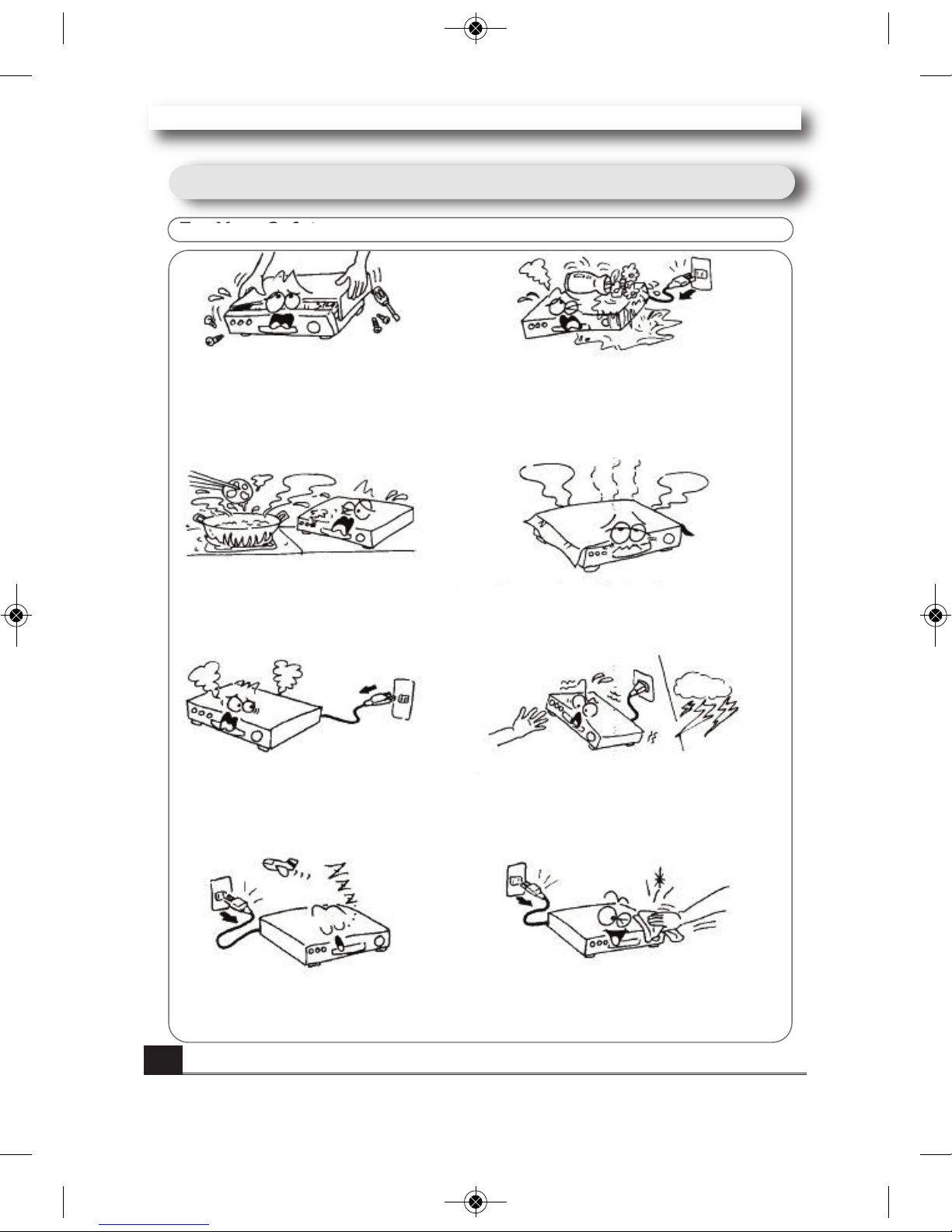

For Your Safety

General Information

To avoid electric-shock hazards, do not open the cabinet, refer servicing to qualified personnel only.

Keep the receiver away from flower vases, tubs, sinks, etc., in order to avoid damaging the equipment.

Do not expose the receiver un-der the sunlight. And keep it away from the heat source.

Do not block ventilation holes of the Receiver so that air can circulate freely.

When the abnormal phenomenon occur, you should cut off the power immediately.

Do not touch the receiver during thunder, since that might create electric-shock hazards.

Switch the receiver off whenever it remains out of service for an extended period.

Be sure to unplug the receiver before cleaning. Use only a dry cloth to clean.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:52 Página 4

Page 5

User´s Manual DSTR 4010A

General Information

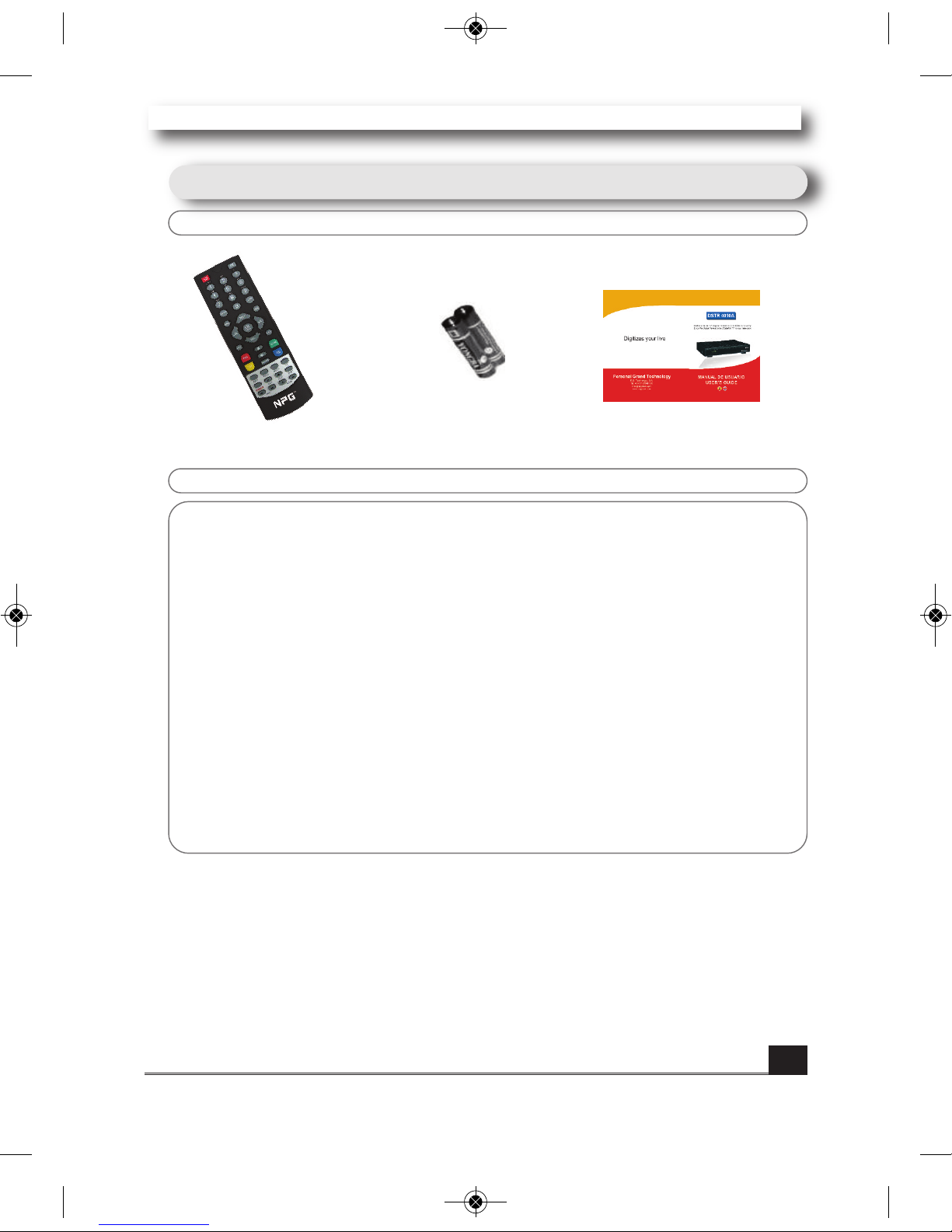

Unpacking

1. Remote Control

2. Batteries

3.User´s Manual

General Operation

Throughout this manual you will notice that the everyday operation of the receiver is

based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

All function can be carried out using the buttons on the RCU, and some of the function can also be carried out using the buttons on the front panel.

The receiver is easy to use, always at your command and adaptable for future advances.

Please be aware that new software may change the functionality of the receiver.

Should you experience any difficulties with the operation of your receiver, please consult the relevant section of this manual, including the Problem Shooting, or alternatively call your dealer or a customer service adviser.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 5

Page 6

User´s Manual DSTR 4010A

Información General

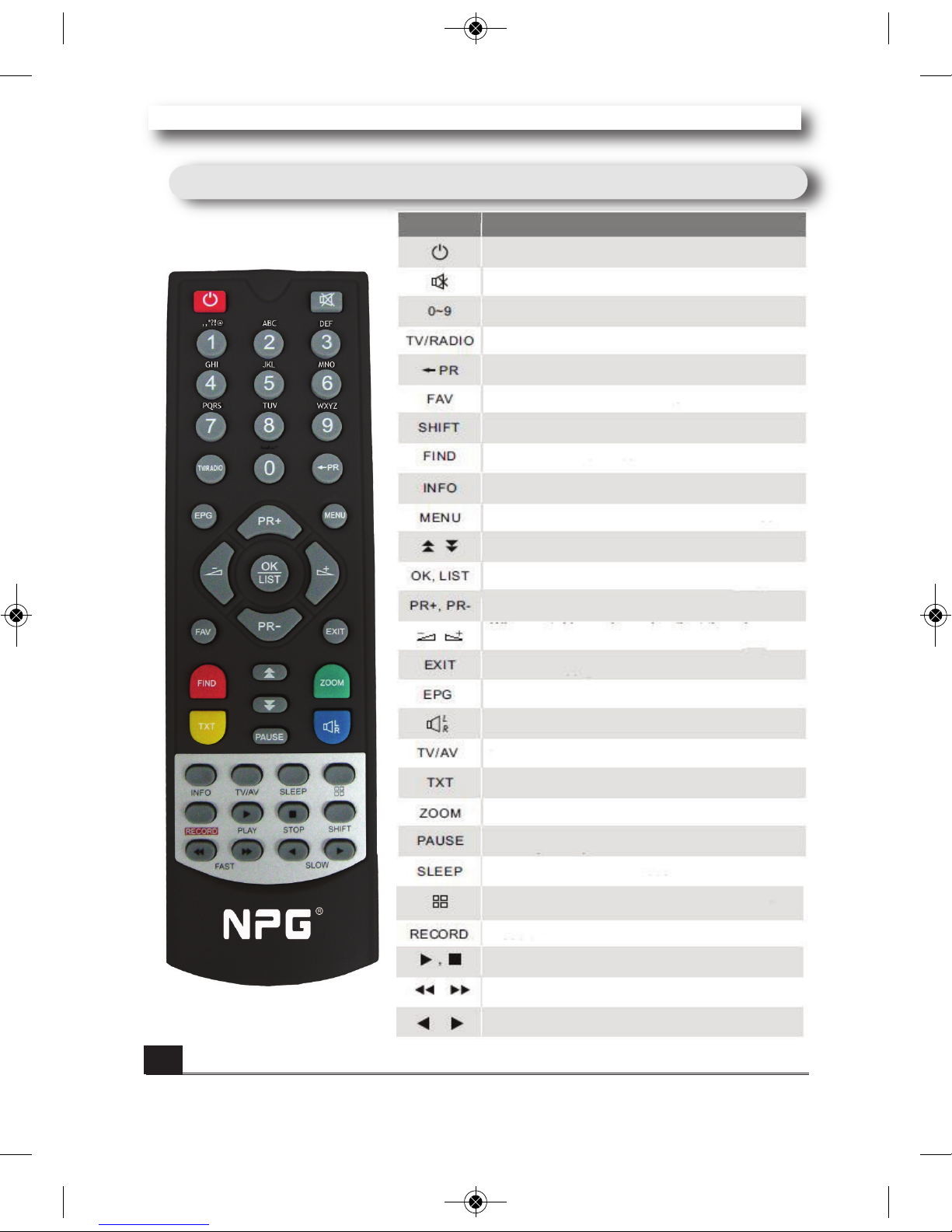

KEY FUNCTION

Turns power ON/OFF of the DSR

When watching a channel, mute the sound

Enter number of the required menu item or select a channelnumber to watch

Switches between TV and Radio mode

Switches back to previous channel

Displays the favorite group list

Timeshift function key

Display the Find window

Show information of the current channel

Press this key one time to run menu onscreen

Moves up / down a page in the list

Executes the selected item in the menu screen or enters the desired value in any input mode

When watching a channel, change channels or move to the next higher or lower item in the menu

When watching a channel, adjust the volume or move to the left or right item in the menu

Return to the previous menu on the menu screen or escape from the menu

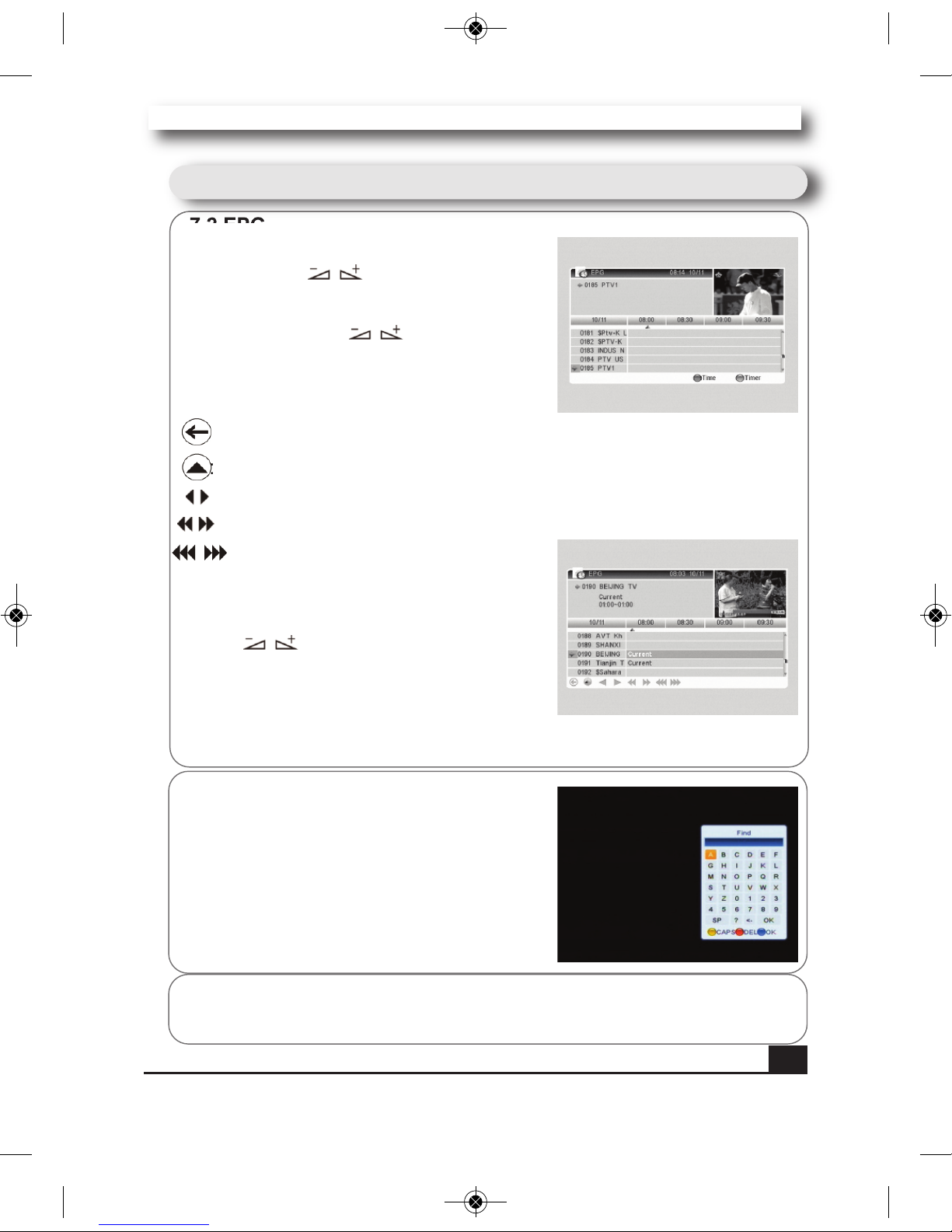

Call up the EPG (Electronic Program Guide)

Display the Audio window.

Switch between TV and AV modes

Switch to teletext or subtitle mode

Enter into the zoom in mode

Press once to pause the screen picture, press once again to go to the normal mode

Enter into the sleep in mode

Enter into the nine-pictures mode displayed on the screen.

Record the program

Play and stop the program

Press to fast forward or fast backward

Press to slow forward or slow backward

Remote Control

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 6

Page 7

User´s Manual DSTR 4010A

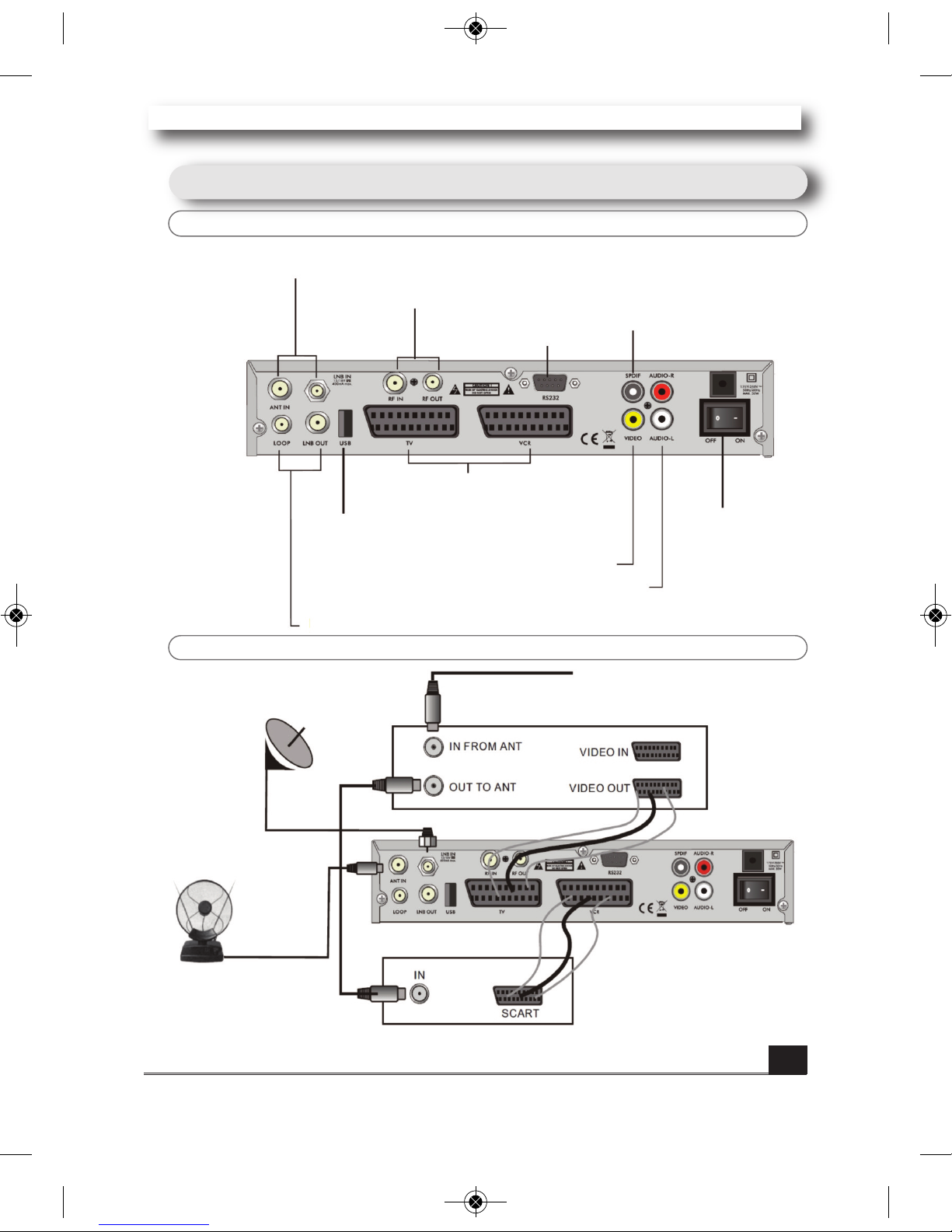

Installation

Rear Panel

Connecting to TV using SCART support

LNB IN: Connect to satellite antenna ANT IN: Connect to antenna

RF IN: Connect to cable singal RF OUT: Connect to TV ANT INPUT

Connect to a pc for s/w upgrade

Connect to a digital amplifier

Connect to tv/vcr using a scart cable

Connect to usb device

LOOP: Connect to another receiver LNB OUT: Connect to the other receiver

Connect video to TV using RCA jack

Connect to audio R/L to TV or audio tuner

Power on/off

VCR

Satellite Dish

Terrestrial Antenna

Cable or OFF-Air Antenna

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 7

Page 8

User´s Manual DSTR 4010A

Installation

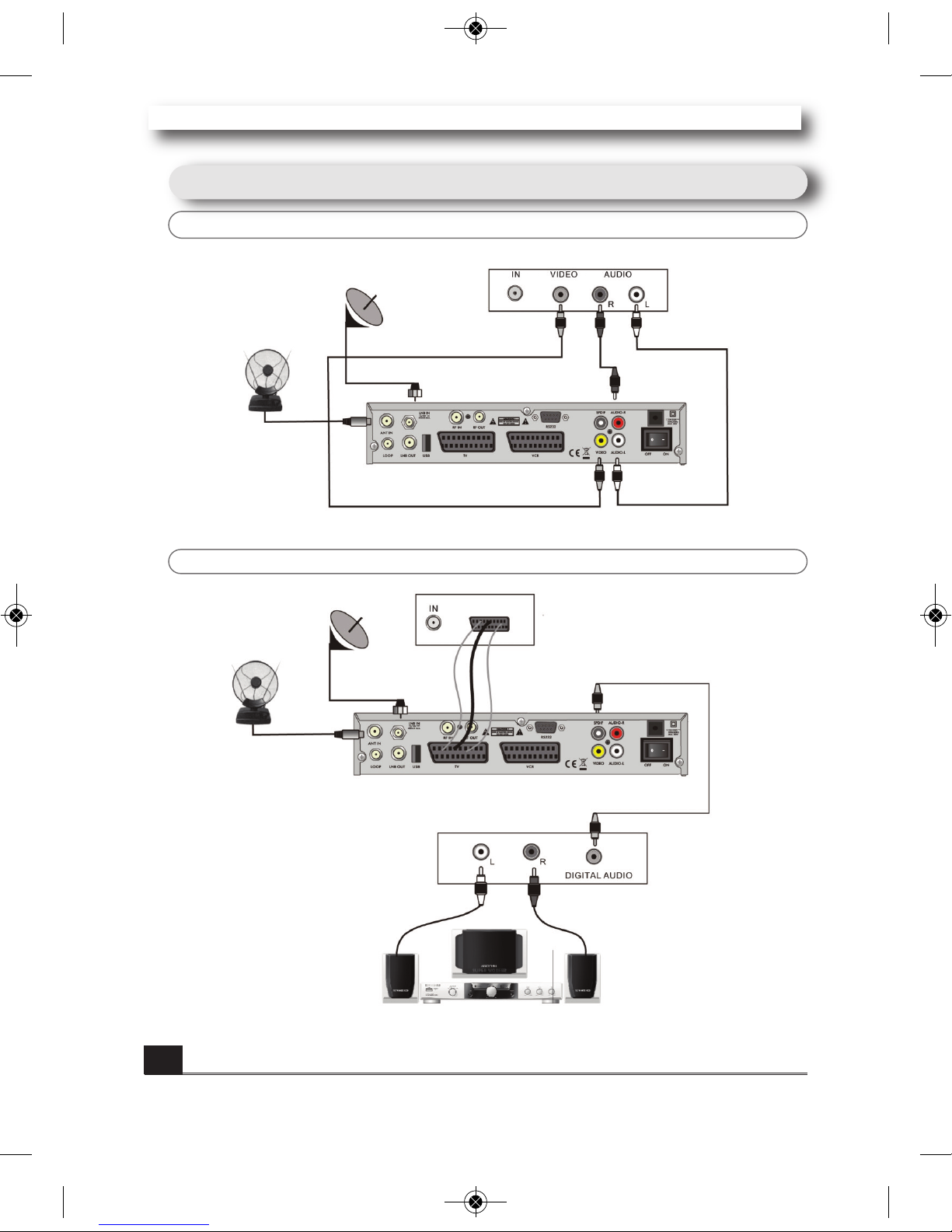

Connecting to TV using RCA support

Connecting to Digital Ampliﬁer

Satellite Dish

Terrestrial Antenna

Digital audio convertor or amplifier

Speaker

Satellite Dish

Terrestrial Antenna

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 8

Page 9

User´s Manual DSTR 4010A

During the installation the OK key confirms a selection and LIST key shows Down List

Box if the column has 34 mark. You can also use the numeric keys on the RCU to enter numeric value. Use the PR+, PR- key to move upwards and downwards from one line to another line and use key to move from main menu to sub menu and move from left side to right side or versa. Meantime, you want to escape the menu system, please press MENU or EXIT key on the RCU.

If there is no program, you can not exit from the Main Menu window by pressing

MENU or EXIT key. System will inform "No channel" and the following items turn grey.

Menu Information

Main Menu

Make sure that you have properly installed and connected the cables of the receiver well. If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window.

This menu consists of 6 major main menus as follow.

- Edit Channel

- Installation

- System Setup

- Tools

- Game

- REC

Sub-menu Turn grey when there is no program

Channel List TV Channel List

Radio Channel List Delete all

Installation

Antenna Connection Satellite List Antenna Setup Single Satellite Search Multi Satellite Search TP List

System Setup

Language TV System Local Time Setting Timer Setting Parental Lock OSD Setting Favorite Other Terrestrial Automatic Scan Terrestrial Manual Scan

Tools

Information Factory Setting Upgrade by USB USB

Game Tetris Othello Sudoku

REC

Record Manager HHD Information PVR Setting

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 9

Page 10

User´s Manual DSTR 4010A

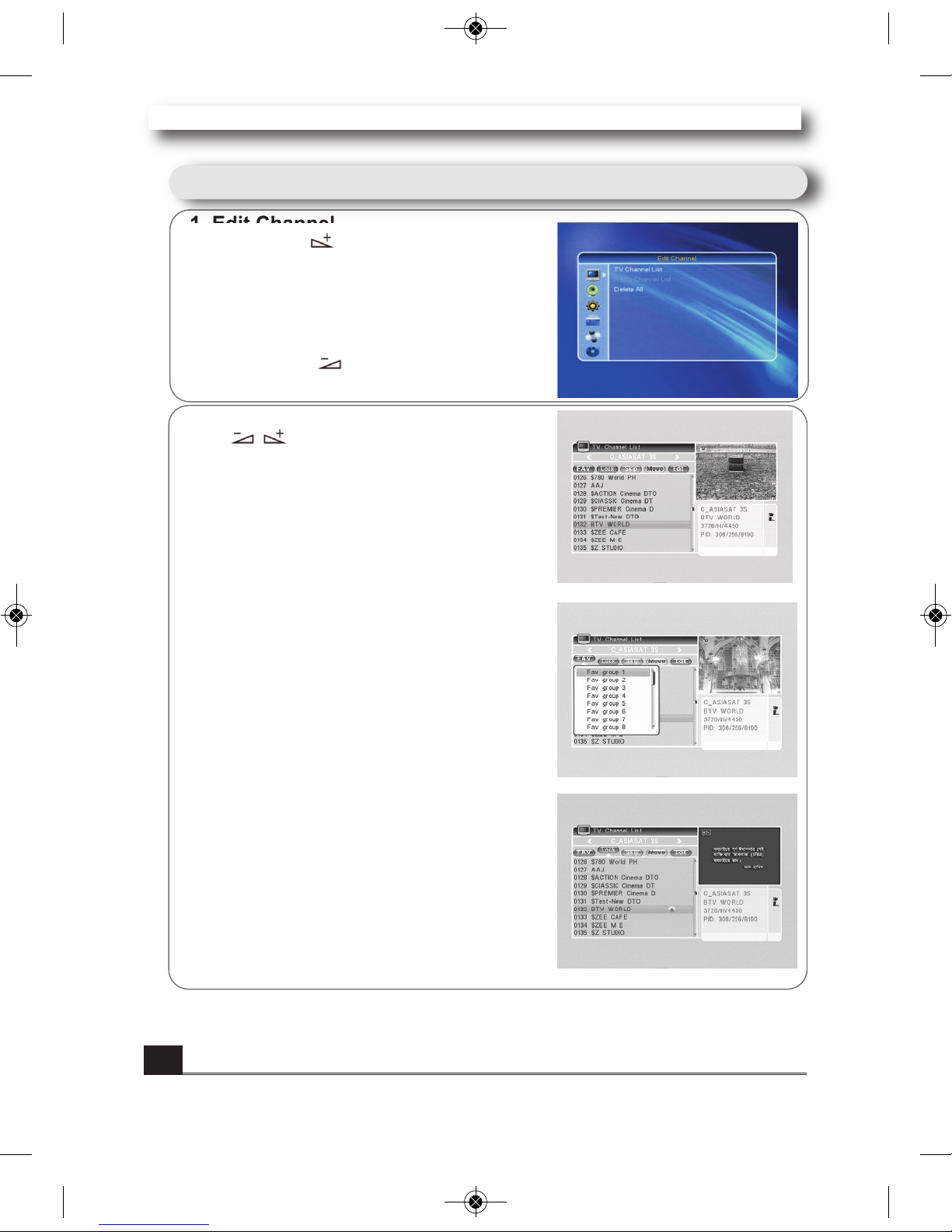

1. Edit Channel

1. Press OK key or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is "0000".

2. Press PR+, PR- keys to move the cursor up or down.

3. Press EXIT key or key to move the focus to the left menu.

1.1 TV Channel List

1. Press keys to select satellite.

2. Press PR+, PR- keys to select the program that you want to play, and then press OK key to view it in the small window. If move the yellow cursor to select up or down, you will see a gray line which indicates the playing program in the small window.

3. Press FAV key to move the FAV button upward. Select the program and press OK key to pop up the favourite group list. In the list, select the group that you want to add into and press OK key, and then you will find the favourite mark is displayed at the right side of the selected program. Press FAV key again to exit from the fav mode, and you will find the FAV button return to the origin position.

4. Press red colour key to move the Lock button upward. Select the program and press OK key to mark this program with the Lock mark. You can cancel this mark by pressing OK key once more. Press red colour key again to exit from the lock mode, and you will find the Lock button return to the origin position.

Menu Information

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 10

Page 11

Menu Information

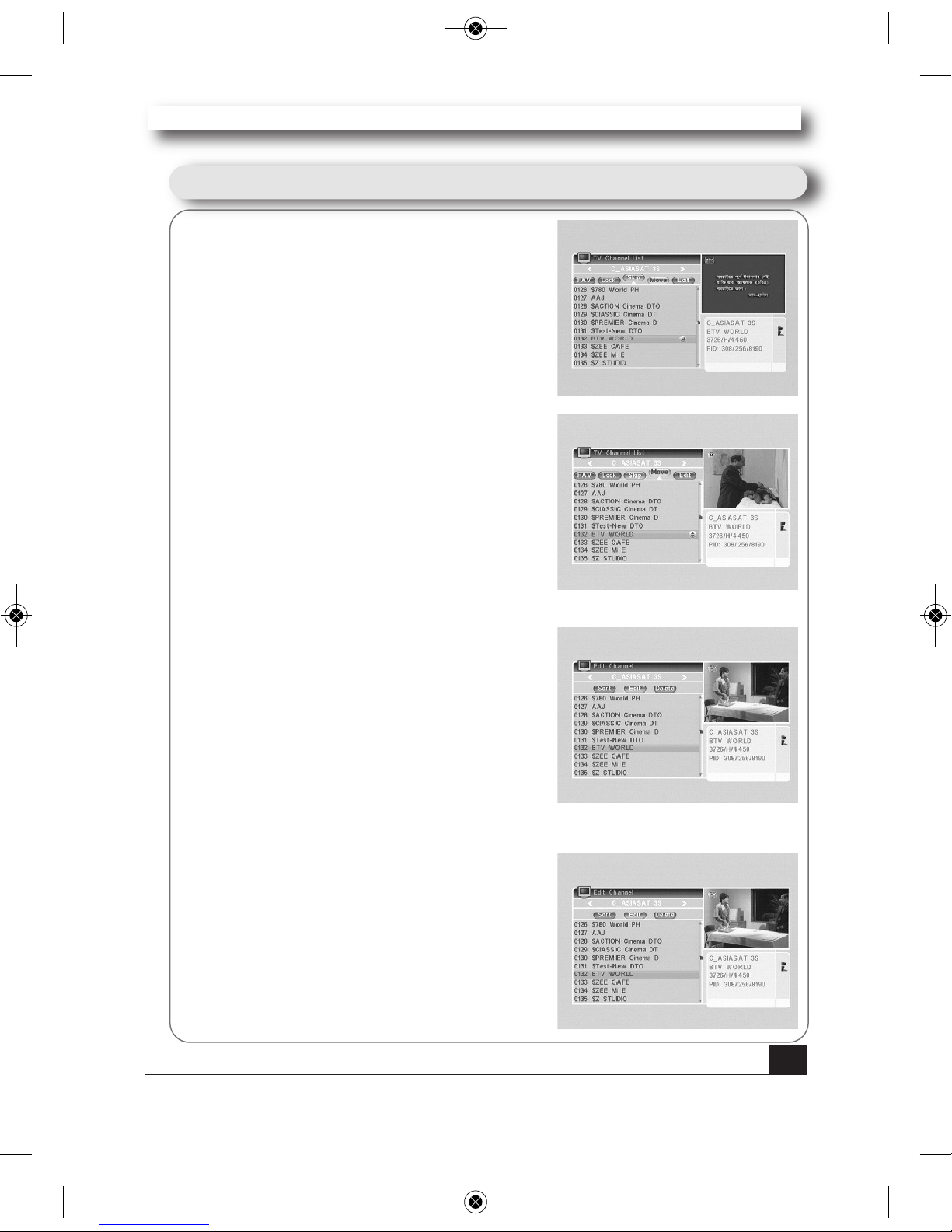

5. Press green colour key to move the Skip button

upward. Select the program and press OK key to mark this program with the skip mark. You can cancel this mark by pressing OK key once more. Press green colour key again to exit from the skip mode, and you will find the Skip button return to the origin position.

6. Press yellow colour key to move the Move

button upward. Select the program and press OK key to mark this program with the move mark. Press PR+, PR- keys to move the cursor to the position where you want to locate and press OK key to confirm. Press yellow colour key again to exit from the yellow mode, and you will find the yellow button return to the origin position.

7. Press blue colour key to enter into the Edit

channel window.

i . Sort (red colour key)

Press red colour key to pop up the Sort drop-down list.

Name(A-Z): The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase.

Name (Z-A): The opposite order of the above Name (A-Z).

Free/Scramble: All FTA programs are listed ahead, while all scrambled programs are listed last.

Lock: all locked programs are listed at the last.

User´s Manual DSTR 4010A

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 11

Page 12

User´s Manual DSTR 4010A

Menu Information

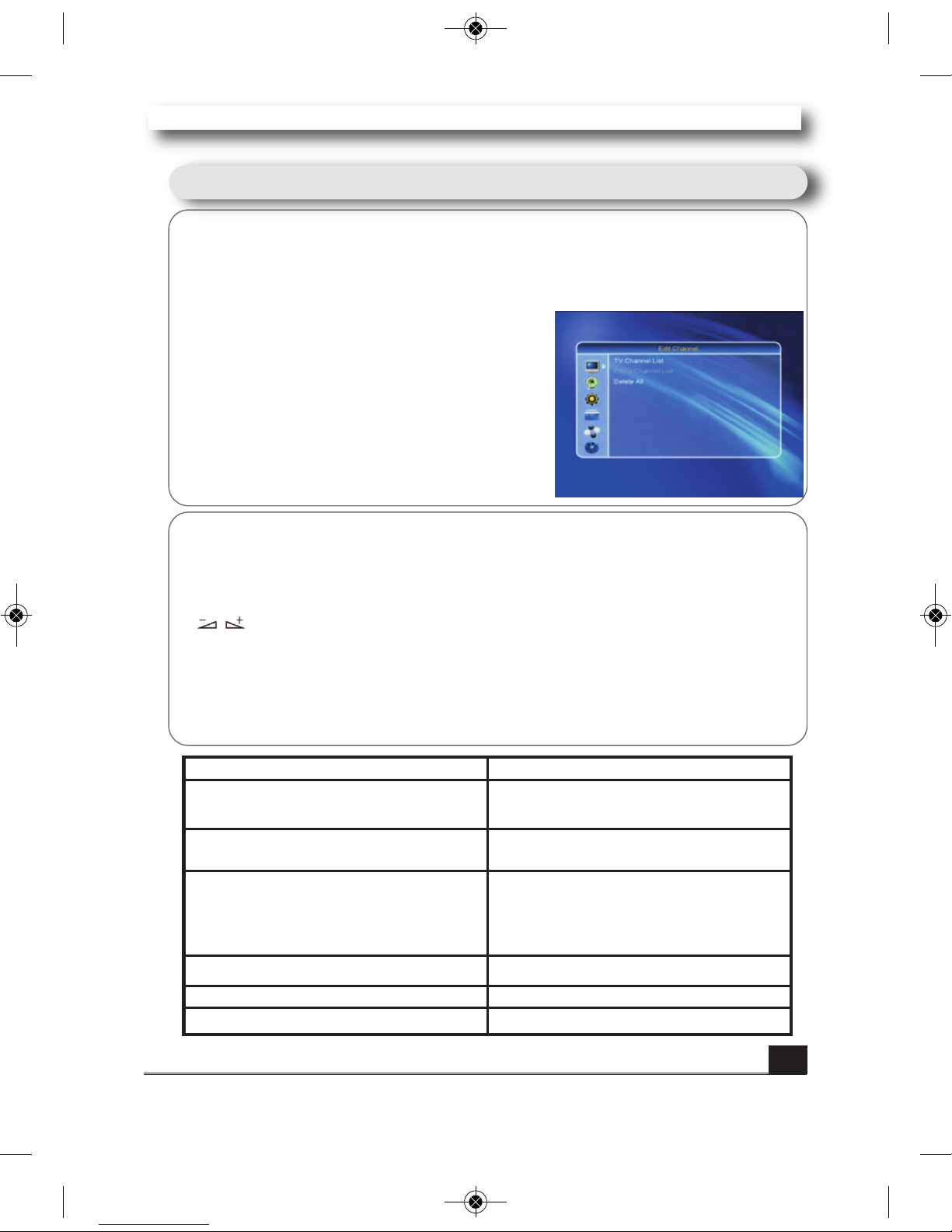

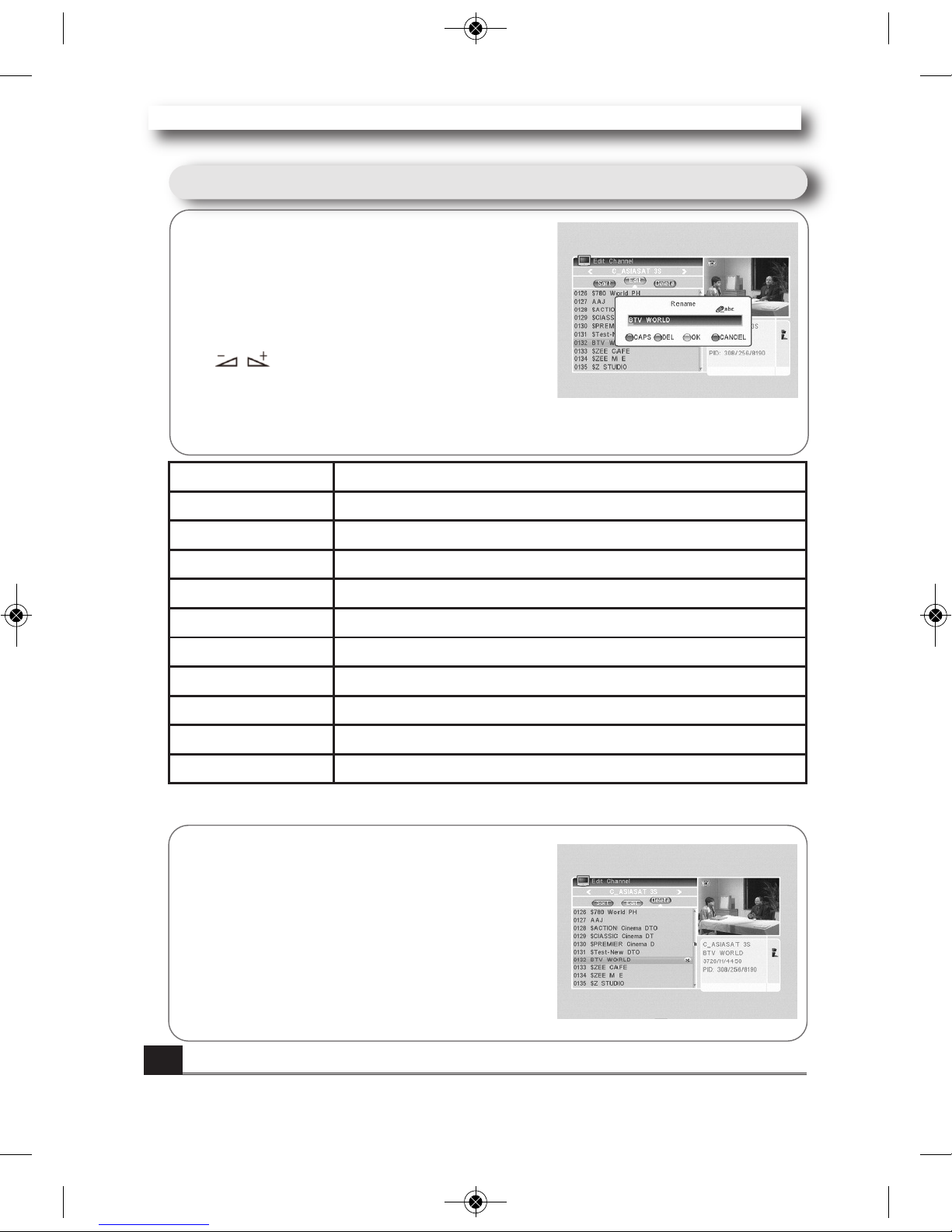

ii. Edit (green colour key)

Press green colour key to move the Edit button upward. Select the program and press OK key to pop up the Rename window. In Rename window, press red colour key to switch between capital letter and lower letter; press green colour key to delete the character on the cursor; press keys to move the cursor left or right; press numeric keys (0-9) to input the character, please refer to the down table. Press yellow colour key to save and exit, or press blue key to cancel

and exit

Numeric keys Press numeric key repeatedly, display in circle

1 .,*?!@1

2 ABC2

3 DEF3

4 GHI4

5 JKL5

6 MNO6

7 PQRS7

8 TUV8

9 WXYZ9

0 [space]_-0

iii. Delete (blue colour key)

In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark. You can cancel this mark by pressing OK key again. Press EXIT key to pop up the dialogue "Are you sure to save?". Select Yes button and press OK key to save, or select NO button and press OK key to exit without saving.

If the name is empty, system will pop up a dialogue informing "Name" once yellow colour key is pressed. Press OK key to close this dialogue.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 12

Page 13

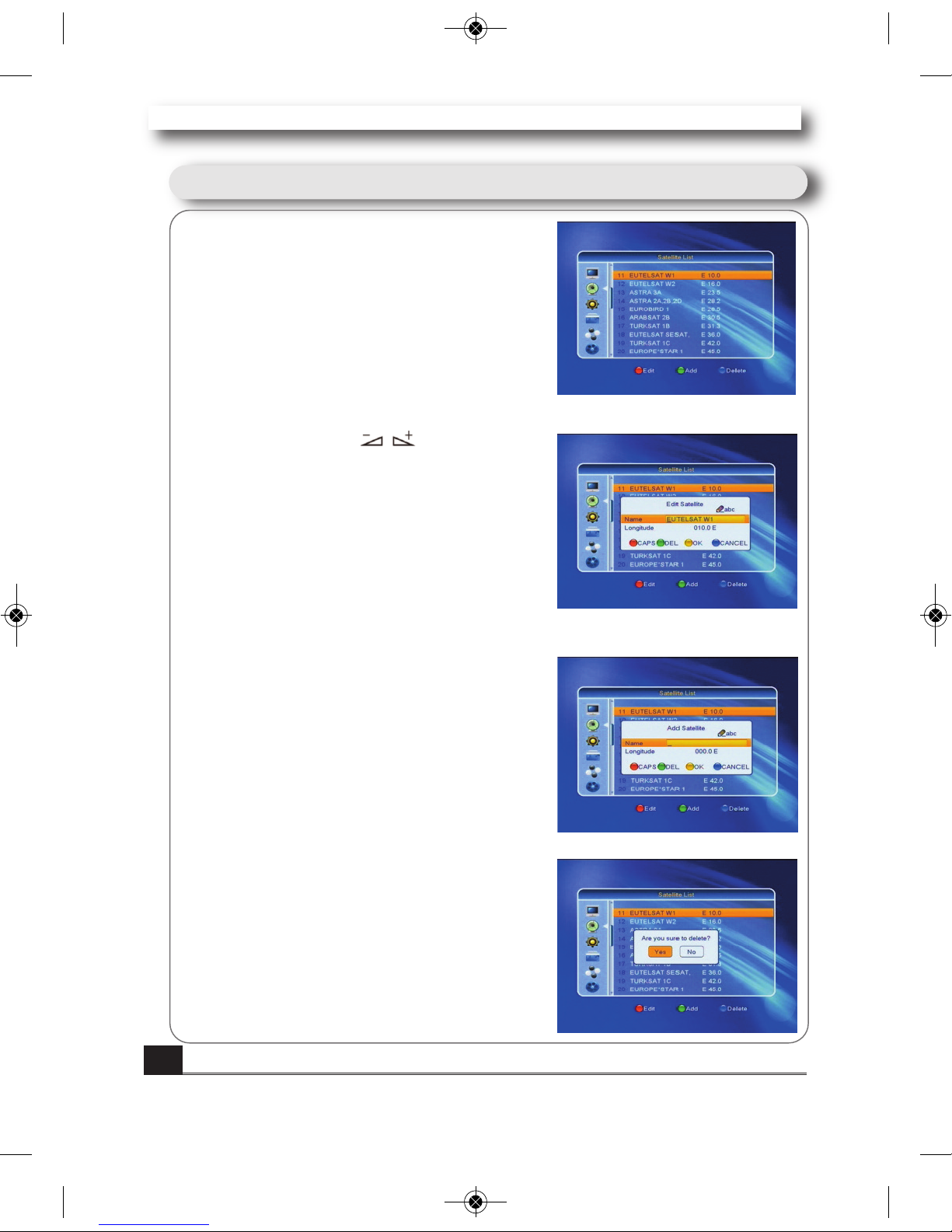

2.2 Satellite List

1. Press PR+, PR- keys to select the satellite up or down. Press OK key to select and mark, and you can press OK key again to cancel the selection and the mark.

Menu Information

User´s Manual DSTR 4010A

1.2 Radio Channel List

Sine the same operation as 1.1 TV Channel List, here we don't explain any more.

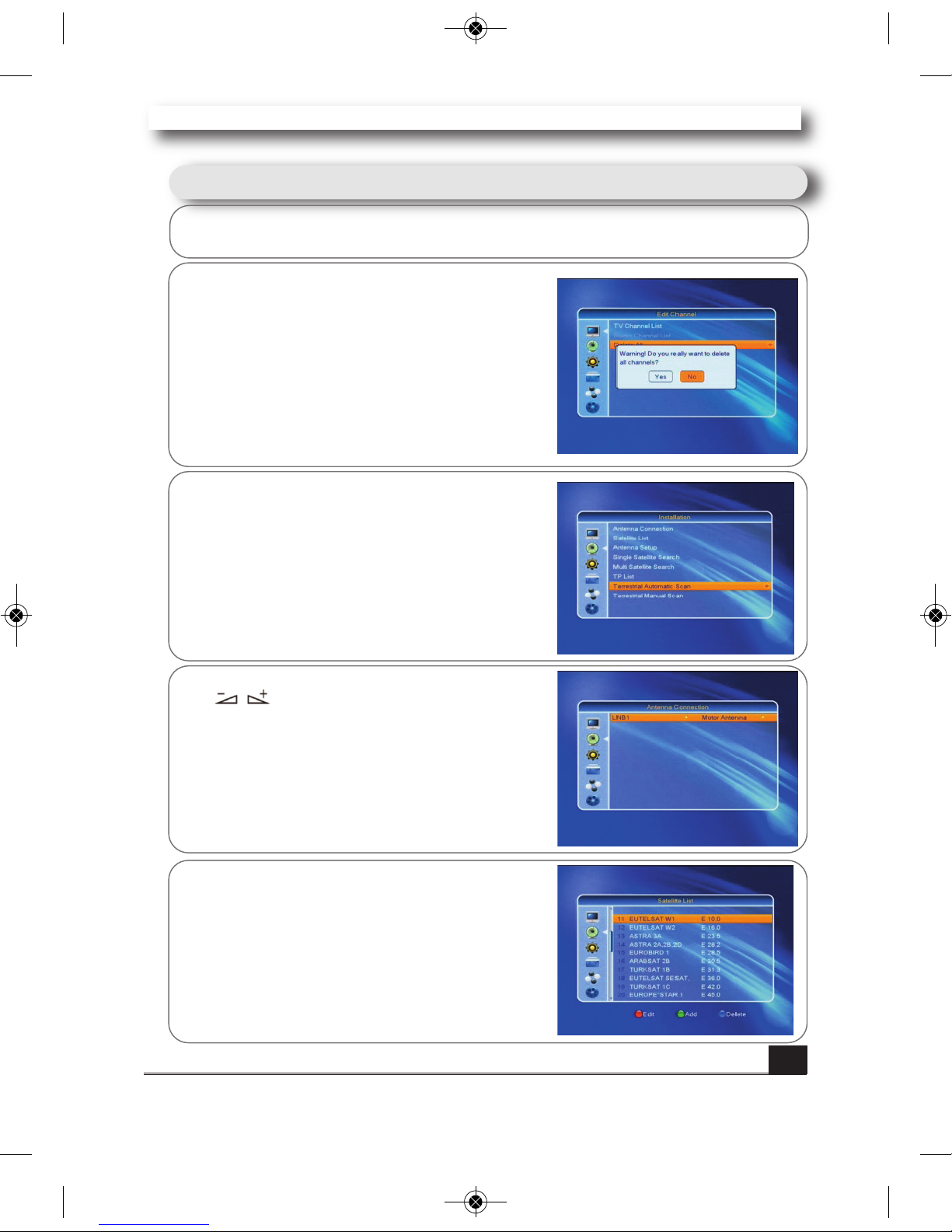

1.3 Delete All

Move cursor to the Delete All item, and press OK Key to pop up the dialogue "Warning! Do you really want to delete all channel?". Press EXIT key to pop up the dialogue "Are you sure to save?". Select Yes button and press OK key to save, or select NO button and press OK key to exit without saving.

2. Installation

1. Press OK key or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is "0000".

2. Press PR+, PR- keys to move the cursor up or down.

3. Press EXIT key or key to move the focus to the left menu.

2.1 Antenna Connection

Press keys to select between Motor Antenna and Fixed Antenna.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 13

Page 14

User´s Manual DSTR 4010A

Menu Information

2. If there is no satellite, the red colour and blue

colour keys will be invalid.

3. Press red colour key to pop up the Edit Satellite

window. Press PR+, PR- keys to move cursor up or down.

Name: User numeric keys to change the name of the satellite, please refer to the Edit Channel Name.

Longitude: You can press keys to switch between east longitude and west longitude. After pressing OK key, you can use numeric keys to edit the longitude, press EXIT key or the PR+, PR- keys to exit editing mode. The range of the longitude is from 1to 180 degree. If beyond this range, system will inform you "out of range" when you press yellow colour key on the RCU. After setting, press yellow colour key to save and exit, while press blue colour key to exit without saving

4. Press green colour key to pop up the Add

Satellite window. Since the same operation as the above Edit Satellite window, here we don't explain any more.

5. Press blue colour key to pop up the dialogue "Are

you sure to delete?". Select Yes button and press OK key to delete the selected satellite. You can cancel this operation by pressing OK key at the NO button.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 14

Page 15

User´s Manual DSTR 4010A

Menu Information

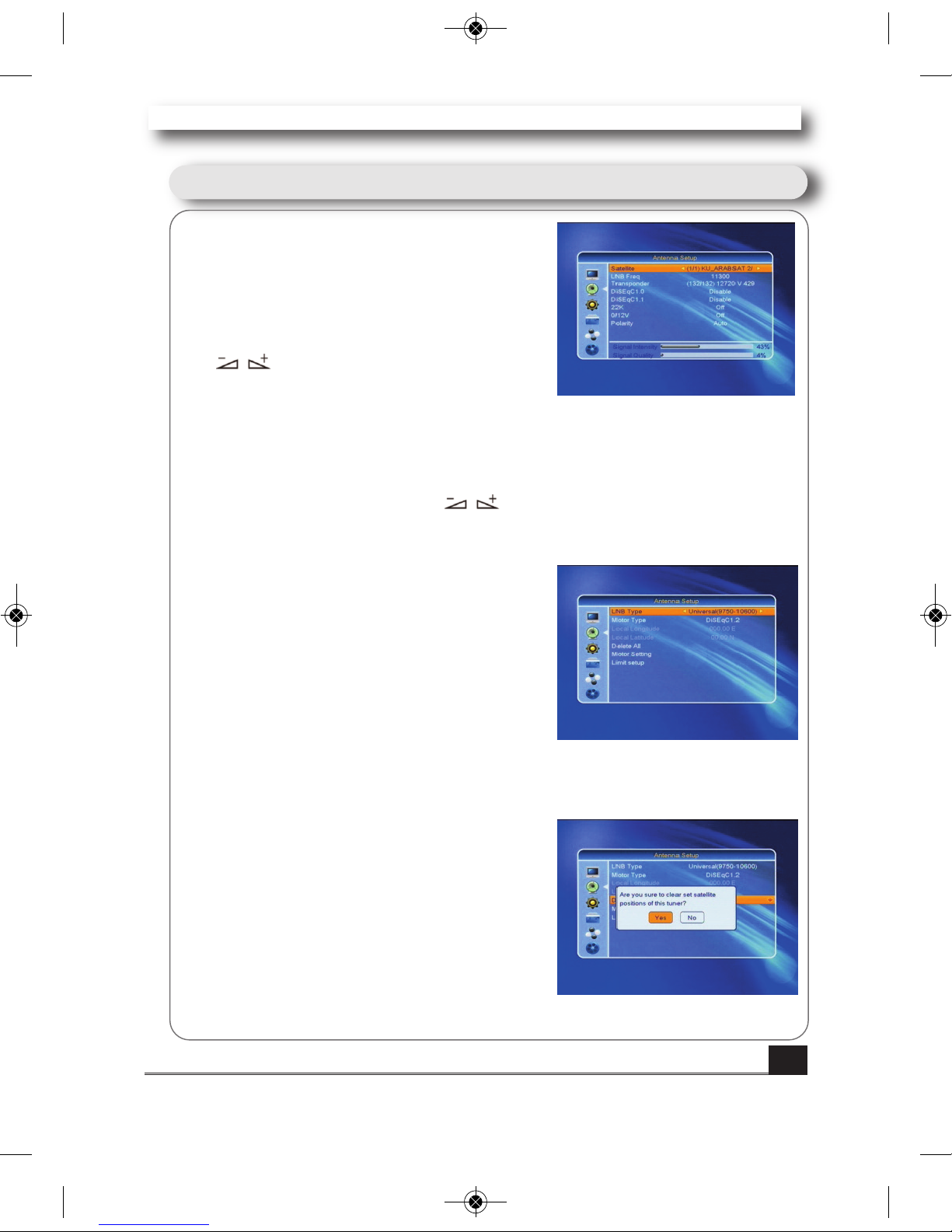

2.3 Antenna Setup

Part A: Fixed

Suppose that you have selected Fixed Antenna in the Antenna Connection window.

1. Satellite: All selected satellites in the satellite

list are displayed in this item. Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm.

2. LNB Freq, Transponder, DiSEqC1.0, DiSEqC1.1: The same operation as the above.

3. 22K, 0/12V, Polarity: You can press keys to select in circle.

Part B: Motor

Suppose that you have selected Moter Antenna in the Antenna Connection window.

1. LNB Type: Select the proper LNB type.

2. Motor Type: Select between DiSEqC1.2 and

USALS. If you select DiSEqC1.2, the following Local Longitude and Local Latitude items will turn grey.

3. Delete All: Press OK key to pop up the dialogue

"Are you sure to clear set satellite position of this tuner?". Press OK key at the Yes button to clear all the memories about the position of the satellites that has connected to the current turner.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 15

Page 16

User´s Manual DSTR 4010A

Menu Information

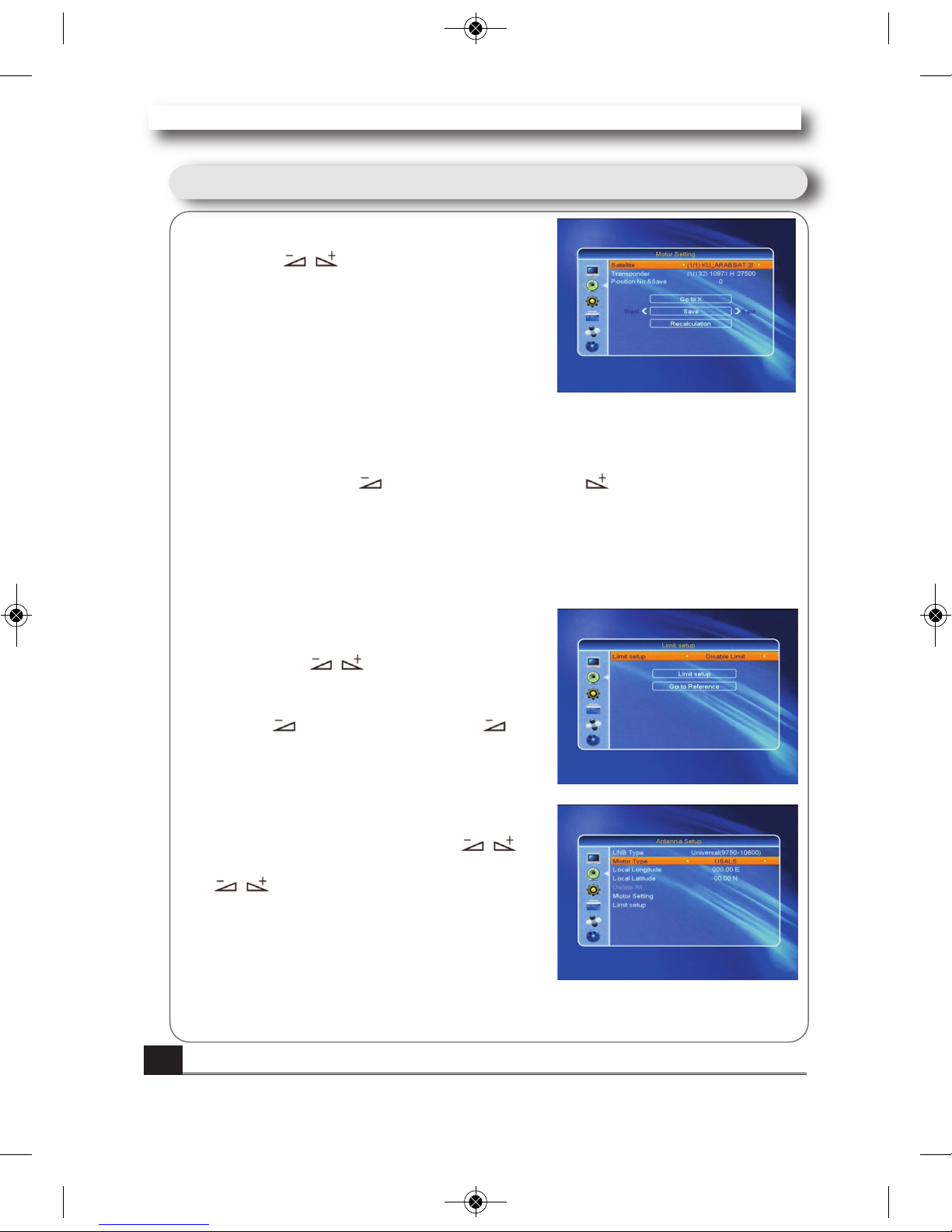

4. Motor Setting: Press OK key to the Motor Setting window. Satellite: Press keys to select the satellite in

circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press

OK key to confirm.

Transponder: The same operation as the above. Position No., & Save: The range is from 0 to 63. "0"

delegates the original position. You can select the proper value when you has rotated the antenna. Go to X: Press OK key to pop up the drop-down list, select the proper position (reference or from 1to 63) to realize the selected position. West <Save> East: Press key to turn west, while press key to turn east. Press OK key to pop up the dialogue "Are you sure to change this satellite's position?". Press OK key at the Yes button to save the current position, or press OK key at the No button to cancel the operation. Recalculation: Press OK key to pop up the dialogue "Are you sure to change this satellite's position?". Press OK key at the Yes button to recalculation .

5. Limit Setup: Press OK key to pop up the Limit Setup window. Limit Setup: Press keys to switch among

Disable Limit, East Limit and West Limit. Limit Setup: Move cursor to the Limit Setup button. You can press key to turn west , or press key to turn east. Go to Reference: Press OK key to go to reference. If you select Disable Limit in the above Limit Setup item, this button will turn grey.

6. If select USALS, Delete All item will turn grey. Local Longitude, Local Latitude: Press keys

to switch between West and East, or press keys to switch between North and South. Press OK key to enter into the editing mode. Use numeric keys (0-9) to input the longitude or latitude, press MENU key or EXIT key to exit. The range of the longitude is from 0 to 180,while the range of the latitude is from 0 to 90. If the inputted value is not in this range, system will pop up a dialogue "Out of Range" when exit from this window.

You can press OK key to close this dialogue.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 16

Page 17

User´s Manual DSTR 4010A

Menu Information

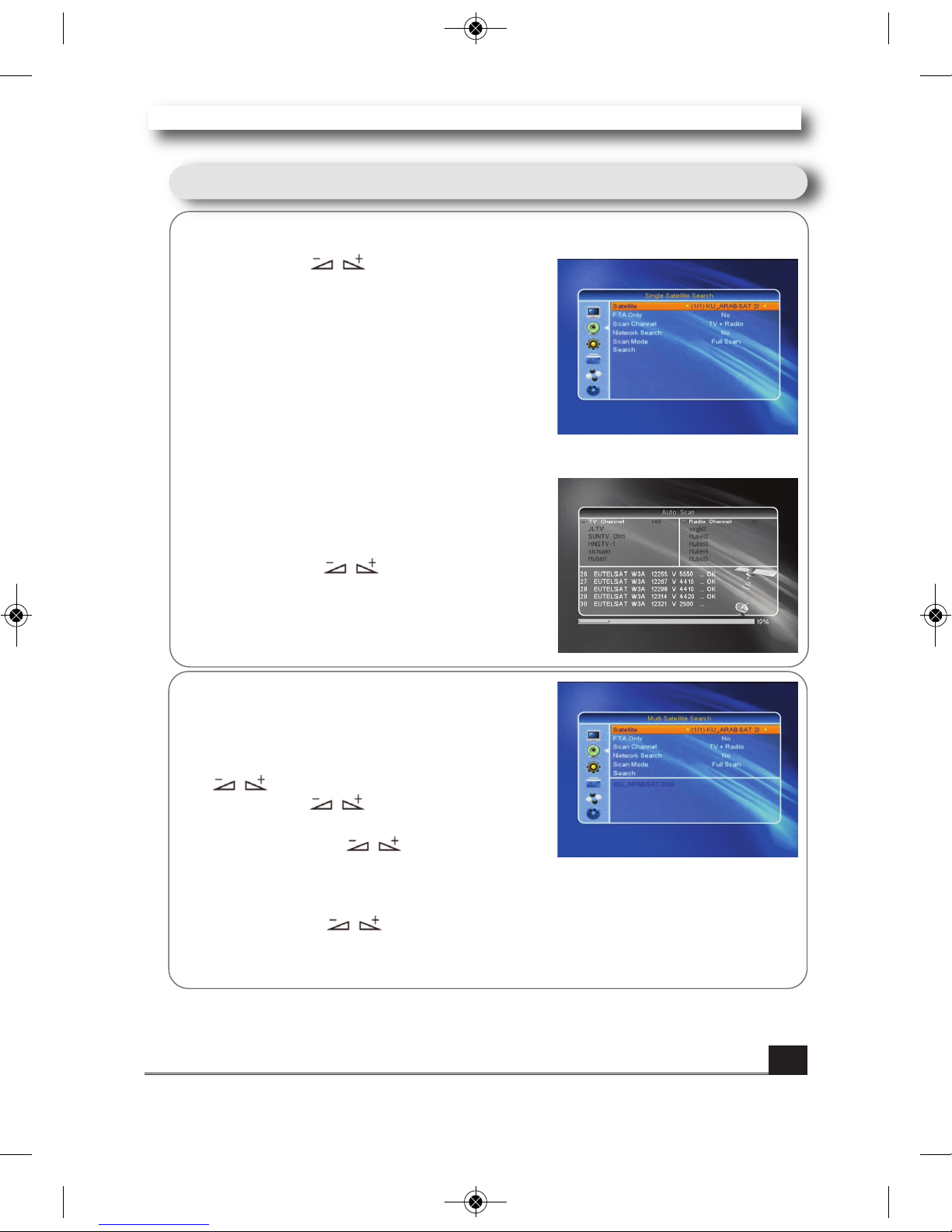

2.4 Single Satellite Search

1. Satellite : Press keys to select the satellite

in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm.

2. FTA Only: Press keys to select between Yes and No.

3. Scan Channel: Press keys to select among TV+Radio, TV Channel, Radio. Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm.

4. Network Search: Select between No and Yes. This item turns grey when Auto Scan is selected in the following Scan mode item.

5. Scan Mode: Press keys to select between Auto Scan and Preset Scan. Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies.

6. Search: Press OK key to start searching.

2.5 Multi Satellite Search

From the Multi Satellite Search window, you can search several satellites at the one time.

1. Satellite: All selected satellites in the satellite list window are displayed on the down part. You can press keys to switch among them.

2. FTA Only: Press keys to select between Yes and number

3. Scan Channel: Press keys to select among TV+Radio, TV Channel, Radio.

4. Network Search: Select between No and Yes. This item turns grey when Auto Scan is selected in the following Scan mode item.

5. Scan Mode: Press keys to select between Auto Scan and Preset Scan. Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies.

6. Search: Press OK key to start searching.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 17

Page 18

User´s Manual DSTR 4010A

Menu Information

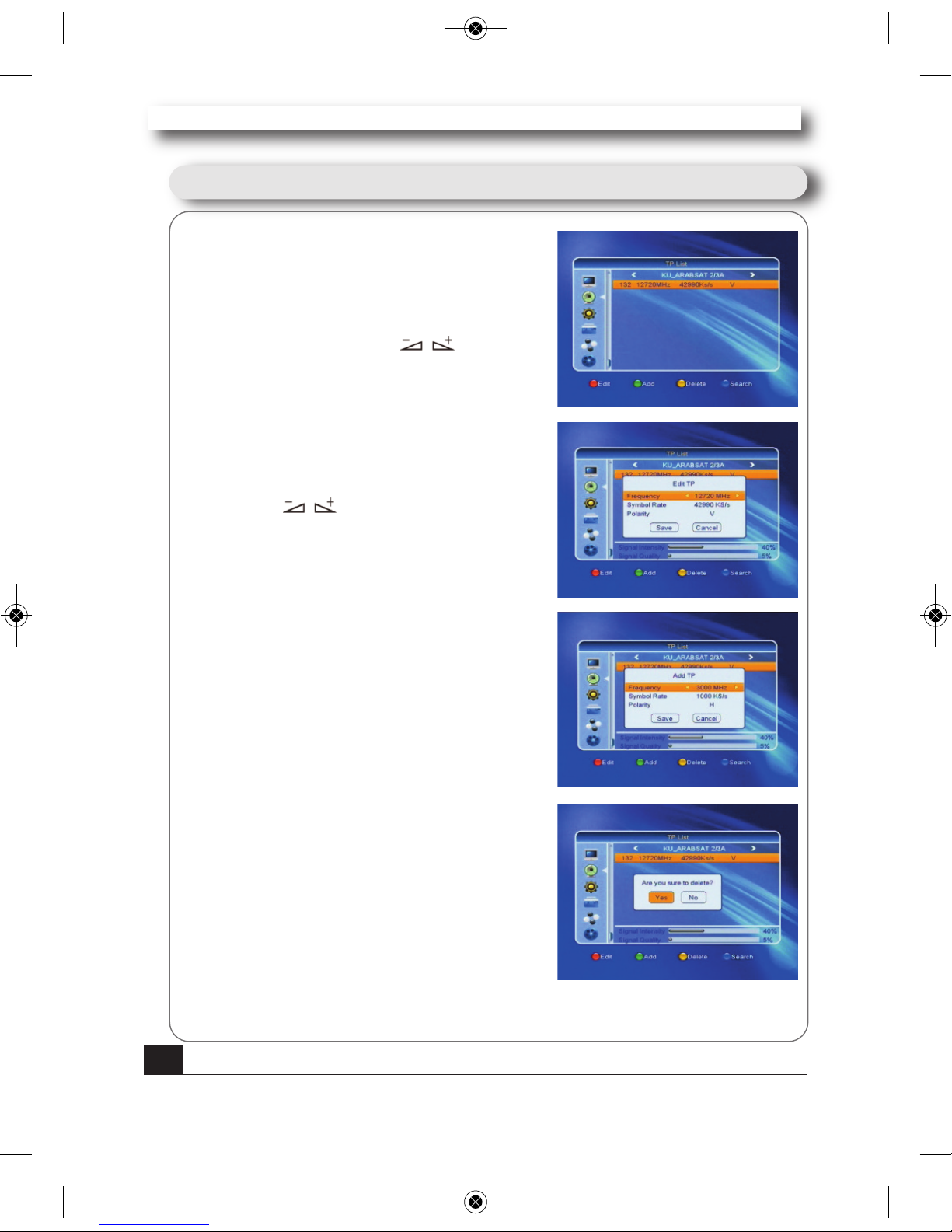

2.6 TP List

1. Press PR+,PR- keys to select the proper satellite.

2. Press red colour key to pop up the Edit TP window

Frequency, Symbol rate: Press keys to add or reduce by step one. Or press numeric keys (0-9) to input the desired value. The range of the frequency is 3000-13450, while the range of the symbol rate is 1000~45000. The inputted value is beyond this range, the value will return to the origin value.

Polarity: Press keys to switch between Vertical and Horizontal.

3. Press green colour key to pop up the Add TP window. Since the same operation as the above Edit TP window, here we don't explain any more.

4. Press yellow colour key to pop up dialogue " Are you sure to delete?". Press OK key at the Yes button to delete the selected TP, or press EXIT key to cancel the operation.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 18

Page 19

User´s Manual DSTR 4010A

Menu Information

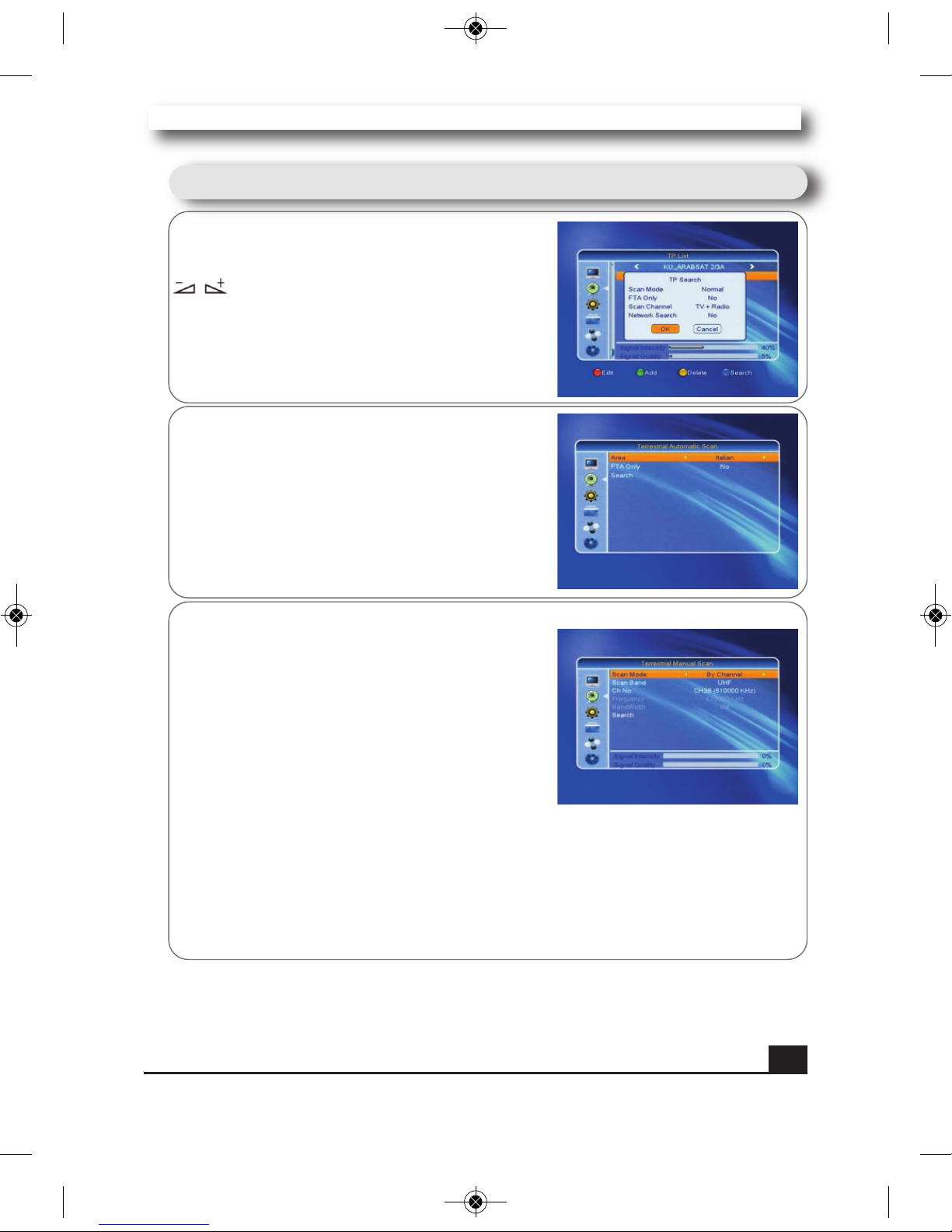

5. Press blue colour key to pop up the TP Search

window.

FTA only, Scan Channel, Network Search: Press

keys to select the proper option.

Press OK key at the OK button to start searching.

2.7 Terrestrial Automatic Scan

1. Area: Select the area.

2. FTA Only: Select between YES and No.

3. Search: Press OK key to start searching.

2.8 Terrestrial Manual Scan

When you enter Manual Search, the screen will display as beside.

There are two scan modes for you. You can choose to scan by channel or by frequency.

When scan band is UHF and region is “Spain”, the range of Ch Number is from 22 to 69. When scan band is VHF and region is “Spain”, the range of Ch Number is from 1 to 12. (It’s according to region.) When you complete your configuration, move highlight to search option, and press

[OK] key to start scanning.

Press [EXIT] key to exit the scanning and save the current parameters.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 19

Page 20

User´s Manual DSTR 4010A

Menu Information

3. System Setup

1. Press OK key or key to move the cursor to the right menu.

2. Press PR+, PR- keys to move the cursor up or down.

3. Press EXIT key or key to move the focus to the left menu

3.1 Language

1. Press OK key to enter into the Language window. Press keys to select the language in circle, while press PR+, PR- keys to move the cursor up or down in circle.

2. Press MENU key or EXIT key to save and exit.

3. The types of the language, pleaser refer to the configuration of the customer.

3.2 TV System

Press PR+, PR- key to move the cursor up or down, while press keys to change the setting and the setting will take effect immediately

1. Display Mode: Select among Auto,PAL, PAL-M, PAL-N, NTSC.

2. Aspect Mode: Select among 4:3LetterBox, 4:3PanScan, 16:9.

3. Video Output: Select between RGB and CVBS.

3.3 Local Time Setting

1. Summer Time: Select between ON and OFF. "OFF" delegates the normal time.

If select ON, time will add one hour.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 20

Page 21

User´s Manual DSTR 4010A

Menu Information

2. GMT Offset: When select "ON" in GMT Usage

item, system will get the date and time information from the screen automatically. Date and Time two items will turn grey. Select the proper option in the

GMT Offset item. The default setting is GMT ON.

3.Date, Time: When select "OFF" in GMT Usage,

Date and Time two items take effect, while GMT Usage turns grey. Use numeric keys to input the desired value.5. After setting, press MENU key or EXIT key to exit and save. If the value is invalid, system will inform "Invalid input! Continue to edit?". Press OK key at the Yes button to continue the modification, or press OK key at the

No button to exit without saving.

3.4 Timer Setting

If there is no program, you can not enter into this window. There are 8 timers that can be set. Select Timer up or down, and press OK key to enter into the setting window.

1. Timer mode: The default mode is off. You can set the timer once, daily, weekly, monthly and yearly

2. Timer Service: Select between Channel and Record. If Channel is selected, the Wakeup Channel is displayed in the following item. If Record is selected, the Wakeup Record is displayed in the following item.

3. Wakeup Date, On Time: Use numeric keys to input the valid date.Duration: Set the gap time. After waking up, system will power off automatically after the duration time.

Press MENU or EXIT key to save and exit.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 21

Page 22

User´s Manual DSTR 4010A

Menu Information

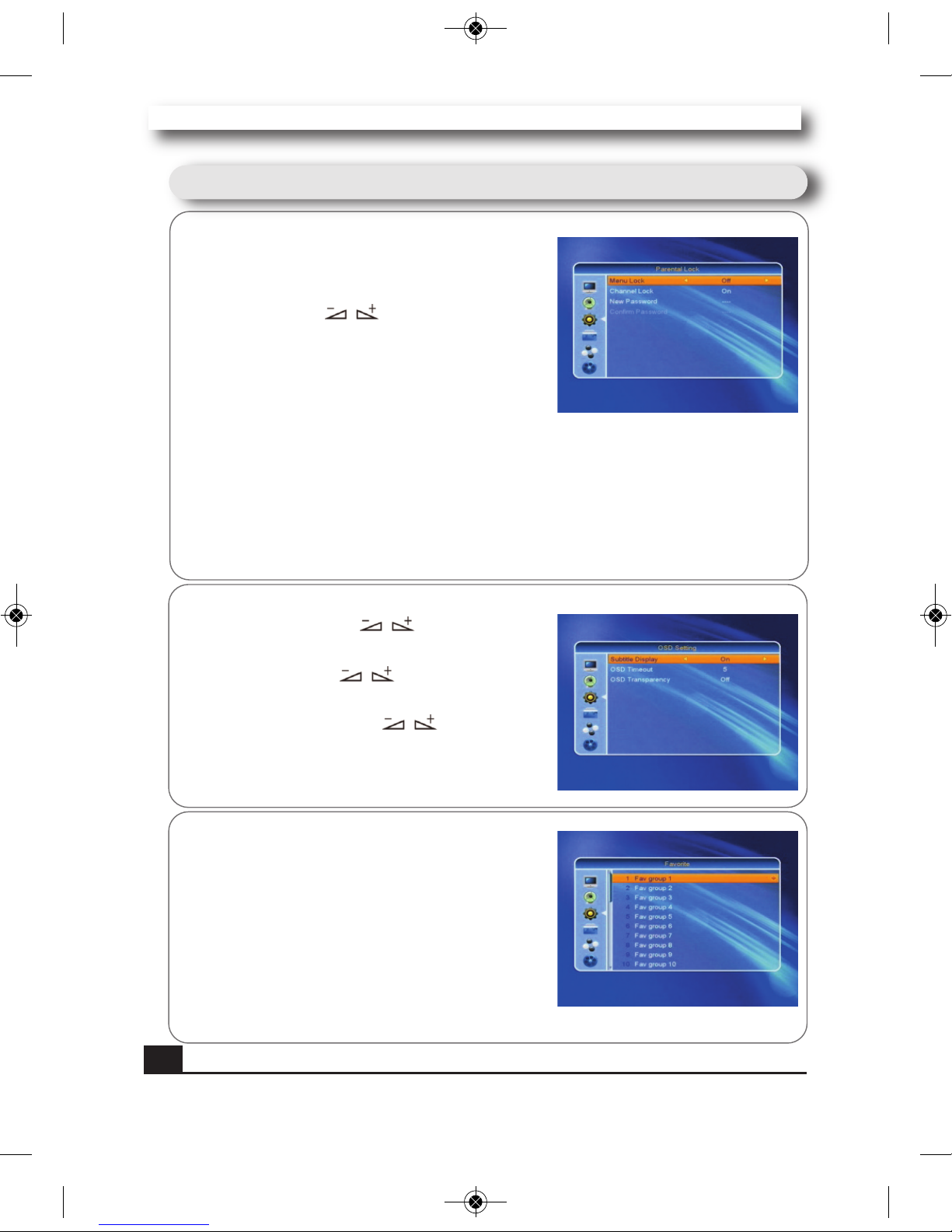

3.5 Parental Lock.

Before entering into the Parental Lock window, you need input the correct password. The default password is “0000”.

1. Menu Lock: Press keys to select between Off and On. If select "On" , you can not enter into the most window before entering the password.

2. Channel Lock: Press keys to select between Off and On. The default value is Off. If select "On", you can not view the locked channel set in Chanel List Edit window until you have inputted the correct password.

3. New Password: User numeric key (0-9) to input the new password

4. Confirm Password: Input the new password once again. Confirm password must be

the same as the New password. System will inform you "Change password successfully!" while they are the same, or inform you to input the password of Confirm password once

again when they are not the same.

3.6 OSD Setting

1. Subtitle Display: Press keys to select

between On and Off.

2. OSD Timeout: Press keys to select from 1 to 10 by step1. The default values Is 5.

3. OSD Transparency: Press keys to select among Off, 10%, 20%, 30%, 40%. The default option is Off.

Press MENU or EXIT key to save and exit.

3.7 Favorite

There are 32 favorites group listed in this window.

Press PR+, PR- keys to select one and press OK key to the Rename window. Since the same operation as the above the Add Satellite window, here we don't explain any more.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 22

Page 23

User´s Manual DSTR 4010A

Menu Information

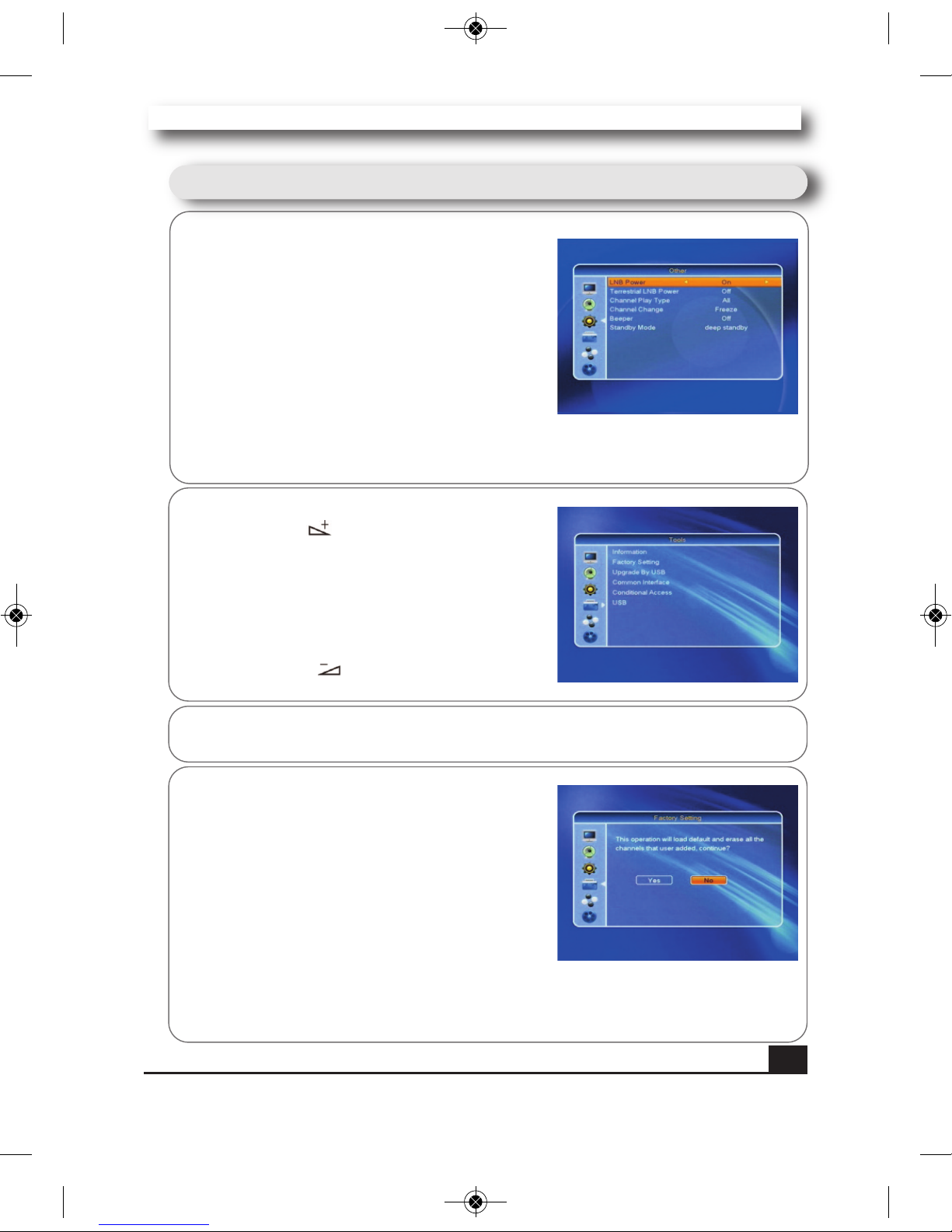

3.8 Other

1. LNB Power: Select between Off and On.

2. Terrestrial LNB Power: Select between Off and On.

3. Channel Play Type: Select among All, Free,

Scramble.

4. Channel Change: Select between Freeze and Black screen.

5. Beeper: Select between Off and On.

6. Standby Mode: Select between deep standby and

standby

4. Tools

1. Press OK key or key to pop up the "Input Password" dialogue, you can not enter into the

menu unless the correct password is inputted. The default password is “0000”.

2. Press PR+, PR- keys to move the cursor up or down.

3. Press EXIT key or key to move the focus to the left menu.

4.1 Information

Press OK key to the Information window.

4.2 Factory Setting

Press OK key to enter into the Factory Setting window. Select Yes button and press OK key to return to the factory setting. All searched channels and set information will be erased. Select No button and press OK key to cancel this operation, or press MENU or EXIT key to cancel and exit.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 23

Page 24

User´s Manual DSTR 4010A

Menu Information

4.3 Upgrade by USB

1.Upgrade File: Show the Upgrade File.

2.Upgrade Mode: Select between AllCode and Dump. When users switch the upgrade mode, “Upgrade File” will show the corresponding file according to the

table below:

Upgrade Mode File feature

All code : File named as "*.abs" Main Code: File named as *.bin”

Radio back: File named as "*.m2v",

the picture will be used as both radio back and menu back

Default db: File named as "*.bin"

Select the upgrade mode and upgrade file, then you can start upgrade by USB.

3.Press OK key on start button to start receiving the data from USB device.

When the USB device is not connected, this item is grey, you can not edit it now.

4.4 USB

USB menu will be automatically shown when insert U disk to USB port except auto scan, multi picture, upgrade. Or open USB menu according to Menu -> Tools-> USB. Press OK to enter into this window. USB menu will be disabled when no USB device is plugged. Media Play List will not be saved when USB plug out or standby or power off. Move scroll bar when press up/down key, page up or down by page key. Go into subdirectory when press ok key in the file directory, play the selected file when scroll bar is on the file, automatic return USB menu after play is over.

Function Key Yellow key: Press to show the Play List Red key: Press to show the Green key: Press to show The Sort List Blue key: Press to select the repeat mode

1. Press number key 0 to add all music to th Play List

2.Press number key 1 to add all images to th Play List.

3.Press number key 2 to change between different re-

movable device

FAV: Press FAV key add the image you selected to the Play List.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 24

Page 25

User´s Manual DSTR 4010A

Menu Information

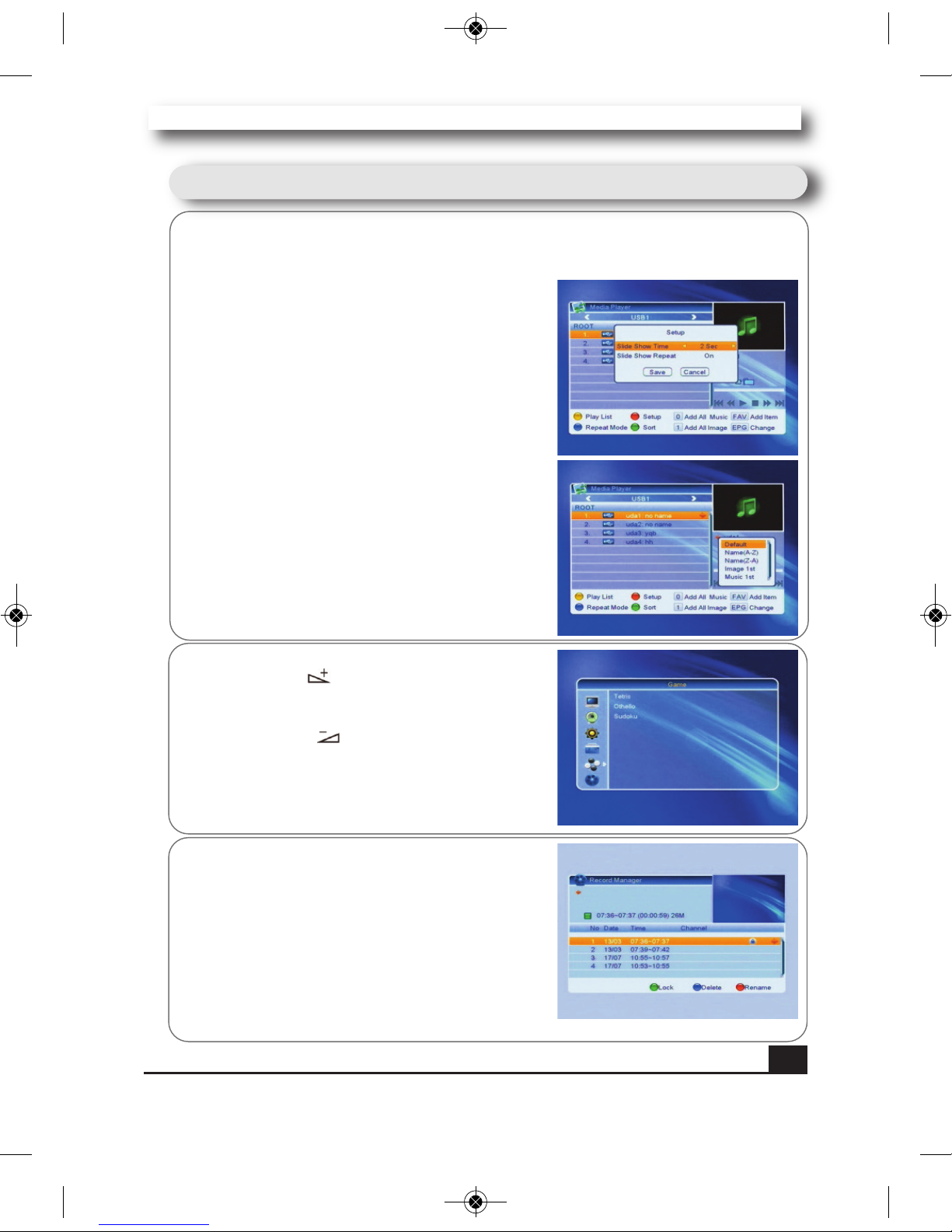

Play List

Press PR+,PR- key to select the image you want, and press FAV key to add the image to Play List . Press [OK] on Play List button you can see the image you selected and in this list you can play and delete them. Red key: Playing the image in full screen. Yellow key: Delete the image you selected. Blue key: Delete all the image in the list.

Setup

Slide Show Time: Select among 0-9sec. Slide Show Repeat: Select between on and off.

Sort

Pressing [OK] on Sort button, it will pop up the Sort drop-down list. Name(A-Z): The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z).

5. Game

1. Press OK key or key to enter into the game.

2. Press PR+, PR- keys to move the cursor up or

down.

3. Press EXIT key or key to move the focus to

the left menu.

4. Select the game that you want to play and press

OK key to enter into the window.

6. REC

6.1. Record Manager

1. Press PR+, PR- keys to select up or down,

2. Press green color key to lock the channel you

selected, the lock symbol will be marked behind the channel. Before you lock the channel you must input the correct password, the default password is “0000”.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 25

Page 26

User´s Manual DSTR 4010A

Menu Information

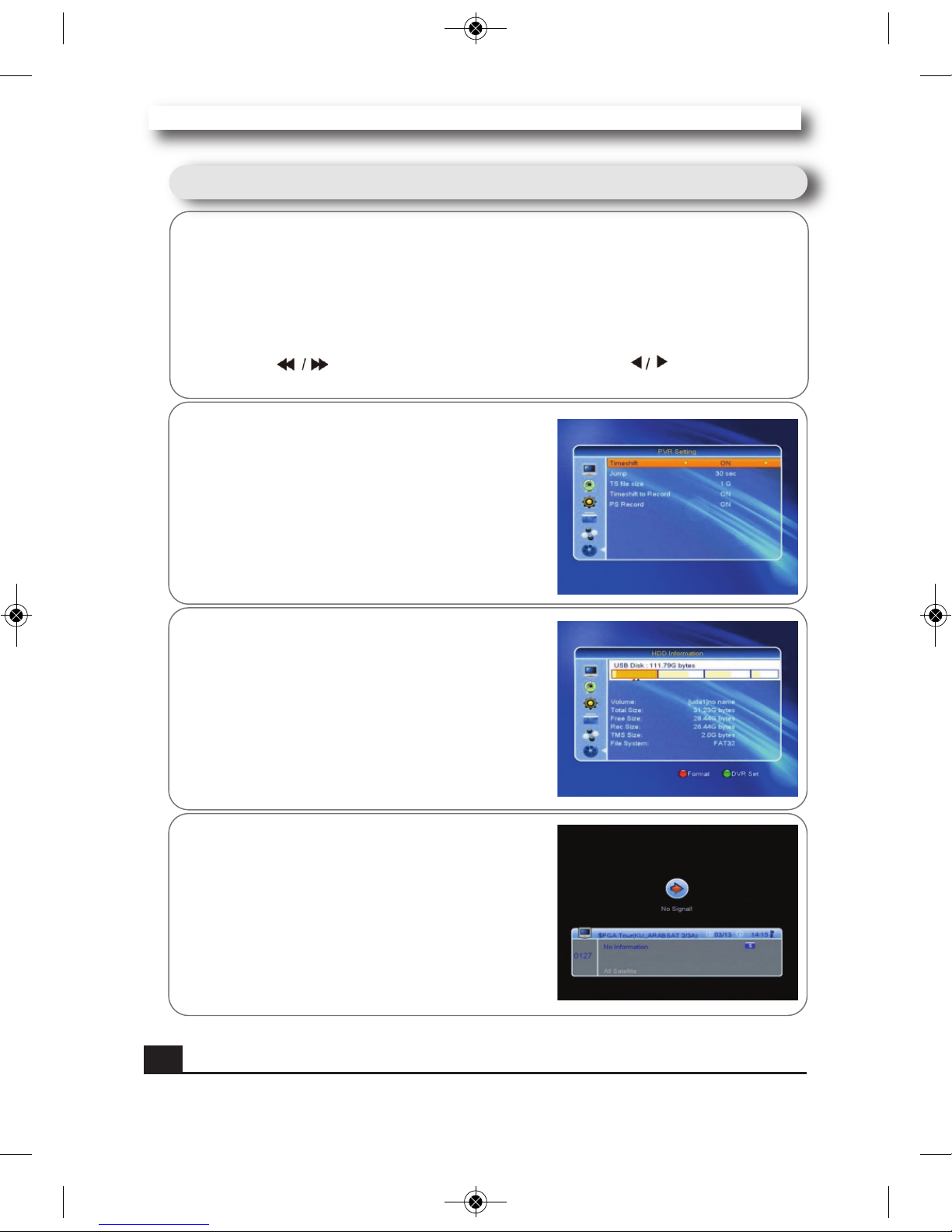

3.Press blue color key to delete the channel you selected.

4.Press red color key to pop up the window for renaming the channel you selected,press numeric keys (0-9) to input the character .

5.Press [Play] key to preview. Press [OK] to play the recorder in full screen as below picture.

6.Press [Pause] key to pause. Press [Pause] key repeatedly to realize the step function. Press key to fast Forward or fast backward. Press key to slow

forward or slow backward

6.2 PVR Setting

1. Timeshift: Select between ON and OFF.

2. Jump: Select among 30sec, 1min, 5 min, 10 min

and 30 min.

3. TS file size: Select from 1G to 4G.

4. Timeshift to Record: Select between ON and OFF.

5. PS Record: Select between ON and OFF.

6.3 HDD Information

Show you the information in windows as besides. Red key: Press red key to format the disk Green key: Press green key to pop up DVR Set window, you can select DVR type in this window.

7. Hot Key

7.1 Info

Press INFO key to pop up the Info bar. Press INFO key again to pop up the program guide of the current program.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 26

Page 27

User´s Manual DSTR 4010A

7.2 EPG

Press EPG key to enter into the EPG window.

1. Press PR+, PR-, keys to select up or down, left or right.

2. Press red colour key to pop up the Time Bar window. Press PR+, PR- keys to select up or down, while press keys to select left or right in the time bar.

: Press OK key at this button to return to the EPG window.

:Press OK key at this button to move the cursor to the current time line.

:Press OK key to push the time forward or backward by half an hour.

: Press OK key to push the time forward or backward by a day. From the current day, you can switch among the future 14 days in circle.

3. Detail Information: In the EPG window, press PR+, PR- keys to select the channel and

program, and press OK key to know the detail information of the current program.

4. Press green colour key to enter into the Timer window. You can add the current program to the Timer. If 8 timers is already, system will inform

"Timer is full!'.

Menu Information

7.3 Find

Press FIND key on to pop up the Find window. Use numeric keys to enter into the character and use the colour keys to realized the corresponding operation..

7.4 Number

Use the numeric keys (0-9) to input the number of the desired channel. If the inputted number is beyond

the valid channel number, system will "No such a channel" and press OK key to close this message.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 27

Page 28

User´s Manual DSTR 4010A

Menu Information

7.5 TV/RADIO

In normal mode, press TV/RADIO key to switch between TV mode and Radio mode.

7.6 Up/Down (Channel Change)

Press PR+, PR- keys to change the channel up or down. If in the all satellites group, you can select channel in all searched channels. If in the specific satellite, only can

select channel in the satellite group.

7.7 Left/Righ (Volume+/-)

Press keys to change the volume. Press keys to decrease the volume by step 1, while press keys to add the volume by step1.

7.8 Mute

Press key to close the volume. You can press key once again to restore the volume, or press keys to open the volume.

7.9 Pause

During the viewing, you can press PAUSE key to stop the picture while the volume

continues. You can play the picture by pressing PAUSE key once again.

7.10 OK

1. During the viewing or listening, press OK key to pop up the TV program list or the Radio program list.

2. Press PR+, PR- keys to select the channel up or down, and then press OK key to play this channel in full-screen.

3. Press keys to select the satellite.

4. Press MENU or EXIT key to close this window.

7.11 Audio

1. Press keys to enter into the Audio window.

2. Press keys to select among Left, Right, Stereo, and Mono.

3. Changing the audio mode is only connected with the current channel, not all the channels.

4. Press MENU or EXIT key to close this window.

7.12 Recall

1. Press keys to enter into the Audio window.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 28

Page 29

User´s Manual DSTR 4010A

Menu Information

7.13 FAV

1. Press FAV key to pop up the favourite group window.

2. Press keys to select the favorite group. Press PR+, PR- keys to select the channel up or down.. Press OK key at the selected channel to view it in full-screen. Press MENU or EXIT key to exit.

3. If there is no favorite channel, system will inform " No FAV Channel!" when you

press FAV key.

7.14 Teletext

Press TXT key to open the teletext on the screen. If there is no teletext, system will

inform "No Teletext Data". Press EXIT key to exit.

7.15 Zoom

1. Press ZOOM key to switch among Zoom*1, Zoom*2, Zoom*3, Zoom*4, Zoom*5, Zoom*6, Zoom*8, Zoom*12, Zoom*16.

2. In zoom mode, press PR+, PR- keys to move the cursor up, left, right, down.

3. Press MENU or EXIT key to exit

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 29

Page 30

User´s Manual DSTR 4010A

Trouble shooting-Satellite

Problem Possible causes What to do

The display on the front panel does not light up.

Main cable is not connected.

Check that the main cable is plugged into the power socket.

The picture is not showed on the screen, when switching on.

The system is connected by RF leads.

Check the UHF channel fixed in your system and tune the UHF channel properly.

No sound or picture, but the front panel shows red light.

The receiver is in standby mode. Press the standby button.

There is interference on your digital satellite channels, an existing terrestrial channel or video signal.

The system is connected by RF leads and the output channel of the receiver interferes with an existing terrestrial channels or Video signal.

Change the receiver output channel to a more suitable channel, or connect the system by SCART leads.

No sound or picture.

The satellite dish is not pointing at thesatellite.

Adjust the dish. Check the signal level in the Antenna Setup menu.

No signal or weak signal.

Check the cable connections, LNB and other equipment connected between the LNB and the receiver, or adjust the dish.

Bad picture / blocking error.

The satellite dish is not pointing at the satellite.

Signal is too strong.

Satellite dish is too small.

LNB noise factor too high.

The LNB is faulty.

Adjust the dish.

Connect a signal attenuator to the LNB input.

Change to a larger dish.

Change to an LNB with lower noise factor..

Change the LNB.

The RCU is not working.

Battery exhausted.

RCU is incorrectly aimed.

Change the batteries.

Aim RCU at the , or check that nothing blocks the front panel.

Note : If you have tried all of the actions suggested above, without solving the problem, please contact your dealer or service provider.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 30

Page 31

User´s Manual DSTR 4010A

Trouble shooting-Terrestrial

Problem Possible causes What to do

The display on the front panel does not light up.

Main cable is not connected.

Check that the main cable is plugged into the power socket.

The picture is not displayed on the screen, when switching on.

The system is connected by RF leads.

Check the UHF channel fixed in your system and tune the UHF channel properly.

No sound or picture, but the front panel shows red light.

The receiver is in standby mode. Press the standby button.

There is interference on your terrestrial program or video signal.

The system is connected by RF leads and the output program of the receiver interferes with an existing terrestrial programs or Video signal.

Change the receiver output program to a more suitable program, or connect the system by SCART leads.

No sound or picture. No signal or weak signal.

Check the cable connections, antenna and other equipment connected between the antenna and the receiver.

Bad picture / blocking error.

Signal is too strong.

Antenna noise factor too high.

The antenna is faulty.

The RCU is not working.

Battery exhausted.

RCU is incorrectly aimed.

Change the batteries.

Aim RCU at the reciver , or check that nothing blocks the front panel.

Note : If you have tried all of the actions suggested above, without solving the problem, please contact your dealer or a customer service adviser.

Connect a signal attenuator to the antenna input.

Change to an antenna with lower noise factor.

Change the antenna.

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 31

Page 32

User´s Manual DSTR 4010A

Personal Grand Technology S.A.

C/ Tormes, 9 28840 Mejorada del Campo-MADRID Tlf. 902 501 406 fax. 91 679 48 91

[email protected] www.npgtech.com

Manual_Vers. ENG_Rev.1:Maquetación 1 23/11/2009 12:53 Página 32
