NPG DSR 4008 A User Manual

Page 1

English

Personal Grand Technology, S.A. Pol. Ind. De las Monjas C/ Ecuador, 14 28850 Torrejón de Ardoz-Madrid TEL. 902 931 457 [email protected] www.npgtech.com

USER MANUAL

DSR 4008 A

DIGITAL SATELLITE RECEIVER

Page 2

CONTENTS

GENERAL INFORMATION

Main Feature 3 For your Safety 3 General Operation 4 RCU 4-5

INSTALLATION

Rear Panel 6 Connecting to TV& VCR using SCART support 6 Connecting to TV using RCA support 6 Connecting to Digital Amplifier 6

MENU INFORMATION

Main Menu 7

1 . Channel List 7

1 . 1 TV Channel List 8 1 . 2 Radio Channel List 10 1 . 3 Delete All 10

2 . Installation 10

2 . 1 Antenna Connection 10 2 . 2 Satellite List 10 2 . 3 Antenna Setup 11 2 . 4 Single Satellite Search 12 2 . 5 Multi Satellite Search 13 2 . 6 TP List 13

3 . System Setup 14

3 . 1 Language 14 3 . 2 TV 14 3 . 3 Local Time setting 14 3 . 4 Timer Setting 14

3 . 5 Parental Control 15 3 . 6 OSD Setting 15 3 . 7 Favorite 15 3 . 8 Other 15

4 . Tools 16

4 . 1 Information 16 4 . 2 Factory Setting 16 4 . 3 SatcoDx Auto Programing 16 4 . 4 Upgrade By Rs 2 3 2 16

5 . Game 16 6 . Hot key 16

6 . 1 Info 16 6 . 2 EPG 16 6 . 3 Find 17 6 . 4 Numer 17 6 . 5 TV /Radio 17 6 . 6 Up /Down 17 6 . 7 Left /Right 17 6 . 8 Mute 17 6 . 9 Pause 17 6 . 1 0 OK 17 6 . 1 1 Audio 17 6 . 1 2 Recall 17 6 . 1 3 Fav 17 6 . 1 4 Teletext 18 6 . 1 5 Zoom 18

TROUBLE SHOOTING

Page 3

English

GENERAL INFORMATION

Main Features

A Digital Satellite&Terrestrial Receiver is a convenient product that allows you to view a variety of programs provided through satellite or terrestrial antenna. This user's guide covers the installation of the receiver and the necessary steps to implement various features. This also explains special features available only in this receiver in detail, which will allow you to make full of these feature. Information confirmed in this document is subject to change. We reserves the right, without notice, to make change in product design or performances as progress in engineering or technology.

•High quality Video & Audio & Digital Audio

•Fully MPEG - 2 , DVB compliant

•Provide friendly and easy -to -use menu system

•Various channel editing function (Favorite , moving , locking , renaming , deleting and sorting )

•User programmable various Satellite & Transponder information Automatically search for newly added transponder

•Stores up to 4 0 0 0 channels

•Easy and speedy software upgrade through RS - 2 3 2 port Plug -and -play data transfer system (DSR to DSR )

•Timer function , automatically turns On /Off by setting function (daily, monthly, yearly ) Automatic reserved channel moving system

•Provide Electronic Program Guide (EPG )

•Teletext function support

•2 5 6 colors On -Screen -Display

•Last channel automatically saving

To avoid electric-shock hazards, do not open the cabinet, refer servicing to qualified personnel only.

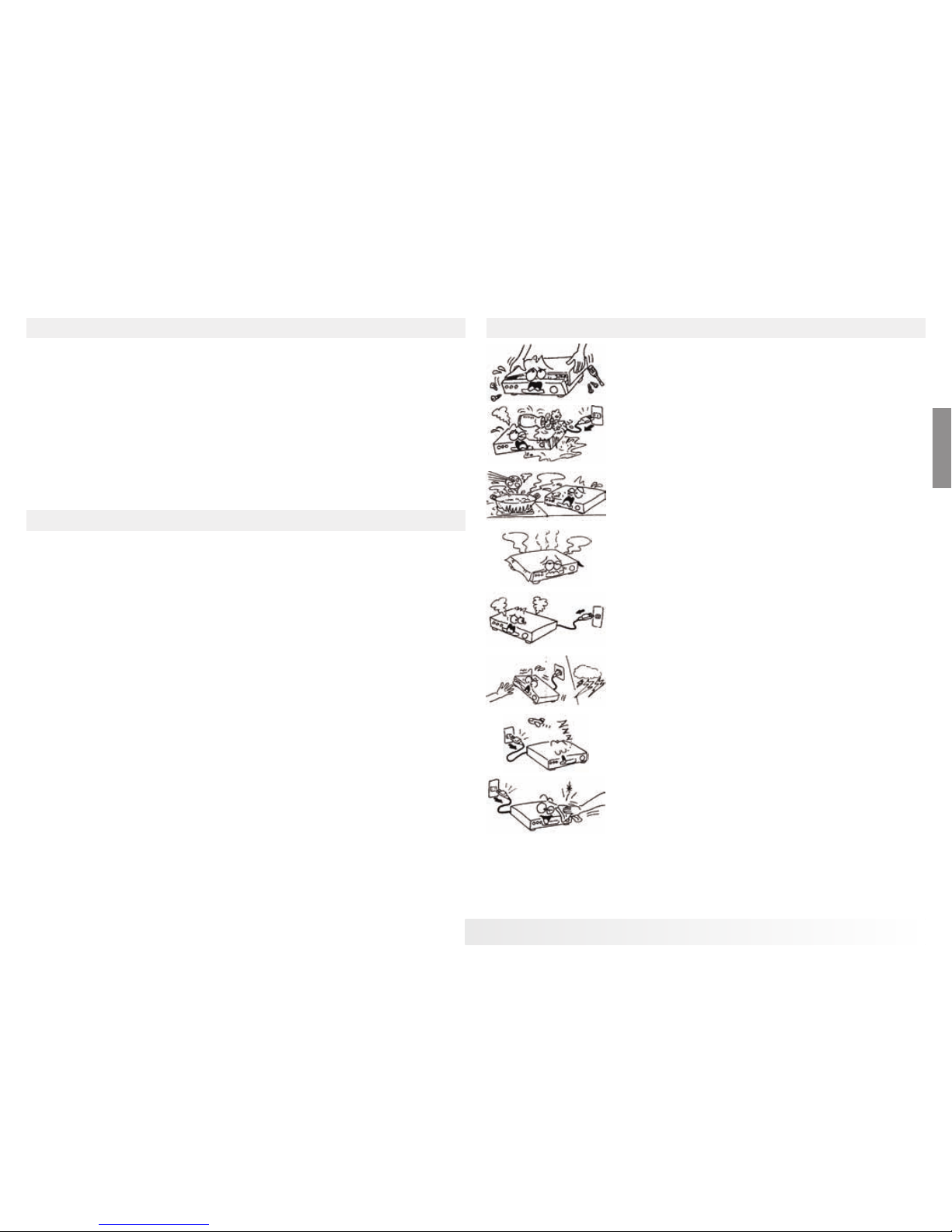

For Your Safety

Keep the receiver away from flower vases, tubs, sinks, etc., in order to avoid damaging the equipment.

Do not expose the receiver un-der the sunlight. And keep it away from the heat source.

Do not block ventilation holes of the Receiver so that air can circulate freely.

When the abnormal phenomenon occur, you should cut off the power immediately.

Do not touch the receiver during thunder, since that might create electric-shock hazards.

Switch the receiver off whenever it remains out of service for an extended period.

Be sure to turn the Receiver off and disconnect the AC power cord before cleaning the Receiver surface. If the surface is dirty, wipe clean with a cloth which has been dipped in a weak soap-and-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

Page 4

General Operation

Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

All functions can be carried out using the buttons on the RCU, and some of the functions can also be carried out using the buttons on the front panel.

The receiver is easy to use, always at your command and adaptable for future advances.

Please be aware that new software may change the functionality of the receiver.

Should you experience any difficulties with the operation of your receiver, please consult the relevant section of this manual, including the Problem Shooting, or alternatively call your dealer or a customer service adviser.

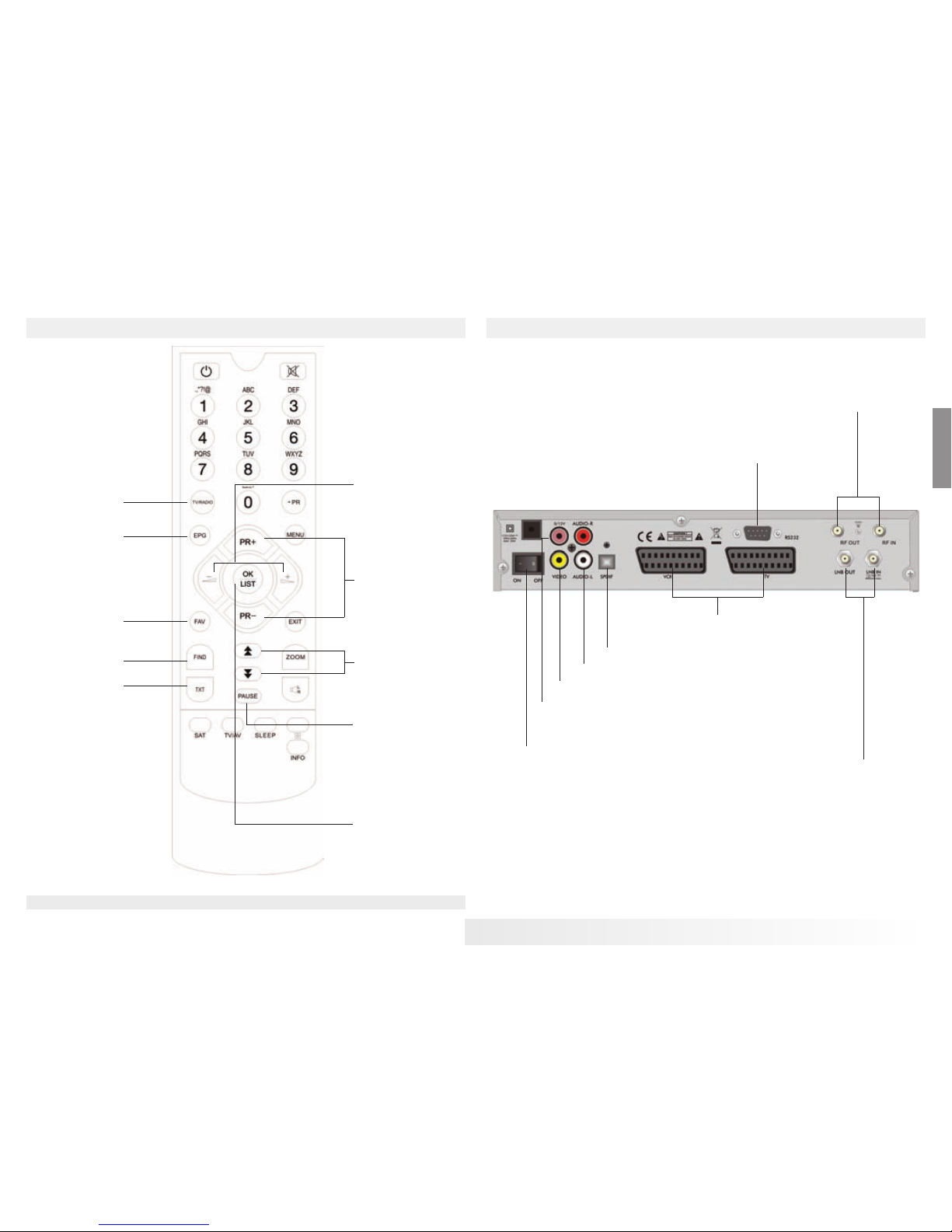

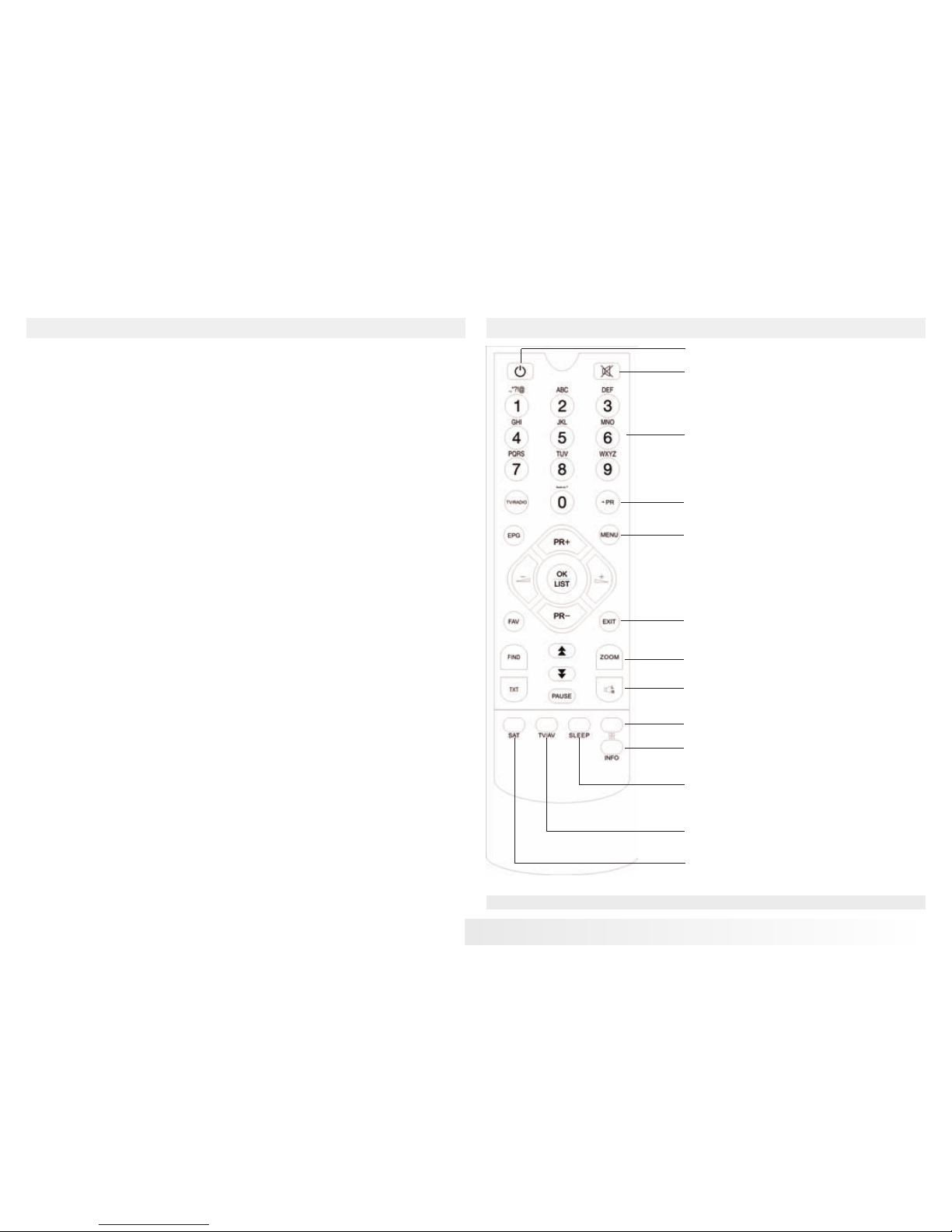

RCU

*The picture is only for reference,please make the object as the standard.

Turns power ON /OFF of the DSR When watching a channel , mute the sound

Enter number of the required menu item or select a channel number to watch

Switches back to previous channel This key one time to run menu onscreen

Moves

Return to the previous menu on the menu screen or escape from the menu

Enter into the zoom in mode Display the Audio window.

Enter into the nine -pictures mode displayed on the screen .

Show information of the current channel Press

Enter into the sleep in mode

Switch between TV and AV modes Display the satellite list

Page 5

English

RCU INSTALLATION

*The picture is only for reference,please make the object as the standard.

Switches between TV and Radio mode

Whenwatching a channel change channels or move to the next higher or lower item in the menu

When watching a channel , adjust the volume or move to the left or right item in the menu

POWER ON/OFF

CONNECT TO 1 2 V TO AN EXTERNAL 0 / 1 2 V SWITCH

CONNECT TO A PC FOR S /W UPGRADE

LNB IN : CONNECT TO SATELLITE ANTENNA LNB OUT:CONNECT TO THE OTHER RECEIVER

RF IN : CONNECT TO CABLE SINGAL RF OUT: CONNECT TO TV ANT INPUT

CONNECT VIDEO TO TV USING RCA JACK

CONNECT TO AUDIO R /L TO TV OR AUDIO TUNER

CONNECT TO A DIGITAL AMPLIFIER

CONNECT TO TV AND VCR USING A SCART CABLE

Executes the selected item in the menu screen or enters the desired value in any input mode

When watching a channel , adjust the volume or move to the left or right item in the menu

Press once to pause the screen picture , press once again to go to the normal mode

Call up the EPG (Electronic Program Guide )

Display the favorite group list

Switch to teletext or subtitle mode

Rear Panel

Page 6

INSTALLATION

*The picture is only for reference,please make the object as the standard.

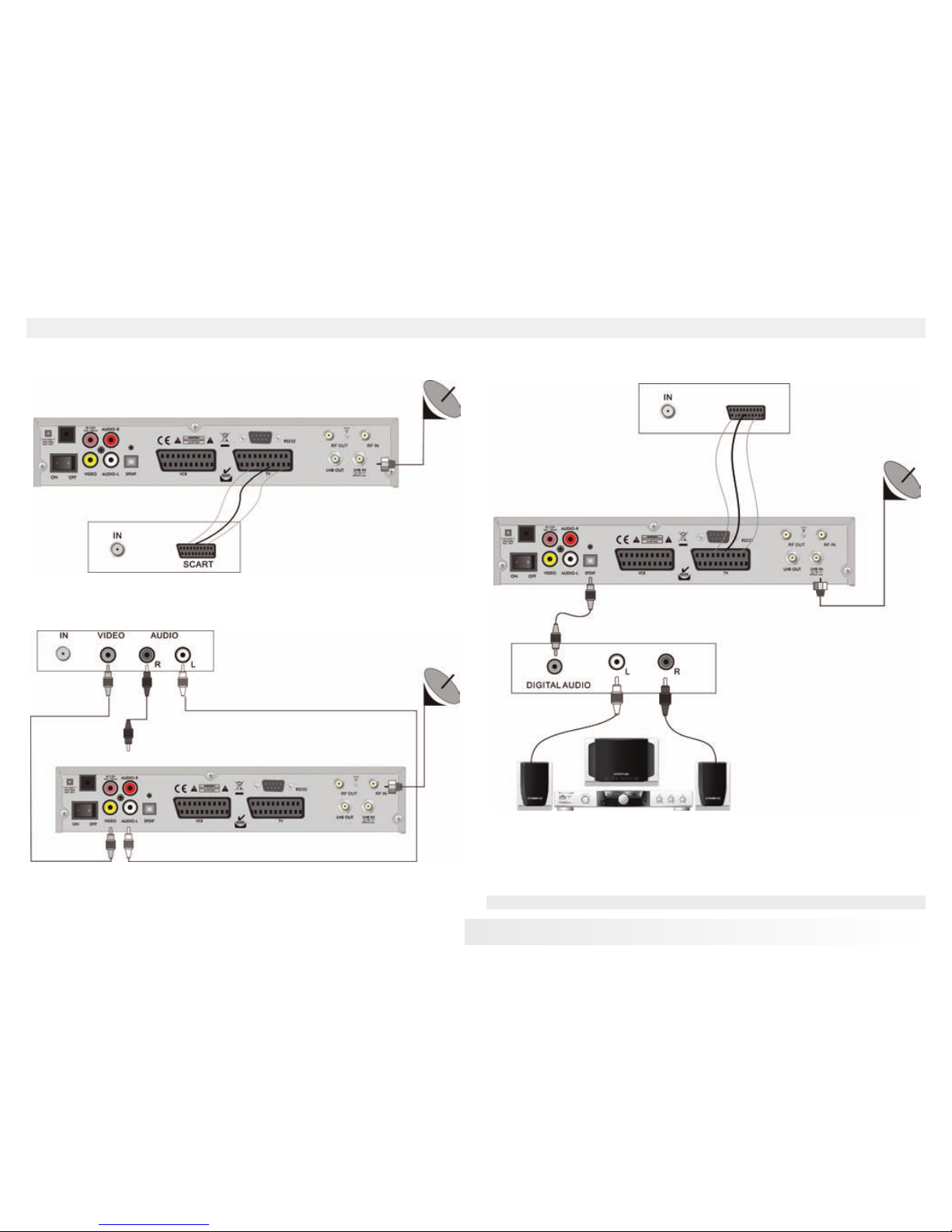

Connecting to TV using SCART support Connecting to TV using SCART support

Connecting to TV using RCA support

Satellite D i s h

DSR

Satellite D i s h

DIGITAL AUDIO CONVERTOR OR A M P L I F I E R

SPEAKER

Page 7

English

MENU INFORMATION

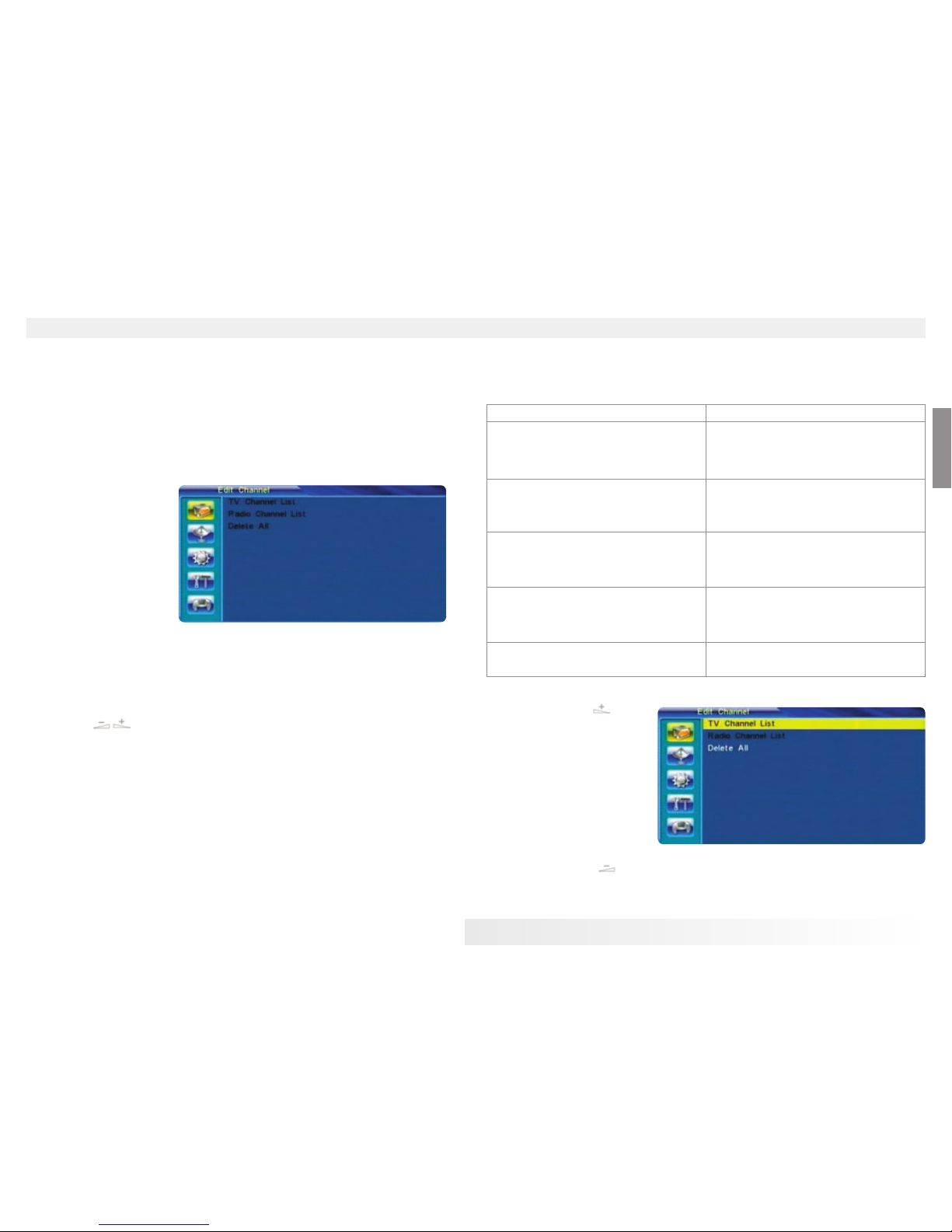

Main Menu

Make sure that you have properly installed and connected the cables of the receiver well . If the receiver is the factory status or there is no program list , when power on , the Main Menu window will be displayed on the screen . During the normal TV /Radio mode , press MENU key on the RCU to enter into the Main Menu window .

This menu consists of 5 major main menus as follow .

- Edit Channel

- Installation

- System Setup

- Tools

- Game

n If there is no program , you can not exit from the Main Menu window by pressing

MENU or EXIT key . System will inform "No channel" and the following items turn grey.

1. Channel List

1. Press OKkey or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is

"0000".

2. Press

PR+, PR-

keys to

move the cursor up or down.

3. Press

EXIT

key or key to move the focus to the left menu.

n During the installation the OK key confirms a selection and LIST key shows Down

List Box if the column has

34mark . You can also use the numeric keys on the

RCU to enter numeric value .

Use the

PR + , PR -

key to move upwards and downwards from one line to another line and use key to move from main menu to sub menu and move from left side to right side or versa .

Meantime , you want to escape the menu system , please press

EXIT

key

on the RCU .

Sub-menu Turn grey when there is no program

Edit Channel

TV Channel List Radio Channel List Delete all

Installation

Antenna Connection Satellite List Antenna Setup Single Satellite Search Multi Satellite Search TP List

System Setup

Language TV System Local Time Setting Timer Setting Parental Lock OSD Setting Favorite Other

Tools

Information Factory Setting SatecoDX Auto Programing Rs232 Master

Game Tetris Othello

Page 8

MENU INFORMATION

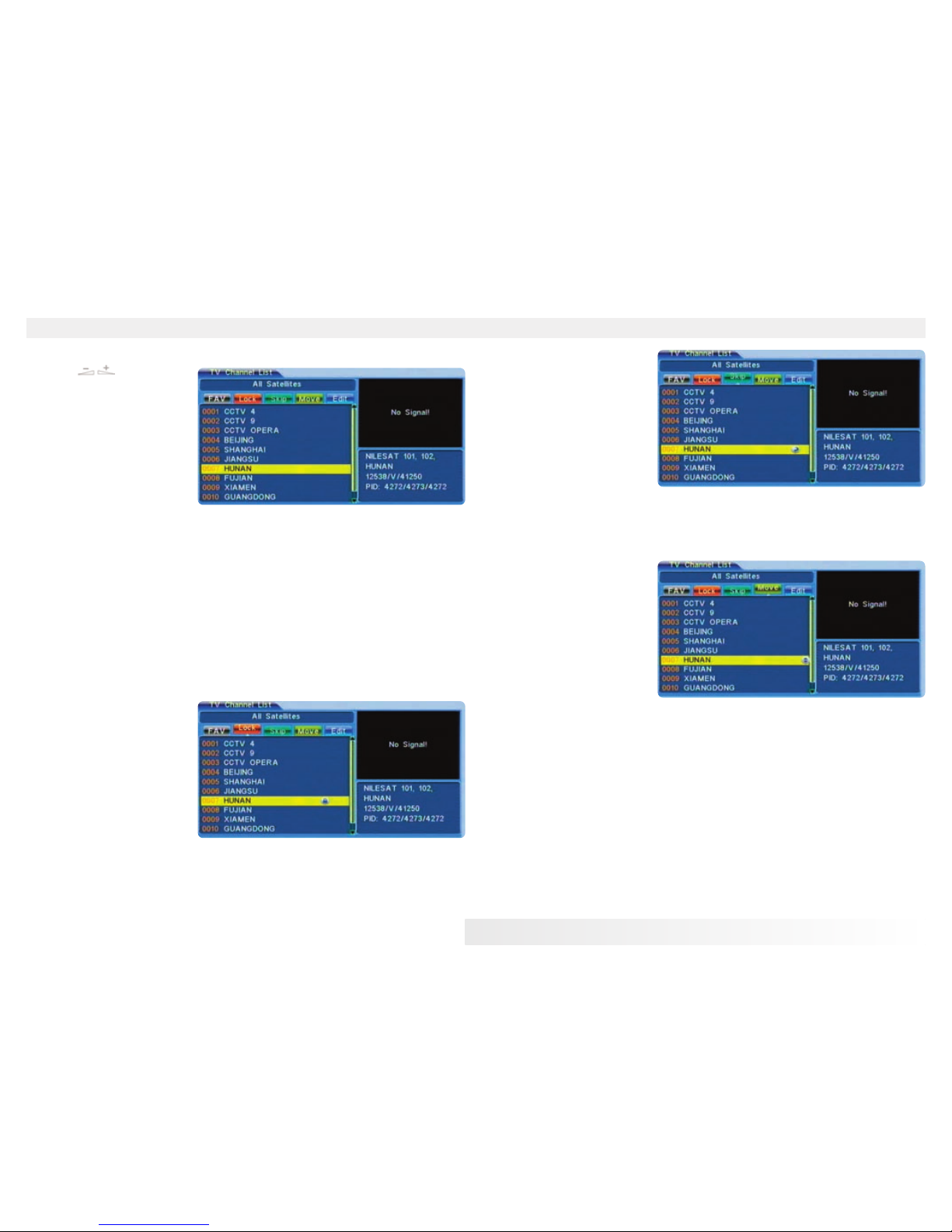

1 . 1 TV Channel List

1 . Press keys to select satellite .

2 . Press

PR + , PR -

keys to select the program that you want to play, and then press

key to view it in the small window . If move the yellow cursor to select up or down , you will see a gray line which indicates the playing program in the small window

3. Press

FAV

key to move the

FAV

button upward. Select the program and press

key to pop up the favourite group list. In the list, select the group that you want to add into and press OKkey, and then you will find the favourite mark is displayed at the right side of the selected program.

Press

FAV

key again to exit from the fav mode, and you will find the

FAV

button re-

turn to the origin position.

4. Press red colour key to move the Lock button upward. Select the program and press OK key to mark this program with the Lock mark. You can cancel this mark by pressing OK key once more. Press red colour key again to exit from the lock mode, and you will find the Lock button return to the origin position.

5. Press green colour key to move the Skip button upward. Select the program and press

key to mark this program with the skip mark. You can cancel this mark by pressing

key once more.

Press green colour key again to exit from the skip mode, and you will find the Skip button return to the origin position.

6. Press yellow colour key to move the Move button upward. Select the program and press OKkey to mark this program with the move mark. Press

PR+, PR-

keys to move the cursor to the position where you want to locate and press OKkey to confirm.

Press yellow colour key again to exit from the yellow mode, and you will find the yellow button return to the origin position.

7. Press blue colour key to enter into the Edit channel window.

Page 9

English

MENU INFORMATION

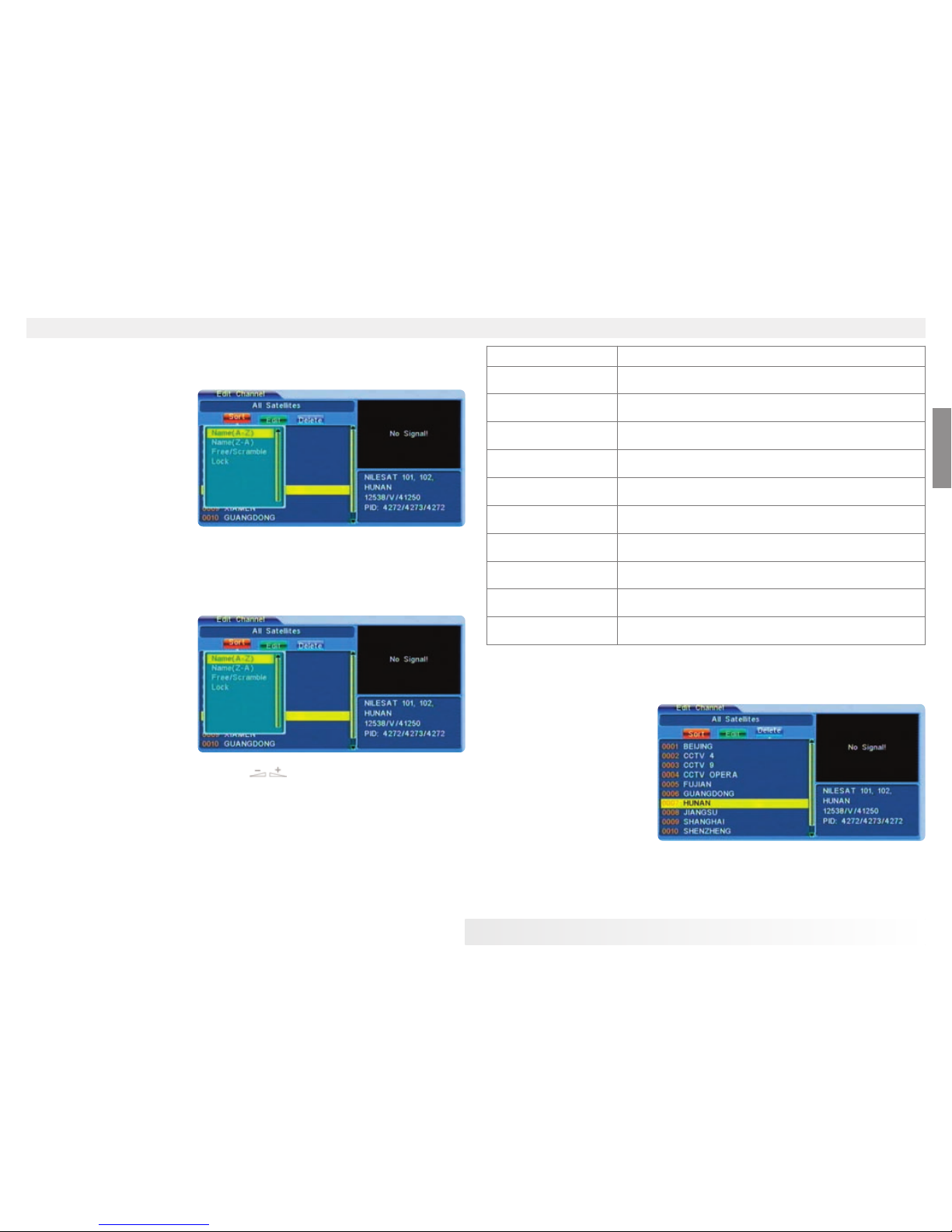

I. Sort (red colour key)

Press red colour key to pop up the Sort drop-down list.

Name(A-Z):

The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase.

Name (Z-A):

The opposite

order of the above Name (A-Z).

Free/Scrabmle:

All FTA programs are listed ahead, while all scrambled programs are listed last.

Lock:

all locked programs are listed at the last.

II. Edit (green colour key)

Press green colour key to move the Edit button upward. Select the program and press OK key to pop up the Rename window. In Rename window, press red colour key to switch between capital letter and lower letter; press green colour key to delete the character on the cursor; press keys to move the cursor left or right; press numeric keys (0-9) to input the character, please refer to the down table. Press yellow colour key to save and exit, or press blue key to cancel and exit.

Numeric keys Press numeric key repeatedly , display in circle

1 . , * ? ! @ 1 2 ABC 2 3 DEF 3 4 GHI 4 5 JKL 5 6 MNO 6 7 PQRS 7 8 TUV 8 9 WXYZ 9 0 [space ] _ - 0

If the name is empty, system will pop up a dialogue informing "Name" once yellow colour key is pressed . Press OKkey to close this dialogue .

III. Edit (blue colour key)

In Edit Channel window, press blue colour key to move the Delete button upward. Select the program and press OKkey to mark this program with the deletion mark. You can cancel this mark by pressing OKkey again. Press

EXIT

key to pop up the dialogue "Are you sure to save?". Select Yes button and press OKkey to save, or select NObutton and press OKkey to exit without saving.

Page 10

MENU INFORMATION

1.2 Radio Channel List

Sine the same operation as 1.1 TV Channel List, here we don't explain any more.

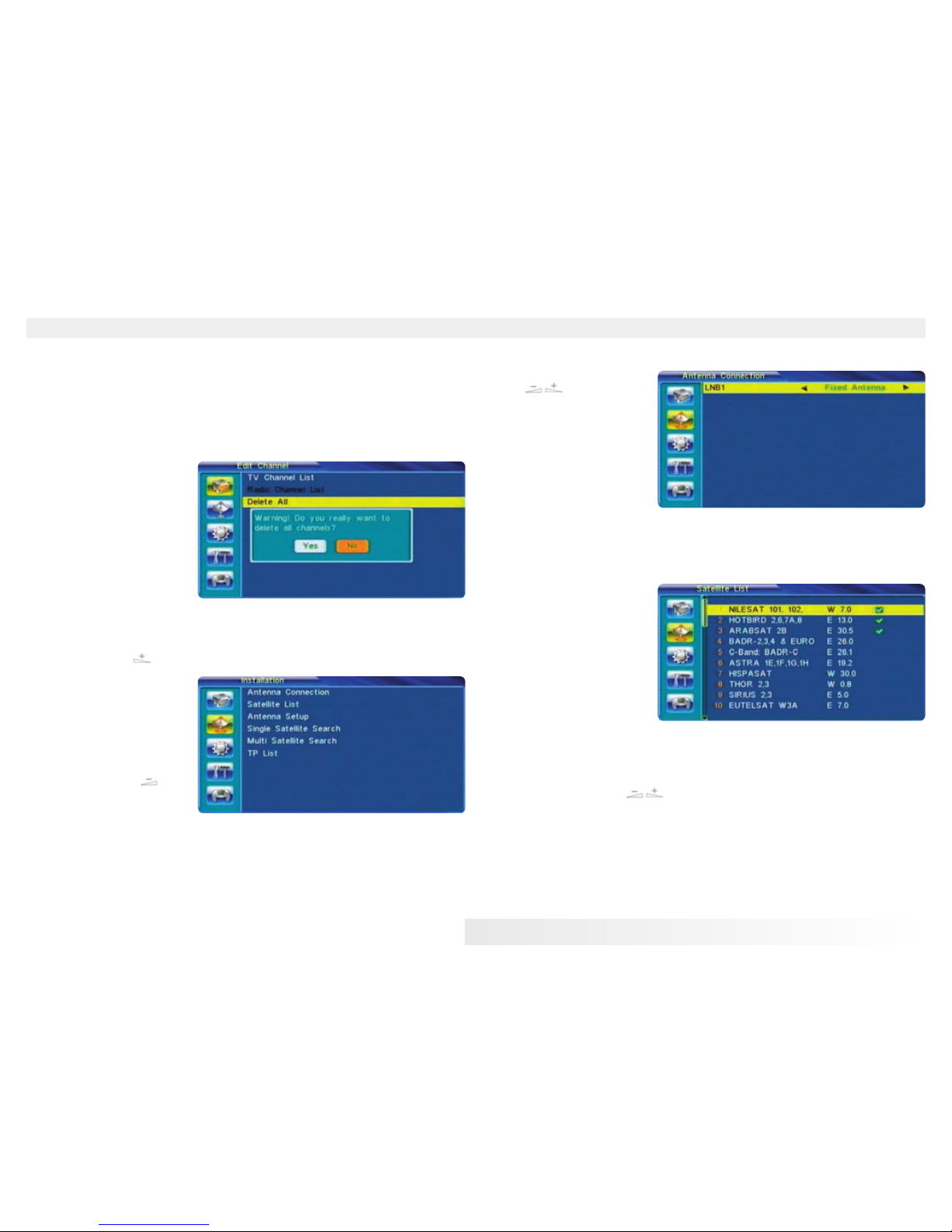

2.1 Antenna Connection

Press keys to select between Motor Antenna and Fixed Antenna.

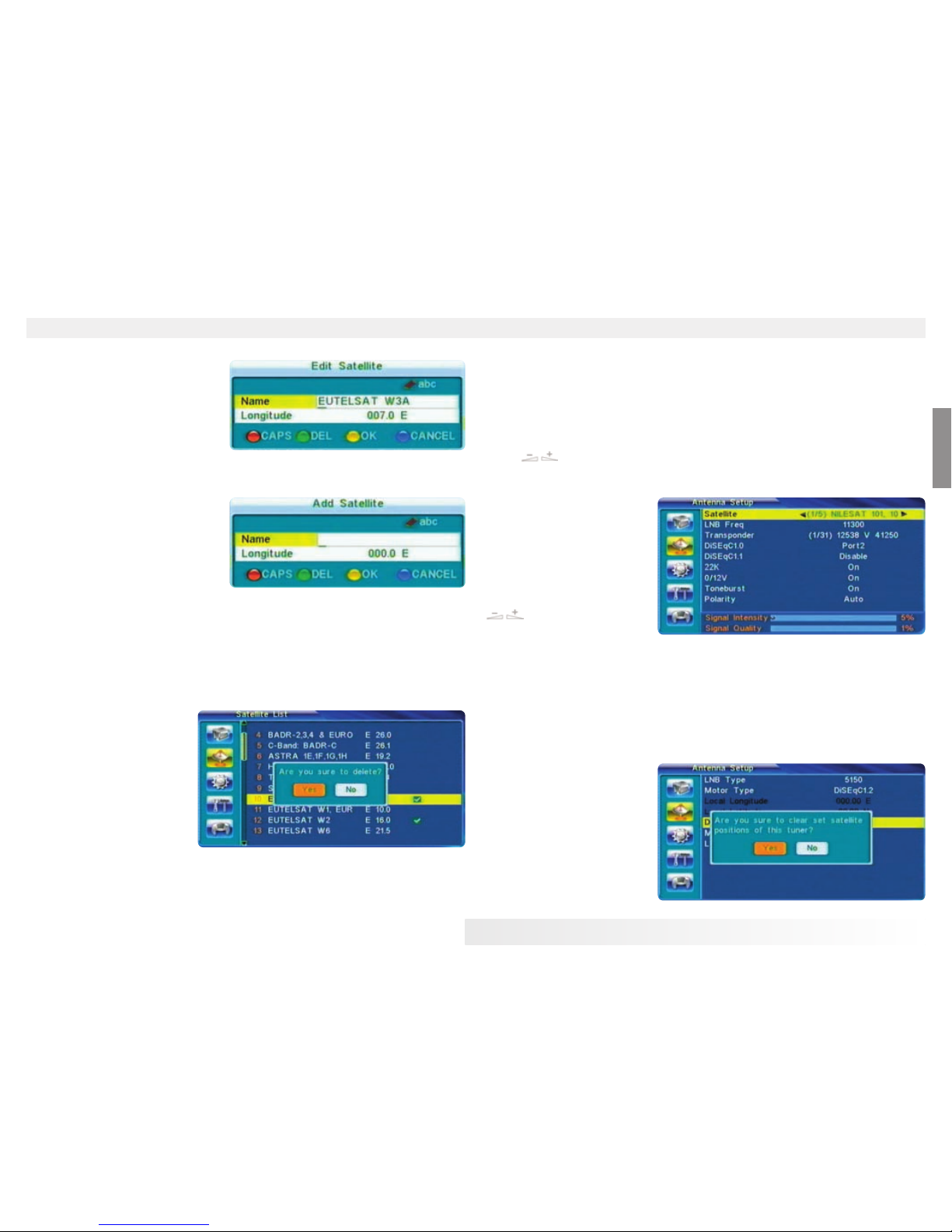

2.2 Satellite List

1. Press PR+, PR- keys to select the satellite up or down. Press OK key to select and mark, and you can press OK key again to cancel the selection and the mark.

2. If there is no satellite, the red colour and blue colour keys will be invalid.

3. Press red colour key to pop up the Edit Satellite window. Press

PR+, PR-

keys to move

cursor up or down.

Name:

User numeric keys to change the name of the satellite, please refer to the

Edit Channel Name.

Longitude:

You can press keys to switch between east longitude and west longitude. After pressing OKkey, you can use numeric keys to edit the longitude, press

EXIT

key or the

PR+, PR-

keys to exit editing mode. The range of the longitude is from 1 to 180 degree. If beyond this range, system will inform you "out of range" when you press yellow colour key on the RCU.

2. Installation

1. Press OK key or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is "

0000

2. Press PR+, PR- keys to move the cursor up or down.

3. Press EXIT key or key to move the focus to the left menu.

1 . 3 Delete All

Move cursor to the Delete All item, and press OK Key to pop up the dialogue "Warning! Do you really want to delete all channel?". Press EXIT key to pop up the dialogue "Are you sure to save?". Select Yes button and press OK key to save, or select NO button and press OK key to exit without saving.

Page 11

English

MENU INFORMATION

After setting, press yellow colour key to save and exit, while press blue colour key to exit vwithout saving.

4. Press green colour key to pop up the Add Satellite window. Since the same operation as the above Edit Satellite window, here we don't explain any more.

5. Press blue colour key to pop up the dialogue "Are you sure to delete?". Select Yes button and press OK key to delete the selected satellite. You can cancel this operation by pressing OK key at the NO button.

2.3 Antenna Setup

Part A: Fixed

Suppose that you have selected Fixed Antenna in the Antenna Connection window . 1 . Satellite : All selected satellites in the satellite list are displayed in this item . Press keys to select the satellite in circle . Or press OK key to pop up the drop-down list , then select the desired satellite in the list and press OK key to confirm . 2 . LNB Freq , Transponder , DiSEqC 1 . 0 , DiSEqC 1 . 1 : The same operation as the above . 3 . 2 2 K , 0 / 1 2 V, Toneburst , LNB Power : You can press

keys to select in circle.

Part B: Moter

Suppose that you have selected Moter Antenna in the Antenna Connection window.

1. LNB Type: Select the proper LNB type.

2. Motor Type: Select between DiSEqC1.2 and USALS. If you select DiSEqC1.2, the following Local Longitude and Local Latitude items will turn grey.

3. Delete All: Press OK key to pop up the dialogue "Are you sure to clear set satellite position of this tuner?". Press OK key at the Yes button to clear all the memories about the position of the satellites that has

Page 12

MENU INFORMATION

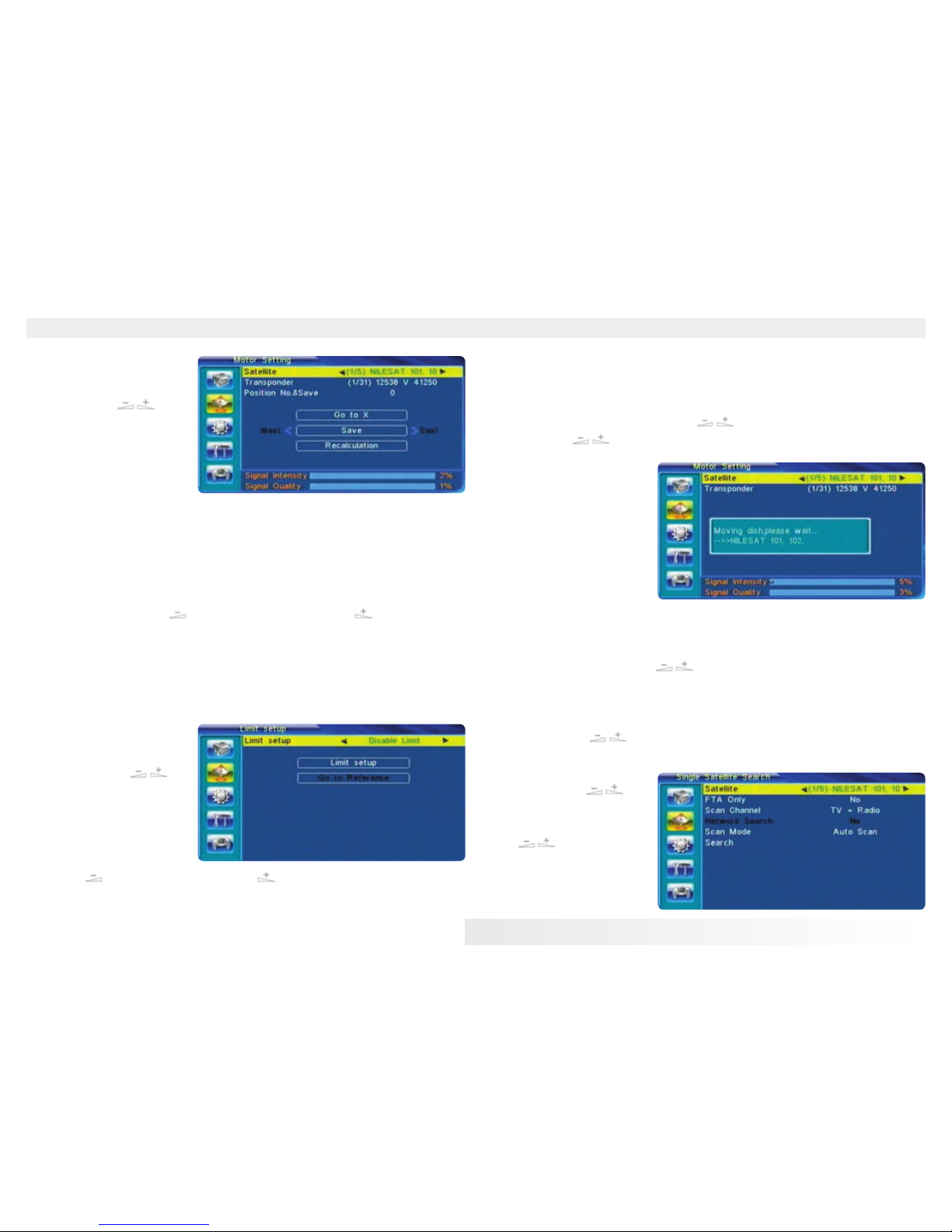

4 . Motor Setting

: Press

key to the Motor Setting window .

Satellite

: Press keys to select the satellite in circle . Or press OKkey to pop up the drop down list , then select the desired satellite in the list and press OKkey to confirm

Transponder

: The same operation as the above.

Position No., & Save

: The range is from 0 to 63. "0" delegates the original position.

You can select the proper value when you has rotated the antenna.

Go to X

: Press OKkey to pop up the drop-down list, select the proper position (re-

ference or from 1to 63) to realize the selected position.

West <Save> East

: Press key to turn west, while press key to turn east. Press OKkey to pop up the dialogue "Are you sure to change this satellite's position?". Press OKkey at the Yes button to save the current position, or press

key at the No button to cancel the operation.

Recalculation

: Press OKkey to pop up the dialogue "Are you sure to change this

satellite's position?". Press OKkey at the Yes button to recalculation.

5. Limit Setup

: Press OK key to pop up the Limit Setup window. Limit Setup: Press keys to switch among Disable Limit, East Limit and West Limit.

Limit Setup

: Move cursor to the Limit Setup button. You can press key to turn west , or press key to turn east.

Go to Reference:

Press OKkey to go to reference. If you select Disable Limit in the

above Limit Setup item, this button will turn grey.

6. If select USALS, Delete All item will turn grey.

Local Longitude, Local Latitude

: Press keys to switch between West and East, or press keys to switch between North and South. Press OKkey to enter into the editing mode. Use numeric keys

(0-9)

to input the longitude or latitude, press

key or

EXIT

key to exit. The range of the longitude is from 0 to 180,while the range of the latitude is from 0 to 90. If the inputted value is not in this range, system will pop up a dialogue "Our of Range" when exit from this window. You can press OK key to close this dialogue.

7. Motor Setting

: Press OKkey to enter into the

Motor setting

window.

Satellite, Transponder

: Press keys to select satellite or transponder, or

press OKkey to pop up the drop-down list and select in the list.

2.4 Single Satellite Search

1. Satellite

: Press keys to select the satellite in circle. Or press OKkey to

pop up the drop-down list, then select the desired satellite in the list and press

key to confirm.

2. FTA Only

: Press keys

to select between Yes and No.

3. Scan Channel

: Press keys to select among TV+Radio, TV Channel

Page 13

English

MENU INFORMATION

4. Network Search:

Select between No and Yes. This item turns grey when Auto Scan is selected in the following Scan mode item.

5. Scan Mode:

Press keys to select between Auto Scan and Preset Scan. Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies.

6. Search

: Press OKkey to start searching.

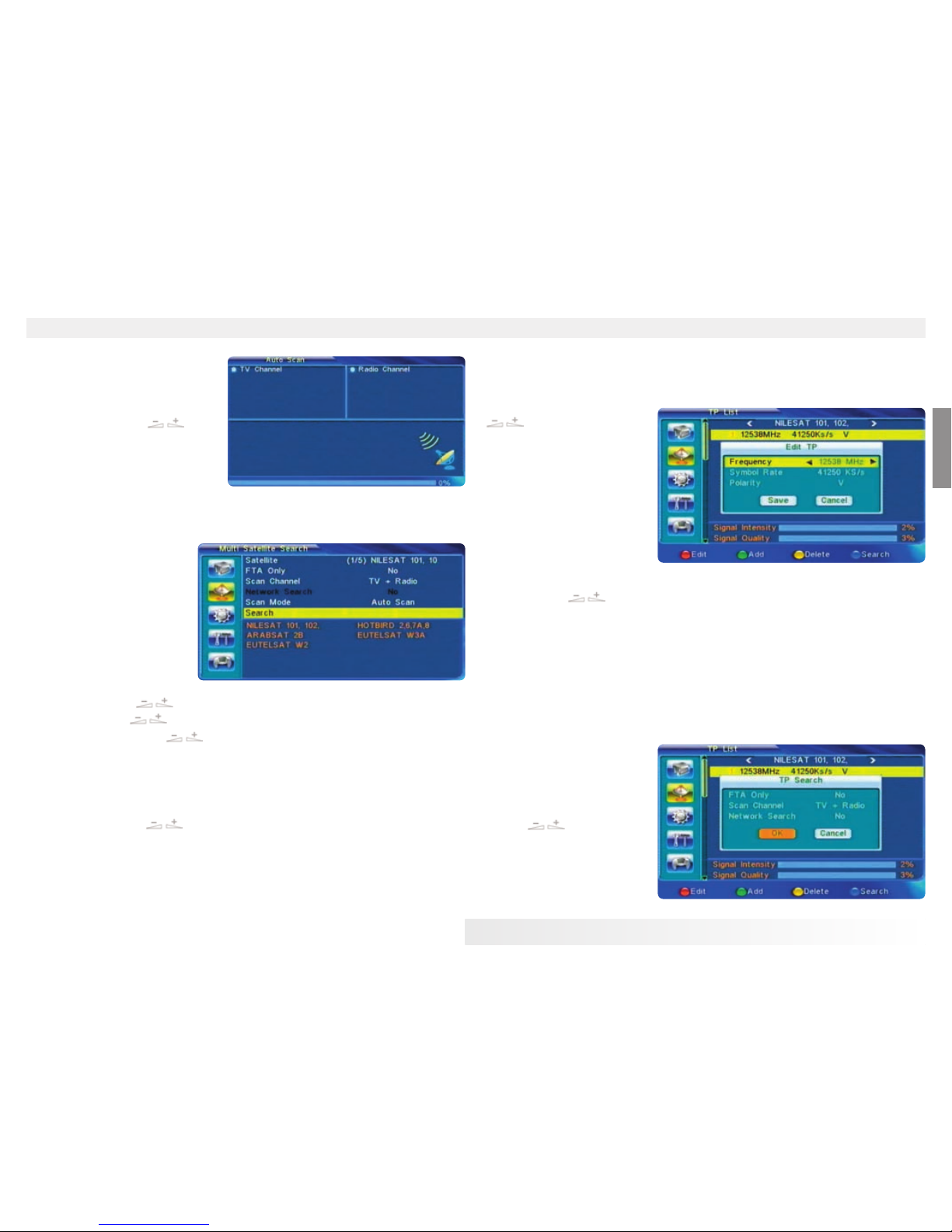

2.5 Multi Satellite Search

From the Multi Satellite Search window, you can search several satellites at the one time.

1. Satellite:

All selected satellites in the satellite list window are displayed on the down part. You can press keys to switch among them.

2. FTA Only:

Press keys to select between Yes and No.

3. Scan Channel:

Press keys to select among TV + Radio, TV Channel,

Radio.

4. Network Search:

Select between No and Yes. This item turns grey when Auto

Scan is selected in the following Scan mode item.

5. Scan Mode:

Press keys to select between Auto Scan and Preset Scan.

Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies.

6. Search:

Press OK key to start searching.

2.6 TP List

1. Press

PR+,PR-

keys to select the proper satellite.

2. Press red colour key to pop up the Edit TP window. Frequency, Symbol rate: Press

keys to add or reduce

by step one. Or press

numeric

keys (0-9)

to input the desired value. The range of the frequency is 3000-13450, while the range of the symbol rate is 1000~45000. The inputted value is beyond this range, the value will return to the origin value.

Polarity:

Press keys to switch between Vertical and Horizontal.

3. Press

green

colour key to pop up the

Add

TP window. Since the same operation

as the above

Edit TP

window, here we don't explain any more.

4. Press

yellow

colour key to pop up dialogue " Are you sure to delete?". Press OK

key at the Yes button to delete the selected TP, or press

EXIT

key to cancel the ope-

ration.

5. Press

blue

colour key to pop

up the TP Search window.

FTA only, Scan Channel, Network Search:

Press keys to select the proper option. Press OK key at the OK button to start searching.

Page 14

MENU INFORMATION

3. System Setup

1. Press OKkey or key to move the cursor to the right menu.

2. Press

PR+, PR-

keys to move the cursor up or down.

3. Press

EXIT

key or key to move the focus to the left menu.

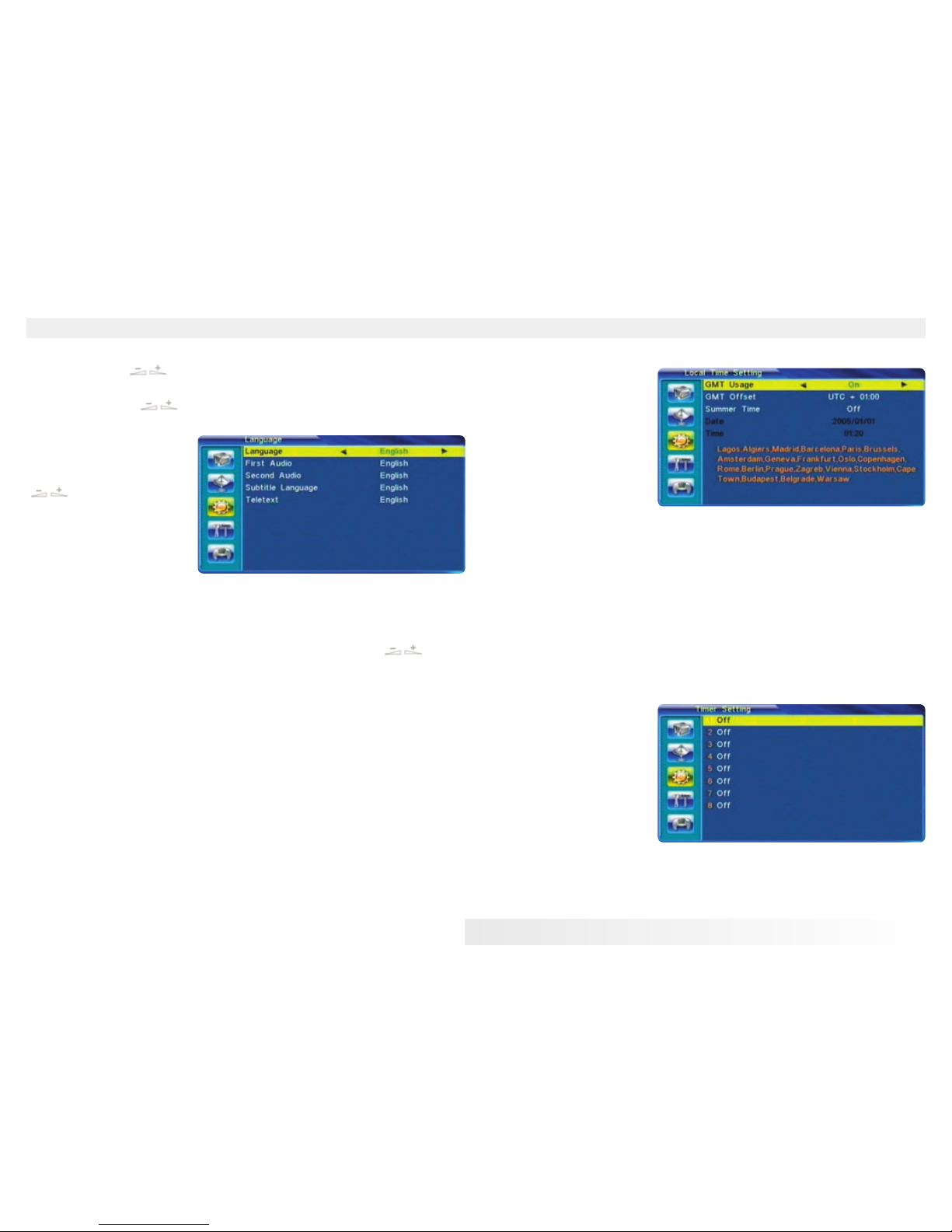

3.1 Language

1. Press OKkey to enter into the Language window. Press

keys to select the lan-

guage in circle, while press

PR+, PR-

keys to move the cur-

sor up or down in circle.

2. Press MENU key or EXITkey to save and exit.

3. The types of the language, pleaser refer to the configuration of the customer.

3.2 TV System

Press

PR+, PR-

key to move the cursor up or down, while press keys to

change the setting and the setting will take effect immediately.

1. Display Mode:

Select among Auto,PAL, PAL-M, PAL-N, NTSC.

2. Aspect Mode

: Select among 4:3 LetterBox, 4:3PanScan, 16:9.

3. Video Output

: Select between RGB and CVBS.If you select the mode of RGB,the

VCR Loopthrough will turn grey below.

4. RF System,RF Channel:

PAL:21~29,NTSC:14~83

3.3 Local Time Setting

1. Summer Time:

Select between ON and OFF. "OFF" delegates the normal time. If select ON, time will add one hour.

2. GMT Offset

: When select "ON" in GMT Usage item, system will get the date and time information from the screen automatically. Date and Time two items will turn grey. Select the proper option in the GMT Offset item. The default setting is GMT ON.

3.Date, Time: When select "OFF" in GMT Usage, Date and Time two items take effect, while

GMT

Usage turns grey. Use numeric keys to input the desired value.5.

After setting, press

key or

EXIT

key to exit and save. If the value is invalid, system will inform "Invalid input! Continue to edit?". Press OKkey at the Yes button to continue the modification, or press OKkey at the No button to exit without saving.

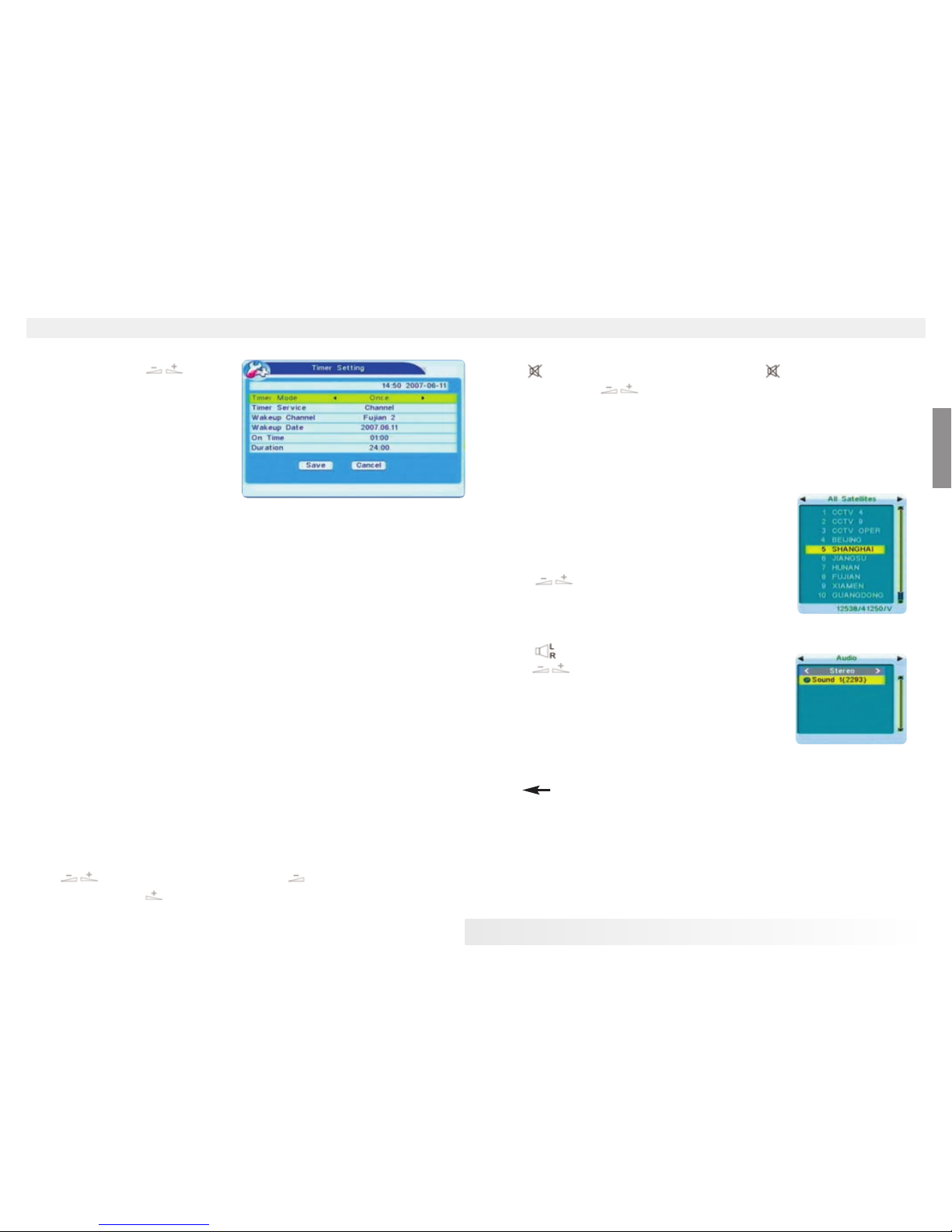

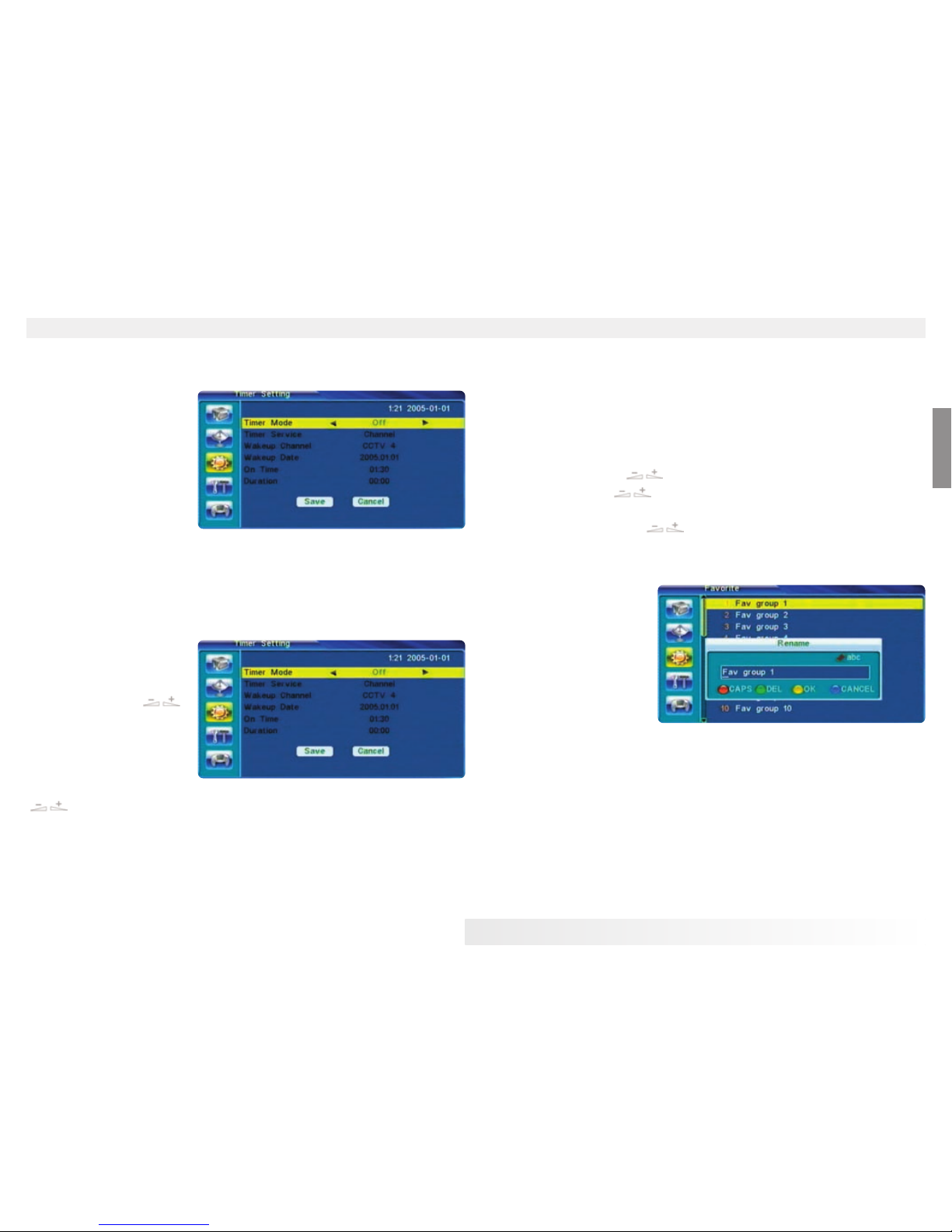

3.4 Timer Setting

If there is no program, you can not enter into this window. There are 8 timers that can be set. Select Timer up or down, and press OK key to enter into the setting window.

1. Timer mode:

The default mode is off. You can set the timer once, daily, weekly, monthly and yearly.

Page 15

English

MENU INFORMATION

2. Timer Service:

Select between Channel and Message. If Channel is selected, the Wakeup Channel is displayed in the following item. If Message is selected, the Wakeup Message is displayed in the following item. In wakeup message, you can select among Birthday, Anniversary, General. At the same time the duration item turns grey.

3. Wakeup Date, On Time:

Use numeric keys to input the valid date.

Duration:

Set the gap time. After waking up, system will power off automatically after the duration time. Press

EXIT

key to save and exit.

3.5 Parental Lock

Before entering into the Parental Lock window, you need input the correct password. The default password is

0000

1. Menu Lock:

Press keys to select between Off and On. If select "On" , you can not enter into the most window before entering the password.

2. Channel Lock:

Press

keys to select between Off and On. The default value is Off. If select "On", you can not view the locked channel set in Chanel List Edit window until you have inputted the correct password.

3. New Password:

User numeric key

(0-9)

to input the new password.

4. Confirm Password:

Input the new password once again. Confirm password must

be the same as the New password. System will inform you "

Change password suc-

cessfully!

" while they are the same, or inform you to input the password of Confirm

password once again when they are not the same.

3.6 OSD Setting

1. Subtitle Display:

Press keys to select between On and Off.

2. OSD Timeout:

Press keys toselect from 1 to 10 by step1. The default

values Is 5.

3. OSD Transparency:

Press keys to select among Off, 10%, 20%, 30%,

40%. The default option is Off.

3.7 Favorite

There are 32 favorites group listed in this window. Press PR+, PR- keys to select one and press OK key to the Rename window. Since the same operation as the above the Add Satellite window, here we don't explain any more.

3.8 Other

1. LNB Power:

Select between Off and On.

2. Channel Play Type:

Select among All, Free, Scramble.

3. Channel Change:

Select between Freeze and Black screen.

4. Beeper:

Select between Off and On.

Page 16

MENU INFORMATION

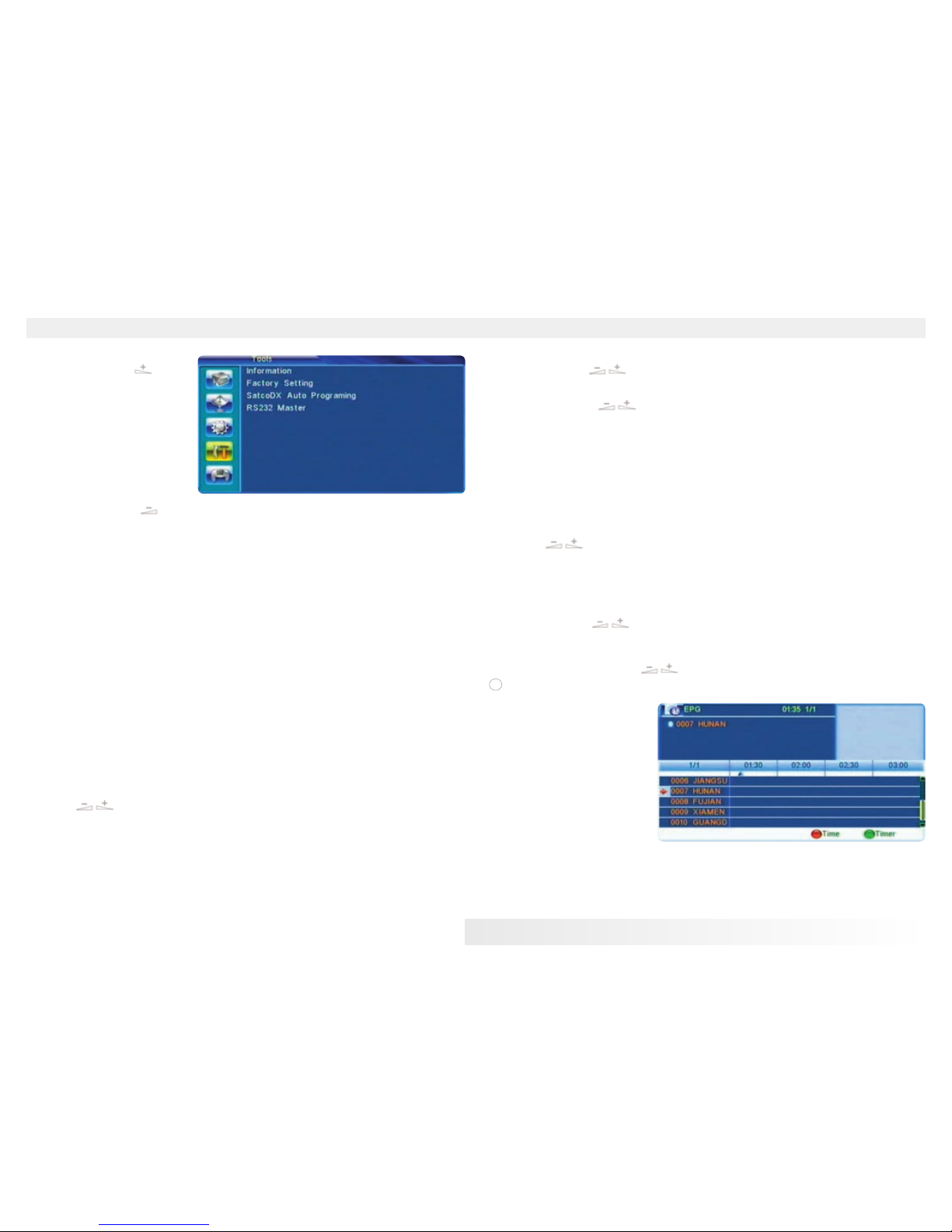

4. Tools

1. Press OKkey or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is

0000

2. Press

PR+, PR-

keys to

move the cursor up or down.

3. Press

EXIT

key or key to move the focus to the left menu.

4.1 Information Press OK key to the Information window.

4.2 Factory Setting

Press OKkey to enter into the Factory Setting window. Select Yes button and press OKkey to return to the factory setting. All searched channels and set information will be erased. Select No button and press OKkey to cancel this operation, or press

EXIT

key to cancel and exit.

4.3 SatcoDX Auto Programing

Press OKkey at the Start button to start receiving date from

RS232

for 10 se-

conds.

4.4 Upgrade Rs232

1. Press keys to select among allcode, maincode, card,Radioback,keydate defaultdb, userdb. The default option is allcode.

2. Press OKkey at the Start button to start checking serial port.

5. Game

1. Press OKkey or key to enter into the game.

2. Press

PR+, PR-

keys to move the cursor up or down.

3. Press

EXIT

key or key to move the focus to the left menu.

4. Select the game that you want to play and press OKkey to enter into the window.

6. Hot Key

6.1 Info

Press

INFO

key to pop up the Info bar.

Press

INFO

key again to pop up the program guide of the current program. You

can press keys to know the program guide of the future 16 days.

6.2 EPG

Press EPG key to enter into the EPG window.

1. Press PR+, PR-, keys to select up or down, left or right.

2. Press red colour key to pop up the Time Bar window. Press PR+, PR- keys to select up or down, while press keys to select left or right in the time bar.

:Press OK key at this button to return to the EPG window.

w : Press OK key at this button to move the cursor to the current time line. a d : Press OK key to push the time forward or backward by half an hour. 5 6: Press OK key to push the time forward or backward by half an hour. aaa ddd: Press OK key to push the time forward or backward by a day. From the current day, you can switch among the future 14 days in circle.

Page 17

English

MENU INFORMATION

3. Detail Information:

In the EPG window, press PR+, PR- keys to select the channel and program, and press OK key to know the detail information of the current program.

4. Press

green

colour key to enter into the Timer window. You can add the current program to the Timer. If 8 timers is already, system will inform "Timer is full!'.

6.3 Find

Press

FIND

key on to pop up the Find window. User numeric keys to enter into the

character and use the colour keys to realized the corresponding operation.

6.4 Number

Use the numeric keys

(0-9)

to input the number of the desired channel. If the inputted number is beyond the valid channel number, system will "No such a channel" and press OKkey to close this message.

6.5 TV/RADIO

In normal mode, press

TV/RADIO

key to switch between TV mode and Radio mode.

6.6 Up/Down (Channel Change)

Press

PR+, PR-

keys to change the channel up or down. If in the all satellites group, you can select channel in all searched channels. If in the specific satellite, only can select channel in the satellite group.

6.7 Left/Righ (Volume+/-)

Press keys to change the volume. Press keys to decrease the volume by step 1, while press keys to add the volume by step1

6.8 Mute

Press key to close the volume. You can press key once again to restore the volume, or press keys to open the volume.

6.9 Pause

During the viewing, you can press

PAUSE

key to stop the picture while the volume

continues. You can play the picture by pressing

PAUSE

key once again.

6.10 OK

1. During the viewing or listening, press OKkey to pop up the TV program list or the Radio program list.

2. Press

PR+, PR-

keys to select the channel up or down,

and then press OKkey to play this channel in full-screen.

3. Press keys to select the satellite.

4. Press

EXIT

key to close this window.

6.11 Audio

1. Press keys to enter into the Audio window.

2. Press keys to select among Left, Right, Stereo, and Mono.

3. Changing the audio mode is only connected with the current channel, not all the channels.

4. Press

EXIT

key to close this window.

6.12 Recall

Press PR key to switch the current channel to the previous channel.

6.13 FAV

1. Press

FAV

key to pop up the favourite group window.

Page 18

MENU INFORMATION TROUBLE SHOOTING

TROUBLE SHOOTING

2. Press keys to select the favorite group. Press

PR+, PR-

keys to select the channel up or down.. Press OKkey at the selected channel to view it in fullscreen. Press

EXIT

key to exit.

3. If there is no favorite channel, system will inform " No FAV Channel!" when you press

FAV

key.

6.14 Teletext

Press TXT keys to open the teletext on the screen. If there is no teletext, system will inform "No Teletext Data". Press

EXIT

key to exit.

6.15 Zoom

1. Press

ZOOM

key to switch among Zoom*1, Zoom*2, Zoom*4, Zoom*6,

Zoom*8, Zoom*12, Zoom*16.

2. In zoom mode, press

PR+, PR-

keys to move the cursor up, left, right,

down.

3. Press

EXIT

key to exit

Problem Possible causes What to do

Bad picture / blocking error.

The satellite dish is not pointing at the satellite.

Adjust the dish.

Signal is too strong.

Connect a signal attenuator to the

LNB input. Satellite dish is too small.

Change to a larger dish. LNB noise factor

too high.

Change to an LNB with lower noise

factor. The LNB is faulty. Change the LNB.

The picture is not showed on the screen, when switching on.

The system is connected by RF leads.

Check the UHF channel fixed in

your system and tune the UHF

channel properly.

There is interference on your digital satellite channels, an existing terrestrial channel or video signal.

The system is connected by RF leads and the output channel of the receiver interferes with an existing terrestrial channels or Video signal.

Change the receiver output chan-

nel to a more suitable channel, or

connect the system by SCART

leads.

The RCU is not working.

Battery exhausted. Change the batteries. RCU is incorrectly

aimed.

Aim RCU at the receiver, or check

that nothing blocks the front panel.

Problem Possible causes What to do

The display on the front panel does not light up.

Main cable is not connected.

Check that the main cable is plugged into

the power socket. No sound or picture, but the front panel shows red light.

The receiver is in standby mode.

Press the standby button.

No sound or picture.

The satellite dish is not pointing at the satellite.

Adjust the dish. Check the signal

level in the Antenna Setup menu.

No signal or weak signal.

Check the cable connections, LNB

and other equipment connected

between the LNB and the receiver,

or adjust the dish.

Note :

If you have tried all of the actions suggested above, without solving the pro-

blem, please contact your dealer or service provider.

Page 19

English

Personal Grand Technology, S.A. Pol. Ind. De las Monjas C/ Ecuador, 14 28850 Torrejón de Ardoz-Madrid TEL. 902 931 457 [email protected] www.npgtech.com

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste.There are separate collection systems for recycling in the EU.For more information,please contact the local authority or your retailer where you purchased the product ..

Personal Grand Technology S.A.reserves the right to change specifications and / or functions of its products without notice in order to improve technically.

Page 20
