Network Phone Camera User Manual
2
Read and understand thoroughly this safety awareness & instruction before using and keep it
for future reference, the device is called NPC in this text.
Safety Precaution:
Do not place heavy object on the NPC.
Do not let any solid or liquid fall into or infiltrate the NPC.
Do not disassemble, repair or replace the parts of the NPC by yourself
.
Using environment:
Please place and use the NPC between 0℃ and 40 ℃.Avoid direct sunlight or stay away from heat.
Do not install the NPC in damp environment.
Do not expose the NPC in smoky or dusty environment.
Do not drop the NPC and avoid strongly collision.
Please insure the NPC level installation in a stable workplace and prevent the NPC to be dropped
Please install in well-ventilated place. Do not block the vents.
The NPC only can be used within the range of rated input and output.
Network Phone Camera User Manual
3
Contents
Contents...................................................................................................................................................................3
1 Product Introduction..........................................................................................................................................4
1.1 Product overview..........................................................................................................................................4
1.2 Main fuctions................................................................................................................................................4
2 Open-package check and cable connection................................................................................................5
2.1 Open-package check.....................................................................................................................................5
2.2 The front panel and rear panel ......................................................................................................................5
2.3 Button function of the front and front panel .................................................................................................6
2.4 The rear panel................................................................................................................................................8
3 Basic operation...................................................................................................................................................9
3.1 Turn on..........................................................................................................................................................9
3.2 Turn Off ........................................................................................................................................................9
3.3 Standby state.................................................................................................................................................9
4 Main menu..........................................................................................................................................................11

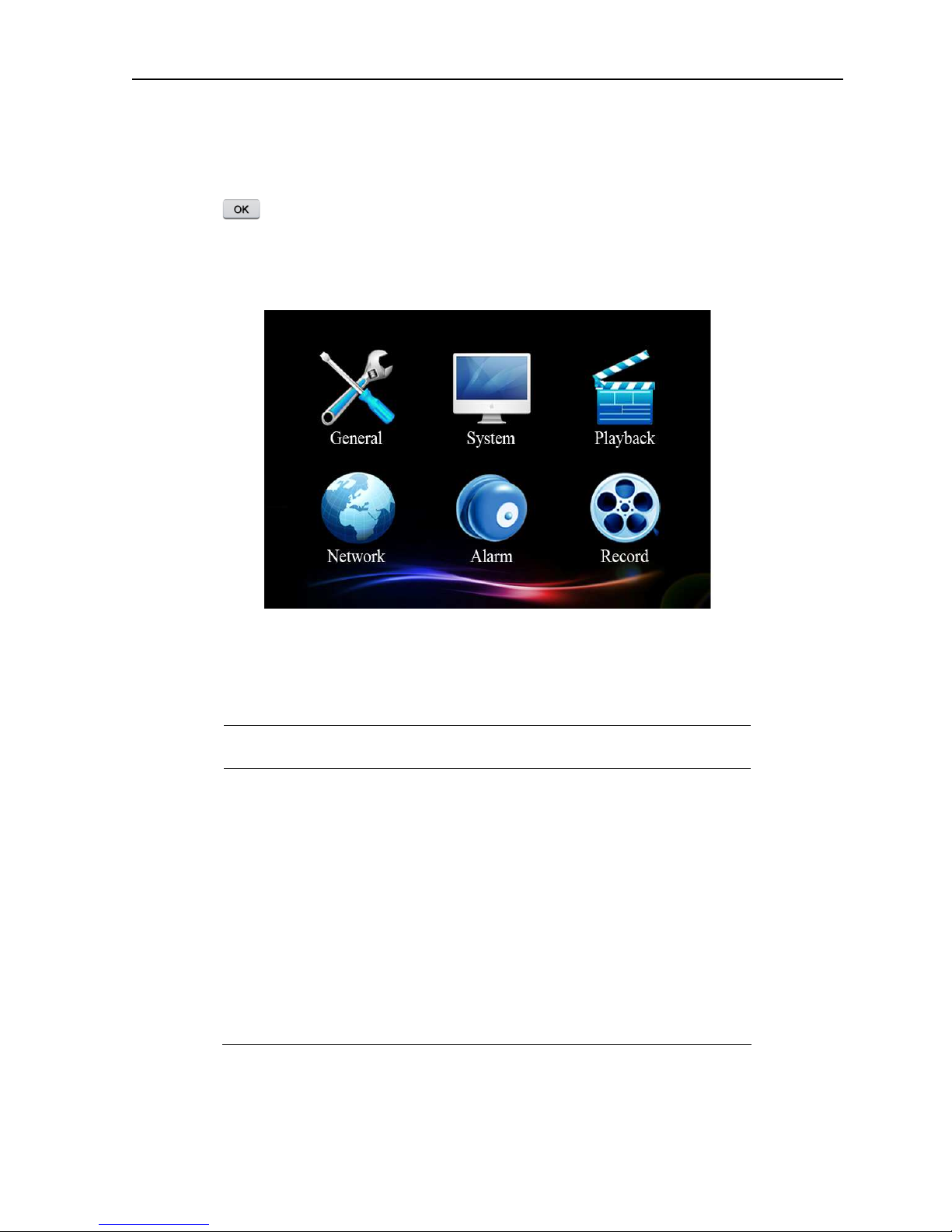

4.1 Main menu navigation
..............................................................................................................................11
4.2 General setup
.............................................................................................................................................12
4.3 System setup
..............................................................................................................................................12

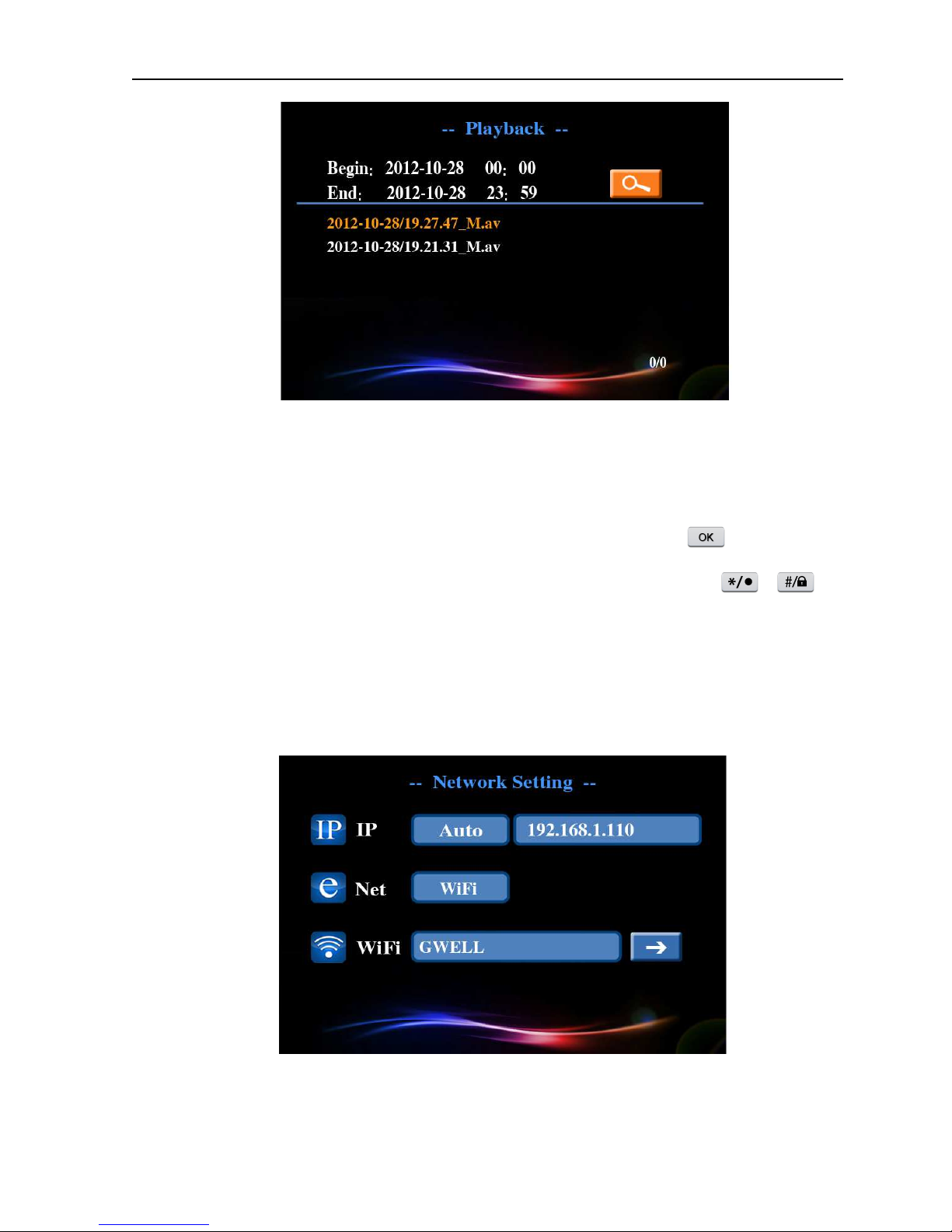

4.4 Playback
.....................................................................................................................................................13
4.5 Network setup
............................................................................................................................................15
4.6 Alarm setup
................................................................................................................................................16
4.7 Record setup
..............................................................................................................................................18
5 Remote access & video calls........................................................................................................................19
5.1 Remote monitor
.........................................................................................................................................19
5.2 Video call
...................................................................................................................................................20
6 The wireless learning code............................................................................................................................22
6.1 Wireless detector and device learning code
.............................................................................................22
6.2 Remote control and device learning code
................................................................................................22
7 FAQ and maintenance.....................................................................................................................................22
7.1 Frequently asked questions
.......................................................................................................................22
7.2 Maintenance
...............................................................................................................................................25
第 4 页
1 Product Introduction
1.1 Product Overview
The NPC series is a type of excellent intelligent home product specially designed for digital field.
It introduces embedded LINUX operating system which is more stable. It introduces the technology
of standard H.264 mp video compression format and G.711A audio compression format which
insure the high-quality image, low-bit rate and single-frame playing. It introduces Cloudlink P2P
network transmission technology which achieves strong network data transmission ability and
remote control ability. It introduces wireless learning codes technology and wireless detector to
construct a strong alarm system
.
1.2 Main functions
Video call
It can realize the video call not only between two NPC, but also among smart phone, tablet
computer and NPC.
Record function
After inserting U disk or Micro SD to NPC, it can realize simultaneous storage and recording of
audio and video, and different recording mode such as manual recording, alarm recording, timing
recording can be selected.
You can search video files intelligent on the device and playback video on the screen directly.
Remote monitor
It can achieve remote monitor by using mobile APP to dial 3C number.
Wireless alarm
It introduces wireless learning code and wireless detector to construct alarm system, and also email
alarm function is supported.
Network Phone Camera User Manual
5
2 Open-package inspection and cable connection
2.1 Open package check
First, please check whether there is any visible damage to the package appearance. The
protective material used for the package of the NPC can sustain most accidental clashes during the
transportation.
Then, please open the box and get rid of the plastic protective coating. Check whether there is
any visible damage to the NPC appearance.
2.2 The front panel and rear panel
The key function specification in the front panel and the interface specification in the rear panel
are described in details in the manual.
Please check carefully the product model in the bottom plate or in the rear panel film whether
is accordant with the model you ordered.
The label in the bottom plate or in the real panel is very important for after-sales service, please
protect it carefully.
Please provide the product model and serial number in
the label before you contact our after-sales.
Network Phone Camera User Manual
6
2.3 The front and rear panel key function
Pilot lamp: From left to right are
：
(Network, Defense, Recording,
Alarm)
Network Phone Camera User Manual
7
The front button operation function
Num
Button
name
Mark Function
1 Number button 0
000----9999
Input the number key during user input state
Short press to decrease the volume during video call or
playing state
Short press to delete text during edit state
2 */.键键键键
Long press to record/stop recording during manual record
mode
Short press to increase the volume during video call or
playing state
Short press to switch input method during edit state
3
Ctrl shift/
defense
Long press to do defense/cancel operation
Short press to dial video call during standby state
4 Dial/preview
Long press to enter real-time preview during standby
mode
Hang up call during video call
5 Hang up/Exit
Back to above level menu and exit current state
Remove the cursor by up and down buttons when the
main menu or submenu is popped
Add or decrease number during edit state
Change the setting in the menu
Play last or next video file by up and down buttons
during the playback state
Move the cursor by left and right buttons when the main
menu or submenu is popped
6
Direction button
Play in the multi-low or multi-fast video during the
playback state
7 Main
Confirm
Network Phone Camera User Manual
8
menu/confirm
key
Enter main menu
2.4 The rear panel
○
,1Network interface ○,2WIFI ant interface ○,3Learning code indicator ○,4Learning
button ○,5Power switch ○,6Power interface ○,7USB interface ○,83C smart card
interface ○,9Micro SD card interface ○,10Earphone interface
