NOYAFA NF-889 User Manual

MODEL:NF-889

Your excellent helper in cable test!

INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL

Tone Generator And Probe

n

u

o

C

ORI GINAL

AUT HENTI C

d pr

e

t

n

e

t

a

P

ng

i

t

i

e

f

r

e

t

o

d

u

c

t

s

,

n

o

t

a

l

o

w

e

d

RE V1 .0

Contents

interfaces and functions

...........................................1

Parts of emitter

Parts of receiver

Telephone Cable tracing function

Network Cable tracing function

Electric wire tracing function

Network cable Collation function.........................5

others function.....................................................6

Low voltage alarm function...................................7

Low voltage alarm function

Earphone function.................................................7

Earphone function

Accessories

Specification of product........................................8

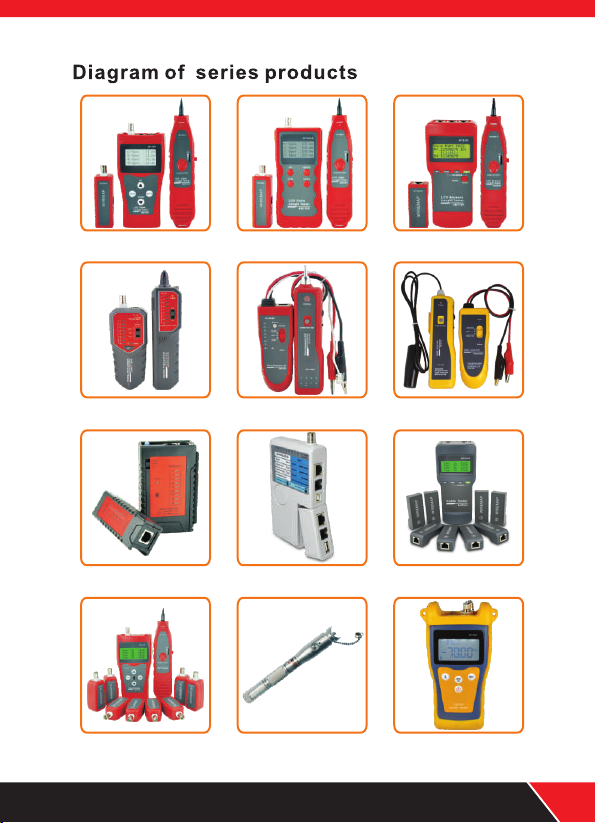

Diagram of series products...................................9

...........................................................1

..........................................................1

...........................2

...............................3

...................................4

...........................................................7

Your excellent helper in cable test!

interfac es a nd functions

Find wire on all types of connected

Find wire on all types of connected operating

Ethernet switch/Router/PC terminal

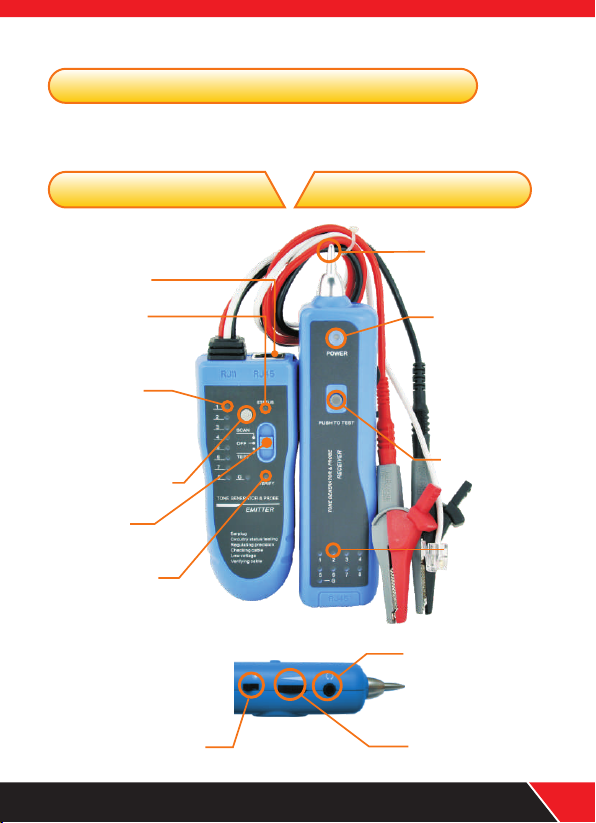

Parts of emitter

RJ45 socket

Wire finding indicator

Wire sequence indicator

Function switchover button

DIP switch

Testing indicator

operating

Parts of receiver

Earphone jack

Probe

Signal indicator

Inching button

Wire sequence indicator

Spotlight switch

Your excellent helper in cable test!

Volume

1

Telephone Ca ble tracing function

T O N

E

G

EN E

R A T

O R

&

E

M

P

ITTER

ROB

E

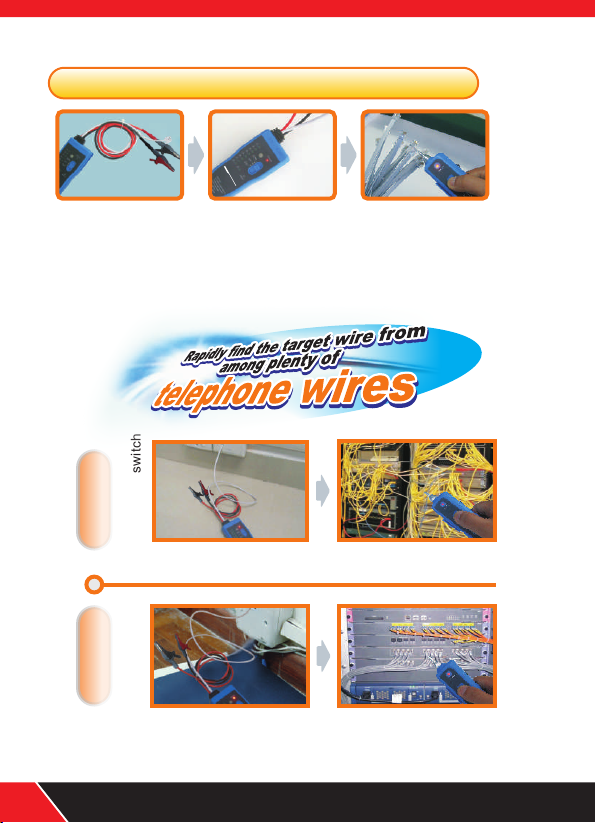

1. Directly insert Rj11 cable adaptor into the port of telephone socket.(Note:never put a charged telephone cable into Rj45 port for fear of burnout to the tester.)

2. Push DIP switch of emitter to position of“SCAN”then wire finding indicator “STATUS”flashes, which means normal work of emitter;

3. Press the inching button, use the probe of receiver to find target wire at the other end;

4. During testing, function switchover button can be pressed for switchover of dual-tone.

CASE Ⅰ

Find wire on switch

Connect emitter with the telephone line to be found

Trace cable with receiver at the other end

CASE Ⅱ

Find wire on patch panel

Connect emitter with the telephone line to be found

2

Trace cable with receiver at the other end

Your excellent helper in cable test!

TON E G

E N E R A T

O R

&

P

R O B E

EMITTER

Network Ca bl e tracing function

T O

N E GENE

R A TOR & P

RO BE

EMITT

E R

TONE GENERATOR & PROBE

TONE

GENERATOR

&

PROBE

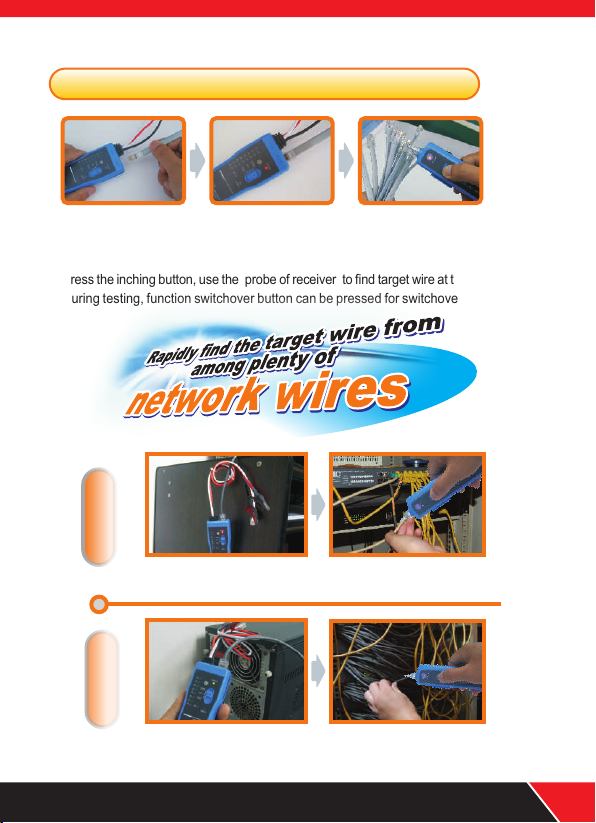

1. Directly insert network cable into the RJ45 port of e mitter;

2. Push DIP switch of emitter to position of “SCAN” then wire finding indicator “STATUS” flashes, which means normal work of emitter;

3. Press the inching button, use the probe of receiver to find target wire at the other end;

4. During testing, function switchover button can be pressed for switchover of dual-tone.

CASE Ⅰ

Find wire on router

Connect emitter with the network cable to be found

Trace cable with receiver at the other end

CASE Ⅱ

Connect emitter with the

Find wi re on n et ba r

network cable to be found

Your excellent helper in cable test!

Trace cable with receiver at the other end

3

TONR GENERA TO & PROBE

Electric w ir e tracing function

TONE GENERATOR

& PROBE

1. Directly insert RJ11 of crococile clip into RJ11 port of emitter, connect telephone line with the clamp;

2. Push DIP switch of emitter to position of ”SCAN”then wire finding indicator “STATUS”flashes, which means normal work of emitter;

3. Press the inching button, use the probe of receiver to find target wire at the other end;

4. During testing, function switchover button can be pressed for switchover of dual-tone.

Note: The equipment is prohib ited to be use d on heavy-cur rent wires

Connect emitt er with electric wire t o be found

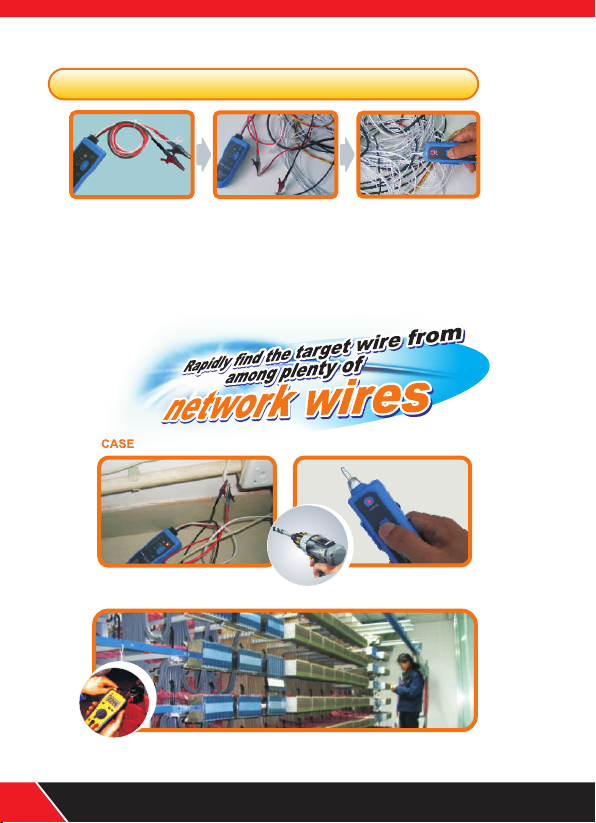

How to fi nd the wir e from amon g so many wi res? It is so sl ow by usin g a multime ter.

4

No need electric machine to drill !

Your excellent helper in cable test!

T

O

N

E

G

E

N

E

R

A

T

O

R &

P

R

O

B

E

M

IT

T

E

R

T

O NR G

E N

E R

A TO & P

R O

B E

Network ca bl e Collation function

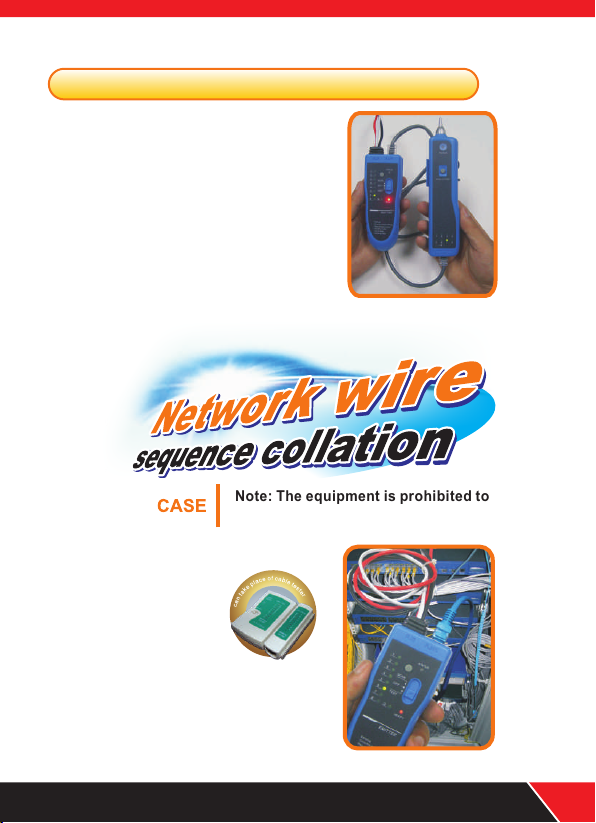

1. Insert the two ends of t henetwork cable into Rj45 port of emitter and receiver.

2. Push function switchover button on emitter to the position of “TEST ”, testing indicator “VERIFY” flashes meaning normal work of emitter.

3. Acc ord ing to 18 indicato rs, ju dge t he characteristics of short-circuit, breaking circuit, open circuit and crossing.

4.During testing, function switchover button can be pressed for switchover of fast and slow levels.

Note: The equipment is prohibited to be used on heavy-current wires

Support direct wire collation of operating switch

Replace the above tester in cabling

It can take place of cable tester

It can rapidly test open circuit/short circuit and crossing through the 18

Your excellent helper in cable test!

status indicators. which is accurate and clear.

T

O

N

R GENE

R

A

TO & P

R

O

B

E

5

TONR GENERA TO & PROBE

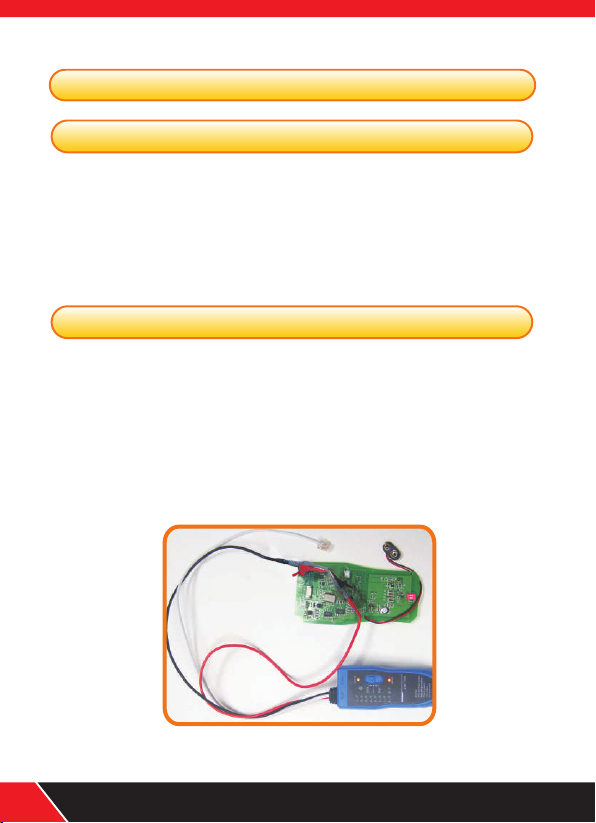

Others fun ct ion

Open circuit or s ho rt circuit test ing function Open circuit or s ho rt circuit test ing function

Push DIP switch on emitter to position of“ TEST” , press function switchoverbutton on emitter for 2 seconds, “ VERIFY” indicator will change“ flash” to“ lighting” connect crocodile clamp with RJ11 port, clamp the two ends of cable with crocodile clamps, in case of short circuit, indicator “1” of emitter will light up, otherwise it will not. Impendance can be indicated by brightness of status indicators: the lighter , the smaller the resistance is; the darker, the bigger.

DC level testin g fu nctionDC level testin g fu nction

Push DIP switch on emitter to position of“ SCAN”, press function switchover button on emitter for 2 seconds, “ STATUS” indicator will turn off and“ VERIFY” indicator flashes, insert the crystal plug of crocodile clamp into RJ11, clamp the two ends of cable with crocodile clamps, in case that“ STATUS” indicator lights up in red , it means the end clamped by red clamp is p osit ive po le, in c ase that “ STATUS ” indicator lights up in green, it means the end clamped by red clamp is negative pole, electric level can be judged by brightness of the status indicators; the lighter the indicator, the higher the level is; the darker, the lower.

test positive and negative pole of DC electric level

6

Your excellent helper in cable test!

Low voltaage al ar m functionLow voltaage al ar m function

Push DIP switch on emitter to position o f“SCAN”, if the that battery level is lower than 6.0V,“STATUS”and“VERIFY”indicators will lig ht up at the same t ime, it indicates to have new battery.

Earphone func ti onEarphone func ti on

In noisy environment, earphone can be used to prevent interference from the outside.

Volume adjusti ng f uncctionVolume adjusti ng f uncction

While tracing cable, volume can be adjusted for moderate level of sound.

Spotlight fun ct ionSpotlight fun ct ion

You can easily work as usual with backlight at night and in dark.

Energy-savi ngEnergy-savi ng

Inching switch can automatically delay power-off. The continuous lifespan of battery is over 50 hours.

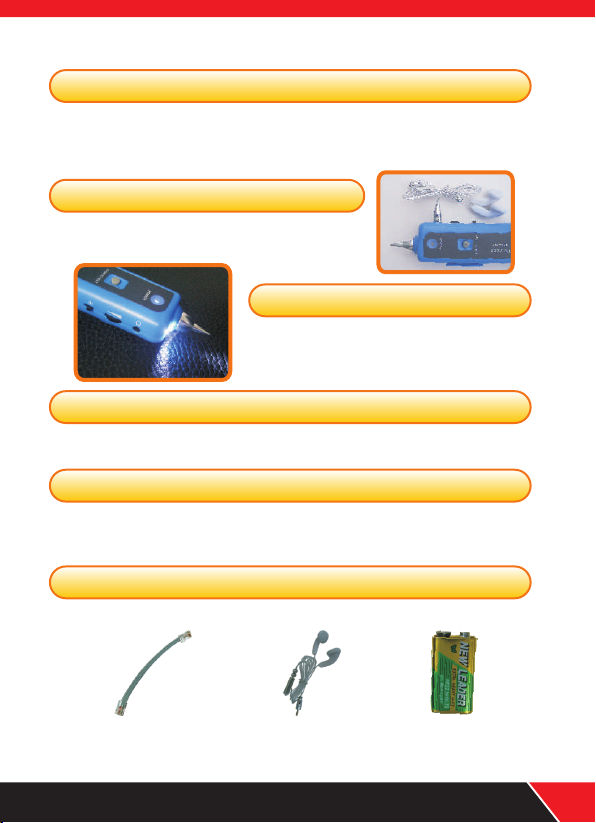

AccessoriesAccessories

RJ45 adapter c able

Your excellent helper in cable test!

Ear phone

9V ba ttery

7

Applicab le u sersApplicab le u sers Applicab le s copeApplicab le s cope

Telecom bureau/net bar/telecom engineering companies / network engineering companies/power supply/ army and other departments requiring wire.

Specificati on o f productSpecificati on o f product

Wire engineerin g of telecom, network and regular maintenance work; network line engineering of computer; other wire engineering and maintenance.

Item

Produ ct na me

Power s upp ly

The max w ork ing c urr ent

Signa l tra nsm iss ion f orm at

Signa l out put e lec tri c sta tus

Dista nce o f sig nal t ran smi ssi on

Appea ran ce di men sio n

Wei ght

The list of packa geThe list of packa ge

Emitter

1.

Receiver

2.

battery

3.

9V

Earphone

4.

8

1

2

1

piece

pieces

piece

Specific ati on

Wire track er

DC, 9V ba tte ry

Emitter

Recei ver

Multi -fr equ enc y imp uls e

8Vp-p

≥2km

Emitter

Recei ver

Whole s et

126×49×34 ,mm

175×42×27 ,mm

270×165×4 5,m m

Emitter

Recei ver

Whole s et

RJ45

adaptor cable

5.

Instruction manual

6.

7. Toolkit

8.

Color box

Your excellent helper in cable test!

≤10mA

≤30mA

0.060 kg

0.072 kg

0.420 kg

1

piece

NF-30 6 NF-86 8 NF-8 208

NF-26 8 NF-806 R

NF-46 8L NF-34 68 NF810 8-M

NF-38 8 NF-903 NF-90 6A

Your excellent helper in cable test!

NF-81 6

9

Your excellent helper in cable test!

SHENZHEN NOYAFA ELECTRONIC CO.,LTD
