OUTER
Connections
Cooling System
Airflow
Internal Space
Storage
Specifications Table
CHARACTERISTICS
Dimensions

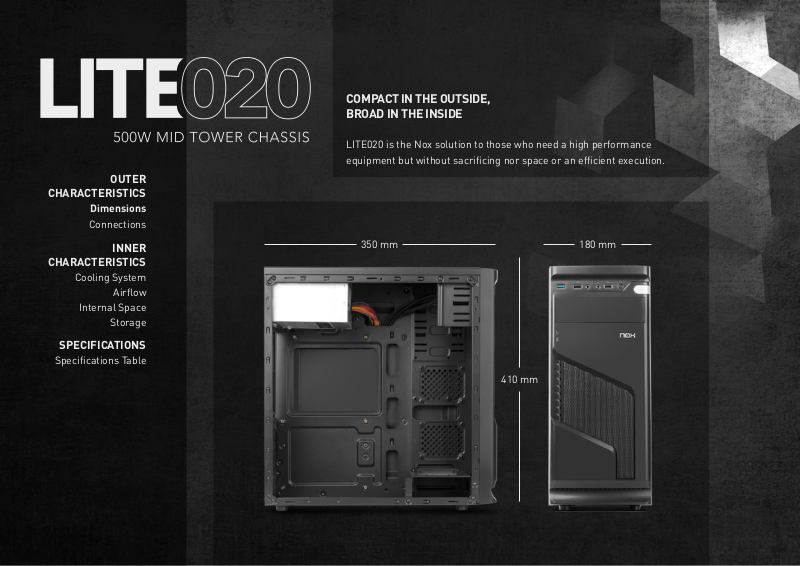

COMPACT IN THE OUTSIDE,
BROAD IN THE INSIDE
LITE020 is the Nox solution to those who need a high performance
equipment but without sacrificing nor space or an efficient execution.
INNER
CHARACTERISTICS
SPECIFICATIONS
350 mm 180 mm
410 mm
OUTER
Dimensions
Cooling System
Airflow
Internal Space
Storage
Specifications Table
CHARACTERISTICS
Connections
INNER
CHARACTERISTICS
SPECIFICATIONS
COMPACT IN THE OUTSIDE,
BROAD IN THE INSIDE
LITE020 is the Nox solution to those who need a high performance
equipment but without sacrificing nor space or an efficient execution.
01. USB 3.0
———— ———— ———— ———— ———————
02. USB 2.0
———— ———— ———— ———— ———————
03. Audio Input
———— ———— ———— ———— ———————
(3.5mm Jack)
CONNNECTIONS
04. Microphone Input
———— ———— ———— ———— ———————
05. Reboot Button
———— ———— ———— ———— ———————
06. On / Off Button
———— ———— ———— ———— ———————
(3.5mm Jack)
OUTER
Dimensions
Airflow
Internal Space
Storage
Specifications Table
Connections
CHARACTERISTICS
INNER
CHARACTERISTICS
Cooling System
COMPACT IN THE OUTSIDE,
BROAD IN THE INSIDE
LITE020 is the Nox solution to those who need a high performance
equipment but without sacrificing nor space or an efficient execution.
SPECIFICATIONS
REAR
80/90 mm (1x)
OPTIONAL
SIDE
120 mm (1x)
OPTIONAL
FRONT
120 mm (1x)
OPTIONAL
BOTTOM
120 mm (1x)
OPTIONAL
OUTER
Dimensions
Cooling System
Internal Space
Storage
Specifications Table
Connections
CHARACTERISTICS
INNER
CHARACTERISTICS
Airflow
SPECIFICATIONS
COMPACT IN THE OUTSIDE,
BROAD IN THE INSIDE
LITE020 is the Nox solution to those who need a high performance
equipment but without sacrificing nor space or an efficient execution.
OUTER
Dimensions
Cooling System
Airflow
Storage
Specifications Table
Connections
CHARACTERISTICS
INNER
CHARACTERISTICS
Internal Space
SPECIFICATIONS
COMPACT IN THE OUTSIDE,
BROAD IN THE INSIDE
LITE020 is the Nox solution to those who need a high performance
equipment but without sacrificing nor space or an efficient execution.
OUTER
Dimensions
Cooling System
Airflow
Internal Space
Specifications Table
Connections
CHARACTERISTICS
INNER
CHARACTERISTICS
COMPACT IN THE OUTSIDE,
BROAD IN THE INSIDE
LITE020 is the Nox solution to those who need a high performance
equipment but without sacrificing nor space or an efficient execution.
Storage
SPECIFICATIONS
1x SSD 2.5’’
1x SSD 2.5’’
ODD
SSD
SSD
HDD
HDD
1x 5.25’’
1x HDD 3.5’’
1x HDD 3.5’’
OUTER
Dimensions
Cooling System
Airflow
Internal Space
Storage
Connections
CHARACTERISTICS
COMPACT IN THE OUTSIDE,
BROAD IN THE INSIDE
LITE020 is the Nox solution to those who need a high performance
equipment but without sacrificing nor space or an efficient execution.
INNER
CHARACTERISTICS
SPECIFICATIONS
Specifications Table
EXTRAS
Shiny finish front panel
·
· High speed USB 3.0
· Up to 3 fans capability
· Power supply included
———— ———— ———— ———— ————— ———— ————— ———
CHASSIS TYPE SIZE Mid tower
———— ———— ———— ———— ————— ———— ————— ———
MOTHERBOARD FORM FACTOR ATX · Micro ATX · ITX
———— ———— ———— ———— ————— ———— ————— ———
EXTERNAL DRIVE BAYS 1x 5.25’’
———— ———— ———— ———— ————— ———— ————— ———
INTERNAL DRIVE BAYS 2x 3.5’’/ 2x 2.5’’
———— ———— ———— ———— ————— ———— ————— ———
COOLING SYSTEM
· Front: 1x 120 mm (optional)
· Side: 1x 120 mm (optional)
· Rear: 1x 80 / 90 mm (optional)
· Bottom: 1x 120 mm (optional)
———— ———— ———— ———— ————— ———— ————— ———
EXPANSION SLOTS 7
———— ———— ———— ———— ————— ———— ————— ———
MATERIAL
· ABS plastic
· SPCC 0.5 mm steel chassis
———— ———— ———— ———— ————— ———— ————— ———
COLOR Black
———— ———— ———— ———— ————— ———— ————— ———
CONNECTIONS 1x USB 3.0 · 2x USB 2.0 · HD Audio
———— ———— ———— ———— ————— ———— ———
MAX. GRAPHIC CARD 365 mm
———— ———— ———— ———— ————— ———— ———
MAX. CPU COOLER 162 mm
———— ———— ———— ———— ————— ———— ———
CABLE MANAGEMENT 19 mm
———— ———— ———— ———— ————— ———— ———
DIMENSIONS 368(D) x 175(W) x 408(H)
———— ———— ———— ———— ————— ———— ———
WEIGHT (WITHOUT PSU) 3,60 Kg
———— ———— ———— ———— ————— ———— ———
WEIGHT (WITH PSU) 4,40 Kg
———— ———— ———— ———— ————— ———— ———
POWER SUPPLY
· 500W
· ATX
· CONNECTORS:
· 3x SATA
· 1x Molex 4pin
· 1x ATX 20/24 pin
· 1x CPU 4 pin
· 1x FDD
———— ———— ———— ———— ————— ———— ———
PN: NXLITE020 · EAN: 8436532167850
