Page 1

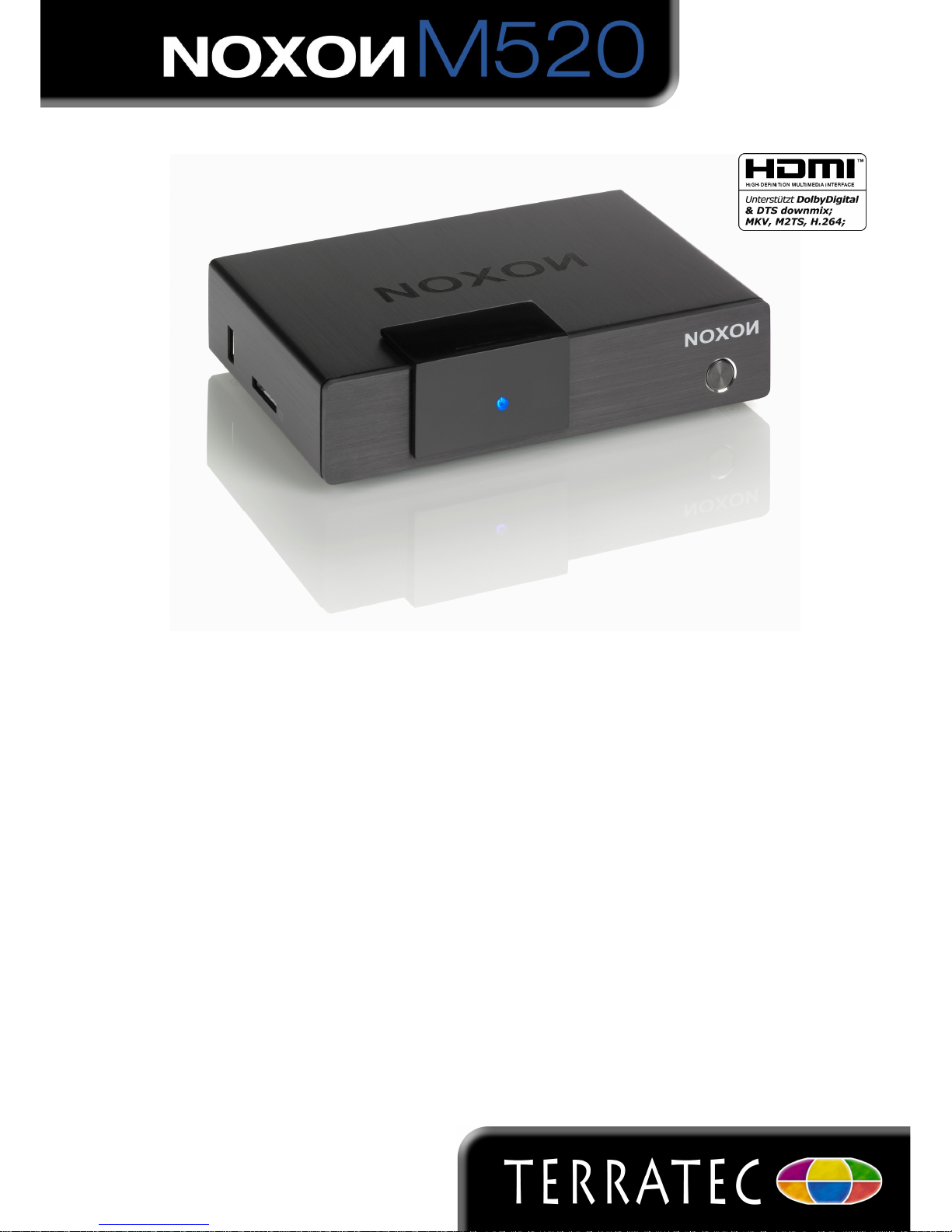

TerraTec NOXON M520

22.03.2010 – Page 1 – Might change without notice. All trademarks are registered property of their respective owners.

Full HD Network Multimedia-Player

• Digital Contents from Network and USB directly on TV

• Supports typical Audio and Video Standards

• English Menu for an intuitive Handling

• Easy to use Slideshow Function

• USB 2.0 and SD/MMC Card-reader

• Elegant Aluminium Housing

• Numerous Accessories incl. HDMI Cable and Remote-Control

With the NOXON M520 Full HD multimedia player, you can watch videos in the highest resolution and in all common formats on your television or home cinema system – including the corresponding multi-channel sound (DTS, Dolby Digital). Whether AVI or MKV, mp3 or WMA – the M520 simply does it all. You can even watch your vacation pictures as a slideshow. The right music cab be streamed equally.

With just a few simple steps, the elegant little aluminium housing is integrated into your network – either by LAN or optionally via WLAN. This allows you to stream all media data from your PC or Mac. Using a USB 2.0 port, however, you can also connect external hard drives or memory sticks or use your memory cards with the built-in card reader.

You can operate the player conveniently from your sofa, where the multilingual, clearly arranged user interface makes navigating as easy as child's play. Attractively shaped, versatile and technically advanced, the NOXON M520 is the perfect addition to your multimedia landscape.

The package includes a printed manual and an HDMI cable, so that there is no impediment for a smooth start-up.

Page 2

TerraTec NOXON M520

22.03.2010 – Page 1 – Might change without notice. All trademarks are registered property of their respective owners.

Technical Details

Standards

• PAL/NTSC

• 1080p FullHD (1920x1080 bei 50+60Hz)

• 720p HD Ready (1280x720 bei 50+60Hz)

• Pal Resolution 720x576

• Supports WiFi iEEE802.11b/g/n (optional

NOXON WLAN Stick required)

• UPnP

• Samba (SMB)

• USB 2.0

Supported Formats

• Video: MPEG-1, MPEG-2, MPEG-4: Xvid, WMV9, ISO, VOB, IFO, MP4, DAT, MOV, AVI, MKV, H.264, TS, TP, M2TS, FLV

• Incl. DTS, Dolby Digital, WMA and AAC downmix support

• Audio: MP3/OGG/WMA/WAV/AAC

• Photo: HD-JPEG, JPG, BMP

Connectors

• Audio out: Stereo 2 Chinch (RCA), SPDIF (optical)

• Video out: HDMI 1.3a, Composite, Component

• 2 x USB 2.0 Port

• Ethernet RJ-45

• Cardreader formats: SD/SD-

HC/MMC/MS/MS Pro

• Optional: Wireless Access Point

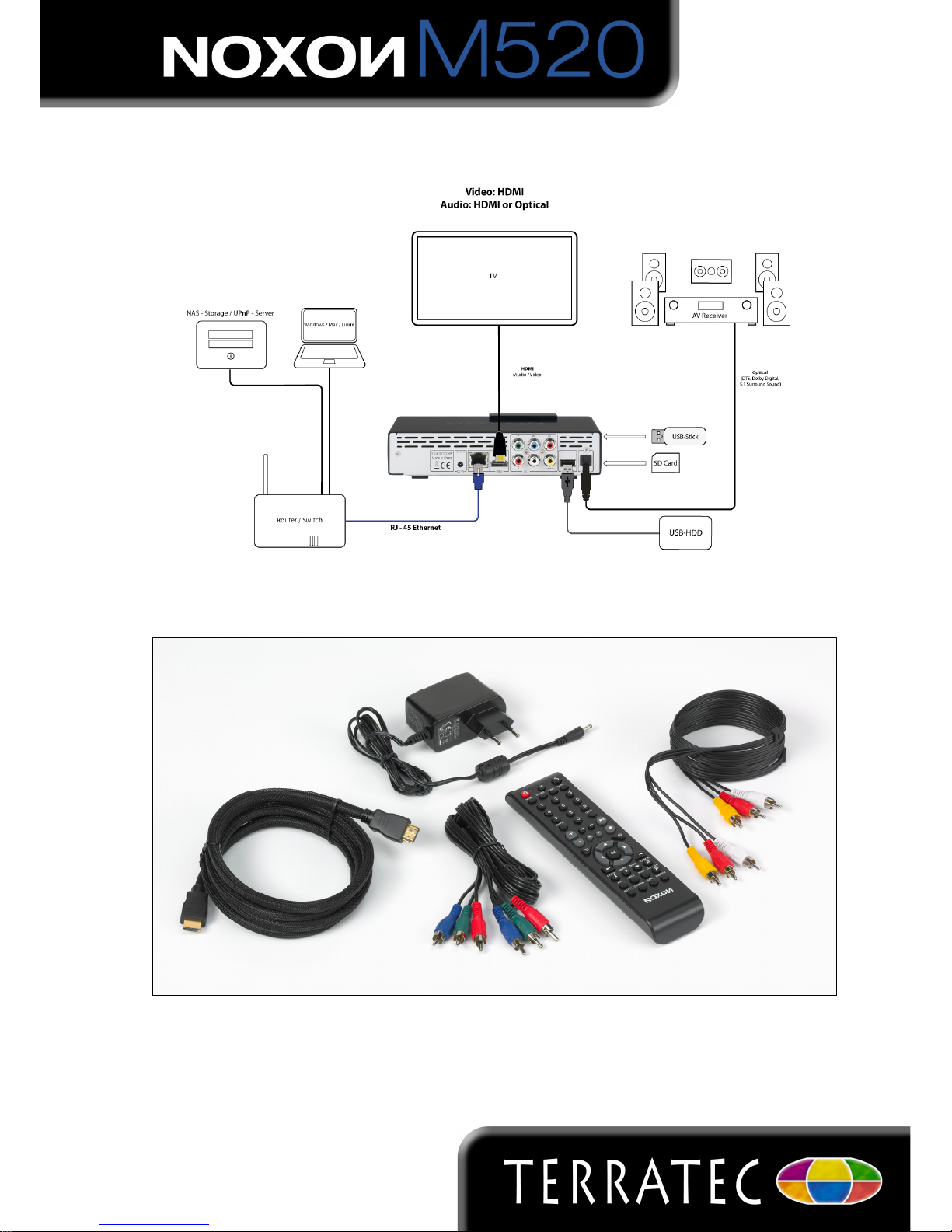

Package content

• NOXON M520

• HDMI-Cable

• A/V-Cable (Cinch)

• Componentcable (Cinch)

• Powersupply 5 V, 2,4 A

• Remote (with batteries)

• Manual (English ‚German)

• Quick Start Guide (F, I, E, NL)

• Service request form

Supported Video Codecs

• MPEG-1/HD MPEG-2

•

HD MPEG-4 SP/ASP/AVC (H.264)

• WMV9 (VC-1)

• RealNetworks (RM/RMVB) 8/9/10, up to

720p

Supported Audio Codecs

• MP2/3

• OGG Vorbis

• WMA Standard

• PCM, LPCM, AAC, RA, AC3, DTS

Dimensions

• 190 x 48 x 125 mm (Width x Height x Depth)

Weight

• 0,6 kg

Color (housing)

• black

User Interface Languages

• German, English, French, Italian, Spanisch, Portuguese, Dutch, Czech, Slowenian

Art.-Nr: 10674 EAN Code.: 4017273106748 Garantie: 24 Month

Important note:

Internet connection for technical support required.
