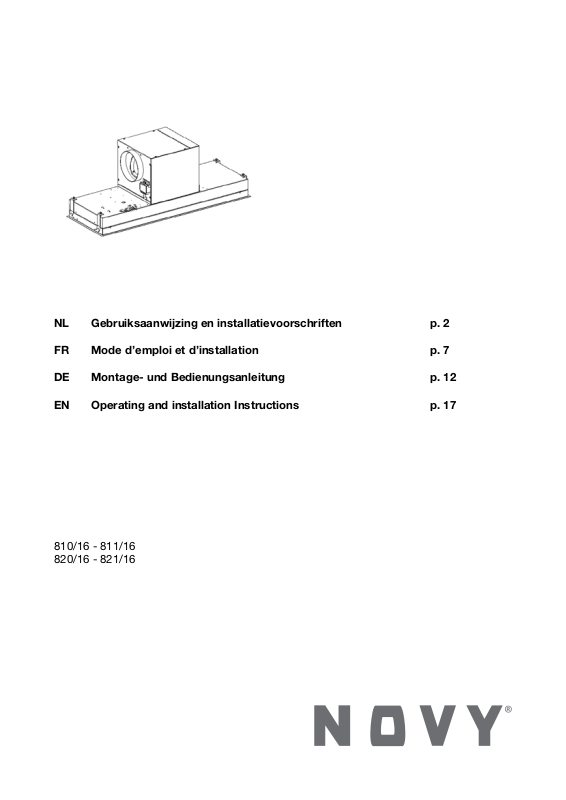

Novy 810/16, 811/16, 820/16, 821/16 Operating And Installation Instructions

NL Gebruiksaanwijzing en installatievoorschriften p. 2

FR Mode d’emploi et d’installation p. 7

DE Montage- und Bedienungsanleitung p. 12

EN Operating and installation Instructions p. 17

810/16 - 811/16
820/16 - 821/16

1. GENERAL INFORMATION

• Please read these operating instructions carefully.
They contain information about installation, opera­tion, safety and maintenance you need to be aware
of.

• This hood is for domestic use only.

• Check the condition of the hood and the installation
material before installing. Carefully remove the hood
out of the packaging. Be careful not to use sharp
knives to open the box.

• Please keep these instructions to pass on to future
users.

• Disposal of transport packaging and old appliance.
Your new appliance was sent to you in protective
packaging. All utilised materials are environmentally
safe and recyclable. Please help us by disposing of
the packaging in an environmentally friendly manner.

• Old appliances are not worthless rubbish. Valuable
raw materials can be reclaimed by recycling old ap­pliances. This appliance is identified according to
the European Directive 2002/96/EC on waste elec­trical and electronic equipment. Please ask your
dealer or inquire at your local authority about current

means of disposal.

This manual makes use of a number of symbols. The
meaning of these symbols are given below.

years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved

• Activate the hood a few minutes prior to cooking.

• Switch the hood off 10 minutes after cooking is fin­ished. The delay function is set to 10 minutes. Use
the delay function.

• Avoid drafts under the hood surface.

• When cooking make sure pots are positioned prop­erly under the hood surface.

• When using induction: adapt the intensity of both
hob and hood to the lowest possible level in order to
avoid excessive creation of damp fumes.

• Attention, certain accessible parts of the hood can
become hot while cooking.

2.3 Precautions not to damage the appliance

• The mounting instructions describe the correct way
of mounting. Carefully read these instructions.

• Check the distance between the cooking surface
and the hood. The minimum and maximum heights

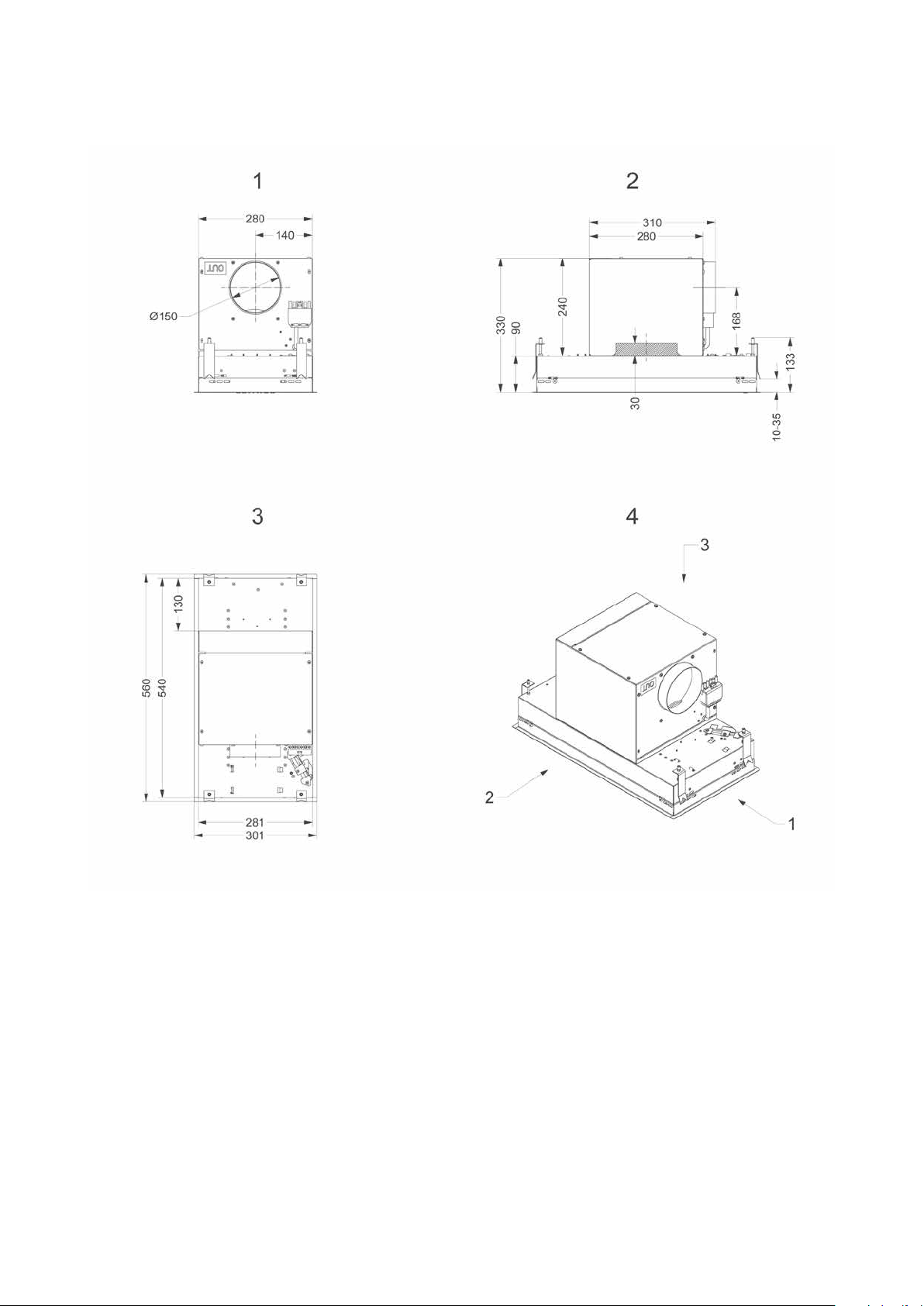

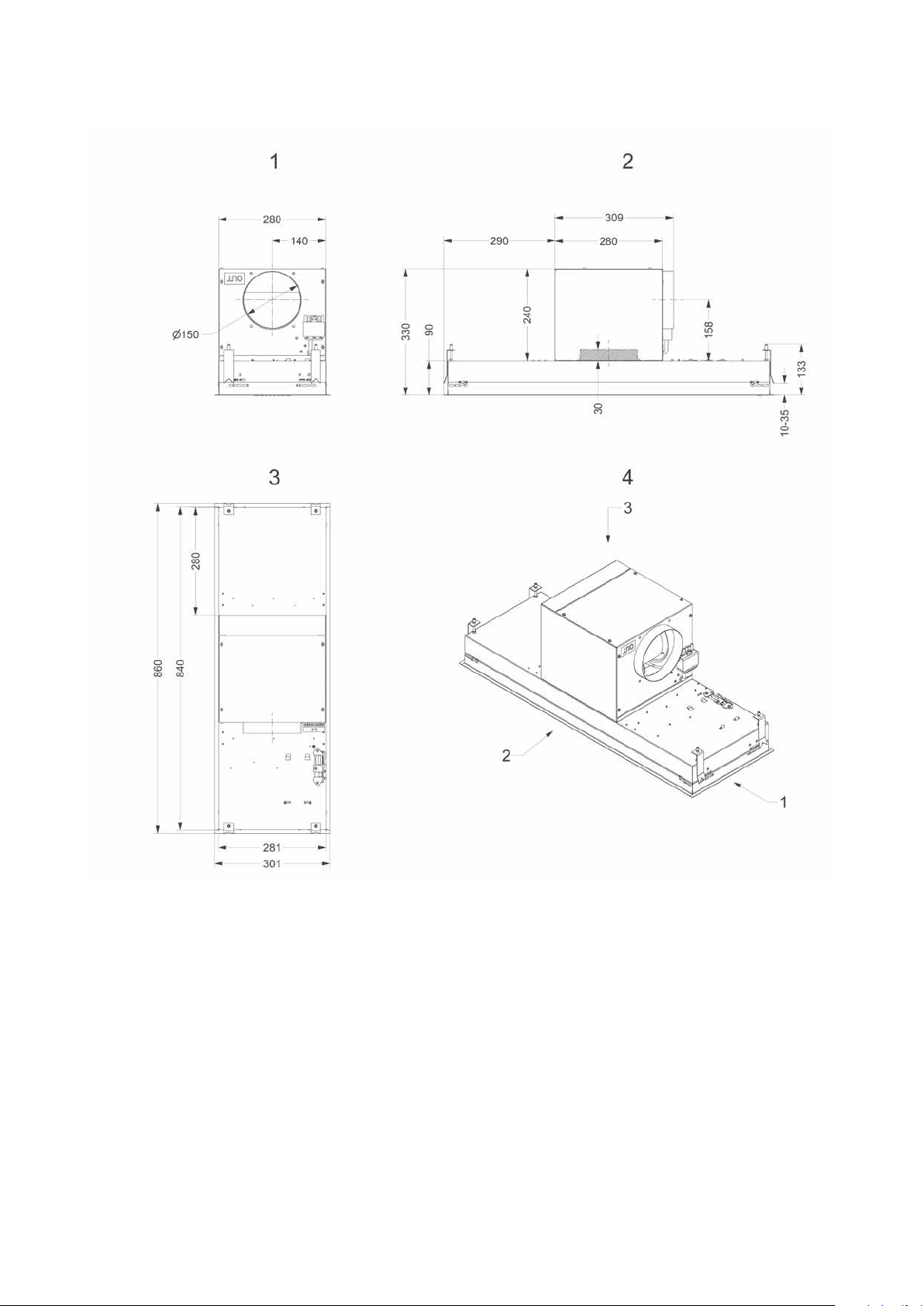

are indicated in the mounting instructions.

• Never use the hood without the fat filters in order to
prevent dirt and fat from further entering the hood,
which will eventually affect the performance and
functioning of the hood.

• Always stay around when you are frying, roasting,
grilling of deep-frying. Overheated oil and fat may­catch fire and damage the hood.

Symbol Meaning Action

Indication Explanation of an

indication on the
hood

Warning This symbol

indicates an
important tip
or a dangerous
situation.

Follow this instruction to avoid injury and material
damage.

2. SAFETY

2.1 Precautions before using

• Do not change or alter the appliance.

• The appliance must be grounded and connected
conforming to local standards.

• Do not use any extension cable to connect it.

2.2 Using the appliance

•

Under no circumstances is it allowed to flambé

under the hood

• Deep frying under the hood is only allowed under
constant supervision.

• In case of fire always switch off the hood.

• Never extinguish burning fat or oil with water. Cover
the pot with a well fitting lid or a burnblanket.

• This appliance can be used by children aged from 8

3. OPERATION

You can control the hood by the switch on the hood or
by the remote control supplied.

Control on the hood:

① switch on / off
② decrease speed levels
③ and ④ Speed indicator lamps
⑤ increase speed levels
⑥ illumination

3.1 Extraction

Switch on – switch off

To switch the motor on push button ①.
The hood will always resume the level it was previously
switched off in.

Switch off with 10 minute delay:

Press button ① once. The first green Speed indicator
lamp blinks, the other Speed indicator lamps remain lit
up according to the level in use. After 10 minutes motor
and illumination switch off automatically.

EN 17

Switch off without delay:

Push button ① twice.

Auto-Stop

To avoid that the hood will function during a too long
period, it will switch off automatically after 3 hours
(when no changes to the controls have been made).
Only the motor will turn off automatically. The lighting
will stay on.

Levels of intensity

To decrease speed levels push button ②. To increase
speed levels push button ⑤.
Three green Speed indicator lamps ③ indicate level
1 to 3, one red Speed indicator lamp ④ indicates the
level ‘POWER’.

‘POWER’ is only used in case of excessive formation
of smoke, fumes or odours. Taking into account the
large volume of air which is extracted from the room at
this level, it’s use should be limited.

‘POWER’ automatically reverts to level 3 after 6 min­utes.

A self-rectifying thermal contact makes sure that
the motor is switched off when overheated. The mo­tor will switch on again after is has cooled down. The
cause of the overheating needs to be determined. This
may be, for example, that the contents of the pan have
caught fire, the motor fan is blocked or an object is
(partly) closing off the exhaust opening.

Programming the remote control

If the set frequency disrupts other transmitters,

another code can be selected using the remote
control. There are 10 different codes.

Determine the code used

.The lamp on the re-

Simultaneously press

and
mote control flashes as many times as the selected
code (there are 10 code options in total).

Change the code:

• Simultaneously press and

.

• The lamp on the remote control flashes as many

times as the selected code. Repeat this step until
you have reached the required code (there are 10
code options in total).

• Simultaneously press on the cookerhood

+
until the second green Speed indicator lamp is blink­ing.

• Press the key

on the remote control within 10
seconds to confirm the settings. The cooker hood
and the remote control are now in line with each
other.

3.2 Lightning

Press key ④ to switch the lighting on or off. The LED
lighting has a soft on/soft off mode, which means that
the lighting will evenly go on and off. When switching
on the lighting, this will always light up with full power
and it can also be used when the fan is off.

Dimming LED lighting

When the LED lighting has been switched on, it can be
dimmed by keeping key 4 pressed.

Change in colour temperature with LED-lighting

You can change the colour temperature of the LED­lighting form 2700K (warm white) into 4000K (neutral
white). The description for changing this can be found
in section 4.4.

3.3 Remote control

1) illumination

2) increase speed levels

3) decrease speed levels

4) switch on / off

5) Novy-button - Not applicable

The remote control for hood is preinstalled and ready
for use.

Change the batteries:

• For changing the batteries unscrew the plastic cov­er, remove the old batteries and insert the new ones.
Pay attention to the polarity marking given in the
battery compartment

• Empty batteries are not to be disposed of in the
household refuse, but they are to be handed in as

chemical waste.

Technical information

- Power supply: (2xAAA) batteries

- Frequence: 433.92Mhz

- Numbre of codes: 10

- Worktemperature: 0-50°C

- Dimensions: 110 x 50 x 19mm

3.4 InTouch

The cooker hood features the InTouch function. If you
have a Novy induction plate with InTouch, you can op-

erate the hood from the plate.

EN 18
