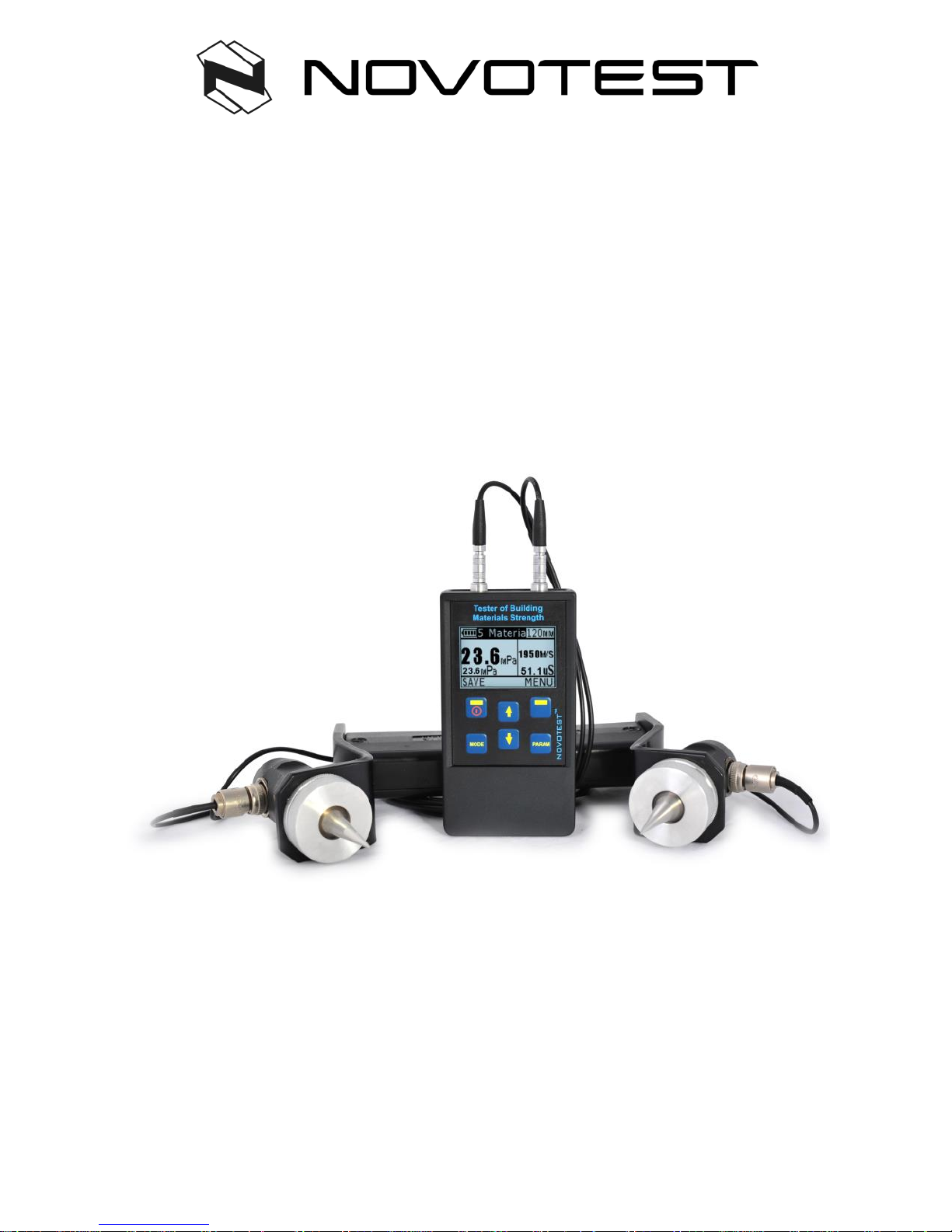

ULTRASONIC TESTER OF BUILDING
MATERIALS STRENGTH NOVOTEST
IPSM-U
Operating Manual
2015
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
1
CONTENTS
1. Introduction 2
2. Appointment 2
3. Specifications 3
4. Packing list 4
5. Labeling and packaging 5
6. Principle of operation 5
6.1. Operation options 5
6.2. Display 7
6.3. Keyboard 7
7. Device Menu 8
8. Operation 13
8.1. Preparation for use 13
8.2. Battery operation 13
8.3. Switching on and off of the device 14
8.4. Operating modes 14
8.5. Changing of the material and the measurement base 18
8.6. Measurements 19
9. Technical maintenance, special conditions of operation 22
10. Precautions and trouble shouting 24
11. Manufacturer’s guarantee and service maintenance 25
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
2
1. Introduction
The following operation manual explains the preparation, setup,
principles of operation, usage and troubleshooting of the Ultrasonic
Tester NOVOTEST IPSM-U.
Please, read this instructions carefully for operate the Ultrasonic
Tester NOVOTEST IPSM-U functions quickly and effectively.
In doing this you will be able to take full advantage of the function
range of the instrument. At the same time, you will also avoid errors
and wrong operation which in turn would cause incorrect test results
and thus could lead to injury and damage.
2. Appointment
2.1. Ultrasonic Tester NOVOTEST IPSM-U is designed to assess
the properties of solid materials and inspection time and velocity of
spreading and the shape of the received ultrasonic oscillations at the
surface and through-sounding.
2.2. The device allows detecting defects, determining strength,
density and modulus of construction materials, as well as audio
index abrasives on preset calibration curve parameter data of the
velocity of ultra-sound waves.
2.3. Main areas of application:
- determination of concrete strength according to GOST 17624-87;
- identifying defects in the concrete structures under anomalous
reduction velocity and form of displayed signals of ultrasonic waves;
- determination of the depth of cracks;
- determination of porosity and fracture anisotropy composite
materials and rocks;
- determination of modulus of elasticity and density of the materials.
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
3
2.4. The device produced with a basic configuration, focused on
heavy concrete middle marks. For other marks and materials
required calibration and adjustment in accordance with GOST
17624, GOST 24332 and methodological recommendations MDS
62-2.01 control the strength of concrete monolithic structures by
ultrasonic method of surface sounding.
2.5. The device provides a visualization of the received ultrasonic
waves (A signal), has a mode of the oscilloscope for viewing and
analyzing the signals A.
2.6 The device provides operation:
- at the surface sounding with the surface sounding probe on the
fixed base (120 ± 1) mm with a dry contact;
- at the through-sounding with ultrasonic probes at random basis
with contact lubricant or surface and angular sounding with dry
contact (protectors, conical nozzle) or with a lubricant on an random
basis.
2.7. Operating conditions: temperature range: from -20 ° C to 50 ° C,
relative humidity up to 80% non-condensing humidity, atmospheric
pressure 86 ... 106 kPa.
3. Specifications
Measuring range of ultrasonic pulse spreading
time, μs
10…999,9
Measurement resolution of time of ultrasonic
pulses, μs
0,01
The limits of permissible basic error spreading time
of ultrasonic pulses, μs
±(0,01t + 0,1),
where t –
measurement
time
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
4
The limit of additional measurement error spreading
time of the ultrasonic pulses in the deviation of the
operating temperature of the environment at every
10 °C within the operating range, portion of the
basic error of not more than
0,5
Fixed measurement base at surface sounding, mm
120 ±3
The absolute sensitivity of the instrument, dB, not
less
110
Limits of the changing of the intensification dB (1
dB step)
12 - 96
Limit of the period of probing pulses Hz
1
The operating frequency of the ultrasonic pulse kHz
60 and 100
Overall dimensions:
- electronic control unit
- through-sounding probe
- surface sounding probe
65х120х20
Ø30х70
200х100х55
Electronic control unit weight, kg, not more than
0,15
Probe weight kg, not more than
0,20
3.2. The device is powered by two NiMH rechargeable batteries or
other AA batteries with a nominal voltage of 1.5 V.
3.3. Time of continuous operation from a newly charged battery, at
least 10 hours.
4. Packing list
4.1. Electronic control unit - 1pc.
4.2. Probes:
Surface sounding probe
Through-sounding probe
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
5
4.3. Battery charger - 1 pc.
4.4. Recharge batteries AA type - 2 pc.
4.5. Case - 1 pc.
4.6. Manual - 1 pc.
4.7. Plexiglas testing sample - 1 pc.
4.7. Additional equipment:
5. Labeling and packaging
On the front panel of the unit there is the symbol of the instrument
with the trademark of the manufacturer. On the back panel, under
the battery cover there is device's serial number.
Information processing unit and probes are stored in a case that
would prevent them being damaged during transport.
6. Principle of operation
6.1. Operation options
6.1.1. The device operation is based on the measurement of the
ultrasonic pulse in the material product from the transmitter to the
receiver. Ultrasonic velocity is calculated by dividing the distance
between transmitter and receiver measured at the time.
6.1.2. The spreading velocity of the ultrasonic waves in the material
depends on its density and elasticity, the presence of defects
(cracks and voids), which determine the strength and quality.
Consequently, sounding elements of products, designs and
constructions can obtain information on:
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
6
- strength and uniformity;
- modulus of elasticity and density;
- the presence of defects and their location;
- form of A signal.
6.1.3. There are options are sounding with the lubricated and dry
contact (protectors, conical nozzle).
6.1.4. The device visualizing received ultrasonic waves (with flaw
detection mode), has built-in digital filters, improving the ratio of
"signal to noise ratio." Flaw detection mode allows you to view the
signals on the display (in the given time scale and intensification),
manually set the cursor to the position of the reference mark for the
first entry. The user can manually change the intensification
measurement channel and shift the axis of time for review and
analysis A signals (signals of the first entry and the enveloping).
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
7
6.2. Display
6.2.1. After switch on the screen appears:
6.2.2. After that, the unit automatically enter to the main mode of.
6.2.3. Other modes of operation are described in the relevant
sections of this manual.
6.3. Keyboard
6.3.1. The keyboard of the device:
Firmware
version
Serial number of
the device
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
8
6.3.2. The buttons:
– on / off the device, left soft key;
– right soft key;
– mode button;
– parameter selection button;
– move up in the menu, increase of input values;
– move down in the menu, reduction of input values.
7. Device Menu
7.1. After switching on, the device enter to the mode that was
before.
7.2. The presence of modes depends on the modification
7.2.1. IPSM-U – the simplest modification to measure the strength of
building materials:
7.2.1.1. Measurement strength;
7.2.1.2. Measurement density;
7.2.1.3. Measurement elastic modulus;
7.2.1.4. Measurement of the sound index.
7.2.2. IPSM-U+Т – additionally allows to test homogeneity, measure
depth of cracks. All modes are listed before: 7.2.1.1, 7.2.1.2, 7.2.1.3,
7.2.1.4, plus
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
9
7.2.2.1. Crack depth measurement mode (Russian method).
7.2.2.2. Crack depth measurement mode (English method).
7.2.3. IPSM-U+Т+D – flaw detector. All modes are listed before:
7.2.1.1, 7.2.1.2, 7.2.1.3, 7.2.1.4, 7.2.2.1 and p.7.2.2.2 plus
7.2.3.1. Flaw detector mode
7.3. Select modes of the device by pressing .
7.4. By pressing right soft key takes you to the menu of the
device, which contains the following items:
- Coefficients
- Calibration
- Threshold
- Backlight
- Power
- Memory
- Information
- Switch off
7.4.1. Coefficients
The item is used to set the individual calibration coefficients. For
each given material composition and each of the measured
parameters, strength, density, modulus of elasticity, the sound
index. User can independently carry out calibration on test samples
of concrete and enter the calibration coefficients for the dependence
of the "velocity of ultrasound - the measured value."
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
10
7.4.1.1. "The velocity of ultrasound - strength"
You need to set the coefficients that relate strength with velocity of
ultrasound. This is third degree polynomial (Eq. 1), and it has the
form:
R=A0+A1V+A2V2+A3V3 (1);
where,
R - strength (required in MPa);
V - the numerical value of the velocity of ultrasound;
Ai - coefficients (i = 0,1,2,3), are entered into the device in
exponential form MPa (e.g., if Ai = 256, it must be written as Ai =
+2,56 E +2, which corresponds to Ai = +2 56 * 102.)
Attention! The conversion coefficients for the calculation of the
strength must be entered only with MPa dimension.
7.4.1.2. "The velocity of ultrasound - density"
You need to set the coefficients that relate density with ultrasound
velocity. This is a second degree polynomial, and it has the form
(Eq. 2):
ρ=B
0+B1
V+B2V2 (2);
where,
ρ – density, g/cm3 t/m3;
V – the numerical value of the velocity of ultrasound;
В
i
– coefficients (i = 0,1,2), written in exponential form ( Bi = 256
should be written as Bi = +2,56 E +2, which corresponds Bi = 2,56 ⋅
10 2).
7.4.1.3. « The velocity of ultrasound – elastic modulus»
You need to set the coefficients relating the rate of ultrasound
velocity with an elastic modulus (Eq. 3):
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
11
E= *105 (3);
where,
Е – elastic modulus, GPa;
V – the numerical value of the velocity of ultrasound;
G – volumetric weight, t/m;
F – coefficient.
7.4.1.4. "The velocity of ultrasound - sound index"
You need to set the coefficients relating the rate of ultrasound
velocity with sound index (Eq. 4):
SI= K*V/100 (4);
where,
SI – sound index;
V – the numerical value of the velocity of ultrasound;
K – dimensionless coefficient (the ability to set the value from 1.0 to
1.2).
7.4.2. Calibration
The item "Calibration" is used to verify that the device operate
correctly and hardware delay compensation in the measuring
channel of the device. Calibration is performed on a control sample.
To enter in calibration press «SELECT» , place the probe on
the control sample, and press the up or down keys for setting
conformity display value time with the time specified on the control
sample.
γ*V
9,81*φ
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
12
7.4.3. Threshold
This menu item is required to set the trigger level of the comparator.
With the factory settings threshold comparator device is set to the
first entry and the half-wave is ________ μs.
Do not change this setting without necessary.
If you change the parameter, return it to the factory settings, or
achieve the minimum velocity of ultrasonic waves on the selected
base.
7.4.4. Backlight
On and off the backlight.
7.4.5. Power
Turning on the power for remote control (a special version of the
device).
7.4.6. Memory
Operation with memory of the device.
7.4.7. Information
Information about the manufacturer, the device version and serial
number.
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
13
8. Operation
8.1. Preparation for use.
8.1.1. Connection of the probe.
Connect the receiver and the transmitter to the connectors on the
top of the electronic processing unit.
Attention! To prevent instrument failure and loss guarantee,
connection to the instrument cables of the probe must be doing
with the power off device, preventing accidental circuit of the
output device on one of its input connectors.
8.2. Battery operation
8.2.1. Install the battery into the battery compartment, observing the
proper polarity.
8.2.2. To control the battery charge, turn on the device by long
pressing the button .
8.2.3. Battery level is shown on the top left of the display electronics
unit symbol "battery." Completely dark square inside the symbol
indicates a full charge the battery. The battery squares disappear
sequentially, from left to right. One dark square or squares absence
means need to recharge the battery. The "battery" is on display in
any mode of the device.
8.2.4. To charge the battery, turn off the device by long pressing the
button , and then remove the battery from the battery
compartment and make its charge in accordance with p. 8.2.5.
8.2.5. Charging the battery
To charge the battery:
- connect the battery to the charger contacts;
- turn the charger in socket.
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
14
Time of full charge the battery - 14 hours. Do not leave the charger
unattended while charging. To avoid failure of the battery during
storage battery recharging is necessary to carry out with time
interval at least 2 months, even if it is not used.
8.3. Switching on and off of the device.
8.3.1. Prepare the device in accordance with p. 8.1, and turn it on by
long pressing the button .
After pressing the button the device will switch on. After turning on
the device goes to the main mode and the it is ready for
measurement.
8.3.2. Long press the button turns off the device.
8.4. Operating modes.
The device has the following modes:
- Strength measurement mode;
- Density measurement mode;
- Modulus of elasticity measurement mode;
- Sound Index measurement mode;
- The mode of measuring the depth of the crack (Russian method),
the version of the device IMSP- U + T;
- The mode of measuring the depth of the crack (English method),
version of the device IMSP- U + T;
- Flaw detector mode, device version IMSP- U + T + D.
Switching modes of the device with button .
8.4.1. Strength measurement mode.
Strength measurement mode has the form:
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
15
8.4.2. Density measurement mode.
Density measurement mode has the form:
Measurement
base
Material
Battery Indicator
Strength of the
material
Ultrasonic velocity
in the material
Time of passing of
ultrasonic waves
on the basis
Fixation of the value, after
which it can be saved
Menu enter
Measurement
base
Material
Battery Indicator
Density of the
material
Ultrasonic velocity
in the material
Time of passing of
ultrasonic waves
on the basis
Fixation of the value, after
which it can be saved
Menu enter
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
16
8.4.3. Modulus of elasticity measurement mode.
Modulus of elasticity measurement mode has the form:
8.4.4. Sound Index measurement mode.
Sound Index measurement mode has the form:
Measurement
base
Material
Battery Indicator
Modulus of
elasticity of the
material
Ultrasonic velocity
in the material
Time of passing of
ultrasonic waves
on the basis
Fixation of the
value, after which it
can be saved
Menu enter
Measurement
base
Material
Battery Indicator
Sound Index of
the material
Ultrasonic velocity
in the material
Time of passing of
ultrasonic waves
on the basis
Fixation of the
value, after which it
can be saved
Menu enter
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
17
8.4.5. The mode of measuring the depth of the crack (Russian
method) has the form:
8.4.6. The mode of measuring the depth of the crack (English
method) has the form:
Measurement
scheme
Measurement
base
Menu enter
Fixation of the
value according
to the scheme
Measurement
scheme
Measurement
base
Menu enter
Fixation of the
value according
to the scheme
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
18
8.4.7. Flaw detector mode
8.4.7.1. At the top right of the screen displays the parameter to
change:
- intensification;
- delay of the scanning;
- duration of the scanning;
- marker movement along the X axis;
- marker movement along the Y axis (changes in the level of the
comparator response, the parameter "threshold" п.7.4.3).
8.4.7.2. To select parameter of flaw detector press the button .
8.5. Changing of the material and the measurement base.
The selected material and measurement base are displayed at the
top of the screen. Choosing a variable parameter (material or base)
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
19
by pressing . The selected option becomes inverted. Change
the parameter by pressing the or .
8.6. Measurements.
8.6.1 Surface sounding.
Surface sounding performed with the surface sounding probes on
holder with the fixed base (120 ± 1) mm. Install the probe on the
surface of the test object with cone nozzles, to hold fixed in the
plane perpendicular to the surface and press with a load of 5 - 10
kg. Controlling on the display the measured time T to ensure its
stability and the deviation of the time on the 0.1 ... 0.2 μs from the
displayed value, press the function button "SAVE" , fixing the
measured parameter. To continue the series of measurements on
other areas of the object, need to fix each measurement of the
series by pressing the button "SAVE" .
8.6.2. Through-sounding.
The through-sounding with additional ultrasonic probes for throughsounding on the random bases with the contact lubricante or with
dry contact (protectors, conical nozzle).
For each particular through-sounding method (contact grease,
protectors, cone nozzles) it is necessary to calibrate the device on
the control sample, in accordance with p.7.4.2.
Use a ruler to measure the thickness of the test object at the
planned area of measurement, and enter it in accordance with p.8.5.
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
20
up to 1 mm. Install sensors coaxially along the line sounding on
opposite sides of the test object, press lapping to the surface.
Controlling on the display the measured time T to ensure its stability
and the deviation of the time on the 0.1 ... 0.2 μs from the displayed
value, press the function button "SAVE" , fixing the measured
parameter. For the next measurement remove probes from the
object and similarly make the measurement on the next area. At the
end of the measurements - the average value of the measured
parameter will shown on the display.
8.6.3. Measuring the depth of the crack.
The display shows the schematic of the probes for this mode. For
the measurement install the probes as shown in the picture below
and get first measurement. Then press the function button "SAVE"
, (for fixing the first stage of measurement), move the probe
according the new scheme, and get the second measurement. After
next pressing the function key "SAVE" , display shows the
calculated value of the crack depth.
According to the procedure adopted in Russia probes installed
according to the following scheme:
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
21
where,
l – measurement base through a crack in the concrete (the position
of the probes B-P1), the crack is located exactly in the middle, and
the time of spreading waves – t1;
а – measurement base on "clean" concrete - without defects (the
position of the probes B-P2), provided always a = l, and the time of
spreading waves – tа.
According to the procedure adopted in the United Kingdom
(standard BS 1881 р.203) is used difference scheme of installation
the probes:
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
22
First, probes are installed on the 1-2 point scheme (crack is in the
middle, ie l = 2x), and the time t1, then the probes are installed at the
point of 3-4 (crack - in the middle l = 4x), time is measured t2 and
when you press the function key "SAVE" the depth of the
crack calculates automatically.
8.5.4. If after the change of area on the tested object speeds
significantly different from each other, it is necessary to verify the
compliance of the installation base of measurement and quality of
acoustic coupling of the "probe-object", defects in the concrete and
reinforcement effect.
9. Technical maintenance, special conditions of operation
9.1 On the whole, Ultrasonic Tester of Building Materials Strength
do not require any special maintenance. However, for the purpose of
device stable operation, regular maintenance is advisable.
9.2. Probe maintenance
Clean probes from dust, mud and oil traces. Use soft cloth
impregnated with alcohol solution.
9.3. Information processing unit maintenance
To clean from any pollution, use soft dry cloth. Do not use the water,
since the device is neither spray-proof nor water-proof due to the
joints on its body.
Do not use any solvents, they can damage indication signs and
writings on the front and back sides of the body.
9.4. Battery maintenance
The battery average life is not less than 3 years. The battery used in
compliance with the "C" or "AA" international standard. It is done for
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
23
the convenience of it s replacement when it is required or sharp
reduction of the continuous operation time independently of the
country. Replacement is possible only by the battery with similar
characteristics in compliance with the marking on it. From
environmental protection point of view, the best thing is to use the
battery.
9.5. Storage
9.5.1. Device shall be kept in the carry case, the probe and the
batterys shall be disconnected.
9.5.2. If device is kept in the carry case for than 14 days, the battery
shall be taken out from its compartment in the information
processing unit.
9.5.3. It is recommended to keep device in closed premises with the
relative humidity not more than 80%, there shall be no mold, paints,
acids, chemical agents and other chemicals, the evaporation of
which my give a harmful effect. Sharp fluctuations of temperature
and humidity which can result in dew formation are not allowed.
9.6. Transportation
9.6.1. Device transportation in the carry case shall be only in closed
vehicles, where the possibility of mechanical damage or
atmospheric precipitation is excluded.
9.6.2. The way packed in carry cases devices are located inside the
vehicle shall exclude.
9.7. Putting into operation after storage and transportation.
After storage or transportation under the temperature lower than -
5°C, before starting device operation, it is necessary to keep it not
longer than 1 hour under the temperature higher than +10°C and not
less than 2 hours under the temperature higher than 0°C.
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
24
9.8. Special operation conditions
9.8.1. Increased dust content and humidity. Put the information
processing unit of device into a transparent plastic bag. Tighten it at
the level of connective cable a bit lower than the probe plug.
After the work under such conditions is finished, information
processing unit shall taken out of the plastic bag and air it.
9.8.2. Frost (<0°C). Information processing unit is the most sensitive
to low temperature part of the device, especially LCD. If there is a
possibility, keep the device closer to your body and protect it with
your coat or keep in the inside pocket, taking it out time from time for
inputting the data into the archive.
10. Precautions and trouble shouting
10.1. Treat the device with care. Any wrong treatment may result in
the violation of the present Technical Reference and Operation
Manual regulations and, thus, lead to the manufacturer device
warranty cessation.
10.2. Always check the integrity of the cables, Information
processing unit and probes. Provide immediate replacement of the
damaged parts by the original ones. This job shall be performed by
skilled personnel.
10.3. Do not expose the device to aggressive chemical medium.
10.4. Do not leave the device in the direct Sun.
10.5. Do not sink the device into any liquids. If the device gets wet,
take the battery out and leave for 24 hours to get dry. If the device is
used under the increased humidity or dust conditions, place the
information processing unit into the plastic bag. After work period is
over, it is mandatory to get the device dry.
Development and manufacturing of non-
destructive testing units and system
Ultrasonic Tester of Building Materials Strength NOVOTEST IPSM-U
25
11. Manufacturer’s guarantee and service maintenance
11.1. In case when device (information processing unit and probes),
supplied by the Seller within one year since the delivery date used
properly, appear defective, the Seller shall repair or replace them or
supply new parts therefore and send them to the Buyer. The other
parts of the device (battery, charger, bag) warranty does not cover.
The Buyer must prepay any shipping charges, taxes, or duties
associated with transportation of the product to the service location,
and Seller pays return shipping and associated costs. In addition,
the Buyer shall be responsible for insuring any product shipped or
returned to an authorized service location, and the Buyer shall bear
risk of loss during shipping to the service location, and Seller all
risks during delivery to the Buyer. In order to exercise its rights the
Buyer shall inform the Seller as soon as possible after the date
when such defect appeared.
11.2. Prepare technically grounded reclamation document and send
it together with the device to the guarantee service or to the
manufacturer at the address: Scientific and Technical Centre
“Industrial devices and technologies " Ltd., 51200. Ukraine,
Novomoskovsk, Spasskaya str., 5, Phone: +38067 593 59 77
11.3. Post guarantee maintenance is conducted by the manufacturer
service centre upon the Customer request.
Loading...
