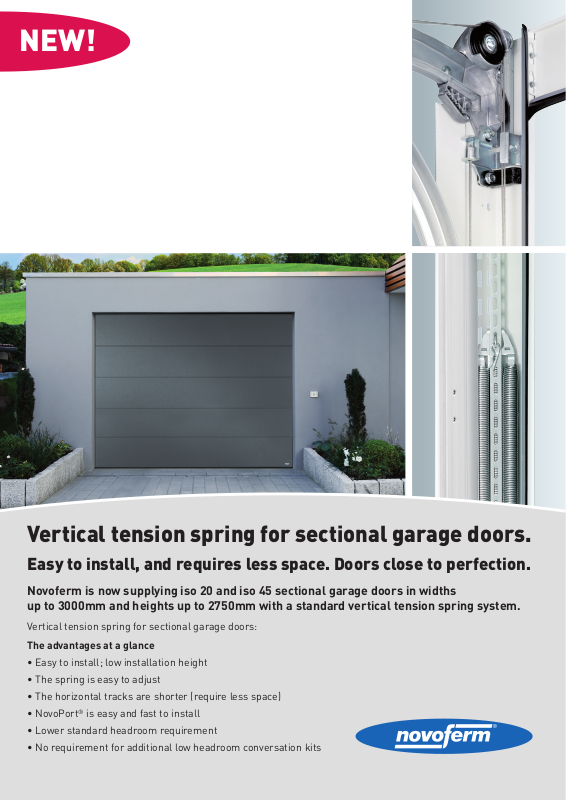

Novoferm Vertical tension spring User Manual

NEW!

Vertical tension spring for sectional garage doors.

Easy to install, and requires less space. Doors close to perfection.

Novoferm is now supplying iso 20 and iso 45 sectional garage doors in widths
up to 3000mm and heights up to 2750mm with a standard vertical tension spring system.

Vertical tension spring for sectional garage doors:

The advantages at a glance

• Easy to install; low installation height

• The spring is easy to adjust

• The horizontal tracks are shorter (require less space)

• NovoPort

• Lower standard headroom requirement

• No requirement for additional low headroom conversation kits

®

is easy and fast to install

1

3

2

5

4

Vertical tension spring for sectional garage doors.

1

Interference-protected deflection pulley

The steel cables run vertically into the angular frame on interference-protected deflection pulleys mounted on ball bearings with
U-shaped caster holders. This reduces the height requirement compared to the front-mounted torsion spring.

New cable mount

2

Together with the new steel cable holder, the newly designed cable mount with integrated door guide keeps the steel cables
running smoothly in the angular frame without them touching the sections.

Integrated belt fastening

3

The newly designed moulded end piece contains an integrated fastener for the NovoPort
fastened securely in the holder.

Multiple tension spring assemblies

4

The tension spring garage doors are equipped with sturdy multiple tension spring assemblies. The springs are adjusted at
the top end of the assembly. The vertical tension springs require less installation depth and open up new possibilities when
space is confined.

NovoPort

5

The NovoPort

®

– Unique technology & flexible installation at the side

®

operator system not only offers maximum convenience during operation, but also during installation. After all,
the motor is not fixed to the ceiling like conventional operators, but simply integrated into the side garage door track – either
on the left or the right depending on the structural conditions. Therefore no ceiling assembly is required and any installation
problems are ruled out from the outset. All structural components are pre-assembled in the factory and matched to each other
– simply install where required and you’re ready to go! You save a great deal in assembly costs – which is why the NovoPort
system costs quite a lot less when bought as a complete package.

®

belt. The maintenance-free belt is

®

We are introducing these new systems over the forthcoming months. Should you specifically require this new system you must please
check UK stock availability.

For express delivery from our UK production, please refer to the new 2014 retail price list.
